ZET1RM
28-1/2" Min.
28-5/8" Max.
27-1/4" Min.
27-5/16" Max.
23-1/2"
Min.
Locate Junction Box 22"
Above Cutout Floor, Within 5"
of Right Rear Wall
30"
28-1/4"
23-1/4"
Recessed
Depth
29-3/4"
32-1/2"
Locate Junction Box 22"
Above Cutout Floor, Within 5"
of Right Rear Wall
28-1/4"
23-1/4"
Recessed
Depth
29-3/4"
Note: Install the
oven only with
specific models
listed on the label
located on top of
the oven.
2 (5.1 cm) Min.
2 (5.1 cm) Min.
Per Advantium or
Microwave Oven
Requirement
Per Warming Drawer
Requirement

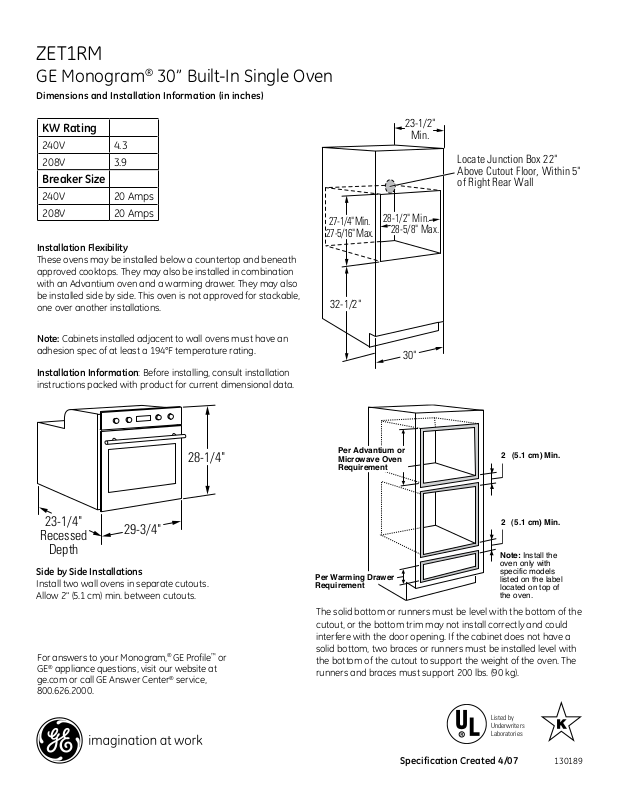

GE Monogram® 30” Built-In Single Oven
Dimensions and Installation Information (in inches)
KW Rating
240V 4.3
208V 3.9
Breaker Size
240V 20 Amps
208V 20 Amps
Installation Flexibility
These ovens may be installed below a countertop and beneath
approved cooktops. They may also be installed in combination
with an Advantium oven and a warming drawer. They may also
be installed side by side. This oven is not approved for stackable,
one over another installations.
Note: Cabinets installed adjacent to wall ovens must have an
adhesion spec of at least a 194°F temperature rating.
Installation Information: Before installing, consult installation
instructions packed with product for current dimensional data.
Side by Side Installations
Install two wall ovens in separate cutouts.
Allow 2" (5.1 cm) min. between cutouts.
For answers to your Monogram,® GE Profile™ or
GE® appliance questions, visit our website at
ge.com or call GE Answer Center® service,
800.626.2000.
The solid bottom or runners must be level with the bottom of the
cutout, or the bottom trim may not install correctly and could
interfere with the door opening. If the cabinet does not have a
solid bottom, two braces or runners must be installed level with
the bottom of the cutout to support the weight of the oven. The
runners and braces must support 200 lbs. (90 kg).
Listed by
Underwriters
Laboratories
Specification Created 4/07
130189
HOME
OVEN
LIGHT
HELP
BACK
OPTIONS
CLEAR
OFF
ZET1RM
GE Monogram® 30” Built-In Single Oven
Features and Benefits
• Electronic Touchscreen with Proximity
Sensor - Provides easy, intuitive access
to oven functions and options
• Halogen Light Columns - On the oven walls
provide brilliant task lighting for each
rack position
• Exclusive Self-Cleaning, Full-Extension Oven
Racks - Glide in and out smoothly on stainless
steel ball bearings, and are designed to be left in
the oven during the self-clean cycle
• 4.4 Cu. Ft. Capacity - Easily accommodates even
the largest meals
• True Hidden Bake Element - Concealed beneath
the oven floor, allowing additional capacity and
improved cleanability
• Reverse-Air Convection System - Uses an
innovative fan that reverses direction for optimal air and heat circulation,
providing even cooking and multi-rack baking capability
• Six-Element Design - Two bake, two broil and two convection elements
provide precise cooking control, with fast preheating
• 208V Performance Compensation - Utilizes the six-element design
to boost power in reduced-voltage installations
• Signature Tubular Handles - Are smooth, sleek and easy to grasp
• Hand-Finished Edges - Reflect the meticulous quality and craftsmanship
for which Monogram products are renowned
• Two Broil Elements with Reflector Shield - Offer intense,
dual-zone broiling
• Large Viewing Window - Allows you to view your culinary work
in progress
• Standard GE Dimensions - Match the industry’s preferred cutout sizes
for remarkably simple installation
• Model ZET1RMSS - Stainless steel
Specification Created 4/07
130189
