GE ZDP36L4RHSS4, ZDP36N4RHSS4 User Manual

22"

1-1/2"

35-1/4"

36-3/4"

28-1/4"

35-7/8"

Optional

Backsplash

12"

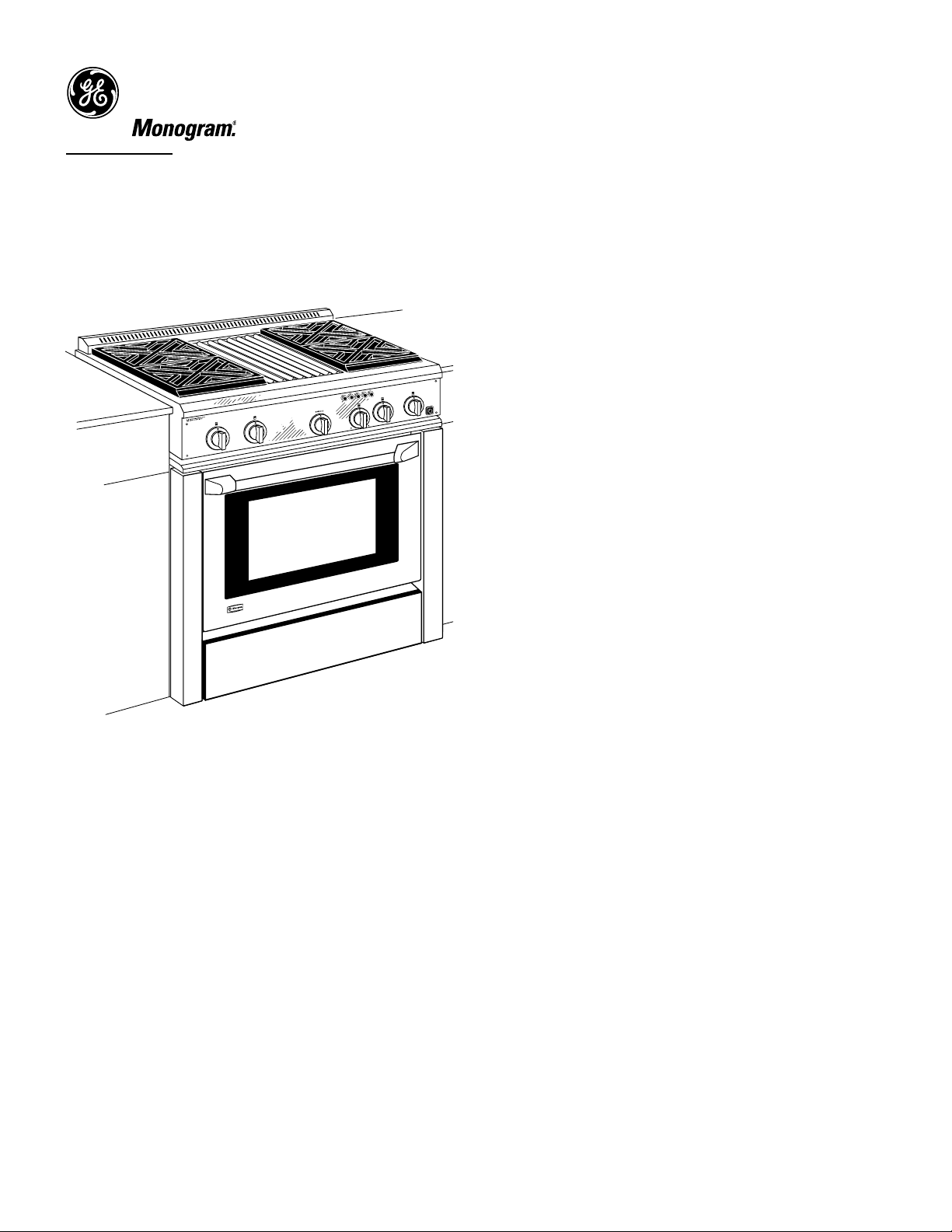

ZDP36N4RHSS (Natural Gas) ZDP36L4RHSS (Liquid Propane) – GE Monogram 36" Dual Fuel Professional Range

with 4 Burners and Grill

Dimensions and Clearances (in inches)

Professional ranges offer a number of choices in size and cooktop conﬁgurations.

All Professional Ranges are factory set for natural or liquid propane gas. The correct model should be ordered for the installation situation.

36" Natural Gas Model ZDP36N4RHSS–4 gas burners and grill

36" Liquid Propane Gas Model ZDP36L4RHSS–4 gas burners and grill

Note: Conversion kits (WB49X10132, Natural to LP and WB49X10133, LP to Natural) are available if the wrong gas type was ordered. High Altitude kit, WB49X10130 (for Natural and LP gas models), is also available. The kits must be installed by a qualified service technician at additional cost.

Installation Information

Before installing, consult installation instructions packed with product or online at Monogram.com for current dimensional data.

A 36" or 42" wide professional vent hood with a minimum 600 CFM is recommended for installation over this range.

Advance Planning

Refer to dimensional drawings for appropriate placement and necessary clearances when planning the installation.

• Cabinetry cannot be installed directly above the range.

• Working areas adjacent to the range should have 18" minimum clearance between countertop and cabinet bottom.

• Clearance between range and side wall or combustible material must be at least 12" on each side.

If the range is installed in an island

• Allow 12" minimum clearance at the back to combustible materials.

• The vent hood blower should provide at least 600 CFM and up to 1200 CFM.

• Installation must conform with local codes. In the absence of local codes, the range must comply with the National Fuel Gas Code, ANSI Z223.1-1990.

Clearances between range and side wall or combustible material must be at least 12" on each side.

Speciﬁcation Revised 10/05

130544

Listed by Underwriters Laboratories

For answers to your Monogram,® GE Proﬁle™ or GE® appliance questions, visit our website at GEAppliances.com or call GE Answer Center® service, 800.626.2000.

Backguard

36" Min.

Combustibles

0" Clearance

12" Min. to Combustibles or 0" Min. to Combustibles with 12" or 22" Backsplash

12"

Gas

Supply

36"

1-1/2"

Electric

Supply

ZDP36N4RHSS (Natural Gas) ZDP36L4RHSS (Liquid Propane) – GE Monogram 36" Dual Fuel Professional Range

with 4 Burners and Grill

Electrical Requirements

Ranges must be supplied with 208/240V, 60Hz, and connected to an individual, properly grounded branch circuit protected by a circuit breaker or time-delay fuse. Install a 30-amp circuit for 36" ranges. The receptacle must be a NEMA 14-50R device to accept the four-prong plug on the range.

Locate gas and electric as shown

Gas Supply

• Natural gas models are designed to operate at 5" water column pressure. A regulator is required at the natural gas source to provide maximum of 7" water pressure to the range regulator.

• The liquid propane models are designed to operate at 10" water column pressure. A regulator is required at the LP source to provide maximum of 14" water pressure to the range regulator.

Optional Backsplash Accessories

The range requires a 12" minimum clearance to a vertical combustible surface at the rear. A backsplash is required for installations with less than 12" clearance. The following backsplash accessories are available, or a custom, non-combustible backsplash can be used.

Backsplashes: Order one with a 36"-wide range ZX12B36HSS–12" backsplash ZX22B36HSS– 22" backsplash with warming shelf

Backsplash with Warming Shelf

All Monogram Professional Wall-Mounted Hoods feature infrared warming lights. The 22"-high backsplash with warming shelf is a perfect complement when installed with the tapered or straight-sided hoods. If you choose to install this range with a Restaurant-Style Professional Hood (ZV36RSFSS), no additional accessories are required. These hoods are shipped with a stainless steel backsplash and warming shelf.

Side View with Required Backsplashes

Speciﬁcation Revised

130544

10/05

Listed by Underwriters Laboratories

For answers to your Monogram,® GE Proﬁle™ or GE® appliance questions, visit our website at GEAppliances.com or call GE Answer Center® service, 800.626.2000.
