GE ZDP36L4DD1SS, ZDP36N4DD1SS, ZDP36N4RWSS Installation Guide
I nogranz'

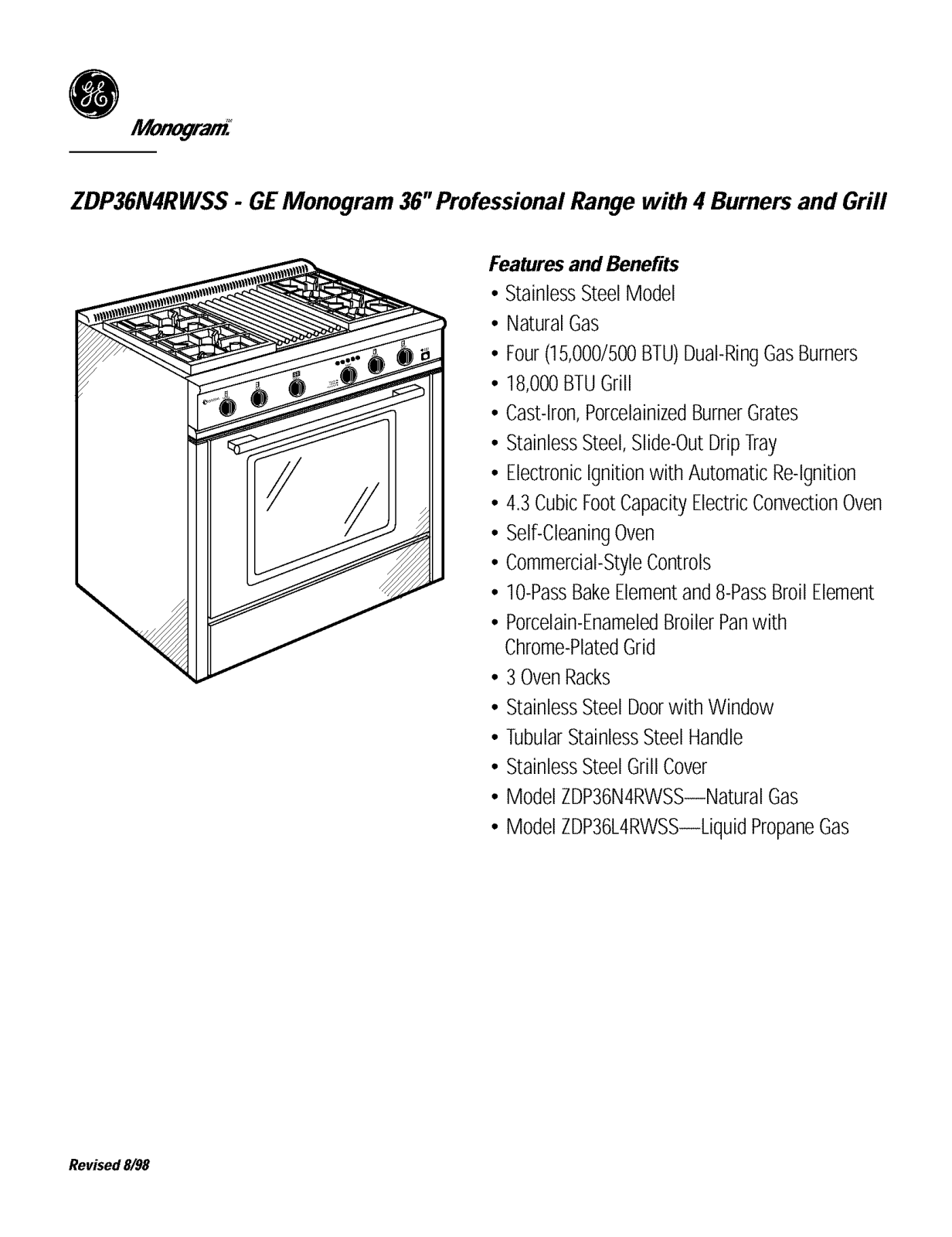

ZDP36N4RWSS - GEMonogram 36"Professional Range with 4 Burners and Grill

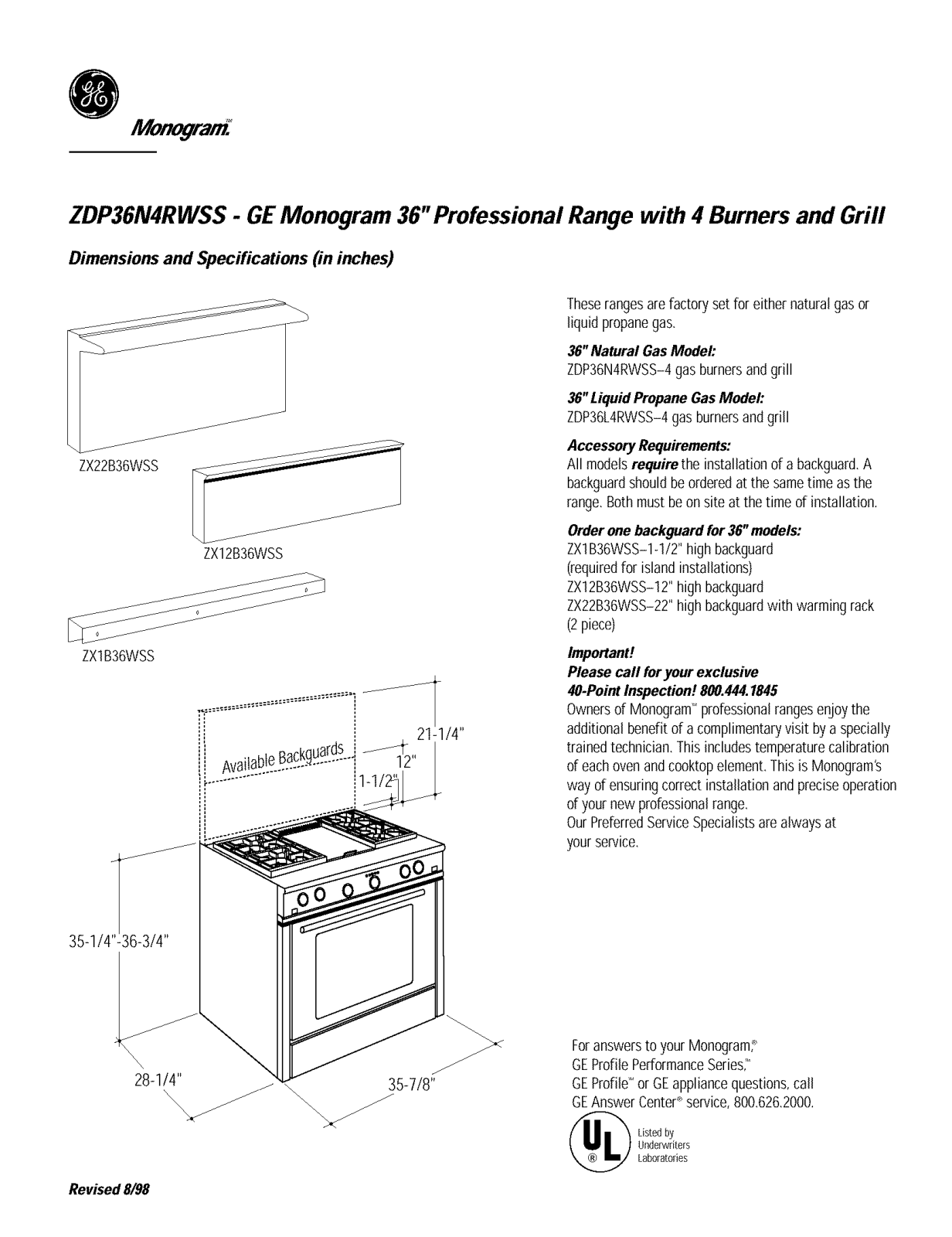

Dimensions and Specifications (in inches)
Theserangesarefactorysetfor eithernaturalgasor
liquidpropanegas,
36"NaturalGasModel."
ZDP36N4RWSS-4gasburnersandgrill
36"LiquidPropaneGasMode#
ZDP36L4RWSS-4gasburnersandgrill
AccessoryRequirements:
ZX22B36WSS
ZXl2B36WSS
All modelsrequirethe installationof a backguard,A
backguardshouldbe orderedatthe sametimeasthe
range,Bothmustbeonsite at the time of installation.
Orderonebackguardfor36"models:
ZX1B36WSS-l-1/2"highbackguard
(requiredfor islandinstallations)
ZX12B36WSS-12"highbackguard
ZX22B36WSS-22"highbackguardwith warmingrack
(2piece)
ZX1B36WSS
35-I/4'-36-3/4
Important!
Pleasecall foryour exclusive
40-PointInspection!800.444.1845
Ownersof Monogram professionalrangesenjoythe
additionalbenefitof acomplimentaryvisit bya specially
trainedtechnician,Thisincludestemperaturecalibration
of eachovenandcooktopelement,Thisis Monogram's
way of ensuringcorrectinstallationandpreciseoperation
of yournewprofessionalrange,
OurPreferredServiceSpecialistsarealwaysat
yoursewice,
Foranswersto yourMonogram:'
GEProfilePerformanceSeries,"
GEProfile'_or GEappliancequestions,call
GEAnswerCente¢'service,800,626,2000.
Re vised 8/98
Underwriters
Listedby
Laboratories
I nogranz'
ZDP36N4RWSS - GEMonogram 36"Professional Range with 4 Burners and Grill

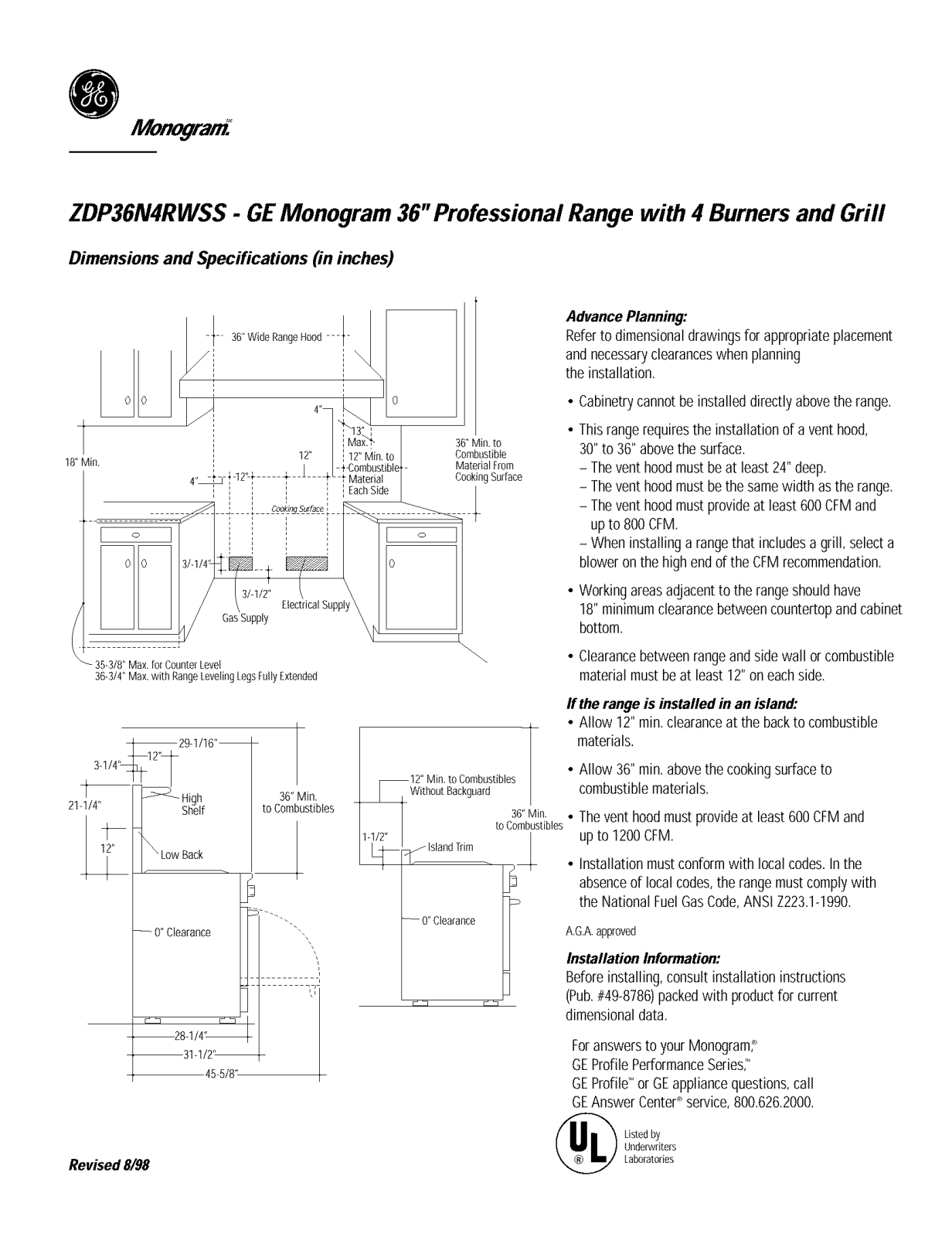

Dimensions and Specifications (in inches)
AdvancePlanning:
Referto dimensionaldrawingsfor appropriateplacement
andnecessaryclearanceswhen planning
theinstallation,
• Cabinetrycannotbeinstalleddirectlyabovetherange,
18"MEn
GasSupply
35-3/8' Max for CounterLevee
36-3/4' Max with RangeLeveEingEegsruNy Extended
-- 0>'Cbarance
F_ F_
_8 1/4"
311/2--
45 5/8
36"Min
to Combustibles
\
1.112'<
o
0
_lsland Irim
--O<'Clearance
36"Minto
Combustible
MatedalFrom
CookingSurface
• Thisrangerequiresthe installationof a venthood,
30"to36"abovethe surface,
- Thevent hoodmustbeat least24"deep.
- Thevent hoodmustbethesamewidth astherange,
- Thevent hoodmustprovideat least600CFMand
upto 800CFM.
- Wheninstallinga rangethat includesagrill,selecta
bloweronthehighendof the CFMrecommendation.
• Workingareasadjacenttotherangeshouldhave
18"minimumclearancebetweencountertopandcabinet
bottom,
• Clearancebetweenrangeandside wall orcombustible
materialmustbeat least12" oneachside,
ff the range is installedin an island:
• Allow 12"min,clearanceat the backto combustible
materials.
• Allow 36"min,abovethecookingsurfaceto
combustiblematerials.
36 Mn •
toCo!_bu!tibles'''o Theventhoodmustprovideat least600CFMand
upto 1200CFM.
• Installationmustconformwith localcodes.Inthe
_3 absenceof localcodes,therangemustcomplywith
the NationalFuelGasCode,ANSIZ223.1-1990,
AGA approved
InstallationInformation:
Beforeinstalling,consultinstallationinstructions
(Pub,#49-8786)packedwith productforcurrent
dimensionaldata.
Foranswersto yourMonogram:'
GEProfilePerformanceSeries?
GEProfile"or GEappliance questions, call
GEAnswerCenter_'service,800.626.2000.
Revised8/98
(_ isted by
Underwriters
Laboratories
