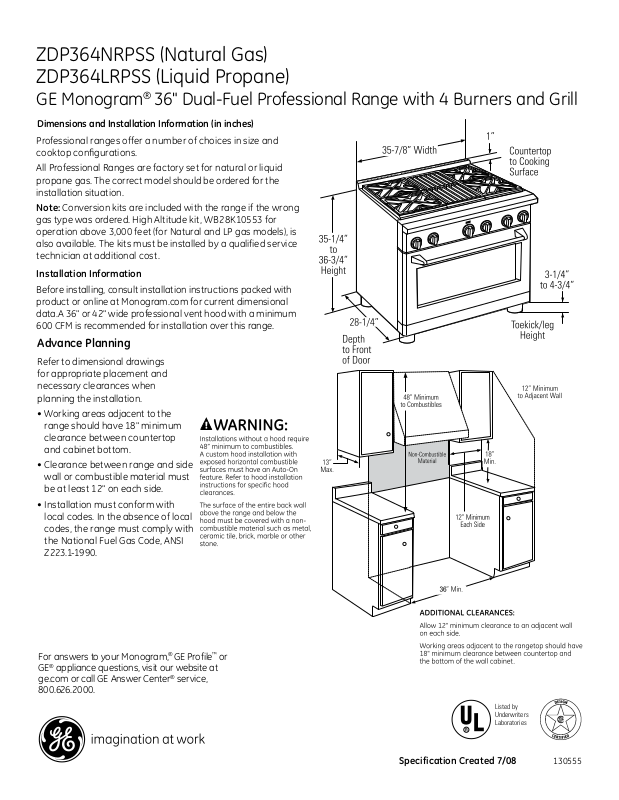

ZDP364NRPSS (Natural Gas)
ZDP364LRPSS (Liquid Propane)
GE Monogram® 36" Dual-Fuel Professional Range with 4 Burners and Grill
Dimensions and Installation Information (in inches)
Professional ranges offer a number of choices in size and
cooktop configurations.
All Professional Ranges are factory set for natural or liquid
propane gas. The correct model should be ordered for the
installation situation.
Note: Conversion kits are included with the range if the wrong
gas type was ordered. High Altitude kit, WB28K10553 for
operation above 3,000 feet (for Natural and LP gas models), is
also available. The kits must be installed by a qualified service
technician at additional cost.
Installation Information
Before installing, consult installation instructions packed with
product or online at Monogram.com for current dimensional
data.A 36" or 42" wide professional vent hood with a minimum
600 CFM is recommended for installation over this range.
Advance Planning
Refer to dimensional drawings
for appropriate placement and
necessary clearances when
planning the installation.
• Working areas adjacent to the
range should have 18" minimum
clearance between countertop
and cabinet bottom.
• Clearance between range and side
wall or combustible material must
be at least 12" on each side.
• Installation must conform with
local codes. In the absence of local
codes, the range must comply with
the National Fuel Gas Code, ANSI
Z223.1-1990.
For answers to your Monogram,® GE Profile™ or
GE® appliance questions, visit our website at
ge.com or call GE Answer Center® service,
800.626.2000.
Listed by
Underwriters
Laboratories
Specification Created 7/08
130555
ZDP364NRPSS (Natural Gas)
ZDP364LRPSS (Liquid Propane)
GE Monogram® 36" Dual-Fuel Professional Range with 4 Burners and Grill
Dimensions and Installation Information (in inches)
Electrical Requirements
Ranges must be supplied with 208/240V, 60Hz, and
connected to an individual, properly grounded branch circuit
protected by a circuit breaker or time-delay fuse. Install a 30-
amp circuit for 36" ranges. The receptacle must be a NEMA
14-50R device to accept the four-prong plug on the range.
Universal Utility Locations
Optional Backsplash Accessories
The range requires a 12" minimum clearance to a vertical
combustible surface at the rear. A backsplash is required
for installations with less than 12" clearance. The following
backsplash accessories are available, or a custom, noncombustible backsplash can be used.
Order one with a 36"-wide range backsplash
ZX12B36PSS–12" backsplash
ZXADJB36PSS– 30"-36" adjustable-height backsplash with
warming shelf
Locate gas and
electric as shown
Gas Supply
• The natural gas models are designed to
operate at 5" water column pressure.
For proper operation, the pressure of
the natural gas supplied to the regulator
must be between 7" and 13" water
column.
• The LP models are designed to operate
at 10" water column pressure. For
proper operation, the pressure of the LP
gas supplied to the regulator must be
between 11" and 13" water column.
For answers to your Monogram,® GE Profile™ or
GE® appliance questions, visit our website at
ge.com or call GE Answer Center® service,
800.626.2000.
Side View with Required Backsplashes
Listed by
Underwriters
Laboratories
Specification Created 7/08
130555
ZDP364NRPSS (Natural Gas)
BACK FRONT GRILL BACK FRONT
TIMER
PUSH TO
SELECT
O
F
F
B
R
O
I
L
P
R
O
O
F
C
L
E
A
N
R
O
A
S
T
B
R
O
I
L
B
A
K
E
C
O
N
V
.
C
O
N
V
.
C
O
N
V
.
ZDP364LRPSS (Liquid Propane)
GE Monogram® 36" Dual-Fuel Professional Range with 4 Burners and Grill
Features and Benefits
• Authentic Professional appearance with premium-
grade, 304 stainless steel with smoothly finished
edges, large electronic control knobs and heavy
duty handles
• Sealed, dual-ame stacked burners deliver a full
spectrum of heat settings, from an ultra-low 140˚F
simmer to an intense 18,000 BTUs*
• Monogram Professional oven system combines
European, Reverse-Air convection technology and six
heating elements to provide superb baking results
• Heavy-duty, full-extension racks glide smoothly in
and out on stainless steel ball bearings for easy
access, and are designed to remain in the oven
during the self-clean cycle
• LED task lights below the bullnose provide a
functional and theatrical touch
• The ceramic-infrared grill has 14,000 BTUs* of
adjustable heat. The cooking grate is grooved on
one side to create sear marks and rounded on the
other for delicate foods
• Electronic ignition with automatic reignition ensures
a continuous ame and reignites automatically if
accidentally extinguished
• Reversible burner grates are at on one side and
uniquely contoured on the other to accommodate
round-bottom woks
• A caterer's oven is uniquely sized to accommodate
three full-size sheet trays
• Halogen light columns provide a clear view,
regardless of rack position
• Model ZDP364NRPSS - Natural Gas*
• Model ZDP364LRPSS – Liquid Propane
For answers to your Monogram,® GE Profile™ or
GE® appliance questions, visit our website at
ge.com or call GE Answer Center® service,
800.626.2000.
Specification Created 7/08
130555
