GE WJSR4160G Specification

WJSR4160G

GE® 3.2 Cu. Ft. Super Capacity Washer

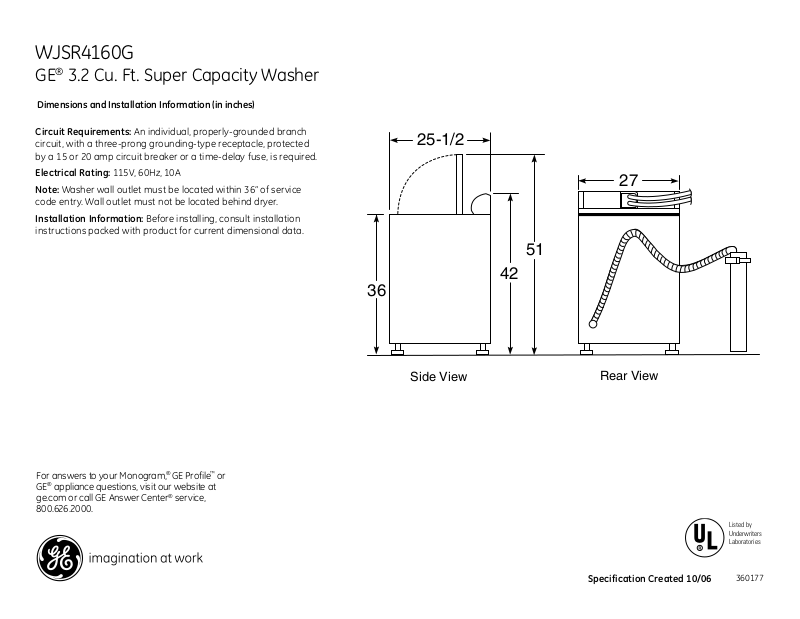

Dimensions and Installation Information (in inches)

Circuit Requirements: An individual, properly-grounded branch circuit, with a three-prong grounding-type receptacle, protected by a 15 or 20 amp circuit breaker or a time-delay fuse, is required.

Electrical Rating: 115V, 60Hz, 10A

Note: Washer wall outlet must be located within 36” of service code entry. Wall outlet must not be located behind dryer.

Installation Information: Before installing, consult installation instructions packed with product for current dimensional data.

25-1/2

Rear View

Side View

For answers to your Monogram,® GE Profile™ or GE® appliance questions, visit our website at ge.com or call GE Answer Center® service, 800.626.2000.

Listed by

Underwriters

Laboratories

Specification Created 10/06

360177

WJSR4160G

GE® 3.2 Cu. Ft. Super Capacity Washer

Features and Benefits

•3.2 Cu. Ft. Super Plus ExtrAction™ Wash Basket - Offers increased surface area to "squeeze" more water from clothes during the spin cycle, resulting in reduced dry times

•HydroWave™ Wash System - Has variable speeds to match the wash action to the clothing type. Longer, slower travel through the water improves cleaning performance and is gentler on your clothes

•Four Wash/Spin Speed Combinations - Speeds vary according to fabric type for better clothes care

•16 Wash Cycles - Offer fabric-specific clothes care

•Four Wash/Rinse Temperatures - Washer cleans at the exact temperature needed to remove dirt and reduce wear

•Four Water Levels - Offers water and energy savings

•Prewash Cycle - Allows clothing additional time to soak and agitate to help remove stubborn stains

•2nd Rinse Option - Helps protect delicate fabrics and sensitive skin

•Auto Soak - Soaks dirty clothes for 15 or 30 minutes before the wash cycle, Eso there's no need for an extra cycle

•Model WJSR4160GWW – White on white
