Unity Network®
Patient Data Server (PDS)
Operator’s Manual
Software Version 1
2016777-001 Revision A
g
GE Medical Systems
Information Technologies
gemedical.com
NOTE:
The information in this manual only applies to Unity Network Patient Data Server software version 1. Due to
continuing product innovation, specifications in this manual are subject to change without notice.
Listed below are GE Medical Systems Information Technologies trademarks used in this manual. All other
trademarks contained herein are the property of their respective owners.
APEXPRO, DASH, EAGLE, SOLAR, and UNITY NETWORK, are trademarks of GE Medical Systems
Information Technologies registered in the United States Patent and Trademark Office.
CIC PRO, CD TELEMETRY®–LAN, CENTRALSCOPE, ICMMS, OCTACOMM, and OCTANET are
trademarks of GE Medical Systems Information Technologies.
© GE Medical Systems Information Technologies, 2003. All rights reserved.
T-2 Unity Network Patient Data Server Revision A
2016777-001 9 October 2003
CE Marking Information
CE Marking Information
Compliance
The Unity Network Patient Data Server application bears CE mark
CE-0459 indicating its conformity with the provisions of the Council
Directive 93/42/EEC concerning medical devices and fulfills the essential
requirements of Annex I of this directive. The product is in radiointerference protection class A in accordance with EN 55022.
The country of manufacture can be found on the equipment labeling.
The product complies with the requirements of standard EN 55024.
The safety and effectiveness of this device has been verified against
previously distributed devices. Although all standards applicable to
presently marketed devices may not be appropriate for prior devices
(i.e. electromagnetic compatibility standards), this device will not impair
the safe and effective use of those previously distributed devices. See
user’s information.
Exceptions
The Unity Network Patient Data Server EMC: Immunity
Performance
There are no Safety and/or EMC compliance exceptions with this
product.
Users should be aware of known RF sources, such as radio or TV stations
and hand-held or mobile two-way radios, and consider them when
installing a medical device or system.
Be aware that adding accessories or components, or modifying the
medical device or system may degrade the EMI performance. Consult
with qualified personnel regarding changes to the system configuration.
Revision A Unity Network Patient Data Server CE-1
2016777-001
General Information
This manual is an integral part of the product and describes its
The symbol means ATTENTION: Consult accompanying
Information which refers only to certain versions of the product is
The warranty does not cover damages resulting from the use of
GE Medical Systems Information Technologies is responsible for the
CE Marking Information
intended use. It should always be kept close to the care giver using
the equipment. Observance of the manual is a prerequisite for proper
product performance and correct operation and ensures patient and
operator safety.
documents.
accompanied by the model number(s) of the product(s) concerned.
The model number is given on the nameplate of the product.
accessories and consumables from other manufacturers.
effects on safety, reliability, and performance of the product, only if:
assembly operations, extensions, readjustments, modifications,
or repairs are carried out by persons authorized by GE Medical
Systems Information Technologies;
the electrical installation of the relevant room complies with the
requirements of the appropriate regulations; and,
All publications conform with the product specifications and
applicable IEC publications on safety and essential performance of
electromedical equipment as well as with applicable UL and CSA
requirements and AHA recommendations valid at the time of
printing.
The quality management system complies with the international
standards ISO 9001 and EN 46001, and the Council Directive on
Medical Devices 93/42/EEC.
CE-2 Unity Network Patient Data Server Revision A
2016777-001
Contents
1 General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1
About This Manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3
Manual Purpose . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3
Intended Audience . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3
Revision History . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3
Manual Conventions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4
Product References . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4
Frequently Used Terms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-4
Software Packages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4
Device Compatibility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-5
2 Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1
For Your Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3
Intended Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3
Terminology . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3
Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-4
Underwriters Laboratories, Inc. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-5
3 Equipment Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1
Unity Network Patient Data Server . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-3
Data Storage Rules . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-3
Overlapping Data Rules . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-4
User Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-4
4 Patient Data Collection Scenarios . . . . . . . . . . . . . . . . . . 4-1
Admit/Discharge Scenarios . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-3
General Guidelines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-3
Collect Patient Data Legend . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-4
Admit with a PID . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-4
Admit without a PID . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-5
Admit without a PID: Before Monitor Comes On-line . . . . . . . . . . . . . . . . . . . . . . . 4-5
Admit with PID: Monitor Off-line Before Discharge . . . . . . . . . . . . . . . . . . . . . . . . 4-6
No PID Before Discharge or Monitor Off-line . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-6
Revision A Unity Network Patient Data Server i
2016777-001
Patient Transport Scenarios . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-7
General Guidelines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-7
Patient Transport Legend . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-7
PID Before Transport . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-8
PID During Transport . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-9
Transport via TRAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-10
Transport Via a Wireless Dash Monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-11
Patient Transfer Scenarios . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-12
General Guidelines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-12
Patient Transfer Legend . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-12
Off-line Transfer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-13
Discharge After Transport . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-14
Pre-Admit Before Transport . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-15
Combination Mode Scenarios . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-16
General Guidelines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-16
Combination Mode Legend . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-16
Switch From Telemetry to Combo Mode and Back to Telemetry . . . . . . . . . . . . 4-17
Switch From Bedside to Combo Mode and Back to Bedside . . . . . . . . . . . . . . .4-18
Third-Party Acquisition Device Scenarios . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-19
General Guidelines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-19
Third-Party Acquisition Legend . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-20
Bedside Monitor/Unity Network ID . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-21
Unity Network ID/Bedside Monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-22
Data Storage and Post Discharge Viewing Scenarios . . . . . . . . . . . . . . . . . . . . . 4-23
General Guidelines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-23
Data Storage Legend . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-23
View 72 Hours of Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-24
Post Discharge Viewing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-25
Patient Re-admit after Discharge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-26
ii Unity Network Patient Data Server Revision A
2016777-001
1 General
Revision A Unity Network Patient Data Server 1-1
2016777-001
For your notes
1-2 Unity Network Patient Data Server Revision A
2016777-001
About This Manual
Manual Purpose
This manual contains the instructions necessary to understand how to
use the Unity Network Patient Data Server (henceforth called PDS or
the patient data server) safely and in accordance with its function and
intended use.
This guide should be used in conjunction with the CIC Pro V4.0 (or
greater) Operator's Manual which details how to view the information
stored by the PDS.
Intended Audience
The manual is geared for clinical professionals. Clinical professionals are
expected to have a working knowledge of medical procedures, practices
and terminology as required to monitor critically ill patients.
General: About This Manual
Revision History
The PDS is intended to be used with the CIC Pro V4.0 and other GEMS
devices that reside on the Unity Network MC. It is assumed that users of
this product are familiar with using the CIC Pro and other applicable
GEMS medical devices connected to the Unity Network MC and
understand how to admit, discharge and move patients.
Each page of the document has the document part number and revision
letter at the bottom of the page. The revision letter changes whenever
the document is updated.
Revision Date Comments
A 9 October 2003 Initial release of this document.
Revision A Unity Network Patient Data Server 1-3
2016777-001
Manual Conventions
This section describes terminology, standards, and other conventions
that are used throughout this manual.
Product References
The CIC Pro Clinical Information Center is referred to as the
CIC Pro.
A patient’s identification or medical record number is referred to as
PID.
The Unity Network MC network is referred to as Unity Network.
The Unity Network ID Connectivity Device is referred to as Unity
Network ID.
The Unity Network Patient Data Server is referred to as PDS or
patient data server.
Frequently Used Terms
General: Manual Conventions
Software Packages
Acquisition Device—A device used to acquire patient parameters
which connects to the Unity Network (e.g. Dash/Solar monitors,
Telemetry transmitters, etc.).
Admit—The admit option on the acquisition device or CIC Pro has
been selected.
Association Mode—Association mode allows the connection of
non-GEMS devices to a monitor for consolidated viewing and data
transmission.
Combo Mode—Combination mode is utilizing telemetry transmitters
to acquire parameters that are displayed at the bedside monitor.
Discharge—The discharge option on the acquisition device or
CIC Pro has been selected.
Monitoring Session—The data gathered by an acquisition device
from admit to discharge.
On-line—The acquisition device is connected (wired or wireless) to
the Unity Network.
PDS Enabled Device—A device that has been configured by the PDS
system to record its data.
The PDS server software includes the Unity Network Patient Data
Server (PDS) V1.
1-4 Unity Network Patient Data Server Revision A
2016777-001
Device Compatibility
General: Manual Conventions
The PDS server will collect patient data from the following GE Medical
Systems Information Technologies monitoring products. Any other Unity
Network compatible products will function per design without any
interaction with the PDS. Please contact GE Medical Systems
Information Technologies if you want to connect a device that is
compatible but has a software version not listed.
Product Software
ApexPro
telemetry system
1.7, 2.0, 2.1, 2.2, 3.0.4
*CDT-LAN telemetry system (combo mode only) 5H, 6A. 6C, 6CA, 6D, 6DA
Dash 2000 patient monitor 1A, 2A, 2B, 3A
Dash 3000/4000 patient monitor 2B, 2C, 3A, 3B, 3C, 3D, 4A, 4B, 4C
Eagle 4000 patient monitors 6G
Octacomm connectivity device 2A, 2B, 2C, 2D, 2E
Solar
7000/8000 patient monitors
7000/8000 patient monitors
Solar
4C special
3C, 4B, 5B, 5D, 5E, 6A, 7B, 7C
Solar 8000M patient monitors 1A, 1B, 1C, 2A, 3D, 4C, 4D
Solar 9500 patient monitors S9500-3A (S95)
Unity Network ID connectivity device 1A, 2A
*Octanet connectivity device 1A, 1B, 2A
CIC Pro clinical information center 4.0
* Devices are only supported when used with a compatible acquisition
device.
NOTE
This list is subject to change without notice.
Revision A Unity Network Patient Data Server 1-5
2016777-001
For your notes
General: Manual Conventions
1-6 Unity Network Patient Data Server Revision A
2016777-001
2 Safety
Revision A Unity Network Patient Data Server 2-1
2016777-001
For your notes
2-2 Unity Network Patient Data Server Revision A
2016777-001
For Your Safety
Intended Use
Terminology
Safety: For Your Safety
The Unity Network Patient Data Server is intended for use under the
direct supervision of a licensed healthcare practitioner. The intended use
of the Unity Network Patient Data Server is to provide centralized
intermediate term storage of patient centric events and physiological
data on adult, pediatric and neonatal patients within a hospital or
facility providing patient care. Patient events and physiological data
stored at the Unity Network Patient Data Server can be accessed via any
(authorized) device that implements the PDS data exchange protocol.
The Unity Network Patient Data Server is NOT intended to be the sole
source for patient data and is to be used in conjunction with the data at
the bedside monitor and central monitoring station.
The terms danger, warning, and caution are used throughout this
manual to point out hazards and to designate a degree or level of
seriousness. Familiarize yourself with their definitions and significance.
Hazard is defined as a source of potential injury to a person.
DANGER
Indicates an imminent hazard which, if not avoided, will
result in death or serious injury.
WARNING
Indicates a potential hazard or unsafe practice which, if
not avoided, could result in death or serious injury.
CAUTION
Indicates a potential hazard or unsafe practice which, if
not avoided, could result in minor personal injury or
product/property damage.
NOTE
Provides application tips or other useful information to assure that
you get the most from your equipment.
Revision A Unity Network Patient Data Server 2-3
2016777-001
Safety
Dangers
Warnings
Safety: For Your Safety
The safety statements presented in this chapter refer to the equipment
in general and, in most cases, apply to all aspects of the product.
The order in which safety statements are presented in no way implies
order of importance.
There are no dangers that refer to the equipment in general. Specific
“Danger” statements may be given in the respective sections of this
manual.
WARNING
ACCURACY — If the data is not available via the patient
data server or the accuracy of the data is questionable,
the caregiver should access the information at the
primary beside monitor. The Unity Network Patient
Data Server is NOT intended to be the sole source for
patient data and is to be used in conjunction with the
data at the bedside monitor and central monitoring
station. The primary monitor should always be reference
before making any patient care decisions.
PROPER ADMIT/DISCHARGE — Proper admit/
discharge procedures for the acquisition device must be
followed to ensure that data from the different patients is
not mixed.
UNIQUE PATIENT ID — Each patient identification
number (PID) must be a unique series of characters so
that data from more than one patient is not stored in a
single record.
2-4 Unity Network Patient Data Server Revision A
2016777-001
Cautions
Safety: For Your Safety
CAUTIONS
INSTRUCTIONS FOR USE — For continued safe use of
this equipment, it is necessary that the listed
instructions are followed. However, instructions listed in
this manual in no way supersede established medical
practices concerning patient care.
NEGLIGENCE — GE Medical Systems Information
Technologies does not assume responsibility for damage
to the equipment caused by improperly loaded software,
failure or data loss due to not using a UPS.
OPERATOR — Medical software such as this patient
data server must only be used by persons who have
received adequate training in the use of such software
and who are capable of applying it properly.
RESTRICTED SALE — U.S. federal law restricts this
device to sale by or on the order of a physician.
Underwriters Laboratories, Inc.
Medical Equipment
With respect to electric shock, fire and mechanical hazards
only in accordance with UL 1950-3, and CAN/CSA C22.2
NO. 950.
Revision A Unity Network Patient Data Server 2-5
2016777-001
For your notes
Safety: For Your Safety
2-6 Unity Network Patient Data Server Revision A
2016777-001
3 Equipment Overview
Revision A Unity Network Patient Data Server 3-1
2016777-001
For your notes
3-2 Unity Network Patient Data Server Revision A
2016777-001
Equipment Overview: Unity Network Patient Data Server
Unity Network Patient Data Server
The Unity Network Patient Data Server stores patient monitoring data
that is collected from an acquisition device (e. g. patient monitor,
telemetry transmitter, etc.) and allows it to be viewed from a CIC Pro
with software version 4 or greater.
All data is stored under the patient’s identification or medical record
number (PID), which must be entered while the patient is admitted and
on-line. The PDS stops saving data if the acquisition device goes off-line
or is discharged. The stored patient data can be viewed from any PDS
enabled CIC Pro on a Unity Network, for more detailed information
regarding viewing patient data, refer to the CIC Pro Clinical Information
Center Operator’s Manual.
Data Storage Rules
Proper admit/discharge procedures for the acquisition device must be
followed to ensure that data from the different patients is not mixed.
A valid PID must be entered for a device prior to the acquisition
device being discharged or the acquisition device’s network status
changing to off-line for the record to be stored.
Every PID must be unique to prevent different patient’s data from
being mixed.
Any changes to a PID after it is entered will result in a new PDS
record.
The PDS does not store off-line data.
The CIC Pro allows the user to select a data source when viewing
trends and alarm histories. The bedside option allows for viewing of
all data stored on that acquisition device. The PDS option allows for
viewing of trends and alarm histories acquired from any acquisition
device that has been on-line and admitted with a unique PID in the
past 72 hours.
The PDS stores up to 72 hours of trends and 500 alarm histories per
patient.
The PDS stores both periodic and episodic parameters collected from
an acquisition device. A detailed list of supported parameters is
included in the Unity Network Patient Data Server Administrators
Manual (PN 2016777-020).
To view stored data for a discharged patient, you must admit an
acquisition device using the patient’s PID.
Revision A Unity Network Patient Data Server 3-3
2016777-001
Equipment Overview: Unity Network Patient Data Server
Overlapping Data Rules
If two acquisition devices are admitted with the same PID, the PDS
provides all non-overlapping parameters for both devices and all alarm
histories.
The rules that govern overlapping parameters vary by type of data:
1. For overlapping periodic parameters, the PDS provides the
parameter with the first admit time. For example:
a. The patient is admitted to an acquisition device A with a PID.
This acquisition device is acquiring ECG and SpO2 data.
b. The same patient (or other patient) is admitted to acquisition
device B with the same PID from step (a). This acquisition device
is acquiring ECG only.
In this scenario, ECG is the overlapping parameter since it is
collected at both acquisition devices. Only the ECG from device A will
be viewable from the CIC Pro until device A is discharged or the
parameter is no longer acquired.
User Interface
2. For overlapping episodic parameters, the PDS provides the
parameter with the first admit time. For example:
a. The patient is admitted to an acquisition device A with a PID.
This acquisition device is acquiring ECG and NBP data.
b. The same patient (or other patient) is admitted to acquisition
device B with the same PID from step (a). This acquisition device
is acquiring NBP only.
In this scenario, NBP is the overlapping parameter since it is
collected at both acquisition devices. Only the NBP from device A will
be viewable from the CIC Pro until device A is discharged.
3. For overlapping alarm histories, the PDS provides all history
events (up to 500).
Extended patient data stored on the PDS can only be viewed and printed
from a CIC Pro v4 or greater. Refer to the CIC Pro Clinical Information
Center Operator’s Manual for additional information. Any degradation of
system performance may result in a delay or inability to retrieve
historical data from the device.
3-4 Unity Network Patient Data Server Revision A
2016777-001
4 Patient Data Collection
Scenarios
Revision A Unity Network Patient Data Server 4-1
2016777-001
For your notes
4-2 Unity Network Patient Data Server Revision A
2016777-001
Patient Data Collection Scenarios: Admit/Discharge Scenarios
Admit/Discharge Scenarios

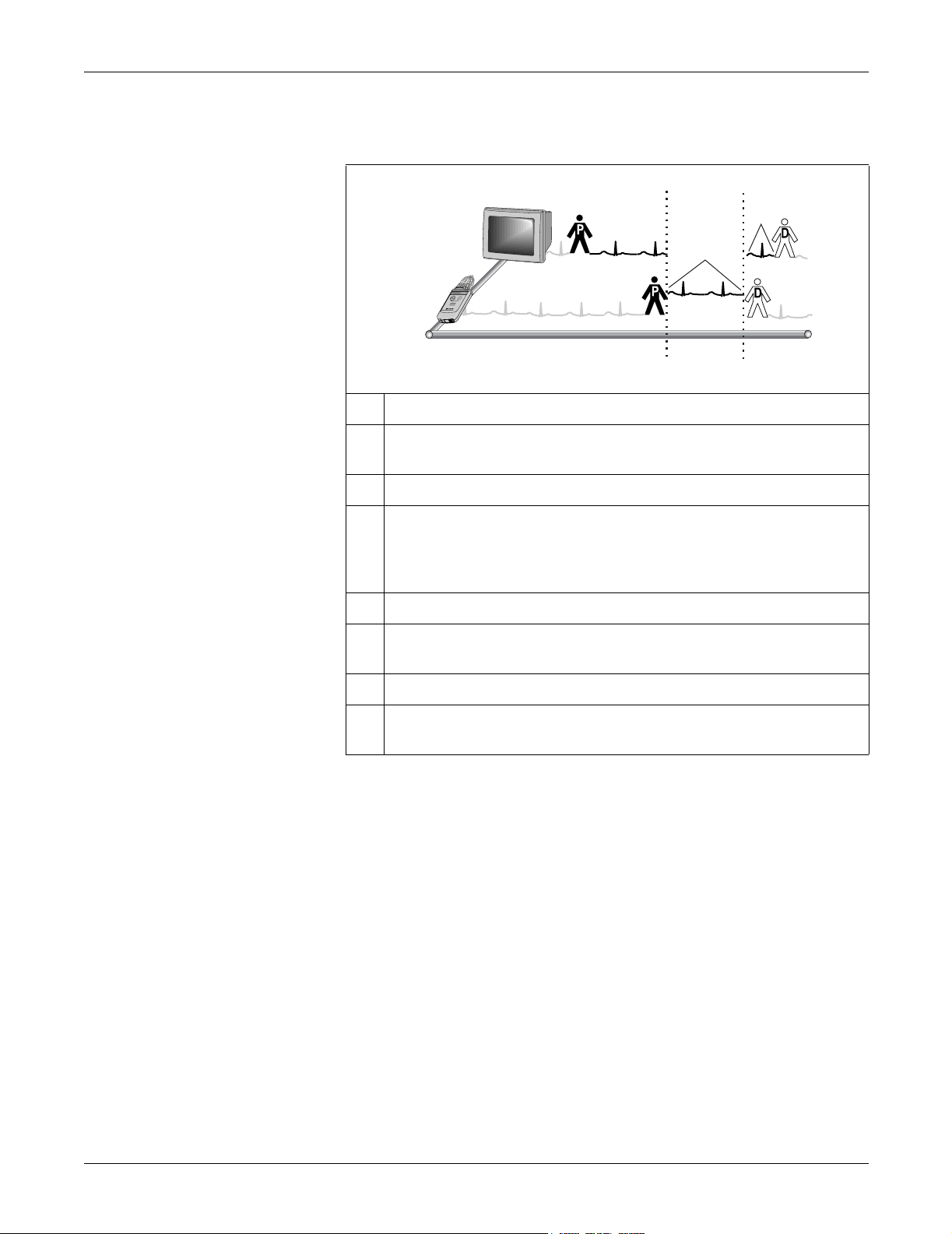

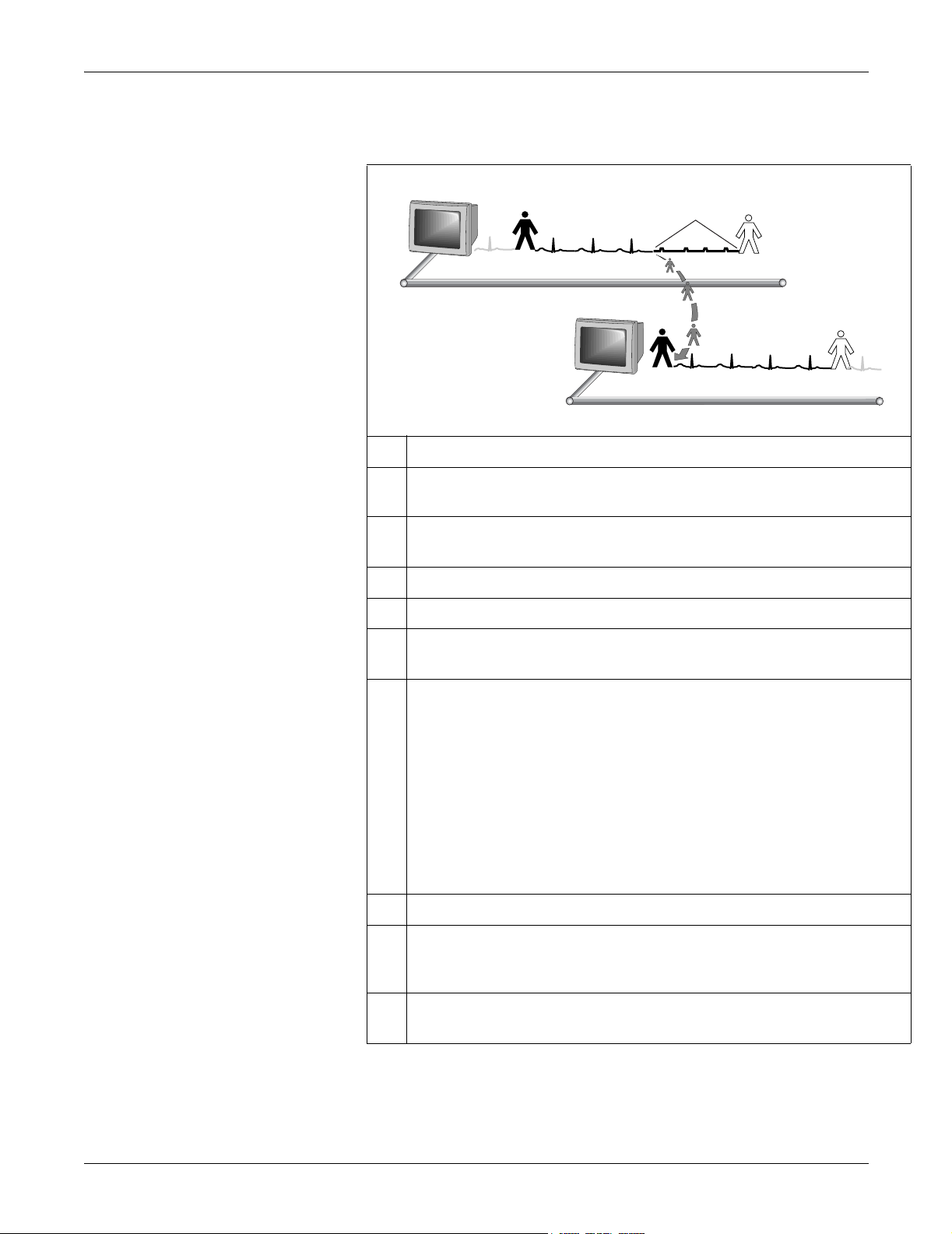

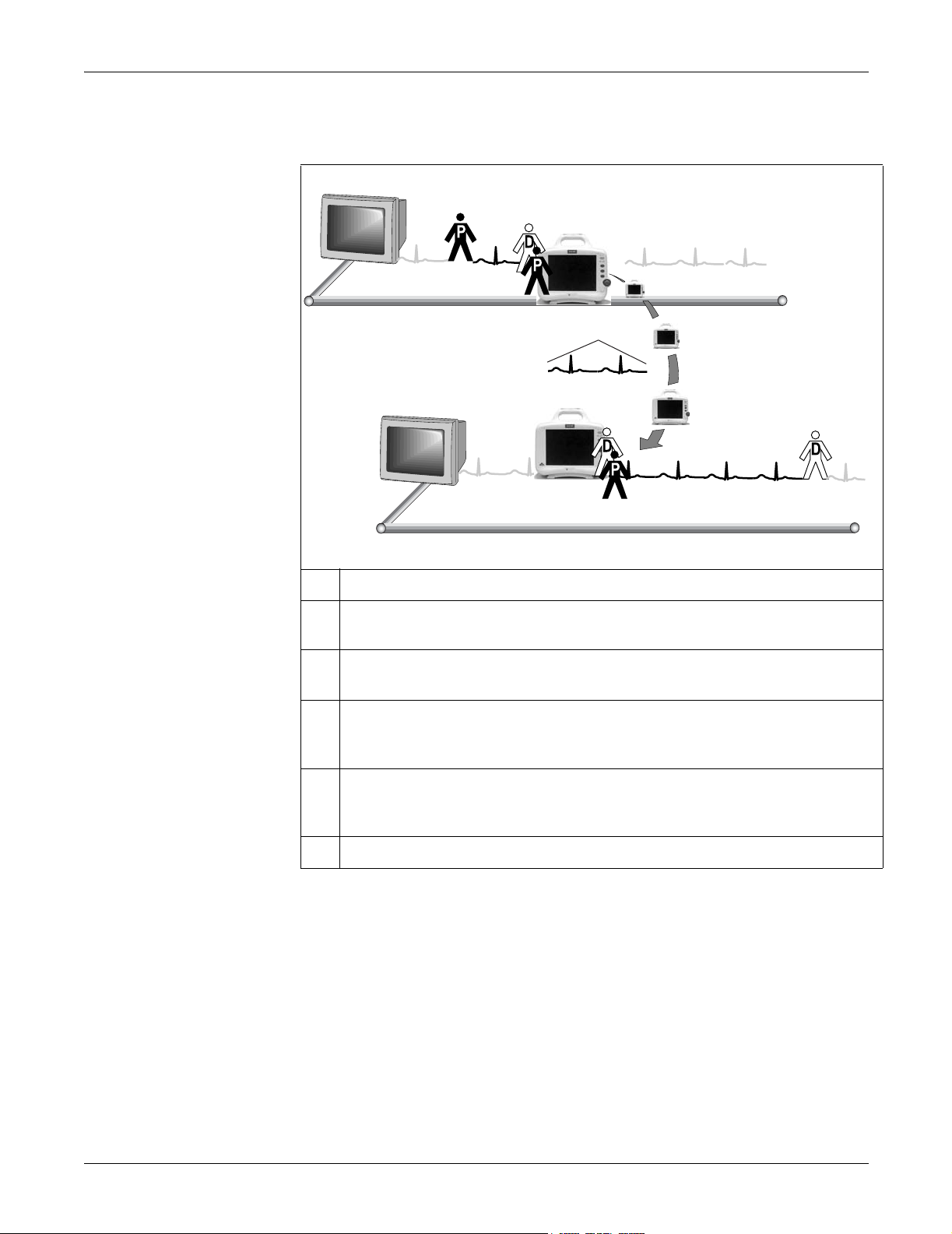

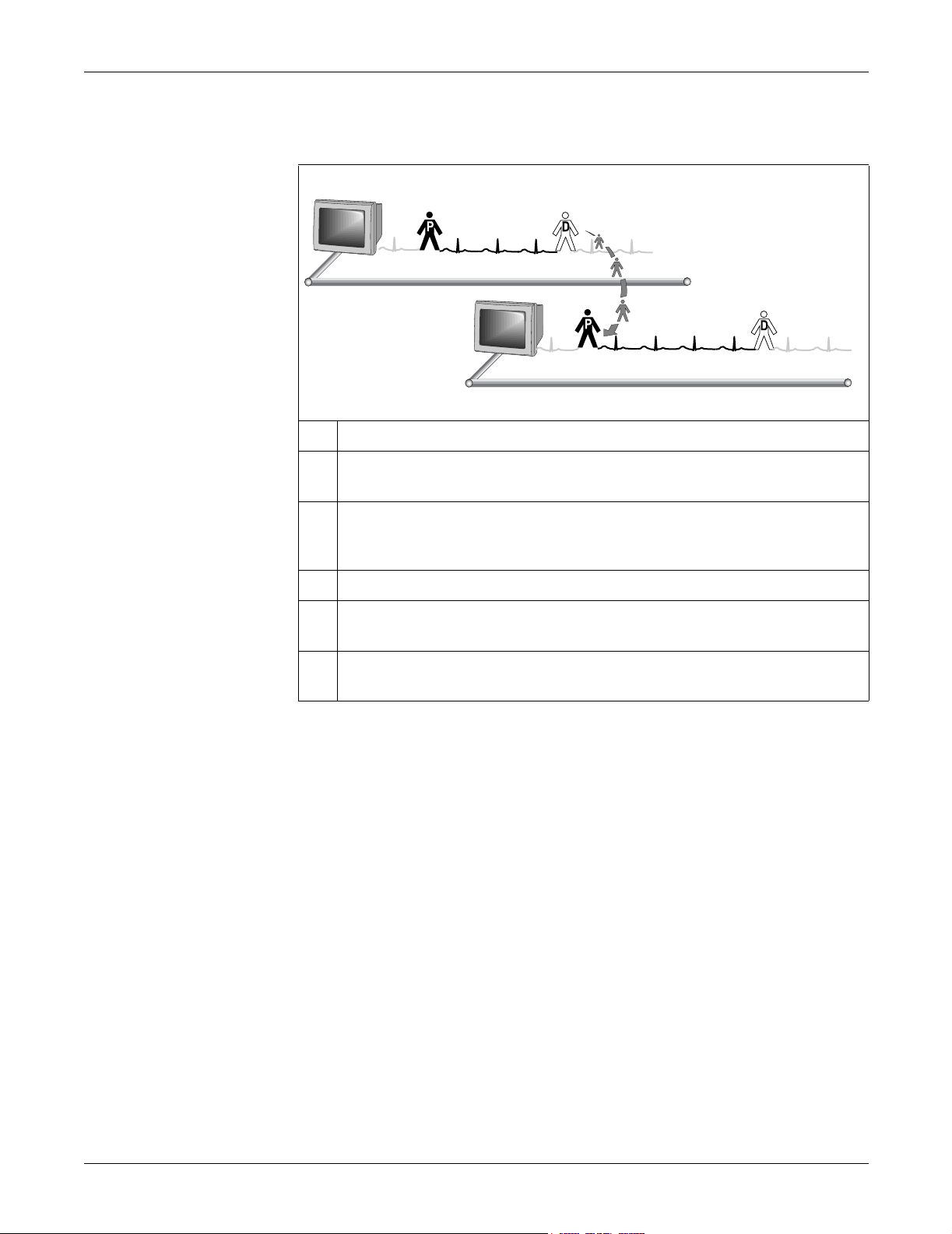

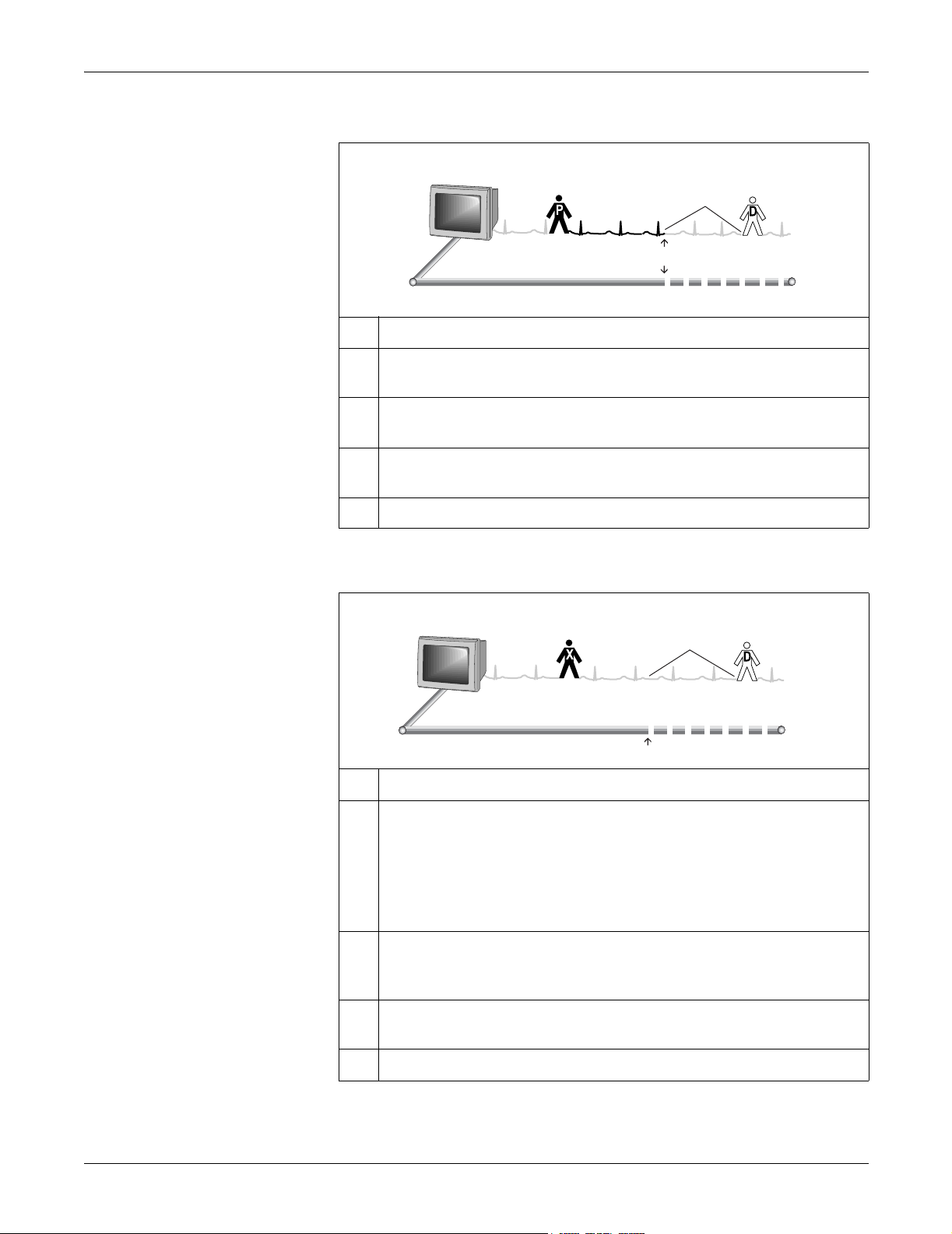

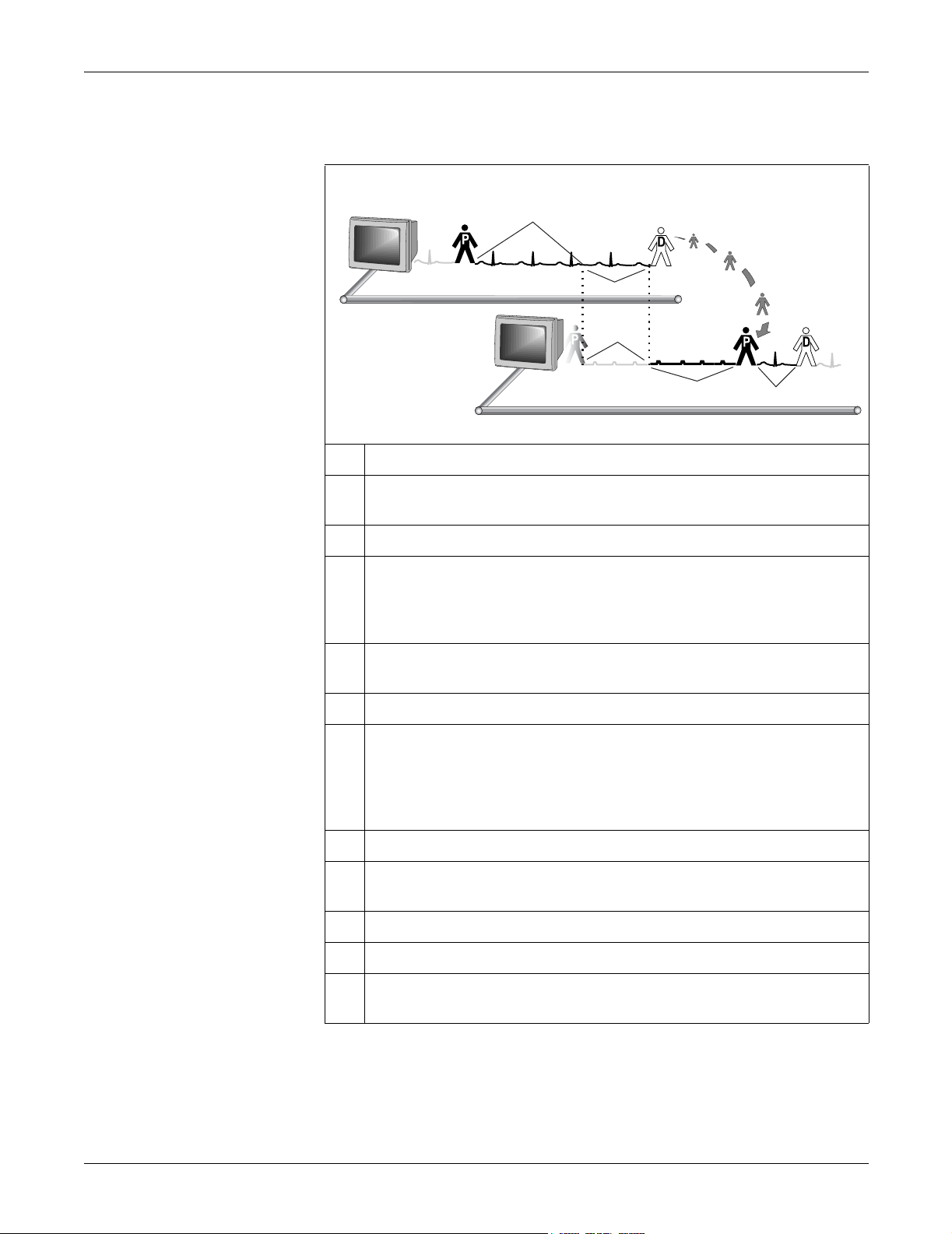

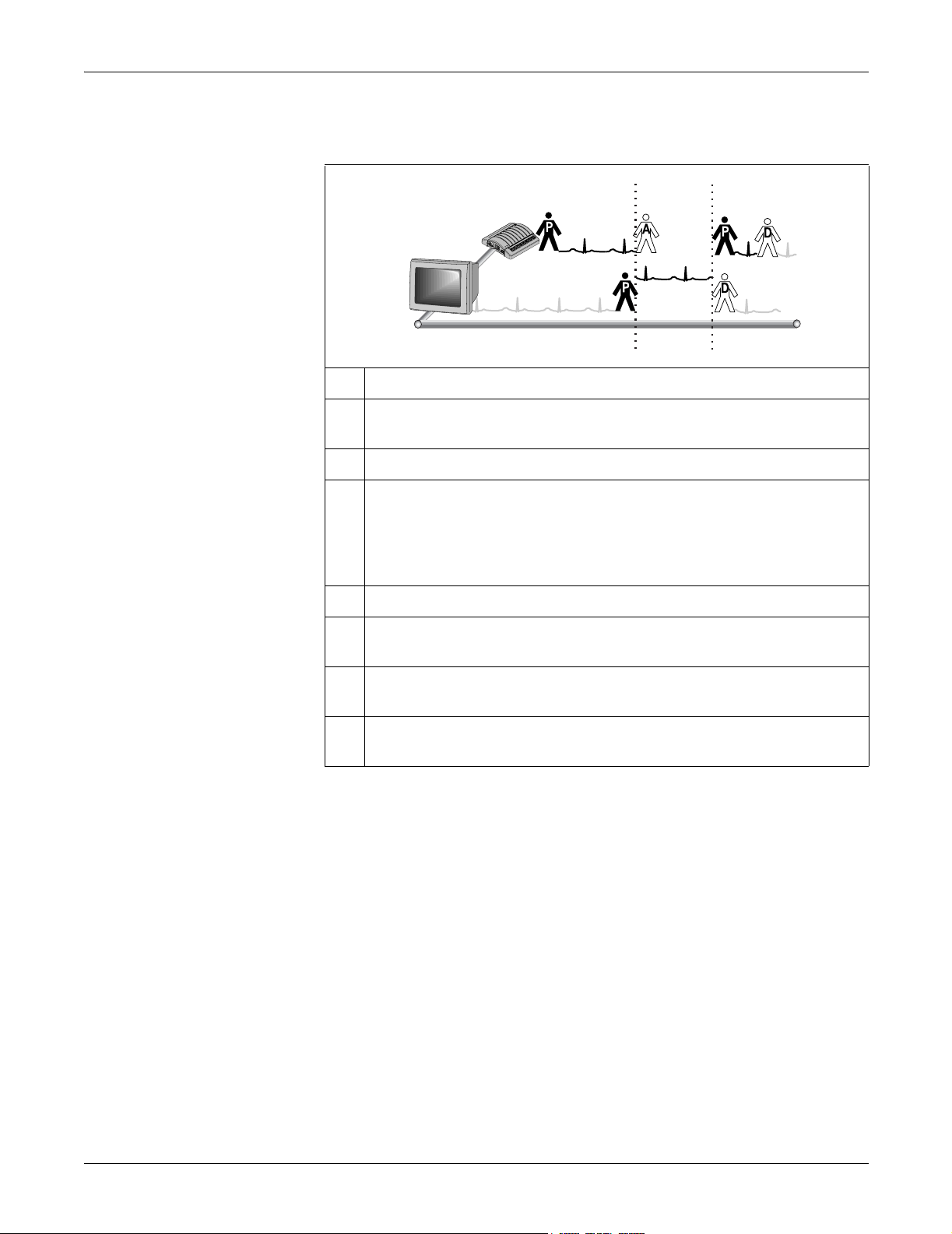

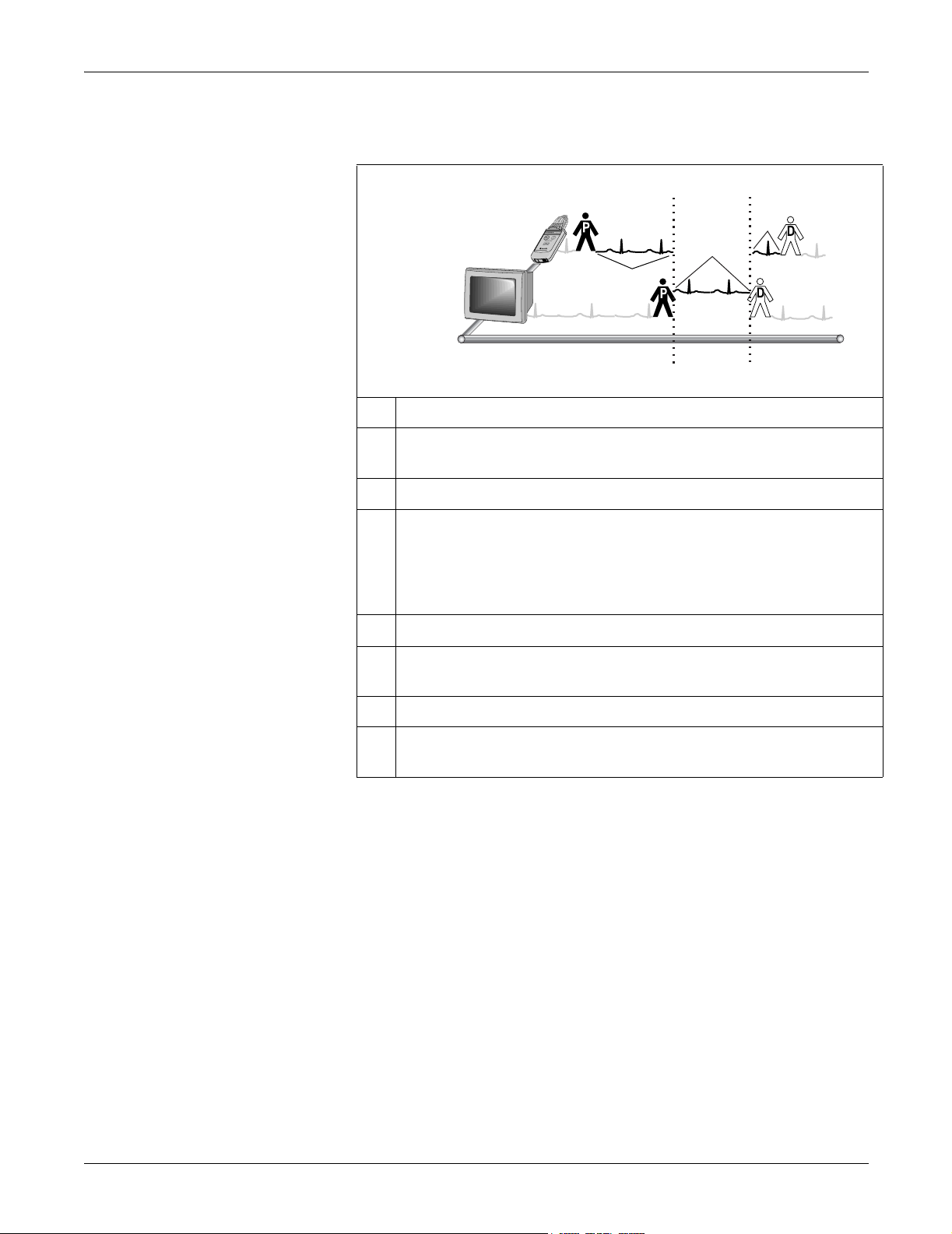

The following scenarios illustrate when data is stored during the normal
admit/discharge sequence for a patient. These diagrams are intended to
depict what data can be viewed after all actions have been executed in a
specific scenario.
General Guidelines
Proper admit/discharge procedures should be followed each time a
new patient is connected to an acquisition device.
A PID can be entered at any time between admit and discharge (or
the acquisition device going off-line) for the record to be stored.
Once a PID is entered, PDS will store all data from the time of admit
(or acquisition device coming on-line) to the time of discharge (or the
acquisition device going off-line).
Until a PID is entered at the patient monitor, the PDS will only
provide the patient data from that currently admitted patient
monitor. Once a PID is entered, PDS will provide all patient data that
has been collected for that patient.
If a PID is not entered before discharge/off-line then no data, from the
monitoring session, will be viewable from the CIC Pro once the
monitor comes on-line or the patient is re-admitted.
A PID can be entered while off-line. Off-line data will not be recorded;
however, the PDS will begin collecting from the time the acquisition
device is on-line.
Once the PDS establishes a data record for a PID, the data record can
only be viewed from a CIC Pro that has a patient admitted with that
same PID. (e.g. ER data collected for PID-1 can be viewed in the ICU
when PID-1 is admitted on the CIC Pro in the ICU.)
The PDS will store up to 72 hours of trends (Graphical and Tabular).
The PDS will store up to 500 alarm histories (400 arrhythmia events
and 100 ST histories).
Revision A Unity Network Patient Data Server 4-3
2016777-001
Patient Data Collection Scenarios: Admit/Discharge Scenarios

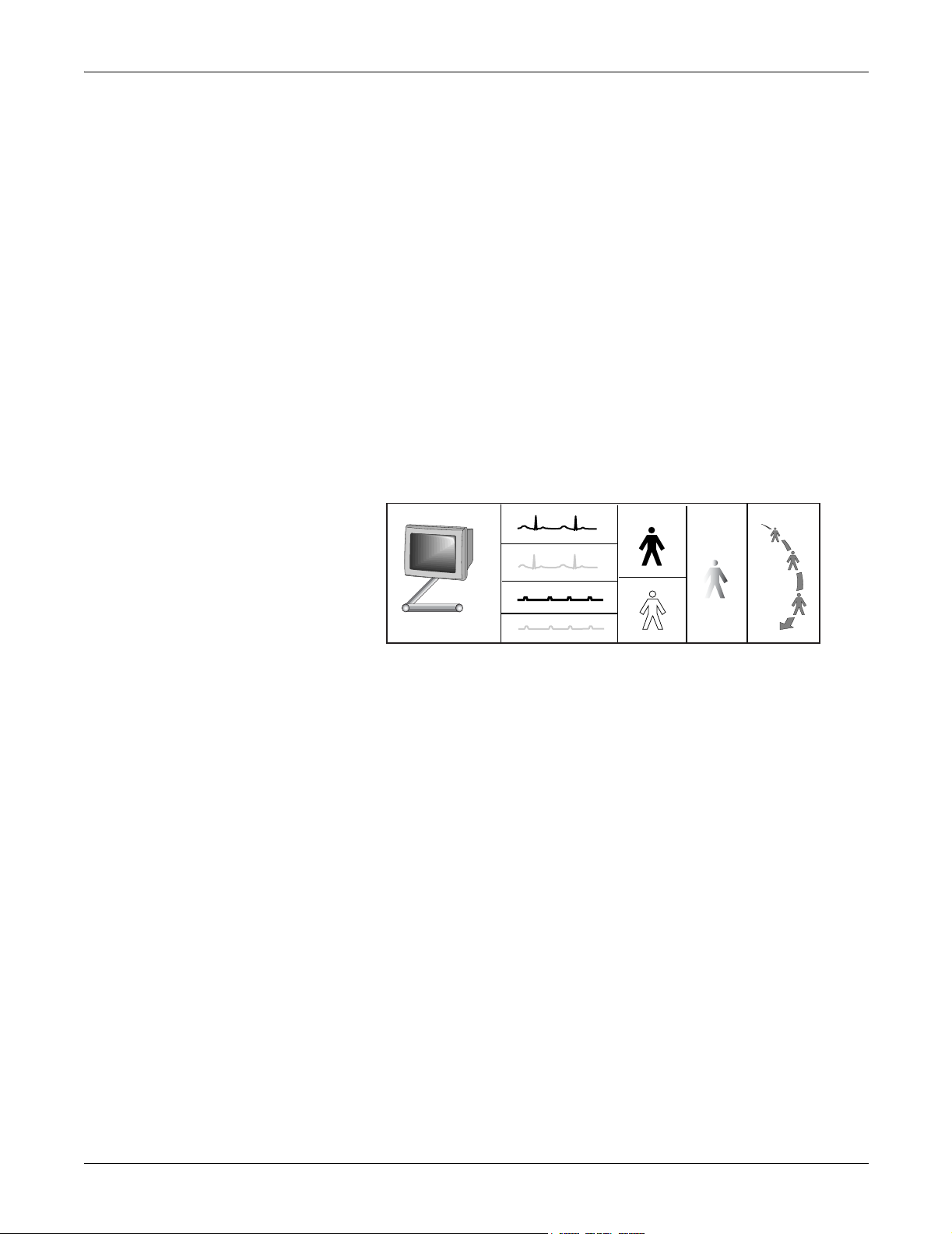

Collect Patient Data Legend
Admit with a PID
a
b
c
d
e
f
a. Acquisition device is on-line
b. Acquisition device is off-line
c. PDS data is viewable at the CIC Pro post discharge
d. PDS data is not viewable at the CIC Pro post discharge
e. Patient is admitted with a PID
f. Patient is admitted without a PID
g. Patient is discharged
h. A PID is entered for the patient
g
h
L1
2
1
3
4
001A
1 The acquisition device is on-line.
2 The patient is admitted with a PID at the monitor or CIC Pro.
The PDS begins collecting data.
3 The PDS will provide data for viewing from the time the patient
is admitted until the patient is discharged or the acquisition
device goes off-line.
4 The PDS stops collecting data once the acquisition device is
discharged.
4-4 Unity Network Patient Data Server Revision A
2016777-001
Patient Data Collection Scenarios: Admit/Discharge Scenarios
Admit without a PID
2
3
1
1 The acquisition device is on-line.
2 The patient is admitted without a PID at the monitor or CIC Pro.
The PDS begins collecting data.
NOTE
A PID must be entered prior to discharge or the acquisition
device going off-line for the patient data to be kept after
discharge and viewable after transfer.
3The PID is entered.
4 The PDS stops collecting data once the acquisition device is
discharged.
Admit without a PID: Before Monitor Comes On-line
4
002A
2
4
1
3
5
003A
1 The acquisition device is off-line.
2 The patient is admitted without a PID, this data will not be
collected.
3 The acquisition device comes on-line. The PDS begins collecting
data.
NOTE
A PID must be entered prior to discharge or the acquisition
device going off-line for the patient data to be viewable post
discharge.
4 The PID is entered.
5 The PDS stops collecting once the acquisition device is
discharged.
Revision A Unity Network Patient Data Server 4-5
2016777-001
Patient Data Collection Scenarios: Admit/Discharge Scenarios
Admit with PID: Monitor Off-line Before Discharge
2
1
1 The acquisition device is on-line.
2 The patient is admitted with a PID at the monitor or CIC Pro.
The PDS begins collecting data.
3 Prior to discharge the monitor goes off-line. The PDS stops
collecting data and saves the record.
4 The data collected by the acquisition device while off-line is not
stored by the PDS.
5 The acquisition device is discharged.
No PID Before Discharge or Monitor Off-line
2
4
3
4
5
004A
5
004A
1
3
005A
1 The acquisition device is on-line
2 The patient is admitted without a PID at the monitor or CIC Pro.
The PDS begins collecting data.
NOTE
A PID must be entered prior to discharge or the acquisition
device going off-line for the patient data to be kept after
discharge and viewable after transfer.
3 Prior to discharge the monitor goes off-line, PDS stops collecting
data and DISCARDS the data. This data can no longer be viewed
from the CIC Pro via the PDS.
4 The data collected by the acquisition device while off-line is not
stored by the PDS.
5 The acquisition device is discharged.
4-6 Unity Network Patient Data Server Revision A
2016777-001
Patient Data Collection Scenarios: Patient Transport Scenarios
POWER
DISPLAY
DEFIB. SYNC.
SAO
POWER
D
I
SPLAY
D
E
FIB
.
SY
N
C
.
SAO
PO
W
ER
DI
SP
LA
Y
D
EFIB. SYNC.
SAO
Patient Transport Scenarios
The following scenarios illustrate when data is stored during a transport
from one location to another location on the same acquisition device.
General Guidelines
The PDS does not record data while an acquisition device is off-line
during a transport.
DASH Rover mode (ability to change bed name without discharging
the bed) does not impact how data is recorded by the PDS.
PDS does not affect the acquisition device's ability to store patient
data (on-line/off-line) via existing storage capabilities (TRAM
modules, internal memory, etc.).
Patient Transport Legend
a
b
c
d
e
f
h
i
j
l
DEFIB. SYNC.
SAO
2
DISPLAY
POWER
O
A
2
S
.
C
N
Y
S
.
B
I
F
E
D
Y
A
L
P
IS
D
R
E
W
O
P
m
k
O
2
A
S
.
C
N
Y
S
.
IB
F
E
D
Y
A
L
P
S
I
D
R
E
W
O
P
g
L2
a. Acquisition device is on-line
b. Acquisition device is off-line
c. PDS data is viewable at the CIC Pro post discharge
d. PDS data is not viewable at the CIC Pro post discharge
e. Patient is admitted with a PID
f. Patient is admitted without a PID
g. A PID is entered for the patient
h. Patient is discharged
i. Patient is discharged from one acquisition device and admitted to
another
j. Tram module
k. Dash monitor
l. Tram module is being transported
m. Dash monitor is being transported
Revision A Unity Network Patient Data Server 4-7
2016777-001
Patient Data Collection Scenarios: Patient Transport Scenarios
PID Before Transport
2
1
3
4
5
6
006A
1 The acquisition device is on-line.
2 The patient is admitted with a PID at the monitor or CIC Pro.
The PDS begins collecting data.
3 Prior to discharge the monitor goes off-line in order to transport
the patient. The PDS stops collecting data and saves the record.
4 The data collected by the acquisition device while off-line is not
stored by the PDS.
5 The PDS begins collecting data once the acquisition device comes
back on-line and is still admitted with the same PID.
6 The PDS stops collecting data once the acquisition device is
discharged.
4-8 Unity Network Patient Data Server Revision A
2016777-001
Patient Data Collection Scenarios: Patient Transport Scenarios
PID During Transport
2
5
1
3
6
4
7
007A
1 The acquisition device is on-line.
2 The patient is admitted without a PID at the monitor or CIC Pro.
The PDS begins collecting data.
NOTE
A PID must be entered prior to discharge or the acquisition
device going off-line for the patient data to be kept after
discharge and viewable after transfer.
3 Prior to discharge the monitor goes off-line, PDS stops collecting
data and DISCARDS the data. This data can no longer be viewed
from the CIC Pro.
4 The data collected by the acquisition device while off-line is not
stored by the PDS.
5 During transport a PID is entered.
6 PDS begins collecting data once the acquisition device comes back
on-line and is still admitted with the same PID.
7 The PDS stops collecting data once the acquisition device is
discharged.
Revision A Unity Network Patient Data Server 4-9
2016777-001
Patient Data Collection Scenarios: Patient Transport Scenarios
POWER
DISPLAY
DEFIB. SYNC.
SAO
POWER
D
ISPLAY
D
E
FIB.
SYNC.
S
AO
PO
WER
D
I
S
P
L
A
Y
D
EF
I
B
.
S
Y
N
C
.
S
A
O
Transport via TRAM
2
4
5
A
DEFIB. SYNC.
SAO
2
DISPLAY
1
POWER
3
AO
2
S
.
C
N
Y
. S
IB
F
E
D
Y
A
L
P
IS
D
R
E
W
O
P
O
2
A
S
.
C
N
Y
S
.
B
I
F
E
D
Y
A
L
P
S
I
D
R
E
W
O
P
8
B
6
1 Acquisition device A is on-line with parameter data being
acquired via the acquisition device and the Tram module.
2 The patient is admitted with a PID at the monitor or CIC Pro.
The PDS begins collecting data.
3 Prior to discharge, the TRAM module is removed from the
acquisition device in order to transport the patient.
7
008A
4 The PDS stops collecting data for all parameters associated with
the TRAM module that has been removed for transport. These
parameters are now considered “off-line.”
NOTE
The PDS will continue to collect data from any active
parameters until the acquisition device is discharged.
5 Acquisition device A is discharged. The PDS stops collecting data
and saves the record.
6 The data collected by the TRAM module while off-line is not
stored by the PDS.
7 The PDS begins collecting data once the TRAM module is
connected to acquisition device B that is on-line and admitted
with the same PID.
8 The PDS stops collecting data once the acquisition device B is
discharged.
4-10 Unity Network Patient Data Server Revision A
2016777-001
Patient Data Collection Scenarios: Patient Transport Scenarios
Transport Via a Wireless Dash Monitor
2
3
A
1
4
5
6
B
009A
1 The acquisition device A is on-line.
2 The patient is admitted with a PID at the monitor or CIC Pro. The PDS
begins collecting data.
3 Acquisition device A is discharged and the patient is admitted, with the
same PID, to a wireless Dash monitor for transport.
4 The patient is transferred using a wireless Dash monitor. In this
scenario, the DASH stays on-line so that no data is lost and the entire
monitoring session including transport is collected by the PDS.
5 The Dash monitor is discharged and the patient is admitted with the
same PID to acquisition device B. The PDS begins collecting data from
acquisition device B.
6 The PDS stops collecting data once the acquisition device is discharged.
Revision A Unity Network Patient Data Server 4-11
2016777-001
Patient Data Collection Scenarios: Patient Transfer Scenarios
Patient Transfer Scenarios
The following scenarios illustrate when data is stored during a transfer
from one acquisition device to another acquisition device in either the
same or different care areas.
General Guidelines
The PDS does not record data while an acquisition device is off-line
during a transport.
Non-overlapping data from both monitoring sessions (A and B) is
viewable at any PDS enabled CIC Pro where the patient is admitted/
viewed.
For overlapping parameters, refer to “Overlapping Data Rules” on
page 3-4.
Patient Transfer Legend
a
b
c
d
e
f
g
h
P
D
i
P
L3
a. Acquisition device is on-line
b. PDS data is viewable at the CIC Pro post discharge
c. PDS data is not viewable at the CIC Pro post discharge
d. Patient is on-line and in a leads fails condition
e. Patient is in a leads fails condition; however data is not viewable
f. Patient is admitted with a PID
g. Patient is discharged
h. Patient is pre-admitted
i. Patient is being transferred
4-12 Unity Network Patient Data Server Revision A
2016777-001
Off-line Transfer
Patient Data Collection Scenarios: Patient Transfer Scenarios
2
3
A
1
5
6
B
4
010
1 Acquisition device A is on-line.
2 The patient is admitted with a PID at the monitor or CIC Pro. The PDS
begins collecting data.
3 The acquisition device A is discharged and the patient is transferred to
a new acquisition device. The PDS stops collecting data and saves the
record.
4 Acquisition device B is on-line.
5 The patient is admitted with the same PID at the monitor or CIC Pro.
The PDS continues collecting data for this PID.
6 The PDS stops collecting data once the acquisition device B is
discharged.
NOTE
Data from both monitoring sessions (A and B) is viewable at any PDS
enabled CIC Pro where the patient is admitted/viewed.
Revision A Unity Network Patient Data Server 4-13
2016777-001
Patient Data Collection Scenarios: Patient Transfer Scenarios
1
Discharge After Transport
A
2
P
B
5
4
3
6
P
8
D
3
10
D
9
7
012
1 Acquisition device A is on-line.
2 The patient is admitted with a PID at the monitor or CIC Pro. The
PDS begins collecting data.
3 The patient is transferred to acquisition device B without being
discharged from acquisition device A.
4 Acquisition device A remains on-line and in a leads fail condition.
5 Acquisition device B is on-line.
6 The patient is admitted with the same PID at the monitor or CIC
Pro. The PDS begins collecting data.
7 Since acquisition device A is not discharged and continues to be in a
"leads fail" condition PDS will acquire data from 2 devices for the
same PID. Data collected during this time will be viewable from
the CIC based on the guidelines detailed in “Overlapping Data
Rules” on page 3-4.
In this scenario, the following information will be viewable while
both devices are admitted with the same PID: periodic parameters
from device B (since device A is in leads fail), episodic parameters
that continue to be acquired by device A (if any) and all alarm
histories from device A (if any) and B will be viewable
8 Acquisition device A is discharged.
9 All parameters collected by the PDS from acquisition device B are
now viewable at the CIC Pro. The PDS begins collecting all
parameter data from acquisition device B.
10 The PDS stops collecting data once the acquisition device B is
discharged.
4-14 Unity Network Patient Data Server Revision A
2016777-001
Patient Data Collection Scenarios: Patient Transfer Scenarios
Pre-Admit Before Transport
2
5
8
A
1
7
4
6
10
12
B
3
9
1 Acquisition device A is on-line.
2 The patient is admitted with a PID at the monitor or CIC Pro. The
PDS begins collecting data.
3 Acquisition device B is on-line.
4 The patient is pre-admitted with the same PID at the monitor or
CIC Pro to acquisition device B prior to being discharged from
acquisition device A. The PDS begins collecting data for acquisition
device B.
5 Acquisition device A remains on-line and the PDS continues to
collect data.
11
013
6 Acquisition device B remains on-line and in a “leads fail” condition.
7 Since acquisition device A was admitted first and any active
parameters acquired by acquisition device B will remain in a “leads
fail” condition (until the patient is connected to the acquisition
device B), only the data from acquisition device A can be viewed at
the CIC Pro. (This example assumes all parameters overlap.)
8 Device A is discharged.
9 All parameters collected by the PDS from acquisition device B are
now viewable at the CIC Pro.
10 Patient is transferred to acquisition device B.
11 The PDS continues collecting data from acquisition device B.
12 The PDS stops collecting data once the acquisition device B is
discharged.
Revision A Unity Network Patient Data Server 4-15
2016777-001
Patient Data Collection Scenarios: Combination Mode Scenarios
Combination Mode Scenarios
The following scenarios illustrate when data is acquired via telemetry
systems but displayed on a networked bedside monitor utilizing
Combination monitoring feature of the bedside monitor.
General Guidelines
The PDS does not record data while an acquisition device is off-line.
In Combo Mode, if the monitor and transmitter have different PIDS,
any parameters collected from the transmitter will be recorded under
the monitor's PID during combo mode. If the monitor is then
discharged, the transmitter will return to the PID that it was
admitted under.
In Combo Mode, if the monitor does not have a PID and a PID is not
entered prior to discharge/off-line then all data will be discarded.
Combination Mode Legend
a
a. Acquisition device is on-line
b. Telemetry Monitor
c. PDS data is viewable at the CIC Pro post discharge
d. PDS data is not viewable at the CIC Pro post discharge
e. Patient is admitted with a PID
f. Patient is discharged
b
c
d
e
f
L4
4-16 Unity Network Patient Data Server Revision A
2016777-001
Patient Data Collection Scenarios: Combination Mode Scenarios
Switch From Telemetry to Combo Mode and Back to Telemetry
2
1
A
4
5
8
7
6
B
3
014
1 Telemetry device A is on-line.
2 The patient is admitted with a PID at the CIC Pro. The PDS
begins collecting data.
3 Acquisition device B is on-line.
4 The patient is then admitted with the same PID to a bedside
monitor device B (without being discharged from acquisition
device A) utilizing the Combo procedure in order to acquire
additional parameters while still collecting the original
parameters from acquisition device A.
5 Combo mode data is collected by the PDS.
6 The additional parameters collected via acquisition device B are
no longer required so acquisition device B is discharged.
7 The PDS continues collecting data from acquisition device A.
8 The PDS stops collecting data once the acquisition device A is
discharged.
NOTE
The Combo mode feature of the monitor will determine which ECG
source is to be displayed on the monitor collected by the PDS.
Revision A Unity Network Patient Data Server 4-17
2016777-001
Patient Data Collection Scenarios: Combination Mode Scenarios
Switch From Bedside to Combo Mode and Back to Bedside
2
8
7
A
1
4
B
3
1 Bedside monitor device A is on-line.
2 The patient is admitted with a PID at the monitor or CIC Pro.
The PDS begins collecting data.
3 Acquisition device B is on-line.
4 The patient is then admitted with the same PID to a Telemetry
device B (without being discharged from acquisition device A)
utilizing the Combo procedure in order to allow patient mobility
while still viewing the collected parameters at device A.
5 Combo mode data is collected by the PDS.
6 The telemetry mobility via device B is no longer required so
device B is removed from combo monitoring.
5
6
015
7 The PDS continues collecting data from device A.
8 The PDS stops collecting data once the acquisition device A is
discharged.
NOTE
The Combo mode feature of the monitor will determine which ECG
source is to be displayed on the monitor collected by the PDS.
4-18 Unity Network Patient Data Server Revision A
2016777-001
Patient Data Collection Scenarios: Third-Party Acquisition Device Scenarios
Third-Party Acquisition Device Scenarios
The following scenarios illustrate when data is stored, and which
acquisition device data is stored from, when third-party acquisition
devices are connected to the Unity Network via the Unity Network ID,
Octacomm and Octanet devices. In general, the PDS does not record data
while an acquisition device is off-line.
General Guidelines
Third-party acquisition devices connected to an Octanet, via a Solar
8000M are viewed as a single acquisition device.
Third-party acquisition devices connected to an Octacomm, are
viewed as a separate acquisition device.
Association Mode is only supported by Unity Network ID and Dash
monitors, please refer to the Unity Network ID operators guide for
further information.
If a Unity Network ID device is not connected via Association Mode
on the Dash monitor (or the M-Port on the Solar monitor) it is viewed
by PDS as a separate device.
If the monitor and Unity Network ID were admitted with different
PIDs, then there will be two records until the Unity Network ID is
connected to the monitor via Association Mode or the M-Port.
Once the Unity Network ID is connected to the monitor via
Association Mode, any parameters collected from the Unity Network
ID will be stored under the monitor's PID. If the monitor is then
discharged, the Unity Network ID will need to be admitted with a
PID again for PDS to collect the data.
If a PID is never entered for the monitor prior to discharge/off-line
then PDS will not store the data collected.
If the Unity Network ID had a PID entered prior to Association
Mode, that data will be stored but no data will be collected after
association mode until the Unity Network ID is readmitted with a
PID.
Revision A Unity Network Patient Data Server 4-19
2016777-001
Patient Data Collection Scenarios: Third-Party Acquisition Device Scenarios
Third-Party Acquisition Legend
a
b
c
e
g
P
I
0
d
f
D
A
a. Acquisition device is on-line
b. Unity Network ID
c. PDS data is viewable at the CIC Pro post discharge
d. PDS data is not viewable at the CIC Pro post discharge
e. Patient is admitted with a PID
f. Patient is discharged
g. Patient is automatically discharged
L5
4-20 Unity Network Patient Data Server Revision A
2016777-001
Patient Data Collection Scenarios: Third-Party Acquisition Device Scenarios
Bedside Monitor/Unity Network ID
2
A
1
B
I
0
3
4
7
6
5
016A
1 Bedside Monitor device A is on-line.
2 The patient is admitted with a PID at the monitor or CIC Pro. The
PDS begins collecting data.
3 Unity Network ID device B is connected to the bedside monitor (via
Association Mode on the Dash monitor or the M-Port on the Solar
monitor) in order to acquire additional parameters and is on-line.
4 Device A and B data is collected by the PDS.
5 The additional parameters acquired via device B are no longer
required so device B is disconnected.
6 The PDS continues collecting data from device A. The PDS stops
collecting data once the acquisition device A is discharged.
Revision A Unity Network Patient Data Server 4-21
2016777-001
Patient Data Collection Scenarios: Third-Party Acquisition Device Scenarios
Unity Network ID/Bedside Monitor
2
A
1
I
0
4
4
5
7
8
6
B
3
1 Unity Network ID device A is on-line.
2 The patient is admitted with a PID at the CIC Pro. The PDS begins
collecting data.
3 Acquisition device B is on-line.
4 To acquire additional parameters while still collecting the original
parameters from device A the patient is admitted with the same
PID to a bedside monitor device B (via the Association Mode on the
Dash monitor and the M-Port on the Solar monitor). This action
discharges acquisition device A.
5 Device A and B data is collected by the PDS.
6 The additional parameters collected via device B are no longer
required so device B is discharged.
017A
7 The PID MUST BE REENTERED for device A at the CIC Pro. The
PDS continues collecting data from device A.
8 The PDS stops collecting data once the acquisition device A is
discharged.
4-22 Unity Network Patient Data Server Revision A
2016777-001
Patient Data Collection Scenarios: Data Storage and Post Discharge Viewing Scenarios
Data Storage and Post Discharge Viewing Scenarios
The following scenarios illustrate how much data is stored during the
normal admit/discharge sequence for a patient.
General Guidelines
If a patient is re-admitted within 72 hours their data will be
combined with the existing records. Any data older than 72 hours
will have been deleted.
After 72 hours of no new data for a PID, the PDS will not have any
data stored for that PID.
Data Storage Legend
a
a. Acquisition device is on-line
b. PDS data is viewable at the CIC Pro post discharge
c. PDS data is not viewable at the CIC Pro post discharge
d. Patient is admitted with a PID
e. Patient is discharged
b
c
d
P
e
D
L6
Revision A Unity Network Patient Data Server 4-23
2016777-001
Patient Data Collection Scenarios: Data Storage and Post Discharge Viewing Scenarios
_
View 72 Hours of Data
2
P
1
_______ __________
3
72 Hours
018A
1 The acquisition device is on-line.
2 The patient is admitted with a PID at the monitor or CIC Pro. The
PDS begins collecting data.
3 The PDS will provide data for viewing from the time the patient is
admitted until the patient is discharged or the acquisition device
goes off-line. In this scenario the patient has been monitored (under
the same PID) by at least one PDS enabled device for 72 hours. The
most recent 72 hours of trends and up to the last 500 alarm
histories can be viewed from the CIC Pro where the patient is
currently admitted with the same PID.
4-24 Unity Network Patient Data Server Revision A
2016777-001
Patient Data Collection Scenarios: Data Storage and Post Discharge Viewing Scenarios
_
1
Post Discharge Viewing
2
P
______ ______
5
72 Hours
3
D
_
24 Hours
4
P
019A
1 The acquisition device is on-line.
2 The patient is admitted with a PID at the monitor or CIC Pro. The
PDS begins collecting data.
3 After 72 hours, the acquisition device is discharged and the PDS
stops collecting data.
4 After 24 hours a care giver would like to review the patients info. To
view this information, an open bed must be admitted from the CIC
Pro with the same PID.
5 Since the PDS deletes data on a scrolling basis, there is only 48
hours of data available for viewing.
Revision A Unity Network Patient Data Server 4-25
2016777-001
Patient Data Collection Scenarios: Data Storage and Post Discharge Viewing Scenarios
_
1
Patient Re-admit after Discharge
72 Hours
5
3
D
4
P
_
24 Hours
6
018
2
P
_____ ______
1 The acquisition device is on-line.
2 The patient is admitted with a PID at the monitor or CIC Pro. The
PDS begins collecting data.
3 After 72 hours, the acquisition device is discharged and the PDS
stops collecting data.
4 After 24 hours, a patient is re-admitted with the same PID at the
monitor or CIC Pro. The PDS begins collecting data.
5 Since the PDS deletes data on a scrolling basis, there is only 48
hours of data available for viewing.
6 As the PDS continues to collect new data, old data is deleted.
4-26 Unity Network Patient Data Server Revision A
2016777-001
Index
Revision A Unity Network Patient Data Server Index-1
2016777-001
For your notes
Index
Index-2 Unity Network Patient Data Server Revision A
2016777-001
Index
A
About this manual
Intended audience ............................................ 1-3
Manual purpose................................................ 1-3
Revision history ................................................ 1-3
C
Cautions.................................................................. 2-5
Compatibility ........................................................... 1-5
ApexPro telemetry transmitter .......................... 1-5
CDT-LAN telemetry system.............................. 1-5
CIC Pro clinical information center ................... 1-5
Dash 2000 patient monitor ............................... 1-5
Dash 3000/4000 patient monitor ...................... 1-5
Eagle 3000 patient monitor............................... 1-5
Octacomm connectivity device ......................... 1-5
Octanet connectivity device.............................. 1-5
Solar 7000/8000 patient monitor ...................... 1-5
Solar 8000M patient monitor ............................ 1-5
Solar 9500 patient monitor ............................... 1-5
Conventions ............................................................ 1-4
Compatibility ..................................................... 1-5
Frequently used terms...................................... 1-4
Product reference............................................. 1-4
Software package............................................. 1-4
S
Safety
Cautions ........................................................... 2-5
Dangers ............................................................ 2-4
Intended use..................................................... 2-3
Terminology...................................................... 2-3
Warnings .......................................................... 2-4
Scenarios
Combination mode ......................................... 4-16
Data storage and post discharge viewing....... 4-23
Patient transfer ............................................... 4-12
Patient transport ............................................... 4-7
Third-party acquisition device......................... 4-19
Software packages.................................................. 1-4
U
Underwriters laboratories, inc. ................................ 2-5
Unity Network ID connectivity device...................... 1-5
Unity network patient data server............................ 3-3
User interface.......................................................... 3-4
W
Warnings ................................................................. 2-4
D
Dangers .................................................................. 2-4
Data storage rules................................................... 3-3
F
Frequently used terms ............................................ 1-4
I
Intended audience .................................................. 1-3
M
Manual purpose ...................................................... 1-3
P
Product reference ................................................... 1-4
R
Revision history....................................................... 1-3
Revision A Unity Network Patient Data Server Index-3
2016777-001
For your notes
Index
Index-4 Unity Network Patient Data Server Revision A
2016777-001
gemedical.com
0459
World Headquarters
GE Medical Systems
Information Technologies, Inc.
8200 West Tower Avenue
Milwaukee, WI 53223 USA
Tel: + 1 414 355 5000
1 800 558 5120 (US only)
Fax: + 1 414 355 3790
European Representative
GE Medical Systems
Information Technologies GmbH
Munzinger Straße 3-5
D-79111 Freiburg
Germany
Tel: + 49 761 45 43 - 0
Fax: + 49 761 45 43 - 233
Asia Headquarters
GE Medical Systems
Information Technologies Asia; GE (China) Co., Ltd.
24th Floor, Shanghai MAXDO Center,
8 Xing Yi Road, Hong Qiao Development Zone
Shanghai 200336, P.R. China
Tel: + 86 21 5257 4650
Fax: + 86 21 5208 2008
Loading...
