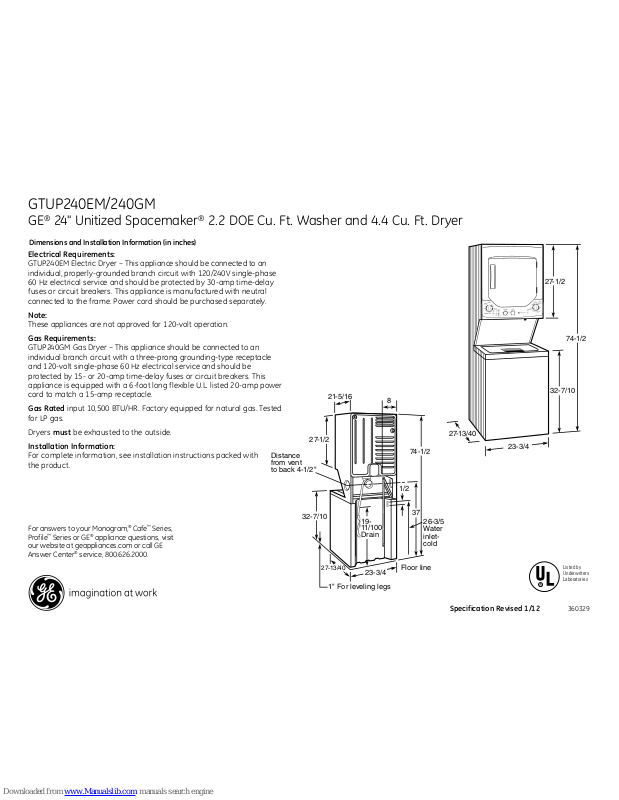

Dimensions and Installation Information (in inches)
For answers to your Monogram,
®
Cafe™ Series,
Profile™ Series or GE® appliance questions, visit
our website at geappliances.com or call GE
Answer Center® service, 800.626.2000.
360329
GTUP240EM/240GM
GE® 24" Unitized Spacemaker® 2.2 DOE Cu. Ft. Washer and 4.4 Cu. Ft. Dryer
Listed by
Underwriters
Laboratories
Specification Revised 1/12
Electrical Requirements:
GTUP240EM Electric Dryer – This appliance should be connected to an
individual, properly-grounded branch circuit with 120/240V single-phase
60 Hz electrical service and should be protected by 30-amp time-delay
fuses or circuit breakers. This appliance is manufactured with neutral
connected to the frame. Power cord should be purchased separately.
Note:
These appliances are not approved for 120-volt operation.
Gas Requirements:
GTUP240GM Gas Dryer – This appliance should be connected to an
individual branch circuit with a three-prong grounding-type receptacle
and 120-volt single-phase 60 Hz electrical service and should be
protected by 15- or 20-amp time-delay fuses or circuit breakers. This
appliance is equipped with a 6-foot long flexible U.L. listed 20-amp power
cord to match a 15-amp receptacle.
Gas Rated input 10,500 BTU/HR. Factory equipped for natural gas. Tested
for LP gas.
Dryers must be exhausted to the outside.
Installation Information:
For complete information, see installation instructions packed with
the product.
theewndcnnfnkj
theewndcnnfnkj
theewnd
theewnd
theewnd
theewnd
theewnd
theewnd
theewnd
theewnd
theewnd
thee
thee
theewnd
theewnd
theewnd
35
35
35
theewndcnnfnkj
35
35
35
35
35
35
35
35
35
35
Floor line
Distance
from vent
to back 4-1/2"
26-3/5
Water
inlet-
cold
1" For leveling legs
32-7/10
27-13/40
23-3/4
27-1/2
74-1/2
32-7/10
23-3/4
27-1/2
27-13/40
37
74-1/2
1/2
21-5/16
8
Drain
19-
11/100
Floor line
Distance
from vent
to back 4-1/2"
26-3/5
Water
inletcold
1" For leveling legs
32-7/10
27-13/40
23-3/4
27-1/2
37
74-1/2
1/2
21-5/16
8
Drain
1911/100
Dimensions and Installation Information (in inches)
360329
GTUP240EM/240GM
GE® 24" Unitized Spacemaker® 2.2 DOE Cu. Ft. Washer and 4.4 Cu. Ft. Dryer
Listed by
Underwriters
Laboratories
Specification Revised 1/12
For complete information, see installation instructions packed with your dryer.
Ducting Materials:
This dryer MUST be vented with 4" diameter all rigid metal exhaust duct.
Exhaust Length Calculation:
1. Determine the number of 90° turns needed for your installation. If you exhaust to the side or bottom of dryer,
add one turn.
2. The maximum length of 4" rigid (aluminum or galvanized) duct which can be tolerated is shown in the table.
A turn of 45° or less may be ignored. Two 45° turns within the duct length should be treated as a 90° elbow. A turn
over 45° should be treated as a 90° elbow.
Dryers must be exhausted to the outside.
Caution: For personal safety do not terminate exhaust into a chimney, under any enclosed house floor (crawl
space), or into an attic, since the accumulated lint could create a fire hazard or moisture could cause damage.
Never terminate the exhaust into a common duct or plenum with a kitchen exhaust, since the combination of lint
and grease could create a fire hazard.
Exhaust ducts should be terminated in a dampered wall cap to prevent back drafts, bird nesting, etc. The wall cap
must also be located at least 12" above the ground or any other obstruction with the opening pointed down.
Special Installation Requirements
Alcove or Closet Installation:
• If your dryer is approved for installation in an alcove or closet, it will be stated on a label on the dryer back.
• The dryer MUST be exhausted to the outside.
• Minimum clearances between dryer cabinet and adjacent walls or other surfaces are:
0" both sides and rear
1" front and top
• Minimum vertical space from floor to overhead cabinets, ceilings, etc. is 75-1/2".
• Closet doors must be louvered or otherwise ventilated and must contain a minimum of 60 sq. in. of open area
equally distributed. If this closet contains both a washer and a dryer, doors must contain a minimum of 120 sq. in.
of open area equally distributed.
• No other fuel-burning appliance shall be installed in the same closet with a gas dryer.
Bathroom or Bedroom Installation:
• The dryer MUST be exhausted to the outdoors.
• The installation must conform with the local codes, or in the absence of local codes, with the National Electric
Code and National Fuel Gas Code, ANSI Z223 for gas dryers.
Minimum Clearances other than Alcove or Closet Installation:
• Minimum clearances to combustible surfaces
0" both sides and rear
1" front and top
GTUP270EM/GM and GTUN275EM/GM
DRYER EXHAUST LENGTH
4" DIA.
4"
4" DIA.
4" DIA.
2-1/2"
RECOMMENDED MAXIMUM LENGTH
Exhaust Hood Types
Recommended
No. of 90º
Elbows
Rigid
Metal
Rigid
Metal
56 F eet
44 F eet
34 F eet
24 F eet
0
1
2
3
42 F eet
32 F eet
25 F eet
18 F eet
Use only
for short
run installations
GTUP240EM/GM DRYER EXHAUST LENGTH
4" DIA.
4"
4" DIA.
4" DIA.
2-1/2"
RECOMMENDED MAXIMUM LENGTH
Exhaust Hood Types
Recommended
No. of 90º
Elbows
Rigid
Metal
Rigid
Metal
43 F eet
33 F eet
24 F eet
0
1
2
36 F eet
26 F eet
16 F eet
Use only
for short
run installations
For answers to your Monogram,® GE Profile™ or
GE® appliance questions, visit our website at
geappliances.com or call GE Answer Center®
service, 800.626.2000.
For every extra 90° elbow, reduce the allowable vent system length
by 10 ft.
Two 45° elbows will be treated like one 90° elbow.
For the side exhaust installations, add one 90° elbow to the chart.
The total vent system length includes all the straight portions and
elbows of the system (transition duct included).
360329
GTUP240EM/240GM
GE® 24" Unitized Spacemaker® 2.2 DOE Cu. Ft. Washer and 4.4 Cu. Ft. Dryer
Specification Revised 1/12
Features and Benefits
• 3 wash/spin speed combinations - Speeds are matched to fabric type
for great clothes care
• 9 wash cycles - Cycles are designed to specifically handle various
fabrics and soils
• 5 wash/rinse temperatures - Select the right temperature for ideal
wash results
• Auto-load sensing with 5 water levels - Washer will automatically
measure the load size and add just the right amount of water
• Bleach and fabric softener dispensers - Solutions are automatically
mixed with wash water for clean, bright, soft-to-the-touch results
• Rotary-electronic controls (washer) - Simplify cycle selection
• Cycle status lights - Provide accurate cycle times
• Rotary-electromechanical controls (dryer) - Allow fast, easy cycle
selection
• Model GTUP240EMWW – White on white (Electric)
• Model GTUP240GMWW – White on white (Gas)
Modified Energy Factor (MEF)
1.31
Water Factor (WF)
