Powr-Spot™ (ULGC, UGLN & ULGV)
imagination at work
Product Features
GE Sports Flood Lighting is the premium lighting solution for professional arena applications. Combining state-of-theart lamp, optical and ballast technology, packaged together for unmatched light output and efficiency, with excellent
visibility for player, spectators and television broadcasting.
Applications
• Recreational and competition sports fields at all levels
• General floodlighting where long setbacks or high
mountings require maximum optical performance
• Especially suitable at sites requiring glare reduction
and light trespass limitation
Housing
• Die-cast aluminum ballast housing with polyester
powder gray paint finish inside and out
Finish
• Polyester powder gray paint finish
Ratings
/
• 1598 Listed Suitable For Wet Locations
Reflectors
• Enclosed, gasketed, filtered optical with configured,
ALGLAS™ finish on 20-inch (508mm) diameter
aluminum reflector and tempered glass closure
Unique Features
• Thermal separation of ballast from socket and lamp
• Removable cover for access to ballast and wiring
compartment
• No-weep-hole condensate drain when aimed down
• Built-in cable and strain relief bushing
• Heavy gauge steel trunnion with aiming reset stop
• Corrosion-resistant hardware
• Remote ballasted system available – contact factory
• Mogul base socket – E39 standard
Ordering Number Logic
Powr-Spot™ (ULGC, UGLN & ULGV)
A
_ _ _ _ - _ _ - _ - _ - _ - _ - _ _ - _ _ _ - _
PROD. ID
ULGC = Powr-Spot III
-Floodlight with
20-in. (508mm)
diameter Reflector
with Internal
Light Diverter and
External ULC Visor
Mounted on Door
ULGN = Powr-Spot III
Floodlight with
20-in. (508mm)
diameter Reflector
with Internal Light
Diverter only
ULGV = Powr-Spot III
Floodlight with
20-in. (508mm)
diameter Reflector
with Standard
Reflector and ULC
Top Visor Mounted
on Door
WATTAGE
75 = 750
01 = 1000
51 = 1500
LIGHT
SOURCE
S = HPS
M = MH
Standard: Lamp
not included.
VOLTAGE
60Hz
0 = 120/208/
240/277
Multivolt
1 = 120
2 = 208
3 = 240
4 = 277
5 = 480
D = 347
T = 220
50Hz
6 = 220
Y = 240
BALLAST
TYPE
A = Autoreg
TRUNNION
TYPE
1 = Straight
2 = Angled
3 = Long
(for SportsStar)
4 = Straight w/CAA-001
REFLECTOR
ID
Select ID. from
Photometric
Selection Table.
B0
C0
D0
E0
Ballast and Photometric Selection Table
All light sources are clear unless other wise indicated.
Ballast
Light Type All
Product ID
Wattage Source Voltages* B0 = 3X3 C0 = 4X4 D0 = 5X5 E0 = 6X6
ULGC 1000 MH A 452798(39X32) 452797(53X41) 452796(74X70) 452795(108X91)
1500 MH A 452765(41X38) 452763(41X33) 453421(65X55) 452762(87X88)
ULGN 1000 MH A 452799(40X32) 452800(54X43) 452801(71X68) 452802(106X109)
1500 MH A 452769(42X34) 452768(54X43) 452767(65X60) 452766(104X103)
ULGV 1000 MH A 452806(38X36) 452805(54X49) 452804(85X76) 452803(107X93)
1500 MH A 452773(41X40) 452772(52X46) 452771(63X58) 452770(86X88)
NOTE: N/A = Not Available *347 volts available in multivolt . Contact factory for other lamps and wattages.
For indoor indirect lighting 3applications with 1000 watt or greater, GELS recommends –replacing tempered front
glass lens with wire guard accessory WG-PSFO.
For facade or applications with aiming fixture above horizontal, contact factory.
Designate 20-inch (508mm) Reflector by Reflector ID.
Photometric Curve Number 35-xxxxxx & Actual Beam Angle in Degrees
OPTICAL
REFLECTOR
See Dimensions
HD0 = Heavy Duty
20-in.
(508mm)
Diameter
GP0 = General
Purpose 20-in.
(508mm)
Diameter
OPTIONS
F = Fusing (Not available with multivolt)
P = Pre-wired with 6-ft (2M) #14/3
ULGC
ULGN
ULGV

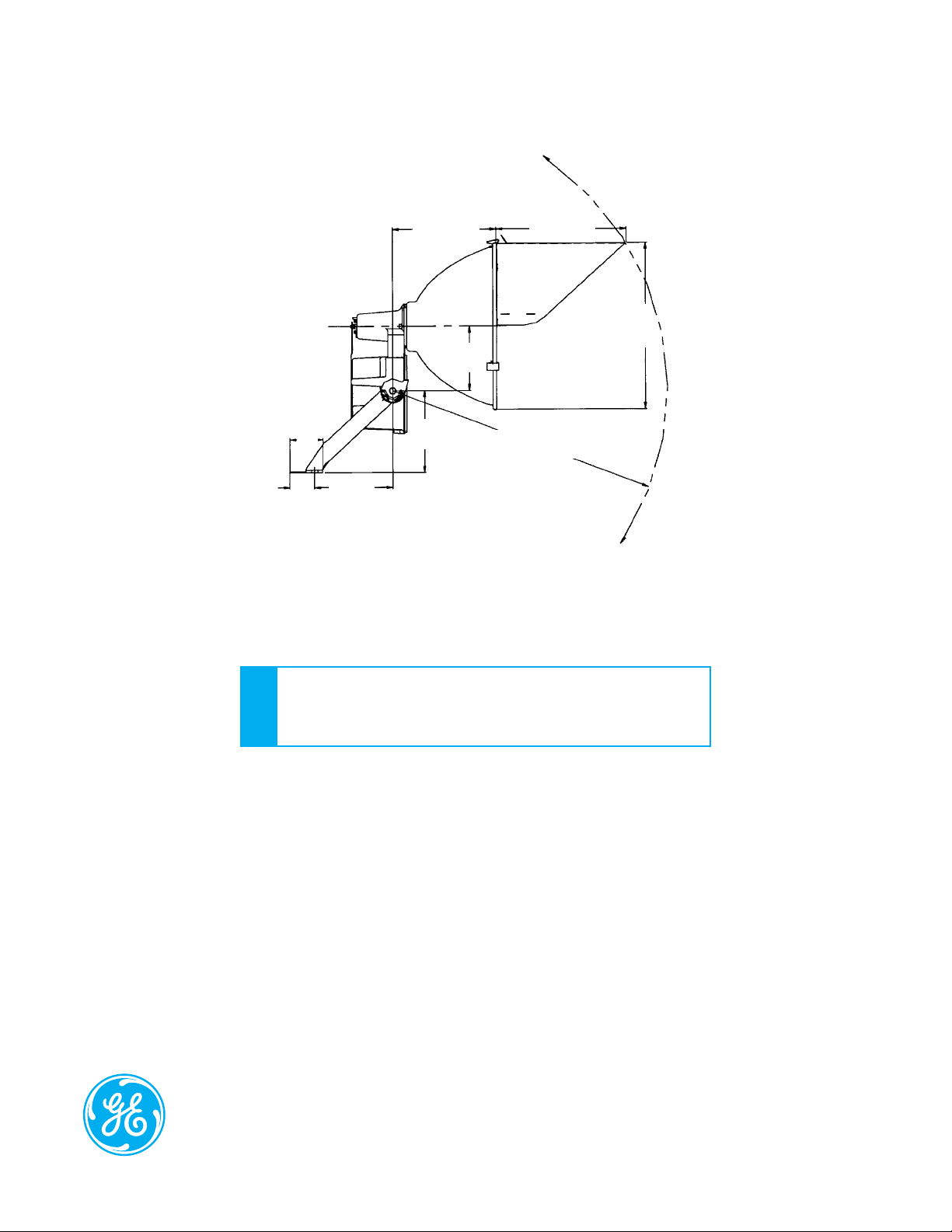

Product Dimensions
Powr-Spot™ (ULGC, UGLN & ULGV)
1.07 in.
(27mm)
3.04 in.
(77mm)
9.47 in.
(241mm)
12.531 in.
(318mm)
7.969 in.
(202mm)
10.42 in.
(265mm)
16.000 in.
(407mm)
20.700 in.
(526mm)
33.906 in.
(861mm)
•
Approximate Net Weight
•
Effective Projected Area
DATA
*When aimed 30° down
: 55-65 lbs (25-29 kgs)
: ULGN 2.7* sq ft max (.24* sq M max)
ULGV, ULGC 3.25 sq ft max (__ sq M max)
