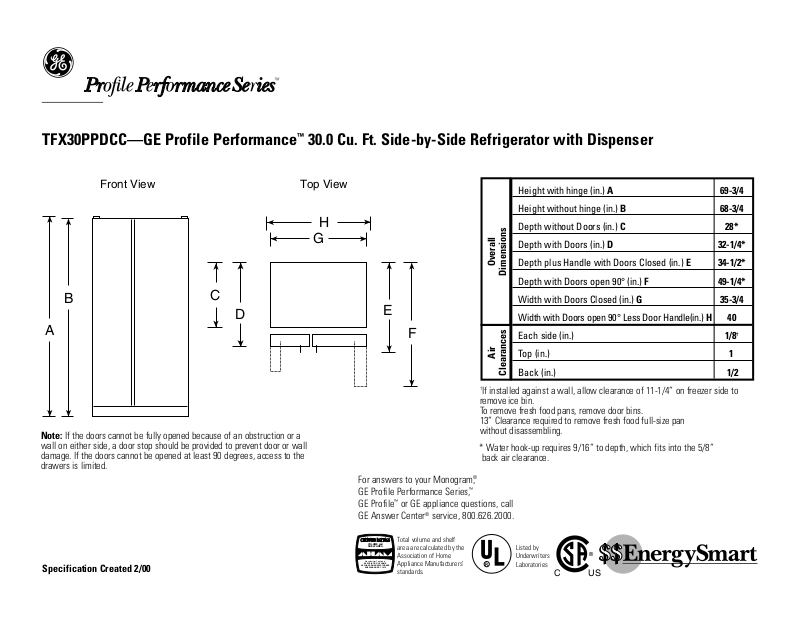

GE TFX30PPDCC Specification
TFX30PPDCC—GE Profile Performance™30.0 Cu. Ft. Side-by-Side Refrigerator with Dispenser
CUS
®
Manufacturer Certified to
ASSOCIATION OF HOME
APPLIANCE MANUFACTURERS
ANSI/AHAN HRF-1-1979
VOLUME and
SHELF AREA
R
Total volume and shelf
area are calculated by the
Association of Home
Appliance Manufacturers’
standards.
Listed by
Underwriters
Laboratories
For answers to your Monogram,
®
GE Profile Performance Series,
™
GE Profile™or GE appliance questions, call
GE Answer Center®service, 800.626.2000.
Specification Created 2/00
Top View
A
E
F
C
D
G
H
B
Front View
Note: If the doors cannot be fully opened because of an obstruction or a
wall on either side, a door stop should be provided to prevent door or wall
damage. If the doors cannot be opened at least 90 degrees, access to the
drawers is limited.
* Water hook-up requires 9/16” to depth, which fits into the 5/8”
back air clearance.
†
If installed against a wall, allow clearance of 11-1/4” on freezer side to
remove ice bin.
To remove fresh food pans, remove door bins.
13” Clearance required to remove fresh food full-size pan
without disassembling.
Height with hinge (in.) A 69-3/4
Height without hinge (in.) B 68-3/4
Depth without Doors (in.) C 28*
Depth with Doors (in.) D 32-1/4*
Depth plus Handle with Doors Closed (in.) E 34-1/2*
Depth with Doors open 90° (in.) F 49-1/4*
Width with Doors Closed (in.) G 35-3/4
Width with Doors open 90° Less Door Handle(in.) H40
Each side (in.) 1/8
†
Top (in.) 1
Back (in.) 1/2
Overall
Dimensions
Air
Clearances
Specification Created 2/00
TFX30PPDCC—GE Profile Performance™30.0 Cu. Ft. Side-by-Side Refrigerator with Dispenser
Features and Benefits
• 30.0 cu. ft. Capacity (Fresh Food 18.15 cu. ft. / Freezer 11.88 cu. ft.)
• Exclusive Water-By-Culligan™Provides Cleaner, Better Tasting Water and
Ice through the LightTouch! Dispenser (Chilled Water, Cubed and Crushed Ice)
• Freshness Center™(1 Adjustable Humidity Crisper, 1 Convertible
Meat Keeper with Cold Control and 1 Adjustable Humidity Snack Pan)
with Spill-Proof Cover
• 3 Adjustable Glass Fresh Food Cabinet Shelves (2 Slide Out, Spill Proof)
• Quick Space
™
Shelf
• ShelfSaver
™
• 4 ClearLook™Modular Super Gallon Door Bins (3 Adjustable)
• Dairy Compartment with Glass Butter Dish
• Egg Bin
• Beverage Rack
• 3 Wire Everwhite Freezer Compartment Shelves (2 Adjustable)
• 1 Wire Everwhite Slide Out Freezer Basket
• 1 Clear Sliding Freezer Storage Bin
• 4 Extra-Deep Freezer Door Shelves (2 Adjustable)
• Quiet Package II
• Color-Matched Premium Deluxe Door Handles
• Model TFX30PPDWW—White on white
• Model TFX30PPDBB—Black on black
• Model TFX30PPDAA—Almond on almond
• Model TFX30PPDCC—Bisque
