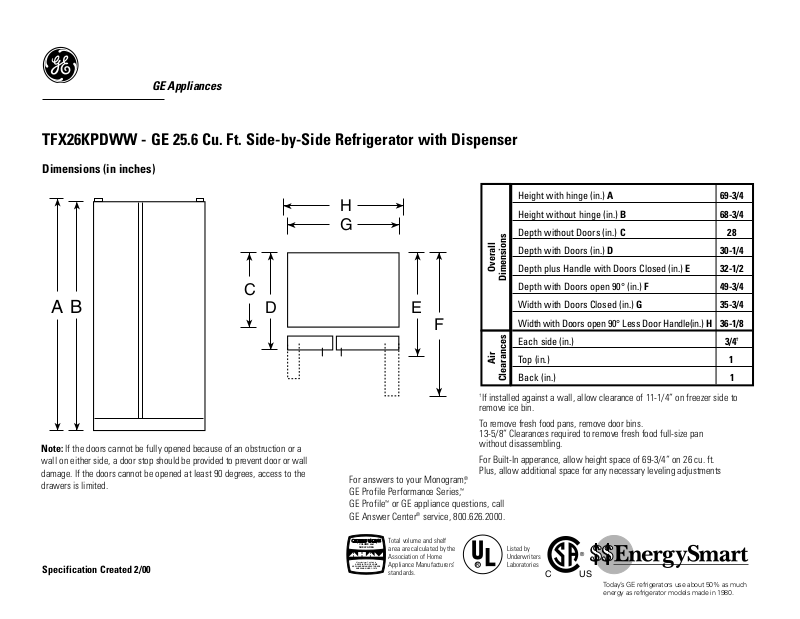

GE Appliances
TFX26KPDWW - GE 25.6 Cu. Ft. Side-by-Side Refrigerator with Dispenser
Dimensions (in inches)
H
G
|
|
|
|
|
|
|
|
|
A B |
C |
|
|
|
|
|||
|
|
|
|
|||||
|
|
|
D |
|
E |
F
|
|
|
|
|
|
|
Top View |
|
Note: If the doors cannot be fully opened because of an obstruction or a |
|
|||||||
wall on either side, a door stop should be provided to prevent door or wall |
|
|||||||
damage. If the doors cannot be opened at least 90 degrees, access to the |
For answers to your Monogram,® |
|||||||
drawers is limited. |
||||||||
GE Profile Performance Series,™ |
||||||||
|
|
|
|
|
|
|
|
|
|
Height with hinge (in.) A |
69-3/4 |
|
|
|
Height without hinge (in.) B |
68-3/4 |
|
<![if ! IE]> <![endif]>Dimensions |
|
Depth without Doors (in.) C |
28 |
<![if ! IE]> <![endif]>Overall |
|
Depth with Doors (in.) D |
30-1/4 |
|
|
Depth plus Handle with Doors Closed (in.) E |
32-1/2 |
||
|
|
Depth with Doors open 90° (in.) F |
49-3/4 |
|
|
|
|
||
|
|
|
Width with Doors Closed (in.) G |
35-3/4 |
|
|
|
Width with Doors open 90° Less Door Handle(in.) H |
36-1/8 |
|
<![if ! IE]> <![endif]>Clearances |
|
Each side (in.) |
3/4† |
<![if ! IE]> <![endif]>Air |
|
Top (in.) |
1 |
|
|
|
Back (in.) |
1 |
†If installed against a wall, allow clearance of 11-1/4” on freezer side to remove ice bin.
To remove fresh food pans, remove door bins.
13-5/8” Clearances required to remove fresh food full-size pan without disassembling.
For Built-In apperance, allow height space of 69-3/4” on 26 cu. ft. Plus, allow additional space for any necessary leveling adjustments
GE Profile™ or GE appliance questions, call GE Answer Center® service, 800.626.2000.
Specification Created 2/00
VOLUME and
SHELF AREA
Manufacturer Certified to
ASSOCIATION OF HOME APPLIANCE MANUFACTURERS ANSI/AHAN HRF-1-1979
Total volume and shelf area are calculated by the Association of Home Appliance Manufacturers’ standards.
R
Listed by
Underwriters ® Laboratories
C US
Today’s GE refrigerators use about 50% as much energy as refrigerator models made in 1980.
GE Appliances
TFX26KPDWW - GE 25.6 Cu. Ft. Side-by-Side Refrigerator with Dispenser
Features and Benefits
• 25.6 cu ft Capacity (Fresh Food 16.0 cu ft / Freezer 9.59 cu ft)
• Exclusive Water-By Culligan™ Provides Cleaner, Better Tasting Water and Ice through the LightTouch! Dispenser (Chilled Water, Cubed and Crushed Ice)
• Adjustable Humidity Vegetable/Fruit Crispers
• Adjustable Temperature Meat Pan
• 3 Adjustable, Spill Proof Glass Fresh Food Cabinet Shelves
• 4 Fresh Food Modular Door Bins (2 Adjustable with Gallon Storage)
• Dairy Compartment (with Butter Dish)
• Utility (Egg) Bin
• 3 Adjustable Wire Everwhite Freezer Compartment Shelves
• 1 Clear Sliding Freezer Storage Bin
• 5 Freezer Door Shelves
• Quiet Package I
• Color-Matched Deluxe Door Handles
• Model TFX26KPDWW - White on white
• Model TFX26KPDAA - Almond on almond
Specification Created 2/00
