GE TFX26CPDAA Specification
TFX26CPDAA - GE 25.6 Cu. Ft. Side-By-Side Refrigerator with Dispenser
GE Appliances
Specification Created 2/00

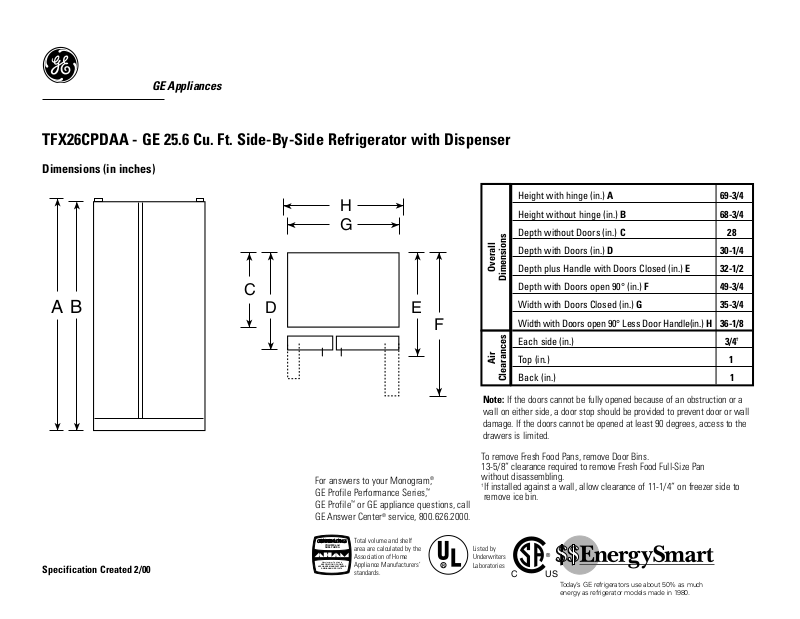

Dimensions (in inches)
Today’s GE refrigerators use about 50% as much
energy as refrigerator models made in 1980.
A
Top View
G
D
C
F
B
E
H
Height with hinge (in.) A 69-3/4
Height without hinge (in.) B 68-3/4
Depth without Doors (in.) C28
Depth with Doors (in.) D 30-1/4
Depth plus Handle with Doors Closed (in.) E 32-1/2
Depth with Doors open 90° (in.) F 49-3/4
Width with Doors Closed (in.) G 35-3/4
Width with Doors open 90° Less Door Handle(in.) H 36-1/8
Each side (in.) 3/4
†
Top (in.) 1
Back (in.) 1
Overall
Dimensions
Air
Clearances
Note: If the doors cannot be fully opened because of an obstruction or a
wall on either side, a door stop should be provided to prevent door or wall
damage. If the doors cannot be opened at least 90 degrees, access to the
drawers is limited.
To remove Fresh Food Pans, remove Door Bins.
13-5/8” clearance required to remove Fresh Food Full-Size Pan
without disassembling.
†
If installed against a wall, allow clearance of 11-1/4” on freezer side to
remove ice bin.
Total volume and shelf
area are calculated by the
Association of Home
Appliance Manufacturers’
standards.
Listed by
Underwriters
Laboratories
For answers to your Monogram,
®
GE Profile Performance Series,
™
GE Profile™or GE appliance questions, call
GE Answer Center®service, 800.626.2000.
APPLIANCE MANUFACTURERS
VOLUME and
SHELF AREA
Manufacturer Certified to
ASSOCIATION OF HOME
ANSI/AHAN HRF-1-1979
R
CUS
®
Specification Created 2/00
GE Appliances
TFX26CPDAA - GE 25.6 Cu. Ft. Side-By-Side Refrigerator with Dispenser
Features and Benefits
• 25.6 cu. ft. Capacity (Fresh Food 16.0 cu. ft. / Freezer 9.59 cu. ft.)
• Exclusive Water-By Culligan
™
Provides Cleaner, Better Tasting Water and Ice
through the LightTouch! Dispenser (Chilled Water, Cubed and Crushed Ice)
• Adjustable Humidity Vegetable/Fruit Crispers
• Adjustable Temperature Meat Pan
• Sealed Snack Pan
• 3 Adjustable, Spill Proof Glass Fresh Food Cabinet Shelves
• 4 Fresh Food Door Shelves (2 Adjustable with Gallon Storage)
• QuickSpace
™
Shelf
• Dairy Compartment with Butter Dish
• Utility Bin
• 3 Adjustable Wire Everwhite Freezer Compartment Shelves
• 1 Clear Sliding Freezer Storage Bin
• 5 Freezer Door Shelves
• Quiet Package I
• Color-Matched Premium Deluxe Door Handles
• Model TFX26CPDWW - White on white
• Model TFX26CPDBB - Black on black
• Model TFX26CPDAA - Almond on almond
• Model TFX26CPDCC - Bisque
