GE TFX25ARBAA Specification

TFX25ARBAA - GE 25.2 Cu. Ft. Side-by-Side Refrigerator with Dispenser

GE Appliances

Created 8/98

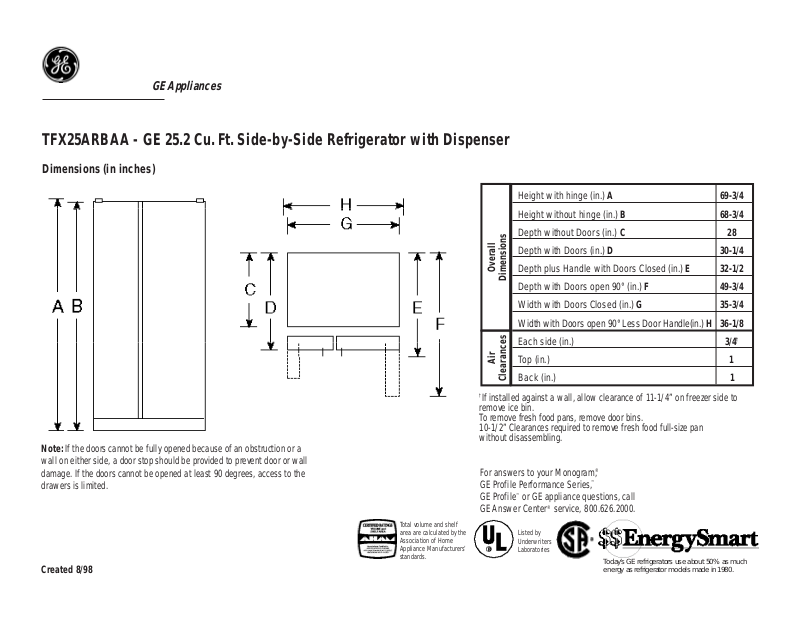

Dimensions (in inches)

Today’s GE refrigerators use about 50% as much
energy as refrigerator models made in 1980.

Total volume and shelf
area are calculated by the
Association of Home
Appliance Manufacturers’
standards.

Listed by
Underwriters
Laboratories

Height with hinge (in.) A 69-3/4
Height without hinge (in.) B 68-3/4
Depth without Doors (in.) C28
Depth with Doors (in.) D 30-1/4
Depth plus Handle with Doors Closed (in.) E 32-1/2
Depth with Doors open 90° (in.) F 49-3/4
Width with Doors Closed (in.) G 35-3/4
Width with Doors open 90° Less Door Handle(in.) H 36-1/8
Each side (in.) 3/4

†

Top (in.) 1
Back (in.) 1

Overall

Dimensions

Air

Clearances

Note: If the doors cannot be fully opened because of an obstruction or a

wall on either side, a door stop should be provided to prevent door or wall
damage. If the doors cannot be opened at least 90 degrees, access to the
drawers is limited.

†

If installed against a wall, allow clearance of 11-1/4” on freezer side to
remove ice bin.
To remove fresh food pans, remove door bins.
10-1/2” Clearances required to remove fresh food full-size pan
without disassembling.

For answers to your Monogram,

®

GE Profile Performance Series,

™

GE Profile™or GE appliance questions, call
GE Answer Center®service, 800.626.2000.

GE Appliances

Created 8/98

TFX25ARBAA - GE 25.2 Cu. Ft. Side-by-Side Refrigerator with Dispenser

Features and Benefits

•25.2 cu ft Capacity (Fresh Food 15.92 / Freezer 9.41 cu ft)

•LightTouch! Dispenser Delivers Chilled Water, Crushed and Cubed Ice
Through the Door

•Adjustable Humidity Vegetable/Fruit Crispers

•Adjustable Temperature Meat Pan

•Snack Pan

•3 Adjustable, Spill Proof Glass Fresh Food Cabinet Shelves

•4 Modular Door Bins (2 Adjustable with Gallon Storage)

•Dairy Compartment

•Utility Bin

•Snugger

™

Clips

•3 Adjustable Freezer Compartment Shelves

•5 Freezer Door Shelves

•1 Clear Sliding Storage Bin

•Quiet Package

•Color-Matched Premium Deluxe Door Handles

•Model TFX25ARBWW - White on white

•Model TFX25ARBAA - Almond on almond
