GE TFX22PPDWW Specification

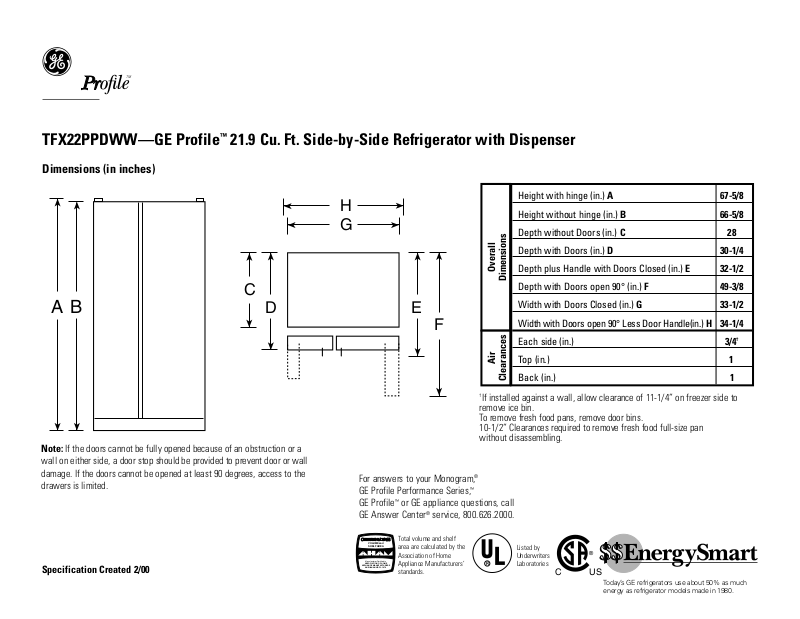

TFX22PPDWW—GE Profile™21.9 Cu. Ft. Side-by-Side Refrigerator with Dispenser
TM
Specification Created 2/00
Dimensions (in inches)
Today’s GE refrigerators use about 50% as much
energy as refrigerator models made in 1980.
A
Top View
G
D
C
F
B
E
H
Height with hinge (in.) A 67-5/8
Height without hinge (in.) B 66-5/8
Depth without Doors (in.) C28
Depth with Doors (in.) D 30-1/4
Depth plus Handle with Doors Closed (in.) E 32-1/2
Depth with Doors open 90° (in.) F 49-3/8
Width with Doors Closed (in.) G 33-1/2
Width with Doors open 90° Less Door Handle(in.) H 34-1/4
Each side (in.) 3/4
†
Top (in.) 1
Back (in.) 1
Overall
Dimensions
Air
Clearances
Note: If the doors cannot be fully opened because of an obstruction or a
wall on either side, a door stop should be provided to prevent door or wall
damage. If the doors cannot be opened at least 90 degrees, access to the
drawers is limited.
†
If installed against a wall, allow clearance of 11-1/4” on freezer side to
remove ice bin.
To remove fresh food pans, remove door bins.
10-1/2” Clearances required to remove fresh food full-size pan
without disassembling.
Total volume and shelf
area are calculated by the
Association of Home
Appliance Manufacturers’
standards.
Listed by
Underwriters
Laboratories
For answers to your Monogram,
®
GE Profile Performance Series,
™
GE Profile™or GE appliance questions, call
GE Answer Center
®
service, 800.626.2000.
VOLUME and
SHELF AREA
Manufacturer Certified to
ASSOCIATION OF HOME
APPLIANCE MANUFACTURERS
ANSI/AHAN HRF-1-1979
R
CUS
®
Specification Created 2/00
TM
TFX22PPDWW—GE Profile™21.9 Cu. Ft. Side-by-Side Refrigerator with Dispenser
Features and Benefits
• 21.9 cu. ft. Capacity (Fresh Food 14.95 cu. ft. / Freezer 6.9 cu. ft.)
• Exclusive Water by Culligan
™
Provides Cleaner, Better Tasting Water and
Ice Through the LightTouch! Dispenser (Chilled Water, Cubes and Crushed Ice)
• Freshness Center
™
(1 Adjustable Humidity Crisper, 1 Convertible
Meat Keeper with Cold Control and 1 Adjustable Humidity Snack Pan)
with Spill-Proof Cover
• 3 Adjustable Glass Fresh Food Cabinet Shelves (2 Slide Out, Spill Proof)
• Quick Space
™
Shelf
• ShelfSaver
™
• 4 ClearLook™Modular Fresh Food Door Shelves (2 Adjustable with
Gallon Storage)
• Dairy Compartment with Glass Butter Dish
• Egg Bin
• Beverage Rack
• 3 Wire Everwhite, Slide Out Freezer Baskets
• 1 Clear Sliding Freezer Storage Bin
• 5 Freezer Door Shelves
• Quiet Package II
• Color-Matched Premium Deluxe Door Handles
• Model TFX22PPDWW–White on white
• Model TFX22PPDBB–Black on black
• Model TFX22PPDAA–Almond on almond
• Model TFX22PPDCC–Bisque
• Model TFS22PPDBS–Stainless steel
