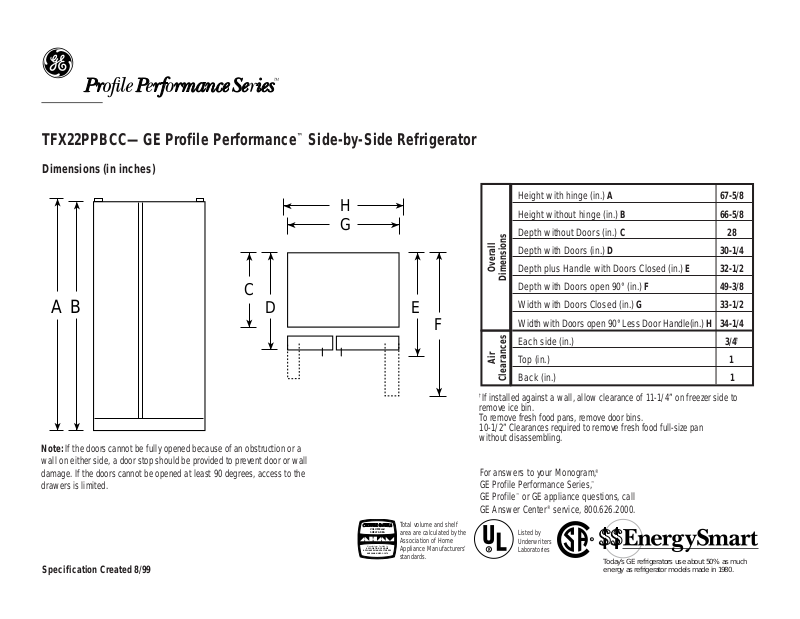

GE TFX22PPBCC Specification
TFX22PPBCC—GE Profile Performance™Side-by-Side Refrigerator
Specification Created 8/99
Dimensions (in inches)
Today’s GE refrigerators use about 50% as much
energy as refrigerator models made in 1980.
R
Manufacturer Certified to
ASSOCIATION OF HOME
APPLIANCE MANUFACTURERS
ANSI/AHAN HRF-1-1979
VOLUME and
SHELF AREA
R
Total volume and shelf
area are calculated by the
Association of Home
Appliance Manufacturers’
standards.
Listed by
Underwriters
Laboratories
A
Top View
G
D
C
F
B
E
H
Height with hinge (in.) A 67-5/8
Height without hinge (in.) B 66-5/8
Depth without Doors (in.) C28
Depth with Doors (in.) D 30-1/4
Depth plus Handle with Doors Closed (in.) E 32-1/2
Depth with Doors open 90° (in.) F 49-3/8
Width with Doors Closed (in.) G 33-1/2
Width with Doors open 90° Less Door Handle(in.) H 34-1/4
Each side (in.) 3/4
†
Top (in.) 1
Back (in.) 1
Overall
Dimensions
Air
Clearances
Note: If the doors cannot be fully opened because of an obstruction or a
wall on either side, a door stop should be provided to prevent door or wall
damage. If the doors cannot be opened at least 90 degrees, access to the
drawers is limited.
†
If installed against a wall, allow clearance of 11-1/4” on freezer side to
remove ice bin.
To remove fresh food pans, remove door bins.
10-1/2” Clearances required to remove fresh food full-size pan
without disassembling.
For answers to your Monogram,
®
GE Profile Performance Series,
™
GE Profile™or GE appliance questions, call
GE Answer Center®service, 800.626.2000.
Specification Created 8/99
TFX22PPBCC—GE Profile Performance™Side-by-Side Refrigerator
Features and Benefits
•21.6 cu. ft. Capacity (Fresh Food 14.85 cu. ft. / Freezer 6.75 cu. ft.)
•Water by Culligan™ Provides Cleaner, Better Tasting Water and Ice through
the LightTouch! Dispenser (Chilled Water, Cubed and Crushed Ice)
•Smart Storage System (1 Adjustable Humidity Crisper, 1 Convertible Meat
Keeper with Cold Control and 1 Adjustable Humidity Snack Pan)
•3 Adjustable, Spill Proof Glass Fresh Food Cabinet Shelves (2 Slide Out)
•Quick Space™ Shelf
•Adjustable Modular Gallon Door Bins
•Dairy Compartment with Glass Butter Dish
•Beverage Rack
•Utility Bin
•3 Wire Everwhite, Slide Out Freezer Baskets
•1 Clear Sliding Freezer Storage Bin
•5 Freezer Door Shelves
•Quiet Package
•Premium Deluxe Door Handles
•Model TFX22PPBWW–White on White
•Model TFX22PPBBB–Black on Black
•Model TFX22PPBAA–Almond on Almond
•Model TFX22PPBCC–Bisque
