GE TFX22KRDWW Specification
TFX22KRDWW - GE 21.9 Cu. Ft. Side-by-Side Refrigerator with Dispenser
GE Appliances
Specification Created 2/00

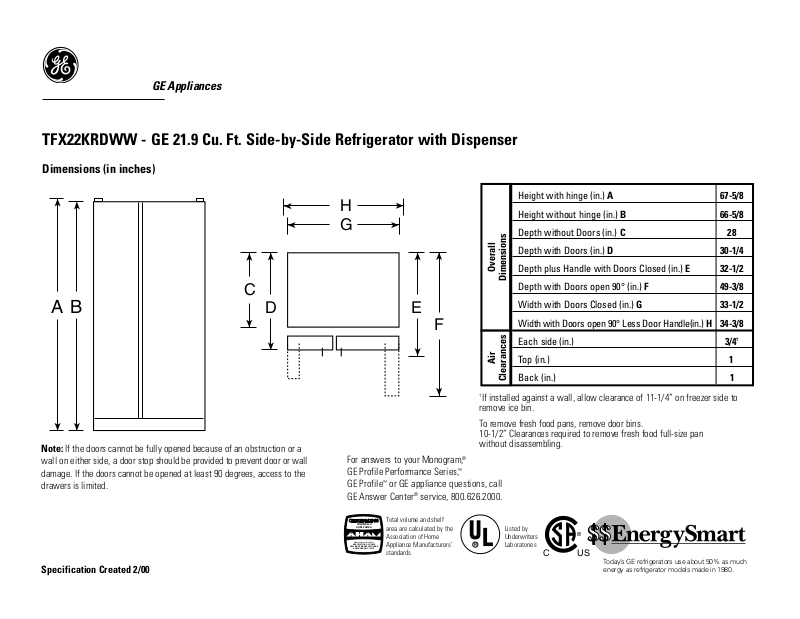

Dimensions (in inches)
Today’s GE refrigerators use about 50% as much
energy as refrigerator models made in 1980.
A
Top View
G
D
C
F
B
E
H
Height with hinge (in.) A 67-5/8
Height without hinge (in.) B 66-5/8
Depth without Doors (in.) C28
Depth with Doors (in.) D 30-1/4
Depth plus Handle with Doors Closed (in.) E 32-1/2
Depth with Doors open 90° (in.) F 49-3/8
Width with Doors Closed (in.) G 33-1/2
Width with Doors open 90° Less Door Handle(in.) H 34-3/8
Each side (in.) 3/4
†
Top (in.) 1
Back (in.) 1
Overall
Dimensions
Air
Clearances
Note: If the doors cannot be fully opened because of an obstruction or a
wall on either side, a door stop should be provided to prevent door or wall
damage. If the doors cannot be opened at least 90 degrees, access to the
drawers is limited.
†
If installed against a wall, allow clearance of 11-1/4” on freezer side to
remove ice bin.
To remove fresh food pans, remove door bins.
10-1/2” Clearances required to remove fresh food full-size pan
without disassembling.
Total volume and shelf
area are calculated by the
Association of Home
Appliance Manufacturers’
standards.
Listed by
Underwriters
Laboratories
For answers to your Monogram,
®
GE Profile Performance Series,
™
GE Profile™or GE appliance questions, call
GE Answer Center®service, 800.626.2000.
VOLUME and
SHELF AREA
Manufacturer Certified to
ASSOCIATION OF HOME
APPLIANCE MANUFACTURERS
ANSI/AHAN HRF-1-1979
R
CUS
®
GE Appliances
Specification Created 2/00
TFX22KRDWW - GE 21.9 Cu. Ft. Side-by-Side Refrigerator with Dispenser
Features and Benefits
• 21.9 cu ft Capacity (Fresh Food 14.95 cu ft / Freezer 6.90 cu ft)
• LightTouch! Dispenser Delivers Chilled Water, Cubed and Crushed Ice
Through the Door
• Adjustable Humidity Vegetable/Fruit Crispers
• Adjustable Temperature Meat Pan
• 3 Adjustable, Spill Proof Glass Fresh Food Cabinet Shelves
• 4 Fresh Food Modular Door Bins (2 Adjustable with Gallon Storage)
• Dairy Compartment (with Butter Dish)
• Utility (Egg) Bin
• 3 Adjustable Wire Everwhite Freezer Compartment Shelves
• 1 Clear Sliding Freezer Storage Bin
• 5 Freezer Door Shelves
• Quiet Package I
• Color-Matched Deluxe Door Handles
• Model TFX22KRDWW - White on white
• Model TFX22KRDAA - Almond on almond
