GE TFX20SABWW Specification
TFX20SABWW—”S” Series Side-by-Side Refrigerator
GE Appliances
Created 2/98

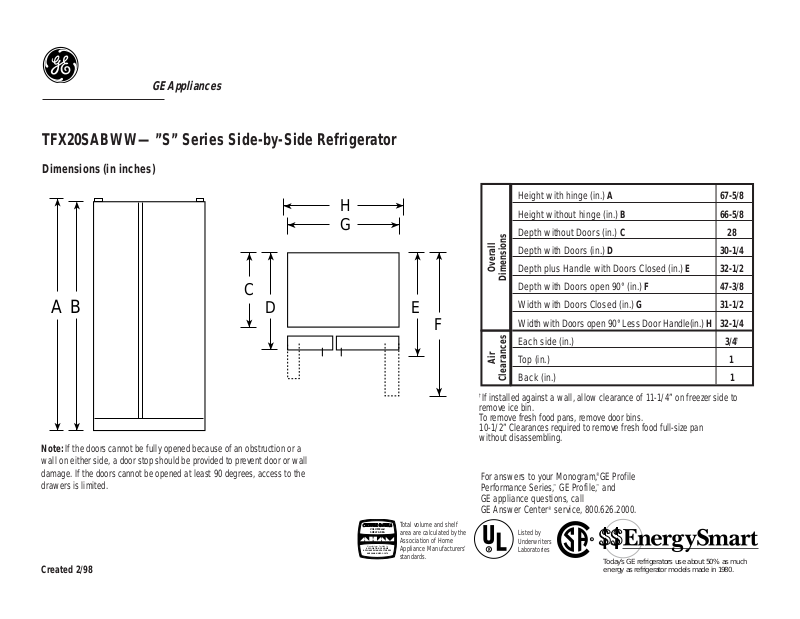

Dimensions (in inches)
Today’s GE refrigerators use about 50% as much
energy as refrigerator models made in 1980.
R
Manufacturer Certified to
ASSOCIATION OF HOME
APPLIANCE MANUFACTURERS
ANSI/AHAN HRF-1-1979
VOLUME and
SHELF AREA
R
Total volume and shelf
area are calculated by the
Association of Home
Appliance Manufacturers’
standards.
Listed by
Underwriters
Laboratories
For answers to your Monogram,®GE Profile
Performance Series,™GE Profile,™and
GE appliance questions, call
GE Answer Center®service, 800.626.2000.
A
Top View
G
D
C
F
B
E
H
Height with hinge (in.) A 67-5/8
Height without hinge (in.) B 66-5/8
Depth without Doors (in.) C28
Depth with Doors (in.) D 30-1/4
Depth plus Handle with Doors Closed (in.) E 32-1/2
Depth with Doors open 90° (in.) F 47-3/8
Width with Doors Closed (in.) G 31-1/2
Width with Doors open 90° Less Door Handle(in.) H 32-1/4
Each side (in.) 3/4
†
Top (in.) 1
Back (in.) 1
Overall
Dimensions
Air
Clearances
Note: If the doors cannot be fully opened because of an obstruction or a
wall on either side, a door stop should be provided to prevent door or wall
damage. If the doors cannot be opened at least 90 degrees, access to the
drawers is limited.
†
If installed against a wall, allow clearance of 11-1/4” on freezer side to
remove ice bin.
To remove fresh food pans, remove door bins.
10-1/2” Clearances required to remove fresh food full-size pan
without disassembling.
GE Appliances
Created 2/98
TFX20SABWW—”S” Series Side-by-Side Refrigerator
Features and Benefits
•19.7 cu. ft. Capacity (Fresh Food 12.90 cu. ft. / Freezer 6.79 cu. ft.)
•1 Adjustable Humidity Fruit/Vegetable Crisper; 1 Sealed
•3 Adjustable Wire Everwhite Fresh Food Cabinet Shelves
•4 Fresh Food Door Shelves (2 Gallon Door Bins)
•Dairy Compartment with Butter Dish
•4 Wire Everwhite Freezer Shelves
•6 Freezer Door Shelves
•1 White Sliding Freezer Storage Bin
•Equipped for Optional Automatic Icemaker
•2 Ice 'N Easy Trays with Ice Storage Bin
•Quiet Package
•Color-Matched Deluxe Door Handles
•Model TFX20SABWW–White on White
•Model TFX20SABAA–Almond on Almond
