GE TFB26SPDBS Specification
TFB26SPDBS—GE Profile™25.6 Cu. Ft. Contour Door Side-by-Side Refrigerator with Dispenser
TM
Specification Created 2/00

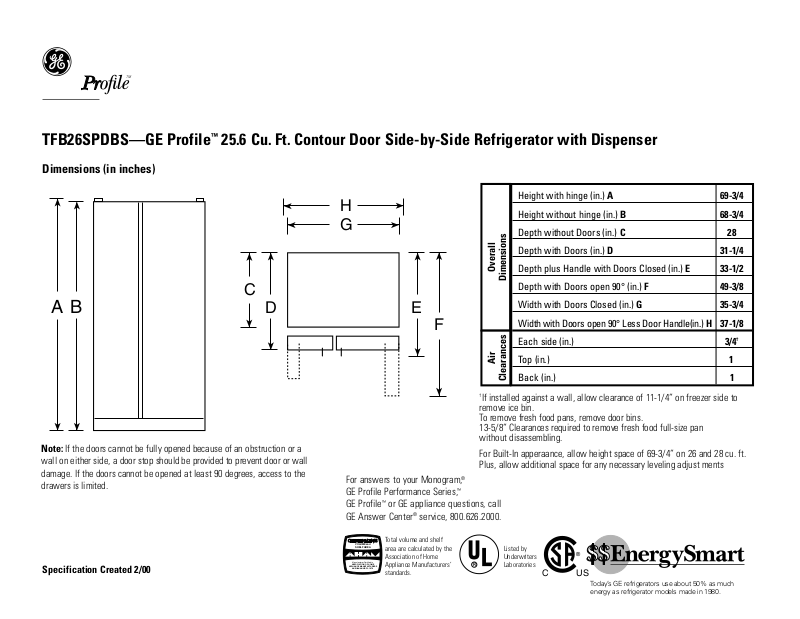

Dimensions (in inches)
Today’s GE refrigerators use about 50% as much
energy as refrigerator models made in 1980.
A
Top View
G
D
C
F
B
E
H
Height with hinge (in.) A 69-3/4
Height without hinge (in.) B 68-3/4
Depth without Doors (in.) C28
Depth with Doors (in.) D 31-1/4
Depth plus Handle with Doors Closed (in.) E 33-1/2
Depth with Doors open 90° (in.) F 49-3/8
Width with Doors Closed (in.) G 35-3/4
Width with Doors open 90° Less Door Handle(in.) H 37-1/8
Each side (in.) 3/4
†
Top (in.) 1
Back (in.) 1
Overall
Dimensions
Air
Clearances
Note: If the doors cannot be fully opened because of an obstruction or a
wall on either side, a door stop should be provided to prevent door or wall
damage. If the doors cannot be opened at least 90 degrees, access to the
drawers is limited.
†
If installed against a wall, allow clearance of 11-1/4” on freezer side to
remove ice bin.
To remove fresh food pans, remove door bins.
13-5/8” Clearances required to remove fresh food full-size pan
without disassembling.
For Built-In apperaance, allow height space of 69-3/4” on 26 and 28 cu. ft.
Plus, allow additional space for any necessary leveling adjust ments
Total volume and shelf
area are calculated by the
Association of Home
Appliance Manufacturers’
standards.
Listed by
Underwriters
Laboratories
For answers to your Monogram,
®
GE Profile Performance Series,
™
GE Profile™or GE appliance questions, call
GE Answer Center®service, 800.626.2000.
VOLUME and
SHELF AREA
Manufacturer Certified to
ASSOCIATION OF HOME
APPLIANCE MANUFACTURERS
ANSI/AHAN HRF-1-1979
R
CUS
®
Specification Created 2/00
TM
TFB26SPDBS—GE Profile™25.6 Cu. Ft. Contour Door Side-by-Side Refrigerator with Dispenser
Features and Benefits
• 25.6 cu. ft. Capacity (Fresh Food 16.0 cu. ft. / Freezer 9.59 cu. ft.)
• New Gently Rounded Doors
• Exclusive Water by Culligan™Provides Cleaner, Better Tasting Water and
Ice Through the LightTouch! Dispenser (Chilled Water, Cubes and Crushed Ice)
• Freshness Center™(1 Adjustable Humidity Crisper, 1 Convertible
Meat Keeper with Cold Control and 1 Adjustable Humidity Snack Pan)
with Spill-Proof Cover
• 3 Adjustable Glass Fresh Food Cabinet Shelves (2 Slide Out, Spill Proof)
• Quick Space
™
Shelf
• ShelfSaver
™
• 4 ClearLook™Modular Fresh Food Door Shelves (2 Adjustable with
Gallon Storage)
• Dairy Compartment with Glass Butter Dish
• Egg Bin
• Beverage Rack
• 3 Wire Everwhite, Slide Out Freezer Baskets
• 1 Clear Sliding Freezer Storage Bin
• 5 Freezer Door Shelves
• Quiet Package II
• Black Premium Deluxe Door Handles
• Model TFB26PPDWW–White on White
• Model TFB26PPDBB–Black on black
• Model TFB26PPDCC–Bisque
• Model TFB26SPDBS–Stainless steel
