GE TFB26PPDWW Specification

TM

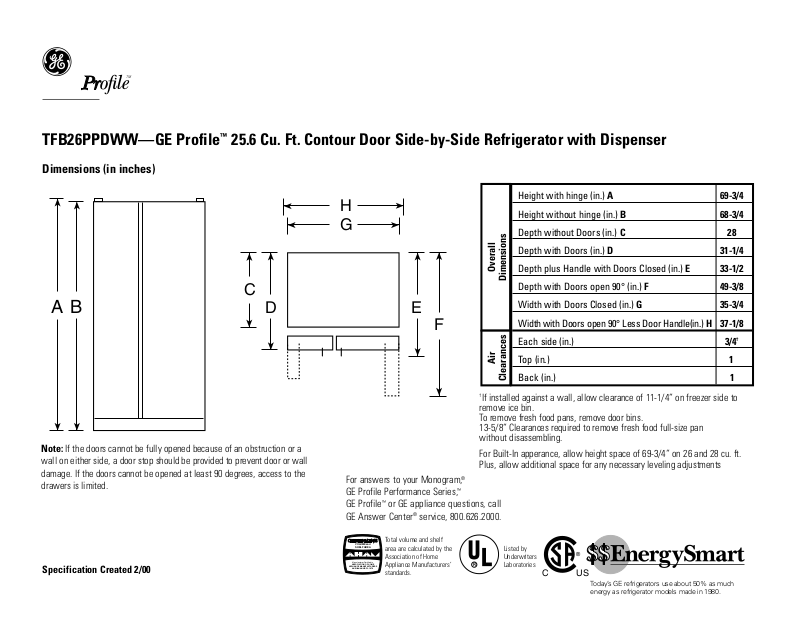

TFB26PPDWW—GE Profile™ 25.6 Cu. Ft. Contour Door Side-by-Side Refrigerator with Dispenser

Dimensions (in inches)

H

G

A B	C
				D			E

F

Top View

Note: If the doors cannot be fully opened because of an obstruction or a wall on either side, a door stop should be provided to prevent door or wall damage. If the doors cannot be opened at least 90 degrees, access to the drawers is limited.

For answers to your Monogram,®

GE Profile Performance Series,™

			Height with hinge (in.) A	69-3/4
			Height without hinge (in.) B	68-3/4
	<![if ! IE]> <![endif]>Dimensions		Depth without Doors (in.) C	28
<![if ! IE]> <![endif]>Overall			Depth with Doors (in.) D	31-1/4
			Depth plus Handle with Doors Closed (in.) E	33-1/2
			Depth with Doors open 90° (in.) F	49-3/8
			Width with Doors Closed (in.) G	35-3/4
			Width with Doors open 90° Less Door Handle(in.) H	37-1/8
	<![if ! IE]> <![endif]>Clearances		Each side (in.)	3/4†
<![if ! IE]> <![endif]>Air			Top (in.)	1
			Back (in.)	1

†If installed against a wall, allow clearance of 11-1/4” on freezer side to remove ice bin.

To remove fresh food pans, remove door bins.

13-5/8” Clearances required to remove fresh food full-size pan without disassembling.

For Built-In apperance, allow height space of 69-3/4” on 26 and 28 cu. ft. Plus, allow additional space for any necessary leveling adjustments

GE Profile™ or GE appliance questions, call GE Answer Center® service, 800.626.2000.

Specification Created 2/00

VOLUME and

SHELF AREA

Manufacturer Certified to

ASSOCIATION OF HOME APPLIANCE MANUFACTURERS ANSI/AHAN HRF-1-1979

Total volume and shelf area are calculated by the Association of Home Appliance Manufacturers’ standards.

R

Listed by

Underwriters ® Laboratories

C US

Today’s GE refrigerators use about 50% as much energy as refrigerator models made in 1980.

TM

TFB26PPDWW—GE Profile™ 25.6 Cu. Ft. Contour Door Side-by-Side Refrigerator with Dispenser

Features and Benefits

• 25.6 cu. ft. Capacity (Fresh Food 16.0 cu. ft. / Freezer 9.59 cu. ft.)

• New Gently Rounded Doors

• Exclusive Water by Culligan™ Provides Cleaner, Better Tasting Water and

Ice Through the LightTouch! Dispenser (Chilled Water, Cubes and Crushed Ice)

• Freshness Center™ (1 Adjustable Humidity Crisper, 1 Convertible Meat Keeper with Cold Control and 1 Adjustable Humidity Snack Pan) with Spill-Proof Cover

• 3 Adjustable Glass Fresh Food Cabinet Shelves (2 Slide Out, Spill Proof)

• Quick Space™ Shelf

• ShelfSaver™

• 4 ClearLook™ Modular Fresh Food Door Shelves (2 Adjustable with Gallon Storage)

• Dairy Compartment with Glass Butter Dish

• Egg Bin

• Beverage Rack

Specification Created 2/00

•3 Wire Everwhite, Slide Out Freezer Baskets

•1 Clear Sliding Freezer Storage Bin

•5 Freezer Door Shelves

•Quiet Package II

•Color-Matched Premium Deluxe Door Handles

•Model TFB26PPDWW–White on White

•Model TFB26PPDBB–Black on black

•Model TFB26PPDCC–Bisque

•Model TFB26SPDBS–Stainless steel
