GE telescopic downdraft systems Catalog
planning guide
Featuring GE Profile™ and GE®
36" and 30" telescopic downdraft systems

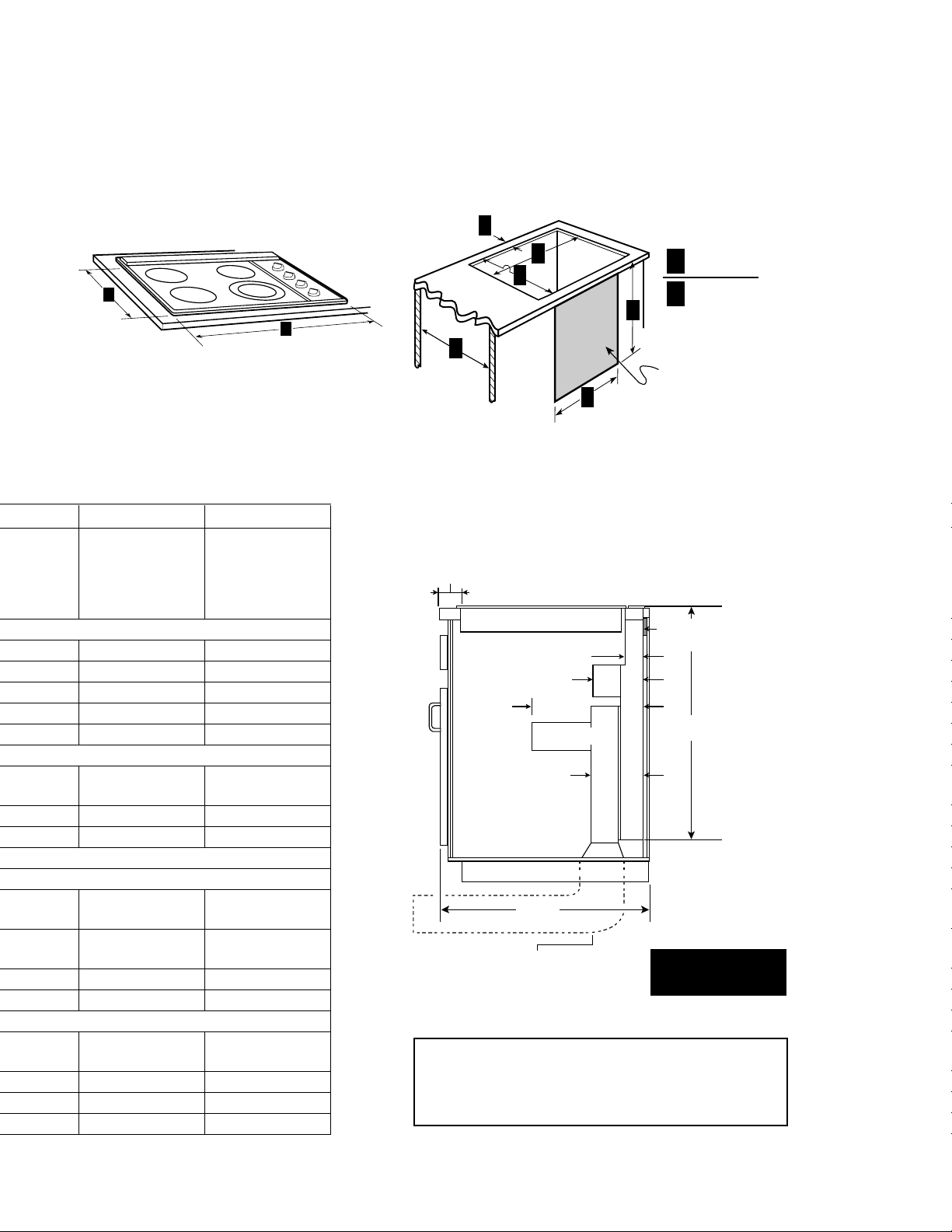

36" and 30" cooktop/downdraft system counter installation
1-7/8"
7"
2-1/8"*
Vent
2-1/4"
12-3/8"
Max.
6-3/8"
2-1/8"*
14-3/4"
27"
8-1/2" Lift
36"/30"
36"/30"
Vent
1-7/8"
7"
2-1/8"*
Vent
2-1/4"
12-3/8"
Max.
6-3/8"
2-1/8"*
14-3/4"
27"
8-1/2" Lift
36"/30"
36"/30"
Vent
24"
JVB98SH/94SH, JVB67H/37H
Flat Surface Area
* Includes 1/8" required gap
between cooktop and vent trim.
Note: The countertop must be at least 26" deep with a flat surface area
of 23-1/2" or more, front to back. In addition, other clearances to the
front edge must be considered.
Note: JP950S, JP940S, JP930S, JP910S, JGP940S require 23-5/8" flat
surface area.
Note: See specific cutout illustrations with your cooktop model to
determine requirements.
Note: A countertop with a raised or a rolled front edge may not allow
enough flat area for installation.
Planning Installation Preparing Cutout
“A” Fig. 1 “B” Fig. 1 “B” & Vent Fig. 1 “C” Fig. 2 “D” Fig. 2 “E” Fig. 2 “F” Fig. 2
Overall Min. required
Surface Depth setback from
Cooktop front edge Countertop Combined Combined
Cooktop Cooktop Depth + Vent to front edge inside cabinet Cutout Cutout
36" Models Overall Width Overall Depth Cover Depth of cutout clearance Width Depth
Electric
JP980S/JP960S/JP970S 36-1/8" 21-1/4" 25 -1/4" 2-1/2"* 22-11/16" 33-7/8" 21-7/8"
JP980/JP960/JP970 36" 21-3/16" 24-5/8" 2-1/2"* 22-11/16" 33-7/8" 21-3/4"
JP655S 36-1/8" 20-7/16"
JP655 36" 20-3/8"
JP626 35-1/2" 21" 25-1/4" 2-1/2" 22-11/16" 33-7/8" 21-7/8"
Gas
JGP975/JGP963/
JGP637/JGP630/JGP628 36" 21" 25-1/4" 2-1/2" 22-11/16" 33-7/8" 21-7/8"
JGP970S 36" 21-1/4" 24-11/16" 2-1/2"* 22-11/16" 33-7/8" 21-3/4"
JGP970 36" 21-3/16" 24-11/16" 2-1/2"* 22-11/16" 33-7/8" 21-3/4"
30" Models
Electric
JP950S/JP940S/
JP930S/JP910S 29-7/8" 21-1/2" 25-3/4" 2-1/2"* 22-7/16" 28-1/2" 22-3/8"
JP950/JP940/
JP930/JP910 29-3/4" 21-7/16" 25-1/8" 2-1/2"* 22-7/16" 28-1/2" 22-1/4"
JP355 29-3/4" 20-7/8" 25-1/2" 2-1/2" 22-7/16" 28-1/2" 22-3/8"
JP340 29-3/4" 20-7/8" 25-1/2" 2-1/2" 22-7/16" 28-1/2" 22-3/8"
Gas
JGP933/JGP337/
JGP330/JGP328 30" 21" 25-1/4" 2-1/2" 22-7/16" 28-1/2" 22-3/8"
JGP940S 29-3/4" 21-3/8" 25-1/4" 2-1/2"* 22-7/16" 28-1/2" 22-1/4"
JGP940 29-3/4" 21-7/16" 25-1/4" 2-1/2"* 22-7/16" 28-1/2" 22-1/4"
JGP321 30-1/4" 21-1/4" 25-1/2" 3-1/4" 22-7/16" 28-1/2" 22-1/4"
* Raised edge bull nose countertops may require up to 3/8" additional clearance to prevent
interference with curved front.
Required to
maintain U.L. or
AGA approvals.
