GE TBX25PRBAA, TBX25PRBCC, TBX25PRBWW, TBX25PRBBB User Manual
Specification Revised 5/00
TM

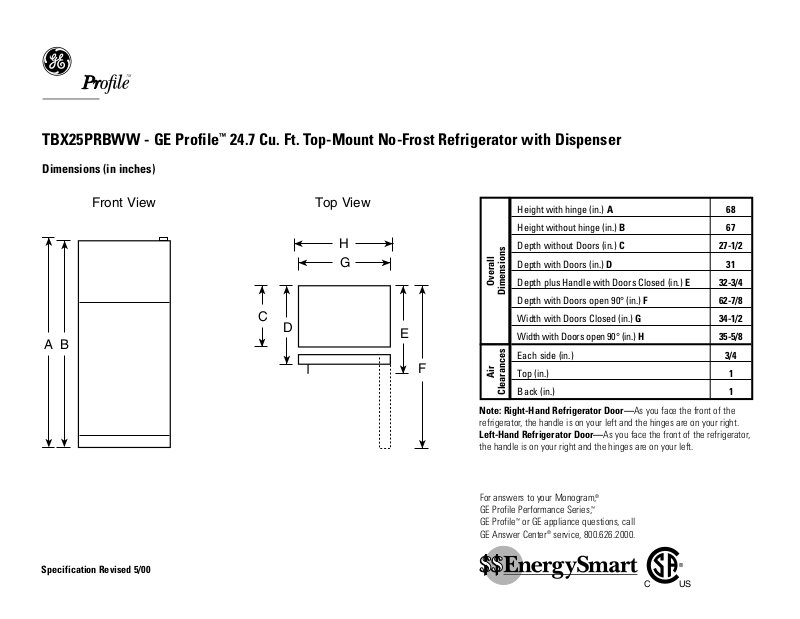

TBX25PRBWW - GE Profile™24.7 Cu. Ft. Top-Mount No-Frost Refrigerator with Dispenser
Dimensions (in inches)
Note: Right-Hand Refrigerator Door—As you face the front of the
refrigerator, the handle is on your left and the hinges are on your right.
Left-Hand Refrigerator Door—As you face the front of the refrigerator,
the handle is on your right and the hinges are on your left.
Front View Top View
A
G
E
C
F
B
D
H
Height with hinge (in.) A68
Height without hinge (in.) B67
Depth without Doors (in.) C 27-1/2
Depth with Doors (in.) D31
Depth plus Handle with Doors Closed (in.) E 32-3/4
Depth with Doors open 90° (in.) F 62-7/8
Width with Doors Closed (in.) G 34-1/2
Width with Doors open 90° (in.) H 35-5/8
Each side (in.) 3/4
Top (in.) 1
Back (in.) 1
Overall
Dimensions
Air
Clearances
For answers to your Monogram,
®
GE Profile Performance Series,
™
GE Profile™or GE appliance questions, call
GE Answer Center®service, 800.626.2000.
CUS
®
Specification Revised 5/00
TM
TBX25PRBWW - GE Profile™24.7 Cu. Ft. Top-Mount No-Frost Refrigerator with Dispenser
Features and Benefits
• 24.7 cu. ft. Capacity (Fresh Food 17.12 cu. ft. / Freezer 7.50 cu. ft.)
• Top Mount LightTouch! Dispenser Delivers Water, Cubes, and Crushed Ice
Through the Door
• 2 Adjustable Humidity Fruit/Vegetable Crispers
• Adjustable Temperature Meat Pan
• 4 Split, Adjustable, Spill Proof Glass Fresh Food Cabinet Shelves (3 Slide-Out)
• 4 Modular Gallon Door Bins (3 Adjustable)
• Tilt-Out Quick Store
™
Bin
• Quick Serve
™
Storage Dishes (on Door)
• Slide-Out, Slide-Over Pans
• Dairy Compartment with Butter Dish
• Wire Slide-Out Can Dispenser
• Condiment Caddy (Removable)
• Adjustable Wire Everwhite Freezer Compartment Shelf
• 2 Freezer Door Bins (1 Adjustable)
• Quiet Package
• Color-Matched Premium Deluxe Door Handles
• Model TBX25PRBWW - White on white
• Model TBX25PRBBB - Black on black
• Model TBX25PRBAA - Almond on almond
• Model TBX25PRBCC - Bisque
