GE TBX21IIBAA Specification
Specification Revised 12/00
TBX21IIBAA - GE 20.6 Cu. Ft. Top-Mount No-Frost Refrigerator with Automatic Icemaker
Manufacturer Certified to
ASSOCIATION OF HOME
APPLIANCE MANUFACTURERS
ANSI/AHAN HRF-1-1979
VOLUME and
SHELF AREA
R
Total volume and shelf
area are calculated by the
Association of Home
Appliance Manufacturers’
standards.
Listed by
Underwriters
Laboratories
GE Appliances

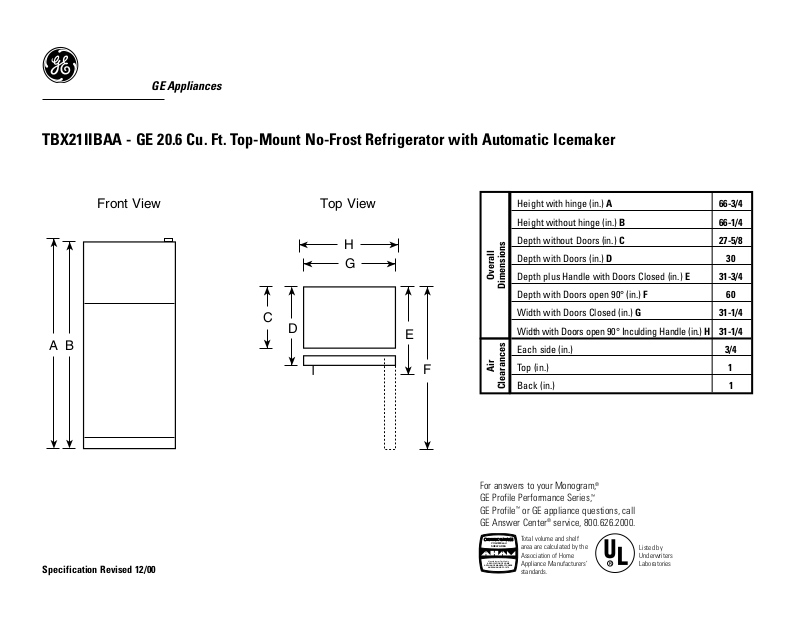

Front View Top View
A
G
E
C
F
B
D
H
Height with hinge (in.) A 66-3/4
Height without hinge (in.) B 66-1/4
Depth without Doors (in.) C 27-5/8
Depth with Doors (in.) D30
Depth plus Handle with Doors Closed (in.) E 31-3/4
Depth with Doors open 90° (in.) F60
Width with Doors Closed (in.) G 31-1/4
Width with Doors open 90° Inculding Handle (in.) H 31-1/4
Each side (in.) 3/4
Top (in.) 1
Back (in.) 1
Overall
Dimensions
Air
Clearances
For answers to your Monogram,
®
GE Profile Performance Series,
™
GE Profile™or GE appliance questions, call
GE Answer Center®service, 800.626.2000.
Specification Revised 12/00
GE Appliances
TBX21IIBAA - GE 20.6 Cu. Ft. Top-Mount No-Frost Refrigerator with Automatic Icemaker
Features and Benefits
• 20.6 cu ft Capacity (Fresh Food 14.25 cu ft / Freezer 6.30 cu ft)
• Factory-Installed Automatic Icemaker
• 2 Clear Vegetable/Fruit Crispers
• Slide-Over, Slide-Out Pans
• Snack Pan
• 3 Adjustable Glass Fresh Food Cabinet Shelves (2 Split, 1 Full-Width)
• Fixed Fresh Food Gallon Door Storage
• Dairy Compartment
• 1 Wire Everwhite Freezer Shelf
• 2 Freezer Door Shelves
• 2 Ice 'n Easy Trays
• Ice Storage Bin
• Deluxe Door Handles
• Model TBX21IIBWW - White on white
• Model TBX21IIBAA - Almond on almond
• Model TBX21IIBCC - Bisque
