GE TBX21DACWW, TBX21DACAA User Manual
TBX21DACWW - GE 20.6 Cu. Ft. Top-Freezer Refrigerator
GE Appliances
Created 3/99

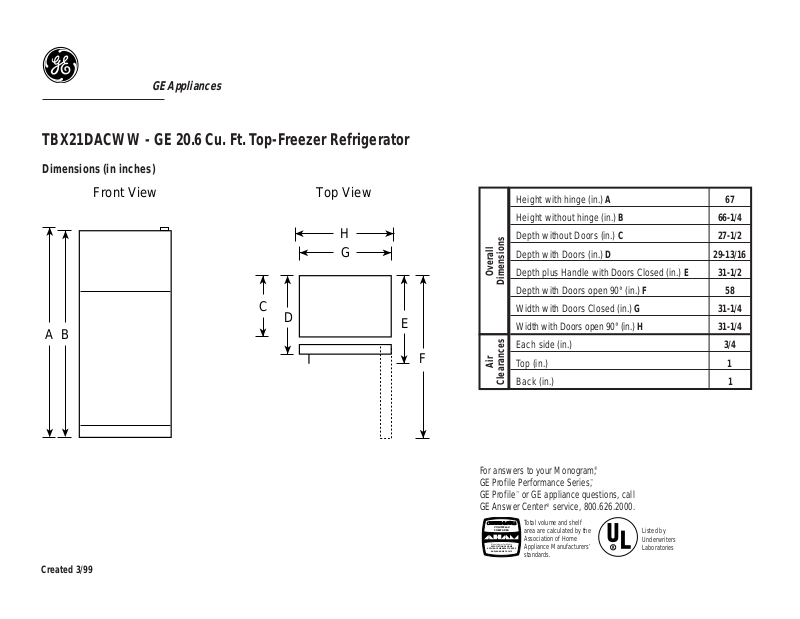

Dimensions (in inches)
Front View Top View
A
G
E
C
F
B
D
H
Height with hinge (in.) A67
Height without hinge (in.) B 66-1/4
Depth without Doors (in.) C 27-1/2
Depth with Doors (in.) D 29-13/16
Depth plus Handle with Doors Closed (in.) E 31-1/2
Depth with Doors open 90° (in.) F58
Width with Doors Closed (in.) G 31-1/4
Width with Doors open 90° (in.) H 31-1/4
Each side (in.) 3/4
Top (in.) 1
Back (in.) 1
Overall
Dimensions
Air
Clearances
Manufacturer Certified to
ASSOCIATION OF HOME
APPLIANCE MANUFACTURERS
ANSI/AHAN HRF-1-1979
VOLUME and
SHELF AREA
R
Total volume and shelf
area are calculated by the
Association of Home
Appliance Manufacturers’
standards.
Listed by
Underwriters
Laboratories
For answers to your Monogram,
®
GE Profile Performance Series,
™
GE Profile™or GE appliance questions, call
GE Answer Center®service, 800.626.2000.
GE Appliances
Created 3/99
TBX21DACWW - GE 20.6 Cu. Ft. Top-Freezer Refrigerator
Features and Benefits
•20.6 cu. ft. Capacity (Fresh Food 14.25 cu. ft. / Freezer 6.30 cu. ft.)
•Equipped for Optional Automatic Icemaker
•2 Clear Fruit/Vegetable Crispers
•Snack Pan
•3 Adjustable Wire Everwhite Fresh Food Cabinet Shelves (2 Split, 1 Full-Width)
•Fixed Fresh Food Gallon Door Storage
•Dairy Compartment
•Utility Bin
•Snugger Clips
•Wire Everwhite Freezer Compartment Step Shelf
•2 Fixed Freezer Door Bins
•2 Nice 'N Easy Trays
•Color-Matched Deluxe Door Handles
•Model TBX21DACWW - White on white
•Model TBX21DACAA - Almond on almond
