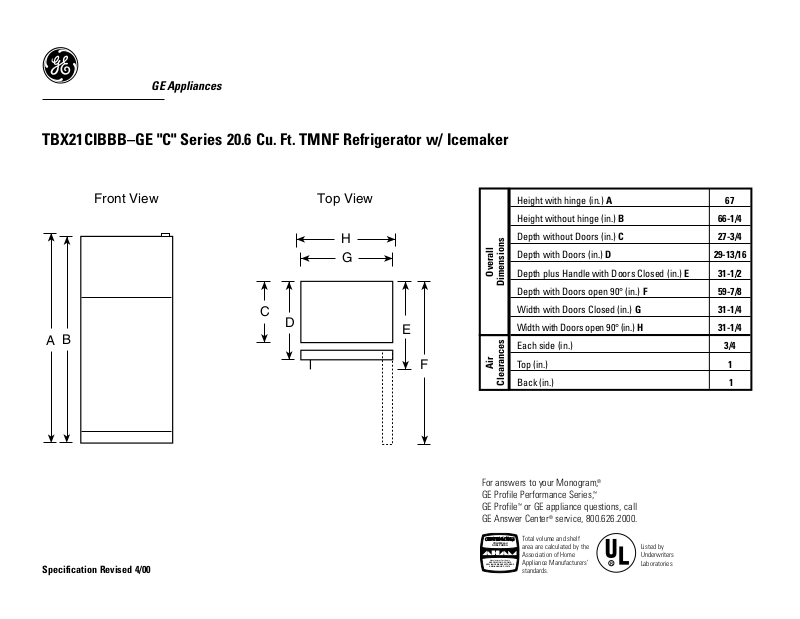

GE TBX21CIBBB Specification
GE Appliances
TBX21CIBBB–GE "C" Series 20.6 Cu. Ft. TMNF Refrigerator w/ Icemaker
Specification Revised 4/00
Front View Top View
A
G
E
C
F
B
D
H
Height with hinge (in.) A67
Height without hinge (in.) B 66-1/4
Depth without Doors (in.) C 27-3/4
Depth with Doors (in.) D 29-13/16
Depth plus Handle with Doors Closed (in.) E 31-1/2
Depth with Doors open 90° (in.) F 59-7/8
Width with Doors Closed (in.) G 31-1/4
Width with Doors open 90° (in.) H 31-1/4
Each side (in.) 3/4
Top (in.) 1
Back (in.) 1
Overall
Dimensions
Air
Clearances
For answers to your Monogram,
®
GE Profile Performance Series,
™
GE Profile™or GE appliance questions, call
GE Answer Center®service, 800.626.2000.
Manufacturer Certified to
ASSOCIATION OF HOME
APPLIANCE MANUFACTURERS
ANSI/AHAN HRF-1-1979
VOLUME and
SHELF AREA
R
Total volume and shelf
area are calculated by the
Association of Home
Appliance Manufacturers’
standards.
Listed by
Underwriters
Laboratories
GE Appliances
Specification Revised 4/00
TBX21CIBBB–GE "C" Series 20.6 Cu. Ft. TMNF Refrigerator w/ Icemaker
Features and Benefits
• 20.6 cu. ft. Capacity (Fresh Food 14.25 cu. ft. / Freezer 6.30 cu. ft.)
• 2 Adjustable Humidity Fruit/Vegetable Crispers
• Snack Pan
• 4 Split (Adjustable, Spill Proof) Glass Fresh Food Cabinet Shelves
• Fixed Fresh Food Gallon Door Storage
• Dairy Compartment
• Slide-Out, Slide-Over Pans
• 1 Full-Width Wire Everwhite Freezer Compartment Shelf
• 2 Freezer Door Shelves
• Equipped with Factory-Installed Automatic Icemaker
• Color-Matched Premium Deluxe Door Handles
• Model TBX21CIBWW - White on white
• Model TBX21CIBBB - Black on black
• Model TBX21CIBAA - Almond on almond
• Model TBX21CIBCC - Bisque
