GE Appliances
TBX18JABAA—”J” Series Top-Mount No-Frost Refrigerator

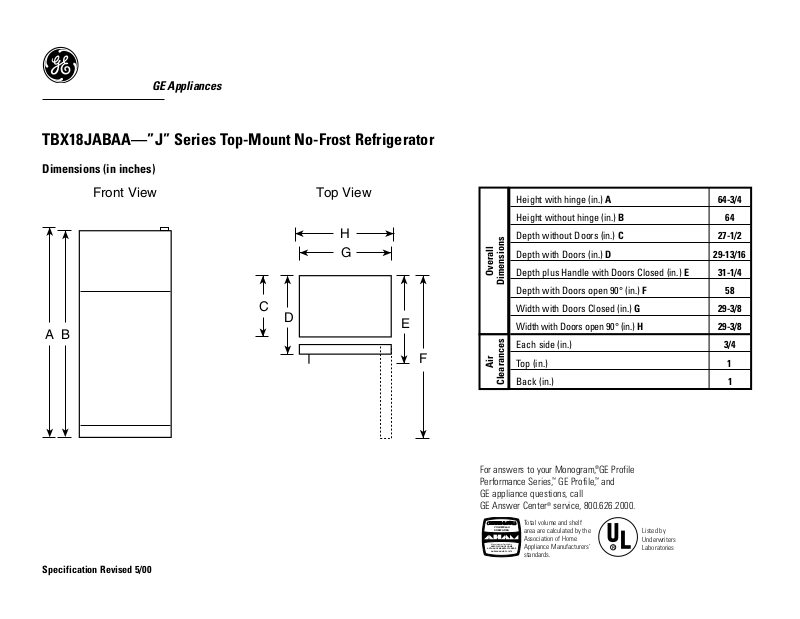

Dimensions (in inches)
Front View |
Top View |
H
G
C
D |
E |
|
A B
F
|
|
|
Height with hinge (in.) A |
64-3/4 |
|
|
|
Height without hinge (in.) B |
64 |
|
<![if ! IE]> <![endif]>Dimensions |
|
Depth without Doors (in.) C |
27-1/2 |
<![if ! IE]> <![endif]>Overall |
|
Depth with Doors (in.) D |
29-13/16 |
|
|
Depth plus Handle with Doors Closed (in.) E |
31-1/4 |
||
|
|
Depth with Doors open 90° (in.) F |
58 |
|
|
|
|
||
|
|
|
Width with Doors Closed (in.) G |
29-3/8 |
|
|
|
Width with Doors open 90° (in.) H |
29-3/8 |
|
<![if ! IE]> <![endif]>Clearances |
|
Each side (in.) |
3/4 |
<![if ! IE]> <![endif]>Air |
|
Top (in.) |
1 |
|
|
|
Back (in.) |
1 |
For answers to your Monogram,®GE Profile
Performance Series,™ GE Profile,™ and
GE appliance questions, call
GE Answer Center® service, 800.626.2000.
Total volume and shelf
|
VOLUME and |
area are calculated by the |
|
Listed by |
|
|
SHELF AREA |
|
|||
|
|
|
Association of Home |
|
Underwriters |
|
|
|
|
||
|
|
|
|
||
Manufacturer Certified to |
Appliance Manufacturers’ |
R |
Laboratories |
||
ANSI/AHAN HRF-1-1979 |
|||||
ASSOCIATION OF HOME |
|
|
|||
APPLIANCE MANUFACTURERS |
|
|
|||
|
|
|
standards. |
|
|
Specification Revised 5/00
GE Appliances
TBX18JABAA—”J” Series Top-Mount No-Frost Refrigerator

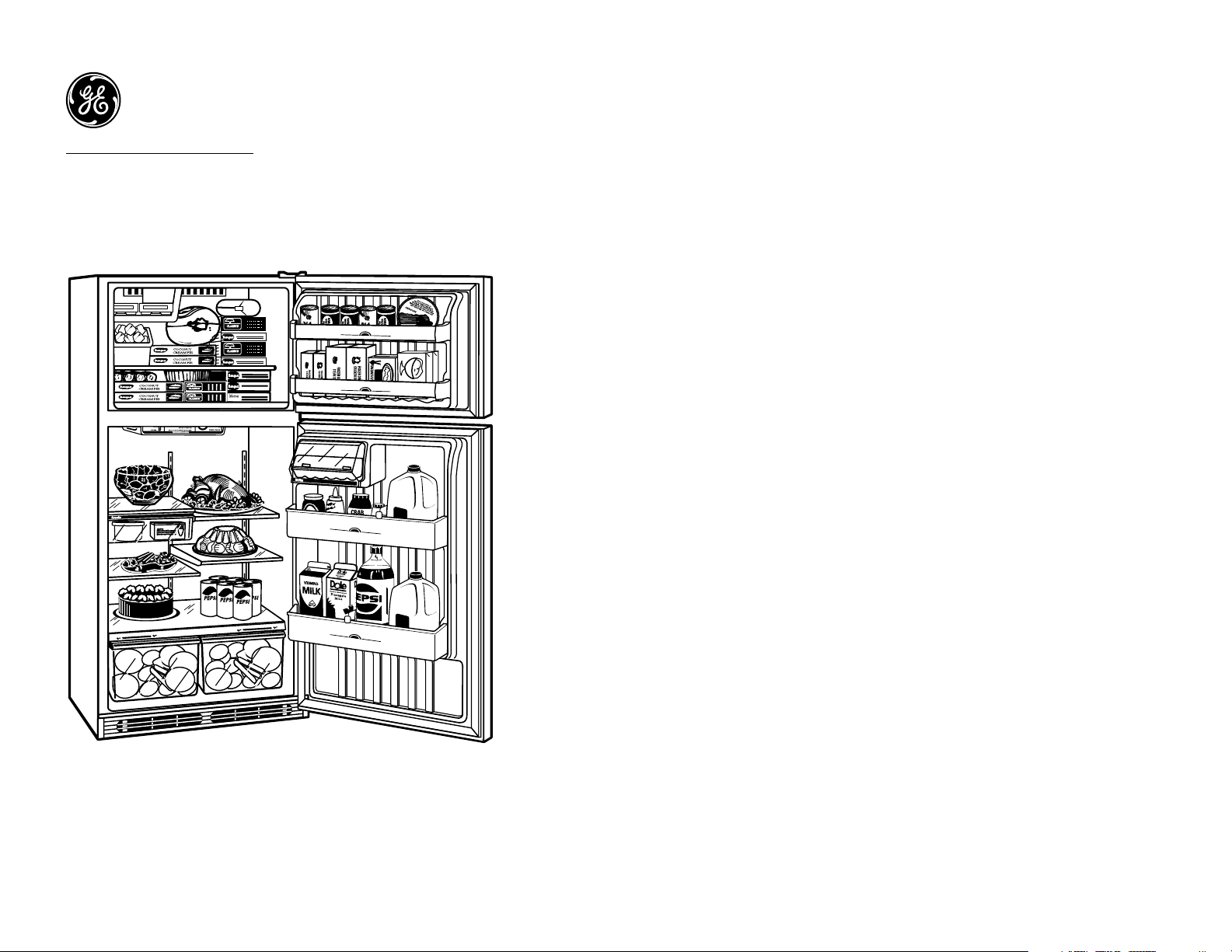

Features and Benefits
• 18.2 cu. ft. Capacity (Fresh Food 13.04 cu. ft. / Freezer 5.13 cu. ft.)
• 2 Adjustable Humidity Fruit/Vegetable Crispers
• Snack Pan
• Slide-Out Pans, Slide-Over
• 4 Split, Spill Proof, Adjustable Glass Fresh Food Cabinet Shelves
• Fixed Fresh Food Gallon Door Storage
• Dairy Compartment with Butter Dish
• Adjustable Full-Width Wire Everwhite Freezer Shelf
• 2 Freezer Door Shelves
• Equipped for Optional Automatic Icemaker
• Ice Tray Shelf with 2 Ice 'n Easy Trays
• Ice Storage Bin
• Color-Matched Deluxe Door Handles
• Model TBX18JABWW–White on White
• Model TBX18JABBB–Black on Black
•Model TBX18JABAA–Almond on Almond
•Model TBX18JABCC–Bisque
Specification Revised 5/00
