GE TBX16JABAA Specification

TBX16JABAA—”J” Series Top-Mount No-Frost Refrigerator

GE Appliances

Created 2/98

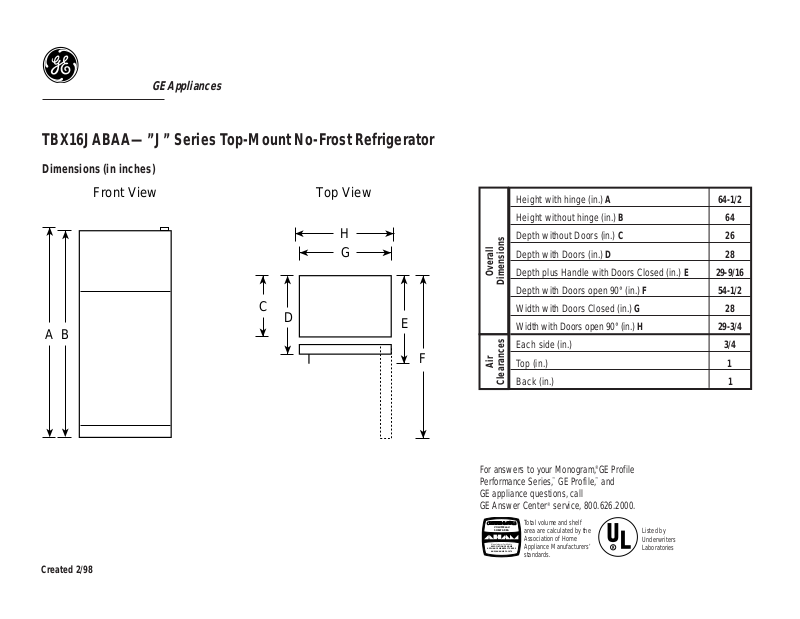

Dimensions (in inches)

Front View Top View

Height with hinge (in.) A 64-1/2 Height without hinge (in.) B64 Depth without Doors (in.) C26 Depth with Doors (in.) D28 Depth plus Handle with Doors Closed (in.) E 29-9/16 Depth with Doors open 90° (in.) F 54-1/2 Width with Doors Closed (in.) G28 Width with Doors open 90° (in.) H 29-3/4 Each side (in.) 3/4 Top (in.) 1 Back (in.) 1

Overall

Dimensions

Air

Clearances

Manufacturer Certified to

ASSOCIATION OF HOME

APPLIANCE MANUFACTURERS

ANSI/AHAN HRF-1-1979

VOLUME and SHELF AREA

Total volume and shelf area are calculated by the Association of Home Appliance Manufacturers’ standards.

Listed by Underwriters Laboratories

For answers to your Monogram,®GE Profile Performance Series,™GE Profile,™and GE appliance questions, call GE Answer Center®service, 800.626.2000.

GE Appliances

Created 2/98

TBX16JABAA—”J” Series Top-Mount No-Frost Refrigerator

Features and Benefits

•15.6 cu. ft. Capacity (Fresh Food 11.69 cu. ft. / Freezer 3.86 cu. ft.)

•2 Sealed Fruit/Vegetable Crispers

•Snack Pan

•4 Split, Spill Proof, Adjustable Glass Fresh Food Cabinet Shelves

•Fixed Fresh Food Gallon Door Storage

•Dairy Compartment

•Utility Bin

•Wire Everwhite Freezer Shelf

•2 Freezer Door Shelves

•Equipped for Optional Automatic Icemaker

•2 Ice 'n Easy Trays

•Color-Matched Deluxe Door Handles

•Model TBX16JABWW–White on White

•Model TBX16JABAA–Almond on Almond
