GE TBX14SYBLAA Specification

TBX14SYBAA—”S” Series Top-Mount No-Frost Refrigerator

GE Appliances

Created 2/98

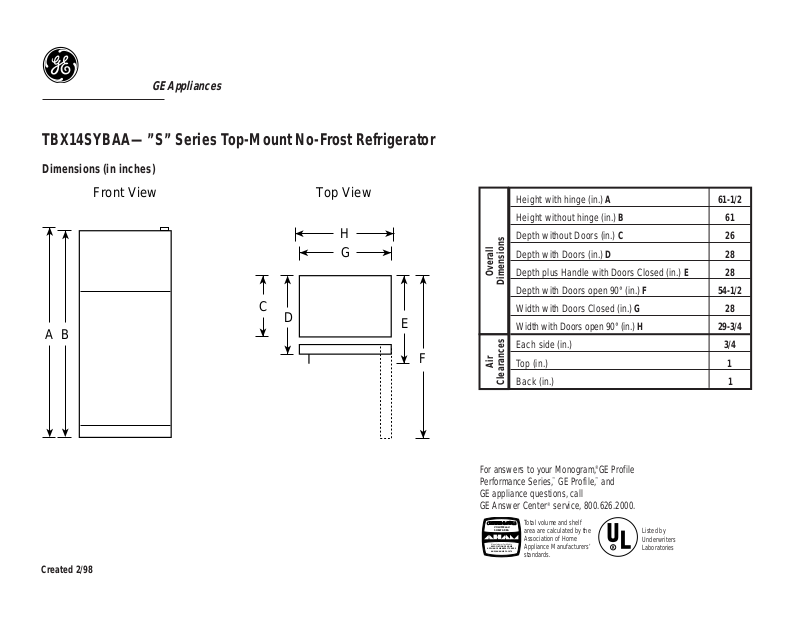

Dimensions (in inches)

Front View Top View

A

G

E

C

F

B

D

H

Height with hinge (in.) A 61-1/2
Height without hinge (in.) B61
Depth without Doors (in.) C26
Depth with Doors (in.) D28
Depth plus Handle with Doors Closed (in.) E28
Depth with Doors open 90° (in.) F 54-1/2
Width with Doors Closed (in.) G28
Width with Doors open 90° (in.) H 29-3/4
Each side (in.) 3/4
Top (in.) 1
Back (in.) 1

Overall

Dimensions

Air

Clearances

Manufacturer Certified to

ASSOCIATION OF HOME

APPLIANCE MANUFACTURERS

ANSI/AHAN HRF-1-1979

VOLUME and
SHELF AREA

R

Total volume and shelf
area are calculated by the
Association of Home
Appliance Manufacturers’
standards.

Listed by
Underwriters
Laboratories

For answers to your Monogram,®GE Profile
Performance Series,™GE Profile,™and
GE appliance questions, call
GE Answer Center®service, 800.626.2000.

GE Appliances

Created 2/98

TBX14SYBAA—”S” Series Top-Mount No-Frost Refrigerator

Features and Benefits

•14.4 cu. ft. Capacity (Fresh Food 10.58 cu. ft. / Freezer 3.86 cu. ft.)

•2 Classic White Fruit/Vegetable Crispers

•2 Full-Width (Adjustable) Wire Everwhite Fresh Food Cabinet Shelves

•2 Fixed Fresh Food Gallon Door Storage with Tall Bottle Storage

•Dairy Compartment

•2 Freezer Door Shelves

•Equipped for Optional Automatic Icemaker

•Ice Tray Shelf with 2 Ice 'N Easy Trays

•Color-Matched Recessed Door Handles

•Model TBX14SYBWW–White on White

•Model TBX14SYBAA–Almond on Almond
