Stainless Refrigerators
GE Profile™and GE
®
The Ultimate in Refrigeration.
™
Rethought, Reinvented, Revolutionized.
• slide-out shelves • brilliant lighting
high energy efficiency • precise temperature management • storage flexibility • lighttouch! dispenser
timesaving technology • graceful curves • 2002 product catalog
We bring good things to life.
Page 2
2
*Fortune Magazine, 1997-2002.
Traqline data from Stevenson Co.
PTC22SBMBSPSI23SCNBSPSW26SGNBS PDS18SBMBS
The industry’s most extensive lineup of stainless steel refrigerators.
GE, the most admired company in America,* offers a newly expanded line of stainless refrigerators.
From contoured side-by-sides to CustomStyle
™
top-freezers to convenient bottom-freezers, there’s a
stainless refrigerator for every kitchen. Consumers can choose the design, configuration and features
that best suit their lifestyles and needs.
1999 2000 2001
500
400
300
200
100
0
Market demand for stainless refrigerators
has tripled.
Number of stainless units (thousands)
Page 3
3
GEAppliances.com
New stainless-wrapped side-by-side
(Model PSW26SGNBS)
❚Attractively styled with stainless doors, side panels and top, this
refrigerator is wrapped in beauty.
❚Gentle contours and smooth, rounded edges enhance the overall look.
❚Inside, consumers will find a variety of innovative options for
storing and preserving food.
New GE 18. cu. ft. stainless top-freezer
(Model GTS18SBMBS)
❚Compact configuration makes high-end stainless style available to
smaller kitchens.
❚With adjustable shelves and door bins, the interior is designed for
total convenience and accessibility.
GE offers a stainless refrigerator to suit every style, every need.
GE Profile Arctica™and GE®stainless refrigerators
Rethought, Reinvented, Revolutionized.
Cool elegance for every kitchen.
PSW26SGNBS
GTS18SBMBS
Page 4
4
Model PSW26SGNBS shown
Page 5
5
GEAppliances.com
Appearance
❚Striking from every angle, the new stainless-wrapped side-by-side
features
stainless doors, side panels and top.
❚The sleek expanse of stainless is set off by gently contoured doors
with smooth, rounded edges for a truly dramatic look.
❚Inside, a tri-level lighting system casts a brilliant glow throughout
the fresh food compartment, including the clear door bins.
Flexibility
❚ Slide ‘n Store
™
Plus freezer basket fully extends, making freezer
contents more accessible. The spacious design holds taller items,
such as pizza boxes, and a fold-up panel keeps them securely
in place.
❚ Tall LightTouch! dispenser accommodates cups and containers of
all sizes, from pitchers to water bottles.
❚ ClearLook
™
adjustable door bins hold gallon-size containers with
style and ease.
Performance
❚Exclusive ClimateKeeper
™
system is the Best Temperature
Management System You Can Buy!
❚Exclusive CustomCool
™
technology offers three customized
settings for different lifestyle needs:
–
ExpressChill™setting chills food and beverages in minutes.
–
ExpressThaw™setting safely thaws meats in hours.
–
SelectTemp™setting lets consumers select just-right
temperatures for a variety of fresh foods.
❚TurboCool
™
setting helps the refrigerator quickly restore
temperature when groceries or heated foods are placed inside.
The GE Profile Arctica stainless-wrapped refrigerator is a triumph
of sophisticated design and technology.
GE Profile Arctica™stainless-wrapped side-by-side
Rethought, Reinvented, Revolutionized.
Introducing the full stainless-wrapped refrigerator.
Page 6
6

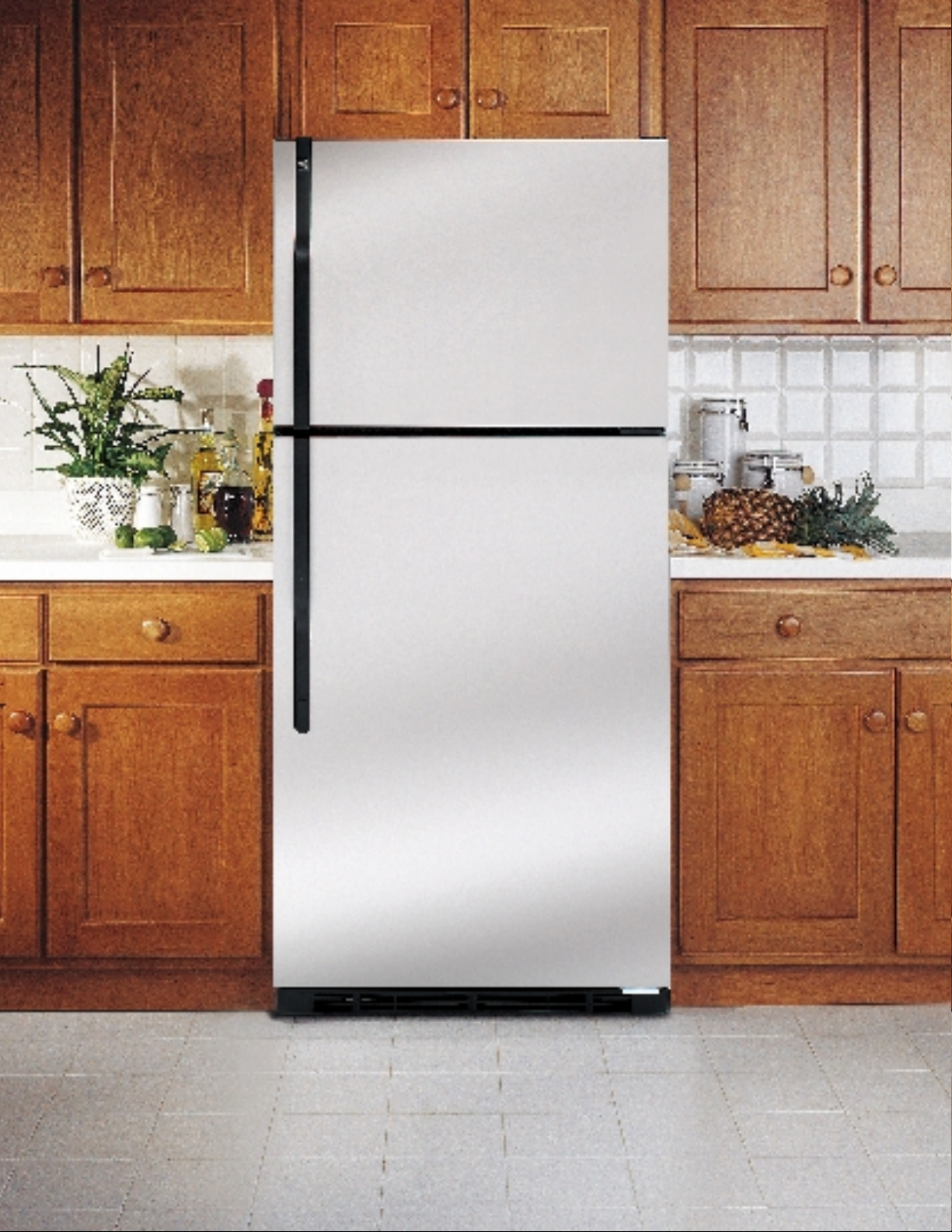

Model GTS18SBMBS shown
Page 7
7
GEAppliances.com
Appearance
❚New 18 cu. ft. configuration combines stainless elegance and
modern,
spacesaving design.
❚Low-profile hinges are unobtrusive, so they do not detract from
the clean exterior design.
❚Dual upfront lighting system offers optimal visibility throughout
the fresh food compartment.
Flexibility
❚ Locking, tilt-out freezer door bin tilts forward, allowing easy access
to bin contents.
❚ Adjustable, spillproof glass shelves have recessed edges to contain
spills and prevent dripping.
❚ Adjustable gallon door bins store gallon-size containers with ease.
Performance
❚Upfront, illuminated temperature controls are precise, easy to see
and easy to set.
❚Adjustable humidity vegetable/fruit crispers allow users to create
the perfect humidity conditions for the foods stored inside.
❚Deluxe quiet design combines quiet components and insulation
to minimize operating sound.
New stainless top-freezer refrigerator adds style and elegance
to smaller kitchen spaces.
GE®stainless top-freezer
Rethought, Reinvented, Revolutionized.
Introducing the 18 cu. ft. stainless top-freezer.
Page 8
8
Not all features available on all models.
Rethought, Reinvented, Revolutionized.
GE Profile Arctica™and GE®stainless side-by-sides
Intelligence marries beauty.
GE Profile
™
Dispenser Models
PSS25SGN
• 25.3 cu. ft. capacity • CustomCool technology
• ClimateKeeper system • Upfront electronic touch
temperature controls • Digital temperature display
• TurboCool
™
setting • Contoured doors
• LightTouch! tall dispenser with Quick Ice
™
feature,
child lock and door alarm • Slide ’n Store
™
Plus
freezer basket • Black handles and dispenser
PSW26SGN (not shown)
Similar features as the PSS25SGN except
25.5 cu. ft. capacity and stainless-wrapped exterior
PSS27SGN (not shown)
Similar features as the PSS25SGN except
26.6 cu. ft. capacity
Refreshment Center and Dispenser Model
PSS27SHN (not shown)
Similar features as the PSS25SGN except
26.8 cu. ft. capacity
CustomCool™technology
chills food and beverages in
minutes not hours, thaws
frozen food in hours not days
and allows you to select
just-right temperatures for
fruits and vegetables.
The Best Temperature
Management System
You Can Buy!
ClimateKeeper™system
combines a number of
components to provide
exceptional temperature
management:
–Upfront digital controls are
precise and easy to use.
–More electronic sensors than
our competitors’ systems
and each is positioned for
maximum effectiveness.
–Multiflow air system includes
more vents than competitors’
systems, and it uses
exclusive fresh food and
variable-speed freezer fans to
keep temperatures consistent
throughout the refrigerator.
ONLY GE HAS IT!
ONLY GE HAS IT!
As an ENERGY STAR®partner, GE has determined that
this product meets the ENERGY STAR
®
guidelines for energy efficiency.
(Models PSS25SGN and PSW26SGN)
GE
Dispenser model
GSS25LSM
• 25.4 cu. ft. capacity • Upfront electronic touch
temperature controls • Integrated shelf support
system • Three adjustable glass shelves (two slideout, spillproof) • QuickSpace
™
shelf • LightTouch!
tall dispenser with child lock and door alarm
• SmartWater
™
Plus filtration system • Tilt-out wire
freezer bin • Adjustable humidity vegetable/fruit
crisper • Black handles and dispenser
GE
Dispenser models
GSS25SGM
• 24.9 cu. ft. capacity • Upfront electronic
temperature controls • Cantilever shelf system
• Three adjustable glass shelves (two slide-out,
spillproof) • QuickSpace shelf • LightTouch! tall
dispenser with child lock • SmartWater Plus filtration
system • Adjustable humidity vegetable/fruit crisper
• Adjustable temperature deli pan • Black handles
and dispenser
GSS22SGM (not shown)
Similar features as the GSS25SGM except
21.8 cu. ft. capacity
As an ENERGY STAR®partner, GE has determined
that this product meets the ENERGY STAR
®
guidelines for energy efficiency.
Page 9
9
GEAppliances.com
GE Profile and GE stainless refrigerators are a reflection of today’s
modern tastes and lifestyles.
Rapid recovery
Exclusive ClimateKeeper
system quickly recovers from
such variables as frequent
door openings and changes
in external temperature.
Locking tilt-out freezer
bin conveniently tilts forward
for easy access to items
stored inside.
Adjustable gallon door
bins store gallon containers
with ease.
GE Profile Arctica and GE stainless top-freezers
As an ENERGY STAR®partner, GE has determined
that this product meets the ENERGY STAR
®
guidelines for energy efficiency.
(Model PTS22SBN)
Not all features available on all models.
GE Profile
Non-Dispenser Models
PTS25SBM
• 24.6 cu. ft. capacity • ClimateKeeper system
• Upfront electronic touch temperature controls
• Liftoff, slide-out, spillproof glass shelves, four
adjustable/split • ClearLook
™
adjustable gallon
door bins • Pivot-out pan removal system • Two
adjustable humidity vegetable/fruit crispers
• Adjustable temperature deli pan • ShelfSaver
™
rack • Locking tilt-out freezer door bin
• Spillproof freezer floor • Equipped for optional
electronic icemaker
PTS22SBN (not shown)
Similar features as the PTS25SBM except
21.7 cu. ft. capacity
GE
Non-Icemaker Models
GTH22SBN
• 21.7 cu. ft. capacity • Four adjustable spillproof
glass shelves • Upfront illuminated temperature
controls • Two adjustable humidity vegetable/
fruit crispers • Tilt-out locking freezer door bin
• Electronic temperature sensors • Spillproof
freezer floor • Three adjustable gallon door bins
• Equipped for optional electronic icemaker
GTS18SBM (not shown)
Similar features as the GTH22SBN except
17.9 cu. ft. capacity and has no electronic sensors
As an ENERGY STAR®partner, GE has determined
that this product meets the ENERGY STAR
®
guidelines for energy efficiency.
(Model GTH22SBN)
Page 10
10
Not all features available on all models.
Rethought, Reinvented, Revolutionized.
GE Profile CustomStyle™stainless side-by-sides and top-freezers
Built-in look, outstanding performance.
GE Profile
Trimless Dispenser Model
PTC22SFM
• 21.7 cu. ft. capacity • Upfront illuminated
temperature controls • LightTouch! tall dispenser
delivers cubes, crushed ice and chilled water
• Adjustable slide-out, spillproof glass shelves
• QuickSpace
™
shelf • ClearLook™gallon door
bins • Slide-out, slide-over pan removal system
• Two adjustable humidity vegetable/fruit crispers
• Trimless rounded doors, black contoured
Profile handles and black dispenser
Trimless Non-Dispenser Model
PTC22SBM (not shown)
Similar features as the PTC22SFM except
21.9 cu. ft. capacity and is equipped for optional
electronic icemaker
Installed Trim Dispenser Model
PTI22SFM (not shown)
Similar features as the PTC22SFM except
21.7 cu. ft. capacity and has factory-installed
stainless steel panels, trim, full-length handles
and black dispenser
CustomCool™technology
chills food and beverages in
minutes not hours, thaws
frozen food in hours not days
and allows you to select
just-right temperatures for
fruits and vegetables.
TurboCool™setting helps the
refrigerator quickly restore the
temperature when groceries or
heated foods are placed inside.
ONLY GE HAS IT!
CustomStyle design
Because they install nearly
flush with the cabinets, these
refrigerators save floor space.
They don’t stick out into
the kitchen!
GE Profile
™
Trimless Dispenser Models
PSC23SGN
• 22.6 cu. ft. capacity • CustomCool technology
• ClimateKeeper
™
system • Upfront electronic
touch temperature controls • Digital temperature
display • TurboCool setting • LightTouch! tall
dispenser with Quick Ice
™
feature, child lock and
door alarm • Integrated shelf support system
• Slide ’n Store
™
Plus freezer basket • Trimless
rounded doors, black contoured Profile handles
and black dispenser
PSI23SGN (not shown)
Similar features as the PSC23SGN except has
squared doors, full-length handles with stainless
steel appearance and black dispenser
PSH23SGN (not shown)
Similar features as the PSI23SGN
Trimless Non-Dispenser Model
PSI23SCN (not shown)
Similar features as the PSI23SGN except
22.6 cu. ft. capacity
Trimless Refreshment Center Dispenser Model
PSC23SHN (not shown)
Similar features as the PSC23SGN except
22.7 cu. ft. capacity
As an ENERGY STAR®partner, GE has determined
that this product meets the ENERGY STAR
®
guidelines for energy efficiency.
(Model PSH23SGN)
As an ENERGY STAR®partner, GE has determined
that this product meets the ENERGY STAR
®
guidelines for energy efficiency.
(Model PTC22SFM and PTI22SFM)
Page 11
11
GEAppliances.com
GE Profile stainless bottom-freezers
Rethought, Reinvented, Revolutionized.
Innovative styling, from bottom to top.
GE Profile
Bottom-Freezer Drawer Model
PDS18SBM
• 18.1 cu. ft. capacity • One full-width, two
split Slide ’n Store freezer baskets • Brita
filtered water door module • Four adjustable
split, spillproof glass shelves (two slide-out)
• ShelfSaver rack • Adjustable gallon door
bins • Adjustable humidity vegetable/fruit
crispers • Snack pan • Stainless steel tubular
door handles (must choose left or right
hand door opening)
Brita®filtered water
door module holds nearly
two gallons of water
(18 cu. ft. models only).
Slide ‘n Store freezer
drawer provides easy
access to frozen foods.
ShelfSaver rack provides
space for odd shapes and sizes.
GE Profile
Bottom-Freezer Drawer Model
PDS22SBN
• 21.9 cu. ft. capacity • Two full-width,
Slide ’n Store freezer baskets • Four
adjustable split, spillproof glass shelves
(three slide-out) • ShelfSaver
™
rack
• Adjustable door bins • Adjustable
humidity vegetable/fruit crispers • Snack
pan • Full-length extruded stainless handles
As an ENERGY STAR®partner, GE has determined
that this product meets the ENERGY STAR
®
guidelines for energy efficiency.
GE Profile stainless refrigerators shine in any setting.
Not all features available on all models.
Page 12
12
GE Profile Arctica™Side-By-Sides
PSS27SHN
PSW26SGN PSS27SGN PSS25SGN
Stainless steel model ●●●
Capacity
Total (cu. ft.) 25.5 26.8 / 26.6 25.3
Fresh food (cu. ft.) 16.02 16.77 / 16.60 15.90
Freezer (cu. ft.) 9.48 10.01 9.37
Shelf area (sq. ft.) 23.6 22.8 / 23.8 23.6
Fresh Food Features
Refreshment center ● / –
ClimateKeeper™ system ●●●
Multiflow air system ●●●
Upfront electronic digital display ●●●
Upfront electronic touch temp. controls ●●●
Electronic sensors ●●●
TurboCool™ setting ●●●
SmartWater™ filtration system Plus Plus Plus
Crushed Ice, Crushed Ice, Crushed Ice,
LightTouch! dispenser Cubes, Water Cubes, Water Cubes, Water
Light ●●●
Child lock ●●●
Door alarm ●●●
Quick Ice™ feature ●●●
Water filter indicator light ●●●
Cabinet shelves 3 Glass 3 Glass 3 Glass
Adjustable 3 3 3
Slide-out, spillproof 2 2 2
QuickSpace™ shelf ●●●
Integrated shelf support system ●●●
Snugger™ clip(s) 2 2 2
Deli pan Adj. Temp. Adj. Temp. Adj. Temp.
Vegetable/fruit crisper Adj. Humid. Adj. Humid. Adj. Humid.
Snack pan Sealed Sealed Sealed
CustomCool™ technology ●●●
3 (1 Adj.)
ClearLook™ adjustable door bins 5 (4 Adj.) 5 (4 Adj.) 5 (4 Adj.)
Dairy compartment (removable) ●●●
(butter dish) Clear Clear Clear
Can storage rack (door) ● / –
Beverage rack ●●●
Interior light system Tri-level Tri-level Tri-level
Quiet Design Premium Premium Premium
Automatic moisture control ●●●
NeverClean™ condenser ●●●
ENERGY STAR
®
●●(15%)
Freezer Features
FrostGuard™ technology ●●●
Factory-installed electronic
icemaker & bin ●●●
Wire Slide-out baskets 3 (2 full-ext.) 3 (2 full-ext.) 3 (2 full-ext.)
Wire cabinet shelves 2 (1 slide-out) 2 (1 slide-out) 2 (1 slide-out)
Wire tilt-out door bin(s) 3 (2 Adj.) 3 (2 Adj.) 3 (2 Adj.)
Fixed door bin(s) 1 1 1
Interior light ●●●
Exterior
Color(s) available* BS BS BS
Black Black Black
Door handle(s) Contoured Profile Contoured Profile Contoured Profile
Exterior design Contoured Contoured Contoured
Textured steel door and case Case only Case only
Adjustable rollers Front Front Front
Weights & Dimensions
Height to top of hinge (in.) A 69-1/4 69-1/4 69-1/4
Height to top of case (in.) B 70-1/2 68-3/4 68-3/4
Case depth without door (in.) C 28-1/2 28 28
Case depth less door handle (in.) D 32-3/4 32-1/4 32-1/4
Case depth with door handle (in.) E 35-3/16 34-11/16 34-11/16
Depth w/fresh food door open 90° (in.) F 50-9/16 50-1/16 50-1/16
Width (in.) G 35-7/8** 35-3/4 35-3/4
Width w/door open 90°
less door handle (in.) H 36-3/16 36 36
Air clearances Each side (in.) 1/8 1/8 1/8
Top (in.) 1 1 1
Back (in.) 1 1 1
Approx. shipping weight (lbs.) 393 346 347
*Color(s) available: BS = Black case with stainless steel doors.
**Width including caps is 36-3/16.
Add 9/16" for water hook-up. Hook-up fits in 5/8" back air clearance when calculating
installation depth. If installed against a wall, allow clearance of 14-3/16" on 25 cu. ft.,
26 cu. ft. and 27 cu. ft. models.
To remove fresh food pans, remove door bins.
Clearances required to remove fresh food full-size
pan without disassembling: 18-15/16" on 25 cu. ft.,
26 cu. ft. and 27 cu. ft. Allow additional space
for any necessary leveling adjustments.
ALL MODELS AVAILABLE IN U.S. AND CANADA.
GE Profile™
Front View
A
B
G
D
C
F
E
H
Side-By-Side Refrigerators
Top View
To Remove Top Cap and Doors on PSW26SGNBS
Step 1: Locate and remove two Phillips head screws on the top of the refrigerator. Remove
two screws, one on each side at the rear of the top cap. Lift off and remove top cap.
Step 2: Open both doors. Remove one screw on each side of the toekick. Pull forward to
remove toekick.
Step 3: On the freezer door, disconnect water line coupler by pushing against the collar on
the left side. Disconnect wire harness.
Step 4: Use a Torx T-20 screwdriver to remove 2 screws holding the top hinge. Carefully
remove hinge while supporting door. Lift door up and off bottom hinge. Remove
fresh food door in the same manner. Note: Do not remove bottom hinges! Door
alignment will be difficult if bottom hinges are removed.
Step 5: Place refrigerator onto a hand truck, upright and against one side. Move refrigerator
to the installation location.
Reinstall Doors, Top Cap
Step 6: Carefully lower doors onto bottom hinges. Be sure to route the tubing and electrical
connector through the bottom hinge. Reinstall top hinges.
Step 7: Place cap over the top of the refrigerator. Reinstall the original screws in the top and
back of the cap.
Step 8: Reconnect the wiring harness and waterline.
Hinge Screws
4.
3.
Wire Harness
Water Line Coupler
1.
2.
Toekick Screw
Page 13
13
GEAppliances.com
GE Profile Arctica CustomStyle™Side-By-Sides
PSC23SHN PSI23SGN
PSC23SGN PSH23SGN PSI23SCN
Stainless steel model ●●●
Capacity
Total (cu. ft.) 22.7 / 22.6 22.6 22.6
Fresh food (cu. ft.) 14.41 / 14.38 14.38 14.38
Freezer (cu. ft.) 8.24 8.24 8.19
Shelf area (sq. ft.) 18.6 / 19.7 19.7 19.9
Fresh Food Features
Refreshment center ● / –
ClimateKeeper system ●●●
Multiflow air system ●●●
Upfront electronic digital display ●●●
Upfront electronic touch temperature controls ●●●
Electronic sensors ●●●
TurboCool setting ●●●
SmartWater filtration system Plus Plus
Crushed Ice, Crushed Ice,
LightTouch! dispenser Cubes, Water Cubes, Water
Light ●●
Child lock ●●
Door alarm ●●
Quick Ice feature ●●
Water filter indicator light ●●
Cabinet shelves 3 Glass 3 Glass 3 Glass
Adjustable 3 3 3
Slide-out, spillproof 2 2 2
QuickSpace shelf ●●●
Integrated shelf system ●●●
Snugger clip(s) 1 / 2 2 2
Deli pan Adj. Temp. Adj. Temp. Adj. Temp.
Vegetable/fruit crisper Adj. Humid. Adj. Humid. Adj. Humid.
Snack pan Sealed Sealed Sealed
CustomCool technology ●●●
3 (1 Adj.)
ClearLook adjustable door bins 5 (4 Adj.) 5 (4 Adj.) 5 (4 Adj.)
Dairy compartment (removable) ●●●
(butter dish) Clear Clear Clear
Can storage rack (door) ● / –
Beverage rack ●●●
Interior light system Tri-level Tri-level Tri-level
Quiet Design Premium Premium Premium
Automatic moisture control ●●●
NeverClean condenser ●●●
ENERGY STAR – / ●
Freezer Features
FrostGuard technology ●●●
Factory-installed electronic icemaker & bin ●●●
Wire Slide-out baskets 3 (2 full-ext.) 3 (2 full-ext.) 3 (2 full-ext.)
Wire cabinet shelves 2 (1 slide-out) 2 (1 slide-out) 2 (1 slide-out)
Wire tilt-out door bin(s) 3 (2 Adj.) 3 (2 Adj.) 4 (3 Adj.)
Fixed door bins 1 1 1
Interior light ●●●
Exterior
Color(s) available* BS BS BS
CustomStyle configuration Trimless Trimless Trimless
Door handles* Black Profile SS Full-length SS Full-length
Exterior design Rounded Doors Squared Doors Squared Doors
Textured steel door and case Case only Case only Case only
Adjustable rollers All All All
Weights & Dimensions
Height to top of hinge (in.) A 69-1/4 69-1/4 69-1/4
Height to top of case (in.) B 68-3/4 68-3/4 68-3/4
Height to top of door trim (in.) 70-1/4 70-1/4
Case depth without door (in.) C 23-7/8 23-7/8 23-7/8
Case depth less door handle (in.) D 26-3/4 26-3/4 26-3/4
Case depth with door handle (in.) E 29-3/16 28-5/16 28-5/16
Depth w/fresh food door open 90° (in.) F 45-9/16 45-9/16 45-9/16
Width (in.) G 35-3/4 35-3/4 35-3/4
Width w/door open 90° w/door handle (in.) H 38-3/16 37-5/16 37-5/16
Air clearances Each side (in.) 1/8 1/8 1/8
Top (in.) 1 1 1
Back (in.) 1/2 1/2 1/2
Approx. shipping weight (lbs.) 334 334 334
Accessories
Factory trim kit attached N/A N/A N/A
Black acrylic panels (optional) N/A N/A N/A
White acrylic panels (optional) N/A N/A N/A
Bisque acrylic panels (optional) N/A N/A N/A
Stainless steel panels (optional) N/A N/A N/A
Black collar trim (optional) N/A TRMBISBB TRMBISBB
White collar trim (optional) N/A TRMBISWW TRMBISWW
Bisque collar trim (optional) N/A TRMBISCC TRMBISCC
Stainless steel collar trim (optional) N/A TRMBISSS TRMBISSS
*Color(s) available: BS = Black case with stainless steel doors, SS = Stainless steel.
If installed against a wall, allow clearance of 13-15/16" on freezer side to remove bin.
Clearance required to remove fresh food full size pan without disassembling is 18-5/8".
ALL MODELS AVAILABLE IN U.S. AND CANADA.
GE Profile
GE Profile Arctica Top-Freezers
PTS25SBM PTS22SBN
Stainless steel model ●●
Capacity
Total (cu. ft.) 24.6 21.7
Fresh food (cu. ft.) 17.51 15.35
Freezer (cu. ft.) 7.08 6.35
Shelf area (sq. ft.) 27.1 26.3
Fresh Food Features
ClimateKeeper system ●●
Multiflow air system ●●
Upfront electronic
touch temperature controls ●●
Electronic sensors ●●
Cabinet shelves 4 Glass 4 Glass
Adjustable 4 Split 4 Split
Slide-out, removable 3 3
Spillproof 4 4
ShelfSaver™ rack ●●
Deli pan Adj. Temperature Adj. Temperature
Vegetable/fruit crisper(s) 2 Adj. Humidity 2 Adj. Humidity
Pivot-out pan removal system ●●
ClearLook adjustable
gallon door bins 4 (Adj.) 4 (Adj.)
Snugger clip(s) 2 2
Fixed door bins 1 (Tall Bottle) 1 (Tall Bottle)
Dairy compartment ●●
(butter dish) ●●
Interior light system Dual Dual
Quiet Design Premium Premium
Automatic moisture control ●●
NeverClean condenser ●●
ENERGY STAR ●
Freezer Features
Factory-installed electronic
icemaker and bin Opt. (IM4) Opt. (IM4)
Multiflow air system (freezer) ●●
Ice 'N Easy trays 3 3
Ice storage bin Ice Bucket Ice Bucket
Ice shelf 1 Vertical 1 Vertical
FrostGuard technology ●●
Spillproof freezer floor ●●
Wire freezer 1 full-width 1 full-width
compartment shelves (2 pos.) (2 pos.)
Freezer door bins 2 (1 Adj.) 2 (1 Adj.)
Tilt-out locking freezer door bin ●●
Interior light ●●
Exterior
Color(s) available* BS BS
Deluxe door handle(s) Black Black
Customer installed handles ●●
Exterior design Rounded Doors Rounded Doors
Reversible doors ●●
Adjustable rollers Front Front
Weights & Dimensions
Height to top of hinge (in.) A 68-5/8 67-1/2
Height to top of case (in.) B 67-7/8 66-7/8
Case depth without door (in.) C 27-5/8 27-5/8
Case depth less door
handle (in.) D 31-5/8 31-5/8
Case depth with door
handle (in.) E 33-5/8 33-5/8
Depth with fresh food door
open 90° (in.) F 66 63
Width (in.) G 35-7/8 32-7/8
Width w/door open 90°
less door handle (in.) H 36 33
Air clearances Each side (in.) 1/8 1/8
Top (in.) 1 1
Back (in.) 1 1
Approx. shipping weight (lbs.) 310 260
*Color(s) available: BS = Black case with stainless steel doors.
ALL MODELS AVAILABLE IN U.S. AND CANADA.
GE Profile
Total volume and shelf
area are calculated by the
Association of Home Appliance
Manufacturers’ standards.
R
Listed by
Underwriters
Laboratories
R
Page 14
14
Note: All Top-Freezer No-Frost Right-Hand Refrigerator Doors: As you face the front
of the refrigerator, the handle is on your left and the hinges are on your right.
All Top-Freezer No-Frost Left-Hand Refrigerator Doors: As you face the front
of the refrigerator, the handle is on your right and the hinges are on your left.
Front View
Bottom-Freezer Refrigerators
Top View
B
A
G
E
C
F
D
GE Profile Bottom-Freezers
PDS22SBN PDS18SBM
Stainless steel model ●●
Capacity
Total (cu. ft.) 21.9 18.1
Fresh food (cu. ft.) 15.64 13.44
Freezer (cu. ft.) 6.30 4.64
Shelf area (sq. ft.) 23.7 21.0
Fresh Food Features
Brita®Filtered Water Door Module ●
Cabinet shelves 4 Glass 4 Glass
Adjustable 4 Split 4 Split
Slide-out 3 2
Spillproof 4 4
ShelfSaver™ rack ●●
Vegetable/fruit crisper(s) 2 Adj. Humidity 2 Adj. Humidity
Snack pan Clear Clear
Adjustable gallon door bins 4 (non-gallon) 3
Snugger clip ●
Fixed door bins 1 F/W w/gal. storage 1 F/W w/gal. storage
Dairy compartment ●●
Interior light Dual ●
Quiet Design Deluxe Deluxe
Automatic moisture control ●●
NeverClean condenser ●
ENERGY STAR ●
Freezer Features
Factory-installed electronic
icemaker & bin Opt. (UKKIT 4N) Opt. (IM4)
Ice 'N Easy trays 2 2
Ice tray shelf ●
Full slide-out wire basket(s) 2 F/W 1 F/W, 2 Split
Interior light ●●
Exterior
Color(s) available* BS BS
Stainless Steel Stainless Steel
Door handle(s) Extruded Tubular
Exterior design Rounded Doors Rounded Doors
Door stops ●●
Reversible doors ●
Choose left or right door opening ●
Adjustable rollers Front Front
Weights & Dimensions
Height to top of hinge (in.) A 69-1/2 66-1/4
Height to top of case (in.) B 68-1/2 65-3/4
Case depth without door (in.) C 28 25-1/4
Depth less door handle (in.) D 30-7/8 28
Depth with door handle (in.) E 32 30-3/8
Depth w/door open 90° (in.) F 62-1/4 57-3/4
Width (in.) G 32-5/8 31
Side clearance for 90° door open 1-1/4 2-3/8
Air clearances Each side (in.) 0 0
Top (in.) 1 1
Back (in.) 1/2 1/2
Approx. shipping weight (lbs.) 313 257
*Color(s) available: BS = Black case with stainless steel doors.
ALL MODELS AVAILABLE IN U.S. AND CANADA.
GE Profile
Total volume and shelf
area are calculated by the
Association of Home Appliance
Manufacturers’ standards.
R
Listed by
Underwriters
Laboratories
R
A
B
G
E
C
F
D
H
Top ViewFront View
Top-Freezer No-Frost Refrigerator
GE Profile CustomStyle™Top-Freezers
PTC22SBM PTC22SFM PTI22SFM
Stainless steel model ●●●
Capacity
Total (cu. ft.) 21.9 21.7 21.7
Fresh food (cu. ft.) 15.4 15.4 15.4
Freezer (cu. ft.) 6.5 6.3 6.3
Shelf area (sq. ft.) 22.4 20 20
Fresh Food Features
SmartWater™ filtration system ●●
Crushed Ice, Crushed Ice,
LightTouch! dispenser Cubes, Water Cubes, Water
Upfront illuminated
temperature controls ●●●
Cabinet shelves 4 Glass 4 Glass 4 Glass
Adjustable 4 Split 4 Split 4 Split
Slide-out, spillproof 3 3 3
Snugger™ clip ●●●
QuickSpace™ shelf ●●●
Meat pan Adj. Temperature Adj. Temperature Adj. Temperature
Vegetable/fruit crisper(s) 2 Adj. Humidity 2 Adj. Humidity 2 Adj. Humidity
Slide-out, spillproof crisper cover ●●●
4 Adj. w/ 4 Adj. w/ 4 Adj. w/
ClearLook™ adjustable door bins gallon storage gallon storage gallon storage
Fixed door bins 1 F/W tall bottle 1 F/W tall bottle 1 F/W tall bottle
Slide-out, slide-over
pan removal system ●●●
Dairy compartment ●●●
Beverage rack ●●●
Interior light system Dual Dual Dual
Quiet Design Deluxe Deluxe Deluxe
Automatic moisture control ●●●
NeverClean™ condenser ●●●
ENERGY STAR
®
●●
Freezer Features
Factory-installed electronic
ice-maker & bin Opt. (IM4) ●●
Ice 'N Easy trays 3
Ice storage bin ●
Wire compartment shelf(s) 2 Split (Adj.) 1(Adj.) 1 (Adj.)
2 fixed 2 fixed
Door bins 2 Adj., 1 F/W fixed (1 w/gallon storage) (1 w/gallon storage)
Interior light ●●●
Exterior
Color(s) available* BS BS BS
CustomStyle configuration Trimless Trimless Installed Trim
Stainless Steel
Premium door handles* Black Deluxe Black Deluxe Appearance
Choose right or left door opening ●●●
Exterior design Rounded Doors Rounded Doors Squared Doors
Adjustable rollers All All All
Weights & Dimensions
Height to top of hinge (in.) A 69-7/8 69-7/8 69-7/8
Height to top of case (in.) B 68-3/4 68-3/4 68-3/4
Height to top of door trim (in.) 70-1/2
Case depth without door (in.) C 23-3/4 23-3/4 23-3/4
Depth less door handle (in.) D 26-3/4 26-3/4 26-3/4
Depth with door handle (in.) E 28-5/8 28-5/8 28-5/8
Depth with fresh food door
open 90° (in.) F 61 61 61
Width (in.) G 35-3/4 35-3/4 35-3/4
Width with door open 90°
w/door handle (in.) H 38-1/4 38-1/4 38
Air clearances Each side (in.) 1/8 1/8 1/8
Top (in.) 1 1 1
Back (in.) 1/2 1/2 1/2
Approx. shipping weight (lbs.) 300 324 360
Accessories
Black acrylic panels (optional) N/A N/A N/A
White acrylic panels (optional) N/A N/A N/A
Stainless steel panels (optional) N/A N/A N/A
Black collar trim (optional) N/A N/A N/A
White collar trim (optional) N/A N/A N/A
Bisque collar trim (optional) N/A N/A N/A
Stainless steel collar trim (optional) N/A N/A TRMBISSS
*Color(s) available: BS = Black case with stainless steel doors.
ALL MODELS AVAILABLE IN U.S. AND CANADA.
GE Profile
™
Page 15
15
GE Top-Freezers
GE “K” Series
GTH22SBN GTS18SBM
Stainless steel model ●●
Capacity
Total (cu. ft.) 21.7 17.9
Fresh food (cu. ft.) 15.35 12.87
Freezer (cu. ft.) 6.35 4.98
Shelf area (sq. ft.) 25.3 22.4
Fresh Food Features
Upfront temperature controls Illuminated Illuminated
Electronic temperature sensors ●
Cabinet shelves 4 Glass 4 Glass
(adjustable) 4 Split 4 Split
(spillproof) 4 4
Snugger clip ●●
Vegetable/fruit crisper(s) 2 Adj. Humidity 2 Adj. Humidity
Snack pan ●●
Pivot-out pan removal system ●
Adjustable gallon door bins 3 (Adj.) 3 (Adj.)
Fixed door bins 1 (Tall Bottle) 1 (Tall Bottle)
Dairy compartment ●●
(butter dish) ●●
Interior light system Dual Dual
Quiet Design Deluxe Deluxe
Automatic moisture control ●●
NeverClean condenser ●●
ENERGY STAR ●
Freezer Features
Factory-installed electronic icemaker Opt. (IM4) Opt. (IM4)
Ice 'N Easy trays 2 2
Ice shelf Vertical Vertical
FrostGuard technology ●
Spillproof freezer floor ●●
Wire freezer compartment shelves 1 F/W (2 pos.) 1 F/W (2 pos.)
Adjustable door bins 1 (Adj.) 2
Fixed door bins 1 Split
Tilt-out locking freezer door bin ●●
Interior light ●●
Exterior
Color(s) available* BS BS
Door handle(s) Black Premium Black Premium
Customer installed handles ●●
Exterior design Rounded Doors Rounded Doors
Reversible doors ●●
Adjustable rollers Front Front
Weights & Dimensions
Height to top of hinge (in.) A 67-1/2 66-5/8
Height to top of case (in.) B 66-7/8 66-1/8
Height to mid-freezer (in.) 54-1/2 53-13/16
Case depth without door (in.) C 27-5/8 27-1/2
Case depth less door handle (in.) D 31-5/8 30-1/4
Case depth with door handle (in.) E 33-5/8 32-1/8
Depth w/fresh food door
open 90° (in.) F 63 58-1/8
Width (in.) G 32-7/8 29-1/2
Width w/door open 90°
less door handle (in.) H 33 30
Air clearances Each side (in.) 1/8 1/8
Top (in.) 1 1
Back (in.) 1 1
Approx. shipping weight (lbs.) 255 231
*Color(s) available: BS = Black case with stainless steel doors.
ALL MODELS AVAILABLE IN U.S. AND CANADA.
A
B
G
E
F
D
H
Top ViewFront View
Top-Freezer No-Frost Refrigerator
R
Total volume and shelf
area are calculated by the
Association of Home Appliance
Manufacturers’ standards.
R
Listed by
Underwriters
Laboratories
GSS25SGM
GSS25LSM GSS22SGM
Stainless steel model ●●
Capacity
Total (cu. ft.) 25.4 24.9 / 21.8
Fresh food (cu. ft.) 15.90 15.33 / 14.70
Freezer (cu. ft.) 9.48 9.53 / 7.11
Shelf area (sq. ft.) 23.7 24.1 / 22.1
Fresh Food Features
SmartWater filtration system Plus Plus
Crushed Ice, Crushed Ice,
LightTouch! dispenser features Cubes, Water Cubes, Water
Light ●●
Child lock ●●
Door Alarm ●
Water filter indicator light ●●
Upfront electronic touch
temperature controls ●
Upfront electronic temperature controls ●
Cabinet shelves 3 Glass 3 Glass
Adjustable 3 3
Slide-out, spillproof 2 2
QuickSpace shelf ●●
Integrated shelf system ●
Snugger clip 1 1
Deli pan 1 Sealed 1 Adj. Temp.
Vegetable/fruit crisper 1 Adj. Humid. 1 Adj. Humid.
Snack pan ●●
4 (3 Adj. w/ 4 (2 Adj. w/
Adjustable door bins gallon storage) gallon storage)
Dairy compartment ●●
Utility bin (clear) ●●
Interior light system Dual-level Dual-level
Quiet Design Deluxe Deluxe
Automatic moisture control ●●
NeverClean condenser ●●
ENERGY STAR ●
Freezer Features
FrostGuard™ technology ●●
Factory-installed electronic icemaker & bin ●●
Wire cabinet shelves 2 (1 slide-out) 4 (3 Adj.)
Storage basket(s) 3 wire (slide-out) 1 wire (slide-out)
Wire tilt-out door bin(s) 1
Door shelves 3 (2 Adj.) 5
Interior light ●●
Appearance
Color(s) available* BS BS
Deluxe door handle(s)* Black Premium Black Premium
Textured steel door and case Case only Case only
Adjustable rollers Front Front
Weights & Dimensions
Height to top of hinge (in.) A 69-1/4 69-3/4 / 67-1/2
Height to top of case (in.) B 68-3/4 68-3/4 / 66-1/2
Case depth without door (in.) C 28 28
Case depth less door handle (in.) D 31-1/4 30-3/4
Case depth with door handle (in.) E 33-9/16 33
Depth with fresh food door
open 90° (in.) F 50-1/16 48-13/16
Width (in.) G 35-3/4 35-3/4 / 33-1/2
Width w/door open 90°
less door handle (in.) H 36 35-3/4 / 33-1/2
Air clearances Each side (in.) 1/8 1/8
Top (in.) 1 1
Back (in.) 1 1
Approx. shipping weight (lbs.) 338 338 / 334
*Color(s) available: BS = Black case with stainless steel doors.
Add 9/16" for water hook-up. Hook-up fits in 5/8" back air clearance when calculating
installation depth. If installed against a wall, allow clearance of 10-3/4" on 22 cu. ft.
models; 14-3/16" on 25 cu. ft. models on freezer side to remove bin. Clearances required
to remove fresh food full-size pan without disassembling: 15" on 22 cu. ft.; and 18-15/16"
on 25 cu. ft.Allow additional space for any necessary leveling adjustments.
ALL MODELS AVAILABLE IN U.S. AND CANADA.
GE®Side-By-Sides
GE “K” SeriesGE “L” Series
Front View
A
B
G
D
C
F
E
H
Side-By-Side Refrigerators
Top View
GEAppliances.com
Page 16
GE Appliances
General Electric Company
Louisville, Kentucky 40225
GEAppliances.com
GE has a policy of continuous improvement of its products
and reserves the right to change materials and specifications
without notice.
© 2002 General Electric Company
Pub. No. 2-X072-1 PC34004
Before purchasing an appliance, read important information about
its estimated annual energy consumption or energy efficiency
rating that is available from your retailer or GEAppliances.com
Loading...
