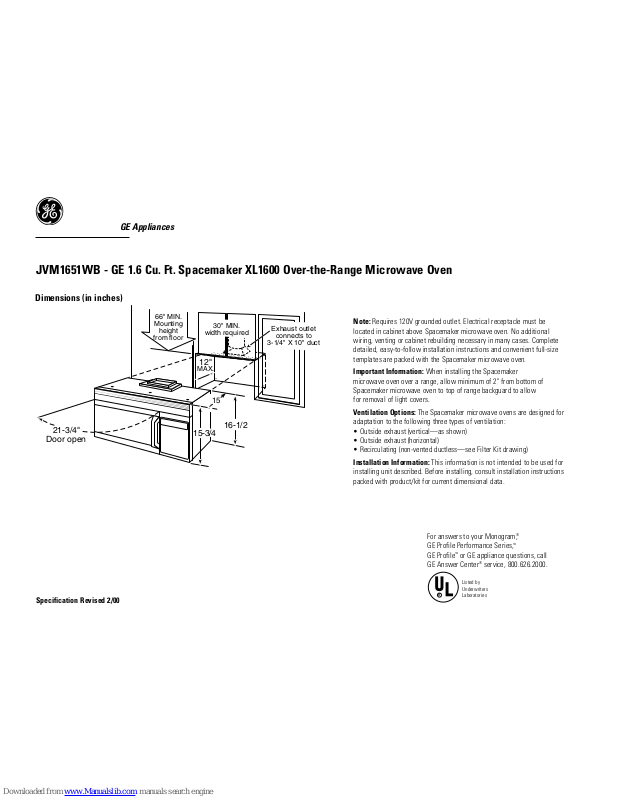

GE Spacemaker XL1600 JVM1651WB, Spacemaker XL1600 JVM1651BB, Spacemaker XL1600 JVM1651AB, Spacemaker XL1600 JVM1651CB Dimensions

JVM1651WB - GE 1.6 Cu. Ft. Spacemaker XL1600 Over-the-Range Microwave Oven

Dimensions (in inches)

For answers to your Monogram,

®

GE Profile Performance Series,

™

GE Profile™or GE appliance questions, call
GE Answer Center®service, 800.626.2000.

R

Listed by
Underwriters
Laboratories

GE Appliances

Specification Revised 2/00

Note: Requires 120V grounded outlet. Electrical receptacle must be

located in cabinet above Spacemaker microwave oven. No additional
wiring, venting or cabinet rebuilding necessary in many cases. Complete
detailed, easy-to-follow installation instructions and convenient full-size
templates are packed with the Spacemaker microwave oven.

Important Information: When installing the Spacemaker
microwave oven over a range, allow minimum of 2" from bottom of
Spacemaker microwave oven to top of range backguard to allow
for removal of light covers.

Ventilation Options: The Spacemaker microwave ovens are designed for
adaptation to the following three types of ventilation:

• Outside exhaust (vertical—as shown)

• Outside exhaust (horizontal)

• Recirculating (non-vented ductless—see Filter Kit drawing)
Installation Information: This information is not intended to be used for

installing unit described. Before installing, consult installation instructions
packed with product/kit for current dimensional data.

21-3/4"

Door open

16-1/2

66" MIN.

Mounting

height

from floor

30" MIN.

width required

MAX.

Exhaust outlet

connects to

3-1/4" X 10" duct

12"

15-3/4

15

Specification Revised 2/00

JVM1651WB - GE 1.6 Cu. Ft. Spacemaker XL1600 Over-the-Range Microwave Oven

GE Appliances

R

Listed by
Underwriters
Laboratories

For answers to your Monogram,

®

GE Profile Performance Series,

™

GE Profile™or GE appliance questions, call
GE Answer Center®service, 800.626.2000.

Optional Accessories (Available at additional cost)

JX22SS–Stainless Steel Decorative Panel Kit

When replacing a Hi/Low range with a microwave/convection oven or
Spacemaker over a range model, this panel kit fills in the area between
the microwave and range left by the Hi/Low model.

19

30

3/8"
depth

HOOD EXHAUST DUCT

Outside ventilation requires a HOOD EXHAUST DUCT. Read the following carefully.
EXHAUST CONNECTION: The hood exhaust has been designed to mate with a standard 3-1/4” x 10”

rectangular duct.If a round duct is required, a rectangular-to-round transition adaptor must be used. Do not
use less than a 6” diameter duct

REAR EXHAUST: If a rear or horizontal exhaust is to be used, care should be taken to align exhaust with
space between studs,or wall should be prepared at the time it is constructed by leaving enough space
between the wall studs to accommodate exhaust.

MAXIMUM DUCT LENGTH: For satisfactory air movement, the total duct length of 3-1/4” x 10”
rectangular or 6” diameter round duct should not exceed 140 equivalent feet.

ELBOWS, TRANSITIONS,WALL AND ROOF CAPS, etc., present additional resistance to airflow and are
equivalent to a section of straight duct which is longer than their actual physical size. When calculating the
total duct length, add the equivalent length of all transitions and adaptors plus the lengths of all straight
duct sections. The chart below shows the approximate feet of equivalent length of some typical ducts.

Duct Equivalent Feet

A. Rectangular-To-round 5ft.

Transition Adaptor

B. Wall Cap 40ft.
C. 90° Elbow 10ft.
D. 45° Elbow 5ft.
E. 90° Elbow 25ft.
F. 45° Elbow 5ft.
G. Roof Cap 24ft.

12" Filler Panel Kits
JX40AL–Almond
JX41–Black
JX40WH–White

15" Filler Panel Kits
JX46BL–Black
JX46AL–Almond
JX46WH–White

When replacing a 36" or 42"
range hood, this kit fills in the
additional width to provide a
custom built-in appearance.
For installation between cabinets
only; not for end-of-cabinet installation.
Each kit contains two 3"-wide filler panels.
Two kits are needed for a 42" opening.

Filter Kits
JX81A–Recirculating

Charcoal Filter Kit

To be used when the
Spacemaker microwave
oven cannot be vented
to the outside.

Specification Revised 2/00

GE Appliances

JVM1651WB - GE 1.6 Cu. Ft. Spacemaker XL1600 Over-the-Range Microwave Oven

BEEPER
VOLUME

VENT FAN

SURFACE

LIGHT

TURNTABLE

HI-LO-OFFON - OFF BRIGHT-NIGHT

OFF

START

DELAY
START

CLEAR

OFF

HELP

PAUSE

AUTO

NITE LIGHT

ON/OFFSCROLL SPEED

SELECTIONS

GUIDE BEHIND DOOR

SENSOR
COOKING

CONVENIENCE

COOKING

REMINDER

TIMERCLOCK AM / PM

POPCORN

BEVERAGE

REHEAT

POTATO VEGETABLE

COOK

SNACKS

1

EXPRESS COOK

4

EXPRESS COOK

7

5

EXPRESS COOK6EXPRESS COOK

89

ADD

30 SEC

POWER
LEVEL

3

EXPRESS COOK

2

EXPRESS COOK

0

DISPLAY ON / OFF

DEFROST

AUTO / TIME

TIME COOK

Features and Benefits

• 1.6 cu. ft. Capacity

• 1000 Watts

©

• SmartControl System with Interactive Display

• Clock and AM/PM Pad

• Sensor Cooking Controls for Beverage, Popcorn, Potatoes, Reheat and Vegetables

• Convenience Cooking Control Pads for Cook and Snacks

• Express Cook (1-6 mins.) with Instant-On Controls

• Time Cook I & II

• Add 30 Seconds

• Auto Defrost / Time Defrost

• 10 Power Levels

• Delay Start with Reminder

• Dual Rack

• Beeper Sound Level Control

• Turntable On/Off

• Full-View Cooktop Lighting with Programmable Night Light

• Timer On/Off

• Child Lock-Out

• Two-Speed, High-Capacity Exhaust Fan

• Big View Window

• Non-Vented Model

• Model JVM1651WB - White on white

• Model JVM1651BB - Black on black

• Model JVM1651AB - Almond on almond

• Model JVM1651CB - Bisque

*IEC-705 Test Procedure
