GE Spacemaker XL1600 JVM1640BB, Spacemaker XL1600 JVM1640AB, Spacemaker XL1600 JVM1640WB Dimensions

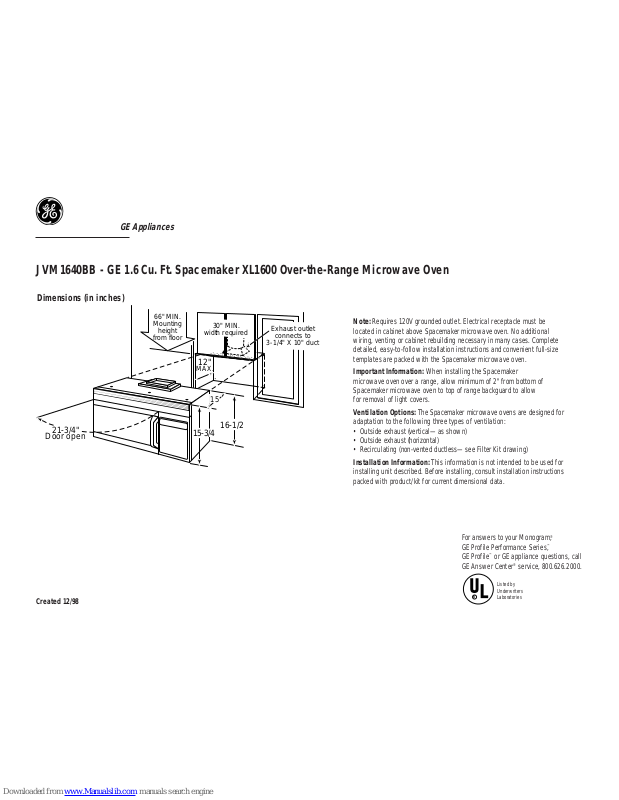

JVM1640BB - GE 1.6 Cu. Ft. Spacemaker XL1600 Over-the-Range Microwave Oven
Dimensions (in inches)
GE Appliances
Note: Requires 120V grounded outlet. Electrical receptacle must be
located in cabinet above Spacemaker microwave oven. No additional
wiring, venting or cabinet rebuilding necessary in many cases. Complete
detailed, easy-to-follow installation instructions and convenient full-size
templates are packed with the Spacemaker microwave oven.
Important Information: When installing the Spacemaker
microwave oven over a range, allow minimum of 2" from bottom of
Spacemaker microwave oven to top of range backguard to allow
for removal of light covers.
Ventilation Options: The Spacemaker microwave ovens are designed for
adaptation to the following three types of ventilation:
• Outside exhaust (vertical—as shown)
• Outside exhaust (horizontal)
• Recirculating (non-vented ductless—see Filter Kit drawing)
Installation Information: This information is not intended to be used for
installing unit described. Before installing, consult installation instructions
packed with product/kit for current dimensional data.
21-3/4"
Door open
16-1/2
66" MIN.
Mounting
height
from floor
30" MIN.
width required
MAX.
Exhaust outlet
connects to
3-1/4" X 10" duct
12"
15-3/4
15
Created 12/98
R
Listed by
Underwriters
Laboratories
For answers to your Monogram,
®
GE Profile Performance Series,
™
GE Profile™or GE appliance questions, call
GE Answer Center®service, 800.626.2000.
JVM1640BB - GE 1.6 Cu. Ft. Spacemaker XL1600 Over-the-Range Microwave Oven
GE Appliances
Created 12/98
R
Listed by
Underwriters
Laboratories
For answers to your Monogram,
®
GE Profile Performance Series,
™
GE Profile™or GE appliance questions, call
GE Answer Center®service, 800.626.2000.
Optional Accessories (Available at additional cost)
JX22SS–Stainless Steel Decorative Panel Kit
When replacing a Hi/Low range with a microwave/convection oven or
Spacemaker over a range model, this panel kit fills in the area between
the microwave and range left by the Hi/Low model.
19
30
3/8"
depth
HOOD EXHAUSTDUCT
Outside ventilation requires a HOOD EXHAUST DUCT. Read the following carefully.
EXHAUST CONNECTION: The hood exhaust has been designed to mate with a standard 3-1/4” x 10”
rectangular duct.If a round duct is required, a rectangular-to-round transition adaptor must be used. Do not
use less than a 6” diameter duct
REAR EXHAUST:If a rear or horizontal exhaust is to be used, care should be taken to align exhaust with
space between studs,or wall should be prepared at the time it is constructed by leaving enough space
between the wall studs to accommodate exhaust.
MAXIMUM DUCT LENGTH: For satisfactory air movement, the total duct length of 3-1/4” x 10”
rectangular or 6” diameter round duct should not exceed 140 equivalent feet.
ELBOWS, TRANSITIONS,WALL AND ROOF CAPS, etc., present additional resistance to airflow and are
equivalent to a section of straight duct which is longer than their actual physical size. When calculating the
total duct length, add the equivalent length of all transitions and adaptors plus the lengths of all straight
duct sections. The chart below shows the approximate feet of equivalent length of some typical ducts.
Duct Equivalent Feet
A. Rectangular-To-round 5ft.
Transition Adaptor
B. Wall Cap 40ft.
C. 90° Elbow 10ft.
D. 45° Elbow 5ft.
E. 90° Elbow 25ft.
F. 45° Elbow 5ft.
G. Roof Cap 24ft.
12" Filler Panel Kits
JX40AL–Almond
JX41–Black
JX40WH–White
15" Filler Panel Kits
JX46BL–Black
JX46AL–Almond
JX46WH–White
When replacing a 36" or 42"
range hood, this kit fills in the
additional width to provide a
custom built-in appearance.
For installation between cabinets
only; not for end-of-cabinet installation.
Each kit contains two 3"-wide filler panels.
Two kits are needed for a 42" opening.
Filter Kits
JX81A–Recirculating
Charcoal Filter Kit
To be used when the
Spacemaker microwave
oven cannot be vented
to the outside.
GE Appliances
JVM1640BB - GE 1.6 Cu. Ft. Spacemaker XL1600 Over-the-Range Microwave Oven
1
EXPRESS COOK
4
EXPRESS COOK
7
5
EXPRESS COOK6EXPRESS COOK
89
ADD
30 SEC
POWER
LEVEL
3
EXPRESS COOK
2
EXPRESS COOK
0
DISPLAY ON / OFF
REMINDER
TIMERCLOCK AM / PM
ON/OFFSCROLL SPEED
DEFROST
AUTO / TIME
TIME COOK
SELECTIONS
GUIDE BEHIND DOOR
CONVENIENCE COOKING
VENT FANTURNTABLE
SURFACE
LIGHT
BEEPER
VOLUME
HI-LO-OFFBRIGHT - NIGHT
OFF
START
HELP
DELAY
START
CLEAR
OFF
PAUSE
POPCORN
BEVERAGE
REHEATCOOK
Created 12/98
Features and Benefits
• 1.6 cu. ft. Capacity
• 1000 Watts
©
• SmartControl System with Interactive Display
• Clock and AM/PM Pad
• Convenience Cooking Control Pads for Beverage, Cook, Popcorn and Reheat
• Express Cook (1-6 mins.) with Instant-On Controls
• Time Cook I & II
• Add 30 Seconds
• Auto Defrost / Time Defrost
• 10 Power Levels
• Delay Start with Reminder
• Turntable On/Off
• Full-View Cooktop Lighting with Night Light
• Timer On/Off
• Cooking Complete Reminder
• Child Lock-Out
• Two-Speed, High-Capacity Exhaust Fan
• Designer-Style Handle
• Big View Window
• Model JVM1640WB - White on white
• Model JVM1640BB - Black on black
• Model JVM1640AB - Almond on almond
*IEC-705 Test Procedure
