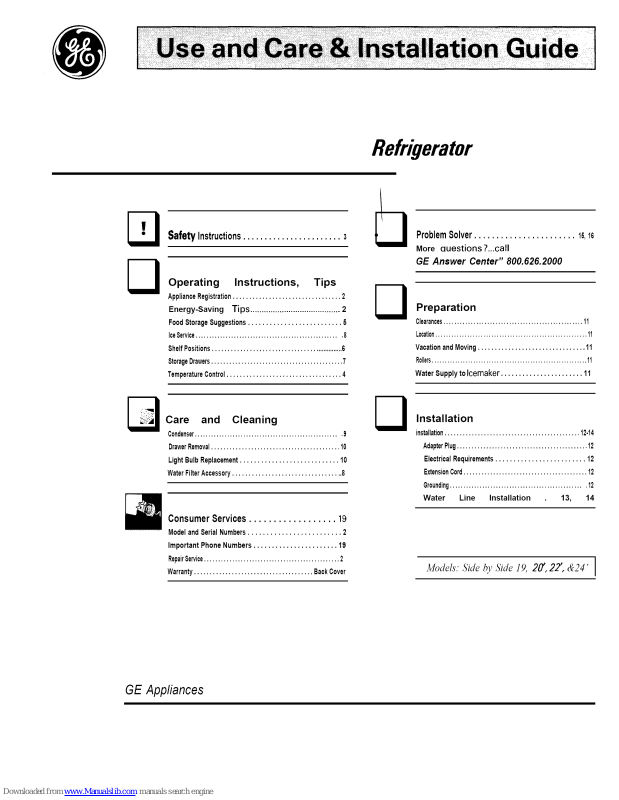

GE Side by Side 19' Series, Side by Side 20' Series, Side by Side 22' Series, Side by Side 24' Series Use And Care & Installation Manual

Refrigerator

Safety Instructions....................... 3

Operating Instructions, Tips

ApplianceRegistration................................. 2

Energy-SavingTips........................................ 2

FoodStorageSuggestions.......................... 6

IceService..................................................... 8

ShelfPositions................................................ S

StorageDrawers............................................ 7

TemperatureControl................................... 4

ProblemSolver....................... 16,16

More auestions?...call
GE Answer Center" 800.626.2000

Preparation

Clearances................................................... 11

Location......................................................... 1t

VacationandMoving................................ 11

R0{lers............................................................ 1t

WaterSupplytoIcemaker ....................... 11

_ Care and Cleaning

Condenser...................................................... S

DrawerRemoval.......................................... 10

LightBulbReplacement............................ 10

WaterFilterAccessory.................................. 8

ConsumerServices.................. 19

Modeland SerialNumbers......................... 2

ImportantPhoneNumbers....................... 19

RepairService................................................ 2

Warranty...................................... BackCover

Installation

installation............................................. 12-14

AdapterPlug............................................. 12

ElectricalRequirements......................... 12

ExtensionCord.......................................... 12

Grounding.................................................. 12

Water Line Installation 13, 14

Models: Side by Side 19, 20', 22", &24' I

GE Appliances

HELP US HELP YOU...

Read this book carefully.

It is intended to help you operate and maintain your
new refrigerator properly.

Keep it handy for answers to your questions.
If you don't understand something or need more help,

write (include your phone number):

Consumer Affairs
GE Appliances

Appliance Park
Louisville, KY 40225

If you received a damaged refrigerator...

hnmediately contact the dealer (or builder) that sold
you the refrigerator.

Save time and money.

Before you request service...

Check the Problem Solver in the back of this book. It lists
minor operating problems that you can correct yourself.

Write down the model and serial numbers.

You'll see them on a label on the wall beside the top
drawer or at the bottom, inside the fresh food

compartment door.
These numbers are also on the Consumer

Product Ownership Registration Card that came
with your refrigerator.

Before sending in the card, please write these
numbers here:

Model Number

Serial Number

Use these numbers in any correspondence or service
calls concerning your refrigerator.

ENERGY-SAVING TIPS

• Location of your refrigerator is important. Avoid

locating it next to your range, a heating vent or

where the sun will shine directly on it.

• Close the doors as soon as possible, particularly in
hot, humid weather.

• Be sure the doors are closed tightly. Before leaving
the house or retiring for the night, check to be sure

the doors haven't been left open accidentally.

• Keep foods covered to reduce moisture buildup
inside the refrigerator.

IF YOU NEED SERVICE

To obtain service, see the Consumer Services page in
the back of this book.

We're proud of our service and want you to be
pleased. If for some reason you are not happy with the

service you receive, here are 3 steps to follow for

further help.
FIRST, contact the people who serviced your

appliance. Explain why you are not pleased. In most
cases this will solve the problem.

NEXT, if you are still not pleased, write all the
details--including your phone number--to:

Manager, Consumer Relations
GE Appliances

Appliance Park
Louisville, KY 40225

2

FINALLY, if your problem is still not resolved, write:

Major Appliance Consumer

Action Panel
20 North Wacker Drive
Chicago, IL 60606

To obtain a Spanish language version of this
book, call

GE Answer Center ®

800.626.2000

consumer information service.
Para obtener la versidn en espafiol de este manual,

name a

GE Answer Center ®,servicio de information para

el consumidor,

tel_fono 800.626.2000.

IMPORTANT SAFETY INSTRUCTIONS

Read all instructions before using this appliance.

A ARNING--When using this

appliance, always exercise basic safety

precautions, including the following:

•Use this applianceonly for its intended purpose
as described in this Use and Care Guide

,._.z;t_a . This refrigerator must be properly

installed and located in accordance

with the Installation Instructions

before it is used. If you did not receive an

Installation Instructions sheet with your

refrigerator, you can obtain one by calling, toll

free, the GE Answer Center®, 800.626.2000.

•Never unplug your refrigerator
by pulling on the power cord, Always

r_P p!ugfirmly and pull straight out

m the outlet.

•Repair or replace immediately all electric
service cords that have become frayed or
otherwise damaged. Do not use a cord that

shows cracks or abrasion damage along its length
or at either the plug or connector end

.When moving your refrigerator away from

the wall, be careful not to roll over or damage
the power cord.

.Do not allow children to climb, stand or

hang on theshelves in the refrigerator. They
could damage the refrigerator and seriously
injure themselves.

.If your old refrigerator is still around

the house but not in use, be sure to

removethe doors. This will reduce the
possibility of danger to children,

.Don't refreeze frozen foods which have

thawed completely, The United States

Department of Agriculture in Home and Garden
Bulletin No. 69 says:

"... You may safely reffeeze frozen foods that

have thawed if they still contain ice crystals or if
they are still coN--below 40°E

"... Thawed ground meats, poulUy or fish that
have any off-odor or off-color should not be
refrozen and should not be eaten. Thawed ice

cream should be discarded, If the odor or color
of any food is poor or questionable, get rid of it.

The food may be dangerous to eat.

"Even partial thawing and refreezing reduces the
eating quality of foods, particularly fruits,
vegetables and prepared foods, The eating quality

of red meat is affected less than that of many other
foods, Use refrozen foods as soon as possible to

save as much of their eating quality as you can,"

,Unplug your refrigerator before

cleaning and making repairs. NOTE:

We strongly recommend thatanyservicing
be performed by a qualified individual.

•Before replacing a burned-out light bulb,

unplug the refrigerator or turnoff power at the
circuit breaker or fusebox in order to avoid
contact with a live wire filament. NOTE:

Turning control to OFF position does not
remove power to the light circuit.

•Do not store or use gasoline or other flammable
vapors and liquids in the vicinity of this or any

other appliance.

•After your refrigerator is in operation, do
not touch the cold surfaces in the freezer

compartment, particularly when hands
are damp or wet. Skin may adhere to these

extremely cold surfaces,

• If your refrigerator has an automatic icemaker,

do not place fingersor hands on the automatic
icemakingmechanism while the refrigerator is

plugged in. This will prevent contact with the

moving parts of the ejector mechanism, or with
the heating element that releases the cubes.

SAVE THESE

INSTRUCTIONS

3

OPERATING YOUR REFRIGERATOR

Set the Temperature Controls

Two controls let you regulate the temperature in the
fresh food and freezer compartments.

At first, set the fresh food control to "5" and the freezer
control to "C".

Allow 24 hours for the temperature to stabilize, whether
you are setting the controls for the first time or adjusting

them later. Then, if you want colder or warmer
temperatures in either compartment, adjust the controls

one step at a time.

NOTE: Moving the fresh food control to OFF turns off

cooling in both compartments-fresh food and
freezer--but does not shut off power to the refrigerator.

How to Test Temperatures

Use the milk test for the fresh food compartment.
Place a container of milk on the top shelf in the fresh

rood'compartment. Check it a day later• If the milk is
too warm or too cold, adjust the temperature controls.

Use the ice cream test for the freezer compartment.
Place a container of ice cream in the center of the

freezer compartment• Check it after a day• If it's too
hard or too soft, adjust the temperature controls.

Always allow 24 hours for the refrigerator to reach
the temperature you set.

Automatic Energy Saver System

You won't find an "energy saver" switch
on this refrigerator.

Warm liquid from the refrigerator's condenser
is automatically circulated around the front edge

of the freezer compartment to help keep moisture
from forming on the outside of the refrigerator

during humid weather.
Many refrigerators use special electric heaters•

This refrigerator needs none. That's why there
is no "energy saver" switch.., there's no need for it•

No Defrosting

It is not necessary to defrost the freezer or fresh food compartments.
Your refrigerator is designed and equipped to defrost itself automatically.

If you turn your household thermostat below 60°F. at night...

•. you may want to turn the lettered
control one step colder, as from "C"
to "D'.' Cooler temperatures in

house may cause the compressor

operate less frequently, thus

allowing the freezer compartment to
warm somewhat. To protect your frozen food supply,

leave your lettered setting at this colder setting for

the entire winter or for whatever period of time you

are turning down your thermostat. This is especially
important when the thermostat is turned down for
an extended period.

This change should have no effect on your flesh food
compartment. However, if freezing occurs, turn the

numbered control one step warmer, as from "5" to "4".
When you stop turning the thermostat down, turn

temperature controls back to their regular setting.

4

FOOD STORAGE SUGGESTIONS

Suggested Storage Times for Meat and Poultry*

Eatingquality DAYSIN MONTHSIN

dropsafter REFRIGERMOR FREEZER
timeshown AT35° to 40°F. AT0° F.

(2°to 4°c.) (-lS° C.)

FreshMeats

Roasts (Beet & Lamb) 3 to 5

Roasts (Pork & Veal) 3 to 5
Steaks (Beef) 3 to 5

Chops(Lamb)................................... 3to5

Chops (Pork) 3 to 5
Ground & Stew Meats 1 to 2

VarietyMeats.................................... l t02

Sausage(Pork).................................1to2

ProcessedMeats

Bacon 7

Frankfurters.......................................... 7

Ham (Whole)........................................7

Ham (Half) .........3 to 5

Ham(Slices)......................................... 3

Luncheon Meats 3 to 5

Sausage(Smoked)...............................7

Sausage(Dry & Semi-Dry).............14to 21

6 to 12

4 to8

6 to 12

6to9
3to4
3to4
3to4
1 to2

1

lh

Ito 2
I to2

I to2

Freezing

not recom-

mended,

Eatingquality DAYSIN MONTHSIN

dropsafter REFRIGERATOR FREEZER
timeshown AT35° to 40° F. AT0°F.

(2" to 4° c.) (-18° C.)

FreshPoultry

Chicken & Turkey (Whole) ................1 to 2 12

Chicken(Pieces)...............................1 to 2 9

Turkey (Pieces) ..... 1 to 2 6

Duck& Goose (Whole).....................1to 2 6

Giblets 1to 2 3

CookedPoultry

Pieces(Coveredwith Broth) ..............1 to2 6

Pieces(NotCovered)........................ 3 to4 1

Cooked Poultry Dishes 3 to 4 4to6

Fried Chicken ....... 3 to 4 4

(01herthanfor meats&poultry) FREEZER

Most fruitsand vegetables................................................8-12 months

Leanfish .............................................................................6-8 months

Fattytish, rollsand breads,soups, stew,casseroles.........2-3 months

Cakes,pies,sandwiches,leltovers(cooked),

icecream (originalcarton) ............................................1monthmax.

CookedMeats

CookedMeatsand MeatDishes........ 3 to 4 2to3

Gravy & Meat Broth 1 to 2 2to3

* {LS.Department qfAgricldmre
Meats,fish and poultry purchased from the store vary in quality and

age; consequently, safe storage time in your refrigerator wilt vary.

Fresh Food Storage Tips

To store vegetables:

• Use the vegetable drawers. They have been designed to

preserve the natural moisture and freshness of produce.

• Covering vegetables with a moist towel helps

maintain crispness.

• As a further aid to freshness, prepackaged vegetables

can be stored in their original wrapping.

Unfrozen meats, fish, and poultry:

•Always remove store wrappings.

• Rewrap in foil, plastic wrap or wax paper and

refrigerate immediately.

Cheese:

•Wrap well with wax paper or aluminum foil, or put

in a plastic bag.

• Carefully wrap to expel air and help prevent mold.

•Store prepackagedcheese in its own wrappingif you wish.

Tips on Freezing Foods

There are three essential requirements for efficient

home freezing.

1. Initial quality. Freeze only top-quality foods,
Freezing retains quality and flavor; it cannot

improve quality.

2. Speed. The quicker fruits and vegetables are frozen
after picking, the better the frozen product will be.

You'll save time, too, with less culling and sorting
to do.

3. Proper packaging. Use food wraps designed
especially for freezing.

To freeze meat, fish and poultry, wrap well in freezer-
weight foil (or other heavy-duty wrapping material),
forming it carefully to the shape of the contents. This
expels air. Fold and crimp ends of the package to provide

a good, lasting seal. Don't refreeze meat that has been
completely thawed; meat, whether raw or cooked, can
be frozen successfully only once.

Fine-quality ice cream, with high cream content, will
normally require slightly lower temperatures than more
"airy" already-packaged brands with low cream content.

•It will be necessary to experiment to determine the

freezer compartment location and temperature

control setting to keep your ice cream at the right

serving temperature.

• The rear of the freezer compartment is slightly
colder than the front.

New techniques are constantly being developed.

Consult the County Extension Service or your local
Utility (bmpany jor the latest injormation on

j?eezing and storing joods.

5

SHELF POSITIONS

How to Rearrange Your Shelves

Some models have adjustable shelves in the fresh food and freezer
compartments, enabling you to make efficient shelf arrangements

to fit your family's food storage needs.

Adjustable Shelves in Fresh Food Compartment

To remove

shelves: Tilt the

shelf up at front,

then lift it up and
out of the tracks

on the rear wall of
the refrigerator.

Lift up Tilt up

and out I

(on some models)

To relocate shelves:
Select desired shelf []

height. With shelf front Engage
raised slightly, engage top

the top lugs in the tracks []

at the rear of the cabinet. Cowerto
Then lower the front of into place

the shelf until it locks

into position.

Tempered glass shelves (on some models) are

adjustable in the same manner.

Multi-Position Shelves in Freezer Compartment (on some models)

Shelf supports at various levels in the freezer

compartment let you reposition the shelves from time
to time to better accommodate your variable inventory

of frozen foods.

To reposition shelves:

1. While pressing tabs on shelf
supports on right wall, lift shelf
out of grooves in supports.

2. Pull shelf sideways until shelf

rods come out of holes on left wall.

3. Select desired shelf height and
insert shelf rods into holes on left

wall. If shelf supports at desired

level on right wall have tabs,
lower shelf into grooves on

support while pressing tabs. Be
sure shelf wire is fully inserted into grooves.

If shelf supports at desired
level on right wall do not have

tabs, merely lower shelf into place
on supports.

Juice-Can Rack (on some models)

Cans of frozen juice
are easily accessible

when stored in the
rack on the freezer

compartment door.
To load it, place first can

in bottom of rack. Then
load additional cans into

the rack from the top.

[]

Additional

cans go here

[]

Place first

can here

6

Freezer Baskets (on some models)

Wire slide-out freezer

baskets can be pulled
out for easy access to

frozen foods.

I

GENERAL ELECTRIC FOOD-SAVER SYSTEM

Moist'nFresh
drawer--

closetightl)_

Convertible

Meat Kee

Moist'n Fresh Drawer (on some models)

The top drawer is designed to keep unwrapped
foods fresh by retaining the natural moisture

content of foods such as:

• Artichokes • Cherries • Plums

• Asparagus • Corn • Radishes

• Beets, topped • Currants • Rhubarb

• Blueberries • Greens,leafy •Spinach

•Carrots •Lettuce •Tomatoes,

•Celery • Parsley ripe

• Peas, green

As in any refrigerated storage area, it is
recommended that odorous foods be

stored wrapped--foods such as:

•Broccoli

•Brussels
sprouts

•Cabbage •Parsnips

•Cauliflower •Turnips

•GreenOnions

Storage time will depend upon the type of food and its

condition when placed in the drawer.
Excess water which may accumulate in the bottom of

the Moist 'n Fresh drawer should be poured out and

the drawer wiped dry.
The Moist °n Fresh drawer is partially sealed by

gaskets attached to the cover at the front and back
edges. Always push the drawer all the way in.

Convertible Meat Keeper (on some models)

The Convertible Meat Pan drawer has its own cold air
duct to allow a stream of cold air from the freezer

compartment to flow around the drawer.
The variable temperature control regulates the air

flow from the freezer compartment.

Set control lever all the

way down--the coldest

setting--to store fresh

meats. If lever is left in
meat position for a long

period of time, some
frost may form on the

inside of the drawer.
Set control lever all the

way up to convert the Meats or Vegetables drawer to
normal refrigerator temperature and provide extra

vegetable storage space. Cold air duct is turned off.
Variable settings between these extremes can be selected.

Sealed Snack Pack (on some models)

The Sealed Snack Pack--and glass shelf to which
it is attached--can be relocated within the fresh

food compartment. The sealed drawer retains high
humidity for convenient storage of meats and cheese,
bacon, hors d'oeuvres, spreads and snacks.

7

ICE SERVICE

Ice frays (onsome models)

Ice trays are designed to
release ice cubes easily.
Hold tray upside-down

over a container and
twist both ends to
release cubes.

For only one or two ice

cubes, leave the tray
right-side up, twist both
ends slightly and remove

desired number of cubes.

Wash ice trays and storage bin in lukewarm water
only. Do not put them in an automatic dishwasher.

ACCESSORIES

Automatic Icemaker Accessory Kit (optional at extra cost)

AGE automatic icemaker will replace the ice you

use.., automatically. It can keep you supplied with

a binful of cubes--ice for everything, everybody--

without fuss or muss.

If your refrigerator did not come already equipped
with an automatic icemaker, you may add one--

contact your local GE dealer; specify UK-KIT-4 or
IM-1. A water supply kit containing copper tubing,

shut-off valve, fittings and instructions needed to
connect the icemaker to your cold water line is also

available at extra cost.

Water Filter Accessory

Your ice cubes can only be as fresh-tasting as the water that produces them.
That's why it's a good idea to purify your water with a water filter.

REMOVES SEDIMENT

Rigid, porous graded density depth cellulose
fiber cartridge catches dirt, rust particles, sand and silt.

REMOVES ODORS
Activated charcoal granules remove

musty, stale odors.
IMPROVES TASTE
Activated charcoal granules remove oily,

medicinal, plastic and metallic tastes.
REDUCES SCALE

Special crystals reduce hard scale deposit formation.
The water filter is an option at extra cost and is available from your GE

dealer. Specify WR97X0214. It has complete installation instructions and
installs in minutes on 1/4" O.D. copper water line.

8

CARE AND CLEANING

Outside

The door handles and trim can be cleaned with a
cloth dampened with a solution of mild liquid

dishwashing detergent and water. Dry with a soft cloth.
Don't use wax on the door handles and trim.

Keep the finish clean. Wipe with a clean cloth lightly
dampened with kitchen appliance wax or mild liquid
dishwashingdetergent. Dry and polish with a clean, soft
cloth. Do not wipe the refrigerator with a soiled dishwashing
cloth or wet towel. These may leave a residue that can erode
the paim. Do not use scouring pads, powdered cleaners,
bleach or cleaners containingbleach because these products
can scratchand weaken the paint finish.

Protect the paint finish. The finish on the outside of
the refrigerator is a high quality, baked-on paint finish.
With proper care, it will stay new-looking and rust-free
for years. Apply a coat of kitchen/appliance wax when
the refrigerator is new and then at least twice a year.

Appliance Polish Wax & Cleaner (Cat. No.

WR97X0216) is available from GE Service

and Parts Centers.

Inside

Inside the fresh food and freezer compartments should
be cleaned at least once a year. Unplug the refrigerator
before cleaning. If this is not practical, wring excess
moisture out of sponge or cloth when cleaning around

switches, lights or controls.

Use warm water and baking soda solution--about a
tablespoon of baking sodato a quart of water. This both
cleans and neutralizes odors. Rinse thoroughly with water

and wipe dry.

Other parts of the refrigerator-including door gaskets,
meat and vegetable drawers, ice storage bin and all
plastic parts--can be cleaned the same way. After
cleaning door gaskets, apply a thin layer of petroleum

jelly to the door gaskets at the hinge side. This helps keep

the door gaskets from sticking and bending out of shape.
Do not use cleansing powders or other abrasive cleaners.

Avoid cleaning cold glass shelves and glass storage
drawers with hot water because the extreme temperature
difference may cause them to break.

To help prevent odors, leave an open box of baking soda

in the rear of the refrigerator, on the top shelf. Change the
box every 3 months. An open box of baking soda in the

freezer will absorb stale freezer odors.

Do not wash any plastic parts from your
refrigerator in your automatic dishwasher.

Drain opening in freezer compartment. During yearly

cleaning, remove bottom freezer basket and flush a
solution of baking soda (1 teaspoon) and 2 cups of hot
(not boiling) water through the drain line with the help of
a meat baster. This will help eliminate odor and reduce

the likelihood of a clogged drain line.

If drain becomes clogged, %_1___._. I I]

use a meat baster and baking-

soda-and-water solution to
force the clog through the

drain line.

Behind Refrigerator

Care should be taken in moving your refrigerator
away from the wall. All types of floor coverings can
be damaged, particularly cushioned coverings and
those with embossed surfaces. Pull the refrigerator
straight out and return it to position by pushing it
straight in. Moving your refrigerator in a side
direction may result in damage to your floor
covering or refrigerator.

Condenser

For most efficient operation,
you will need to keep the

condenser clean. Remove the
base grille and either sweep
away or vacuum up dust that is

readily accessible. For best
results, use a brash specially
designed for this purpose. It is Condenser
ava,able at most appliance parts stores. This easy
cleaning operation should be done at least once a year.

(continued next page)

9

g

>

_o

QtQ

CARE AND CLEANING

(continued)

Drawer Removal

Drawers at bottom of fresh food compartment will stop
before coming all the way out of refrigerator to help
prevent contents from spilling onto floor. Drawers can
easily be removed by grasping the sides and lifting up

slightly while pulling past "stop" location.

To remove drawers when the refrigerator door
cannot be opened all the way:

1, Remove food from shelf above sealed vegetable

drawer and take out shelf. Take food off the glass
cover and out of the drawer.

2. Remove the flexible Drawer
gasket at the rear of the _ppert

vegetable drawer. Lift b
each end straight up

until the slots on the
gasket are free of
drawer support tabs.

\\ Gasket

3. Pull the drawer partway out. Reach in, push the rear
of the glass up and, at the same time, push it back

until it clears front-corner retainers.

4. Tilt and remove the cover. Avoid cleaning the cold
glass cover with hot water because the extreme
temperature difference may cause it to break.

5. Pull the drawer forward, lift the front to clear stops,
and remove the drawer. If the refrigerator door
doesn't open completely, pull the drawer out until it
hits the door. Then lift the drawer up until it is higher
than the drawer supports, tilt it and take it out.

6. If tape holds the Convertible Meat Pan cover to the

drawer supports, remove the tape. Pull the drawer
partway out. Reach in, push the rear of the glass up
and, at the same time, back until it clears the front-
corner retainers.

7. Tilt and remove the cover.

8. Tilt and remove the drawer. After cleaning, replace
in reverse order.

When replacing the
drawer (on some models)
make sure you slide it
through both drawer
guides on the left side.

Drawer

When drawers and covers are back in place, reinstall
the gasket at the rear of the sealed vegetable drawer. Fit
the end of the plastic drawer support into the slot on the
gasket, with the rubber gasket flap facing you. Make
sure the gasket snaps into place.

Light Bulb Replacement

Fresh Food ComDartment-Uj)per Light

1. Unplug refrigerator.

2. To align the control
knob properly, note
position of numbered
control for proper
reassembly and pull

off knob.

3. Pull bottom of light

_in_

Grooved 1[ _ _ Pin
Retainer--II _L "__1,_',_'_,,. \

oneoneach II _ %,% \

panel down about 1/4"--just enough to disengage
lip at rear from grooves in retainers on rear wall.

4. Lift panel to disengage top from pins on side walls;
remove panel.

After replacing with same size bulb, reinstall panel

(hang top on pins; pull bottom down, push it back
and release it to let lip engage grooves in retainers).
Replace temperature control knob in OFF position,
turn it to previous setting, and plug refrigerator back in.

10

Fresh Food ComPartment-

Lower Light (on some models)
This light is located behind a shield at the rear

of the fresh food compartment

1. Unplug refrigerator.

2. Grasp the top edge of the shield and lift it up
and forward to free its top edge.

3. After replacing with the same size bulb, hook

the top of the shield back in place.

Freezer Compartment

1. Unplug refrigerator.

2. Remove shelf just below light
shield. (Shelf will be easier to

remove if it is emptied first.)

3. Pull plastic light shield toward
you. (It will bend to free tabs
from grooves.)

After replacing with same size bulb, reinstall shield
and shelf and plug refrigerator back in.

PREPARATION

When You Goon Vacation

For shorter vacations, remove perishable foods and
leave controls at regular settings. However, if room

temperature is expected to drop below 60°E, follow
same instructions as for extended vacations.

For extended vacations or absences, shut off power
to refrigerator, move the fresh food control to OFF

position, and clean interior with baking soda solution

of 1 tablespoon of soda to 1 quart of water. Wipe dry.
To prevent odors, leave open box of soda in

refrigerator. Leave doors open.

Move icemaker feeler arm to STOP (up) position and

be sure to shut off water supply to the refrigerator.

When You Move

Disconnect power cord from wall outlet, remove all
food, and clean and dry the interior.

Secure all loose items such as grille, shelves and

storage pans by taping them securely in place to
prevent damage.

Be sure refrigerator stays in upright position during
actual moving and in van. Refrigerator must be
secured in van to prevent movement. Protect outside

of refrigerator with blanket.

Refrigerator Location

Do not install refrigerator where temperature
will go below 60°F. because it will not run often

enough to maintain proper temperatures.

Do install it on a floor strong enough to
support a fully loaded refrigerator.

Also see Energy-Saving Tips regarding location.

Clearances

Allow the following clearances for ease of installation,

proper air circulation and electrical connections:

Sides ......5/8" Top ......1" Back ...... 1"

(If built in, allow 7/8" for hinge covers.)
If the refrigerator is against a wall on either side,

allow 3/4" for door clearances.

Rollers

Adjustable rollers behind the base grille enable you to
move the refrigerator away from the wall for cleaning.

These rollers should be set so the refrigerator rests
firmly on the floor. To assure that the doors will close

automatically from a halfway-open position, there is a

built-in tilt from the from to the back of the cabinet.

Side-by-side refrigerators also have specially designed

door hinges that lift both doors slightly when opened,
allowing the force of gravity to help close them securely

To adjust rollers, remove
the base grille by grasping

it at the bottom and pulling

it out.

Turn roller adjusting
screws clockwise to raise

refrigerator, counterclockwise to lower it. Use
adjustable wrench (3/8" hex head bolt) or pliers.

When adjusting front rollers

for proper door closure, we

recommend that the bottom

front edge of the cabinet be
approximately 5/8" from the

floor.
To replace base

grille, align prongs
on back of grille

with clamps in

cabinet and push
forward until grille

snaps into place.

Water Supply to Icemaker (onsomemodels)

You will need to connect your icemaker to a cold water line. A water supply kit containing copper tubing,
shut-off valve, fittings and instructions is available at extra cost from your dealer. There should be

sufficient tubing for the icemaker from the cold water supply to allow you to move the refrigerator out
from the wall several feet (approximately 8 feet of 1/4" copper tubing in three 10-inch diameter coils.)

11

INSTALLATION REQUIREMENTS

IMPORTANT... Please Read Carefully

How to connect electricity

For personal safety, this appliance must
be prooeyly grounded.

The power cord of this

appliance is equipped

with a three-prong

(grounding) plug which

mates with a standard
three-prong (grounding)

wall outlet to minimize
the possibility of electric

shock hazard from

Preferredmethod

_pr_per2rg.u nding

Have the wall outlet and circuit checked by a qualified
electrician to make sure the outlet is properly grounded.

If you have only a standard two-prong wall outlet,
it is your personal responsibility and obligation to

have it replaced with a properly grounded three-
prong wall outlet.

DO NOT, UNDER ANY CIRCUMSTANCES,

CUT OR REMOVE THE THIRD (GROUNDING)

PRONG FROM THE POWER CORD.

this appliance.

Use of Adapter Plug

Because of potential Temporary method

safety hazards under Adapter plugs not permitted in Canada.

certain conditions, A_gnlargeprongs/slots.
we strongly
recommend against

use of an adapter
plug. However, if

you still elect to use
an adapter, where

local codes permit,
a TEMPORARY CONNECTION may be made to

a properly grounded two-prong wall outlet by use
of a UL-listed adapter available at most local

hardware stores.

<(

re propergroundingandfirm

connectionexists beforeuse.

The larger slot in the adapter must be aligned with the

larger slot in the wall outlet to provide proper polarity

in the connection of the power cord.

CAUTION: Attaching an adapter ground terminal to

the wall outlet cover screw does not ground the

appliance unless the cover screw is metal, and not
insulated, and the wall outlet is grounded through the

house wiring. You should have the circuit checked by
a qualified electrician to make sure the outlet is

properly grounded.
When disconnecting the power cord from the

adapter, always hold the adapter with one hand. If
this is not done, the adapter ground terminal is very

likely to break with repeated use.
Should the adapter ground terminal break, DO

NOT USE the appliance until a proper ground has
again been established.

Electrical Requirements

The refrigerator should always be plugged into its
own individual electrical outlet which has a voltage

rating that matches the rating plate.
This provides the best performance and also prevents

overloading house wiring circuits, which could cause
a fire hazard from overheating wires.

Use of Extension Cords

Because of potential safety hazards under certain
conditions, we strongly recommend against the use of

an extension cord. However, if you still elect to use an

extension cord, it is absolutely necessary that it be a
UL-listed 3-wire grounding type appliance extension

cord having a grounding type plug and outlet and that
the electrical rating of the cord be 15 amperes
(minimum) and 120 volts.

12

CAUTION:

• If you use your refrigerator before connecting

the water line, make sure the icemaker feeler

arm is kept in the STOP (up) position.

• Do not install the icemaker tubing in areas

where temperatures fall below freezing.

• When using any electrical device (such as a
power drill) during installation, be sure the

device is insulated or wired in a manner to

prevent the hazard of electric shock.

.All installations must be in accordance with

local plumbing code requirements.

WHAT YOU WILL NEED

.A cold water supply is required for automatic

icemaker operation. The water pressure must
be between 20 and 120 p.s.i.

• Power drill, unless you have a self-piercing valve.

• Copper tubing, 1/4" outer diameter to

connect the refrigerator to the water supply.
Be sure both ends of the tubing are cut square.

To determine how much copper tubing you
need: measure the distance from the water valve

on the back of the refrigerator to the water
sup2ly pipe, Then add 8 feet. Be sure there is

suttlcient extra tubing (about 8 feetcoiled into
3 turns of about 10 inches diameter) to allow the

retrigerator to move out trom the wall after

installation. Do not use plastic tubing or plastic
fittings because the water supply line is under
pressure at all times. Also,certain types of
plastic tubing may become brittle with age and

crack, resulting in water leakage.

• Shutoff valve to connect to the cold water
line. The shut-off valve should have a water
inlet with a minimum inside diameter of 5/32"

at the point of connection to the COLD WATER

L1NE. Saddle-type shut-off valves are included

in many water supply kits. Before purchasing,
make sure a saddle-type valve complies with
your local plumbing codes.

• Two 1/4" outer diameter compression nuts

and 2 ferrules (sleeves) - to connect the

copper tubing to the shutoff valve and the

refrigerator water valve.

• If your existing water line has a flared fitting at
the end, you will need an adapter (available at
plumbing supply stores) to connect the water

line to the refrigerator OR - you can cut off the

flared fitting with a tube cutter and then use a
compression fitting.

WARRANTY INFORMATION

This water line installation is not warranted by
the refrigerator or icemaker manufacturer.

Follow these instructions carefully to minimize
the risk of expensive water damage.

17 SHUT OFF THE MAIll WATER SUPPLY.

Turn on the nearest faucet long enough to clear
the line of water.

[] INSTALL THE SHUTOFF VALVE ON THE

NEAREST FREQUENTLY USED DRINKING

WATER LINE.

Typical ways to connect to water supply

Through floor Under sink Through wall to In crawl
to basement to cold utility room cold space under
cold water pipe water pipe water pipe house

a. Choose a location for the valve that is easily

accessible. It is best to connect into the side of
a vertical water pipe. When it is necessary to

connect into a horizontal water pipe, make the
connection to the top or side, rather than at
the bottom, to avoid drawing off any sediment

from the water pipe.

b. Drill a 1/4" hole in the water pipe, using a

sharp bit. Remove any burrs resulting from
drilling the hole in the pipe. (Do not drill a

hole if the valve is a self-piercing type.)

C.

do

Fasten the shutoff

valve to the cold
water pipe with the

pipe clamp.

Tighten the clamp
screws until the

sealing washer
begins to swell. Do
not over-tighten or

you may crush the

copper tubing.

Pipe

clamp_

Saddle type
shutoff .._

valve_

F Washer

'Inlet

end

Vertical

m cold water

pipe

(continued next page)

13

[7 ROUTE THE COPPER TUBING BETWEEN THE

COLD WATER LINE AND THE REFRIGERATOR

Route the tubing through a hole drilled in the
floor or wall (behind the refrigerator or adjacent

base cabinet) as close to the wall as possible. Be

sure there is sufficient extra tubing (about 8 feet
coiled into 3 turns of about 10" diameter) to
allow the refrigerator to move out from the wall

after installation.

I-1 CONNECT THE COPPER TUBING TO THE

SHUTOFF VALVE.

Place the compression
nut and ferrule (sleeve)
onto the end of the tubing

and connect it to the

shutoff valve. Make sure

the tubing is fully
inserted into the valve.

Tighten the compression

nut securely.

Saddle type
shutoff valve

\

Compression nut

Packing nut

Outlet valve

Ferrule

(sleeve)

[7 TURN ON THE WATER AND FLUSH OUT

THE TUBING.

a. Turn the main water supply on and flush out

the tubing until the water is clear.

b. Shut the water off at the water valve after

about one quart of water has been flushed
through the tubing.

I-1 CONNECT THE COPPER TUBING TO

THE REFRIGERATOR

Before making the connection to the

refrigerator, be sure the refrigerator power
cord is not plugged into the wall outlet.

We recommend installing a water filter

(available at service and parts centers) if your

water supply has sand or particles that could
clog the screen of the refrigerator's water valve.
Install it in the water line near the refrigerator.

a. Remove the plastic flexible cap from the

water valve. 1/4" Copper Tubing

b. Place the tubing clamp

compression nut

and ferrule (sleeve)
onto the end of the

tubing as shown.

c. Insert the end of

the copper tubing
into the water

valve connection
as far as possible.

While holding
the tubing, tighten the fitting,

d. Fasten the copper tubing into the clamp

provided to hold it in a vertical position. You

may need to pry open the clamp.

1/4"

Compression nut I

Refrigerator connection

:errule

_leeve)

I--I TURN THE WATER ON AT THE

SHUTOFF VALVE.

Tighten any connections that leak.

77

L_I PLUG THE REFRIGERATOR POWER CORD

INTO A GROUNDED ELECTRICAL OUTLET.

[7 SET THE ICEMAKERFEELER ARM TO THE

ON (DOWN) POSITION.

The icemaker will not begin to operate until it
reaches its operating temperature of 15°E or
below. It will then begin operation automatically

if the icemaker is in the ON (down) position.

NOTE: The icemaker may double-cycle when it
first starts, causing some water spillage from the

icemaker into the ice bucket. This is normal and
should not happen again. The first few batches of

cubes should be thrown away, so that remaining
impurities in the water line will be flushed out.

I--I MOVE THE REFRIGERATOR BACK TO

THE WALL.

Arrange the coil of copper tubing so that it does

not vibrate against the back of the refrigerator or
against the wall.

I

14

QUESTIONS?

USE THIS PROBLEM SOLVER

PROBLEM
REFRIGERATOR

DOES NOT OPERATE

MOTOR OPERATES

FOR LONG PERIODS

POSSIBLE CAUSE

• May be in defrost cycle when motor does not operate for about 30 minutes.

*Temperature control in OFF position.

• If interior light is not on, refrigerator may not be plugged in at wall outlet.

• If plug is secure and the refrigerator still fails to operate, pluga lamp or a
small appliance into the same outlet to determine if there is a tripped circuit

breaker or burned out fuse.

• Modem refrigerators with more storage space and a larger freezer
compartment require more operating time,

• Normal when refrigerator is first delivered to your horne--usually requires
24 hours to completely cool down.

• Large amounts of food placed in refrigerator to be cooled or frozen.

• Hot weather-frequent door openings.

• Door left open,

* Temperature controls are set too cold. Refer to instructions for use

of Temperature Controls.

• Grille and condenser need cleaning• Refer to Care and Cleaning page•

• Check Energy-Saving Tips•

MOTOR STARTS & • Temperature control starts and stops motor to maintain even temperatures•
STOPS FREQUENTLY

VIBRATION OR

OPERATlqqG
SOUNDS

DOOR NOT CLOSING
PROPERLY

HOT AIR FROM
BOTTOM OF
REFRIGERATOR

• If refrigerator vibrates, more than likely it is not resting solidly on the floor
and front roller screws or front leveling legs need adjusting or floor is weak

or uneven Refer to Rollers section on Instigation Requirements page.

• If dishes vibrate on shelves, try moving them. Slight vibration is normal•

• The high speed compressor motor required to maintain near zero
temperatures in the large freezer compartment may produce higher sound

levels than your old refrigerator.

'Normal fan air flow-1 fan blows cold air through the refrigerator and

freezer compartments-another fan cools the compressor motor.

• These NORMAL sounds will also be heard from time to time:

• Defrost timer switch clicks at defrost•

• Defrost water dripping.

• Temperature control clicks ON or OFF•

• Refrigerant boiling or gurgling•

• Cracking or popping of cooling coils caused by expansion and contraction
during defrost and refrigeration following defrost•

• Ice cubes dropping into bin and water running in pipes as icemaker refills•

° Door gasket on hinge side sticking or folding over• To correct, put a small

amount of petroleum jelly on face of gasket•

• Normal air flow cooling motor• In the refrigeration process, it is normal that
heat be expelled in the area under the refrigerator• Some floor coverings will

discolor at these normal and safe operating temperatures. Your floor covering

supplier should be consulted if you object to this discoloration•

_co.ti..ed.extp_,ge) 15

PROBLEM SOLVER

(continued)

PROBLEM

DIVIDER BETWEEN

FRESH FOOD
AND FREEZER

COMPARTMENT

FEELS WARM
FRESH FOOD

OR FREEZER
COMPARTMENT
TEMPERATURE
TOO WARM

POSSIBLE CAUSE

,Normal warmthis createdby automatic energysaversystemcirculatingwarm

liquid around front edge of freezer compartmentto help prevent condensation

onoutsideof refrigerator in hot,humidweather,

* Temperature control not set cold enough, Refer to Temperature Controls.

•Warm weather--frequent door openings.

• Door left open for long time.

* Package may be holding door open,

FOODS DRY OUT

FROST OR ICE

CRYSTALS ON

FROZEN FOOD

SLOW ICE CUBE

FREEZING

ICE CUBES HAVE
ODOR/TASTE

MOISTURE FORMS

ON OUTSIDE OF

REFRIGERATOR
MOISTURE

COLLECTS INSIDE

• Foods not covered, wrapped or sealed properly.

• Door may have been left aiar or package holding door open.

• Too frequent or too long door openings.

• Frost within package is normal.

• Door may have been left open.

•Turn temperature of freezer compartment colder.

* Old cubes need to be discarded.

• ice storage bin needs to be emptied and washed,

• Unsealed packages in refrigerator and/or freezer comparnnents may be

transmitting odor/taste to ice cubes.

• Interior of refrigerator needs cleaning-refer to Care and Cleaning section.

,Poor-tasting incoming water. Install a water filter--see Water Filter

Accessorysection.

*Not unusualduringperiodsof highhumidity

• Too frequent or too long door openings.

• In humid weather, air carries moisture into refrigerator when doors are opened.

WATER ON FLOOR •The drain in the bottom of the refrigerator may be clogged. Remove any ice on

the freezer bottom and clean the drain, Refer to Care and Cleaning section.

REFRIGERATOR

HAS ODOR

,Foods with strong odors should be tightly covered.
,Check_ for spoiled food.

• Interior needs cleaning. Refer to Care and Cleaning section.

*Defrost water system needs cleaning.

• Keep open box of baking soda in refrigerator; replace every 3 months.

If you need more help...call, toll free:

GE Answer Center"

800.626.2000
consumer information service

16

NOTES

17

NOTES

18

We'll Be There

With the purchase of your new GE appliance, receive the assurance that ifyou ever need

information or assistance from GE, we'll be there. All you have to do is call--toll-free!

In-HomeRepairService

800-GE-CARES(8004324737)

AGE consumer service professional will provide expert repair service, sched-
uled at a time that's convenient tbr you. Many GE Consumer Service company-

operated locations offer you service today or tomorrow, or at your convenience
(7:00 a.m. to 7:00 p.m. weekdays, 9:00 a.m. to 2:00 p.m. Saturdays). Our factory-

trained technicians know your appliance inside and out-so most repairs can be
handled in just one visit.

GEAnswerCenter

800.626.2000

Whatever your question about any GE major appliance, GE Answer Center ®

information service is available to help. Your call--and your question--will be
answered promptly and courteously. And you can call any time. GE Answer

Center ® service is open 24 hours a day, 7 days a week.

-- I i

_ .2_A¢_..` rY".II_tT'

{ ,I,o-

I I

_Em-ION A-A

ForCustomersWithSpecialNeeds...

800.626.2000

Upon request, GE will provide

Braille controls for a variety of GE
appliances, and a brochure to
assist in planning a barrier-Dee

kitchen for persons with limited
mobility. To obtain these items,
free of charge, call 800.626.2000.

Consumers with impaired hearing or speech who have
access to a TDD or a conventional teletypewriter may
call 800-TDD-GEAC (800-833-4322) to request informa-

tion or service.

ServiceContracts

800-626-2224

You can have the secure feeling that GE Consumer Service will still be there
alter your warranty expires. Purchase a GE contract while your warranty is still

in effect and you'll receive a substantial discount. With a multiple-year contract,

you're assured of fllttlre service at today's prices.

PartsandAccessories

800-626-2002

Individuals qualified to service their own appliances
can have needed parts or accessories sent directly to

their home. The GE parts system provides access to over
47,000 parts.., and all GE Genuine Renewal Parts are
fully warranted. VISA, MasterCard and Discover cards
are accepted.

User maintenance instructions contained in this booklet
cover procedures intended to be performed by any user.
Other servicing generally should be referred to qualified

service personnel. Caution must be exercised, since

improper servicing may cause unsafe operation.

YOUR GENERALwARRANTyELECTRICREFRIGERATOR I [

Staple sales slip or cancelled check

here. Proof of original purchase date

is needed to obtarn service

under warranty.

WHAT IS COVERED

FULL ONE-YEAR WARRANTY

For one year from date of original
purchase, we will provide, free of

charge, parts and service labor in
your home to repair or replace any

part of the refrigerator that fails
because of a manufacturing defect.

FULL FIVE-YEAR WARRANTY
For five years from date of original

purchase, we will provide, free of
charge, parts and service labor in

your home to repair or replace any

part of the sealed refrigerating

system (the compressor, condenser,

evaporator and all connecting

tubing) that fails because of a

manufacturing defect.

LIMITED LIFETIME WARRANTY
For the life of the refrigerator, we

will replace, free of charge, the
see-through Quick Store bin (on

some models) if the bin, made from
Lexan® polycarbonate resin breaks
during normal household use. The

bin housing is not included. The bin
can be exchanged at a GE Appliance

Service and Parts Center, or by

writing to the address below.

This warranty is extended to
the original purchaser and any
succeeding owner for products

purchased for ordinary home use
in the 48 mainland states, Hawaii

and Washington, D.C. In Alaska the
warranty is the same except that it

is LIMITED because you must pay
to ship the product to the service

shop or for the service technician's

travel costs to your home.
All warranty service will be

provided by our Factory Service
Centers or by our authorized

Customer Care ®servicers during
normal working hours.

Should your appliance need

service during the warranty period
or beyond, call 800-GE-CARES

(800-432-2737).

WHAT IS NOT COVERED .Service trips to your home to

teach you how to use the product.

Read your Use and Care material.
If you then have any questions

about operating the product please
contact your dealer or our

Consumer Affairs office at the
address below, or call, toll free:

GE Answer Center ®

800.626.2000
consumer information service

• Improper installation.
If you have an installation problem,

contact your dealer or installer.
You are responsible for providing
adequate electrical, plumbing and

other connecting facilities.

• Replacement of house fuses or
resetting of circuit breakers.

• Failure of the product if it is used

for other than its intended purpose

or used commercially.

• Damage to product caused

by accident, fire, floods or acts

of God.

• Loss of food due to spoilage.

WARRANTOR IS NOT

RESPONSIBLE FOR
CONSEQUENTIAL DAMAGES.

Somestates do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion

may not apply to you, This warranty gives you specific legal rights, and you may also have other rights which vary from state to state,

To know what your legal rights are in your state, consult your local or state consumer affairs office or your state's Attorney General,

Warrantor: General Electric Company

If further help is needed concerning this warranty, write:

ManagermConsumer Affairs, GE Appliances, Louisville, KY 40225

This book is printed on recycled paper.

Part No. 162 D3933P002
Pub No. 49-6752

6-93 CG

Side by Side 19', 20', 22', and 24' Models

Printed in Louisville, KY
