GE SG 10, SG 40, SG 30, SG 20 User Manual

Download

SGT5000_030-040_UPS_ GE_01

SG Series 10, 20, 30 and 40 kVA

OPERATING MANUAL

UNINTERRUPTIBLE POWER SUPPLY

Digital Energy

SG Series

10 – 20 – 30 – 40 kVA

Series 0

General Electric Company

2500 Discovery Blvd.

Rockwall, TX 75032

Telephone: (972)-290-7400

Fax: (972)-290-7500

SG Series UPS Technology for the digital world

Model:

Date of issue: 04/15/2003

File name: OPM_SGS_USM_10K_40K_0US_V010

Revision:

Author:

Identification No.:

Up-dating

Revision Concern Date

SG Series

1.0

Raimondo Bizzozero

10, 20, 30 and 40 kVA / Series 0

The information contained in this publication is intended solely for the purposes indicated.

The present publication and any other documentation supplied with the UPS system is not to be reproduced, either in part or in its entirety, without the prior written consent of GE.

The illustrations and plans describing the equipment are intended as general reference only and are not necessarily complete in every detail.

The content of this publication may be subject to modification without prior notice.

OPM_SGS_USM_10K_40K_0US_V010.doc 2/88 Operating Manual

SG Series

10, 20, 30 & 40 kVA

Dear Customer,

We thank you for selecting our products and are pleased to count you amongst our ver valued customers at GE.

We trust that the use of the SG Serie Uninterruptible Power Supply system, developed and produced to the highes standards of quality, will give you complete satisfaction.

Please carefully read the Installation Guide. It contains all the necessary information about the installation of the UPS.

Thank you for choosing

START UP AND COMMISSIONING

A GE Global Services Field Engineer must perform start-up and commissioning of the UPS. Please Contact G.E. Global Services at least two weeks prior to schedule start-up and commissioning at 1-800-637-1738, or by E-mail at gedeservices@indsys.ge.com

Manufactured by:

Distributed in the USA by: Your service contact:

GE DIGITAL ENERGY SA

6595 Riazzino (Locarno) Switzerland

OPM_SGS_USM_10K_40K_0US_V010.doc 3/88 Operating Manual

SG Series

10, 20, 30 & 40 kVA

Preface

Congratulations on your choice of a SG Series Uninterruptible Power Supply (UPS). It will help eliminate Load disturbances due to unexpected power problems.

Manual

This the switches, the meaning of the system events related to the front panel indication, and provides procedures for starting and stopping the equipment.

Please refer to the accompanying Installations Guide, which describes how to prepare the installation site, and it provides weight, dimensions and procedures for moving, installing and connecting the UPS.

While every care has been taken to ensure the completeness and accuracy of this manual, GE assumes no responsibility or liability for any losses or damages resulting from the use of the information contained in this document.

WARNING!

SG Series 10, 20, 30 and 40 kVA, is a product that needs to be installed by a licensed and knowledgeable contractor.

describes the function of the UPS module, the purpose and location of

We recommend that this manual be kept next to the UPS for future references. If any problems are encountered with the procedures contained in this manual, please contact your Service Center before you proceed.

This document shall not be copied or reproduced without the permission of GE.

Some of the information contained in this manual may be changed without notice to reflect technical improvements.

Safety instructions

Read the safety instructions contained on the following pages carefully before the installation of the UPS, options and

Pay attention to the rectangular boxes included in the text:

They contain important information and warning concerning electrical connections and personnel safety.

Battery System

Parallel version secured with RPA

When included in the text, this symbol refers to operation needed only for parallel system.

OPM_SGS_USM_10K_40K_0US_V010.doc 4/88 Operating Manual

SG Series

10, 20, 30 & 40 kVA

Table of contents Page

1 IMPORTANT SAFETY INSTRUCTIONS .................................................................7

INTRODUCTION.....................................................................................................10

3 DESCRIPTION........................................................................................................11

3.1 BLOCK DIAGRAM AND MAIN ELEMENTS..................................................................11

3.2 OPERATION MODES ...................................................................................................12

3.2.1 Normal operation mode.................................................................................................12

3.2.2 Utility failure operation...................................................................................................12

3.2.3 Utility recovery operation...............................................................................................13

3.2.4 Automatic Bypass..........................................................................................................13

3.2.5 Manual Bypass..............................................................................................................13

3.3 PARALLEL SYSTEM OPERATION ..............................................................................14

3.3.1 Introduction to the parallel system.................................................................................14

3.3.2 Features of RPA parallel system...................................................................................15

3.3.3 System control...............................................................................................................15

3.3.4 Synchronization.............................................................................................................15

3.3.5 Load sharing..................................................................................................................15

3.4 RECTIFIERS PARALLELED ON THE SAME BATTERY..............................................16

3.5 RECYCLING AT THE END OF SERVICE LIFE............................................................17

4 LAYOUT .................................................................................................................18

4.1 LAYOUT SG SERIES 10 AND 20 KVA ..............................................................................18

4.2 LAYOUT SG SERIES 30 AND 40 KVA ..............................................................................19

5 CONTROL PANEL .................................................................................................20

5.1 CONTROL PANEL ........................................................................................................20

5.2 TABLE OF FUNCTIONS AND INDICATIONS ON CONTROL PANEL.........................20

6 LCD SCREEN.........................................................................................................22

6.1 METERING MODE........................................................................................................23

6.2 ALARMS........................................................................................................................26

6.3 PARAMETERS..............................................................................................................27

6.4 EDIT MODE ..................................................................................................................29

6.5 USER PARAMETERS...................................................................................................32

6.6 EVENTS (ALARMS AND MESSAGES) ........................................................................35

6.6.1 Alarms list......................................................................................................................35

6.6.2 Messages list.................................................................................................................39

6.6.3 Event report

7.1 PROCEDURES FOR SINGLE UPS..............................................................................43

OPM_SGS_USM_10K_40K_0US_V010.doc 5/88 Operating Manual

OPERATION...........................................................................................................42

7.1.1 Start-up of the

7.1.2 Maintenance shutdown (Load on Q2) ...........................................................................44

7.1.3 From Manual Bypass (Q2) to normal function On-line ..................................................45

7.1.4 Complete UPS shutdown (No Load supply)..................................................................46

7.1.5 Restore to normal operation after “total off”...................................................................47

7.1.6 Restore to normal operation after EPO (Emergency Power Off)...................................48

SG Series

.....................................................................................................41

SG Series

..................................................................................................43

SG Series

10, 20, 30 & 40 kVA

7.2 PROCEDURES FOR UPS FUNCTIONING AS FREQUENCY CONVERTER .............49

7.2.1 Start-up of the SG Series as frequency converter ............................................................49

7.2.2 Complete UPS shutdown (No Load supply)..................................................................50

7.2.3 Restore to normal operation after “total off”...................................................................51

7.2.4 Restore to normal operation after EPO (Emergency Power Off)...................................52

7.3 PROCEDURES FOR PARALLEL SYSTEM..................................................................53

7.3.1 Parallel System start-up ................................................................................................53

7.3.2 Maintenance system shutdown (Load supplied from Q2 on all Units)...........................55

7.3.3 From Manual Bypass (Q2) to normal function On-line ..................................................56

7.3.4 Separate a Unit from the parallel system (System Redundancy)..................................58

7.3.5 Reconnect a Unit to a parallel system ...........................................................................59

7.3.6 Parallel system shutdown (No Load supply) .................................................................60

7.3.7 Restore to normal operation after “total off”...................................................................62

7.3.8 Restore to normal operation after EPO (Emergency Power Off)...................................64

7.4 PROCEDURES FOR PARALLEL SYSTEM WITH COMMON BATTERY ....................66

7.4.1 Parallel System start-up ................................................................................................66

7.4.2 Maintenance system shutdown (Load supplied from Q2 on all Units)...........................68

7.4.3 From Manual Bypass (Q2) to normal function On-line ..................................................69

7.4.4 Separate a Unit from the parallel system (System Redundancy)..................................71

7.4.5 Reconnect a Unit to a parallel system ...........................................................................72

7.4.6 Parallel system shutdown (No Load supply) .................................................................73

7.4.7 Restore to normal operation after “total off”...................................................................75

7.4.8 Restore to normal operation after EPO (Emergency Power Off)...................................77

8 CUSTOMER INTERFACE......................................................................................79

8.1 CUSTOMER INTERFACE ............................................................................................79

8.1.1 Serial Port J3.................................................................................................................80

8.1.2 Output free potential contacts .......................................................................................80

8.1.3 Programmable input free contacts ................................................................................81

8.1.4 Gen Set Signaling (GEN ON)........................................................................................81

8.1.5 AUX external Maintenance Bypass...............................................................................81

8.1.6 Auxiliary Power Supply (APS) 24 VDC / 1A ..................................................................81

8.1.7 EPO (Emergency Power Off) Input contact...................................................................82

9 OPTIONS ................................................................................................................83

9.1 BUILT IN UPS OPTIONS ..............................................................................................83

9.2

9.3 OPTIONS IN UPS CABINET.........................................................................................83

9.4 CONNECTION FOR OPTIONS.....................................................................................84

9.4.1 Remote Signaling Box (RSB) ........................................................................................84

COMMUNICATION OPTIONS ......................................................................................83

10 MAINTENANCE......................................................................................................85

10.1 MAINTENANCE ............................................................................................................85

10.1.1 Service check ................................................................................................................85

10.1.2 Fans and ventilation ......................................................................................................85

10.1.3 Other components with limited lifetime..........................................................................85

10.1.4 Battery ...........................................................................................................................85

10.1.5 Long shut-down periods of the UPS-system .................................................................86

10.1.6 UPS room conditions and temperature .........................................................................86

10.1.7 Long shut-down periods of the UPS-system .................................................................86

11 NOTES....................................................................................................................87

11.1 NOTES FORM ..............................................................................................................87

OPM_SGS_USM_10K_40K_0US_V010.doc 6/88 Operating Manual

SG Series

10, 20, 30 & 40 kVA

1 IMPORTANT SAFETY INSTRUCTIONS

SAVE THESE INSTRUCTIONS

This manual contains important instructions for models SG Series 50 and 80 kVA that should be followed during installation and maintenance of the UPS and battery.

- Move the UPS in an upright position in its original package to the final destination room. To lift the cabinets, use a forklift or lifting belts with spreader bars.

- Check for sufficient floor and elevator loading capacity.

- Check the integrity of the UPS equipment carefully. If you notice visible damage, do not install or start the UPS. Contact the nearest Service Center immediately.

- WARNING! RISK OF ELECTRICAL SHOCK: Do not remove covers; there are no user serviceable parts inside.

- All maintenance and service work should be performed by qualified service personnel. The UPS contains its own energy source (battery).

- The field-wiring terminals may be electrically live, even when the UPS is disconnected from the utility.

- Dangerous voltages may be present during battery operation. The battery must be disconnected during maintenance or service work.

- This UPS contains potentially hazardous voltages.

- Be aware that the inverter can restart automatically after the utility voltage is restored.

INSTALLATION

- This UPS must be installed and connected only by trained personnel.

- Verify accurately during Commissioning and Maintenance of the UPS, for the following: Damaged components, squeezed wires and cables, or not correctly inserted plugs.

- After removing the sidewalls of the UPS, make sure that all earth connections when reassembling, are correctly reattached

- This UPS is intended for use in a controlled indoor environment free of conductive contaminants and protected against animals intrusion.

- HIGH GROUND LEAKAGE CURRENT: Ground connection is essential before connecting to AC input!

- Switching OFF the unit does not isolate the UPS from the utility.

- Do not install the UPS in an excessively humid environment or near water.

- Avoid spilling liquids on or dropping any foreign object into the UPS.

- The unit must be placed in a sufficiently ventilated area; the ambient temperature should not exceed 104°F (40°C).

- Optimal battery life is obtained if the ambient temperature does not exceed 77°F (25°C).

- It is important that air can move freely around and through the unit. Do not block the air vents.

- Avoid locations in direct sunlight or near heat sources.

- Store the UPS in a dry location; storage temperature must be within -13°F (-25°C)

- If the unit is stored for a period exceeding 3 months, the battery must be recharged periodically (time depending on storage temperature).

GENERAL

STORAGE

BATTERY

131°F (55°C).

- The battery-voltage is dangerous for person’s safety.

- When replacing the battery, use the same number, voltage (V) and capacity (Ah).

Proper disposal or recycling of the battery is required. Refer to your local codes for disposal requirements.

- Never dispose of battery in a fire: They may explode.

- Do not open or mutilate battery: Their contents (electrolyte) may be extremely toxic. If exposed to electrolyte, wash immediately with plenty of water.

- Avoid charging in a sealed container.

- Never short circuit battery. When working with battery, remove watches, rings or other metal objects, and only use insulated tools.

OPM_SGS_USM_10K_40K_0US_V010.doc 7/88 Operating Manual

SG Series

10, 20, 30 & 40 kVA

Safety instructions when working with battery

EXTERNAL BATTERY MUST BE INSTALLED AND CONNECTED TO THE UPS BY QUALIFIED SERVICE PERSONNEL.

INSTALLATION PERSONNEL MUST READ THIS ENTIRE SECTION AND REFER TO THE BATTERY MANUFACTURERS INSTALLATION MANUAL BEFORE HANDLING THE UPS AND BATTERY.

UPS INTENDED TO BE USED WITH A REMOTE BATTERY SUPPLY – ALL MODELS: “PLEASE REFER TO THE BATTERY MANUFACTURER’S INSTALLATION MANUAL FOR BATTERY INSTALLATION AND MAINTENANCE INSTRUCTIONS”.

DANGER!

Full voltage and current are always present at the Battery Terminals. The Battery used in this system can provide dangerous voltages, extremely high currents and a risk of electric shock. They may cause severe injury if the terminals are shorted together or to ground. You must be extremely careful to avoid electric shock and burns caused by contacting Battery Terminals or shorting terminals during battery installation. Do not touch un-insulated Battery Terminals.

A qualified service person that is familiar with Battery systems and required precautions must install and service the Battery. The installation must conform to national and local codes. Keep unauthorized personnel away from Battery.

The qualified service person must take these precautions:

1 Wear protective clothing, such as rubber gloves and boots and protective eye wear.

Batteries contain caustic acids and toxic materials and can rupture or leak if mistreated. Remove rings and metal wristwatches or other metal objects and jewelry. Do not carry metal objects in your pockets where the objects can fall into the Battery Cabinet.

2 Tools must have insulated handles and must be insulated so that they will not short Battery

Terminals. Do not allow a tool to short between individual or separate Battery Terminals or to the cabinet or rack. Do not lay tools or metal parts on top of the Battery, and do not lay them where they could fall onto the Battery or into the cabinet.

3 Install the Battery as shown on the drawing provided with the Battery.

When connecting cables, never allow a cable to short across a Battery’s Terminals, the string of batteries, or to the cabinet or rack.

4 Align the cables on the Battery Terminals so that the cable lug will not contact any part of the

cabinet or rack, even if the Battery is moved. Keep the cable away from any sharp metal edges.

5 Install the Battery Cables so the UPS or Battery Cabinet Doors cannot pinch them.

6 Do not connect the Battery Terminal to Ground.

If any Battery Terminal is inadvertently grounded, remove the source of the ground. Contacting any part of a grounded Battery can cause a risk of electric shock.

7 To reduce the risk of fire or electric shock, install the Battery in a temperature and humidity

controlled indoor area, free of contaminants.

8 Battery System Chassis Ground (earth) must be connected to the UPS chassis ground (earth).

If you use conduit, this ground conductor must be routed in the same conduit as the Battery Conductors.

9 Where conductors may be exposed to physical damage, protect the conductors in accordance with

all applicable codes.

10 If you are replacing Battery or repairing Battery Connections, shut OFF the UPS and remove the

Battery Fuses or open the Battery System disconnect.

OPM_SGS_USM_10K_40K_0US_V010.doc 8/88 Operating Manual

SG Series

10, 20, 30 & 40 kVA

Safety symbols and warnings

Safety warnings The text of this manual contains some warnings to avoid risk to the persons and to avoid damages

to the UPS system and the supplied critical loads.

The non-observance of the warnings reminding hazardous situations could result in human injury and equipment damages.

Please pay attention to the meaning of the following warnings and symbols.

Throughout this manual the following symbols are defined:

WARNING, if instruction is not followed injury or serious equipment damage may occur!

CAUTION, internal parts have dangerous voltage present. Risk of electric shock!

PE (Earth) – GND (Ground) PROTECTIVE GROUNDING TERMINAL: A terminal which must be connected to earth ground prior to making any other connection to the equipment.

A terminal to which or from which an alternating (sine wave) current or voltage may be applied or supplied.

A terminal to which or from which a direct current or voltage may be applied or supplied.

This symbol indicated the word “phase”.

This symbol indicates the principal on/off switch in the on position.

This symbol indicates the principal on/off switch in the off position.

OPM_SGS_USM_10K_40K_0US_V010.doc 9/88 Operating Manual

SG Series

10, 20, 30 & 40 kVA

2 INTRODUCTION

An Uninterruptible Power Supply (UPS) provides the power for critical loads that need a reliable, continuous, disturbance free supply.

In case the power provided by the Utility Fails, or exceeds the permitted tolerances, the power to supply the Load is provided by the Battery for the specified time at the rated Load (or longer at a reduced Load) or until the Utility power returns.

SG Series is a true double conversion On-line UPS system where the Load is continuously supplied by the Inverter through the Rectifier.

In case of trouble on the Inverter Output Voltage, or when overload or short-circuit on the output occur, the Load is instantly transferred to the Utility via the Automatic Bypass.

The UPS automatically returns to normal mode when the failure condition is restored.

Key features

• More Critical equipment supported

Rated at 0.8 Power Factor, SG Series delivers more real power than other UPS in the market. With today’s trend toward power factor corrected loads, SG Series can support more total Load than any other UPS available, allowing you to support a greater number of today’s enterprise computing Power Factor Corrected (PFC) equipment.

• No single point of failure

Redundant Parallel Architecture (RPA) is an exclusive GE technology. With RPA, SG Series UPS are controlled in a true peer-to-peer configuration where all critical elements and functions (including Bypass) are redundant. SG Series is designed to be the most reliable power protection system available on the market today.

• High Efficiency

Using IGBT technology and Space Vector Modulation (SVM) strategy, SG Series offers low output voltage distortion and provides efficiencies up to 93%.

• Fully digital

Digital Signal Processor (DSP), Flash memory and SVM strategy, are the technology corner stones of new age of power quality and power reliability.

• Extremely flexible

Tailor made power protection to meet your individual installation requirements; SG Series offers various options like input harmonic filters and our comprehensive JUMP software suite for mission control and data protection to cover all your application needs.

OPM_SGS_USM_10K_40K_0US_V010.doc 10/88 Operating Manual

SG Series

10, 20, 30 & 40 kVA

3 DESCRIPTION

3.1 BLOCK DIAGRAM AND MAIN ELEMENTS

The SG Series system can be divided into the following main elements:

Fig. 3.1-1 Block diagram

Control System SG Series is designed with microprocessor-controlled signal processing circuits. The interface between the operator and the unit is provided by the monitoring system on the front panel. This monitoring system consists of an active mimic diagram, a keyboard and a backlit display.

Rectifier The standard Rectifier consists of a 6-pulse SCR-bridge, which converts the 3-phase Utility Voltage into a controlled and regulated DC-voltage. This regulated DC-voltage is used to supply power to the Inverter, and to provide charging power to the Battery.

Inverter

The Inverter converts the DC voltage into a three-phase ACvoltage with constant amplitude and frequency, which is completely independent and isolated from the AC-input voltage.

Automatic Bypass The Automatic Bypass consists of a static semiconductor-switch (SSM: Static Switch Module), used to provide an uninterrupted transfer of the Load from Inverter to Utility.

Back-feed Protection

All SG Series UPS's are equipped with an automatic system for the protection against voltage back feeding towards Utility, through the Bypass (Applied Standard IEC 62040-1). This protection works automatically by opening contactor K6 and K8 (in series with the thyristors of the static switch) and eventually K7, and acts in case of internal defects of the system, or due to wrong manipulations on the Manual Bypass Q2.

Manual Bypass The Manual Bypass consists of a pair of manual switches (Q1 and

Load with power directly from the Utility.

, which removes the UPS from the Load for maintenance, while still supplying the

Q2)

Battery The Battery supplies the DC power to the Inverter when the

Utility is out of accepted tolerances.

OPM_SGS_USM_10K_40K_0US_V010.doc 11/88 Operating Manual

SG Series

10, 20, 30 & 40 kVA

3.2 OPERATION MODES

3.2.1 Normal operation mode

During normal operation, the Rectifier converts input AC power to DC. The DC power provides input power for the Inverter and charging power for the Battery. The Inverter converts the DC power to continuous and regulated AC power, which supplies the critical load. The control panel reports the Battery charge status and the expected backup time with the actual load.

3.2.2 Utility failure operation

When the Utility is no longer within acceptable tolerances, the Battery will provide the DC power to the Inverter. The Inverter will maintain continuous AC power to the Load until the Battery Voltage reaches the lower limit of the Inverter operation capability. During the discharge, the LCD screen displays the estimated time the Battery can support the critical load. Prior to the Battery completely discharging, the "stop operation" alarm (shutdown imminent) warns the operator that the Battery is almost discharged and the UPS is about to shut down.

Fig. 3.2.1-1 Block diagram normal operation mode

Fig. 3.2.2-1 Block diagram Utility Failure operation

In case of parallel operation

With a parallel system for power capacity (see Section 3.3)

With the

•

Load to be transferred to Utility (after a selectable time delay).

• With Bypass Utility power not available, a low Battery warning on any unit will start the

“

stop operation

The Load will shut down at the end of the “stop operation” time period.

With a parallel system for redundancy (see Section 3.3)

• When a Battery low warning occurs on a unit not necessary to support the present load, this

unit will shut down after a timeout period (selectable). The Load is shared between the other units

• As the warning occurs on one unit necessary to support the present load, the system starts

the " The Load will shut down at the end of the “stop operation” time period.

OPM_SGS_USM_10K_40K_0US_V010.doc 12/88 Operating Manual

Bypass Utility power available,

” timer (adjustable).

stop operation

" timeout (selectable).

a low Battery warning on any unit will cause the

SG Series

10, 20, 30 & 40 kVA

3.2.3 Utility recovery operation

As soon as the AC input power recovers, the

Rectifier will start automatically,

power to the Inverter and recharging the Battery. If the Inverter was previously shut down due to low Battery, the Load will be initially powered by Utility through the When the Battery is recharged enough to ensure a minimum time of operation with the present load, the Inverter will start automatically and the Load will be transferred back to the Inverter.

When the AC input power recovers, the Rectifiers will start up sequentially, according to their number in the parallel system. This minimizes the The Inverters will start up automatically, but only when the Battery has recharged enough for a

minimum runtime When enough Inverters to supply the Load have been restarted, the Load will be transferred from the Automatic Bypass back to the Inverter output.

Automatic Bypass

In case of parallel operation

with the present load.

supplying DC

Fig. 3.2.3-1 Block diagram Utility recovery operation

initial inrush current.

3.2.4 Automatic Bypass

In normal operation, the Load is supplied by the Inverter.

When the control system detects a fault in the Inverter, an overload condition or a short-circuit condition, the Automatic Bypass will transfer the critical Load to the Utility without interruption. When the Inverter recovers, or the overload or short-circuit condition is corrected, the Load will be automatically transferred back to the Inverter. If the UPS is unable to return to normal mode following an automatic transfer to Bypass mode, an alarm condition will be initiated. A Manual Bypass (operator initiated) will not be considered as an alarm condition.

In case of parallel operation

Each unit has it’s own internal Bypass. These units are continuously exchanging information, enabling all of the internal Bypass circuits in a parallel system to operate simultaneously. If the Inverter of a unit fails, it’s Bypass circuit remains available to the parallel system. It is excluded only if the unit is separated from the common bus by opening it’s output switch Q1.

3.2.5 Manual Bypass

FIG. 3.2.4-1 BLOCK DIAGRAM AUTOMATIC

BYPASS

The Manual Bypass circuit consists of Q1 and Q2 manual switches, which permits transfer of the Load directly to the unconditioned AC power without interruption, leaving the UPS available for maintenance.

Fig. 3.2.5-1 Block diagram Manual Bypass

OPM_SGS_USM_10K_40K_0US_V010.doc 13/88 Operating Manual

SG Series

10, 20, 30 & 40 kVA

3.3 PARALLEL SYSTEM OPERATION

3.3.1 Introduction to the parallel system

Two or more equal power units can be paralleled to increase the output power (paralleling for capacity) or to improve the overall reliability of an UPS system (paralleling for redundancy).

The outputs of parallel units are connected to a common power bus, and in normal operation the units connected on the parallel bus share the Load equally. The modular concept of SG Series allows parallel operation of paralleling switchgear, external bypass circuits or common control circuitry (see Fig. 3.3.1-1).

Parallel units for power capacity

Several units can be paralleled in order to achieve output power greater than the maximum power of a single unit. The maximum total power shared between the paralleled units is equal to the total installed nominal power. In the event of a failure of one unit, the power supplied by the UPS system becomes insufficient and the Load will be transferred to the Utility Bypass source.

Parallel units for redundancy

The nominal power rating of the n+1 or greater than the required The Load will be equally shared by the n Should one of the n the load, maintaining conditioned power to the critical load. From this results higher reliability and security for the Load plus a higher MTBF (Mean Time Between Failures).

paralleled units trip Off-line, the remaining (n+1) modules will supply

Load

out of n redundant paralleled modules must be equal to

power.

units connected on the output bus.

up to 8 units

, without using

Fig. 3.3.1-1 Block diagram parallel system operation

OPM_SGS_USM_10K_40K_0US_V010.doc 14/88 Operating Manual

SG Series

10, 20, 30 & 40 kVA

3.3.2 Features of RPA parallel system

The SG Series parallel system is designed to provide a complete

Architecture, and is free from common equipment. Not only the Inverters are redundant, but also the Bypass functions are designed with redundant modular concept.

When one UPS needs maintenance or service, the Load is powered by the other units supplying the Load bus.

The redundant communication bus to which all units are connected keeps each unit informed about the status of all the other units.

The control panel located on each unit allows controlling and monitoring the status of this unit.

3.3.3 System control

high-speed redundant, serial communication

thus the communication between the CPU's of each unit.

Each module controls it's own function and operational status and communicates with all other modules, in order to act or react if necessary, adapting it to the new conditions.

bus guarantees the exchange of data and

Redundant Parallel

3.3.4 Synchronization

All units are identical, but one unit is arbitrarily selected as the reference and all the other units synchronize to this unit, which in turn, synchronizes to the Utility Bypass voltage, as long as the later is within tolerances.

In case of reference failure, another unit in the parallel system is automatically chosen to take over the reference role.

The Bypass Input for all the units of the parallel system must be supplied from the same AC source (no phase shift allowed between them).

3.3.5 Load sharing

On each unit of the parallel system, Inverter Output Voltage and Current are measured and applied to a Load sharing bus.

An eventual difference between the units is therefore automatically equalized.

It is strongly recommended that no transformers, automatic circuit breakers or fuses should be inserted between the unit’s output and the Load common bus bars.

However, it is recommended that a disconnect or isolation switch be inserted.

OPM_SGS_USM_10K_40K_0US_V010.doc 15/88 Operating Manual

SG Series

10, 20, 30 & 40 kVA

3.4 RECTIFIERS PARALLELED ON THE SAME BATTERY

A parallel system with a Common Battery for two or more Rectifiers, requires a particular installation and adequate setting of some parameters, (accessible only through password), and can therefore only be done by a qualified engineer from GE.

Usually each Rectifier-Inverter Unit runs with its own Battery. In case of parallel units are running with a Common Battery (max. 4 UPS - see Fig 4.12-1), the sharing circuit between individual Rectifier is integrated in the communication bus of the system in order to assure an equal sharing of the Rectifiers output currents.

1 –

Rectifier

2 –

Inverter

3 –

Automatic Bypass

4 –

Manual Bypass

5 –

Mains Power

6 –

Load Bus Bar

7 –

External Battery Fuse

8 –

Battery

Fig. 3.4-1 Diagram RPA system with Rectifiers on Common Battery

Pay attention to the following recommendations:

• The units delivered for this functioning mode needs a special parameters setting, so they

must be prepared in advance before the installation.

• The installation must be performed only with the UPS system must be completely shut

down.

• The AC Rectifiers input power (5) must be the same, with clockwise phase rotation for each

unit.

• Each Rectifier must be set for the same floating DC voltage and the same Battery current

limitation.

• It is recommended to install the fuses / MCB (7) on each line connecting the Rectifiers to

the common

• In case one must be powered down for maintenance, switch-OFF the concerned unit before

open the DC fuses / MCB on the Battery line (7).

• It is recommended to connect an external NO free contact “Battery Fuses” to the UPS and

to enable the function by setting the parameter (see Section 7.1).

• If an emergency generator set supply the UPS, and the free contact “Generator ON” is

connected to the Customer interface, connect a separate NO free contact on each parallel unit.

• The parameters enabling the Battery test, both manual and automatic, must be set in the

same mode on all the units having the Rectifiers on Common Battery.

• Do not connect the temperature sensor for automatic battery floating voltage compensation.

• Do not enable the function Boost charge (parameter 87).

Battery

for maintenance / safety reasons.

OPM_SGS_USM_10K_40K_0US_V010.doc 16/88 Operating Manual

SG Series

10, 20, 30 & 40 kVA

3.5 RECYCLING AT THE END OF SERVICE LIFE

NOTE!

This product has been designed to respect the environment, using materials and components respecting eco-design rules.

It does not contain CFCs (Carbon Fluor Clorid) or HCFCs (Halogen Carbon Fluor Clorid).

Packing material recycling

GE, in compliance with environment protection, uses only environmentally friendly material.

UPS packing materials must be recycled in compliance with all applicable regulations.

WARNING!

Leads contained in the batteries is a dangerous substance for the environment, therefore it must be correctly recycled by specialized companies!

OPM_SGS_USM_10K_40K_0US_V010.doc 17/88 Operating Manual

SG Series

10, 20, 30 & 40 kVA

4 LAYOUT

4.1 LAYOUT

SG Series

10 AND 20 KVA

SGT5000_030-040_UPS_GE_02

FIG. 4.1-1 SG SERIES GENERAL VIEW

SGT5000_010-020_UPS_GE_03

Fig. 4.1-2 SG Series general view with open doors

Fig. 4.1-3 Manual operated switches

Fig. 4.1-4 Control Panel

SNMP

SGT5000_100-150_Customer interface_03

SNMP

Customer Interface Board

UPS output switch

Manual Bypass switch

SNMP Card (option)

Terminals for 24VDC Auxiliary Power Supply connection

Fig. 4.1-5 Connectivity Rack

OPM_SGS_USM_10K_40K_0US_V010.doc 18/88 Operating Manual

Terminals for EPO (Emergency Power Off) connection

SG Series

10, 20, 30 & 40 kVA

4.2 LAYOUT SG Series 30 AND 40 KVA

SGT5000_030-040_UPS_GE_02

FIG. 4.2-1 SG SERIES GENERAL VIEW

OFF

Fig. 4.2-2 SG Series general view with open doors

SGT5000_030-040_UPS_GE_03

Fig. 4.2-4 Control Panel

Fig. 4.2-3 Manual operated switches

P4 Customer Interface Board

SNMP

Fig. 4.2-5 Connectivity Rack

SGT5000_100-150_Customer interface_03

SNMP

UPS output switch

Manual Bypass switch

SNMP Card (option)

Terminals for 24VDC Auxiliary Power Supply connection

Terminals for EPO (Emergency Power Off) connection

OPM_SGS_USM_10K_40K_0US_V010.doc 19/88 Operating Manual

SG Series

10, 20, 30 & 40 kVA

5 CONTROL PANEL

5.1 CONTROL PANEL

Fig. 5.1-1 Control Panel

5.2 TABLE OF FUNCTIONS AND INDICATIONS ON CONTROL PANEL

inverter on/off

Key to switch the Inverter ON. (This key is also used to

off push button).

reset “total off”

if pressed simultaneously with

inverter on/off

Key for Inverter shutdown. Press key to transfers the Keep pressed for 5 seconds to shutdown the Inverter.

Load to Utility

This key is also used as the EPO (Emergency Power Off) reset.

mute

Key to reset general alarm and buzzer.

test

Key to test the control panel LED’s and buzzer. (Pressing this key causes all the LED’s to light and the buzzer to sound 3 times).

The push-button “total off” is protected by a red cover. By pressing it, you immediately separate the UPS from utility and the Load.

Attention: “total off” cannot disconnect the UPS from the Load with Q2 closed.

To reset “total off”: push and hold the “total off” push-button and the “I” key (inverter on) simultaneously for some seconds.

total

For parallel system,

pressing “

total off

” on one unit connected on

parallel bus (switch Q1 closed), all the units are separated from the load. The “

total off” reset

must be done only on one unit connected on the parallel

bus (switch Q1 closed).

Special care must be taken in using this command, in order to avoid accidental Load disconnection.

OPM_SGS_USM_10K_40K_0US_V010.doc 20/88 Operating Manual

SG Series

10, 20, 30 & 40 kVA

General alarm condition. It blinks

The LED remains lighted (with alarm condition still present) and the

alarm

service check

Fig. 5.2.1-1 LED’s on synoptic diagram

Fig. 5.2.1-2 LCD screen

buzzer stops as the key “mute” has been pressed.

LED ON indicates that a regular maintenance service is needed. May be reset by a service technician only. (See chapter 10 – Maintenance)

THE LED IS ON ALSO WHEN THE OUTPUT SWITCH Q1 IS OPEN, INDICATING THAT THE INVERTER IS IN SUPPLYING THE LOAD.

a) LED ON indicates that the Battery reserve lasts for only 3 more

b) LED ON in case of over temperature or overload >125% together with

All LED’s ON indicate that the Battery is fully charged. LED a Yellow

LED b, c, d (EACH ONE INDICATING 25 % OF BATTERY BACKUP)

LED’s ON indicate the Load status of the UPS.

LED d red (≥100 % load)

LED c LED b green (66% load)

LED a

when one or more alarm is activated. The internal buzzer is

minutes

missing

After the timeout the Inverter will shut down.

(selectable).

Utility

(Fixed: indicating last 25 % of Battery backup)

(Blinking: indicating Battery backup ≤ 5%)

Green

yellow (100% load)

green (33% load)

SERVICE MODE, NOT

Definition of the LED’s on mimic diagram

LED 1 = Input Utility Rectifier (green) LED 2 = Input Utility Bypass (green) LED 3 = Rectifier ON (green) LED 4a = Discharging (yellow) LED 4b = Charging (green) LED 5 = Inverter ON (green) LED 6 = Load on Inverter (green) LED 7 = Load on Utility (green) LED 8 LED 9 = Manual Bypass (Q2) ON (yellow)

User LCD Interface Consist of a LCD screen, 4 lines with 20 characters each and six keys. It offers:

• UPS operating, AC and DC metering

information.

• History of alarms and events.

• Functionality can be programmed to meet

customer needs by changing parameters.

= Output Load Voltage (green)

OPM_SGS_USM_10K_40K_0US_V010.doc 21/88 Operating Manual

SG Series

10, 20, 30 & 40 kVA

–

6 LCD SCREEN

The user interface consists of a back lit LCD screen having:

•

4 lines with 20 characters

And

• 6 keys (the function is described for each operating mode).

The operation is extremely simple and is structured on three important main menus related to the UPS operation, as follows:

metering A UPS must offer some metering information for the user to be able to

examine the operating status at any time.

alarms In the event of Utility failures or abnormal functioning, the UPS must keep a

history of what has happened as a series of events.

parameters The user must be able to program certain functions of the UPS (user

parameters, accessible without password) to his needs.

LCD screen standard version

metering

alarms

parameters

(standard version for Latin characters).

LCD screen

4 rows x

20 characters

The 3 buttons existing on the left side of the screen are used to activate the operating modes, while the buttons on the right side are used to carry out functions inside these operating modes.

OPM_SGS_USM_10K_40K_0US_V010.doc 22/88 Operating Manual

SG Series

10, 20, 30 & 40 kVA

6.1 METERING MODE

The metering mode is entered any time the metering button is pressed. While in this mode the LCD will display a series of screens containing metering information. In this mode the buttons perform the following functions:

metering alarms Abandons the metering mode and enters the alarms mode. parameters Abandons the

+ Scrolls forward to the next screen. – Scrolls backward to the previous screen.

ok Displays the main screen for this mode.

Main screen

This screen displays the current status of the UPS in a condensed form. The information offered by this screen consists of:

• The type of the machine: Family name, series number (P + unit number for parallel

• The status of the load.

• The Load amount as a percentage of the nominal Load (referred to the most loaded phase).

• The estimated

Battery data screen

This screen displays:

• The Battery voltage.

• The Battery Current (negative values correspond to the discharge of the Battery).

• The temperature of the Battery (XXX indicates sensor disabled).

• The current charge level.

•

Bypass Utility data screen

This screen refers to the AC source supplying the Bypass. This screen displays:

• The frequency.

• The voltage levels of the three phase voltages.

Scrolls forward to the next screen.

metering mode

and enters the

version from 1 to 8) and power range.

Battery

backup time in minutes with the present load.

metering

alarms

parameters

SG Series S0 30kVA LOAD ON INVERTER

LOAD = 84%

Autonomie = 12min

The estimated backup time with the present load.

metering

alarms

parameters

metering

alarms

parameters

Ub=540V Ib= + 15A Battery Temp= + 20°C Charge Level= 87% Autonomy = 12min

UT ILIT Y

f = 60.0Hz

U1=276V U2=275V

U3=277V

parameters mode

–

OPM_SGS_USM_10K_40K_0US_V010.doc 23/88 Operating Manual

SG Series

10, 20, 30 & 40 kVA

Rectifier Utility data screen

This screen refers to the AC source supplying the Rectifier. This screen displays:

• Iout1 = output current Rectifier Bridge.

• Iout2 = output current 2

• The voltage levels between the three phases (line-to-line).

The input frequency of the Rectifier.

•

Inverter data screen

This screen displays:

• The voltage level of the three phase voltages (line-to-neutral).

• The output frequency of the Inverter.

• The synchronization status of the Inverter with respect to Utility.

Status Load screen

This screen displays:

• The Load level in kVA (for RPA: only this unit).

• The Load level as a percentage of the nominal rated Load (for RPA: only this unit).

• The source of the power supplied to the Load.

Load on phases screen 1

This screen displays for each phase:

The output phase voltage and current as RMS values (for RPA: total value of Parallel

•

System).

• The output Load as percent (for RPA: respect to the rated power of Parallel System).

Rectifier Bridge (optional 12 pulse Rectifiers only).

metering

alarms

parameters

metering

alarms

parameters

metering

alarms

parameters

metering

alarms

parameters

U12=481V Iout1 =107A U23=480V Iout2 = 0A U31=482V f=60.0Hz

U1=277V I=30A 84% U2=277V I=26A 73% U3=277V I=27A 76%

RECTIFIER

INVERTER: U1=277V U2= 277V U3=277V Frequency = 60.0Hz

Synchronized

LOAD ON UPS Load = 25.20kVA Percentage = 84%

LOAD ON INVERTER

LOAD ON PHASES

–

OPM_SGS_USM_10K_40K_0US_V010.doc 24/88 Operating Manual

SG Series

10, 20, 30 & 40 kVA

–

Load on phases screen 2

This screen displays for each phase:

The Load active power (kW) (for RPA: total value of Parallel System).

•

• The Load apparent power (kVA) (for RPA: total value of Parallel System).

metering

alarms

parameters

LOAD ON PHASES L1= 6.72kW 8.40kVA

L2= 5.84kW 7.30kVA

L3= 6.08kW 7.60kVA

–

Miscellaneous screen

This screen displays:

• The temperature of the Inverter Bridge.

• The total operating time for the UPS (in hours).

• The total operating time for the Inverter (in hours).

metering

alarms

parameters

MISCELLANEOUS InvHeatsink = 45°C UpsOperTime= 3125h InvOperTime = 2135h

Utility Faults Statistics screen

This screen displays:

• The total number of minor Utility faults (Bypass Utility out of tolerance faults).

• The total number of major Utility faults (Rectifier Utility out of tolerance faults).

• The total number of detected output overloads.

metering

alarms

parameters

UTILITY FAULTS STAT. Minor = 43210 Major = 11267 Overloads= 654

UPS identification screen

This screen displays:

• The UPS family and the power range.

• The software version.

• The serial number.

metering

alarms

parameters

UPS IDENTIFICATION

SG Series S0 30kVA

SW Version: x.xx

S/N: P0030-2003-0001

OPM_SGS_USM_10K_40K_0US_V010.doc 25/88 Operating Manual

SG Series

10, 20, 30 & 40 kVA

–

6.2 ALARMS

The alarms mode is entered any time the

The LCD will display a series of screens corresponding to the last 256 events, one event per screen.

The buttons perform the following functions:

metering Abandons alarms mode and enters metering mode.

alarms Next screen.

parameters Abandons the alarms mode and enters the parameters mode.

+ Scrolls forward to the next screen.

– Scrolls backward to the previous screen.

ok Display the main screen for this mode.

The events displayed are the standard

(Alarms and Messages)

The information displayed includes:

alarms

GE events as described in the Section 6.7 - EVENTS

button is pressed.

• The exact date and time when the event occurred.

• The number of the event, 255 being the most recent event, and 0 the oldest.

• The standard GE code for the event and the machine status word.

An explicit text description of the event.

•

metering

alarms

parameters

The initial screen of this mode is the one showing the most recent event.

01.10.2002 22:11:51 NR=255 Status=4A61

4115:LOW BATTERY

VOLTAGE

OPM_SGS_USM_10K_40K_0US_V010.doc 26/88 Operating Manual

SG Series

10, 20, 30 & 40 kVA

–

6.3 PARAMETERS

The parameters mode is entered any time the parameters button is pressed.

The LCD will display a series of screens containing the user parameters, accessible without password protection.

The buttons perform the following functions:

metering Abandon parameters mode and enter metering mode.

alarms

parameters Scroll forward to the next screen.

+ Scroll forward to the next screen.

– Select from the current screen the parameter to edit.

ok Start the editing for the currently selected parameter.

Example of operation within parameters mode:

Purpose: to correct a wrong telephone number previously stored in Tel2.

1 – entering parameters mode (parameters). The first screen is displayed.

2 – scroll to the next screen (+). The second screen is displayed.

4 – move the selection (underscore cursor) to the next parameter in this page (-).

5 – move the selection to the next parameter in page (-).

Abandon parameters mode and enter alarms mode.

During parameters mode there is no means to perform scroll back on the display.

– scroll to the next screen (+). The third screen is displayed.

– enter Edit mode for the currently selected parameter (ok).

metering

alarms

parameters

DATE AND TIME

D M Y Date: 01 Time: 12:45:07

.10.2002

metering

alarms

parameters

PROTOCOL SETUP

Modem enabled=N Init=BEQV1X3&D0S0=2 Alarm= N Delay=22s

–

OPM_SGS_USM_10K_40K_0US_V010.doc 27/88 Operating Manual

SG Series

10, 20, 30 & 40 kVA

–

metering

alarms

parameters

Tel1:002186394567 Tel1 enabled: N Tel2:004017464340 Tel2 enabled: N

metering

alarms

parameters

Tel1:002186394567 Tel1 enabled: N Tel2:004017464340 Tel2 enabled: N

metering

alarms

parameters

Tel1:002186394567 Tel1 enabled: N Tel2:0

04017464340

Tel2 enabled: N

metering

alarms

parameters

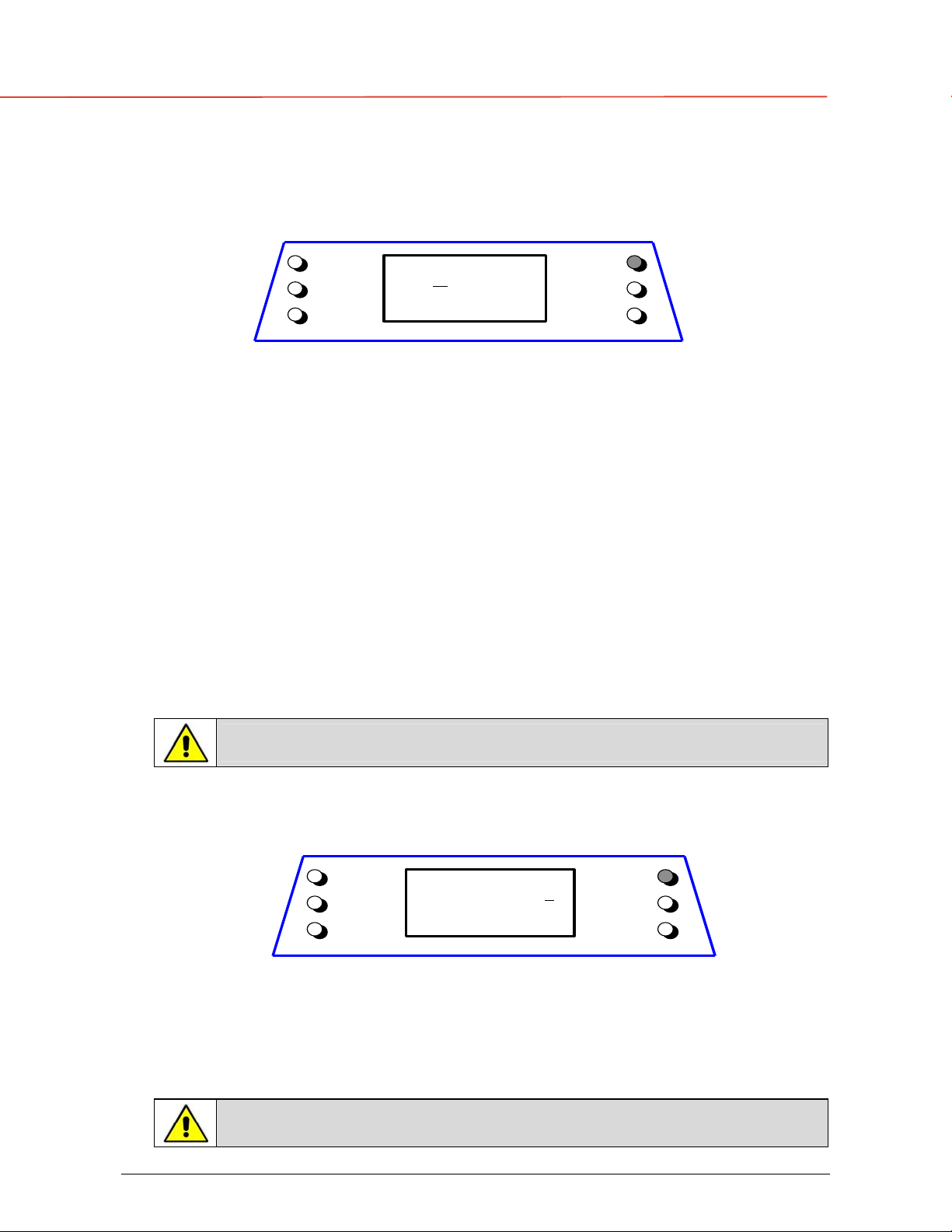

EDIT MODE PHONE NUMBER 2 004017464340 + SCROLL - CHANGE

OPM_SGS_USM_10K_40K_0US_V010.doc 28/88 Operating Manual

SG Series

10, 20, 30 & 40 kVA

6.4 EDIT MODE

The EDIT MODE is entered from the parameters mode when the ok button is pressed. During this mode the LCD will display a special editing screen for the parameter being edited.

The screen contents during Edit mode is:

• On the first line of the screen it is clearly indicated the special operating mode.

• On the second line you will find the name of the parameter being edited.

• On the third line is displayed the current value of the parameter.

• The fourth line contains a condensed help text.

During the Edit mode the buttons perform the following functions:

metering Exits Edit mode and enters metering mode; any changes are discarded.

alarms Exits Edit mode and enters alarms mode; any changes are discarded.

parameters

Exits Edit mode and enters parameters mode; any changes are discarded.

+ Scroll from editable position to editable position;

– Change the currently selected editable position.

ok Return to parameters mode after saving the changes.

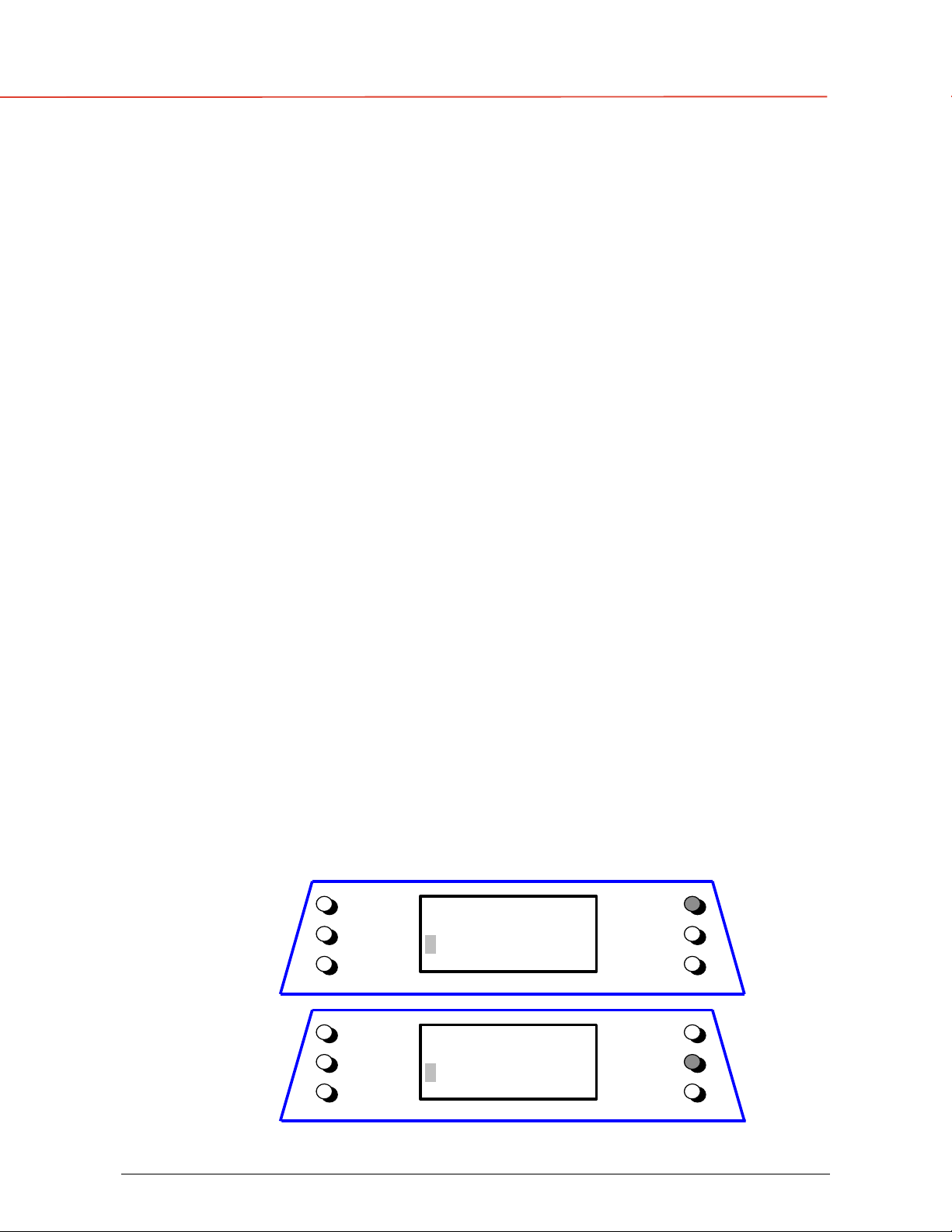

Examples of operation during Edit mode

There are three types of parameters having differences in behavior during Edit mode. Depending the type of parameters, there are different ways to select and to change the needed values.

Type 1: Parameters having a large range of values (numeric value).

As continuation of the previous example, the telephone number stored in “Tel2” must be changed:

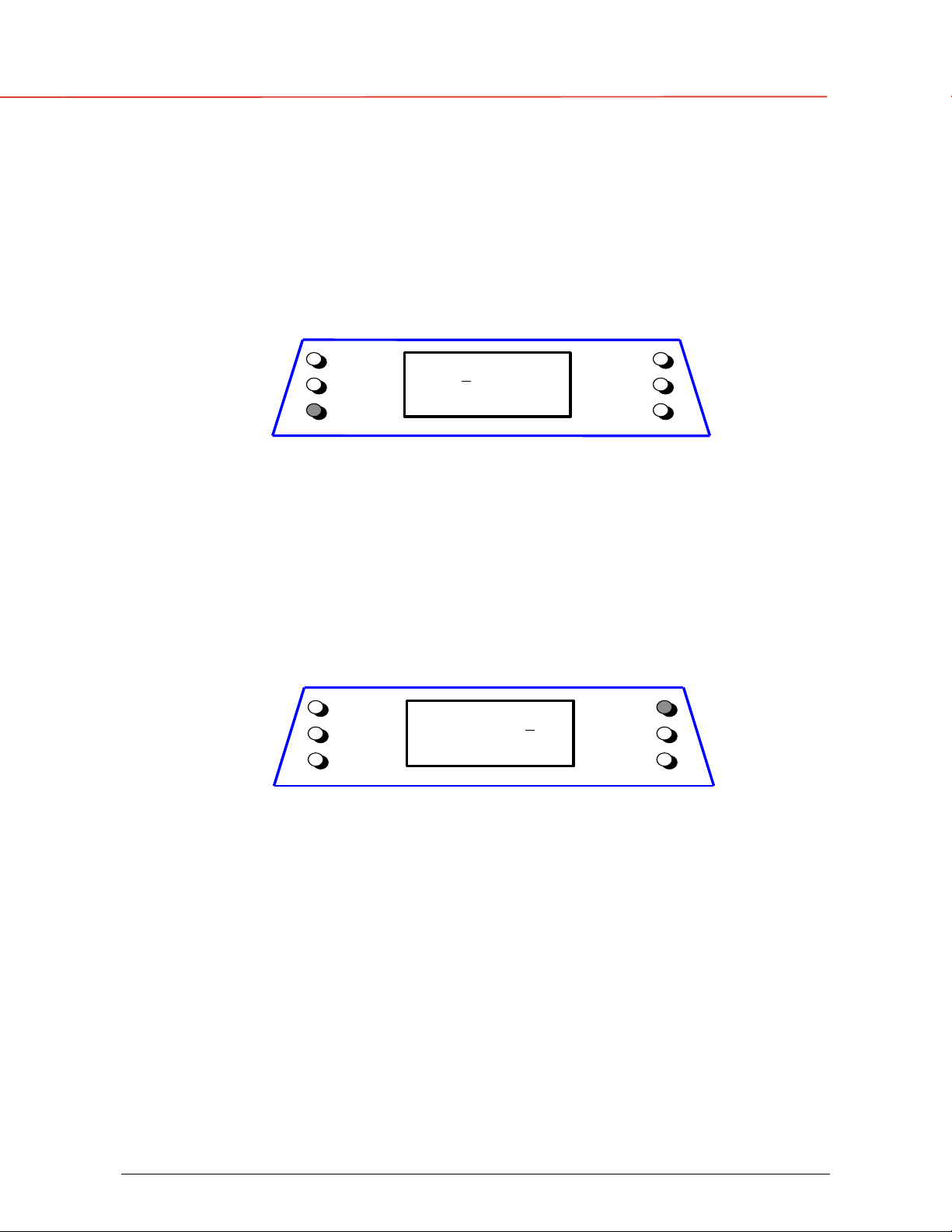

1 – move the selection (block cursor) to the next character.

2 – move the selection to the next character (+).

3 – change the selected character (-).

– change the selected character (-).

5 – press ok: the screen will return to parameters mode saving the new value.

metering

alarms

parameters

004017464340 + SCROLL - CHANGE

EDIT MODE

PHONE NUMBER 2

–

metering

alarms

parameters

004017464340 + SCROLL - CHANGE

EDIT MODE

PHONE NUMBER 2

–

OPM_SGS_USM_10K_40K_0US_V010.doc 29/88 Operating Manual

SG Series

10, 20, 30 & 40 kVA

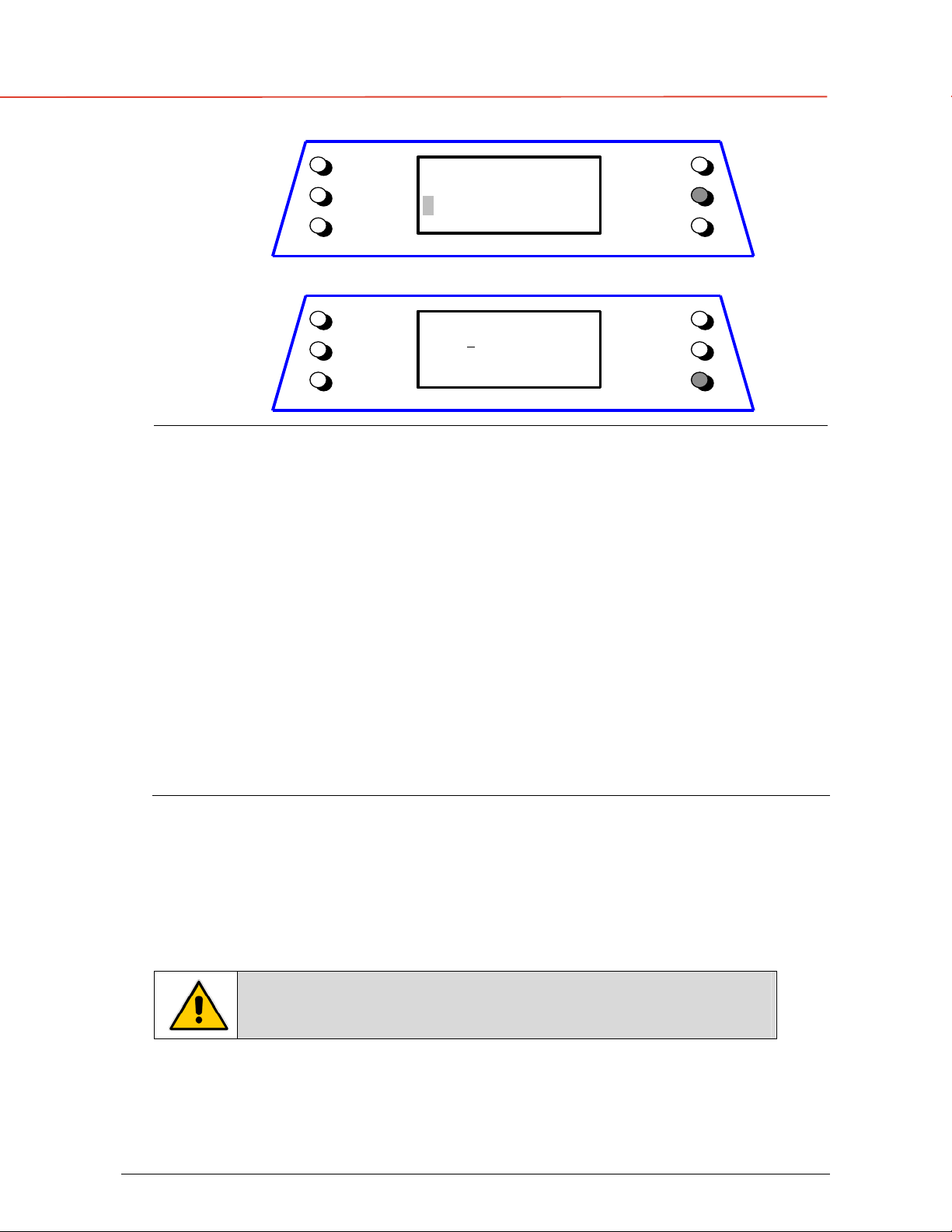

Type 2:

Parameters having a

For example the parameter 9600}.

There is no need to edit this parameter digit by digit. By pressing the [–] button the next value within the range is automatically provided by the software.

1 – enter Edit mode for Printer Baud Rate, initial value = 1200. 2 – change to 2400. 3 – change to 4800. 4 – press ok: the screen will return to parameters mode saving the new value.

metering

alarms

parameters

metering

alarms

parameters

metering

alarms

parameters

005017464340 + SCROLL - CHANGE

006017464340 + SCROLL - CHANGE

EDIT MODE

PHONE NUMBER 2

EDIT MODE

PHONE NUMBER 2

Tel1:002186394567 Tel1 enabled: N Tel2:0 Tel2 enabled: N

limited range of values

Printer Baud Rate

metering

alarms

parameters

metering

alarms

parameters

1200 + SCROLL - CHANGE

2400 + SCROLL - CHANGE

EDIT MODE

PRINTER BAUDRATE

EDIT MODE

PRINTER BAUDRATE

–

06017464340

–

has the range {600, 1200, 2400, 4800 and

–

OPM_SGS_USM_10K_40K_0US_V010.doc 30/88 Operating Manual

SG Series

10, 20, 30 & 40 kVA

Type 3: Boolean parameters used to simulate command buttons.

The Boolean parameters have a range of Yes/No. Only the user performs the modification of the value.

These “Type 3” parameters are used to initiate an action. There are two possibilities:

A 1 – the user wants the UPS to start the action => the user sets the parameter to “Yes”. 2 – the UPS finishes the action => the UPS sets the parameter to “No”.

B 1 – the user wants the UPS to start the action => the user sets the parameter to “Yes”. 2 – the user wants to abort the action => the user sets the parameter to “No”.

The actions that can be performed using such software buttons are:

• Print the metering information.

• Print the last 256 events.

• Print the values of the parameters.

• Print all the information obtainable from the UPS.

Returning from the Edit mode

Normally ok button is used to return from the Edit mode. Then the UPS will perform some validity tests on the new value. If these tests are successful then the new value is saved and used. If these tests fail the Edit mode is not exited.

The validity tests performed by the UPS are not exhaustive. You should not rely exclusively on these tests. Care should be taken when modifying the values of the parameters.

For all parameters except the LCD Contrast parameter the new value is saved and used after the ok button was pressed.

In the case of the LCD Contrast parameter the new value is used immediately in order to obtain a better visual feedback.

metering

alarms

parameters

metering

alarms

parameters

EDIT MODE

PRINTER BAUDRATE 4800 + SCROLL - CHANGE

PRINTER SETUP Baud=4 Bits=8 Handshake=XON Print All = N

800 Parity=O

–

OPM_SGS_USM_10K_40K_0US_V010.doc 31/88 Operating Manual

SG Series

10, 20, 30 & 40 kVA

–

6.5 USER PARAMETERS

Pressing the Parameters button displays a series of screens containing the user parameters on the

LCD panel

This first parameter level in not protected by password, therefore the user can freely adapt these parameters to their needs. The meaning of the user parameters and their use is described below (buttons performance is described to

1. Date and Time set-up

Section 6.3

metering

alarms

parameters

DATE AND TIME

Date: 01.09.2002 Time: 19:44:07

M Y

Date You can adjust the date of the real time clock existing in the UPS by the means of this

parameter. The value you enter is thoroughly checked to be a correct date in the format “dd.mm.yy”.

Time You can adjust the time of the real time clock existing in the UPS by means of this

parameter. The value you enter is thoroughly checked to be a correct time in the format “hh.mm.ss”. The time is specified in 24-hour format.

2. Protocol Set-up

metering

alarms

para me ters

PROTOCOL SETUP Modem enabled= N Init= BEQV1X3&D 0S0=2 Alarm=N Delay=22sec

Modem enabled You can enable/disable with Y/N the remote control through modem calls

by using this parameter.

Init This parameter presents the modem initialization string. It can be 39 characters long.

When editing this parameter the UPS considers that a blank character

terminates the string.

If no blank character is found then all 39 characters are used.

Alarm This Y/N parameter controls the automatic events signaling through

modem.

If this parameter is set to Yes the UPS itself will call the remote location

when a new event occurs.

Delay This parameter controls the delay between the occurrence of a new event

and the modem dialing.

It is useful because since the events typically do not occur isolated but in

certain sequences, you can eliminate the need for multiple dial-outs for such a sequence of events.

OPM_SGS_USM_10K_40K_0US_V010.doc 32/88 Operating Manual

SG Series

10, 20, 30 & 40 kVA

–

3. Telephone numbers

metering

alarms

parameters

Tel1: Tel1 enabled: N Tel2: Tel2 enabled: N

Tel1 This parameter specifies a first telephone number to be used for modem

dial-out. The telephone number has a maximum 39 characters and cannot contain blanks.

If the desired number is shorter than 39 characters, the string will finish with blanks.

Tel1 enabled

This parameter

specifies if the

Y/N

telephone number will be used for

first

dial-out.

Tel2 A second dial-out number.

Tel2 enabled This parameter Y/N specifies if the second telephone number will be used

for dial-out.

Tel3 A third dial-out number.

Tel3 enabled This parameter Y/N specifies if the third telephone number will be used for

dial-out.

Tel4

fourth

dial-out number.

Tel4 enabled

This parameter

specifies if the

Y/N

telephone number will be used

fourth

for dial-out.

4. LCD Display

metering

alarms

parameters

LCD Display

UPS NAME: Signature

Contrast = 9

Language = ENGLISH

–

UPS Name The user can choose the name of the UPS model shown on the main page

(max. 7 characters).

LCD Contrast This parameter controls the contrast of the LCD screen in ten steps.

It can be adapted depending on the room lighting.

LCD Language This parameter allows the choice of language used to display the

information. Valid choices are English, German, Italian, Spanish, French, Finnish,

Tschech, Slovak, Polish

OPM_SGS_USM_10K_40K_0US_V010.doc 33/88 Operating Manual

and

Portuguese

SG Series

10, 20, 30 & 40 kVA

5. Printer Set-up

The UPS is capable of communicating to a serial printer, to printout disparate information. Please be sure to have a serial printer, that is a printer with a serial RS232 interface. This is the

printer-interface supported by the UPS.

only

metering

alarms

parameters

PRINTER SETUP Baud=24 Bits=8 Handshake=XON Prin t All = N

00 Parity=O

–

Baud Rate This parameter controls the baud rate used for data transmission.

Although different values can be selected, you must select 2400 Baud, which is the only valid parameter.

Parity This parameter controls the parity used for data transmission. Odd (O) even (E) and “no parity” (X) can be selected. Nevertheless the only valid value is NO PARITY (X).

Bits This parameter controls the length of the data word on the serial line during

data transmission 7 or 8 bits are offered as choice.

Please select

, as this is the only valid value.

8 bits

Handshake This parameter is used to determine the communication protocol used when

printing.

Valid values are “XON” standing for the XON/XOFF protocol or “NO”

standing for

any protocol.

Print All This parameter Y/N is used to print all the available information in the

sequence

metering, alarms, user

and

service parameters

Please configure your printer with the following parameters: 2400/8/N (2400 bits/sec, 8 bits, no parity).

6. Printer commands

metering

alarms

para me ters

PRINTER COMMANDS

Print Measures = N

Print Alarms = N

Print Parameters = N

Print Measures This Y/N parameter is used to print only the measurement data.

Print Alarms This Y/N parameter is used to print only the sequence of all

Alarms/Events.

Print Parameters This Y/N parameter is used to print only the list of User and Service

Parameters

After each printing command the corresponding parameter will be set again to N.

OPM_SGS_USM_10K_40K_0US_V010.doc 34/88 Operating Manual

–

SG Series

10, 20, 30 & 40 kVA

6.6 EVENTS (ALARMS AND MESSAGES)

Each of the following listed events can be displayed on the LCD screen or on PC where the ARGUS/JumpManager - Control Network is installed.

Alarms and Messages are differently specified because the alarms are indicating an abnormal functioning of the UPS (which are additionally signaled with the LED alarm and acoustically with the buzzer), while the messages indicate the various states of operation of the UPS (stored in the events list, but no activating the LED alarm and the buzzer).

When in the alarms mode, the LCD screen displays a time ordered sequence of screens corresponding to the last 256 alarms and messages, each screen indicating:

The number of the event (255 = the most recent).

The standard code and the status word.

The date and time when the event occurred.

6.6.1 Alarms list

Code Alarms Meaning

Parameters are lost and have been replaced with default values. Call nearest Service Center for intervention. The master unit detected the slave unit missing on the communication bus even though switch Q1 is still closed. The u-switch mounted on the Rectifier Input Fuses indicates a blown fuse, and consequently shut down. Clearance of this condition allows you to restart the Rectifier. K4 not closed despite a closing command being issued. Signaled by auxiliary contact.

Rectifier cannot start. K4 not open despite an opening command being issued.

Signaled by auxiliary contact. Utility remains connected to Rectifier bridge. This function, when enabled on input programmable relays (password required), warns the user about the external Battery Fuses failure or MCB opening, signalled by NO free contact. Temperature sensor indicates an over temperature on the

Rectifier Bridge

Only alarm is given. The Rectifier, when in Off state, cannot start as long as this condition persists. The temperature sensor inside the input transformer winding indicates over temperature. Only the alarm is given. The Rectifier, when in Off state, cannot start as long as this condition persists.

Rectifier Input Utility is out of tolerance (voltage, frequency or phase).

4000

4004

4100

4102

4103

4104

4105

4106

4110

SETUP VALUES

LOST

UPS

FAILURE

RECTIFIER FUSES

FAILURE

K4 CLOSING

FAILURE

K4 OPENING

FAILURE

BATTERY

FUSES

RECTIFIER

OVERTEMPERATURE

RECTIFIER

TRANSFORMER

OVERTEMPERATURE

RECTIFIER UTILITY

OUT OF TOLERANCE

An explicit text description of the events.

OPM_SGS_USM_10K_40K_0US_V010.doc 35/88 Operating Manual

SG Series

10, 20, 30 & 40 kVA

Code Alarms Meaning

The Battery has been discharged and reached “stop operation” time-out (default 3 minutes), and the Inverter will

be shut down. It will restart automatically only when the Battery has recharged enough for a minimum runtime.

Dangerous high DC Voltage caused inverter shutdown. Inverter restarts automatically after Battery returns to floating voltage.

A leakage current to earth has been detected on the DC circuit.

During battery test the voltage falls under the critical level (depending setting parameters). Battery test is stopped.

Rectifier and Inverter are OFF. The DC power supply is discharging the Battery. Rectifier must be restarted or Battery must be disconnected in order to avoid damage. Rectifier Voltage hasn’t reached the set value (probably fault on regulation loop). LED Rectifier on control panel is blinking.

Inverter Output Fuses Inverter can be started manually after replacement of the

fuses. K7 not closed despite a closing command being issued. Signaled by auxiliary contact.

Load will be supplied by Utility. K7 not open despite an opening command being issued.

Signaled by auxiliary contact. Load will be supplied by Utility. The temperature sensor of the Inverter Transformer indicates over temperature. Elapsed “stop operation” time, Inverter shutdown. With Utility OK, Load is transferred on Utility. Blown input DC fuse(s) F1 of the Inverter. Inverter cannot be started as long as present. An abnormal condition has been detected on one or more power modules of the Inverter (temperature or over current). Inverter shutdown and cannot be started as long as the alarm is present.

Inverter Output Voltage is out of the tolerances (± 10%).

Inverter is switched OFF. Detection of Inverter Bridge (Is) current limit causing the Inverter OFF and automatic re-start.

After 3 times the Inverter switches-Off, and it can be restarted manually. The “Slave” oscillator is not in synchronized with the Master; thus causing the shutdown of it’s Inverter. If after a restart the condition remains, the LED inside the Inverter symbol on the panel will not light up, indicating that this Inverter cannot supply the Load anymore.

blown (F5, F6 and F7).

4115

4116

4117

4118

4130

4140

4301

4304

4305

4307

4308

4309

4312

4320

4340

LOW BATTERY

VOLTAGE

HIGH BATTERY

VOLTAGE

BATTERY

EARTH FAULT

BATTERY FAULT

TURN ON RECT.

OR SHUTDOWN UPS

RECTIFIER

CONTROL FAILURE

INVERTER

FUSES FAILURE

K7 CLOSING

FAILURE

K7 OPENING

FAILURE

INVERTER

TRANSFORMER

OVERTEMPERATURE

DC FUSES

FAILURE

DRIVER

FAILURE

INV. VOLTAGE

OUT OF TOLERANCE

ISMAX

DETECTION

INVERTER

CONTROL FAILURE

OPM_SGS_USM_10K_40K_0US_V010.doc 36/88 Operating Manual

SG Series

10, 20, 30 & 40 kVA

Code Alarms Meaning

4404

4405

4406

4408

4409

4410

4420

4421

4520

4522

4530

4531

4563

4570 OVERLOAD

4571

4581

OPM_SGS_USM_10K_40K_0US_V010.doc 37/88 Operating Manual

K6 CLOSING

FAILURE

K6 OPENING

FAILURE

SSM

FAILURE

K8 CLOSING FAILURE

K8 OPENING

FAILURE

BYPASS UTILITY

OUT OF TOLERANCE

K3 CLOSING

FAILURE

K3 OPENING

FAILURE

NO INVERTER

POWER

FAN

FAILURE

LOAD LOCKED

ON UTILITY

LOAD ON UTILITY BY

ERROR DETECTOR

EMERGENCY OFF

ACTIVATED

OVERLOAD:

LOAD ON UTILITY

INVERTER AND

UTILITY NOT SYNCH.

K6 open despite a closing command being issued. Signaled by auxiliary contact. The Load cannot be supplied by Automatic Bypass. K6 closed despite an opening command being issued. Signaled by auxiliary contact. A faulty current has been detected in the static-switch causing the opening of the contactor K6 for 10 sec. After 3 times K6 remains definitively open. The alarm reset can be done only from Service.

not closed despite a closing command being issued.

Signaled by auxiliary contact.

Load

The K8 closed despite an opening command being issued. Signaled by auxiliary contact.

The Utility Bypass Voltage is out of the tolerances (± 10%).

K6 opens, synchronization with Utility is inhibited and transfer to Utility is blocked.

K3 open despite a closing command. Inverter is switched OFF.

It can be restarted manually after recovery of the alarm condition. K3 not open despite an opening command. Be aware the The Load supplied by Utility exceeds the Inverter power. The Load remains supplied by Utility until the alarm stays ON. A malfunction on the UPS ventilation system was detected. No change for UPS operation. Call immediately Service Center for intervention.

Load

been detected in a short time (default 30 sec.). The transfer will be free after a time defined in parameter (default 30 sec.). Load is transferred to Utility because the error detector detected a disturbance on the output voltage. Alarm after detection of an EPO from an external safety device connected on Customer Interface Board. Consequently K3, K4, K6, K7, K8 open, Rectifier, Inverter and SSM are switched Off.

The UPS-System is in an overload condition >125% on

Inverter, or >150% on Utility. With Utility unavailable, a sequence of “stop operation” starts. Time out depends on

With Utility Bypass supply available and load >115%, the

Load is transferred on Utility. Load

Load <100%.

The voltages of Utility and Inverter are not synchronized, which causes the opening of K6.

cannot be supplied by

DC Capacitors

is locked on

will be transferred again automatically on

Utility

because 3 transfers on

Load

Automatic Bypass

could remain charged.

quantity.

SG Series

Utility

have

Inverter

10, 20, 30 & 40 kVA

when

Code Alarms Meaning

4697

4698

4700 DC LOW

4900

4955 OVERTEMPERATURE

4998

4999

OVERTEMPERATURE

EXTENT. OVERLOAD

TO UBATT. OR TEMP.

BATTERY

BATTERY POWER

INSUFFICIENT

LOAD LOCKED

ON INVERTER

LOAD OFF DUE TO

LOAD OFF DUE

Detection of Battery over temperature condition. Can be deactivated by In case of Utility Failure, with the actual Load, the run time would be below stop operation time (default 3 minutes). Battery voltage is at the lowest limit. Will stay Off inverter until the battery voltage reaches the value in parameter. The Load is locked on Inverter after 3 Load transfers within 30 seconds. After time out (default 30 sec.) An over-temperature condition has been detected on Inverter. Elapsed “stop operation” time, Inverter shutdown. With Utility OK, Load is transferred on Utility.

Load Off after time-out of “stop operation” for overload on Inverter or Bypass (time depending on the % of overload). Load Off after time-out of “stop operation” with missing Utility due to Battery low voltage or over-temperature condition.

Service

Bypass

will be free.

OPM_SGS_USM_10K_40K_0US_V010.doc 38/88 Operating Manual

SG Series

10, 20, 30 & 40 kVA

6.6.2 Messages list

Code Message Meaning

The microprocessor has detected an incorrect operation:

4002

4111

4119

4120

4161

4162

4163

4164

4302

4303

4361

4362

4411

4500

4521

4534

WATCHDOG

RESET

RECTIFIER

UTILITY OK

BATTERY TEST

STARTED

BATTERY TEST

STOPPED

RECTIFIER

OFF

GENERATOR

OFF

INVERTER CANNOT BE TURNED ON

INVERTER CANNOT BE

TURNED OFF

INVERTER

OFF

BYPASS UTILITY

COMMAND

LOAD OFF

NO BYPASS

POWER

MULTIPLE LOAD

TRANSFER

Transfers the The Inverter will restart automatically and will supply the

Load. Rectifier Input Utility is again within the admitted tolerance

(voltage, frequency and phase). Start of Manual or Automatic Battery Test.

End of Manual or Automatic Battery Test.

Rectifier started.

Rectifier shutdown.

Customer Interface (X1 - 11, 22) received a Gen-set ON

signal. Operating mode depend on setting of Parameters. Customer Interface (X1 - 11, 22) received a Gen-set OFF signal. Function Bypass enabled depends on setting of Parameter.

Inverter cannot be switched on because one of the following conditions is still present:

• Over Temperature

• Low Battery Voltage

Inverter Fuses

•

• Overload

• K7 opening Failure

• High Battery Voltage

• DC Low

EPO

•

Inverter cannot be switched OFF, because the Load cannot be switched to Utility (voltage out of tolerance, not synchrony, BP blocked). The command to start the Inverter has been activated on the control panel. The command to switch OFF the Inverter has been activated by the control panel or automatically for alarm presence. Bypass Input Utility is again within tolerance (voltage, frequency and phase). Disconnection of the Load by opening K6 and K7 for: EPO / total off / Overload / stop operation. With the Load supplied by Automatic Bypass, a Utility Failure or K6 opening occurred. 2 transfers Inverter- Utility have been detected in a short time, (default 30 sec.).

Load

Utility

and performs a program reset.

OPM_SGS_USM_10K_40K_0US_V010.doc 39/88 Operating Manual

SG Series

10, 20, 30 & 40 kVA

Code Message Meaning

4535

4536

4561

4562

4564

4567

4568

4572

4580

4582

4583

4602

4603

4699

4763

4764

BYPASS LOCKED

BYPASS

FREE

TOTAL

OFF

DETOUR

OFF

COMMAND

LOAD ON UTILITY

COMMAND

LOAD ON INVERTER

NO MORE

OVERLOAD

INVERTER AND

UTILITY

SYNCHRONIZED

COMMAND

NOT TO

SYNCHRONIZE

COMMAND TO

SYNCHRONIZE

OPEN

CLOSED

BATTERY TEST

IMPOSSIBLE

REMOTE CONTROL

OFF

Bypass is not available. Contactor K6

Bypass Contactor K6 is closed.

Push-button “total off” on the UPS Control Panel has been pressed, with the output circuit switch Q1 closed. The auxiliary contact indicates that Manual Bypass Q2 was closed. The auxiliary contact indicates that opened. The control unit received a command to transfer the Load on Utility. The control unit received a command to transfer the Load on Inverter. End of the overload condition detected with alarm 4570.

The voltages of Inverter and Utility Bypass are synchronized.

Command not to synchronize with Utility.

Command to synchronize with Utility.

The auxiliary contact indicates that the output switch Q1 was opened. The auxiliary contact indicates that the output switch Q1 was closed. Automatic Battery Test is not possible due to:

• No Utility Rectifier or Bypass.

• Battery not fully charged.

• Load is below 10% or above 80%.

Test is postponed for 1 week. Inverter can be started or shutdown by remote control. Commands source can be chosen depending on the value of parameter (Service only):

0 = Only local panel. 1 = Only serial port on CI. 2 = Both. Inverter

Commands source can be chosen depending on the value of parameter (Service only):

0 = Only local panel. 1 = Only serial port on CI. 2 = Both.

and K8 are open,

is enabled.

cannot be started or shutdown by remote control.

SSM

deactivated.

Manual Bypass Q2

was

OPM_SGS_USM_10K_40K_0US_V010.doc 40/88 Operating Manual

SG Series

10, 20, 30 & 40 kVA

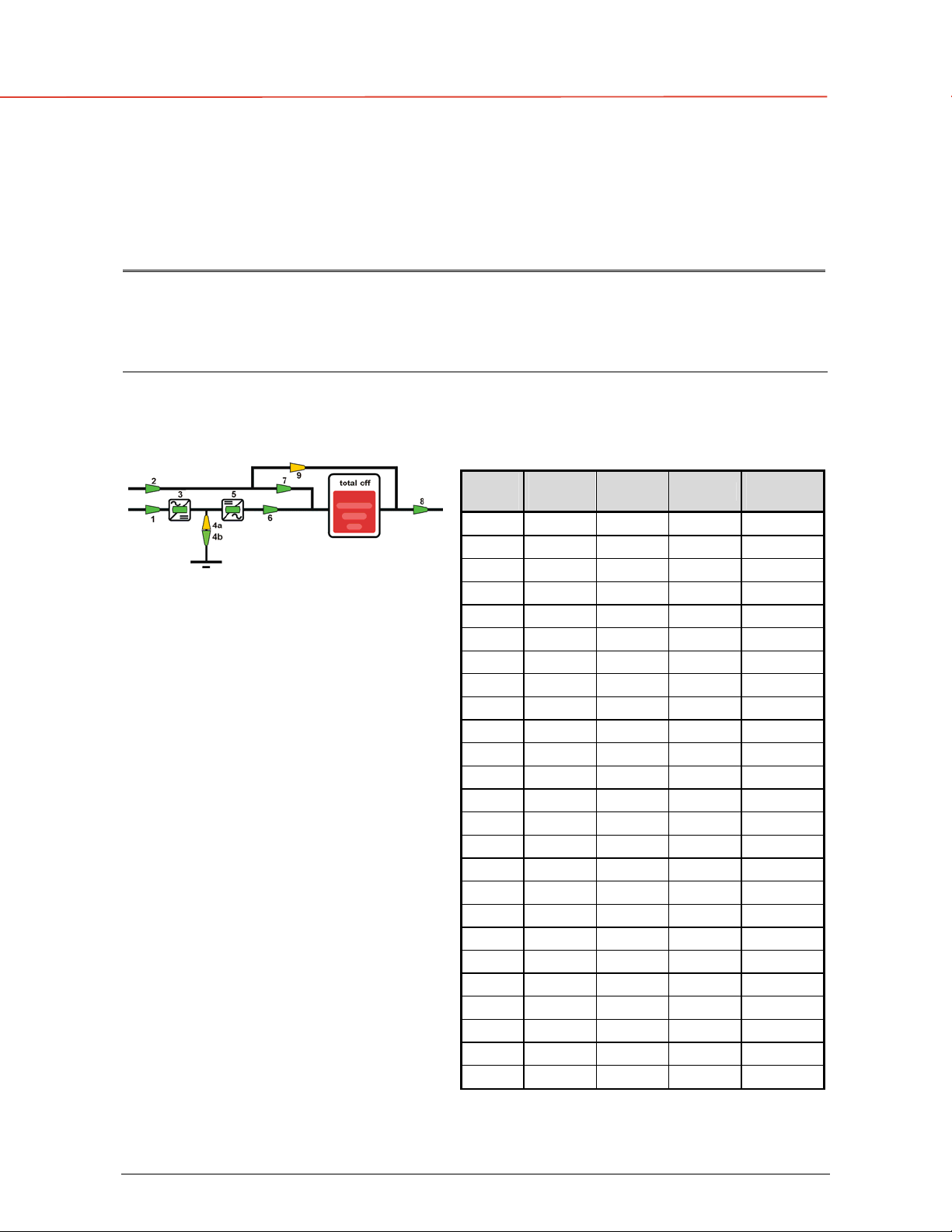

6.6.3 Event report SG Series

In case of failure or malfunctioning, before calling the nearest Service Center, please note the most important data of your UPS and the most recent events.

In order to make the diagnosis easier from our Diagnostic Center we suggest you make a copy of this page, fill it out with the requested data and send it by fax.

Unit No.: __ __ __ __ __ - __ __ __ __ - __ __ __ __ Series No.: …….. UPS rating: …….. kVA

Customer: ..........................................……. Place: ......................…...........................…........

Date: ...…...... / ............ / .......….....….. Sent by: .....…..........................................….......…

1. Record the exact UPS status on the panel

when the failure appeared.

2. On the LCD panel, enter the alarms mode and record the alarms/messages in the list below indicating at least 5 events before the failure time. Remark: exact data and time are very important.

LED 1 R ON R OFF LED 2 R ON R OFF LED 3 R ON R OFF LED 4a R ON R OFF LED 4b LED 5 R ON R OFF LED 6 R ON R OFF LED 7 R ON R OFF LED 8 R ON R OFF LED 9 R ON R OFF LOAD BATTERY

Description of repair actions taken:

....................................................…………….

Actual situation:

....................................................…………….

Remarks:

R ON R OFF

_______ %

_______

minutes

Event

No.

255 254 253 252 251 250 249 248 247 246 245 244 243 242 241 240 239 238 237 236 235 234 233 232 231

Event

Code

UPS

Status

DATE

Time

h.m.s

…………………………………………………………………………………………………………………..

OPM_SGS_USM_10K_40K_0US_V010.doc 41/88 Operating Manual

SG Series

10, 20, 30 & 40 kVA

7 OPERATION

This symbol refers to the operations of a parallel system.

Verify for correct input/output cabling before connecting Utility to the UPS.

Open only the front door, do not remove any panels.

Now you can initiate the start-up procedure of the UPS system. There is no need for specific knowledge if you follow carefully the step-by-step instructions given below.

But we recommend, that at least the initial procedure, should be performed by an instructed person.

Check after every step for correct reaction of the UPS (LED’s on the panel), and correct voltage and current measurements, before you proceed to the next step.

If you encounter any problems during the following procedures, you should not continue, but contact GE Global Services.

Find on the following pages the descriptions of the various procedures of startup and shutdown for single and parallel UPS’s, divided into the following principal chapters:

7.1 PROCEDURES FOR SINGLE UPS

7.2 PROCEDURES FOR UPS FUNCTIONING AS FREQUENCY CONVERTER

7.3 PROCEDURES FOR PARALLEL SYSTEM

7.4 PROCEDURES FOR PARALLEL SYSTEM WITH COMMON BATTERY

OPM_SGS_USM_10K_40K_0US_V010.doc 42/88 Operating Manual

SG Series

10, 20, 30 & 40 kVA

7.1 PROCEDURES FOR SINGLE UPS

7.1.1 Start-up of the

Verify with open front door: Switch Q1 and

SG Series

Q2 must be open

1. Connect the Utility power on the UPS.

(In case of separate inputs for Rectifier and Bypass, connect both).

Power supply starts up.

•

Indicated with flashing alarm and buzzer sound.

• LED’s as indicated will be lit.

Press mute, to reset alarm and buzzer.

•

2. Close Q1 (Pos. I).

• Bypass Utility connects to the output.

• Rectifier starts automatically, blinking

LED indicates Soft-start.

• At the end of Rectifier Soft-start, LED

remains lit.

(Pos. O).

3. Connect the Battery to the UPS by closing the Battery Switch or Fuses, in case of External Battery

4. Press “inverter on” ( I ) key.

• Soft-start of Inverter indicated with

blinking LED.

• At the end of Soft-start the LED

remains lit.

• Automatic transfer from Bypass to

Inverter. UPS output LED indicates Load on

•

Inverter.

The LCD must display on the main screen the status “

LOAD ON INVERTER

”.

End of procedure

Battery

The backup runtime in the case of a Utility Failure.

must be charged for at least 10 hours, in order to ensure the full

OPM_SGS_USM_10K_40K_0US_V010.doc 43/88 Operating Manual

SG Series

10, 20, 30 & 40 kVA

7.1.2 Maintenance shutdown (Load on Q2)

Initial status:

Load supplied from Inverter.

1. Press “inverter off” ( O ) key and hold until the LED inside the Inverter symbol turns OFF.

Load is transferred to Utility.

•

• Inverter shuts down.

• LED Inverter must be OFF.

The LCD screen must display the status “

LOAD ON BYPASS

2. Close Q2 (Pos. I).

• Load is now supplied parallel through

Bypass

• LED for Manual Bypass lights up.

and Q2.

3. Open Q1 (Pos. O) and then press “total off” button.

Load is now supplied from Manual

•

Bypass.

Rectifier shuts down and all output and

•

input contactors are opened.

The LCD panel must display the main screen, indicating the status “LOAD OFF”.

4. Disconnect the Battery from the UPS in case of External Battery.

• Wait 5 minutes for DC-Link Capacitors

discharge.

”.

End of procedure

OPM_SGS_USM_10K_40K_0US_V010.doc 44/88 Operating Manual

SG Series

10, 20, 30 & 40 kVA

7.1.3 From Manual Bypass (Q2) to normal function On-line

Initial status:

Load supplied from Manual Bypass.

1. Close Q1 (Pos. I).

• Bypass connects to Load.

LED Load on Bypass lights up.

• Rectifier starts automatically and

LED in Rectifier symbol and LED Battery charge light up.

2. Open Q2 (Pos. O).

• LED Manual Bypass turns OFF.

3. Connect the Battery to the UPS by closing the Battery Switch or Fuses, in case of External Battery .

4. Press “inverter on” ( I ) key.

• Soft-start of Inverter, indicated with

blinking LED.

• At the end of Soft-start the LED

remains lit.

• Automatic transfer from Bypass to

Inverter.

• UPS output LED indicates Load on

Inverter.

LCD

The

OPM_SGS_USM_10K_40K_0US_V010.doc 45/88 Operating Manual

must display on the main screen the status “LOAD ON INVERTER”.

End of procedure

SG Series

10, 20, 30 & 40 kVA

7.1.4 Complete UPS shutdown (No Load supply)

The Load must be disconnected.

Initial status:

Load supplied from Inverter.

1. Press “total off” button.

• Load is disconnected from UPS.

• Rectifier is shut down and all output

and input contactors will be opened.

• LED’s, Rectifier, Inverter and Load are

OFF.

2. Open Q1 (Pos. O).

• LED service check lights up.

3. Disconnect the Battery from the UPS in case of External Battery.

Wait 5 minutes for DC-Link Capacitors

•

discharge.

4. Disconnect the Utility.

• All LED’s are OFF.

End of procedure

OPM_SGS_USM_10K_40K_0US_V010.doc 46/88 Operating Manual

SG Series

10, 20, 30 & 40 kVA

7.1.5 Restore to normal operation after “total off”

iew of the panel after pressing the

button “total off”.

• All Contacts are open;

• Rectifier, Inverter and Static-Switch

shutdown.

1. Reset “total off” by pressing and holding the “total off” button and then the “inverter on” ( I ) key simultaneously until Load is supplied from Bypass and the Rectifier starts.

• Output connects to Bypass Utility.

Rectifier starts with blinking LED.

•

• At the end of Soft-start the LED

remains lit.

•

The LCD screen shows: “LOAD ON BYPASS”.

• Press

buzzer.

mute

, to reset

alarm and

2. Connect the Battery to the UPS by closing the Battery Switch or Fuses, in case of External Battery

3. Press “inverter on” ( I ) key.

• Soft-start of Inverter indicated with

blinking LED.

• At the end of Soft-start the LED

remains lit.

• Automatic transfer from Bypass to

Inverter.

UPS output LED indicates Load on

•

Inverter.

The LCD must display on the main screen the status “LOAD ON INVERTER”.

End of procedure

OPM_SGS_USM_10K_40K_0US_V010.doc 47/88 Operating Manual

SG Series

10, 20, 30 & 40 kVA

7.1.6 Restore to normal operation after EPO (Emergency Power Off)

UPS panel after activation of

EPO (Emergency Power Off)

with Utility not available, i.e. complete shutdown of the UPS. In this case wait until Utility is again available, then proceed to restart the UPS as described below. Points 1 through 3.

UPS panel after activation of EPO (Emergency Power Off) with Utility

available.

• All Contacts are open;

• Rectifier, Inverter and Static-Switch

shutdown.

1. Reset the EPO (Emergency Power Off) button.

• Press mute, to reset alarm and

buzzer.

2. Press “inverter off” ( O ) key.

• Output connects to Bypass Utility.

• Rectifier starts with blinking LED.

• At the end of Soft-start the LED

remains lit.

•

The LCD screen shows: “LOAD ON BYPASS”.

3. Press “inverter on” ( I ) key.

Inverter starts with blinking LED.

•

• At the end of Soft-start the LED

remains lit.

• Automatic transfer from Bypass to

Inverter.

• UPS output LED and LCD screen

indicate both:

OPM_SGS_USM_10K_40K_0US_V010.doc 48/88 Operating Manual

“

LOAD ON INVERTER

End of procedure

”.

SG Series

10, 20, 30 & 40 kVA

7.2 PROCEDURES FOR UPS FUNCTIONING AS FREQUENCY CONVERTER

When the SG Series functions as a Frequency Converter, the Automatic Bypass and

Manual Bypass functions are disabled.

Therefore the Load cannot be transferred to Utility in case of overload, short circuit, or Inverter failure.

In situations where the UPS needs to be shutdown for maintenance purposes, also

Load

the

7.2.1 Start-up of the SG Series as frequency converter

1. Connect the Utility power on the UPS.

• Power supply starts up.

Indicated with flashing alarm and buzzer sound. LED’s as indicated will be lit.

•

• Press mute, to reset alarm and buzzer.

must be shutdown or disconnected

Verify with open front door: Switch Q1 must be open (Pos. O).

2. Close Q1 (Pos. I)

• Rectifier starts automatically, blinking LED

indicates Soft-start.

• At the end of Rectifier Soft-start, LED remains lit.

3. Connect the Battery to the UPS by closing the Battery Switch or Fuses, in case of External Battery.

4. Press “inverter on” ( I ) key.

• Soft-start of Inverter indicated with blinking

LED. At the end of Soft-start the LED remains lit.

•

• UPS output LED indicates Load on Inverter.

The LCD must display on the main screen the status “LOAD ON INVERTER”.

End of procedure

The Battery must be charged for at least 10 hours, in order to ensure the full backup runtime in the case of a Utility Failure.

OPM_SGS_USM_10K_40K_0US_V010.doc 49/88 Operating Manual

SG Series

10, 20, 30 & 40 kVA

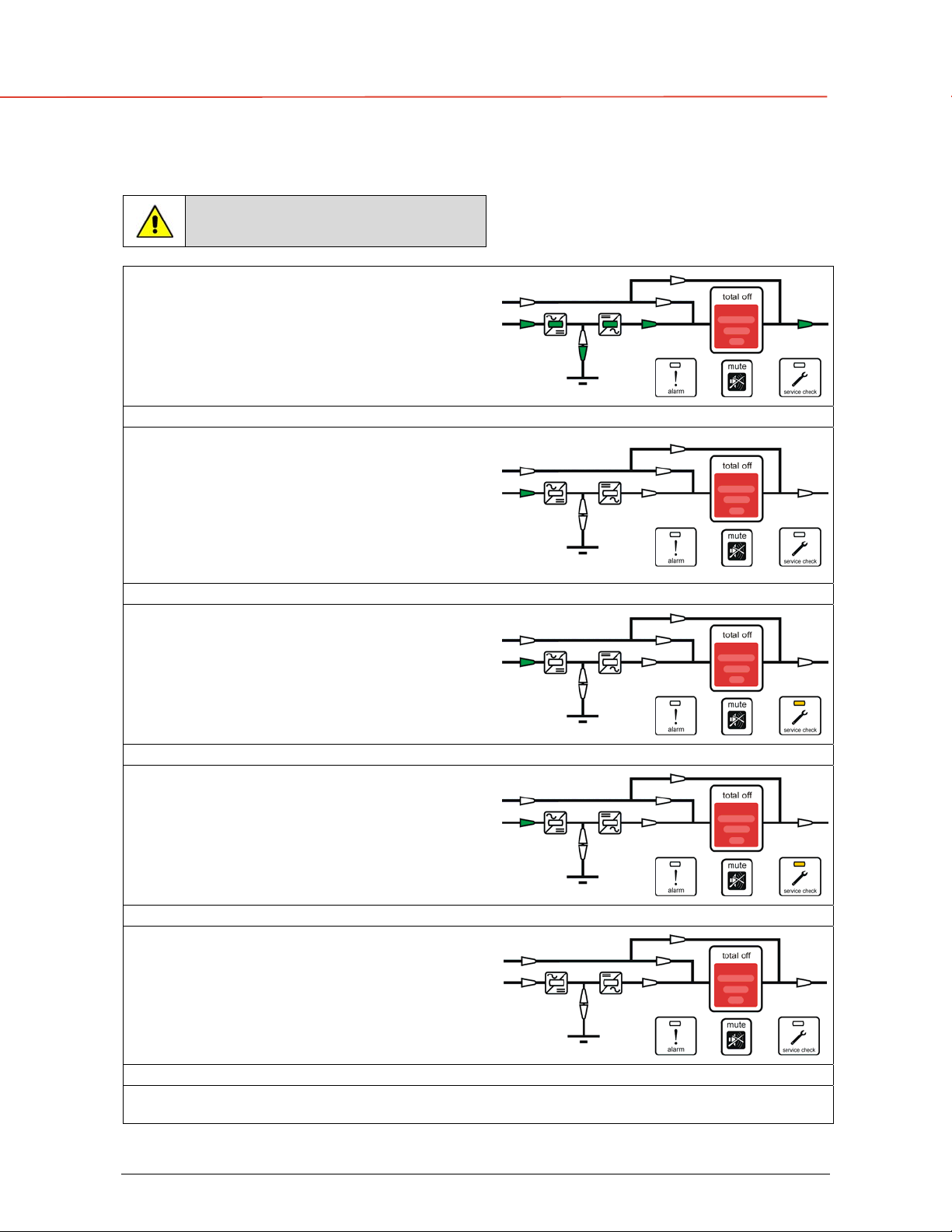

7.2.2 Complete UPS shutdown (No Load supply)

The Load must be disconnected.

Initial status:

Load supplied from Inverter.

1. Press “total off” button.

• Load is disconnected from UPS.

• Rectifier is shut down and all output and

input contactors will be opened.

• LED’s, Rectifier, Inverter and Load are

OFF.

2. Open Q1 (Pos. O).

LED service check lights up.

•

3. Disconnect the Battery from the UPS in case of External Battery.

• Wait 5 minutes for DC-Link Capacitors

discharge.

4. Disconnect the Utility.

• All LED’s are OFF.

End of procedure

OPM_SGS_USM_10K_40K_0US_V010.doc 50/88 Operating Manual

SG Series

10, 20, 30 & 40 kVA

7.2.3 Restore to normal operation after “total off”

View of the panel after pressing the button “total off”.

• All Contacts are open;

• Rectifier, Inverter and Static-Switch

shutdown.

1. Reset “total off” by pressing and holding the “total off” button and the

“

inverter on” ( I )

until the Rectifier starts.

key simultaneously

2. Connect the Battery to the UPS by closing the Battery Switch or Fuses, in case of External Battery.

3. Press “inverter on” ( I ) key.

• Soft-start of Inverter indicated with

blinking LED.

• At the end of Soft-start the LED

remains lit.

• UPS output LED indicates Load on

Inverter.

The LCD must display on the main screen the status “LOAD ON INVERTER”.

End of procedure

OPM_SGS_USM_10K_40K_0US_V010.doc 51/88 Operating Manual

SG Series

10, 20, 30 & 40 kVA

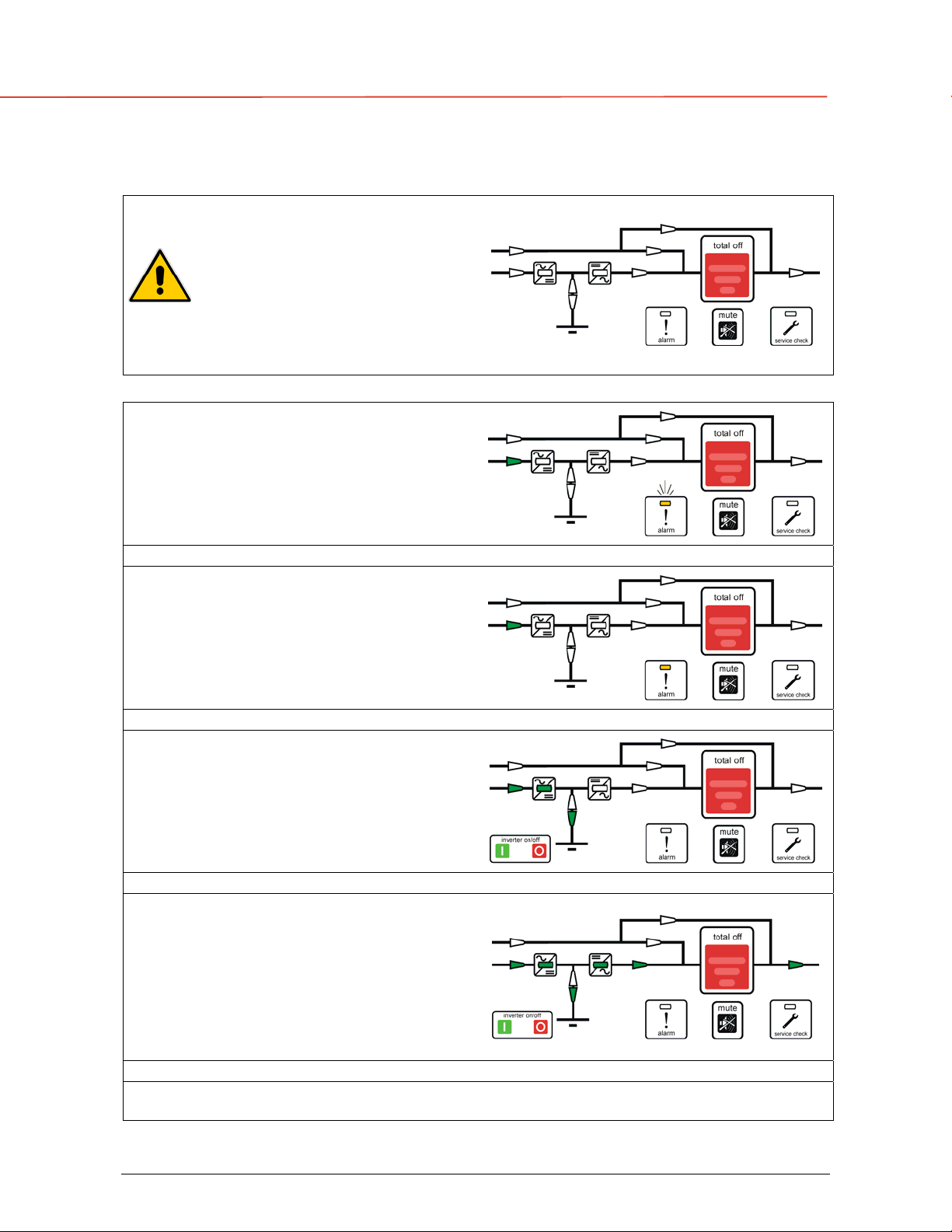

7.2.4 Restore to normal operation after EPO (Emergency Power Off)

UPS panel after activation of

EPO (Emergency Power Off)

with Utility not available, i.e. complete shutdown of the UPS. In this case wait until Utility is again available, then proceed to restart the UPS as described below. Points 1 through 3.

UPS panel after activation of EPO (Emergency Power Off) with Utility

available.

• All Contacts are open;

• Rectifier, Inverter and Static-Switch

shutdown.

1. Reset the EPO (Emergency Power Off) button.

• Press mute, to reset alarm and

buzzer.

2. Press “inverter off” ( O ) key.

• Rectifier starts with blinking LED.

• At the end of Soft-start the LED

remains lit.

•

The LCD screen shows: “LOAD OFF”.

3. Press “inverter on” ( I ) key.

• Inverter starts with blinking LED.

• At the end of Soft-start the

remains lit. UPS output LED and LCD screen

•

indicate both:

“

LOAD ON INVERTER”.

OPM_SGS_USM_10K_40K_0US_V010.doc 52/88 Operating Manual

LED

End of procedure

SG Series

10, 20, 30 & 40 kVA

7.3 PROCEDURES FOR PARALLEL SYSTEM

7.3.1 Parallel System start-up

Verify on all Units, with open front door: Switches Q1 and Q2

must be open

(Pos. O).

1. Connect the Utility power on all UPS’s.

(In case of separate inputs for Rectifier and Bypass, connect both).

• Power supply starts up. Indicated with flashing alarm and buzzer sounds.

• LED’s as indicated will be lit.

•

Press mute, to reset alarm and buzzer.

First operated unit All other units of the system

2. Close Q1 (Pos. I) on all Units

• When closing Q1 on the last unit of the parallel system, the Bypass of all Units

connects to the Load.

• Rectifiers start automatically, blinking LED indicates Soft-start.

• At the end of Rectifier Soft-start, the LED remains lit.

• LED’s service check turn OFF.

First operated unit All other units of the system

3. Connect the Battery to all Units by closing the external Battery Switches or Fuses, in case of External Battery

OPM_SGS_USM_10K_40K_0US_V010.doc 53/88 Operating Manual

Continue ►

SG Series

10, 20, 30 & 40 kVA

4. Press “inverter on” ( I ) key on first unit.

Soft-start of Inverter, indicated with blinking LED.

•

• At the end of Soft-start the LED Inverter remains lit.

• In case of sufficient output power, the output will transfer to Inverter.

• UPS output LED indicates Load on Inverter and the LCD must display on the

main screen the status “LOAD ON INVERTER”.

First operated unit All other units of the system

5. Press “inverter on” ( I ) key on all other units.

(Do not start the next Inverter until the sequence of the previous ends)

As soon as the output power of the Inverters is sufficient to supply the Load, the

•

output of the units with running Inverter will transfer to Inverter.

• All LED’s Inverter, Load on Inverter and Load supplied are ON.

First operated unit All other units of the system

The LCD must display on the main screen on all Units the status “LOAD ON INVERTER”.

End of procedure

The Battery must be charged for at least 10 hours, in order to ensure the full backup runtime in the case of a Utility Failure.

OPM_SGS_USM_10K_40K_0US_V010.doc 54/88 Operating Manual

SG Series

10, 20, 30 & 40 kVA

7.3.2 Maintenance system shutdown (Load supplied from Q2 on all Units)

Initial status: Load supplied from all Inverters.

First operated unit All other units of the system

1. Press “inverter off” ( O ) key on all Units, and hold until the LED inside the Inverter symbol turns OFF.

At no redundancy, the system will transfer to Utility supply.

First operated unit All other units of the system

2. Close Q2 (Pos. I) on all Units.

Load is now supplied from Utility in parallel from Bypass and Manual Bypass Q2 of all Units.

First operated unit All other units of the system

3. Open Q1 (Pos. O) and then press “total off” button on all Units. The Bypass of all Units will disconnect and all Rectifiers are shutdown.

First operated unit All other units of the system

4. Disconnect the Battery, in case of External Battery, from all Units.

• Wait 5 minutes for DC-Link Capacitors discharge.

First operated unit All other units of the system

End of procedure

OPM_SGS_USM_10K_40K_0US_V010.doc 55/88 Operating Manual

SG Series

10, 20, 30 & 40 kVA

7.3.3 From Manual Bypass (Q2) to normal function On-line

Initial status: Load supplied from Manual Bypass.

All Q2 of the system are closed

First operated unit All other units of the system

1. Close Q1 (Pos. I) on all Units.

The Rectifiers will start automatically and at the closure of Q1 of the last Unit, the

Bypass of all Units will be activated.

First operated unit All other units of the system

2. Connect the Battery to all Units by closing the external Battery Switches or Fuses, in case of External Battery.

3. Open Q2 (Pos. O) on all Units.

First operated unit All other units of the system

Continue ►

OPM_SGS_USM_10K_40K_0US_V010.doc 56/88 Operating Manual

SG Series

10, 20, 30 & 40 kVA

4. Press “inverter on” ( I ) key on first unit.

Soft-start of Inverter, indicated with blinking LED.

•

• At the end of Soft-start the LED Inverter remains lit.

• In case of sufficient output power, the output will transfer to Inverter.

• UPS output LED indicates Load on Inverter and the LCD must display on the

main screen the status “LOAD ON INVERTER”.

First operated unit All other units of the system

5. Press “inverter on” ( I ) key on all other units. (Do not start the next Inverter until the sequence of the previous ends)

• As soon as the output power of the Inverters is sufficient to supply the Load, the

output of the units with running Inverter will transfer to Inverter. All LED’s Inverter, Load on Inverter and Load supplied are ON.

•

First operated unit All other units of the system

The LCD must display on the main screen on all Units the status “LOAD ON INVERTER”.

End of procedure

OPM_SGS_USM_10K_40K_0US_V010.doc 57/88 Operating Manual

SG Series

10, 20, 30 & 40 kVA

7.3.4 Separate a Unit from the parallel system (System Redundancy)

Initial status: Load supplied from all Inverters.

First operated unit All other units of the system

1. Press and hold “inverter off” ( O ) key on the Unit to separate, until the LED turns OFF.

Load supplied from Inverter(s) of the other Unit(s) of the parallel system

First operated unit All other units of the system

2. Open Q1 (Pos. O) and, only when the LED service check is ON, press “total off” button on the Unit to separate.

First operated unit All other units of the system

3. Disconnect the Battery, in case of External Battery, from the Unit to separate.

•

Wait 5 minutes for DC-Link Capacitors discharge.

4. Disconnect the Utility supply from the separated Unit

First operated unit All other units of the system

End of procedure

OPM_SGS_USM_10K_40K_0US_V010.doc 58/88 Operating Manual

For any further intervention could nearest Service Center.

SG Series

10, 20, 30 & 40 kVA

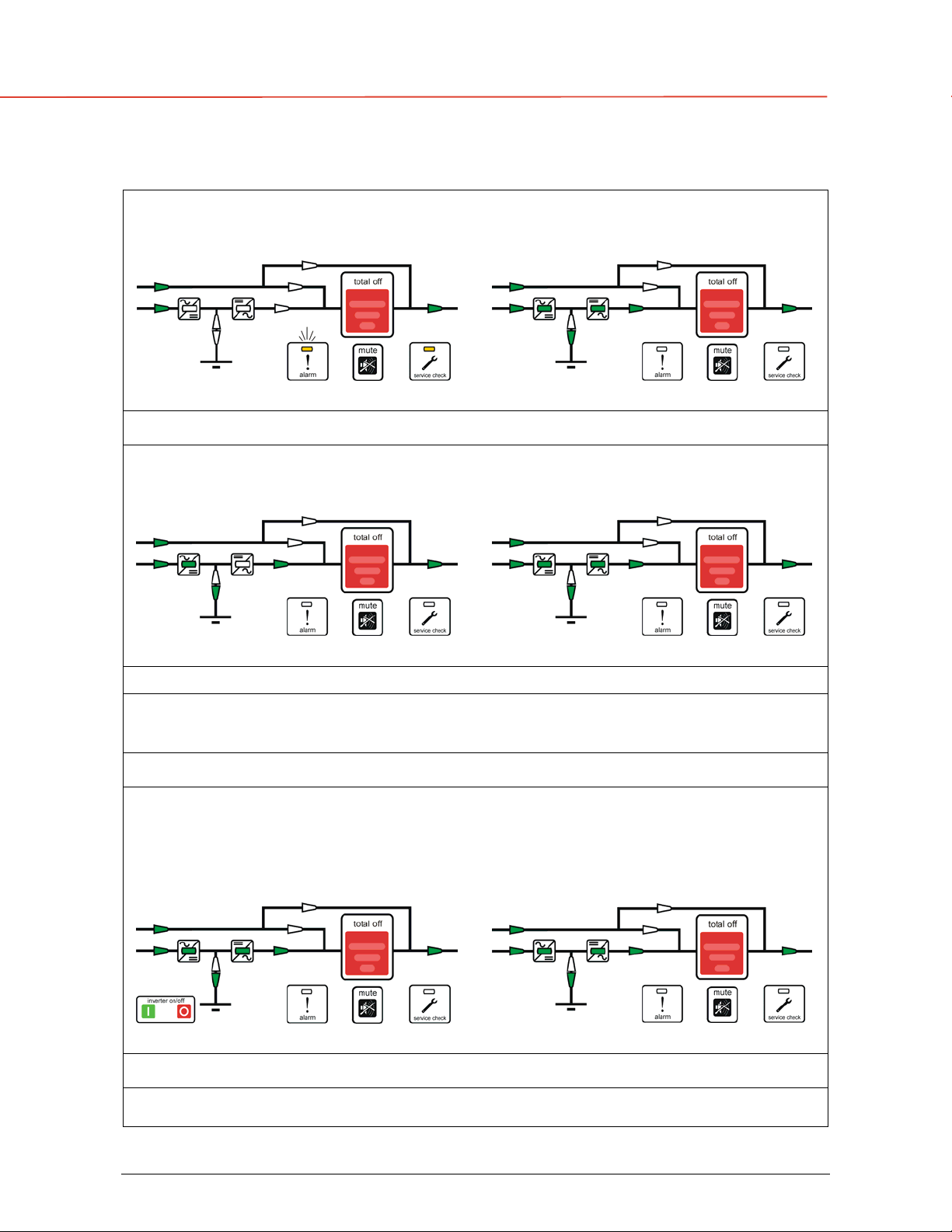

7.3.5 Reconnect a Unit to a parallel system

1. Connect the Utility supply on the separated Unit.

• Press mute, to reset alarm and buzzer.

First operated unit All other units of the system

2. Close Q1 (Pos. I) on the separated Unit.

Rectifier starts automatically.

First operated unit All other units of the system

3. Connect the Battery, in case of External Battery, to the UPS on the separated Unit by closing the external Battery Switch or Fuses.

4. Press “inverter on” ( I ) key on the separated Unit.

After Soft-start of the Inverter, the Inverter connects automatically to the other Units of the parallel system.

The LCD must display on the main screen the status “

•

LOAD ON INVERTER

”.

First operated unit All other units of the system

End of procedure

OPM_SGS_USM_10K_40K_0US_V010.doc 59/88 Operating Manual

SG Series

10, 20, 30 & 40 kVA

7.3.6 Parallel system shutdown (No Load supply)

The Load must be disconnected.

Initial status:

Load supplied from all Inverters

First operated unit All other units of the system

1. Press “total off” button on any one on the Units.

• Load is disconnected from UPS.

Rectifier

•

opened. LED’s, Rectifier, Inverter and Load are OFF.

•

and

Inverter

are shut down and all output and input

Contactors

will be

First operated unit

All other units of the system

2. Open Q1 (Pos. O) on all Units.

First operated unit All other units of the system

OPM_SGS_USM_10K_40K_0US_V010.doc 60/88 Operating Manual

SG Series

Continue ►

10, 20, 30 & 40 kVA

3. Disconnect the Battery, in case of External Battery, from all Units

• Wait 5 minutes for DC-Link Capacitors discharge.

First operated unit

All other units of the system

4. Disconnect the Utility supply from all Units.

All LED’s are OFF.

•

First operated unit All other units of the system

End of procedure

OPM_SGS_USM_10K_40K_0US_V010.doc 61/88 Operating Manual

SG Series

10, 20, 30 & 40 kVA

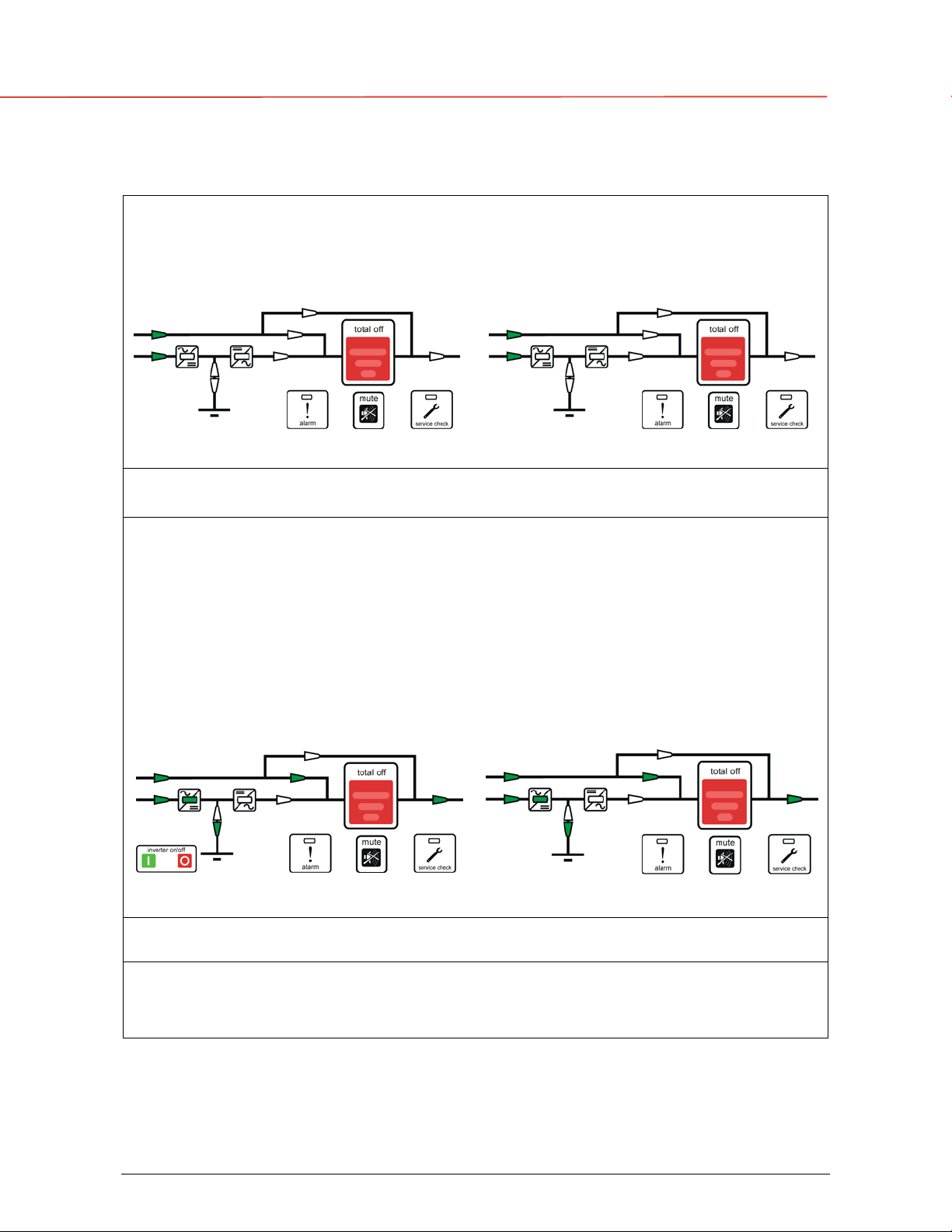

7.3.7 Restore to normal operation after “total off”

View of the panel after pressing the button “total off”.

• All Contacts are open;

• Rectifier

Inverter

First operated unit All other units of the system

Static-Switch

and

shutdown.

1. Reset “total off” by pressing and holding the “total off” button and then the “

inverter on” ( I )

from Bypass and the Rectifiers start.

System output connects to Bypass Utility.

•

• Rectifiers start with blinking LED.

• At the end of Soft-start the LED’s remains lit.

• The LCD screen

key, on any of the Units simultaneously, until Load is supplied

on all Units

shows “LOAD ON BYPASS”.

FIRST OPERATED UNIT

All other units of the system

2. Connect the Battery to all Units by closing the external Battery Switches or Fuses, in case of External Battery

OPM_SGS_USM_10K_40K_0US_V010.doc 62/88 Operating Manual

Continue ►

SG Series

10, 20, 30 & 40 kVA

3 Press “inverter on” ( I ) key on first unit.

Soft-start of Inverter, indicated with blinking LED.

•

• At the end of Soft-start the LED Inverter remains lit.

• In case of sufficient output power, the output will transfer to Inverter.

• UPS output LED indicates Load on Inverter and the LCD must display on the

main screen the status “

LOAD ON INVERTER

”.

First operated unit All other units of the system

4. Press “inverter on” ( I ) key on all other units.

(Do not start the next Inverter until the sequence of the previous ends)

• As soon as the output power of the Inverters is sufficient to supply the Load, the

output of the units with running Inverter will transfer to Inverter.

• All

The LCD must display on the main screen on all Units the status “LOAD ON INVERTER””.

LED’s Inverter, Load on Inverter

First operated unit All other units of the system

and

Load

supplied are ON.

End of procedure

OPM_SGS_USM_10K_40K_0US_V010.doc 63/88 Operating Manual

SG Series

10, 20, 30 & 40 kVA

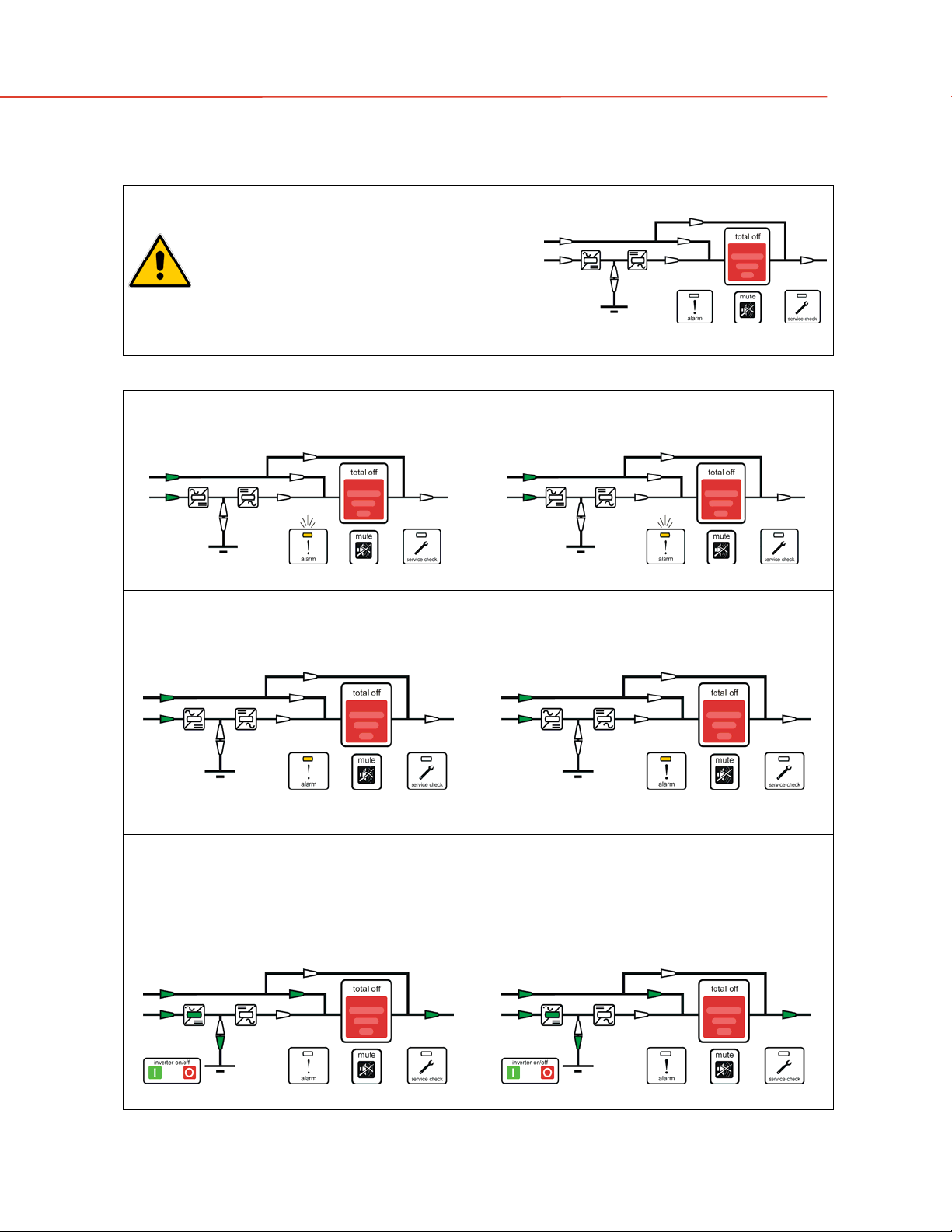

7.3.8 Restore to normal operation after EPO (Emergency Power Off)

UPS panel after activation of EPO (Emergency Power Off) with Utility not available, i.e. complete shutdown of the UPS and LCD screen OFF. In this case wait until Utility is again available, then proceed to restart the UPS as described below Points 1 through 3.

UPS panel after activation of EPO (Emergency Power Off) with Utility available All Contacts are open. Rectifier, Inverter and Static-Switch shutdown.

First operated unit All other units of the system

1. Reset the EPO (Emergency Power Off) button.

• Press mute, to reset alarm and buzzer.

First operated unit All other units of the system

2. Press “inverter off” ( O ) key on all Units.

• Rectifiers start with blinking LED.

After pressing the “inverter off” key on the last unit of the parallel system, the

•

output of all Units connect to Bypass Utility.

• The LCD screen shows: “LOAD ON BYPASS”.

First operated unit All other units of the system

Continue ►

OPM_SGS_USM_10K_40K_0US_V010.doc 64/88 Operating Manual

SG Series

10, 20, 30 & 40 kVA

3. Connect the Battery to all Units by closing the external Battery Switches or Fuses, in case of External Battery.

4. Press “inverter on” ( I ) key on first Unit.

• Soft-start of Inverter, indicated with blinking LED.

• At the end of Soft-start the LED Inverter remains lit.

In case of sufficient output power, the output will transfer to Inverter.

•

• UPS output LED indicates Load on Inverter and the LCD must display on the main

screen the status “

LOAD ON INVERTER

”.

First operated unit All other units of the system

5. Press “inverter on” ( I ) key on all other Units. (Do not start the next

• As soon as the output power of the Inverters is sufficient to supply the Load, the

output of the units with running Inverter will transfer to Inverter.

• All LED’s Inverter, Load on Inverter and Load supplied are ON.

First operated unit All other units of the system

The LCD must display on the main screen on all Units the status “LOAD ON INVERTER”.

Inverter

until the sequence of the previous ends).

End of procedure

OPM_SGS_USM_10K_40K_0US_V010.doc 65/88 Operating Manual

SG Series

10, 20, 30 & 40 kVA

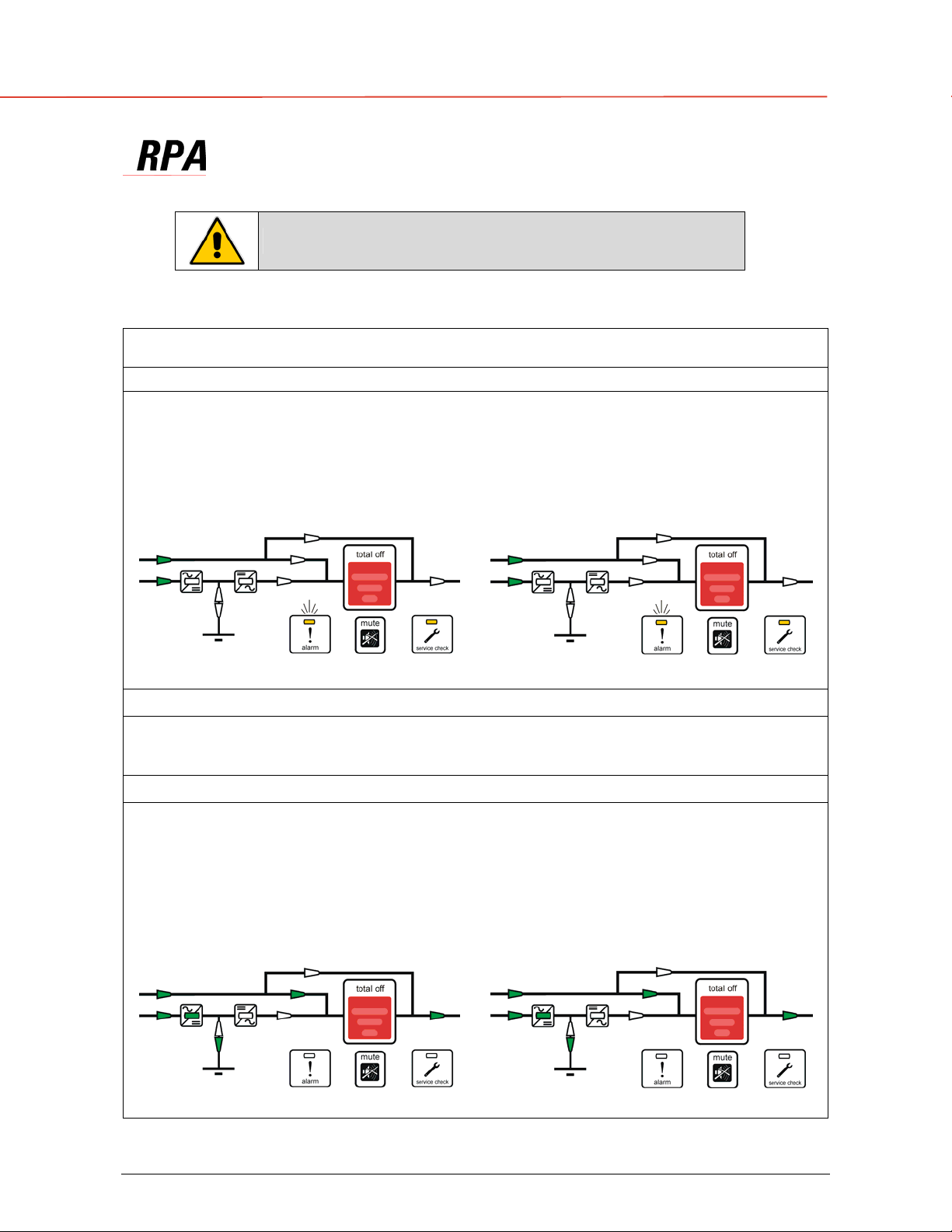

7.4 PROCEDURES FOR PARALLEL SYSTEM WITH COMMON BATTERY

ONLY FOR UPS WITH EXTERNAL BATTERY.

7.4.1 Parallel System start-up

Verify on all Units, with open front door: Switches Q1 and Q2 must be open (Pos. O).

1. Connect the Utility power on all UPS’s.

(In case of separate inputs for Rectifier and Bypass, connect both).

• Power supply starts up. Indicated with flashing alarm and buzzer sounds.

• LED’s as indicated will be lit.

•

Press mute, to reset alarm and buzzer.

First operated unit All other units of the system

2. Connect the Battery to all Units by closing the external Battery Switch(es) or Fuses.

3. Close Q1 (Pos. I) on all Units

• Rectifiers start automatically, blinking LED indicates Soft-start.

At the end of Rectifier Soft-start, the LED remains lit.

•

• When closing Q1 on the last Unit of the parallel system, the Bypass of all Units

connects to the Load.

• LED’s service check turn OFF.

First operated unit All other units of the system

OPM_SGS_USM_10K_40K_0US_V010.doc 66/88 Operating Manual

SG Series

Continue ►

10, 20, 30 & 40 kVA

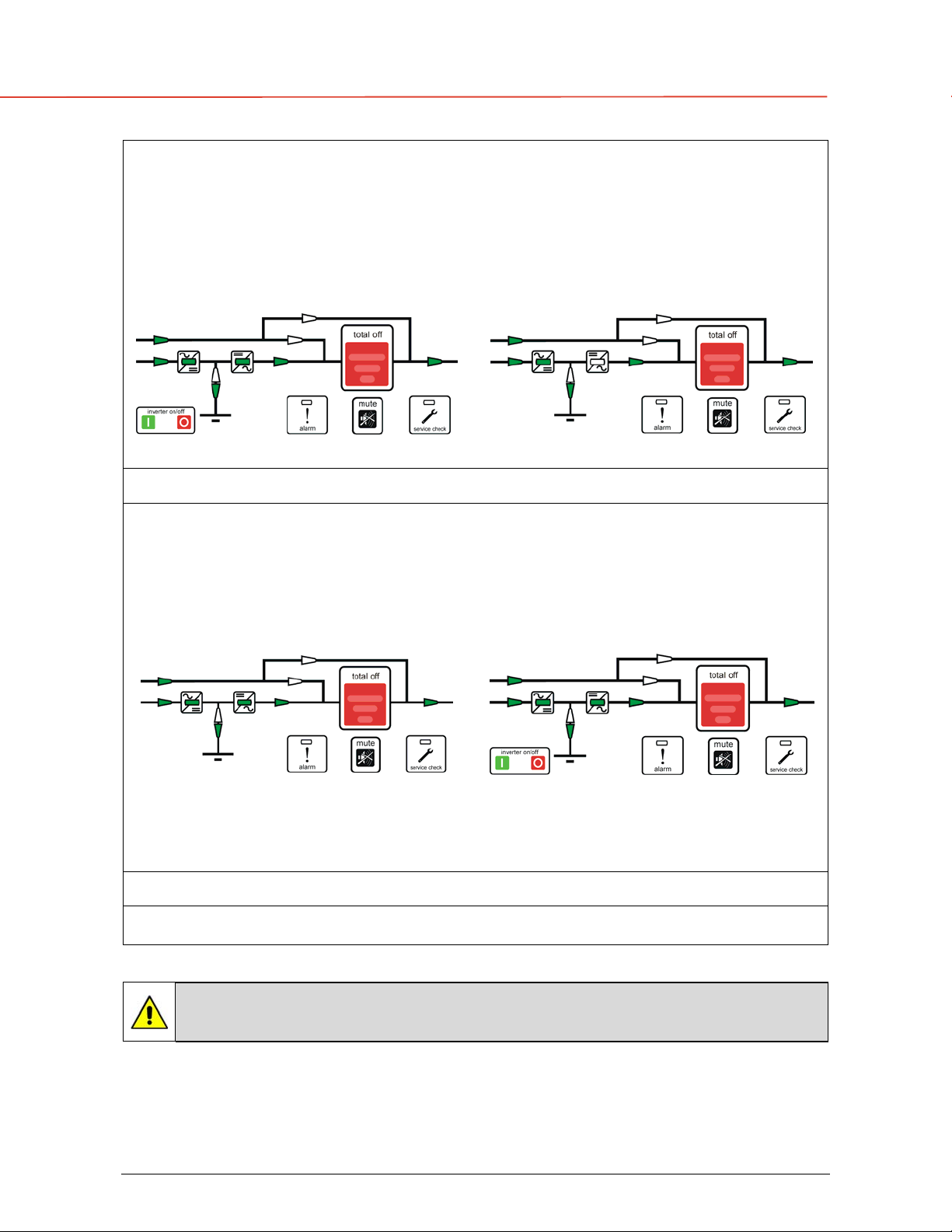

4. Press “inverter on” ( I ) key on first unit.

Soft-start of Inverter, indicated with blinking LED.

•

• At the end of Soft-start the LED Inverter remains lit.

• In case of sufficient output power, the output will transfer to Inverter.

• UPS output LED indicates Load on Inverter and the LCD must display on the

main screen the status “LOAD ON INVERTER”.

First operated unit All other units of the system

5. Press “inverter on” ( I ) key on all other units.

(Do not start the next Inverter until the sequence of the previous ends)

As soon as the output power of the Inverters is sufficient to supply the Load, the

•

output of the units with running Inverter will transfer to Inverter. All LED’s Inverter, Load on Inverter and Load supplied are ON.

•

First operated unit All other units of the system

The LCD must display on the main screen on all Units the status “LOAD ON INVERTER”.

End of procedure

The Battery must be charged for at least 10 hours, in order to ensure the full backup runtime in the case of a Utility Failure.

OPM_SGS_USM_10K_40K_0US_V010.doc 67/88 Operating Manual

SG Series

10, 20, 30 & 40 kVA

7.4.2 Maintenance system shutdown (Load supplied from Q2 on all Units)

Initial status:

1. Press and hold “inverter off” ( O ) key on all Units, until the LED inside the Inverter symbol turns OFF.

At no redundancy, the system will transfer to Utility supply.

2. Close Q2 (Pos. I) on all Units. Load is now supplied from Utility in parallel from Bypass and Manual Bypass Q2 of all Units.

Load supplied from all Inverters

First operated unit All other units of the system

First operated unit

3. Open Q1

The Bypass of all Units will disconnect and all Rectifiers are shutdown.

(Pos. O)

and press “total off” button on all Units.

All other units of the system

First operated unit All other units of the system

4. Disconnect the Battery from all Units.

• Wait 5 minutes for DC-Link Capacitors discharge.

First operated unit All other units of the system

End of procedure

OPM_SGS_USM_10K_40K_0US_V010.doc 68/88 Operating Manual

SG Series

10, 20, 30 & 40 kVA

7.4.3 From Manual Bypass (Q2) to normal function On-line

Initial status: Load supplied from Manual Bypass.

All Q2 of the system closed

First operated unit All other units of the system

1. Connect the Battery to all Units by closing the external Battery Switch(es) or Fuses.

2. Close Q1 (Pos. I) on all Units.

The Rectifiers will start automatically and at the closure of Q1 of the last Unit, the Bypass of all Units will be activated.

First operated unit All other units of the system

3. Open Q2 (Pos. O) on all Units

First operated unit All other units of the system

OPM_SGS_USM_10K_40K_0US_V010.doc 69/88 Operating Manual

Continue ►

SG Series

10, 20, 30 & 40 kVA

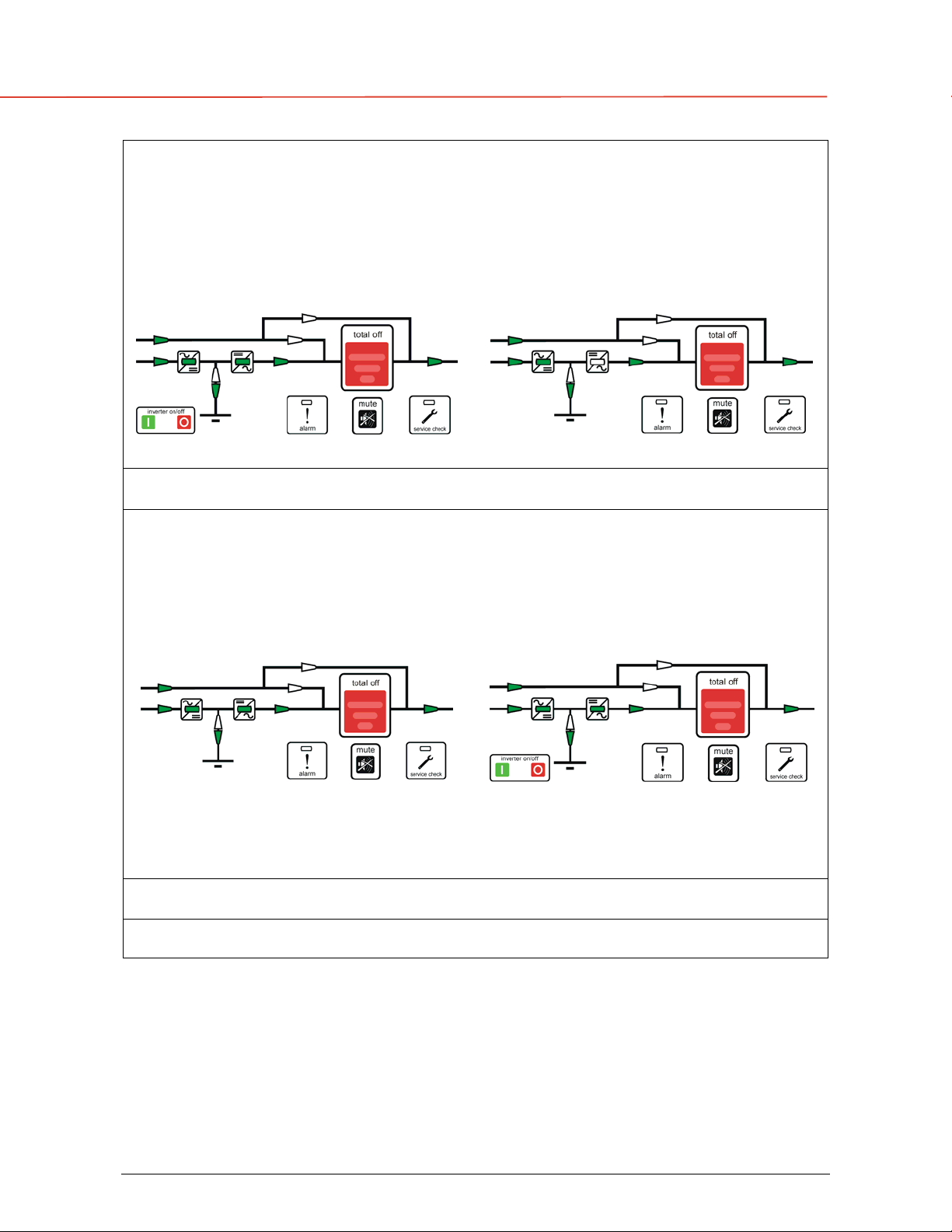

4. Press “inverter on” ( I ) key on first unit.

Soft-start of Inverter, indicated with blinking LED.

•

• At the end of Soft-start the LED Inverter remains lit.

• In case of sufficient output power, the output will transfer to Inverter.

• UPS output LED indicates Load on Inverter and the LCD must display on the

main screen the status “LOAD ON INVERTER”.

First operated unit All other units of the system

5. Press “inverter on” ( I ) key on all other units. (Do not start the next Inverter until the sequence of the previous ends)

• As soon as the output power of the Inverters is sufficient to supply the Load, the

output of the units with running Inverter will transfer to Inverter.

• All LED’s Inverter, Load on Inverter and Load supplied are ON.

First operated unit All other units of the system

The LCD must display on the main screen on all Units the status “LOAD ON INVERTER”.

End of procedure

OPM_SGS_USM_10K_40K_0US_V010.doc 70/88 Operating Manual

SG Series

10, 20, 30 & 40 kVA

7.4.4 Separate a Unit from the parallel system (System Redundancy)

Initial status: Load supplied from all Inverters.

First operated unit All other units of the system

1. Press and hold “inverter off” ( O ) key on the Unit, to separate, until the LED turns OFF.

Load supplied from Inverter(s) of the other Unit(s) of the parallel system

First operated unit All other units of the system

2. Open Q1 (Pos. O) and, only when the LED service check is ON, press “total off” button on the Unit to separate.

First operated unit All other units of the system

3. Disconnect the Battery from the Unit to separate.

Wait 5 minutes for DC-Link Capacitors discharge.

•

4. Disconnect the Utility supply from separated Unit.

First operated unit All other units of the system

End of procedure

OPM_SGS_USM_10K_40K_0US_V010.doc 71/88 Operating Manual

For any further intervention could nearest Service Center.

SG Series

10, 20, 30 & 40 kVA

7.4.5 Reconnect a Unit to a parallel system

1. Connect the Utility supply on the separated Unit.

• Press mute, to reset alarm and buzzer.

First operated unit All other units of the system

2. Connect the Battery to the UPS separated by closing the external Battery Switch or Fuses.

3. Close Q1 (Pos. I) on the separated Unit.

Rectifier starts automatically.

First operated unit All other units of the system

4. Press “inverter on” ( I ) key on the separated Unit. After Soft-start of the Inverter, the Inverter connects automatically to the other Units

of the parallel system.

First operated unit All other units of the system

End of procedure

OPM_SGS_USM_10K_40K_0US_V010.doc 72/88 Operating Manual

SG Series

10, 20, 30 & 40 kVA

7.4.6 Parallel system shutdown (No Load supply)

The Load must be disconnected.

Initial status:

Load supplied from all Inverters

First operated unit All other units of the system

1. Press “total off” button on any one on the units.

• Load is disconnected from UPS.

Rectifier and Inverter are shut down and all output and input contactors will be

•

opened. LED’s, Rectifier, Inverter and Load are OFF.

•

First operated unit All other units of the system

2. Open Q1 (Pos. O) on all Units.

First operated unit All other units of the system

OPM_SGS_USM_10K_40K_0US_V010.doc 73/88 Operating Manual

SG Series

Continue ►

10, 20, 30 & 40 kVA

3. Disconnect the Battery from all Units.

• Wait 5 minutes for DC-Link Capacitors discharge.

First operated unit All other units of the system

4. Disconnect the Utility supply from all Units.

All LED’s are OFF.

•

First operated unit All other units of the system

End of procedure

OPM_SGS_USM_10K_40K_0US_V010.doc 74/88 Operating Manual

SG Series

10, 20, 30 & 40 kVA

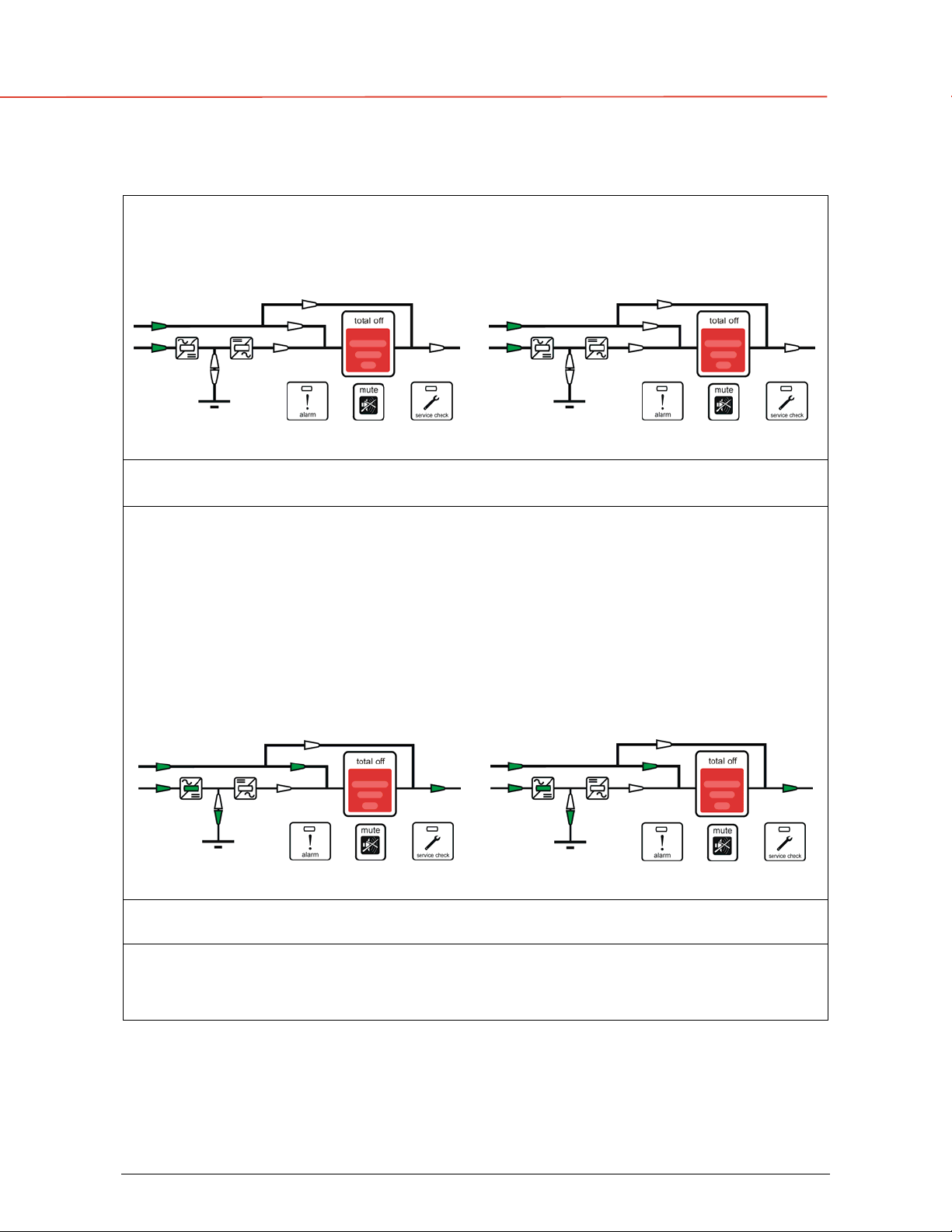

7.4.7 Restore to normal operation after “total off”

View of the panel after pressing the button “total off”.

• All Contacts are open;

• Rectifier

Inverter

First operated unit All other units of the system

Static-Switch

and

shutdown.

1. Reset “total off” by pressing and holding the “total off” button and then the “

inverter on” ( I )

from Bypass and the Rectifiers start.

System output connects to Bypass Utility.

•

• Rectifiers start with blinking LED.

• At the end of Soft-start the LED’s remains lit.

The LCD screen

•

key, on any of the Units simultaneously, until Load is supplied

on all Units shows: “

LOAD ON BYPASS

”.

First operated unit All other units of the system

2. Connect the Battery to all Units by closing the external Battery Switch(es) or Fuses

OPM_SGS_USM_10K_40K_0US_V010.doc 75/88 Operating Manual

Continue ►

SG Series

10, 20, 30 & 40 kVA

3. Press “inverter on” ( I ) key on first unit.

Soft-start of Inverter, indicated with blinking LED.

•

• At the end of Soft-start the LED Inverter remains lit.

• In case of sufficient output power, the output will transfer to Inverter.

• UPS output LED indicates Load on Inverter and the LCD must display on the

main screen the status “

LOAD ON INVERTER

”.

First operated unit All other units of the system

4. Press “inverter on” ( I ) key on all other units.

(Do not start the next Inverter until the sequence of the previous ends)

• As soon as the output power of the Inverters is sufficient to supply the Load, the

output of the units with running Inverter will transfer to Inverter.

• All LED’s Inverter, Load on Inverter and Load supplied are ON.

First operated unit All other units of the system

The LCD must display on the main screen on all Units the status “LOAD ON INVERTER”.

End of procedure

OPM_SGS_USM_10K_40K_0US_V010.doc 76/88 Operating Manual

SG Series

10, 20, 30 & 40 kVA

7.4.8 Restore to normal operation after EPO (Emergency Power Off)

UPS panel after activation of EPO (Emergency Power Off) with Utility available. All Contacts are open. Rectifier, Inverter and Static-Switch shutdown.

First operated unit All other units of the system

1. Reset the EPO (Emergency Power Off) button.

• Press mute, to reset alarm and buzzer.

First operated unit All other units of the system

2. Connect the Battery to all Units by closing the external Battery Switch(es) or Fuses

3. Press “inverter off” ( O ) key on all Units.

•

• After pressing the “inverter off” key on the last unit of the parallel system, the

• The LCD screen shows: “LOAD ON BYPASS”.

Rectifiers start with blinking LED.

output of all Units connect to Bypass Utility.

First operated unit All other units of the system

Continue ►

OPM_SGS_USM_10K_40K_0US_V010.doc 77/88 Operating Manual

SG Series

10, 20, 30 & 40 kVA

4. Press “inverter on” ( I ) key on first Unit.

• Soft-start of Inverter, indicated with blinking LED.

At the end of Soft-start the LED Inverter remains lit.

•

• In case of sufficient output power, the output will transfer to Inverter.

• UPS

output LED

screen the status “LOAD ON INVERTER”.

indicates

Load on Inverter

and the

LCD

must display on the main

First operated unit

All other units of the system

5. Press “inverter on” ( I ) key on all other Units. (Do not start the next Inverter until the sequence of the previous ends).

• As soon as the output power of the Inverters is sufficient to supply the Load, the

output of the units with running Inverter will transfer to Inverter.

• All LED’s Inverter, Load on Inverter and Load supplied are ON.

The LCD of the all Units, must display on the main screen the status

•

“LOAD ON INVERTER”.

First operated unit

The LCD must display on the main screen on all Units the status “LOAD ON INVERTER”.

All other units of the system

End of procedure

OPM_SGS_USM_10K_40K_0US_V010.doc 78/88 Operating Manual

SG Series

10, 20, 30 & 40 kVA

8 CUSTOMER INTERFACE

8.1 CUSTOMER INTERFACE

Serial port J3 - RS 232 (sub D - female 9 pin)

Suitable for JUMP protocol

Pin 2: TX (out) Pin 3: RX (in) Pin 5: GND

12 13

SGT5000_100-150_Customer interface_01

9 10

JP3

Fig. 8.1-1 Customer interface

The connectors J4 and J5 can be used for additional SNMP Card, Environmental Card (not available yet) or an additional

XA: terminals for 24VDC Auxiliary Power Supply connection. XB: terminals for EPO connection.

Programmable user relays Programmable functions on contacts (X1 - J2)

On terminals signals can be selected from the display, entering with the appropriate password.

0- No Information 1- Buzzer 2- General Alarm 3- Load on Utility 4- Stop Operation 5- Load on Inverter 6- Utility Failure 7- DC Over Voltage 8- Low Battery 9- Overload 10- Over Temperature 11- Inverter-Utility not syncr. 12- Bypass Locked 13- Bypass Utility Failure

Customer Interface

connector, six of the following

14- Rectifier Utility Failure 15- Battery Discharge 16- Manual Bypass ON 17- Rectifier ON 18- Inverter ON 19- Boost Charge 20- Battery Earth Fault 21- Battery Fault 22- Relay Input 1 23- Relay Input 2 24- Relay Output ON 25- Relay Output OFF 26-

J2 (subD-female 25p) – Output signals on voltage free contacts

J2/1, 2, 3

- NO, C, NC - Utility Failure

J2/4, 5, 6 - NO, C, NC - Load on Inverter (def. Param. RL=3) J2/7, 8, 9 - NO, C, NC - Stop Operation (def. Param. RL=5) J2/14, 15, 16 - NO, C, NC - Load on Utility (def. Param. RL=2) J2/17, 18, 19 - NO, C, NC - General Alarm (def. Param. RL=4) J2/20, 21, 22

- NO, C, NC - Acoustic Alarm (def. Param. RL=6)

Signals on terminals X1 and on connector J2 are in parallel

and therefore not separated galvanically from each other. The programmable signals on X1 and J2 will be disabled with Q1 open, with the exception of the signals for “16 - Manual Bypass ON” and “26 - EPO”.

(def. Param. RL=1)

XB - Terminals for EPO connection

X2 / 1, 2 or J2 / 12, 25 Note: to enable this function, remove cable short-circuiting XB / 2 – 3

and the Jumper JP3 on P4 – Customer Interface

NC EPO (Emergency Power Off)

X1 – Output signals on voltage free contacts - terminals

X1/1, 2, 3 - NO, C, NC - Utility Failure (def. Param. RL=1) X1/4, 5, 6 X1/7, 8, 9

- NO, C, NC - Load on Inverter (def. Param. RL=3)

- NO, C, NC - Stop Operation (def. Param. RL=5)

X1/12, 13, 14 - NO, C, NC - Load on Utility (def. Param. RL=2) X1/15, 16, 17 - NO, C, NC - General Alarm (def. Param. RL=4) X1/18, 19, 20 - NO, C, NC - Acoustic Alarm (def. Param. RL=6)

Input contacts

X1/10, 21 or J2/10, 23 Programmable (default = RL1) X1/11, 22 or J2/11, 24 Programmable / Generator ON (NO) (def. = RL2)

NO = normally open C = common NC = normally closed

(installation only when the UPS is switched Off).

Some UPS functions can be activated with parameters when an external Normally Open contact is closed on:

X1-10, 21 / J2-10, 23 or X1-11, 22 / J2- 11, 24

Selectable functions by changing

parameters

(password required) are: 0 - No function 1 - Inverter ON 2 - Inverter OFF 3 - Print All 4 - Status Relay 5 - Generator ON 6 - External Bypass ON 7 - External Battery Fuses, or External K3.

See Alarm 4104 - “Battery Fuses”.

Voltage free contacts: Max. DC / AC: 24V / 1.25A

EPO (Emergency

Power Off)

IEC 950 (SELV circuit) Min. Signal Level: 5VDC/50mA

OPM_SGS_USM_10K_40K_0US_V010.doc 79/88 Operating Manual

SG Series

10, 20, 30 & 40 kVA

8.1.1 Serial Port J3

Serial port J3 - RS-232 (sub D, female 9 pin) that allows:

• Total remote management of the system using new generation software JUMP (Java

Universal Management Platform) for system protection and management of systems using GE UPS’s. JUMP system is written in JAVA and supports virtually all platforms having JAVA runtime environment version 1.1 or higher.

The serial port J3 - RS-232 is enabled on all the units of the parallel system.

Serial port J3 connection to PC

Fig. 8.1.1-1 Serial port J3 connection to PC

8.1.2 Output free potential contacts

The interface board provide 6 voltage free relay contacts giving some UPS critical alarms and operation mode.

These signals are available either on connector blocks X1.

J2- (sub D, female 25 pin)

The meaning of the alarms on the free contacts in standard configuration (default) is the following:

X1 / 1, 2, 3 or J2 / 1, 2, 3 (NO, C, NC) Utility Failure

X1 / 4, 5, 6 or J2 / 4, 5, 6 (NO, C, NC) Load on Inverter

X1 / 7, 8, 9 or J2 / 7, 8, 9 (NO, C, NC) Stop Operations

X1 / 12, 13, 14 or J2 / 14, 15, 16 (NO, C, NC) Load on Utility

X1 / 15, 16, 17 or J2 / 17, 18, 19 (NO, C, NC) General Alarm

X1 / 18, 19, 20 or J2 / 20, 21, 22 (NO, C, NC) Acoustic Alarm

(def. Par. RL=1)

(def. Par. RL=3)

(def. Par. RL=5)

(def. Par. RL=2)

(def. Par. RL=4)

(def. Par. RL=6)

In case different alarms or operating status are required, they can be configured on the same terminals via software from the control panel.

The configuration can be changed in parameters mode by a trained operator using the appropriate password.

The programmable signals on X1 and J2 will be disabled with Q1 open, with the exception of the signals for “16 - Manual Bypass ON” and “26 - EPO”.

or terminal

OPM_SGS_USM_10K_40K_0US_V010.doc 80/88 Operating Manual

SG Series

10, 20, 30 & 40 kVA

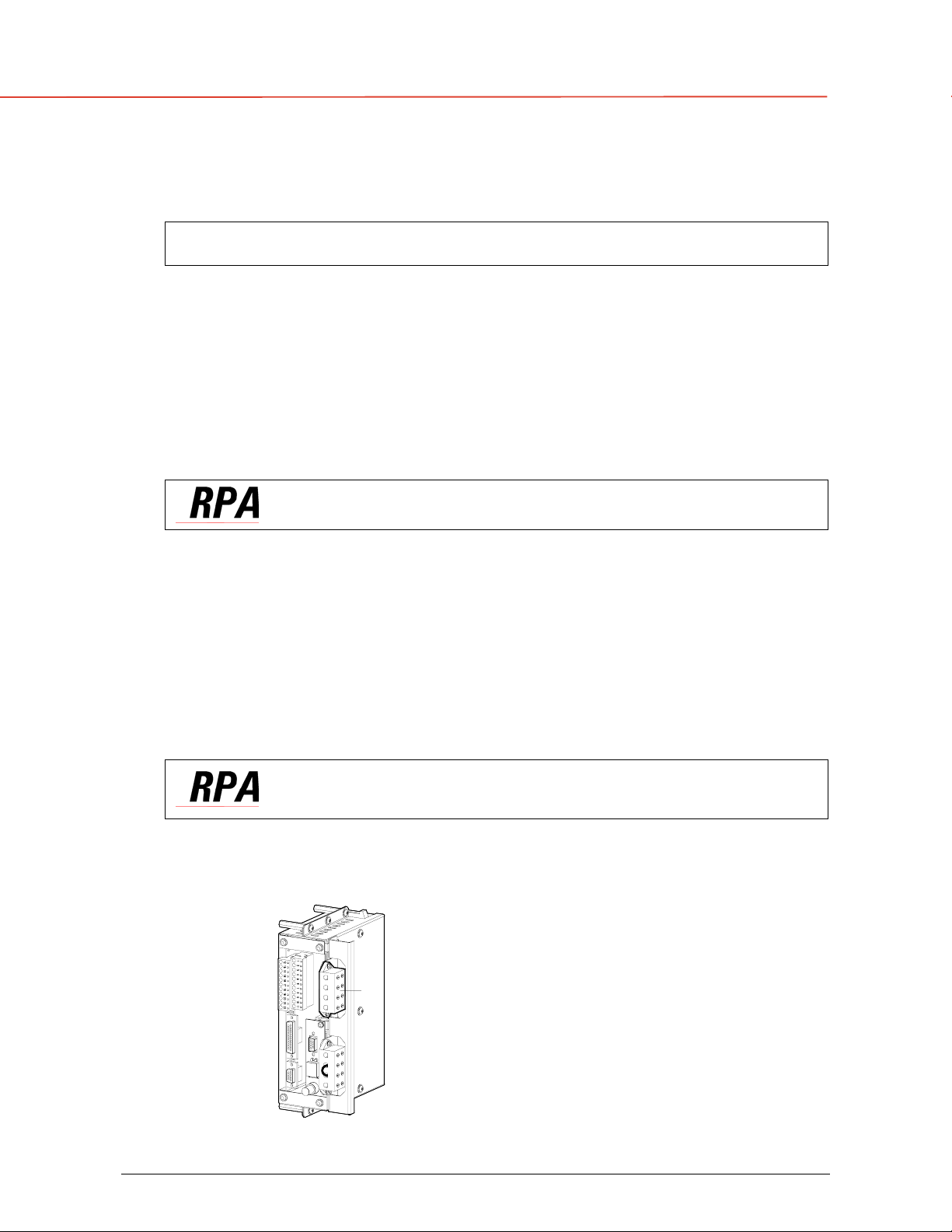

8.1.3 Programmable input free contacts

Some programmable UPS functions (indicated in Section 4.1), can be activated by closing an external contact, if connected, on:

X1 / 10, 21 or J2 / 10, 23 User Input 1 (default = Not used) (RL1) X1 / 11, 22 or J2 / 11, 24 User Input 2 (default = Emergency GEN ON) (RL2)

8.1.4 Gen Set Signaling (GEN ON)

If an emergency generator set supplies the UPS in case of Utility Failure and the generator is particularly unstable in frequency, it should be suitable to install the signal “Generator ON” on X1/11, 22 or J2/11, 24 (this input is programmed as default for this function).

When this contact closes, it causes the change of certain functions (programmable) such as:

Enabling or disabling of synchronization and consequently the Load transfer to generator.

•

• Reduction or elimination or delay of Battery recharging during the generator operation.

In a parallel system a separate NO (Normally Open) contact must be connected individually to each unit.

8.1.5 AUX external Maintenance Bypass

If the UPS system is equipped with an external Maintenance Bypass Switch, it is possible to connect a NO (normally open) voltage free aux. contact from the External Bypass Switch to the programmable input X1/10-21 or J2/10-23, making the UPS operate as if the internal switch Q2 has closed.

This function can be activated by changing a dedicated parameter (password required).

When this NO (Normally Open) contact closes, the output Inverter Contactor K7 it is automatically opened and the Load transfer back to Inverter will be inhibited.

In a parallel system, the input on customer interface of each unit must be connected to a separate AUX contact of the External Maintenance Bypass Switch.

8.1.6 Auxiliary Power Supply (APS) 24 VDC / 1A

SGT5000_100-150_Customer interface 24VDC_01

XA - 1 24 VDC

XA - 2 GND

XA - 3 24 VDC

XA - 4 GND

Fig. 8.1.6-1 Terminals for connection 24 VDC

OPM_SGS_USM_10K_40K_0US_V010.doc 81/88 Operating Manual

SG Series

10, 20, 30 & 40 kVA

8.1.7 EPO (Emergency Power Off) Input contact

SGT5000_100-150_Customer interface EPO_01

An external Emergency switch (Normally Closed voltage-free contact) can be connected on terminals XB / 1 - 4 or connector J2 / 12 - 25 of the P4 - Interface Customer.

JP3

Fig. 8.1.7-1 Terminals for connection EPO

To enable this function, remove cable short-circuiting XB / 2 - 3 on the Terminal XB and the Jumper JP3 on P4 – Customer Interface, when the cables have been already connected on XB or J2.

In a parallel system a separate NC (Normally Closed) contact must be connected individually to each unit.

When opened, this contact causes the immediate opening of the Contactors K3, K4, K6, and K8, as well as the shutdown of Rectifier, Inverter and Static-Switch.

Remove the cable short-circuiting terminals

XB 2 - 3) when using this external switch.

After closure of the Emergency contact, a reset is necessary to enable the restart of the UPS, by pressing the key “O” (inverter off) on the control panel.

OPM_SGS_USM_10K_40K_0US_V010.doc 82/88 Operating Manual

Be aware: The reliability of the system depends on this contact!

In case of a parallel system press the key “O” (inverter off) on the control panel of each unit connected on parallel bus and having it’s output switch Q1 closed.

SG Series

10, 20, 30 & 40 kVA

9 OPTIONS

9.1 BUILT IN UPS OPTIONS

9.2 COMMUNICATION OPTIONS

RPA Kit

Redundant Parallel Architecture. Up to 8 units parallel able for redundancy or capacity in RPA configuration.

SNMP Card

Simple Network Management Protocol. The SNMP Card is an Interface to the Ethernet Network, and provides UPS information via the standard SNMP protocol. The UPS can therefore be managed by a Network Management System (NMS) or by our applications (for instance JUMP), which uses this information to determine the state of the UPS in order to guarantee safe and orderly shutdown of the server, when needed.

SGT5000_OPT_RMS_01

Stop

Alarm

GE Digital Energy

9.3 OPTIONS IN UPS CABINET

Mute Test

IRIS Service

Internet Remote Information System for UPS System.

ARGUS / Power Flag / JUMP Software

Remote Signaling Box (RSB)

Equipped with mimic diagram, general alarm, stop operation, alarm reset and lamp. The cable for connection to UPS not included.

harmonic filter

Located inside UPS cabinet.

FCC Filter

Located inside UPS cabinet. Meets FCC Class A, Part 15 Standard for EMI suppression.

OPM_SGS_USM_10K_40K_0US_V010.doc 83/88 Operating Manual

SG Series

10, 20, 30 & 40 kVA

9.4 CONNECTION FOR OPTIONS

The installation and cabling of the options must be performed a qualified service person.

9.4.1 Remote Signaling Box (RSB)

The optional Remote Signaling Box allows monitoring of the operation of the UPS, using the potential free contacts fitted on the “P4 - Customer Interface Board“ of the UPS. It can be used by simply putting the box on a desktop or on a wall or, removing the box, it can be surface mounted. The remote panel contains an internal buzzer and the following status indicators:

• Mimic diagram with LED's indicating the operation of Rectifier and Inverter, and the power

source supplying the critical Load.

•

The cable connecting the RSB to the UPS cabinet must be min. 16 wires / 0.25mm2.

(LED light and audible alarm) indicating a critical situation on the UPS.

Alarm Stop

push button to reset the buzzer.

Mute

push button checks all the LED’s and the buzzer of the remote panel.

Test

indicating the UPS is preparing to shut down in a short time.

The plug B is included in the delivery of the option RSB (cable connecting UPS with RSB not included). Maximal admitted length: It must be wired at one end with a D - female plug- 25 pin (J2 – P4 Customer Interface Board).

985 ft

(300 m).

The alarms on free potential contacts can be connected on terminals X1

pink

XA TERMINALS BLOCK

25 24 23 22 21 20 19 18 17 16 15 14 13 12

J2 - SUB D - MALE

11 10 9

B -

8 7 6 5 4 3 2 1

Terminals X3, X4 and

red grey

blue

grey

white brown

green yellow

black violet

grey/pink

blue/red

white/green brown/green white/yellow yellow/brown

P.S.: The above mentioned colors are

suitables only for XY standard cable

pink

red

24V

GND

UTILITY FAILURE

LOAD ON INVERTER

LOAD ON MAINS

COMMON ALLARM

AUX. BUZZER

STOP OPERATION

REMOTE

SIGNALLING

BOX

IM6544

2 31 32 33 34

37 38 40 42 43 44

49 50 55 56

16 17 19 20 22 23

X15

12 13

P4 - IM0005 Customer Interface

130mm

5 1/4" in

Fig. 8.4.1-1 Remote Signaling Box connection

fitted inside the Remote Signaling Box.

X15

GE Digital Energy

Pink + Red

TERMINALS BLOCK

Grey + Blue

PLUG

SUB D - MALE

max 985ft / 300m

Stop

Alarm

Mute Test

8 1/2" in 216mm

instead J2 (see correlation X1 – J2 in chapter 8.1).

B Plug J2 (sub D - male - 25 pin) must be connected to the connector J2 (sub D - female-

25 pin) located on “P4 - Customer Interface Board“.

Terminals block XA for 24 VDC / 1A supply Remote Signaling Box.

If the remote signal panel is plugged on connector J2, the terminal blocks X1 cannot be used to drive an external alarms monitoring device, because it is supplied by the internal UPS low voltage power supply.

S U

M R _ 0 5

1 0 _ T

P O

_ 0 0 0 5

T G S

OPM_SGS_USM_10K_40K_0US_V010.doc 84/88 Operating Manual

SG Series

10, 20, 30 & 40 kVA

10 MAINTENANCE

10.1 MAINTENANCE

A UPS system, like other electrical equipment, needs periodic preventive maintenance.

A regular maintenance check of your installation guarantees higher reliability of your safe critical power supply.

Preventive maintenance work on the UPS can be done only by trained Service technicians.

We therefore recommend you sign a Maintenance and Service contract with GE Global Services @ 1-800-637-1738

10.1.1 Service check

If this lamp lights up during the normal operation, that means that the unit has not been serviced for the last 20,000 hours by a GE trained technician.

We highly recommend that you contact your

Service Center

for preventive maintenance work.

10.1.2 Fans and ventilation

We recommend a periodic cleaning of the ventilation channels and grids on the UPS system, in order to guarantee proper air circulation in the unit and in the Battery.

We recommend replacement of the fans in the units every

20,000 hours

10.1.3 Other components with limited lifetime

We recommend the replacement of components such as Filter Capacitors and Lithium Battery for the backup of data on the control boards of the units every 50,000 hours.

10.1.4 Battery

We recommend a periodic Manual Battery Test, especially if the Automatic Battery Test is disabled, in order to verify if the Battery can provide the expected backup time in case of Utility Failure.

We recommend this test be performed at least every 3 months, especially if the Battery is not sufficiently discharged during normal operation. The discharge time you use should be at least half of the Battery runtime.

For Automatic Battery Test setting, a special code is required to enter user set-up parameters. The start up technician has access to this code and can program this feature during start up.

Please consider that, if you did a full Battery Test to verify the full runtime of the Battery, the charger needs at least 8 hours to recharge the Battery up to 90% of its capacity.

OPM_SGS_USM_10K_40K_0US_V010.doc 85/88 Operating Manual

SG Series

10, 20, 30 & 40 kVA

10.1.5 Long shut-down periods of the UPS-system

To guarantee that the Battery is fully charged, the UPS system should be in operation for at least

12 hours every 3 months

If not the Battery may be permanently damaged.

10.1.6 UPS room conditions and temperature

The UPS room and the Battery Room have to be maintained clean and free from dust.

A high temperature of the UPS room and of the Battery Room affect the lifetime of several components inside the equipment.

The Battery is very sensitive to room temperatures above 77°F (25°C).

10.1.7 Long shut-down periods of the UPS-system

Cleaning, a visual inspection and a mechanical inspection of the UPS modules.

Replacement of defective parts or the preventive replacement of parts with a defined lifetime

“Updating” of the equipment (technical improvements subsequent to the delivery).

d) Check the calibration of

e) Check of the settings of the electronic regulation, the control and the alarm circuits of the

Rectifier(s) and Inverter(s).

f) Functional checks on Thyristors, Diodes, Transformers, Filter Components, e.g. to ensure that

they are operating within the specified design parameters.

g) Overall performance test including a Utility Failure simulation with and without the Load.

h) Monitoring Battery operation in discharge and recharge mode including any boost charge

duties.

DC voltage

Inverter Output Voltage

and

Frequency

OPM_SGS_USM_10K_40K_0US_V010.doc 86/88 Operating Manual

SG Series

10, 20, 30 & 40 kVA

11 NOTES

11.1 NOTES FORM

It is recommended to note in this section Notes, with date and short description all the operations performed on the UPS, as: maintenance, components replacement, abnormal situations, etc.

Date Description Done by

OPM_SGS_USM_10K_40K_0US_V010.doc 87/88 Operating Manual

SG Series

10, 20, 30 & 40 kVA

RIDER FOR WARRANTY FOR SALE OF SiteProTM, DIGITAL ENERGYTM SG Series and LP Series UPS.

This Rider incorporates by reference the Terms and Conditions in GE Industrial Systems (herein called GE) GETC2003, and includes the following additional provisions contained herein. In the event of conflict between this Rider and GETC2003, the Rider shall take precedence.

Limitation on use with life support equipment:

Customer understands and agrees that the products sold hereunder are not intended for application or use, and shall not be used: (i) in conjunction with or for life support equipment when failure of any product can be reasonably be expected to cause failure of or diminish the effectiveness of such life support Customer represents and warrants that it shall NOT USE THE PRODUCTS FOR ANY SUCH PURPOSES, OR PERMIT OTHERS TO USE THE PRODUCTS FOR ANY SUCH PURPOSES. If, in breach of the foregoing, any such use occurs, Seller shall have no liability for any resulting damage or injury, in addition to any other legal or equitable rights of Seller, Customer shall indemnify Seller against any such liability, whether arising as a result of breach of contract, warranty,

indemnity, tort (including negligence), strict liability or otherwise

WARRANTY: Seller warrants to Customer that during the “Warranty Period” applicable for its SitePro, Digital Energy Series and LP Series UPS Product furnished hereunder (the “Product”) will be free from defects in material, workmanship and title. The warranty period (“Warranty Period”) for the specified Product begins on the earlier of three (3) months after the delivery date or upon commissioning of the Product (if applicable) and ends at the end of the period as set forth below: The Warranty Period for the specified Product is as follows:

SitePro / Digital Energy LP Series UPS 24 Months

In no case does this warranty apply to any failure or nonconformance with specifications caused by or attributable to any associated or complementary products not supplied under these Terms and Conditions, nor shall it in any case apply to the quantity or quality of the product of Customer or the process of manufacture on which any products are used. The warranties and remedies set forth herein are conditioned upon (a) proper transportation, handling, storage, installation, commissioning, operation, use and maintenance in conformance with the operation instruction manuals (including revisions thereto) provided by Seller, any applicable recommendations of Seller and any applicable laws, regulations or codes (b) repair or modification pursuant to Seller’s instructions or approval and (c) Customer promptly notifying Seller of any defects and, if required, promptly making the Product available for correction at Customer’s expense. This warranty shall not apply (a) if Customer or any other unauthorized person has made any modifications, alterations or repairs to the Product not authorized by Seller, including Customer’s use of parts in conjunction with the Product (excluding batteries) not admitted or delivered by Seller, (b) to a Product with removed or altered serial numbers, (c) to a Product damaged by acts of God, sources external to the Product, misuse, accident, abuse, neglect, negligence, or use beyond rated capacity, and (d) if GE authorized field service technician does not commission Digital Energyæ SG Series UPS and SitePro UPS."

If any Product or service fails to meet the foregoing warranties (except title), Seller shall thereupon correct any such failure either, at its option, by (i) repairing any defective or damaged part or Product and/or reperforming any defective service or (ii) making available, F.O.B. at Seller’s facility, place of manufacture or other mutually agreed upon point of shipment, any necessary repaired or replacement parts; provided, however, that prior to repairing any defective or damaged part or Product, Seller shall have received, at Customer’s cost, such part or Product in need of repair or replacement.

SG Series UPS 12 Months

If reperformance is not practicable, Seller will furnish without charge services in an amount essentially equal to those that, in the sole judgment of Seller, would have been required for reperformance. Where a failure cannot be corrected by Seller’s reasonable efforts, the parties will negotiate an equitable adjustment in price. In providing a replacement Product or parts, Seller reserves the right to use refurbished circuit boards, which shall be warranted in accordance with this Warranty Provision. The correction of any failure or the supply of repaired or replacement parts or Products pursuant to this Warranty Provision shall not extend the duration of the applicable Warranty Period. Seller does not warrant the following items: (i) computer hardware, (ii) any computer software, including software provided by Seller with any Product, (iii) products or services obtained from others or (iv) any batteries used in conjunction with the products, including those provided by Seller, and in regard to these items, only the warranty of the manufacturer, if any, shall apply. Seller's obligation under this Provision entitled “Warranty” shall terminate immediately upon any modification of the Product by Customer unless made with the approval of Seller.

The Warranty Period applicable to each Product can be extended, if Customer purchases an extended warranty from Seller. If Customer purchases an extended warranty from Seller, the terms of such extended warranty shall supersede these warranty provisions.

THE PRECEDING PARAGRAPHS OF THIS WARRANTY PROVISION SET FORTH THE EXCLUSIVE CLAIMS (EXCEPT AS TO TITLE) BASED ON DEFECT IN OR FAILURE OF A PRODUCT, WHETHER THE CLAIM IS IN CONTRACT, INDEMNITY, WARRANTY, TORT (INCLUDING NEGLIGENCE), STRICT LIABILITY OR OTHERWISE.

Upon the expiration of the applicable Warranty Period, all such liability shall terminate and Customer shall have a reasonable time, not to exceed thirty (30) days after the applicable Warranty Period, to give written notice of any defects that appeared during the Warranty Period.

THE FOREGOING WARRANTIES ARE EXCLUSIVE AND IN AND IN LIEU OF ALL OTHER WARRANTIES, WHETHER WRITTEN, ORAL, IMPLIED OR STATUTORY. NO IMPLIED STATUTORY WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE SHALL APPLY.

INSTALLATION AND COMMISSIONING OF INSTALLABLE SYSTEMS: If the Products cannot be installed immediately after

delivery, Customer is responsible for maintaining proper storage conditions according to operating manuals and any other instructions provided by Seller.

Installable Products may only be installed by certified

electrical installers and must be installed according to Seller’s specifications, appropriate national electrical codes and accepted standards of workmanship. For purposes of these GE Terms and Conditions, “installable Products” shall mean Products that require the services of a certified electrical installer to be connected to the power grid.

The commissioning of installable Products may only be done by a technician authorized by Seller and must be done according to Seller’s specifications. For purposes of these GE Terms and Conditions, “commissioning” shall mean the start-up of the installable Products and the testing of the installable Products in connection with the load. If commissioning is to be performed by Seller, Seller may refuse to commission the installable Products, if the operating conditions at Customer’s site do not allow safe commissioning and operation of the installable Products. Any costs resulting from a delay in commissioning will be charged to Customer.

OPM_SGS_USM_10K_40K_0US_V010.doc 88/88 Operating Manual

SG Series

10, 20, 30 & 40 kVA

GE SG 10, SG 40, SG 30, SG 20 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
