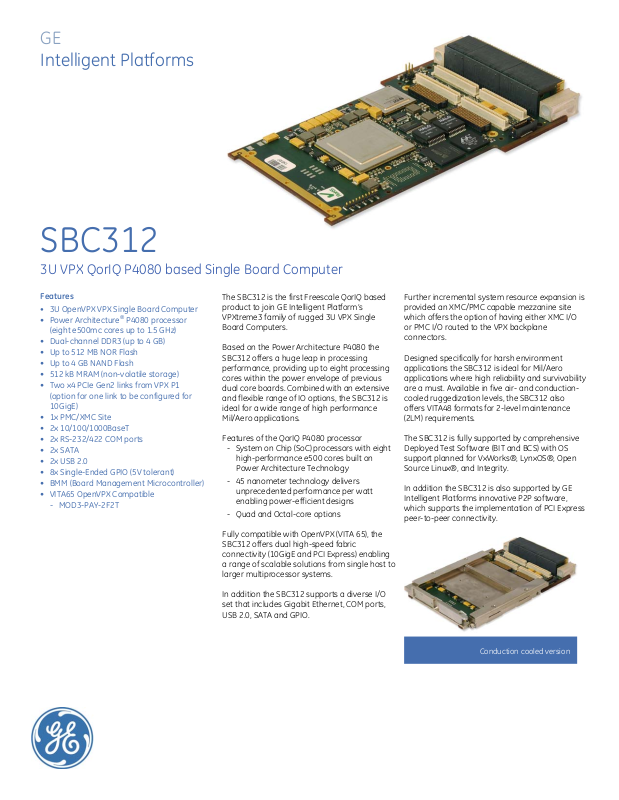

GE SBC312 Data Sheet
GE
Intelligent Platforms
SBC312
3U VPX QorIQ P4080 based Single Board Computer
Features
•
3U OpenVPX VPX Single Board Computer
• Power Architecture
(eight e500mc cores up to 1.5 GHz)
• Dual-channel DDR3 (up to 4 GB)
• Up to 512 MB NOR Flash
• Up to 4 GB NAND Flash
• 512 kB MRAM (non-volatile storage)
• Two x4 PCIe Gen2 links from VPX P1
(option for one link to be configured for
10GigE)
• 1x PMC/XMC Site
• 2x 10/100/1000BaseT
• 2x RS-232/422 COM ports
• 2x SATA
• 2x USB 2.0
• 8x Single-Ended GPIO (5V tolerant)
• BMM (Board Management Microcontroller)
• VITA65 OpenVPX Compatible
- MOD3-PAY-2F2T
®
P4080 processor
The SBC312 is the first Freescale QorIQ based
product to join GE Intelligent Platform’s
VPXtreme3 family of rugged 3U VPX Single
Board Computers.
Based on the Power Architecture P4080 the
SBC312 offers a huge leap in processing
performance, providing up to eight processing
cores within the power envelope of previous
dual core boards. Combined with an extensive
and flexible range of IO options, the SBC312 is
ideal for a wide range of high performance
Mil/Aero applications.
Features of the QorIQ P4080 processor
- System on Chip (SoC) processors with eight
high-performance e500 cores built on
Power Architecture Technology
- 45 nanometer technology delivers
unprecedented performance per watt
enabling power-efficient designs
- Quad and Octal-core options
Fully compatible with OpenVPX (VITA 65), the
SBC312 offers dual high-speed fabric
connectivity (10GigE and PCI Express) enabling
a range of scalable solutions from single host to
larger multiprocessor systems.
In addition the SBC312 supports a diverse I/O
set that includes Gigabit Ethernet, COM ports,
USB 2.0, SATA and GPIO.
Further incremental system resource expansion is
provided an XMC/PMC capable mezzanine site
which offers the option of having either XMC I/O
or PMC I/O routed to the VPX backplane
connectors.
Designed specifically for harsh environment
applications the SBC312 is ideal for Mil/Aero
applications where high reliability and survivability
are a must. Available in five air- and conductioncooled ruggedization levels, the SBC312 also
offers VITA48 formats for 2-level maintenance
(2LM) requirements.
The SBC312 is fully supported by comprehensive
Deployed Test Software (BIT and BCS) with OS
support planned for VxWorks®, LynxOS®, Open
Source Linux®, and Integrity.
In addition the SBC312 is also supported by GE
Intelligent Platforms innovative P2P software,
which supports the implementation of PCI Express
peer-to-peer connectivity.
Conduction cooled version
SBC312 - 3U VPX QorIQ P4080 based Single Board Computer
Specifications
Processor Node
•
Support for Freescale QorIQ P4080 @ 1.5 GHz
•
Eight e500 cores
•
Double-precision floating-point support
•
2 MB shared Level 3 cache
•
CoreNet internal fabric @ up to 800 MHz
DDR3 SDRAM
•
Up to 4 GB DDR3 SDRAM with ECC (2 GB per
Bank)
Flash Memory
•
Up to 512 MB NOR Flash memory
•
Protected BANC Boot Area
•
4 GB NAND Flash memory (8/16/32 GB on
roadmap)
Fabric
•
Two x4 PCIe Gen2 links from VPX P1, both
capable of operating in non-transparent mode
•
One link to be optionally configured as 10GigE
[KX4]
•
Each link can be optionally configured as four
x1 PCIe
Gigabit Ethernet
•
2x 1000BaseT (P1 rear IO)
Serial I/O
•
2x RS-232/422 UART ports (P1/P2 rear IO)
USB
•
2x USB 2.0 (P1rear IO)
SATA
•
2x SATA (300 MB/s) (P1 rear IO)
General Purpose I/O
•
Up to 8 GPIO (P1 rear IO), 5V tolerant GPIO each
capable of generating an interrupt.
PMC / XMC Extension Slot
•
x8 PCIe XMC site (P2 rear IO)
•
PCI-X PMC site (P2 rear IO)
NVRAM / Real-Time Clock / Watchdog / ETI
•
512kB non-volatile RAM (MRAM)
•
Real-time clock with 1 second resolution
•
2x Watchdog timers (programmable 32-bit
timer)
•
Elapsed Time Indicator (record power cycles
and on-time)
Temperature Sensor
•
Onboard ambient temperature
Power Requirements
•
+5V required
•
+/-12V only if required by mounted PMC
module
Block Diagram
Environmental
Level 1 Level 2 Level 3 Level 4 Level 5
Cooling Method Convection Convection Convection Conduction Conduction
Conformal Coating Optional Standard Standard Standard Standard
High/Low Temp 0 to +55° C -20 to +65° C -40 to +75° C -40 to +75° C -40 to +85° C
Operational (300 ft/m) (300 ft/m) (600 ft/m) At cold wall At cold wall
Random Vibration 0.002g2/Hz* 0.002g2/Hz* 0.04g2/Hz** 0.1g2/Hz** 0.1g2/Hz**
Shock 20g*** 20g*** 20g*** 40g*** 40g***
* With a flat response to 1000 Hz, 6 dB/Oct roll-off from 1000 to 2000 Hz
** From 10 to 1000 Hz
*** Peak sawtooth 11 ms duration
About GE Intelligent Platforms
GE Intelligent Platforms, a General Electric Company (NYSE: GE), is an experienced high-performance technology
company and a global provider of hardware, software, services, and expertise in automation and embedded
computing. We offer a unique foundation of agile, advanced and ultra-reliable technology that provides customers
a sustainable advantage in the industries they serve, including energy, water, consumer packaged goods,
government and defense, and telecommunications. GE Intelligent Platforms is a worldwide company
headquartered in Charlottesville, VA and is part of GE Home and Business Solutions. For more information, visit
www.ge-ip.com.
GE Intelligent Platforms Contact Information
Americas: 1 800 433 2682 or 1 434 978 5100
Global regional phone numbers are listed by location on our web site at www.ge-ip.com/contact.
defense.ge-ip.com
©2012 GE Intelligent Platforms. All Rights Reserved.
All other brands or names are property of their respective holders.
Specifications are subject to change without notice.
02.12 GFA-1735
