GE RHM 15 Specifications

Page 1

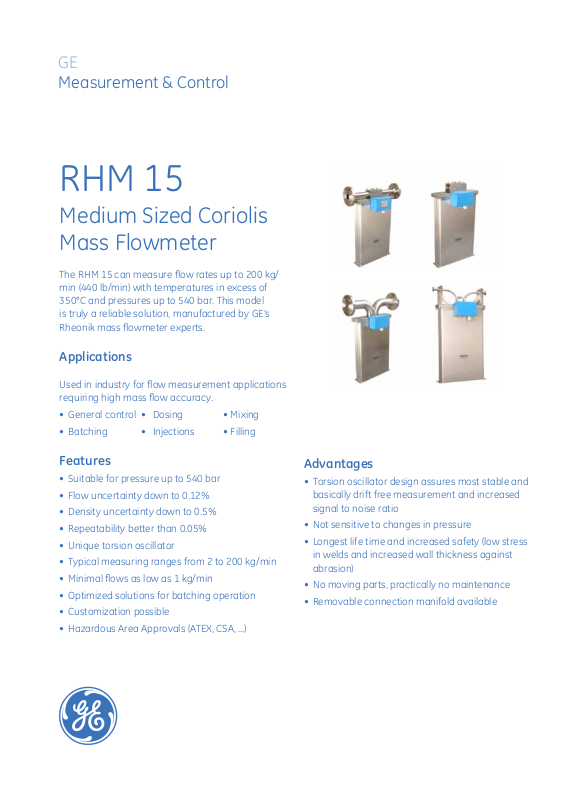

Measurement & Control

RHM 15

Medium Sized Coriolis Mass Flowmeter

The RHM 15 can measure ow rates up to 200 kg/ min (440 lb/min) with temperatures in excess of 350°C and pressures up to 540 bar. This model is truly a reliable solution, manufactured by GE’s Rheonik mass owmeter experts.

Applications

Used in industry for ow measurement applications requiring high mass ow accuracy.

• General control • Dosing • Mixing

• Batching • Injections • Filling

Features

• Suitable for pressure up to 540 bar

• Flow uncertainty down to 0.12%

• Density uncertainty down to 0.5%

• Repeatability better than 0.05%

• Unique torsion oscillator

• Typical measuring ranges from 2 to 200 kg/min

• Minimal ows as low as 1 kg/min

• Optimized solutions for batching operation

• Customization possible

• Hazardous Area Approvals (ATEX, CSA, ...)

Advantages

• Torsion oscillator design assures most stable and basically drift free measurement and increased signal to noise ratio

• Not sensitive to changes in pressure

• Longest life time and increased safety (low stress in welds and increased wall thickness against abrasion)

• No moving parts, practically no maintenance

• Removable connection manifold available

Page 2

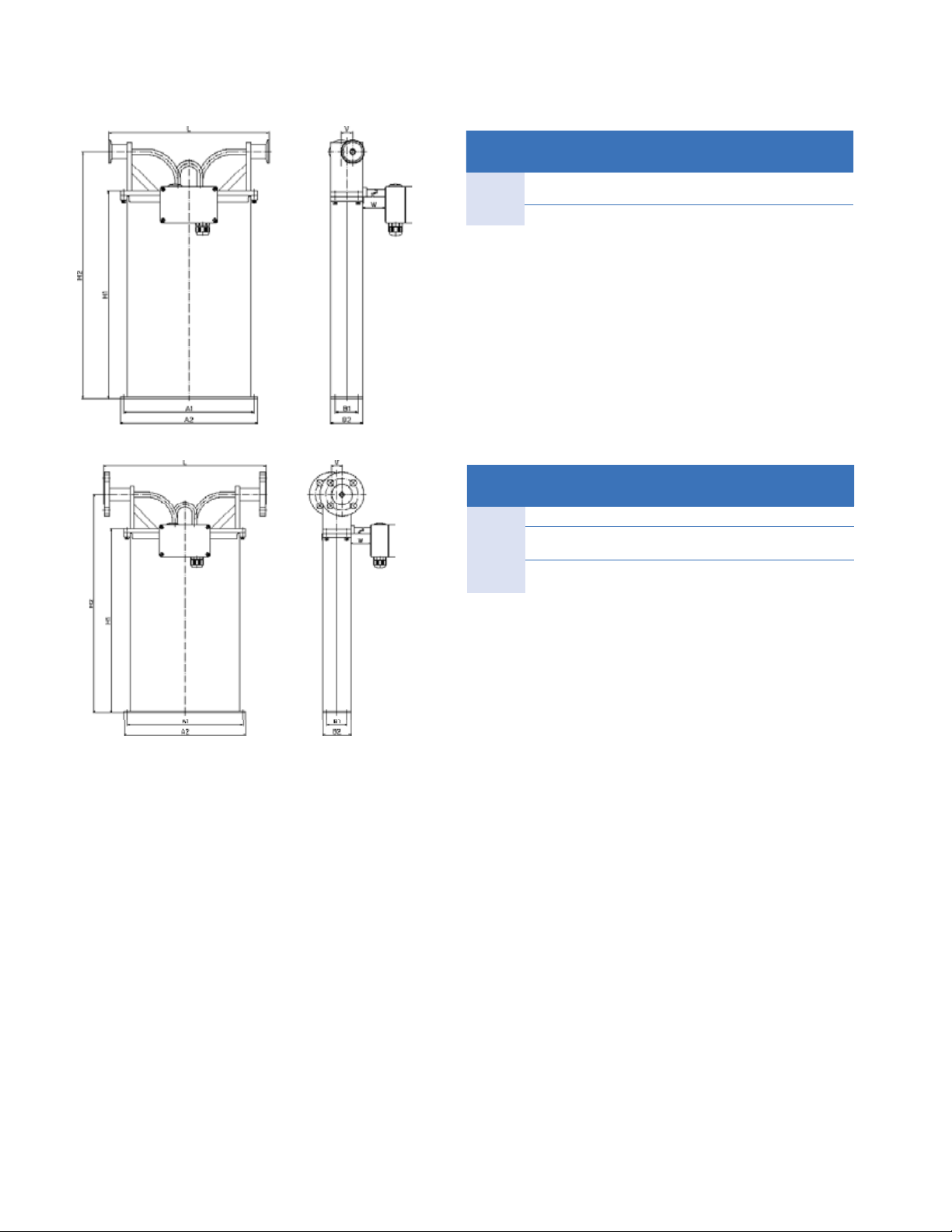

General Dimensions RHM 15

PM0/SM0/PH0 (parallel/serial, manifold construction)

Type removable manifold with PTFE seals and thread connection

Process Connection Face to face length (L) Order Code

mm in

Standard Female Thread G 3/4" 120 4.72 G1

Female Thread 3/4" NPT 120 4.72 N1

Type removable manifold with PTFE seals and ange connection (only with PM0, SM0 manifold)

Process Connection Face to face length (L) Order Code

mm in

Standard Flange DIN DN25/PN40 400 15.75 D1

Flange DIN DN25/PN100 400 15.75 D2

Flange ANSI 1" 150# RF/SF 400 15.75 A1

Flange ANSI 1" 300# RF/SF 400 15.75 A2

Flange ANSI 1'' 600# RF/SF 400 15.75 A3

Flange ANSI 1" 1500# RTJ 450 17.72 R3

Optional Flange DIN DN25/PN160 400 15.75 D4

Flange ANSI 1" 1500# RF/SF 450 17.72 A6

Flange JIS RF 10k 25A (1") 400 15.75 J1

Flange JIS RF 20k 25A (1") 400 15.75 J2

A1 = 285 mm (11.22 in) B1 = 50 mm (1.97 in) Terminal box (without cable gland) 125 x 80 x 58 mm (4.92 x 3.15 x 2.28 in) A2 = 300 mm (11.81 in) B2 = 70 mm (2.76 in) W = 0 mm for Temperature Range T1 and TA H1 = 454 mm (17.87 in) W = 150 mm (5.91 in) for Temperature Range T2 H2 = 481 mm (18.94 in)

For weights and packaging dimensions please see last page of this section.

Page 3

General Dimensions RHM 15

PF0 (parallel, sealless construction with ange connection)

Type parallel, welded measuring loops without seals and ange connection

Process Connection Face to face length (L) Order

Code

mm in

Standard Flange DIN DN40/PN40 400 15.75 C1

Flange DIN DN40/PN100 400 15.75 C2

Flange ANSI 1 1/2" 150# RF/SF 400 15.75 F1

Flange ANSI 1 1/2" 300# RF/SF 400 15.75 F2

Flange ANSI 1 1/2'' 600# RF/SF 400 15.75 F3

Flange ANSI 1 1/2" 1500# RF/SF 400 15.75 F5

Flange ANSI 1 1/2" 1500# RTJ 400 15.75 R4

Flange ANSI 1 1/2" 2500# RF/SF 450 17.72 F4

Flange ANSI 1 1/2" 2500# RTJ 450 17.72 R5

Optional Flange DIN DN40/PN160 400 15.75 C4

Flange ANSI 2" 1500# RTJ 500 19.69 R1

Grayloc Hub 1 1/2" GR11 400 15.75 H6

Grayloc Hub 2" GR11 400 15.75 H8

Grayloc Hub 2" GR14 400 15.75 H3

Flange JIS RF 10k 40A (1 1/2") 400 15.75 J1

Flange JIS RF 20k 40A (1 1/2") 400 15.75 J2

PFT (parallel sealless construction with thread connection)

Process Connection Face to face length (L) Order Code

mm in

Standard Female Thread G 3/4" 400 15.75 G1

Female Thread 3/4" NPT 400 15.75 N1

Swagelok ¾" Tube inlet (SS1210-1-12W)

Type parallel, welded measuring loops without seals and thread connection

470 18.50 W1

For weights and packaging dimensions please see last page of this section.

Page 4

General Dimensions RHM 15

SF0 (serial, sealless construction without dead spaces)

Type single path, welded measuring loops without seals and sanitary connection

Process Connection Face to face length (L) Order Code

mm in

Standard Sanitary 1" Triclamp,

DIN 32676

Sanitary NW20, DIN 11851 350 13.78 S2

Process Connection Face to face length (L) Order Code

Standard Flange DIN DN40/PN40 400 15.75 C1

Flange ANSI 1 1/2" 150# RF/SF

Flange ANSI 1 1/2" 300# RF/SF

350 13.78 S0

mm in

400 15.75 F1

400 15.75 F2

Type single path, welded measuring loops without seals and ange connection

A1 = 285 mm (11.22 in) B1 = 50 mm (1.97 in) Terminal box (without cable gland) 125 x 80 x 58 mm (4.92 x 3.15 x 2.28 in) A2 = 300 mm (11.81 in) B2 = 70 mm (2.76 in) W = 0 mm for Temperature Range T1 and TA H1 = 454 mm (17.87 in) V = 26 mm (1.02 in) W = 150 mm (5.91 in) for Temperature Range T2, T3 and T4 H2 = 540 mm (21.26 in)

(*) SF0 construction contains brazed joints (brazing material B-Ni82CrSiBFe-970/1000) which are not as corrosion resistant as the piping material 1.4571 (316Ti). Fully welded joints for corrosive liquids and higher pressure ratings can be provided – please consult your local agent.

Weight in standard manifold construction with female threads: approx. 14 kg (31 lb)

Weight in standard sealless construction and 150# anges: approx. 16 kg (35 lb)

Shipping on pallet approx. 70 x 40 x 55 cm (27.6 x 15.7 x 21.7 in), gross weight with sealless construction, 150# standard anges and RHE 08 approx. 27 kg (60 lb)

Finish type of our ANSI anges corresponds to SF (AARH 125 up to 250 μin, Ra 3.2 up to 6.3 μm)

For customization with regard to face to face length and special ttings, please consult your local agent

Please note that larger diameter process connections are always possible

Page 5

Pressure Rating RHM 15

The maximum pressure (pmax) of a sensor is determined by its weakest part. The weakest part can be the measuring loops (pmax indicated below) or the construction type (pmax indicated in the Basic Order Code section, last page) or the selected anges / ttings (for pmax please see respective standard).

pmax of P1 measuring loops, standard M1 standard material - 1.4571 (316Ti) OD x WT 15 x 1 mm (0.59 x 0.039 in)

bar °C psi °F

165 50 2393 122

150 120 2176 248

127 210 1842 410

107 350 1552 662

pmax of P2 measuring loops M1 standard material - 1.4571 (316Ti) OD x WT 15 x 2 mm (0.59 x 0.079 in)

bar °C psi °F

352 50 5105 122

300 120 4351 248

250 210 3626 410

210 350 3046 662

pmax of P3 measuring loops M1 standard material - 1.4571 (316Ti) OD x WT 15 x 3 mm (0.59 x 0.118 in)

bar °C psi °F

540 50 7832 122

450 120 6527 248

350 210 5076 410

300 350 4351 662

pmax of P1 measuring loops M3 optional material - 2.4602 (Alloy C22) OD x WT 15 x 1 mm (0.59 x 0.039 in)

bar °C psi °F

228 50 3307 122

201 120 2915 248

172 210 2495 410

143 350 2074 662

pmax of P2 measuring loops M3 optional material - 2.4602 (Alloy C22) OD x WT 15 x 2.2 mm (0.59 x 0.087 in)

bar °C psi °F

540 50 7832 122

477 120 6918 248

407 210 5903 410

339 350 4917 662

Page 6

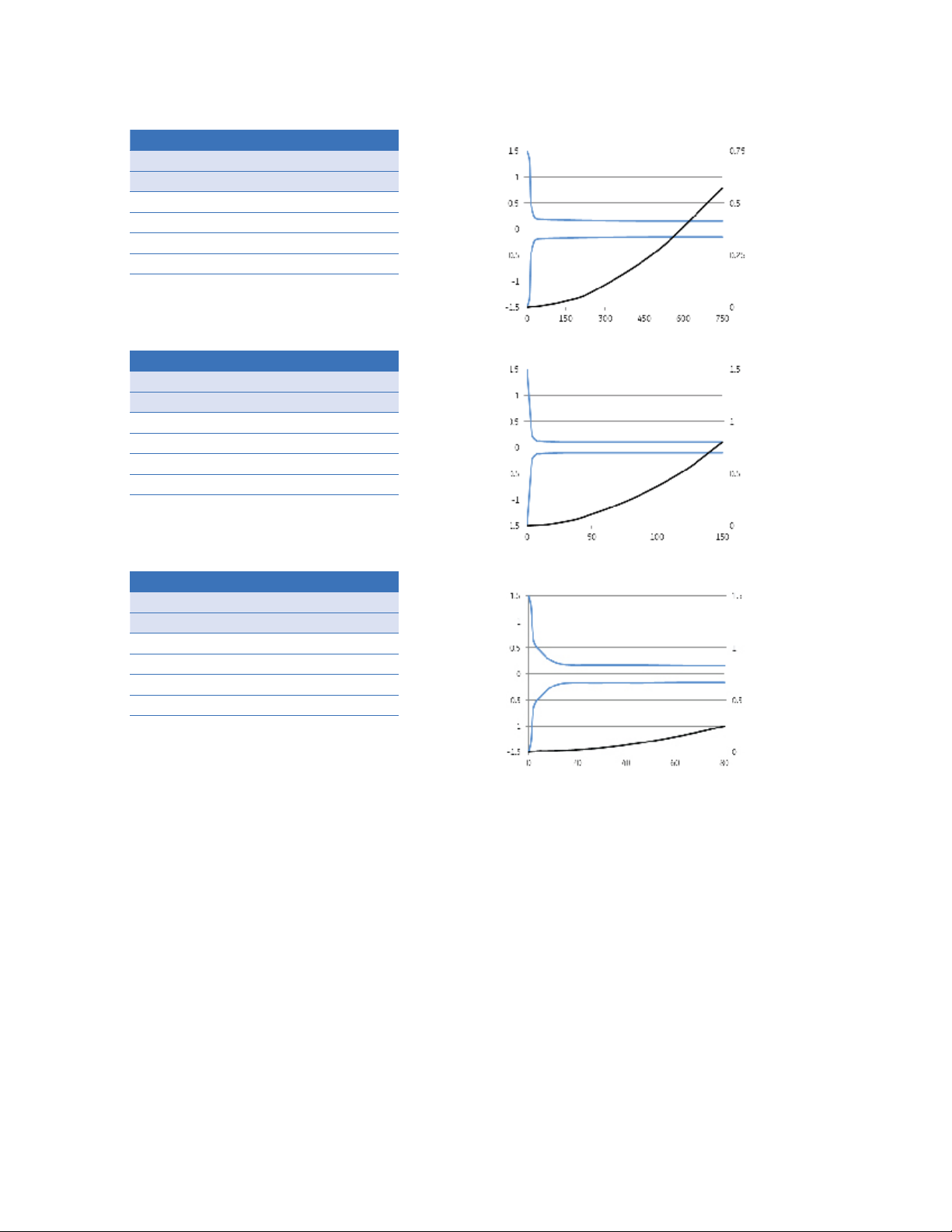

Performance RHM 15

Max Flow Rate Qmax = 200 kg/min (441 lb/min), Qnom (*) = 150 kg/min (331 lb/min)

Standard Models

Flow Rate Uncertainty

kg/min lb/min in % of reading

200 441 0.20

100 220 0.20

50 110 0.20

10 22 0.20

4 8.8 0.50

Goldline Models (**) - selected sensors

Flow Rate Uncertainty

kg/min lb/min in % of reading

150 331 0.10

75 165 0.10

50 110 0.10

15 33.1 0.10

7.5 16.5 0.12

Uncertainty % DP (bar)

Flow Rate kg/min

Uncertainty % DP (bar)

Low Flow Models (**) - selected sensors

Flow Rate Uncertainty

kg/min lb/min in % of reading

80 176 0.20

50 110 0.20

15 33 0.20

4 8.8 0.20

2 4.4 0.60

Repeatability

Better ± 0.1% of rate, Goldline 0.05%

Density

Down to 0.5% uncertainty

Temperature

Better ± 1°C

(*) Nominal ow Qnom refers to roughly 8 - 10 m/s (26 - 33 ft/s) velocity in measuring loops for best performance. (**) Selected sensors are only available in combination with temperature options T1, TA, standard material and pressure range.

Flow Rate kg/min

Uncertainty % DP (bar)

Flow Rate kg/min

• Serial/single path versions oer the same accuracy at half the ow (Qmax serial version = 100 kg/min).

• No relevant pressure eect due to torsional oscillation and semi-circle (non-deforming) measurement section.

• Uncertainty of reading (incl. zero drift) indications refer to reference conditions H

O, 18-24°C (66 - 76°F), 1 - 3

bar (15 – 45 psi) and installation according to eld manual.

• Pressure drop indications refer to H2O, with parallel measuring loops type P1 and standard manifold block connections.

• For calibration to customer range and / or with improved uncertainty, please consult factory.

Page 7

RHM 15 Specications

Temperature Range

• NT Models from -20 to +120°C (-4 to +248°F)

• ET Models from -45 to +120°C (-49 to +248°F)

• ET2 Models from -45 to +210°C (-49 to +410°F)

• ET1 Models from -196 to +50°C (-320 to +122°F)

• HT Models from 0 to 350°C (+32 to +662°F) (Heating for housing optional, please consult your local agent)

Electrical Connection

• Junction box Aluminium coated (standard). Junction box in SS 316Ti optional

• Cable entry M25 x 1.5. Optional cable entries M20 x 1.5, 1/2” NPT or 3/4” NPT

• Max cable length between RHM and RHE is 100m (330 ft). 200m (660 ft) only with factory approval

Material of Wetted Parts

• 1.4571 / SS 316 Ti / UNS S31635 (standard)

• 2.4602 / Alloy C22 / UNS N06022

• Tantalum

• Others on request

Sensor Enclosure/Housing

• Stainless Steel 1.4301 / SS 304, optional in 1.4571 / SS 316Ti. Others on request

• Protection Class IP 65. Optional IP 66 / NEMA 4x

Approvals

• ATEX Ex II 1 G, EEx ia IIC T6-T1

• CSA USA-Canada, Class I, Div. 1, Groups A, B, C, D

• PED according to directive 97/23/EC: Art.3 (3) Sound Engineering Practice (SEP), Module A1 or Module B + C1 – depending on construction type and measured uid

• Others on request

Page 8

Basic Order Code RHM 15

Sensor Size

Temperature Rating T1 NT from -20°C to +120°C (standard)

TA ET from -45°C to +120°C T2 ET2 Extended Temperature Range from -45°C to +210°C T3 ET1 Extended Temperature Range from -196°C to +50°C T4 HT High Temperature Range from 0°C to +350°C

Pressure Range of Measuring Loops @ 120°C and M1 Material

P1 pmax = 150 bar, max. CL 600 / PN40 (standard) P2 pmax = 300 bar P3 pmax = 450 bar-

Construction Type (pmax indications @ 120°C)

PM0 Parallel Measuring Loops with removable Manifold and PTFE Seals, pmax = 230 bar with thread connection, 214 bar with ange connection SM0 Serial Measuring Loops with removable Manifold and PTFE Seals, pmax = 230 bar with thread connection, 214 bar with ange connection

PH0 Parallel Measuring Loops with High Pressure Manifold and PTFE Seals, pmax = 420 bar PF0 Parallel Measuring Loops Seal Less Version SF0 Serial Measuring Loops Seal Less Version Sanitary, pmax = 42.9 bar

upon request, a fully welded version is available, pmax = 325 bar

PFT Parallel Measuring Loops Seal Less Version for Thread Connection, pmax = 250 bar

Material of Wetted Parts M1 Measuring Loops and Manifold/Connection 1.4571 (316Ti) (standard) M3 Measuring Loops and Connection Part 2.4602 (Alloy C22), Seal Less Construction only M4 Measuring Loops and Connection Part Tantalum, PF0 Construction Type only

Process Connection D1 Flange DIN DN25/PN40 Form C (EN 1092-1 Form B1) D2 Flange DIN DN25/PN100 Form E (EN 1092-1 Form B2) C1 Flange DIN DN40/PN40 Form C (EN 1092-1 Form B1) C2 Flange DIN DN40/PN100 Form E (EN 1092-1 Form B2) A1 Flange ANSI 1” 150# RF/SF A2 Flange ANSI 1” 300# RF/SF A3 Flange ANSI 1” 600# RF/SF R3 Flange ANSI 1” 1500# RTJ F1 Flange ANSI 1 ½” 150# RF/SF F2 Flange ANSI 1 ½” 300# RF/SF F3 Flange ANSI 1 ½” 600# RF/SF F5 Flange ANSI 1 ½” 1500# RF/SF R4 Flange ANSI 1 ½” 1500# RTJ F4 Flange ANSI 1 ½” 2500# RF/SF R5 Flange ANSI 1 ½” 2500# RTJ G1 Female Thread G 3/4” N1 Female Thread 3/4” NPT W1 Swagelok 3/4” Tube inlet (SS-1210-1-12W), standard material only S0 Sanitary 1” Triclamp, DIN 32676, pmax = 17.2 bar @ 120°C S2 Sanitary NW20, DIN 11851, pmax = 40 bar @ 120°C

Others on request

RHM15 - - - -
