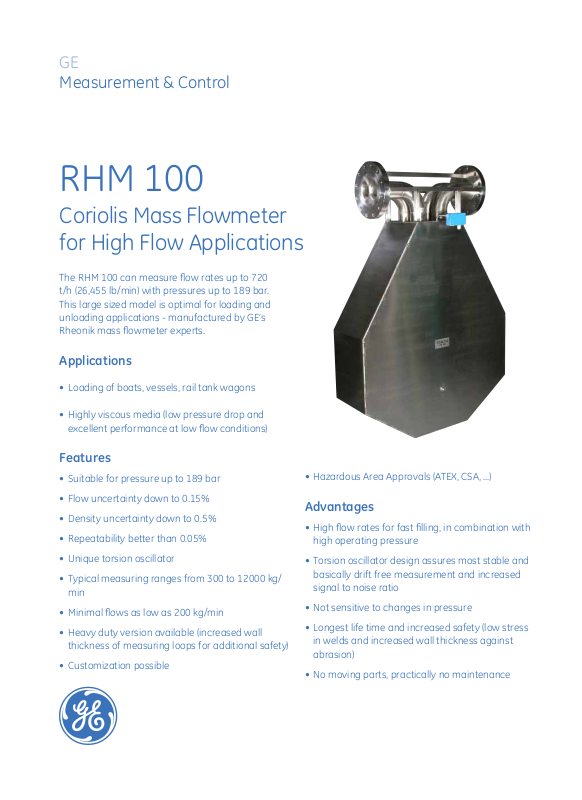

Measurement & Control

RHM 100

Coriolis Mass Flowmeter for High Flow Applications

The RHM 100 can measure ow rates up to 720 t/h (26,455 lb/min) with pressures up to 189 bar. This large sized model is optimal for loading and unloading applications - manufactured by GE’s Rheonik mass owmeter experts.

Applications

• Loading of boats, vessels, rail tank wagons

• Highly viscous media (low pressure drop and excellent performance at low ow conditions)

Features

• Suitable for pressure up to 189 bar

• Flow uncertainty down to 0.15%

• Density uncertainty down to 0.5%

• Repeatability better than 0.05%

• Unique torsion oscillator

• Typical measuring ranges from 300 to 12000 kg/ min

• Minimal ows as low as 200 kg/min

• Heavy duty version available (increased wall thickness of measuring loops for additional safety)

• Customization possible

• Hazardous Area Approvals (ATEX, CSA, ...)

Advantages

• High ow rates for fast lling, in combination with high operating pressure

• Torsion oscillator design assures most stable and basically drift free measurement and increased signal to noise ratio

• Not sensitive to changes in pressure

• Longest life time and increased safety (low stress in welds and increased wall thickness against abrasion)

• No moving parts, practically no maintenance

Page 2

General Dimensions RHM 100

PF0 (parallel, sealless/welded construction with ange connection)

(*) Flange reduces the maximum allowable pipe pressure by a factor of 0.75

A2 = 1320 mm (51.97 in) H1 = 1505 mm (59.25 in) Terminal box (without cable gland) 125 x 80 x 58 mm (4.92 x 3.15 x 2.28 in) B2 = 403 mm (15.87 in) H2 = 1735 mm (68.31 in) W = 150 mm (5.91 in)

Weight with 150# anges: approx. 520 kg (1146 lb)

Shipping in wooden crate as per ISPM 15, approx. 220 x 160 x 90 cm (87 x 63 x 36 in), gross weight with 150# anges and RHE 08 transmitter approx. 750 kg (1654 lb)

Finish type of our ANSI anges corresponds to SF (AARH 125 up to 250 μin, Ra 3.2 up to 6.3 μm)

For customization with regard to face to face length and special ttings, please consult your local agent

Process Connection Face to face length (L) Order Code

mm in

Standard Flange DIN DN200/PN16 900 35.43 D1

Flange DIN DN200/PN40 900 35.43 D2

Flange ANSI 8" 150# RF/SF 900 35.43 A1

Flange ANSI 8" 300# RF/SF 900 35.43 A2

Flange ANSI 8'' 600# RF/SF (*) 900 35.43 A3

Optional Flange DIN DN200/PN100 (*) 900 35.43 D3

Flange ANSI 8" 900# RF/SF (*) 900 35.43 A4

Flange ANSI 8" 900# RTJ (*) 900 35.43 R3

Flange ANSI 8" 1500# RF/SF (*) 900 35.43 A5

Flange ANSI 8" 1500# RTJ (*) 900 35.43 R4

Flange JIS RF 10k 200A (8") 900 35.43 J1

Flange JIS RF 20k 200A (8") 900 35.43 J2

Pressure Rating RHM 100

The maximum pressure (pmax) of a sensor is determined by its weakest part. The weakest part can be the measuring loops (pmax indicated below) or the selected anges / ttings (for pmax please see respective standard). For optional materials like Alloy C22, wall thickness of measuring loops may change by +/- 10%.

pmax of P0 measuring loops, standard M1 standard material - 1.4571 (316Ti) OD x WT 114.3 x 4.5 mm (4.5 x 0.177 in)

bar °C psi °F

73 50 1059 122

66 120 957 248

57 210 827 410

pmax of PA measuring loops M1 standard material - 1.4571 (316Ti) OD x WT 114.3 x 6 mm (4.5 x 0.236 in)

bar °C psi °F

99 50 1436 122

88 120 1276 248

76 210 1102 410

pmax of P1 measuring loops M3 optional material - 2.4602 (Alloy C22) OD x WT 114.3 x 5 mm (4.5 x 0.197 in)

bar °C psi °F

113 50 1639 122

100 120 1450 248

85 210 1233 410

pmax of PA measuring loops 62 optional material - 1.4462 (Duplex) OD x WT 114.3 x 6.02 mm (4.5 x 0.237 in)

bar °C psi °F

189 50 2741 122

166 120 2408 248

145 210 2103 410

Page 3

Performance RHM 100

Max Flow Rate Qmax = 12,000 kg/min (26,455 lb/min) and Qnom (*) = 10,000 kg/min (22,046 lb/min)

Uncertainty % DP (bar)

Standard Models

Flow Rate Uncertainty

kg/min lb/min in % of reading

12000 26455 0.20

6000 13228 0.20

3000 6614 0.20

800 1764 0.20

300 661 0.50

Flow Rate kg/min

Uncertainty % DP (bar)

Goldline Models (**) - selected sensors

Flow Rate Uncertainty

kg/min lb/min in % of reading

9000 19842 0.15

7000 15432 0.15

5000 11023 0.15

3000 6614 0.15

1800 3968 0.15

Low Flow Models (**) - selected sensors

Flow Rate Uncertainty

kg/min lb/min in % of reading

12000 26455 0.20

6000 13228 0.20

800 1764 0.20

300 661 0.50

200 441 0.60

Repeatability

Better ± 0.1% of rate, Goldline 0.05%

Density

Down to 0.5% uncertainty

Temperature

Better ± 1°C

(*) Nominal ow Qnom refers to roughly 8 - 10 m/s (26 - 33 ft/s) velocity in measuring loops for best performance.

(**) Selected sensors are only available in combination with temperature options T1, TA, standard material and pressure range.

Flow Rate kg/min

Uncertainty % DP (bar)

Flow Rate kg/min

• Uncertainty of reading (incl. zero drift) indications refer to reference conditions H2O, 18-24°C (66 - 76°F), 1 - 3 bar (15 – 45 psi) and installation according to eld manual.

• Calibration at factory only up to 11,000 kg/min.

• Pressure drop indications refer to H2O, with measuring loops type P0.

• For calibration to customer range and / or with improved uncertainty, please consult your local agent.

Page 4

General Specications RHM 100

Temperature Range

• NT Models from -20 to +120°C (-4 to +248°F)

• ET Models from -45 to +120°C (-49 to +248°F)

• ET2 Models from -45 to +210°C (-49 to +410°F)

• ET1 Models from -196 to +50°C (-320 to +122°F) (Heating for housing optional, please consult your local agent)

Electrical Connection

• Junction box aluminum coated (standard). Junction box in SS 316Ti optional

• Cable entry M25 x 1.5. Optional cable entries M20 x 1.5, 1/2” NPT or 3/4” NPT

• Max cable length between RHM and RHE is 30 m (98 ft.). Optional 100 m (328 ft.) with special cable

Basic Order Code RHM 100

Sensor Size

Material of Wetted Parts

• 1.4571 / SS 316 Ti / UNS S31635 (standard)

• 2.4602 / Alloy C22 / UNS N06022

• 1.4462 / Duplex / UNS S31803

• Others on request

Sensor Enclosure/Housing

• Stainless Steel 1.4301 / SS 304, optional in 1.4571 / SS 316Ti. Others on request

• Protection Class IP 65. Optional IP 66 / NEMA 4x

Approvals

• ATEX Ex II 1 G, EEx ia IIC T6-T1

• CSA USA-Canada, Class I, Div. 1, Groups A, B, C, D

• PED according to directive 97/23/EC: Module B + C1

• Others on request

Temperature Range T1 NT from -20°C to +120°C (standard)

TA ET from -45°C to +120°C T2 ET2 Extended Temperature Range from -45°C to +210°C, maximum operating temperature is +150°C T3 ET1 Extended Temperature Range from -196°C to +50°C

Pressure Range of Measuring Loops @ 120°C and M1 material P0 pmax = 66 bar (standard)

PA pmax = 88 bar

Construction Type PF0 Parallel Measuring Loops Seal Less Version

Material of Wetted Parts M1 Measuring Loops and Connection Part 1.4571 (316Ti) (standard)

62 Measuring Loops and Connection Part 1.4462 (Duplex) M3 Measuring Loops and Connection Part 2.4602 (Alloy C22)

Process Connection D1 Flange DIN DN200/PN16 Form C (EN 1092-1 Form B1)

D2 Flange DIN DN200/PN40 Form C (EN 1092-1 Form B1) A1 Flange ANSI 8” 150# RF/SF A2 Flange ANSI 8” 300# RF/SF A3 Flange ANSI 8” 600# RF/SF Others on request

RHM 100 - - - -
