Ge RGB735, RGB790, RGB745, RGB740, JGBP87 User Manual

...

Download

183D5580P243 49-85161 01-09 JR

GEAppliances.com

Write the model and serial numbers here:

Model # ____________________

Serial #______________________

You can find them on a label on the front of the range behind the storage drawer or kick panel.

Safety Instructions . . . . . .2–7

Operating Instructions

Aluminum Foil . . . . . . . . . . . . . . . .15

Clock and Timer . . . . . . . . . . .17, 18

Oven . . . . . . . . . . . . . . . . . . . . . .12–25

Baking and Roasting . . . . . . . .15

Broiling, Broiling Guide . . . . . . .16

Oven Control . . . . . . . . . . . . .12, 13

Power Outage . . . . . . . . . . .14, 18

Preheating . . . . . . . . . . . . . . . . . . .15

Sabbath Feature . . . . . . . . .21, 22

Self-Cleaning . . . . . . . . . . . . .24, 25

Special Features . . . . . . . . . . . . .20

Thermostat Adjustment . . . . .23

Timed Baking

and Roasting . . . . . . . . . . . . . . . .19

Surface Cooking . . . . . . . . . . . . .8, 9

Griddle . . . . . . . . . . . . . . . . . . .10, 11

Care and Cleaning

Burner Assembly . . . . . . . . . .27–29

Burner Grates . . . . . . . . . . . . . . . . .29

Control Panel and Knobs . . . . .32

Cooktop Surface . . . . . . . . . . . . . .29

Door Removal . . . . . . . . . . . . . . . . .30

Griddle . . . . . . . . . . . . . . . . . . . . . . . .26

Kick Panel . . . . . . . . . . . . . . . . . . . . .31

Oven Bottom . . . . . . . . . . . . . . . . .30

Oven Light Replacement . . . . . .33

Oven Vents . . . . . . . . . . . . . . . . . . .32

Self-Cleaning . . . . . . . . . . . . . .24, 25

Racks . . . . . . . . . . . . . . . . . . . . . . . . .33

Stainless Steel Surfaces . . . . . . .29

Storage Drawer . . . . . . . . . . . . . . .31

Installation Instructions

. . . . . . . . . . . .34–45

Air Adjustment . . . . . . . . . . . . . . . .44

Anti-Tip Device . . . . . . . . . . . .37, 45

Checking Burner Ignition . . . . . .43

Connecting the Range

to Gas . . . . . . . . . . . . . . . . . . . .38–40

Dimensions and Clearances . .36

Electrical Connections . . . . .41, 42

Leveling the Range . . . . . . . . . . .44

Location . . . . . . . . . . . . . . . . . . . . . .37

LP . . . . . . . . . . . . . . . . . . . . . . . . . . . . .45

Troubleshooting

Tips . . . . . . . . . . . . . . . . . . . . . .46–49

Accessories . . . . . . . . . . . . . . . .50

Consumer Support

Consumer

Support . . . . . . . . . . . . . .Back Cover

Ownership Registration for Customers in

Canada only . . . . . . . . . . .51, 52

Warranty for Customers

in Canada . . . . . . . . . . . . . . . . . . . . .55

Warranty for Customers

in the U.S.A. . . . . . . . . . . . . . . . . . .54

Ranges

JGBP36 JGBP86

JGBP87 RGB735 RGB740 RGB745 RGB746 RGB790

Owner’s Manual

& Installation

Instructions

Self-Cleaning Gas

In Canada contact us at: www.GEAppliances.ca

Operating Instructions

Safety Instructions

Installation

Instructions

Troubleshooting Tips

Consumer Support

IMPORTANT SAFETY INFORMATION. READ ALL INSTRUCTIONS BEFORE USING.

— Do not store or use gasoline or other

flammable vapors and liquids in the vicinity of this or any other appliance.

—

WHAT TO DO IF YOU SMELL GAS

■ Do not try to light any appliance.

■ Do not touch any electrical switch;

do not use any phone in your building.

■ Immediately call your gas supplier

from a neighbor’s phone. Follow the gas supplier’s instructions.

■ If you cannot reach your gas supplier,

call the fire department.

— Installation and service must be

performed by a qualified installer, service agency or the gas supplier.

WARNING: If the information

in this manual is not followed exactly, a fire or explosion may result causing property damage, personal injury or death.

WARNING!

For your safety, the information in this manual must be followed to minimize the risk of fire or explosion, electric shock, or to prevent property damage, personal injury, or loss of life.

To reduce the risk of tipping the range, the range must be secured by a properly installed anti-tip bracket. See installation instructions shipped with the bracket for complete details before attempting to install.

To check if the bracket is installed and engaged properly, carefully tip the range forward. The bracket should stop the range within 4 inches. If it does not, the bracket must be reinstalled. If the range is pulled from the wall for any reason, always repeat this procedure to verify the range is properly secured by the anti-tip bracket.

For free-standing or slide-in ranges, never completely remove the leveling legs or the range will not be secured to the anti-tip device properly.

If you did not receive an anti-tip bracket with your purchase, call 1.800.626.8774 to receive one at no cost (in Canada, call 1.800.561.3344). For installation instructions of the bracket, visit GEAppliances.com (in Canada, GEAppliances.ca).

ANTI-TIP DEVICE

Consumer Support

Operating Instructions

Safety Instructions

Installation

Instructions

Troubleshooting Tips

GEAppliances.com

WARNING!

Have the installer show you the location of the range gas shut-off valve and how to shut it off if necessary.

■ Have your range installed and properly

grounded by a qualified installer, in accordance with the Installation Instructions. Any adjustment and service should be performed only by qualified gas range installers or service technicians.

■ Do not attempt to repair or replace any

part of your range unless it is specifically recommended in this manual. All other service should be referred to a qualified technician.

■ Plug your range into a 120-volt grounded

outlet only. Do not remove the round grounding prong from the plug. If in doubt about the grounding of the home electrical system, it is your personal responsibility and obligation to have an ungrounded outlet replaced with a properly grounded, three-prong outlet in accordance with the National Electrical Code. Do not use an extension cord with this appliance.

SAFETY PRECAUTIONS

IMPORTANT SAFETY NOTICE

The California Safe Drinking Water and Toxic Enforcement Act requires the Governor of California to publish a list of substances known to the state to cause birth defects or other reproductive harm, and requires businesses to warn customers of potential exposure to such substances.

Gas appliances can cause minor exposure to four of these substances, namely benzene, carbon monoxide, formaldehyde and soot, caused primarily by the incomplete combustion of natural gas or LP fuels. Properly adjusted burners, indicated by a bluish rather than a yellow flame, will minimize incomplete combustion. Exposure to these substances can be minimized by venting with an open window or using a ventilation fan or hood.

■ Locate the range out of kitchen traffic path

and out of drafty locations to prevent poor air circulation.

■ Be sure all packaging materials are removed

from the range before operating it to prevent fire or smoke damage should the packaging material ignite.

■ Be sure your range is correctly adjusted by

a qualified service technician or installer for the type of gas (natural or LP) that is to be used. Your range can be converted for use with either type of gas. See the Installation of the range section.

■ WARNING: These adjustments

must be made by a qualified service technician in accordance with the manufacturer’s instructions and all codes and requirements of the authority having jurisdiction. Failure to follow these instructions could result in serious injury or property damage. The qualified agency performing this work assumes responsibility for the conversion.

■ After prolonged use of a range, high floor

temperatures may result and many floor coverings will not withstand this kind of use. Never install the range over vinyl tile or linoleum that cannot withstand such type of use. Never install it directly over interior kitchen carpeting.

■ Do not leave children alone or unattended

where a range is hot or in operation. They could be seriously burned.

■ Do not allow anyone to climb, stand or hang

on the oven door, storage drawer, warming drawer or cooktop. They could damage the range and even tip it over, causing severe personal injury.

■ CAUTION: Items of interest

to children should not be stored in cabinets above a range or on the backsplash of a range—children climbing on the range to reach items could be seriously injured.

■ Never wear loose fitting or hanging garments

while using the appliance. Be careful when reaching for items stored in cabinets over the range. Flammable material could be ignited if brought in contact with flame or hot oven surfaces and may cause severe burns.

■ Do not store flammable materials in an oven,

a range storage drawer, a warming drawer or near a cooktop.

■ Do not store or use combustible materials,

gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.

■ Do not let cooking grease or other flammable

materials accumulate in or near the range.

■ Do not use water on grease fires. Never pick

up a flaming pan. Turn the controls off. Smother a flaming pan on a surface burner by covering the pan completely with a wellfitting lid, cookie sheet or flat tray. Use a multi-purpose dry chemical or foam-type fire extinguisher.

■ Flaming grease outside a pan can be put

out by covering it with baking soda or, if available, by using a multi-purpose dry chemical or foam-type fire extinguisher.

■ Flame in the oven can be smothered

completely by closing the oven door and turning the control to off or by using a multipurpose dry chemical or foam-type fire extinguisher.

■ Let the burner grates and other surfaces cool

before touching them or leaving them where children can reach them.

■ Never block the vents (air openings) of the

range. They provide the air inlet and outlet that are necessary for the range to operate properly with correct combustion. Air openings are located at the rear of the cooktop, at the top and bottom of the oven door, and at the bottom of the range under the kick panel or storage drawer.

■ Large scratches or impacts to glass doors can

lead to broken or shattered glass.

SAFETY PRECAUTIONS

Operating Instructions

Safety Instructions

Installation

Instructions

Troubleshooting Tips

Consumer Support

IMPORTANT SAFETY INFORMATION. READ ALL INSTRUCTIONS BEFORE USING.

WARNING: NEVER use this

appliance as a space heater to heat or warm the room. Doing so may result in carbon monoxide poisoning and overheating of the oven.

SURFACE BURNERS

Use proper pan size—avoid pans that are unstable or easily tipped. Select cookware having flat bottoms large enough to cover burner grates. To avoid spillovers, make sure cookware is large enough to contain the food properly. This will both save cleaning time and prevent hazardous accumulations of food, since heavy spattering or spillovers left on range can ignite. Use pans with handles that can be easily grasped and remain cool.

■ Always use the Lite position when igniting the

top burners and make sure the burners have ignited.

■ Never leave the surface burners unattended at

high flame settings. Boilovers cause smoking and greasy spillovers that may catch on fire.

■ Adjust the top burner flame size so it

does not extend beyond the edge of the cookware. Excessive flame is hazardous.

■ Use only dry pot holders—moist or damp pot

holders on hot surfaces may result in burns from steam. Do not let pot holders come near open flames when lifting cookware. Do not use a towel or other bulky cloth in place of a pot holder.

■ When using glass cookware, make sure it

is designed for top-of-range cooking.

■ To minimize the possibility of burns, ignition

of flammable materials and spillage, turn cookware handles toward the side or back of the range without extending over adjacent burners.

■ Carefully watch foods being fried at a high

flame setting.

■ Always heat fat slowly, and watch as it heats.

■ Do not leave any items on the cooktop. The

hot air from the vent may ignite flammable items and will increase pressure in closed containers, which may cause them to burst.

■ If a combination of oils or fats will be used in

frying, stir together before heating or as fats melt slowly.

■ Use a deep fat thermometer whenever

possible to prevent overheating fat beyond the smoking point.

■ Use the least possible amount of fat for

effective shallow or deep-fat frying. Filling the pan too full of fat can cause spillovers when food is added.

■ Do not flame foods on the cooktop. If you do

flame foods under the hood, turn the fan on.

■ Do not use a wok on the cooking surface if the

wok has a round metal ring that is placed over the burner grate to support the wok. This ring acts as a heat trap, which may damage the burner grate and burner head. Also, it may cause the burner to work improperly. This may cause a carbon monoxide level above that allowed by current standards, resulting in a health hazard.

■ Foods for frying should be as dry as possible.

Frost on frozen foods or moisture on fresh foods can cause hot fat to bubble up and over the sides of the pan.

■ Never try to move a pan of hot fat, especially

a deep fat fryer. Wait until the fat is cool.

■ Do not leave plastic items on the cooktop—

they may melt if left too close to the vent.

■ Keep all plastics away from the surface

burners.

■ To avoid the possibility of a burn, always be

certain that the controls for all burners are at the Off position and all grates are cool before attempting to remove them.

■ If range is located near a window, do not hang

long curtains that could blow over the surface burners and create a fire hazard.

■ If you smell gas, turn off the gas to the range

and call a qualified service technician. Never use an open flame to locate a leak.

■ Always turn the surface burner controls off

before removing cookware.

■ Do not lift the cooktop on sealed burner

models. Lifting the cooktop can lead to damage and improper operation of the range.

Consumer Support

Operating Instructions

Safety Instructions

Installation

Instructions

Troubleshooting Tips

GEAppliances.com

WARNING!

Operating Instructions

Safety Instructions

Installation

Instructions

Troubleshooting Tips

Consumer Support

■ Do not use the oven for a storage area.

Items stored in the oven can ignite.

■ Keep the oven free from grease buildup.

■ Place the oven racks in the desired position

while the oven is cool.

■ Pulling out the rack to the stop-lock is a

convenience in lifting heavy foods. It is also a precaution against burns from touching hot surfaces of the door or oven walls. The lowest position is not designed to slide.

■ Do not heat unopened food containers.

Pressure could build up and the container could burst, causing an injury.

■ Do not use aluminum foil anywhere in the

oven except as described in this manual. Misuse could result in a fire hazard or damage to the range.

■ When using cooking or roasting bags in the

oven, follow the manufacturer’s directions.

■ Do not use your oven to dry newspapers.

If overheated, they can catch fire.

■ Use only glass cookware that is recommended

for use in gas ovens.

■ Always remove any broiler pan from range

as soon as you finish broiling. Grease left in the pan can catch fire if oven is used without removing the grease from the broiler pan.

■ When broiling, if meat is too close to the flame,

the fat may ignite. Trim excess fat to prevent excessive flare-ups.

■ Make sure any broiler pan is in place correctly

to reduce the possibility of grease fires.

■ If you should have a grease fire in a broiler

pan, touch the Clear/Off pad, and keep the oven door closed to contain fire until it burns out.

■ For safety and proper cooking performance,

always bake and broil with the oven door closed.

Stand away from the range when opening the door of a hot oven. The hot air and steam that escape can cause burns to hands, face and eyes.

OVEN

COOK MEAT AND POULTRY THOROUGHLY…

Cook meat and poultry thoroughly—meat to at least an INTERNAL temperature of 160°F and poultry to at least an INTERNAL temperature of 180°F. Cooking to these temperatures usually protects against foodborne illness.

IMPORTANT SAFETY INFORMATION. READ ALL INSTRUCTIONS BEFORE USING.

WARNING: NEVER cover

any slots, holes or passages in the oven bottom or cover an entire rack with materials such as aluminum foil. Doing so blocks air flow through the oven and may cause carbon monoxide poisoning. Aluminum foil linings may also trap heat, causing a fire hazard.

READ AND FOLLOW THIS SAFETY INFORMATION CAREFULLY.

SAVE THESE INSTRUCTIONS

■ Be sure to wipe off excess spillage before

self-cleaning operation.

■ Before self-cleaning the oven, remove the

racks, any broiler pan, grid and other cookware.

■ Do not clean the door gasket. The door gasket

is essential for a good seal. Care should be taken not to rub, damage or move the gasket.

■ Clean only parts listed in this Owner’s Manual.

■ If the self-cleaning mode malfunctions,

turn the oven off and disconnect the power supply. Have it serviced by a qualified technician.

■ Do not use oven cleaners. No commercial

oven cleaner or oven liner of any kind should be used in or around any part of the oven. Residue from oven cleaners will damage the inside of the oven when the self-clean cycle is used.

SELF-CLEANING OVEN

Consumer Support

Operating Instructions

Safety Instructions

Installation

Instructions

Troubleshooting Tips

GEAppliances.com

Operating Instructions

Safety Instructions

Installation

Instructions

Troubleshooting Tips

Consumer Support

Throughout this manual, features and appearance may vary from your model.

How to Light a Gas Surface Burner

Make sure all the surface burners are placed in their respective positions.

Push the control knob in and turn it to the Lite position.

You will hear a little clicking noise—the sound of the electric spark igniting the burner.

Turn the knob to adjust the flame size. If the knob stays at Lite, it will continue to click.

When one burner is turned to Lite, all the burners spark. Do not attempt to disassemble or clean around any burner while another burner is on. An electric shock may result, which could cause you to knock over hot cookware.

Push the control knob in and turn it to the Lite position.

How to Select Flame Size

For safe handling of cookware, never let the flames extend up the sides of the cookware.

Watch the flame, not the knob, as you reduce heat. When fast heating is desired, the flame size on a gas burner should match the cookware you are using.

Flames larger than the bottom of the cookware will not result in faster heating of the cookware and could be hazardous.

Before Lighting a Gas Burner

■ Make sure all burners are in place.

■ Make sure all grates on the range are

properly placed before using any burner.

After Lighting a Gas Burner

■ Do not operate the burner for an extended

period of time without cookware on the grate. The finish on the grate may chip without cookware to absorb the heat.

■ Be sure the burners and grates are cool

before you place your hand, a pot holder, cleaning cloths or other materials on them.

Sealed Gas Burners

Your gas range cooktop, depending on model, has either four or five sealed gas burners. They offer convenience, cleanability and flexibility to be used in a wide range of cooking applications.

The smallest burner in the right rear position is the simmer burner. This burner can be turned down to Lo for a very low simmer setting. It provides precise cooking performance for delicate foods such as sauces or foods that require low heat for a long cooking time.

The medium (left rear and, on some models, left front) and the large (left front and, on some models, right front) burners are the primary burners for most cooking. These generalpurpose burners can be turned down from Hi to Lo to suit a wide range of cooking needs.

The extra large burner (right front, on some models) is the maximum output burner. Like the other four burners, it can be turned down from Hi to Lo for a wide range of cooking applications; however, this burner is designed to quickly bring large amounts of liquid to a boil. It has a special Power Boil™setting designed to be used with cookware 10 inches or larger in diameter.

The center oval burner (on some models) is for large pots/pans or for use with the griddle.

Using the gas surface burners.

Medium

Small

Large

Extra Large

Center (oval)

(on some

models)

Extra-large burner only

Medium

Small

Medium

Large

On some models

Consumer SupportOperating Instructions

Safety Instructions

Installation

Instructions

Troubleshooting Tips

GEAppliances.com

Use a flat-bottomed wok.

Top-of-Range Cookware

Aluminum: Medium-weight cookware is

recommended because it heats quickly and evenly. Most foods brown evenly in an aluminum skillet. Use saucepans with tightfitting lids when cooking with minimum amounts of water.

Cast-Iron: If heated slowly, most skillets will give satisfactory results.

Enamelware: Under some conditions, the enamel of some cookware may melt. Follow cookware manufacturer’s recommendations for cooking methods.

Glass: There are two types of glass cookware—those for oven use only and those for top-of-range cooking (saucepans, coffee and teapots). Glass conducts heat very slowly.

Heatproof Glass Ceramic: Can be used for either surface or oven cooking. It conducts heat very slowly and cools very slowly. Check cookware manufacturer’s directions to be sure it can be used on gas ranges.

Stainless Steel: This metal alone has poor heating properties and is usually combined with copper, aluminum or other metals for improved heat distribution. Combination metal skillets usually work satisfactorily if they are used with medium heat as the manufacturer recommends.

Stove Top Grills (on models with sealed burners)

Do not use stove top grills on your sealed gas burners. If you use the stove top grill on the sealed gas burner, it will cause incomplete combustion and can result in exposure to carbon monoxide levels above allowable current standards.

This can be hazardous to your health.

Wok This Way (on models with sealed burners)

We recommend that you use a 14" or smaller flat-bottomed wok. Make sure the wok bottom sits flat on the grate. They are available at your local retail store.

Only a flat-bottomed wok should be used.

Do not use a flat-bottomed wok on a support ring. Placing the ring over the burner or grate may cause the burner to work improperly, resulting in carbon monoxide levels above allowable standards. This could be dangerous to your health.

In Case of Power Failure

In case of a power failure, you can light the gas surface burners on your range with a match. Hold a lit match to the burner, then push in and turn the control knob to the Lite position. Use extreme caution when lighting burners this way.

Surface burners in use when an electrical power failure occurs will continue to operate normally.

Operating Instructions Safety Instructions

Installation

Instructions

Troubleshooting Tips

Consumer Support

Your non-stick coated griddle provides an extra-large cooking surface for meats, pancakes or other food usually prepared in a frying pan or skillet.

NOTE: Your griddle will discolor over time as it becomes seasoned with use.

How to Insert the Griddle

Using the griddle. (on some models)

CAUTION:Place and remove

the griddle only when all grates and griddle are cool and all surface units are turned OFF.

The griddle can only be used with the center burner. To insert the griddle, remove the center grate and replace with the griddle.

Consumer SupportOperating InstructionsSafety Instructions

Installation

Instructions

Troubleshooting Tips

GEAppliances.com

Most griddled foods require cooking on a preheated surface. Preheat griddle according to the guide below, then switch to the desired cook setting.

IMPORTANT NOTES:

■ Avoid cooking extremely greasy foods and

be careful of grease spill-over while cooking.

■ Do not use oil on the griddle for extended

lengths of time. Permanent staining and/or craze lines on the surface could result.

■ Never place or store any items on the

griddle, even when it is not in use. The griddle can become heated when using the surrounding burners.

■ Do not overheat the griddle. Leaving the

griddle burner on at HI for an extended amount of time without food can damage the non-stick coating.

■ Avoid using metal utensils with sharp points

or rough sharp edges which might damage the griddle surface.

■ Do not cut foods on the griddle.

Using the Griddle

Type of Food Preheat Cook

Conditions Setting

Warming none 3 (MED-LOW) Tortillas

Pancakes 7 (MED-HI) 7 (MED-HI)

3 min.

Hamburgers 7 (MED-HI) 7 (MED-HI)

5 min.

Fried Eggs HI 4 (MED)

5 min.

Bacon none 5 (MED)

Breakfast HI 5 (MED) Sausage Links 5 min.

Hot Sandwiches HI HI (such as 4 min. Grilled Cheese)

NOTE: Griddle settings may need to be adjusted if the griddle is used for an extended time.

Operating Instructions

Safety Instructions

Installation

Instructions

Troubleshooting Tips

Consumer Support

Bake/Temp Recall Pad

Touch this pad to select the bake function.

Bake Light

Flashes while in edit mode—you can change the oven temperature at this point. Glows when the oven is in bake mode.

Start/On Pad

Must be touched to start any cooking or cleaning function.

Display

Shows the time of day, oven temperature, whether the oven is in the bake, broil or selfcleaning mode and the times set for the timer or automatic oven operations. The display will show PRE while preheating. When the oven reaches the selected temperature, the oven control will beep and the display will show the oven temperature.

If “F– and a number or letter” flash in the display and the oven control signals, this indicates a function error code.

If your oven was set for a timed oven operation and a power outage occurred, the clock and all programmed functions must be reset.

The time of day will flash in the display when there has been a power outage. Reset the clock.

On models with an oven door latch, if the function error code appears during the self-cleaning cycle, check the oven door latch. The latch handle may have been moved, even if only slightly, from the latched position. Make sure the latch is moved to the right as far as it will go.

Touch the Clear/Off pad. Allow the oven to cool for one hour. Put the oven back into operation. If the function error code repeats, disconnect the power to the range and call for service.

Kitchen Timer On/Off Pad

Touch this pad to select the timer feature. Then press the + and – pads to adjust the timer.

Kitchen Timer Light

Flashes while in edit mode—you can change the set time at this point. Glows when the timer has been activated. Flashes again when the time has run out until the control is reset.

Clock Pad

To set the clock, press this pad twice and then press the + and – pads. The time of day will flash in the display when the oven is first turned on.

Start Time Pad

Use along with the Cooking Time or Self Clean pads to set the oven to start and stop automatically at a time you set.

Start Time Light

Flashes while in edit mode—you can change the start time at this point. Glows when the function has been activated.

Cooking Time Pad

Touch this pad and then touch the + or – pads to set the amount of time you want your food to cook. The oven will shut off when the cooking time has run out.

Cooking Time Light

Flashes while in edit mode—you can change the set time at this point. Glows when the function has been activated. Flashes again when the time has run out until the control is reset.

Throughout this manual, features and appearance may vary from your model.

Using the oven controls.

Oven Control, Clock and Timer Features and Settings (on some models)

GEAppliances.com

Automatic Oven Light (on some models)

This lights anytime the oven has been programmed using the Cooking Time or Start Time functions.

Oven Light On/Off Pad

Touch this pad to turn the oven light on or off.

– Pad

Short taps to this pad will decrease the time or temperature by small amounts. Touch and hold the pad to decrease the time or temperature by larger amounts.

+ Pad

Short taps to this pad will increase the time or temperature by small amounts. Touch and hold the pad to increase the time or temperature by larger amounts.

Self Clean Pad

Touch this pad to select the self-cleaning function. See the Using the self-cleaning oven section.

Clean Light

Flashes while in edit mode—you can change the length of time for the self-clean cycle at this point. Glows when the oven is in the self-clean cycle. After the self-clean cycle, the light will turn off. When the light is off, slide the latch handle to the left as far as it will go and open the door. If your range does not have a latch, the door will unlock automatically.

Clear/Off Pad

Touch this pad to cancel ALL oven operations except the clock and timer.

Broil Hi/Lo Pad

Touch this pad to select the broil function.

Broil Light

Flashes while in edit mode—you can switch from Hi to Lo Broil at this point. Glows when the oven is in broil mode.

Indicator Lights (on some pads)

Edit mode lasts several seconds after the last pad press. Start Time and Cooking Time will be the only pads lit if either of these options is selected. (Example: Start Time is selected with Bake—the Start Time pad will remain lit until the clock reaches the programmed time, at which point it will turn off and the Bake/Temp Recall pad light will light up).

Consumer Support

Operating InstructionsSafety Instructions

Installation

Instructions

Troubleshooting Tips

Oven Control, Clock and Timer Features and Settings(on some models)

Operating Instructions

Safety Instructions

Installation

Instructions

Troubleshooting Tips

Consumer Support

To avoid possible burns, place the racks in the desired position before you turn the oven on.

Oven Vent

Your oven is vented through ducts at the rear of the range. Do not block these ducts when cooking in the oven—it is important that the flow of hot air from the oven and fresh air to the oven burner be uninterrupted. Avoid touching the vent openings or nearby surfaces during oven or broiler operation— they may become hot.

■ Handles of pots and pans on the cooktop

may become hot if left too close to the vent.

■ Do not leave plastic or flammable items on

the cooktop—they may melt or ignite if left too close to the vent.

■ Do not leave closed containers on the

cooktop. The pressure in closed containers may increase, which may cause them to burst.

■ Metal items will become very hot if they are

left on the cooktop, and could cause burns.

Plastic items on the cooktop may melt if left too close to the vent.

Vent appearance and location vary.

Using the oven.

Before you begin…

The racks have stop-locks, so that when placed correctly on the rack supports (A through E), they will stop before coming completely out, and will not tilt.

When placing and removing cookware, pull the rack out to the bump on the rack support.

To remove a rack, pull it toward you, tilt the front end up and pull it out.

To replace, place the end of the rack (stoplocks) on the support, tilt up the front and push the rack in.

NOTE: The rack is not designed to slide out at the special low rack (R) position.

The oven has 5 rack positions.

It also has a special low rack position (R) for extra large items, such as a large turkey.

Power Outage

CAUTION: Do not make any

attempt to operate the electric ignition oven during an electrical power failure.

The oven or broiler cannot be lit during a power failure. Gas will not flow unless the glow bar is hot.

If the oven is in use when a power failure occurs, the oven burner shuts off and cannot be re-lit until power is restored. This is because the flow of gas is automatically stopped and will not resume when power is restored until the glow bar has reached operating temperature.

Oven Light

Touch the Oven Light pad on the upper control panel to turn the light on or off.

If your model has a door latch, do not lock the oven door with the latch during baking or roasting. The latch is used for self-cleaning only.

Preheating and Pan Placement

Preheat the oven if the recipe calls for it. To preheat, set the oven at the correct temperature. Preheating is necessary for good results when baking cakes, cookies, pastry and breads.

For ovens without a preheat indicator light or tone, preheat 10 minutes.

Baking results will be better if baking pans are centered in the oven as much as possible. Pans should not touch each other or the walls of the oven. If you need to use two racks, stagger the pans so one is not directly above the other, and leave approximately 11⁄2" between pans, from the front, back and sides of the wall.

GEAppliances.com

How to Set the Oven for Baking or Roasting

Your oven is not designed for open-door cooking.

Touch the Bake pad.

Touch the + or – pads until the desired temperature is displayed.

Touch the Start/On pad.

The oven will start automatically. The display will show PRE while preheating. When the oven reaches the selected temperature, the oven control will beep several times and the display will show the oven temperature.

To change the oven temperature during Bake cycle, touch the Bake pad and then the + or – pads to get the new temperature.

Check food for doneness at minimum time on recipe. Cook longer if necessary.

Touch the Clear/Off pad when baking is finished and then remove the food from the oven.

Type of Food Rack Position

Frozen pies (on cookie sheet) B or C

Angel food cake, B bundt or pound cakes

Biscuits, muffins, brownies, C cookies, cupcakes, layer cakes, pies

Casseroles B or C

Roasting R or A

Aluminum Foil

Do not use aluminum foil on the bottom of the oven.

Never entirely cover a rack with aluminum foil. This will disturb the heat circulation and result in poor baking.

A smaller sheet of foil may be used to catch a spillover by placing it on a lower rack several inches below the food.

Oven Moisture

As your oven heats up, the temperature change of the air in the oven may cause water droplets to form on the door glass. These droplets are harmless and will evaporate as the oven continues to heat up.

The oven has a special low rack (R) position just above the oven bottom. Use it when extra cooking space is needed, for example, when cooking a large turkey. The rack is not designed to slide out at this position.

Consumer Support

Operating Instructions

Safety Instructions

Installation

Instructions

Troubleshooting Tips

Quantity and/ Rack* First Side Second Side

Food or Thickness Position Time (min.) Time (min.) Comments

Bacon 1/2 lb. C 4 3 Arrange in single layer.

(about 8 thin slices)

Ground Beef 1 lb. (4 patties) C 10 7–10 Space evenly. Up to Well Done 1/2" to 3/4" thick 8 patties take about

the same time.

Beef Steaks

Rare

†

1" thick C 9 7 Steaks less than 1" thick Medium 1 to 11⁄2 l bs. C 12 5–6 cook through befo re Well Done C 13 8–9 browning. Pan frying is

recommended.

Rare

†

11⁄2" thick C 10 6–7 Slash fat. Medium 2 to 2

⁄2 lbs. C 12–15 10–12

Well Done C 25 16–18 Chicken 1 whole B 30–35 15–20 Brush each side with

2 to 21⁄2 lbs., melted butter. Broil

split lengthwise skin-side-down first.

4 bone-in breasts B 25–30 10–15 Lobster Tails 2–4 C 13–16 Do not Cut through back of

6 to 8 oz. each turn shell. Spread open. Brush

over. withmelted butter before

broiling and after half of broiling time.

Fish Fillets 1/4" to 1/2" thick D 6 6 Handle and turn very

carefully. Brush with lemon butter before and during cooking, if desired. Preheat broiler to increase browning.

Ham Slices 1" thick C 8 8 (precooked)

1/2" thick D 6 6 Pork Chops 2 (1/2" thick) D 10 8 Slash fat .

Well Done 2 (1" thick) about 1 lb. D 15 8

Operating Instructions

Safety Instructions

Installation

Instructions

Troubleshooting Tips

Consumer Support

If your model has a door latch, do not lock the oven door with the latch during broiling. The latch is used for self-cleaning only.

Broiling Guide

Using the oven.

How to Set the Oven for Broiling

NOTE: On models with an Oven Temp knob, turn it

to Broil.

Place the meat or fish on a broiler grid in a broiler pan.

Follow suggested rack positions in the

Broiling Guide.

The oven door must be closed during broiling.

Touch the Broil Hi/Lo pad once for

Hi Broil.

To change to Lo Broil, touch the Broil Hi/Lo pad again.

Touch the Start/On pad.

When broiling is finished, touch the Clear/Off pad.

Serve the food immediately, and leave the pan outside the oven to cool during the meal for easiest cleaning.

Use Lo Broil to cook foods such as poultry or thick cuts of meat thoroughly without over-browning them.

The size, weight, thickness, starting temperature and your preference of doneness will affect broiling times. This guide is based on meats at refrigerator temperature.

†The U.S. Department of Agriculture says “Rare beef is popular, but you should know that cooking it to only 140°F means some food poisoning organisms may survive.” (Source: Safe Food Book, Your Kitchen Guide, USDA Rev. June 1985.)

The oven has 5 rack positions.

*See illustration for description of rack positions.

Close the door. Always broil with

the door closed.

Not all features are on all models.

To Set the Timer

The timer does not control oven operations. The maximum setting on the timer is 9 hours and 59 minutes.

Touch the Kitchen Timer On/Off pad.

Touch the + or – pads until the amount of time you want shows in the display. The maximum time that can be entered in minutes is 59. Times more than 59 minutes should be changed to hours and minutes.

If you make a mistake, touch the Kitchen Timer On/Off pad and begin again.

Touch the Start/On pad. The time will start counting down, although the display does not change until one minute has passed.

When the timer reaches :00, the control will beep 3 times followed by one beep every 6 seconds until the Kitchen Timer On/Off pad is touched.

The timer is a minute timer only.

The Clear/Off pad does not affect the timer.

Using the clock and timer. GEAppliances.com

To Set the Clock

The clock must be set to the correct time of day for the automatic oven timing functions to work properly. The time of day cannot be changed during a delayed cooking or a delayed self-cleaning cycle.

Touch the Clock pad twice.

Touch the + or – pads.

If the + or – pads are not touched within one minute after you touch the Clock pad, the display reverts to the original setting. If this happens, touch the Clock pad twice and reenter the time of day.

Touch the Start/On pad until the time of day shows in the display. This enters the time and starts the clock.

To check the time of day when the display is showing other information, simply touch the Clock pad. The time of day shows until another pad is touched.

Make sure the clock is set to the correct time of day.

Consumer Support

Installation

Instructions

Troubleshooting Tips

Operating Instructions

Safety Instructions

To Turn Off the Clock Display

If you have several clocks in your kitchen, you may wish to turn off the time of day clock display on your range.

Touch the Clock pad once to turn off the time of day display. Although you will not be able to see it, the clock maintains the correct time of day.

Touch the Clock pad twice to recall the clock display.

Operating Instructions

Safety Instructions

Installation

Instructions

Troubleshooting Tips

Consumer Support

Not all features are on all models.

Using the clock and timer. (on some models)

To Reset the Timer

If the display is still showing the time remaining, you may change it by touching the Kitchen Timer On/Off pad, then touch the + or – pads until the time you want appears in the display.

If the remaining time is not in the display (clock, start time or cooking time are in the display), recall the remaining time by touching the Kitchen Timer On/Off pad and then touching the + or – pads to enter the new time you want.

To Cancel the Timer

Touch the Kitchen Timer On/Off pad twice.

End of Cycle Tones (on some models)

Clear the tones by pressing the pad of the function you are using.

Power Outage

If a flashing time is in the display, you have experienced a power failure. Reset the clock.

To reset the clock, touch the Clock pad. Enter the correct time of day by touching the + or – pads. Touch the Start/On pad.

Consumer Support

Installation

Instructions

Troubleshooting Tips

Operating Instructions

Safety Instructions

If your model has a door latch, do not lock the oven door with the latch during timed cooking. The latch is used for self-cleaning only.

NOTE: Foods that spoil easily—such as milk, eggs, fish, stuffings, poultry and pork—should not be allowed to sit for more than 1 hour before or after cooking. Room temperature promotes the growth of harmful bacteria. Be sure that the oven light is off because heat from the bulb will speed harmful bacteria growth.

Using the timed baking and roasting features. (on some models)

GEAppliances.com

How to Set an Immediate Start and Automatic Stop

The oven will turn on immediately and cook for a selected length of time. At the end of the cooking time, the oven will turn off automatically.

Touch the Bake pad.

Touch the + or – pads to set the oven temperature.

Touch the Cooking Time pad.

NOTE: If your recipe requires preheating, you may need to add additional time to the length of the cooking time.

Touch the + or – pads to set the baking time.

The cooking time that you entered will be displayed. (If you select Cooking Time first and then adjust the Bake Temperature, the oven temperature will be displayed instead).

Touch the Start/On pad.

The display shows either the oven temperature that you set or the cooking time countdown. (The display starts with PRE if showing the oven temperature.)

The oven will continue to cook for the programmed amount of time, then turn off automatically.

Touch the Clear/Off pad to clear the display if necessary.

Remove the food from the oven. Remember, even though the oven shuts off automatically, foods continue cooking after controls are off.

How to Set a Delayed Start and Automatic Stop

The oven will turn on at the time of day you set, cook for a specific length of time and then turn off automatically.

Make sure the clock shows the correct time of day.

Touch the Bake pad.

Touch the + or – pads to set the oven temperature.

Touch the Cooking Time pad.

Touch the + or – pads to set the desired length of cooking time.

Touch the Start Time pad.

Touch the + or – pads to set the time of day you want the oven to turn on and start cooking.

Touch the Start/On pad.

NOTE: An attention tone will sound if you are using timed baking and do not touch the

Start/On pad.

NOTE: If you would like to check the times you

have set, touch the Start Time pad to check the start time you have set or touch the Cooking Time pad to check the length of cooking time you have set.

When the oven turns on at the time of day you have set, the display will show PRE until it reaches the selected temperature, then it will display the oven temperature.

At the end of cooking time, the oven will turn off and the end of cycle tone will sound.

Touch the Clear/Off pad to clear the display if necessary.

Remove the food from the oven. Remember, even though the oven shuts off automatically, foods continue cooking after controls are off.

Operating Instructions

Safety Instructions

Installation

Instructions

Troubleshooting Tips

Consumer Support

Your new touch pad control has additional features that you may choose to use. The following are the features and how you may activate them.

The special feature modes can only be activated while the display is showing the time of day. They remain in the control’s memory until the steps are repeated.

When the display shows your choice, touch the Start/On pad. The special features will remain in memory after a power failure.

NOTE: The Sabbath feature and the Thermostat Adjustment feature are also Special Features, but they are addressed separately in the following sections.

Special features of your oven control.

12-Hour Shut-Off

With this feature, should you forget and leave the oven on, the control will automatically turn off the oven after 12 hours during baking functions or after 3 hours during a broil function.

If you wish to turn OFF this feature, follow the steps below.

Touch the Bake and Broil Hi/Lo pads at the same time for 3 seconds until the display shows SF.

Touch the Clock pad. The display will show On (12-hour shut-off). Touch the Clock pad repeatedly until the display shows Off (no shut-off).

Touch the Start/On pad to activate the no shut-off and leave the control set in this special features mode.

The Sabbath feature can be used for baking/roasting only. It cannot be used for broiling, self-cleaning or Delay Start cooking.

NOTE: The oven light comes on automatically (on some models) when the door is opened and goes off when the door is closed. The bulb may be removed. See the Oven Light Replacement section. On models with a light switch on the control panel, the oven light may be turned on and left on.

How to Set for Timed Baking/Roasting—Immediate Start and Automatic Stop

NOTE: To understand how the oven control works,

practice using regular (non-Sabbath) Immediate Start and Automatic Stop before entering the Sabbath mode.

Make sure the clock shows the correct time of day and the oven is off.

Touch and hold both the Bake and Broil Hi/Lo pads, at the same time,

until the display shows SF.

Tap the Clock pad until SAb appears in the display.

Touch the Start/On pad and ⊃ will appear in the display.

Touch the Cooking Time pad.

Touch the + or – pads to set the desired length of cooking time between 1 minute and 9 hours and 59 minutes. The cooking time that you entered will be displayed.

Touch the Start/On pad.

Touch the Bake pad. No signal will be given.

The preset starting temperature will automatically be set to 350°. Tap the + or – pads to increase or decrease the temperature in 25° increments. The temperature can be set between 170° and 550°. No signal or temperature will be given.

Touch the Start/On pad.

After a random delay period of approximately 30 seconds to 1 minute, ⊃ will appear in the display indicating that the oven is

baking/roasting.

If ⊃ doesn’t appear

in the display, start again at Step 7.

To adjust the oven temperature, touch the Bake pad and tap the + or – pads to increase or decrease the temperature in 25° increments. Touch the Start/On pad.

When cooking is finished, the display will change from ⊃ to ⊃, indicating that the oven has turned OFF but is still set in Sabbath. Remove the cooked food.

⊃

Using the Sabbath Feature.

(on some models)

(Designed for use on the Jewish Sabbath and Holidays)

GEAppliances.com

How to Set for Regular Baking/Roasting

NOTE: To understand how the oven control works,

practice using regular baking (non-Sabbath) before entering Sabbath mode.

Make sure the clock shows the correct time of day and the oven is off.

Touch and hold both the Bake and Broil Hi/Lo pads, at the same time,

until the display shows SF.

Tap the Clock pad until SAb appears in the display.

Touch the Start/On pad and ⊃ will appear in the display.

Touch the Bake pad. No signal will be given.

Touch the Start/On pad.

After a random delay period of approximately 30 seconds to 1 minute, ⊃ will appear in the display indicating that the oven is

baking/roasting.

If ⊃ doesn’t appear

in the display, start again at Step 4.

To adjust the oven temperature, touch the Bake pad and tap the + or – pads to increase or decrease the temperature in 25° increments. Touch the Start/On pad.

NOTE: The Clear/Off and Cooking Time pads are active during the Sabbath feature.

⊃

When the display shows ⊃ the oven is set in Sabbath. When the display shows ⊃ the oven is baking/roasting.

⊃

When the display shows ⊃ the oven is set in Sabbath. When the display shows ⊃ the oven is baking/roasting.

⊃

Consumer Support

Operating Instructions

Safety Instructions

Installation

Instructions

Troubleshooting Tips

Operating Instructions

Safety Instructions

Installation

Instructions

Troubleshooting Tips

Consumer Support

Using the Sabbath Feature.

(on some models)

(Designed for use on the Jewish Sabbath and Holidays)

How to Exit the Sabbath Feature

Touch the Clear/Off pad.

If the oven is cooking, wait for a random delay period of approximately 30 seconds to 1 minute, until only ⊃ is in the display.

Touch and hold both the Bake and Broil Hi/Lo pads, at the same time, until the display shows SF.

Tap the Clock pad until On or Off appears in the display. On indicates that the oven will automatically turn off after 12 hours. Off indicates that the oven will not automatically turn off. See the Special Features section for an explanation of the 12 Hour Shut-Off feature.

Touch the Start/On pad.

NOTE: If a power outage occurred while the oven was in Sabbath, the oven will automatically turn off and stay off even when the power returns. The oven control must be reset.

You may find that your new oven cooks differently than the one it replaced. Use your new oven for a few weeks to become more familiar with it. If you still think your new oven is too hot or too cold, you can adjust the thermostat yourself.

Do not use thermometers, such as those found in grocery stores, to check the temperature setting of your oven. These thermometers may vary 20–40 degrees.

NOTE: This adjustment will not affect the broiling or the self-cleaning temperatures. The adjustment will be retained in memory after a power failure.

Adjust the oven thermostat—Do it yourself! GEAppliances.com

To Adjust the Thermostat

Touch the Bake and Broil Hi/Lo pads at the same time for 2 seconds until the display shows SF.

Touch the Bake pad. A two digit number shows in the display.

The oven temperature can be adjusted up to (+) 35°F hotter or (–) 35°F cooler. Touch the + pad to increase the temperature in 1 degree increments.

Touch the – pad to decrease the temperature in 1 degree increments.

When you have made the adjustment, touch the Start/On pad to go back to the time of day display. Use your oven as you would normally.

NOTE: This adjustment will not affect the broiling or self-cleaning temperatures. It will be retained in memory after a power failure.

Most recipes for baking have been developed using high fat products such as butter or margarine (80% fat). If you decrease the fat, the recipe may not give the same results as with a higher fat product.

Recipe failure can result if cakes, pies, pastries, cookies or candies are made with low fat spreads. The lower the fat content of a spread product, the more noticeable these differences become.

Federal standards require products labeled “margarine” to contain at least 80% fat by weight. Low fat spreads, on the other hand, contain less fat and more water. The high moisture content of these spreads affects the texture and flavor of baked goods. For best results with your old favorite recipes, use margarine, butter or stick spreads containing at least 70% vegetable oil.

The type of margarine will affect baking performance!

Consumer SupportOperating Instructions

Safety Instructions

Installation

Instructions

Troubleshooting Tips

Operating Instructions

Safety Instructions

Installation

Instructions

Troubleshooting Tips

Consumer Support

For the first self-clean cycle, we recommend venting your kitchen with an open window or using a ventilation fan or hood.

Remove the racks, any broiler pan, broiler grid, all cookware and any aluminum foil from the oven.

The oven racks can be self-cleaned, but they will darken, lose their luster and become hard to slide.

Do not use commercial oven cleaners or oven protectors in or near the self-cleaning oven. A combination of any of these products plus the high clean cycle temperatures may damage the porcelain finish of the oven.

Soil on the front frame of the range and outside the gasket on the door will need to be cleaned by hand. Clean these areas with hot water, soap-filled scouring pads or cleansers such as Soft Scrub

. Rinse well with clean

water and dry.

Do not clean the gasket. The fiberglass material of the oven door gasket cannot withstand abrasion. It is essential for the gasket to remain intact. If you notice it becoming worn or frayed, replace it.

Wipe up any heavy spillovers on the oven bottom.

Make sure the oven light bulb cover is in place and the oven light is off.

CAUTION: The grates and drip

pans (if so equipped) should never be cleaned in the self-cleaning oven.

Do not use commercial oven cleaners or oven protectors in or near the self-cleaning oven. A combination of any of these products

plus the high clean cycle temperatures may damage the porcelain finish of the oven.

IMPORTANT: The health of some birds is extremely sensitive to the fumes given off during the self-cleaning cycle of any range. Move birds to another well-ventilated room.

If your model has a door latch, never force the latch handle. Forcing the handle will damage the door lock mechanism. The oven door must be closed and all controls set correctly for the cycle to work properly.

Using the self-cleaning oven.

Before a Clean Cycle

Wipe up heavy soil on the oven bottom.

How to Set the Oven for Cleaning

Follow the directions in the Before a Clean Cycle section.

If your model has a latch, latch the door.

NOTE: Never force the latch. If the oven is too hot, you will not be able to slide the latch. Allow the oven to cool.

Touch the Self Clean pad.

Touch the + or – pads until the desired Clean Time is displayed.

The Clean Time is normally 4 hours and 20 minutes. You can change the Clean Time to any time between 3 and 5 hours, depending on the amount of soil in your oven.

Touch the Start/On pad.

The oven control will signal if you set the clean cycle and forget to close the oven door or forget to latch the door on models with a latch.

The self-clean cycle will automatically begin after Clean is displayed and the time countdown appears in the display.

On models without a door latch, the door locks automatically. It will not be possible to open the oven door until the temperature drops below the lock temperature and the Self Clean light goes off.

While the oven is self-cleaning, you can touch the Clock pad to display the time of day. To return to the clean countdown, touch the Self Clean pad.

The oven shuts off automatically when the clean cycle is complete, and 0:00 will flash in the display.

When the Self Clean light is off, slide the latch handle to the left as far as it will go and open the door. If your range does not have a latch, the door will unlock automatically.

The oven door must be closed and all controls set correctly for the cycle to work properly.

After a Clean Cycle

You cannot set the oven for cooking until the oven is cool enough for the door to be unlatched.

You may notice some white ash in the oven. Wipe it up with a damp cloth after the oven cools.

If white spots remain, remove them with a soap-filled scouring pad and rinse thoroughly with a vinegar and water mixture.

These deposits are usually a salt residue that cannot be removed by the clean cycle.

If the oven is not clean after one clean cycle, repeat the cycle.

■ You cannot set the oven for cooking until

the oven is cool enough for the door to unlock.

■ While the oven is self-cleaning, you can

touch the Clock pad to display the time of day. To return to the clean countdown, touch the Cooking Time pad.

■ If the racks become hard to slide, apply a

small amount of vegetable oil or cooking oil to a paper towel and wipe the edges of the oven racks with the paper towel.

GEAppliances.com

Consumer Support

Operating Instructions

Safety Instructions

Installation

Instructions

Troubleshooting Tips

How to Delay the Start of Cleaning

You can set the oven control to delay-start the oven, clean for a specific length of time and then turn off automatically.

Make sure the clock shows the correct time of day.

Follow the directions in the Before a Clean Cycle section.

If your model has a latch, latch the door.

NOTE: Never force the latch. If the oven is too hot, you will not be able to slide the latch. Allow the oven to cool.

Touch the Self Clean pad.

Touch the + or – pads to set the Clean Time.

The Clean Time is preset for 4 hours and 20 minutes. You can change the Clean Time to any time between 3 and 5 hours, depending on the amount of soil in your oven. If a different Clean Time is desired, touch the + or – pads until the desired Clean Time is displayed.

Touch the Start Time pad.

Change the Start Time by touching the + or – pads. The start time will appear in the display.

Touch the Start/On pad.

The oven control will signal if you set the clean cycle and forget to close the oven door or forget to latch the door on models with a latch.

On models without a door latch, the door locks automatically. The display will show the start time. It will not be possible to open the oven door until the temperature drops below the lock temperature and the Self Clean light goes off.

The self-clean cycle will automatically begin at the time set.

While the oven is self-cleaning, you can touch the Clock pad to display the time of day. To return to the clean countdown, touch the Self Clean pad.

The oven shuts off automatically when the clean cycle is complete, and 0:00 will flash in the display.

When the Self Clean light is off, slide the latch handle to the left as far as it will go and open the door. If your range does not have a latch, the door will unlock automatically.

To Stop a Clean Cycle

Touch the Clear/Off pad.

When the Self Clean light goes off indicating the oven has cooled below the locking temperature, unlatch the door (on models with a latch) and open the door.

Operating Instructions

Safety Instructions

Installation

Instructions

Troubleshooting Tips

Consumer Support

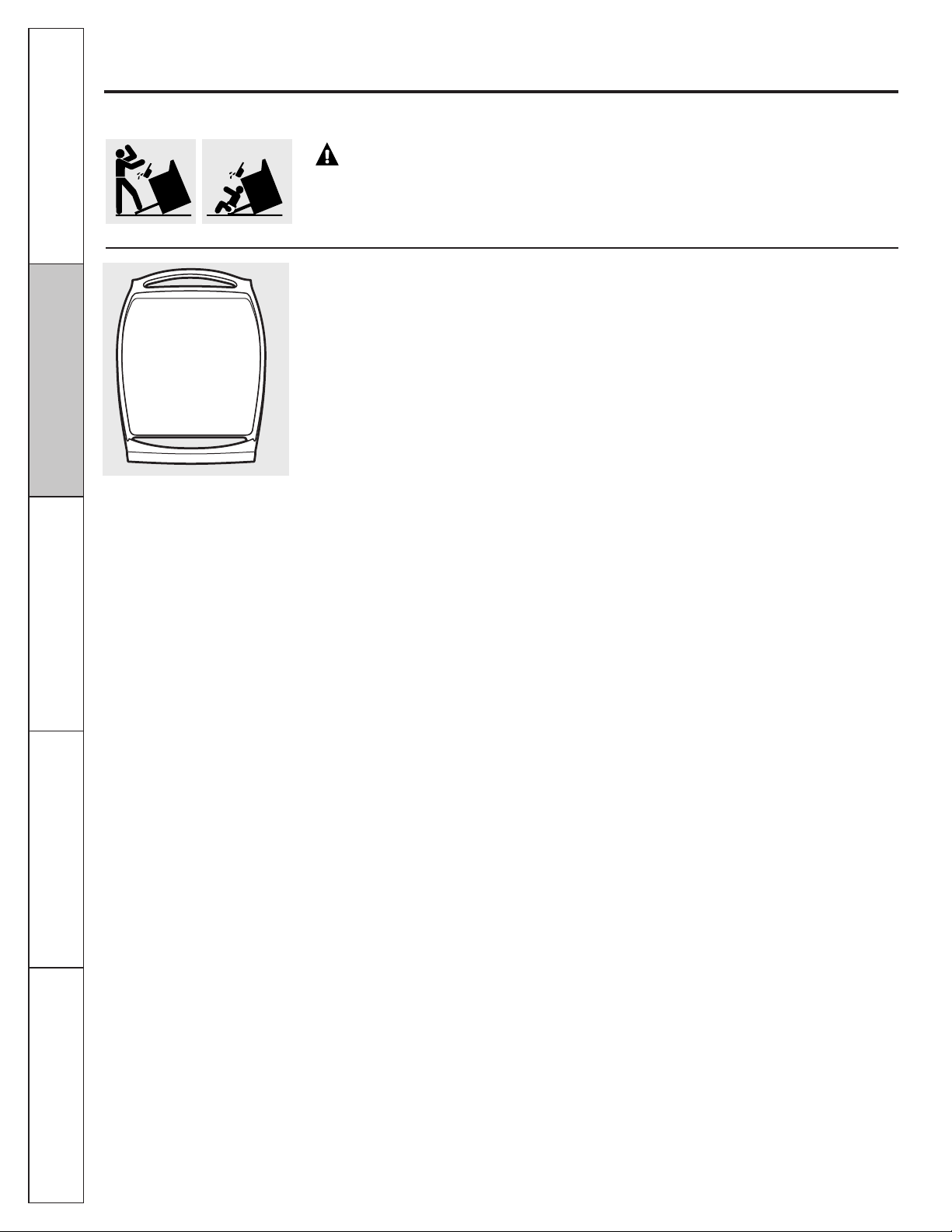

WARNING: If your range is removed for cleaning, servicing or any

reason, be sure the anti-tip device is re-engaged properly when the range is replaced. Failure to take this precaution could result in tipping of the range and cause injury.

Griddle (on some models)

NOTES:

■ The griddle is to be used over the center

burner only.

■ Do not clean the griddle in a dishwasher.

■ Wash with hot, soapy water after each use

while using a sponge or dishcloth.

■ If oil or food residue is left on the griddle,

further cooking will harden the residue and cause sticking over time. In this case, use a non-abrasive cleanser such as Bon Ami®or one of the soft scrub cleansers. Apply with a sponge, Scrunge®or other cleaning pad labeled safe for non-stick pans

■ Use only plastic, nylon or wooden utensils

or SilverStone®kitchen tools to prevent marring of the coating.

■ Never use knives or cut food on the griddle.

Wash with hot, soapy water after each use. Store carefully to prevent scratching.

Griddle Precautions:

■ If something has spilled under the griddle, it

should be cleaned up as soon as possible to prevent “baked on” food soil.

■ Do not allow grease to accumulate under

the griddle as it can be a fire hazard. Clean under the griddle as soon as it is cool. Clean with hot soapy water.

■ Do not place your griddle in the microwave.

■ Always turn off all surface burners before

removing the griddle. Use caution when handling a hot griddle.

Care and cleaning of the range.

Be sure electrical power is off and all surfaces are cool before cleaning any part of the range.

GEAppliances.com

Consumer Support

Installation

Instructions

Troubleshooting Tips

Operating Instructions

Safety Instructions

Sealed Burner Assemblies

Turn all controls Off before removing the burner parts.

The round side burner caps and burner heads can be lifted off, making them easy to clean. The electrodes are not removable.

The oval center burner head and cap assembly (on some models) can be lifted off, making it easy to clean. The burner electrode is not removable.

CAUTION: Do not operate the

cooktop without all burner parts and grates in place.

The electrode of the spark igniter is exposed when the burner head is removed. When one burner is turned to Lite, all the burners spark. Do not attempt to disassemble or clean around any burner while another burner is on. An electric shock may result, which could cause you to knock over hot cookware.

Side grate

Burner head

Burner cap

Electrode

Cooktop

Burner head

and cap

assembly

Center

griddle

Electrode

Operating Instructions

Safety Instructions

Installation

Instructions

Troubleshooting Tips

Consumer Support

Care and cleaning of the range.

Burner Caps and Heads

Before removing the burner caps and heads, remember their size and location. Replace them in the same location after cleaning.

NOTE: Do not use steel wool or scouring powders to clean the burner parts.

Burner caps

Lift off when cool. Wash burner caps in hot, soapy water and rinse with clean water. You may scour with a plastic scouring pad to remove burned-on food particles.

Burner Heads and Oval (Center) Burner Head/Cap Assembly

(on some models)

The burner heads and the oval burner head/cap assembly are removable. Simply lift them off the range for cleaning.

For proper ignition, make sure the small hole in the section that fits over the electrode is kept open. A sewing needle or wire twist-tie works well to unclog it.

The slits in the burner heads must be kept clean at all times for an even, unhampered flame.

Clogged or dirty burner ports or electrodes will not allow the burner to operate properly.

Any spill on or around an electrode must be carefully cleaned. Take care to not hit an electrode with anything hard or it could be damaged.

Clean the burner heads routinely, especially after bad spillovers, which could clog the openings. Lift off when cool.

To remove burned-on food, soak the burner heads in a solution of mild liquid detergent and hot water for 20–30 minutes. For more stubborn stains, use a toothbrush.

After cleaning

Before putting the burner caps, heads (on some models) and oval head/cap assembly back, shake out excess water and then dry them thoroughly by setting in a warm oven for 30 minutes.

Replacement

Replace burner heads over the electrodes on the cooktop, and then replace the burner caps onto the burner heads, in the correct locations according to their size.

On models so equipped:

Make sure that the heads and caps are replaced in the correct locations

The oval burner head/cap assembly is removable. Simply lift it off the range for cleaning. Use a sewing needle or twist-tie to unclog the small hole in the burner heads.

Burner cap is

properly seated.

Burner cap is NOT

properly seated.

Slot

Electrode

The burner heads are removable. Simply lift them off the range for cleaning.

Burner heads (on some models)

Hole in

burner

head

Oval burner head/cap assembly

(on some models)

Medium burner

head and cap

Front of range

Large burner

head and cap

Small burner

head and cap

Extra large

burner head

and cap

Oval head and cap assembly

Slot

Electrode

Slot

Medium burner

head and cap

Front of range

Medium burner

head and cap

Small burner

head and cap

Large burner

head and cap

Make sure the slot in the burner head is positioned over the electrode.

GEAppliances.com

Consumer Support

Installation

Instructions

Troubleshooting Tips

Operating Instructions

Safety Instructions

Stainless Steel Surfaces (on some models)

Do not use a steel wool pad; it will scratch the surface.

To clean the stainless steel surface, use warm sudsy water or a stainless steel cleaner or polish. Always wipe the surface in the direction of the grain. Follow the cleaner instructions for cleaning the stainless steel surface.

To inquire about purchasing stainless steel appliance cleaner or polish, or to find the location of a dealer nearest you, please call our toll-free number:

National Parts Center 800.626.2002 (U.S.)

800.661.1616 (Canada) GEAppliances.com (U.S.) www.GEAppliances.ca (Canada)

Burner Grates

Your range has three professional-style double grates. These grates are positionspecific. For maximum stability, these grates should only be used in their proper position; they cannot be interchanged left to right or front to back. For convenience, the undersides of the left and right grates are marked “LEFT FRONT” and “RIGHT FRONT.” Make sure the front portion of both grates is in front. The middle grate has a bow in front. Make sure the bowed portion is toward the front of the range.

NOTE: Some models only have side grates.

Cleaning

Lift out when cool. Grates should be washed regularly and, of course, after spillovers. Wash them in hot, soapy water and rinse with clean water. When replacing the grates, be sure they are positioned securely over the burners. Replace the grates so that continuous arcs are formed with the center ribs of all three grates.

NOTE: Some models only have side grates.

Do not operate a burner for an extended period of time without cookware on the grate. The finish on the grate may chip without cookware to absorb the heat.

To get rid of burned-on food, place the grates in a covered container. Add 1/4 cup ammonia and let them soak several hours or overnight. Wash, rinse well and dry.

Although they are durable, the grates will gradually lose their shine, regardless of the best care you can give them. This is due to their continual exposure to high temperatures. You will notice this sooner with lighter color grates.

NOTE: Do not clean the grates in a selfcleaning oven.

The grates may be cleaned in a dishwasher.

Appearance may vary.

Left Front

Right Front

Center

Cooktop Surface

To avoid damaging the porcelain enamel surface of the cooktop and to prevent it from becoming dull, clean up spills right away. Foods with a lot of acid (tomatoes, sauerkraut, fruit juices, etc.) or foods with high sugar content could cause a dull spot if allowed to set.

When the surface has cooled, wash and rinse. For other spills such as fat spatterings, etc., wash with soap and water once the surface has cooled. Then rinse and polish with a dry cloth.

NOTE: Do not lift the cooktop. Lifting the cooktop can lead to damage and improper operation of the range.

NOTE: Do not store flammable materials in an oven, drawer or near the cooktop. Do not store or use combustible materials, gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.

Operating Instructions

Safety Instructions

Installation

Instructions

Troubleshooting Tips

Consumer Support

Care and cleaning of the range.

Lift-Off Oven Door

The oven door is removable, but it is heavy. You may need help removing and replacing the door.

To remove the door, open it a few inches to the special stop position that will hold the door open. Grasp firmly on each side and lift the door straight up and off the hinges.

NOTE: Be careful not to place hands between the hinge and the oven door frame as the hinge could snap back and pinch fingers.

To replace the door, make sure the hinges are in the special stop position. Position the slots in the bottom of the door squarely over the hinges. Then lower the door slowly and evenly over both hinges at the same time. If the hinges snap back against the oven frame, pull them back out.

To clean the inside of the door:

■ Do not allow excess water to run into any

holes or slots in the door .

■ Because the area inside the gasket is

cleaned during the self clean cycle, you do not need to clean this by hand. Any soap left on the liner causes additional stains when the oven is heated.

■ The area outside the gasket can be

cleaned with a soap-filled scouring pad.

To clean the outside of the door:

■ Use soap and water to thoroughly clean

the top, sides and front of the oven door. Rinse well. You may also use a glass cleaner to clean the glass on the outside of the door.

■ Spillage of marinades, fruit juices, tomato

sauces and basting materials containing acids may cause discoloration and should be wiped up immediately. When the surface is cool, clean and rinse.

■ Do not use oven cleaners, cleansing

powders or harsh abrasives on the outside of the door.

Oven Bottom

The oven bottom has a porcelain enamel finish. To make cleaning easier, protect the oven bottom from excessive spillovers by placing a cookie sheet on the rack below the rack you are cooking on. This is particularly important when baking a fruit pie or other foods with a high acid content. Hot fruit fillings or other foods that are highly acidic (such as tomatoes, sauerkraut, and sauces with vinegar or lemon juice) may cause pitting and damage to the porcelain enamel surface and should be wiped up immediately.

We don’t recommend using aluminum foil on the oven bottom. It can affect air flow if the holes are blocked and it can concentrate heat at the bottom of the oven, resulting in poor baking performance.

To clean up spillovers, use soap and water, an abrasive cleaner or soap-filled scouring pad. Rinse well to remove any soap before self-cleaning.

Lift the door straight up and off the hinges.

The gasket is designed with a gap at the bottom to allow for proper air circulation.

Do not rub or clean the door gasket— it has an extremely low resistance to abrasion.

If you notice the gasket becoming worn, frayed or damaged in any way or if it has become displaced on the door, you should have it replaced.

GEAppliances.com

Removable Storage Drawer (on some models)

The storage drawer is a good place to store cookware and bakeware. Do not store plastics and flammable material in the drawer.

The storage drawer may be removed for cleaning under the range. Clean the storage drawer with a damp cloth or sponge. Never use harsh abrasives or scouring pads.

To remove storage drawer:

Pull drawer straight out until it stops.

Tilt the front of the drawer up and free of the range.

To replace storage drawer:

Set the stops on the back of the drawer over the stops in the range.

Slide drawer evenly and straight back, so that the rails in the range are engaged.

The storage drawer may be removed for cleaning under the range.

Removable Kick Panel (on some models)

The kick panel may be removed for cleaning under the range.

To remove:

Lift up the bottom of the panel slightly to disengage the panel from the tabs at the base of the range. Pull the bottom of the panel forward until the spring clips are released at the top of the panel.

To replace:

Insert the two slots at the bottom of the panel onto the two tabs at the base of the range, and push the top of the panel forward to engage the spring clips.

Consumer Support

Installation

Instructions

Troubleshooting TipsOperating Instructions

Safety Instructions

Operating Instructions

Safety Instructions

Installation

Instructions

Troubleshooting Tips

Consumer Support

Care and cleaning of the range.

Oven Air Vents

Never block the vents (air openings) of the range. They provide the air inlet and outlet that are necessary for the range to operate properly with correct combustion.

Air openings are located at the rear of the cooktop, at the top and bottom of the oven door and at the bottom of the range, under the storage drawer or kick panel (depending on the model).

Lower Control Panel (Front Manifold Panel) and Knobs

It’s a good idea to wipe the control panel after each use of the oven. Use a damp cloth to clean or rinse. For cleaning, use mild soap and water or a 50/50 solution of vinegar and water. For rinsing, use clean water. Polish dry with a soft cloth.

Do not use abrasive cleansers, strong liquid cleaners, plastic scouring pads or oven cleaners on the control panel—they will damage the finish.

Do not bend knobs by pulling them up or down or by hanging a towel or other such loads. This can damage the gas valve shaft.

The control knobs may be removed for easier cleaning.

Make sure the knobs are in the Off positions and pull them straight off the stems for cleaning.

The knobs can be cleaned in a dishwasher or they may also be washed with soap and water. Make sure the insides of the knobs are dry before replacing.

Replace the knobs in the Off position to ensure proper placement.

Metal parts can be cleaned with soap and water. Do not use steel wool, abrasives, ammonia, acids or commercial oven cleaners. Dry with a soft cloth.

Vent appearance and location vary.

Pull the knob straight off the stem.

GEAppliances.com

Wire cover holder.

Oven Racks

Clean the racks with an abrasive cleanser or scouring pad. After cleaning, rinse the racks with clean water and dry with a clean cloth.

If the racks ever become hard to slide, wipe the rack edges or oven rack supports with vegetable oil.

NOTE: Take the racks out of the oven before you begin the self-clean cycle or they may discolor.

Oven Light Replacement

CAUTION: Before replacing your

oven light bulb, disconnect the electrical power to the range at the main fuse or circuit breaker panel. Be sure to let the light cover and bulb cool completely.

The oven light bulb is covered with a removable glass cover that is held in place with a bail-shaped wire. Remove the oven door, if desired, to reach cover easily.

To remove:

Hold a hand under the cover so it doesn’t fall when released. With fingers of the same hand, firmly push back the wire cover holder. Lift off the cover.

Do not remove any screws to remove the cover.

Do not touch hot bulb with a wet cloth. Replace bulb with a 40-watt household appliance bulb.

To replace cover:

Place it into the groove of the light receptacle. Pull the wire forward to the center of the cover until it snaps into place. When in place, the wire holds the cover firmly. Be certain the wire is in the depression in the center of the cover.

Connect electrical power to the range.

Consumer ServiceOperating Instructions

Safety Instructions

Installation

Instructions

Troubleshooting Tips

Installation Instructions

Range

Questions? Call 800.GE.CARES (800.432.2737) or visit our Website at: GEAppliances.com In Canada, call 1.800.561.3344 or visit www.GEAppliances.ca

BEFORE YOU BEGIN

Read these instructions completely and carefully.

Installation of this range must conform with local codes, or in the absence of local codes, with the National Fuel Gas Code, ANSI Z223.1/NFPA.54, latest edition. In Canada, installation must conform with the current Natural Gas Installation Code, CAN/CGAB149.1 or the current Propane Installation Code, CAN/CGA-B149.2, and with local codes where applicable. This range has been design-certified by CSA International according to ANSI Z21.1, latest edition and Canadian Gas Association according to CAN/CGA-1.1 latest edition.

As with any appliance using gas and generating heat, there are certain safety precautions you should follow. You will find these precautions in the Important Safety Information section in the front of this manual. Read them carefully.

•

IMPORTANT – Save these instructions for

local electrical inspector’s use.

•

IMPORTANT – Observe all governing codes

and ordinances.

• Note to Installer – Be sure to leave these

instructions with the Consumer.

•

Note to Consumer – Keep these instructions for

future reference.

• Note – This appliance must be properly grounded.

• Servicer – The electrical diagram is in an envelope

attached to the back of the range.

• Skill level – Installation of this appliance requires basic mechanical skills.

• Proper installation is the responsibility of the installer.

• Product failure due to improper installation is not covered under the Warranty.

FOR YOUR SAFETY

Do not store or use combustible materials, gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.

If you smell gas:

Open windows.

Don’t touch electrical switches.

Extinguish any open flame.

Immediately call your gas supplier.

TOOLS YOU WILL NEED

MATERIALS YOU MAY NEED

• Gas line shut-off valve

• Pipe joint sealant or UL-approved pipe thread tape with Teflon* that resists action of natural and LP gases

• Flexible metal appliance connector (1/2" I.D.) A 5-foot length is recommended for ease of installation but other lengths are acceptable. Never use an old connector when installing a new range.

• Flare union adapter for connection to gas supply line (3/4" or 1/2" NPT x 1/2" I.D.)

• Flare union adapter for connection to pressure regulator on range (1/2" NPT x 1/2" I.D.)

• Liquid leak detector or soapy water.

• Lag bolt or 1/2" O.D. sleeve anchor (for concrete floors only).

*Teflon: Registered trademark of DuPont

Flat-blade screwdriver

Pipe wrenches (2)

(one for backup)

Phillips screwdriver

Open-end or

adjustable wrench

Pencil and ruler

Level

In the Commonwealth of Massachusetts:

• This product must be installed by a licensed plumber or gas fitter.

• When using ball-type gas shut-off valves, they shall be the T-handle type.

• A flexible gas connector, when used, must not exceed 3 feet.

Drill, awl or nail

PART INCLUDED

Anti-Tip bracket kit

Installation Instructions

WARNING!

INSTALLATION SAFETY INSTRUCTIONS

Read these instructions completely and carefully.

Improper installation, adjustment, alteration, service or maintenance can cause injury or property damage. Refer to this manual. For assistance or additional information, consult a qualified installer, service agency, manufacturer (dealer) or the gas supplier.

Never reuse old flexible connectors. The use of old flexible connectors can cause gas leaks and personal injury. Always use NEW flexible connectors when installing a gas appliance.

IMPORTANT – Remove all packing material

and literature from oven before connecting gas and electrical supply to range.

CAUTION – Do not attempt to operate the

oven of this range during a power failure (Electric Ignition models only).

■ Have your range installed by a qualified installer.

■ Your range must be electrically grounded in accordance

with local codes or, in the absence of local codes, in accordance with the National Electrical Code (ANSI/NFPA 70, latest edition). In Canada, electrical grounding must be in accordance with the current CSA C22.1 Canadian Electrical Code Part 1 and/or local codes. See Electrical Connections in this section.

■ Before installing your range on linoleum or any other

synthetic floor covering, make sure the floor covering can withstand 180°F without shrinking, warping or discoloring. Do not install the range over carpeting unless a sheet of 1/4" thick plywood or similar insulator is placed between the range and carpeting.

■ Make sure the wall coverings around the range can

withstand heat generated by the range up to 200°F.

■ Avoid placing cabinets above the range. To reduce the hazard caused by reaching over the open flames of operating burners, install a ventilation hood over the range that projects forward at least 5" beyond the front of the cabinets.

■ The ventilating hood must be constructed of sheet metal not less than 0.0122" thick. Install above the cooktop with a clearance of not less than 1/4" between the hood and the underside of the combustible material or metal cabinet. The hood must be at least as wide as the appliance and centered over the appliance. Clearance between the cooking surface and the ventilation hood surface MUST NEVER BE LESS THAN 24 INCHES.

EXCEPTION: Installation of a listed microwave oven or cooking appliance over the cooktop shall conform to the installation instructions packed with that appliance.

■ If cabinets are placed above the range, allow a minimum clearance of 30" between the cooking surface and the bottom of unprotected cabinets.

■ If a 30" clearance between cooking surface and overhead combustible material or metal cabinets cannot be maintained, protect the underside of the cabinets above the cooktop with not less than 1/4" insulating millboard covered with sheet metal not less than 0.0122" thick. Clearance between the cooking surface and protected cabinets MUST NEVER BE LESS THAN

24 INCHES.

■ The vertical distance from the plane of the cooking surface to the bottom of adjacent overhead cabinets extending closer than 1" to the plane of the range sides must not be less than 18". (See the Dimensions and Clearances illustration in this section.)

■

CAUTION – Items of interest to children

should not be stored in cabinets above a range or on the backsplash of a range—children climbing on the range to reach items could be seriously injured.

Installation Instructions

DIMENSIONS AND CLEARANCES

Provide adequate clearances between the range and adjacent combustible surfaces. These dimensions must be met for safe use of your range. The location of the electrical outlet and pipe opening (see Gas Pipe and Electric Outlet Locations) may be adjusted to meet specific requirements.

The range may be placed with 0" clearance (flush) at the back wall.

To cabinets below cooktop and at the range back

30”

3”

Minimum

13”

Minimum to wall on either side

Maximum depth

for cabinets

above countertops

Front edge of the range side panel forward from cabinet

18”

0”

1/4”

Minimum to cabinets on either side of the range

36”

281/4” to 29”

Depth with door closed (includes door handle)

Depth varies depending on model. See specifications sheet for your model.

30”

361/4” ± 1/4”

Depth with door open:

463/8”

Height

473/8”

Installation Instructions

LOCATION

Do not locate the range where it may be subject to strong drafts. Any openings in the floor or wall behind the range should be sealed. Make sure the openings around the base of the range that supply fresh air for combustion and ventilation are not obstructed by carpeting or woodwork.

Your range, like many other household items, is heavy and can settle into soft floor coverings such as cushioned vinyl or carpeting. Use care when moving the range on this type of flooring. It is recommended that the following simple and inexpensive instructions be followed to protect your floor.

The range should be installed on a sheet of plywood (or similar material). When the floor covering ends at the front of the range, the area that the range will rest on should be built up with plywood to the same level or higher than the floor covering.

This will allow the range to be moved for cleaning or servicing. Also, make sure your floor covering will withstand 180°F. (See the Installation Safety Instructions section.)

Make sure the wall coverings around your range can withstand the heat generated (up to 200°F) by the range. (See the Installation Safety Instructions section.)

IMPORTANT!

Remove all tape and packaging. Make sure the burners are properly seated and level.

Take the accessory pack out of the oven and/or drawer.

Check to be sure that no range parts have come loose during shipping.

WARNING!

ANTI-TIP DEVICE

For free-standing or slide-in ranges, never completely remove the leveling legs or the range will not be secured to the anti-tip device properly.

Installation Instructions

PROVIDE ADEQUATE GAS SUPPLY

Your range is designed to operate at a pressure of 4" of water column on natural gas or, if designed for LP gas (propane or butane), 10" of water column.

Make sure you are supplying your range with the type of gas for which it is designed.

This range is convertible for use on natural or propane gas. If you decide to use this range on LP gas, conversion must be made by a qualified LP installer before attempting to operate the range on that gas.

For proper operation, the pressure of natural gas supplied to the regulator must be between 4" and 13" of water column.

For LP gas, the pressure supplied must be between 10" and 13" of water column.

When checking for proper operation of the regulator, the inlet pressure must be at least 1" greater than the operating (manifold) pressure as given above.

The pressure regulator located at the inlet of the range manifold must remain in the supply line regardless of whether natural or LP gas is being used.

A flexible metal appliance connector used to connect the range to the gas supply line should have an I.D. of 1/2" and be 5 feet in length for ease of installation. In Canada, flexible connectors must be single wall metal connectors no longer than 6 feet in length.

CONNECT THE RANGE TO GAS

Shut off the main gas supply valve before disconnecting the old range and leave it off until the new hookup has been completed. Don’t forget to relight the pilot on other gas appliances when you turn the gas back on.

Because hard piping restricts movement of the range, the use of a CSA International-certified flexible metal appliance connector is recommended unless local codes require a hard-piped connection.

Never use an old connector when installing a new range. If the hard piping method is used, you must carefully align the pipe; the range cannot be moved after the connection is made.

To prevent gas leaks, put pipe joint compound on, or wrap pipe thread tape with Teflon* around, all male (external) pipe threads.

A. Install a manual gas line shut-off valve in the gas line in

an easily accessed location outside of the range. Make sure everyone operating the range knows where and how to shut off the gas supply to the range.

B. Install male 1/2" flare union adapter to the 1/2" NPT

internal thread at inlet of regulator. Use a backup wrench on the regulator fitting to avoid damage.

B. When installing the range from the front, remove the 90°

elbow for easier installation.

C. Install male 1/2" or 3/4" flare union adapter to the NPT

internal thread of the manual shut-off valve, taking care to back-up the shut-off valve to keep it from turning.

D. Connect flexible metal appliance connector to the

adapter on the range. Position range to permit connection at the shut-off valve.

E. When all connections have been made, make sure

all range controls are in the off position and turn on the main gas supply valve. Use a liquid leak detector at all joints and connections to check for leaks in the system.

When using test pressures greater than 1/2 psig to pressure test the gas supply system of the residence, disconnect the range and individual shut-off valve from

the gas supply piping. When using test pressures of 1/2 psig or less to test the gas supply system, simply isolate the range from the gas supply system by closing the individual shut-off valve.

*Teflon: Registered trademark of DuPont

WARNING: DO NOT USE A FLAME

TO CHECK FOR GAS LEAKS.

Installation Instructions

GAS PIPE AND ELECTRICAL OUTLET LOCATIONS

This area allows for flush range installation with through-the-wall connection of pipe stub/shut-off valve and rear wall 120V outlet.

This area allows for flush range installation with through-the-floor connection of pipe stub/shut-off valve.

Shortest connection from hard pipe stub location to range hookup.

RIGID PIPE HOOKUP OPTIONS

FLEXIBLE CONNECTOR HOOKUP

Installation Instructions

Pressure regulator

Gas Flow into Range

Flex connector (6 ft. max.)

Adapter

Installer: Inform the consumer of the location of the gas shut-off valve.

1/2” or 3/4”" Gas pipe

Adapter

Gas shut-off valve

Pressure regulator

45° Elbow

Nipple

Union

90° Elbow

Black iron pipe

Union

Nipple

Gas shut-off valve

1/2” or 3/4”" Gas pipe

Gas Flow into Range

Installer: Inform the consumer of the location of the gas shut-off valve.

Gas Flow into Range

Gas shut-off valve

1/2” or 3/4”" Gas pipe

Pressure regulator

Nipple

90° Elbow

Adapter

90° Elbow

Quick connect or union

Installer: Inform the consumer of the location of the gas shut-off valve.

Alternate Hookup

Nipple

90° Elbow

Installation Instructions

ELECTRICAL CONNECTIONS

Electrical Requirements

120-volt, 60 Hertz, properly grounded dedicated circuit protected by a 15-amp or 20-amp circuit breaker or time delay fuse.

Extension Cord Cautions

Because of potential safety hazards associated with certain conditions, we strongly recommend against the use of an extension cord. However, if you still elect to use an extension cord, it is absolutely necessary that it be a UL-listed, 3-wire grounding-type appliance extension cord and that the current carrying rating of the cord in amperes be equivalent to, or greater than, the circuit rating.

Grounding

IMPORTANT—(Please read carefully) FOR PERSONAL SAFETY, THIS APPLIANCE MUST BE

PROPERLY GROUNDED.

The power cord of this appliance is equipped with a 3-prong (grounding) plug which mates with a standard 3-prong grounding wall receptacle to minimize the possibility of electric shock hazard from this appliance.

The customer should have the wall receptacle and circuit checked by a qualified electrician to make sure the receptacle is properly grounded.

Where a standard 2-prong wall receptacle is encountered, it is the personal responsibility and obligation of the customer to have it replaced with a properly grounded 3-prong wall receptacle.

DO NOT, UNDER ANY CIRCUMSTANCES, CUT OR REMOVE THE THIRD (GROUND) PRONG FROM THE POWER CORD.

A word about GFCI’s—GFCI’s are not required or recommended for gas range receptacles.

Ground Fault Circuit Interrupters (GFCI’s) are devices that sense leakage of current in a circuit and automatically switch off power when a threshold leakage level is detected. These devices must be manually reset by the consumer. The National Electrical Code requires the use of GFCI’s in kitchen receptacles installed to serve countertop surfaces. Performance of the range will not be affected if operated on a GFCI-protected circuit but occasional nuisance tripping of the GFCI breaker is possible.

ELECTRICAL CONNECTIONS (CONT.)

A. Usage Situations where Appliance Power Cord will be

Disconnected Infrequently.

An adapter may be used only on a 15-amp circuit. Do not use an adapter on a 20-amp circuit. Where local codes permit, a TEMPORARY CONNECTION may be made to a properly grounded two-prong wall receptacle by the use of a UL-listed adapter, available at most hardware stores. The larger slot in the adapter must be aligned with the larger slot in the wall receptacle to provide proper polarity in the connection of the power cord.

When disconnecting the power cord from the adapter, always hold the adapter with one hand. If this is not done, the adapter ground terminal is very likely to break with repeated use. Should this happen, DO NOT USE the appliance until a proper ground has again been established.

Preferred Method

Ensure proper ground exists before use

Temporary Method

(Adapter plugs not permitted in Canada)

Ensure proper ground and firm connection before use

Align large prongs/slots

CAUTION: Attaching the adapter ground

terminal to the wall receptacle cover screw does not ground the appliance unless the cover screw is metal, and not insulated, and the wall receptacle is grounded through the house wiring. The customer should have the circuit checked by a qualified electrician to make sure the receptacle is properly grounded.

ASSEMBLE SURFACE BURNERS (CONT.)

There is one oval (center) head and cap assembly (on some models) and four side heads and caps.

On models so equipped:

Make sure that the heads and caps are replaced in the correct locations.

Grates

Place the left, right and center grates on the cooktop. These grates are position specific. The undersides of the left and right grates are marked “LEFT FRONT” and “RIGHT FRONT.” Place the middle grate with its bowed front toward the front of the range.

NOTE: Some models only have side grates.

Installation Instructions

ELECTRICAL CONNECTIONS (CONT.)

B. Usage Situations where Appliance Power Cord will

be Disconnected Frequently.

Do not use an adapter plug in these situations because disconnecting of the power cord places undue strain on the adapter and leads to eventual failure of the adapter ground terminal. The customer should have the twoprong wall receptacle replaced with a three-prong (grounding) receptacle by a qualified electrician before using the appliance.

The installation of appliances designed for mobile home installation must conform with the Manufactured Home Construction and Safety Standard, Title 24 CFR, Part 3280 (formerly the Federal Standard for Mobile Home Construction and Safety, Title 24, HUD, Part 280) or, when such standard is not applicable, the Standard for Manufactured Home Installations, latest edition (Manufactured Home Sites, Communities and Set-Ups), ANSI A225.1, latest edition, or with local codes. In Canada, mobile home installation must be in accordance with the current CAN/CSA Z240/MH Mobile Home Installation Code.

Electric Disconnect

■ Locate disconnect plug on the range back.

■ Pinch sides of connector and pull out of range back.

SEAL THE OPENINGS

Seal any openings in the wall behind the range and in the floor under the range when hookups are completed.

ASSEMBLE SURFACE BURNERS

CAUTION:Do not operate the burner

without all burner parts in place.

Place burner heads over the electrodes on the cooktop, and then replace the burner caps onto the burner heads in the correct locations according to their size.

Left Front

Right Front

Center

Medium burner

head and cap

Front of range

Large burner

head and cap

Small burner

head and cap

Extra large

burner head

and cap

Oval head and cap assembly

Slot

Electrode

Slot

Medium burner

head and cap

Front of range

Medium burner

head and cap

Small burner

head and cap

Large burner

head and cap

Make sure the slot in the burner head is positioned over the electrode.

CHECK IGNITION OF SURFACE BURNERS

Operation of all cooktop and oven burners should be checked after the range and gas supply lines have been carefully checked for leaks.

Electric Ignition Models

Select a top burner knob and simultaneously push in and turn to Lite position. You will hear a clicking sound indicating proper operation of the spark module. Once the air has been purged from the supply lines, burners should light within 4 seconds. After burner lights, rotate knob out of the Lite position. Try each burner in succession until all burners have been checked.

Quality of Flames

The combustion quality of burner flames needs to be determined visually.

If burner flames look like (A), call for service. Normal burner flames should look like (B) or (C), depending on the type of gas you use.

With LP gas, some yellow tipping on outer cones is normal.

for natural gas

(B) Yellow tips on outer cones—

Normal for LP gas

(A) Yellow flames—

Call for service

CHECK IGNITION OF OVEN BURNER

The oven is designed to operate quietly and automatically. To operate the oven, press the Bake pad and then press the number pads until 350° appears in the display. Touch the Start pad. After 30–90 seconds, the oven burner will ignite and burn until the set temperature is reached. The oven burner will continue to cycle on and off as necessary to maintain the oven at the temperature indicated by the display.

To check ignition of the broil burner, touch the Broil Hi/Lo pad and then the Start pad. After 30–90 seconds, the broil burner will ignite.

Electric ignition models require electrical power to operate. In case of a power outage, the oven burners on these models cannot be lit manually with a match. Gas will not flow unless the glow bar is hot.

If the oven is in use when a power outage occurs, the burner will shut off and cannot be re-lit until power is restored.

Installation Instructions

To remove the oven bottom:

A. Remove the screws holding down rear of the oven

bottom.

B. Grasp the oven bottom at finger slots on each side.

C. Lift the rear of the oven bottom enough to clear the lip

of the range frame, push it back, and then pull it up and out.

Installation Instructions

ADJUST BROIL AND OVEN BURNER AIR ADJUSTMENT SHUTTERS IF NECESSARY

Air adjustment shutters for the top and bottom burners regulate the flow of air to the flames.

The air adjustment shutter for the top (broil) burner is in the center of the rear wall of the oven.

The shutter for the bottom (oven) burner is near the back wall behind the warming drawer. Remove the drawer. See the Care and cleaning of the range section.

To adjust the flow of air to either burner, loosen the Phillips head screw and rotate the shutter toward open or closed position as needed.

The flames for the top (broil) burner should be steady with approximately 1" blue cones and should not extend out over the edges of the burner baffle.

To determine if the bottom burner flames are burning properly, remove the oven bottom. Flames should have approximately 1" blue cones and, if range is supplied with natural gas, should burn with no yellow tipping. (With most LP gas, small yellow tips at the end of outer cones are normal.) Flames should not lift off burner ports. If lifting is observed, gradually reduce air shutter opening until flames are stabilized.

ADJUST BROIL AND OVEN BURNER AIR ADJUSTMENT SHUTTERS IF NECESSARY

(CONT.)

Air

adjustment shutter

Loosen

Air adjustment shutter

Loosen

Oven bottom

LEVELING THE RANGE

A. Install the oven racks in the oven and position the

range where it will be installed.

B. Check for levelness by placing a spirit level or a cup,

partially filled with water, on one of the oven racks. If using a spirit level, take two readings—with the level placed diagonally first in one direction and then the other.

C. Remove the drawer. See the Care and cleaning of the

range section. The front leveling legs can be adjusted

from the bottom and the rear legs can be adjusted from the top or the bottom.

D. Use an open-end or adjustable wrench to adjust the

leveling legs until the range is level.

E. After the range is level, slide the range away from the

wall so that the Anti-Tip device can be installed.

Leg leveler

Lower range

Raise range

(on some models)

Raise range

Lower range

(on some models)

Installation Instructions

INSTALLING THE ANTI-TIP DEVICE

A. Mark the wall where the RIGHT EDGE of the range is

to be located. Be sure to allow for the countertop overhang if you intend to install the range next to cabinets.

B. Locate the outside edge of the device 2

⁄8 toward the center of the range from the marked edge of the range.

C. Using the device as a template, mark the position of

the hole for the screw.

D. For wood construction, drill a pilot hole at an angle of

20 degrees from the horizontal. A nail or awl may be used if a drill is not available.

Mount the Anti-Tip device with the screw provided.

For cement or concrete construction, you will need a 1/4" x 1

⁄2" lag bolt and a 1/2" O.D. sleeve anchor, which are not provided. Drill the recommended size hole for the hardware.

WARNING!

■ Range must be secured with an approved Anti-Tip device.

■ Unless properly installed, the range could be tipped by you or a child standing, sitting or leaning on an open door.

■ After installing the Anti-Tip device, verify that it is in place by carefully attempting to tilt the range forward.

■ This range has been designed to meet all recognized industry tip standards for all normal conditions.

■ The use of this device does not preclude tipping of the range when not properly installed.

■ If the Anti-Tip device supplied with the range does not fit this application, use the universal Anti-Tip device WB02K10254.

Anti-Tip device

Slotted head

screw

Wallplate

Approx.

20°

/8”

Marked edge of range

INSTALLING THE ANTI-TIP DEVICE

(CONT.)

Install the sleeve anchor into the drilled hole and then install the lag bolt through the device. The bolts must be properly tightened as recommended for the hardware.

E. Slide the range against the wall, and check for proper

installation by grasping the front edge of the cooktop and carefully attempting to tilt the range forward. The bracket should stop the range within 4 inches. If it does not, the bracket must be reinstalled.

Back of range

Wallboard

Wood screw

Anti-Tip device

WHEN ALL HOOKUPS ARE COMPLETED

Make sure all controls are left in the off position. Make sure the flow of combustion and ventilation air to the range is unobstructed.

CONVERTING TO LP GAS

(or converting

back to natural gas from LP)

This range leaves the factory set for use with natural gas. If you want to convert to LP gas, the conversion must be performed by a qualified LP gas installer.

The conversion instructions and LP orifices can be found attached to the range next to the pressure regulator.

Keep these instructions and the orifices in case you want to convert back to natural gas.

Operating Instructions

Safety Instructions

Installation

Instructions

Troubleshooting Tips

Consumer Support

Before you call for service…

Troubleshooting Tips Save time and money! Review the charts on the following pages first and you may not need to call for service.

Problem Possible Causes What To Do

Top burners do not light Plug on range is not completely • Make sure electrical plug is plugged into a live, properly or do not burn evenly inserted in the electrical outlet. grounded outlet.

Burner hole or slits on the side • Remove the burners (on models with standard twin of the burner may be clogged. burners) or burner heads and caps (on models with

sealed burners) and clean them with a sewing needle or twist-tie. Make sure you do not enlarge the holes. On sealed burner models, check and clean the electrode area for burned-on food or grease.

Improper burner assembly. • Make sure the burner parts are installed correctly.

See the Care and cleaning of the range section.

Burner flames very Improper air to gas ratio. • If range is connected to LP gas, contact the person large or yellow who installed your range or made the conversion.

Surface burners light The oven gas shut-off valve • To check the oven gas shut-off valve on sealed burner but oven does not may have accidentally been models, remove the storage drawer or kick panel (see

moved during cleaning or the Care and cleaning of the range section) and look for moving. the gas shut-off lever at the back of the range.

• To check the oven gas shut-off valve on standard twin burner models, raise the cooktop and look for the gas shut-off lever at the extreme right rear corner. Follow the directions in box A or B that match your regulator type.

Control signals after You forgot to enter a bake • Touch the Bake pad and desired temperature or entering cooking time or temperature or cleaning time. the Self Clean pad and desired clean time. start time (on some models)

Clock and timer Plug on range is not completely • Make sure electrical plug is plugged into a live, do not work inserted in the electrical outlet. properly grounded outlet.

A fuse in your home may be • Replace the fuse or reset the circuit breaker. blown or the circuit breaker tripped.

Oven controls improperly set. • See the Using the clock and timer section.

Lever is shown closed. PULL TO OPEN.

Sealed burner models

Lever is shown closed. PULL TO OPEN.

Standard twin burner models

Lever is shown closed. PULL TO OPEN.

Standard twin burner models

GEAppliances.com

Problem Possible Causes What To Do

Food does not bake Oven controls improperly set. • See the Using the oven section. or roast properly

Rack position is incorrect. • See the Using the oven section.

Incorrect cookware or cookware • See the Using the oven section. of improper size being used.

Oven thermostat needs • See the Adjust the oven thermostat—Do it yourself! section. adjustment.

Clock not set correctly. • See the Using the clock and timer section.

(on some models)

Aluminum foil used improperly • See the Care and cleaning of the range section. in the oven.

Oven bottom not securely • See the Installation of the range section. seated in position.

Food does not Oven controls improperly set. • Make sure you touch the Broil Hi/Lo pad. broil properly

Oven door not closed. • See the Using the oven section.

Improper rack position • See the Broiling Guide. being used.

Food being cooked in a hot pan. • For best results, use a pan designed for broiling.

Make sure it is cool.

Cookware not suited for broiling. • For best results, use a pan designed for broiling.

Oven bottom not securely • See the Installation of the range section. seated in position.

Oven temperature Oven thermostat • See the Adjust the oven thermostat—Do it yourself! section. too hot or too cold needs adjustment .

Oven light does not work Light bulb is loose or defective. • Tighten or replace the bulb.

Plug on range is not completely • Make sure electrical plug is plugged into a live, properly inserted in the electrical outlet. grounded outlet.

Oven will not self-clean The oven temperature is too • Allow the range to cool to room temperature and

high to set a self-clean operation. reset the controls.

Oven controls improperly set. • See the Using the self-cleaning oven section.

On models with a door latch, • Make sure you move the door latch handle all the way the oven door is not in the to the right. locked position.

“Crackling” or This is the sound of the • This is normal. “popping” sound metal heating and cooling

during both the cooking and cleaning functions.

Consumer Support

Operating Instructions

Safety Instructions

Installation

Instructions

Troubleshooting Tips

Operating Instructions

Safety Instructions

Installation

Instructions

Troubleshooting Tips

Consumer Support

Before you call for service…

Problem Possible Causes What To Do

Excessive smoking Excessive soil. • Touch the Clear/Off pad.

Oven door will not open Oven too hot. • Allow the oven to cool below locking temperature. after a clean cycle

Oven not clean after Oven controls not properly set. • See the Using the self-cleaning oven section. a clean cycle

Oven was heavily soiled. • Clean up heavy spillovers before starting the clean cycle.

Heavily soiled ovens may need to self-clean again or for a longer period of time.

Oven door will not Oven is too hot. • Allow the oven to cool below locking temperature. unlock (on models Do not lock the door with the door latch except when with a door latch) using the self-clean feature.

Self clean light blinks A power interruption occurred. • Touch the Clear/Off pad, wait for the oven to cool, and during self clean cycle on models with a latch, move it to the left as far as

it will go. Reset the range controls to the desired settings. See the Using the self-cleaning oven section.

Self-cleaning cycle has been • Close the oven door. On models with a latch, move it all selected, but the oven door was the way to the right. not closed, and on models with a latch, it was not moved all the way to the right.

On models with a latch, it • Move the latch handle to the right only when setting was moved to the right, but a the self-cleaning cycle. program other than self-cleaning was selected.

“F—and a number or On models with a door latch, • The latch may have been moved, even if only slightly, letter” flash in the if a function error code appears from the locked position. Make sure the latch is moved display

(on some models) during the self-cleaning cycle, to the right as far as it will go.

check the oven door latch.

You have a function error code. • Touch the Clear/Off pad. Allow the oven to cool for

one hour. Put the oven back into operation.

If the function code repeats. • Disconnect all power to the range for 5 minutes

and then reconnect power. If the function error code repeats, call for service.

Troubleshooting Tips

GEAppliances.com

Problem Possible Causes What To Do

Display goes blank A fuse in your home may be • Replace the fuse or reset the circuit breaker.

blown or the circuit breaker tripped.

The clock is turned off so that it • See the Using the clock and timer section. does not show in the display.

Display flashes Power failure. • Reset the clock.

Unable to get the Oven control pads were •The Bake and Broil Hi/Lo pads must be touched at display to show “SF” not touched properly. the same time and held for 3 seconds.

Power outage, Power outage or surge. • Reset the clock. If the oven was in use, you must reset clock flashes it by touching the Clear/Off pad, setting the clock and

resetting any cooking function.

“Burning” or “oily” odor This is normal in a new oven • To speed the process, set a self-clean cycle for a emitting from the vent and will disappear in time. minimum of 3 hours. See the Using the self-cleaning

oven section.

Strong odor An odor from the insulation • This is temporary.

around the inside of the oven is normal for the first few times the oven is used.

Fan noise A cooling fan may automatically • This is normal. The cooling fan will turn off and on.

turn on and off to cool internal parts.

Drawer does not slide The drawer is out of alignment. • Fully extend the drawer and push it all the way in. smoothly or drags See the Care and cleaning of the range section.

Drawer is over-loaded or load • Reduce weight. Redistribute drawer contents. is unbalanced.

Consumer Support

Operating Instructions

Safety Instructions

Installation

Instructions

Troubleshooting Tips

Accessories.

Looking For Something More?

You can find these accessories and many more at GEAppliances.com, or call

800.626.2002 (during normal business hours). Have your model number ready.

Tired of discolored racks? Wishing you had extra-heavy-duty oven racks?

NOW AVAILABLE for your range:

GE’s innovative, self-cleanable porcelain-coated oven racks!

• Heavy Duty

• Durable

• Able to be cleaned in a self-cleaning oven

Visit GEAppliances.com for more information.

Oven Racks Broiler Pan

Light Bulbs Knobs

Stainless Steel Cleaner

Grates Surface Burners & Caps

Operating Instructions Safety Instructions

Installation

Instructions

Troubleshooting Tips

Consumer Support

OWNERSHIP REGISTRATION P.O. BOX 1780 MISSISSAUGA, ONTARIO L4Y 4G1

(FOR CANADIAN CONSUMERS ONLY)

Please place in envelope and mail to: Veuillez mettre dans une enveloppe et envoyez à :

Notes. GEAppliances.com

Consumer Support

Operating Instructions

Safety Instructions

Installation

Instructions

Troubleshooting Tips

Operating Instructions

Safety Instructions

Installation

Instructions

Troubleshooting Tips

Consumer Support

■ Service trips to your home to teach you how to use

the product.

■ Improper installation, delivery or maintenance.

■ Failure of the product if it is abused, misused,

or used for other than the intended purpose or used commercially.

■ Replacement of house fuses or resetting of circuit

breakers.

■ Damage to the product caused by accident, fire, floods

or acts of God.

■ Incidental or consequential damage caused by possible

defects with this appliance.

■ Damage caused after delivery.

■ Product not accessible to provide required service.

What GE Will Not Cover:

This warranty is extended to the original purchaser and any succeeding owner for products purchased for home use within the USA. If the product is located in an area where service by a GE Authorized Servicer is not available, you may be responsible for a trip charge or you may be required to bring the product to an Authorized GE Service Location for service. In Alaska, the warranty excludes the cost of shipping or service calls to your home.

Some states do not allow the exclusion or limitation of incidental or consequential damages. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. To know what your legal rights are, consult your local or state consumer affairs office or your state’s Attorney General.

Warrantor: General Electric Company. Louisville, KY 40225

For The Period Of: GE Will Replace:

One Year Any part of the range which fails due to a defect in materials or workmanship. During this

From the date of the limited one-year warranty, GE will also provide, free of charge, all labor and in-home service original purchase to replace the defective part.

GE Gas Range Warranty. (For customers in the United States)

All warranty service provided by our Factory Service Centers or an authorized Customer Care

technician. To schedule

service, visit us on-line at GEAppliances.com, or call

800.GE.CARES (800.432.2737). Please have serial number and model number availa ble when calling for service.

Staple your receipt here.

Proof of the original purchase

date is needed to obtain service

under the warranty.

EXCLUSION OF IMPLIED WARRANTIES—Your sole and exclusive remedy is product repair as provided in this Limited Warranty. Any implied warranties, including the implied warranties of merchantability or fitness for a particular purpose, are limited to one year or the shortest period allowed by law.

Consumer SupportOperating Instructions

Safety Instructions

Installation

Instructions

Troubleshooting Tips

All warranty service provided by our Factory Service Centres or an authorized Customer Care

technician. To schedule

service, visit us on-line at www.GEAppliances.ca, or call

1.800.561.3344. Please have serial number and model number available when calling for service.

■ Service trips to your home to teach you how to use

the product.

■ Improper installation, delivery or maintenance.

■ Failure of the product if it is abused, misused, or used for

other than the intended purpose or used commercially.

■ Replacement of house fuses or resetting of circuit

eakers.

■ Damage to the product caused by accident, fire, floods

or acts of God.

■ Incidental or consequential damage caused by possible

defects with this appliance.

■ Damage caused after delivery.

■ Product not accessible to provide required service.

What Mabe Will Not Cover:

For The Period Of: Mabe Will Replace:

One Year Any part of the range which fails due to a defect in materials or workmanship. During this

From the date of the limited one-year warranty, Mabe will also provide, free of charge, all labor and in-home service original purchase to replace the defective part.

Staple your receipt here.

Proof of the original purchase

date is needed to obtain service

under the warranty.

GE Gas Range Warranty. (For customers in Canada)

This warranty is extended to the original purchaser and any succeeding owner for products purchased in Canada for home use within Canada. In-home warranty service will be provided in areas where it is available and deemed

reasonable by Mabe to provide.

Some provinces do not allow the exclusion or limitation of incidental or consequential damages, so the above exclusion may not apply to you. This warranty gives you specific legal rights, and you may also have other rights which vary from province to province. To know what your legal rights are in your province, consult your local or provincial consumer affairs office.

Warrantor: Mabe Canada Inc.,

Burlington, Ontario

Printed in Mexico

This book is printed on recycled paper.

Consumer Support.

GE Appliances Website

In the U.S.: GEAppliances.com

Have a question or need assistance with your appliance? Try the GE Appliances Website 24 hours a day, any day of the year! For greater convenience and faster service, you can now download Owner’s Manuals, order parts or even schedule service on-line. In Canada: www.GEAppliances.ca

Schedule Service In the U.S.: GEAppliances.com

Expert GE repair service is only one step away from your door. Get on-line and schedule your service at your convenience any day of the year! Or call 800.GE.CARES (800.432.2737) during normal business hours.

In Canada, call 1.800.561.3344

Real Life Design Studio In the U.S.: GEAppliances.com

GE supports the Universal Design concept—products, services and environments that can be used by people of all ages, sizes and capabilities. We recognize the need to design for a wide range of physical and mental abilities and impairments. For details of GE’s Universal Design applications, including kitchen design ideas for people with disabilities, check out our Website today. For the hearing impaired, please call 800.TDD.GEAC (800.833.4322).

In Canada, contact: Manager, Consumer Relations, Mabe Canada Inc.

Suite 310, 1 Factory Lane Moncton, N.B. E1C 9M3

Extended Warranties In the U.S.: GEAppliances.com

Purchase a GE extended warranty and learn about special discounts that are available while your warranty is still in effect. You can purchase it on-line anytime, or call 800.626.2224 during normal business hours. GE Consumer Home Services will still be there after your warranty expires. In Canada, call 1.888.261.2133

Parts and Accessories In the U.S.: GEAppliances.com

Individuals qualified to service their own appliances can have parts or accessories sent directly to their homes (VISA, MasterCard and Discover cards are accepted). Order on-line today, 24 hours every day or by phone at

800.626.2002 during normal business hours.

Instructions contained in this manual cover procedures to be performed by any user. Other servicing generally should be referred to qualified service personnel. Caution must be exercised, since improper servicing may cause unsafe operation.

Customers in Canada should consult the yellow pages for the nearest Mabe service center, or call 1.800.661.1616.

If you are not satisfied with the service you receive from GE, contact us on our Website with all the details including your phone number, or write to: General Manager, Customer Relations

GE Appliances, Appliance Park Louisville, KY 40225

In Canada: www.GEAppliances.ca, or write to: Director, Consumer Relations, Mabe Canada Inc.

Suite 310, 1 Factory Lane Moncton, N.B. E1C 9M3

Register your new appliance on-line—at your convenience! Timely product registration will allow for enhanced communication and prompt service under the terms of your warranty, should the need arise. You may also mail in the pre-printed registration card included in the packing material. In Canada: www.GEAppliances.ca

Ge RGB735, RGB790, RGB745, RGB740, JGBP87 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Operating Instructions

Care and Cleaning

Consumer Support

Safety Instructions

Power Outage

Aluminum Foil

Griddle (on some models)

Stainless Steel Surfaces (on some models)

Burner Grates

Cooktop Surface

Oven Bottom

Oven Light Replacement

Installation Instructions

DIMENSIONS AND CLEARANCES

LOCATION

ANTI-TIP DEVICE

ELECTRICAL CONNECTIONS

LEVELING THE RANGE

Troubleshooting Tips
