GE RGA620, RGA624 User Manual

Download

RGA620 RGA624

Owner’s Manual and

Installation Instructions

Ranges

20″ and 24″ Compact Gas

164D4290P115 49-80158-2 12-02 JR

Safety

Instructions . . . . . 2–7, 23, 24, 27

Operating Instructions

Oven . . . . . . . . . . . . . . . . . .10–17

Surface Burners . . . . . . . . . . . .8, 9

Care and Cleaning

Broiler Compartment . . . . . . . .20

Broiler Pan and Grid . . . . . . . . 21

Burners . . . . . . . . . . . . . . . . . . .19

Control Panel and Knobs . . . . .19

Grates . . . . . . . . . . . . . . . . . . . .18

Lift-Up Cooktop . . . . . . . . . . . . 18

Lift-Off Oven Door . . . . . . . . . . 21

Metal Parts . . . . . . . . . . . . . . . . .19

Oven Interior . . . . . . . . . . . . . . 22

Painted Surfaces . . . . . . . . . . . . 22

Removable Oven Bottom . . . . .20

Shelves . . . . . . . . . . . . . . . . . . . 19

Thermostat Adjustment . . . . . . .15

Installation Instructions . . 23–35

LP Conversion . . . . . . . . . . 28–30

Troubleshooting Tips . . . . . . . 36

Consumer Support

Consumer Support . . . Back Cover

Warranty . . . . . . . . . . . . . . . . . . 39

www.GEAppliances.com

Write the model and serial numbers here:

Model # __________________

Serial # __________________

You can find them on a label on the front of the range below the bottom broiler door.

GE Quality Product

IMPORTANT SAFETY INFORMATION. READ ALL INSTRUCTIONS BEFORE USING.

Consumer Support Troubleshooting Tips Installation Instructions Care and Cleaning Operating Instructions Safety Instructions

— Do not store or use gasoline or other

flammable vapors and liquids in the vicinity of this or any other appliance.

— WHAT TO DO IF YOU SMELL GAS

■ Do not try to light any appliance.

■ Do not touch any electrical switch; do

not use any phone in your building.

■ Immediately call your gas supplier

from a neighbor’s phone. Follow the gas supplier’s instructions.

■ If you cannot reach your gas supplier,

call the fire department.

— Service must be performed by a

qualified service agency.

— Installations must be performed by

a qualified or licensed contractor, plumber, or gasfitter qualified or licensed by the state, province, or region where this appliance is being installed.

WARNING: If the information in this manual is not followed exactly, a fire or explosion may result causing property damage, personal injury or death.

WARNING!

ANTI-TIP DEVICE

■ ALL RANGES CAN TIP

■ INJURY TO PERSONS

COULD RESULT

■ INSTALL ANTI-TIP DEVICES PACKED WITH RANGE

■ SEE INSTALLATION INSTRUCTIONS

The California Safe Drinking Water and Toxic Enforcement Act requires the Governor of California to publish a list of substances known to the state to cause cancer, birth defects or other reproductive harm, and requires businesses to warn customers of potential exposure to such substances.

WARNING!

IMPORTANT SAFETY NOTICE

Gas appliances can cause minor exposure to four of these substances, namely benzene, carbon monoxide, formaldehyde and soot, caused primarily by the incomplete combustion of natural gas or LP fuels. Properly adjusted burners, indicated by a bluish rather than a yellow flame, will minimize incomplete combustion. Exposure to these substances can be minimized by venting with an open window or using a ventilation fan or hood.

— Only use gas shut-off valves approved

for use within the state, province or region where this appliance is being installed.

— In Massachusetts, a flexible gas

connector, when used, must not exceed 3 feet.

Safety Instructions Operating Instructions Care and Cleaning Installation Instructions Troubleshooting Tips Consumer Support

www.GEAppliances.com

WARNING!

For your safety, the information in this manual must be followed to minimize the risk of fire or explosion, electric shock, or to prevent property damage, personal injury, or loss of life.

All ranges can tip and injury could result. To prevent accidental tipping of the range, attach an approved Anti-Tip device to the floor. (See Installation Instructions.)

To check if the device is installed and engaged properly, carefully tip the range forward. The Anti-Tip device should engage and prevent the range from tipping over.

If you pull the range out from the wall for any reason, make sure the Anti-Tip device is engaged when you push the range back against the wall. If it is not, there is a possible risk of the range tipping over if you or a child stand, sit or lean on an open door.

WARNING ANTI-TIP DEVICE

Cook meat and poultry thoroughly—meat to at least an INTERNAL temperature of 160°F. and poultry to at least an INTERNAL temperature of 180°F. Cooking to these temperatures usually protects against foodborne illness.

COOK MEAT AND POULTRY THOROUGHLY…

Be sure all packing materials are removed from the range before operating it to prevent fire or smoke damage should the packing material ignite.

■ Have the installer show you the location of the range gas cut-off valve and how to shut it off if necessary.

■ Have your range installed and properly grounded by a qualified installer, in accordance with the Installation Instructions. Any adjustment and service should be performed only by qualified gas range installers or service technicians.

■ Plug your range into a 120-volt grounded outlet only (on electric ignition models). Do not remove the round grounding prong from the plug. If in doubt about the grounding of the home electrical system, it is your personal responsibility and obligation to have an ungrounded outlet replaced with a properly grounded, threeprong outlet in accordance with the National Electrical Code NFPA–70 latest edition. In Canada, the appliance must be electrically grounded in accordance with the Canadian Electrical Code. Do not use an extension cord with this appliance.

■ Do not attempt to repair or replace any part of your range unless it is specifically recommended in this manual. All other servicing should be referred to a qualified technician.

■ Locate range out of kitchen traffic path and out of drafty locations to prevent pilot outage (on standing pilot models) and poor air circulation.

■ Be sure your range is correctly adjusted by a qualified service technician or installer for the type of gas (natural or LP) that is to be used. Your range can be converted for use with either type of gas. See the Installation Instructions.

■ WARNING: These adjustments must be

made by a qualified service technician in accordance with the manufacturer’s instructions and all codes and requirements of the authority having jurisdiction. Failure to follow these instructions could result in serious injury or property damage. The qualified agency performing this work assumes responsibility for the conversion.

■ After prolonged use of a range, high floor temperatures may result and many floor coverings will not withstand this kind of use. Never install the range over vinyl tile or linoleum that cannot withstand such type of use. Never install it directly over interior kitchen carpeting.

■ Do not leave children alone or unattended where a range is hot or in operation. They could be seriously burned.

■ Do not allow anyone to climb, stand or hang on the door, broiler door or range top. They could damage the range and even tip it over, causing severe personal injury.

■ Clean only parts listed in this manual.

IMPORTANT SAFETY INFORMATION. READ ALL INSTRUCTIONS BEFORE USING.

SAFETY PRECAUTIONS

Consumer Support Troubleshooting Tips Installation Instructions Care and Cleaning Operating Instructions Safety Instructions

Never wear loose fitting or hanging garments while using the appliance. Be careful when reaching for items stored in cabinets over the cooktop. Flammable material could be ignited if brought in contact with flame or hot oven surfaces and may cause severe burns.

■ Let burner grates and other surfaces cool before touching them or leaving them where children can reach them.

■ For your safety, never use your appliance for warming or heating the room.

■ Do not use water on grease fires. Never pick up a flaming pan. Turn off burner, then smother flaming pan by covering pan completely with well-fitting lid, cookie sheet or flat tray. Flaming grease outside a pan can be put out by covering with baking soda or, if available, a multi-purpose dry chemical or foam-type fire extinguisher.

■ Do not store flammable materials in an oven, a range broiler compartment or near a cooktop.

■ Do not store or use combustible materials, gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.

■ Do not let cooking grease or other flammable materials accumulate in or near the range.

■ CAUTION: Items of interest to children should not be stored in the cabinets above a range or on the backsplash of a range— children climbing on the range to reach items could be seriously injured.

SAFETY PRECAUTIONS

www.GEAppliances.com

Stand away from range when opening oven door. Hot air or steam which escapes can cause burns to hands, face and/or eyes.

■ Do not use the oven for a storage area. Items stored in the oven can ignite.

■ Place the oven shelves in the desired position while the oven is cool.

■ Keep the oven free from grease buildup.

■ Pulling out the shelf to the shelf-stop is a

convenience in lifting heavy foods. It is also a precaution against burns from touching hot surfaces of the door or oven walls.

■ Do not heat unopened food containers. Pressure could build up and the container could burst, causing an injury.

■ Do not use aluminum foil anywhere in the oven except as described in this book. Misuse could result in a fire hazard or damage to the range.

■ When using cooking or roasting bags in the oven, follow the manufacturer’s directions.

■ Use only glass cookware that is recommended for use in gas ovens.

■ After broiling, always take the broiler pan out of the range and clean it. Leftover grease in the broiler pan can catch fire the next time you use the pan.

■ When broiling, if meat is too close to the flame, the fat may ignite. Trim excess fat to prevent excessive flare-ups.

■ Make sure the broiler pan is in place correctly to reduce the possibility of grease fires.

■ If you should have a grease fire in the broiler pan, turn off oven control, and keep broiler door and oven door closed to contain fire until it burns out.

■ Never leave jars of fat drippings on or near your range.

OVEN

Safety Instructions Operating Instructions Care and Cleaning Installation Instructions Troubleshooting Tips Consumer Support

Consumer Support Troubleshooting Tips Installation Instructions Care and Cleaning Operating Instructions Safety Instructions

IMPORTANT SAFETY INFORMATION. READ ALL INSTRUCTIONS BEFORE USING.

WARNING!

SURFACE COOKING UNITS

Use proper pan size—Avoid pans that are unstable or easily tipped. Select cookware having flat bottoms large enough to properly contain food and avoid boilovers and spillovers and large enough to cover burner grate. This will both save cleaning time and prevent hazardous accumulations of food, since heavy spattering or spillovers left on range can ignite. Use pans with handles that can be easily grasped and remain cool.

■ Always use the LITE position (on electric ignition models) or the HI position (on standing pilot models) when igniting top burners and make sure the burners have ignited.

■ Never leave surface burners unattended at high flame settings. Boilover causes smoking and greasy spillovers that may catch on fire.

■ Adjust the top burner flame size so it does not extend beyond the edge of the cookware. Excessive flame is hazardous.

■ Use only dry pot holders—moist or damp pot holders on hot surfaces may result in burns from steam. Do not let pot holders come near open flames when lifting cookware. Do not use a towel or other bulky cloth in place of a pot holder.

■ To minimize the possibility of burns, ignition of flammable materials and spillage, turn cookware handles toward the side or back of the range without extending over adjacent burners.

■ Always turn the surface burner to OFF before removing the cookware.

■ Carefully watch foods being fried at a high flame setting.

■ Never block the vents (air openings) of the range. They provide the air inlet and outlet that are necessary for the range to operate properly with correct combustion. Air openings are located at the rear of the cooktop, at the top and bottom of the oven door, and at the bottom of the range under the broiler door.

■ Foods for frying should be as dry as possible. Frost on frozen foods or moisture on fresh foods can cause hot fat to bubble up and over sides of the pan.

■ Use least possible amount of fat for effective shallow or deep-fat frying. Filling the pan too full of fat can cause spillovers when food is added.

■ When flaming foods under the hood, turn the fan on.

■ If a combination of oils or fats will be used in frying, stir together before heating or as fats melt slowly.

■ Always heat fat slowly, and watch as it heats.

■ Use a deep fat thermometer whenever

possible to prevent overheating fat beyond the smoking point.

■ When using glass cookware, make sure it is designed for top-of-range cooking.

■ Keep all plastics away from top burners.

■ Do not leave plastic items on the cooktop—

they may melt if left too close to the vent.

■ Do not leave any items on the cooktop. The hot air from the vent may ignite flammable items and will increase pressure in closed containers, which may cause them to burst.

■ To avoid the possibility of a burn, always be certain that the controls for all burners are at the OFF position and all grates are cool before attempting to remove them.

■ Should you have a grease fire, turn the fan off. The fan, if operating, may spread the flames.

■ If range is located near a window, do not hang long curtains that could blow over the top burners and create a fire hazard.

■ When a pilot goes out (on standing pilot models), you will detect a faint odor of gas as your signal to relight the pilot. When relighting the pilot, make sure burner controls are in the OFF position, and follow instructions in this manual to relight.

■ If you smell gas, and you have already made sure pilots are lit (on standing pilot models), turn off the gas to the range and call a qualified service technician. Never use an open flame to locate a leak.

■ Keep range clean and free of accumulations

of grease or spillovers, which may ignite.

■ Be careful when you clean the cooktop

because the area over the pilot (on standing pilot models) will be hot.

www.GEAppliances.com

Safety Instructions Operating Instructions Care and Cleaning Installation Instructions Troubleshooting Tips Consumer Support

READ AND FOLLOW THIS SAFETY INFORMATION CAREFULLY.

SAVE THESE INSTRUCTIONS

Do not locate the range where it may be subject to strong drafts. Any openings in the floor or wall behind the range should be sealed. Make sure the openings around the base of the range that supply fresh air for combustion and ventilation are not obstructed by carpeting or woodwork.

FLOORING UNDER THE RANGE

Your range, like many other household items, is heavy and can settle into soft floor coverings such as cushioned vinyl or carpeting. Use care when moving the range on this type of flooring. It is recommended that the following simple and inexpensive instructions be followed to protect your floor.

The range should be installed on a sheet of plywood (or similar material). When the floor covering ends at the front of the range, the area that the range will rest on should be built up with plywood to the same level or higher than the floor covering.

This will allow the range to be moved for cleaning or servicing. Also, make sure your floor covering will withstand 180°F. (See the Installation Safety Instructions section).

Make sure the wall coverings around your range can withstand the heat generated (up to 200°F) by the range. (See the Installation Safety Instructions section).

Leveling legs are located on each corner of the base of the range. Your range must be level in order to produce proper cooking and baking results. After it is in its final location, place a level horizontally on any oven shelf and check the levelness front to back and side to side. Level the range by adjusting the leveling legs or by placing shims under the corners as needed.

One of the rear leveling legs will engage the Anti-Tip device (allow for some side to side adjustment). Allow a minimum clearance of 1/8 inch between the range and the leveling leg that is to be installed into the Anti-Tip device.

LEVELING THE RANGE

Consumer Support Troubleshooting Tips Installation Instructions Care and Cleaning Operating Instructions Safety Instructions

Using the surface burners.

Throughout this manual, features and appearance may vary from your model.

Lighting Instructions for Electric Ignition Models

The surface burners on some models are lighted by electric ignition, eliminating the need for standing pilot lights with constantly burning flames.

In case of a power failure, you can light the surface burners on your range with a match. Hold a lighted match to the burner, then turn the knob to the LITE position. Use extreme caution when

lighting burners this way.

Surface burners in use when an electrical power failure occurs will continue to operate normally.

The electrode of the spark igniter is exposed. When one burner is turned to LITE, all the burners spark. Do not attempt to disassemble or clean around any burner while another burner is on.An electric shock may result, which could cause you to knock over hot cookware.

Lighting Instructions for Standing Pilot Models

The surface burners on these ranges have standing pilots that must be lit initially.

To light them:

Be sure surface burner control knobs are in the OFF position.

Lift the cooktop up and prop it open with the prop rod provided (see the Care and cleaning of the range section).

Locate the 2 pilot ports and light each of them with a match.

If the pilots need adjusting, use a small flat-bladed screwdriver to turn the adjusting screw (accessed through a hole in the front right side of the burner box).

Lower the cooktop. Your surface burners are now ready for use.

Observe lighted burners. Compare the flames to pictures in the Before you call for service section. If any flame is unsatisfactory, call for service.

Surface Burner Controls

The knobs that turn the surface burners on and off are located on the control panel on the front of the range. The two knobs on the left control the left front and left rear burners. The two knobs on the right control the right front and right rear burners.

To Light a Surface Burner

Push the control knob in and turn it to LITE (HI on pilot models). On electric ignition models, you will hear a little clicking noise—the sound of the electric spark igniting the burner.

After the burner ignites, turn the knob to adjust the flame size.

After Lighting a Burner

■ Check to be sure the burner you turned on is the one you want to use.

■ Do not operate a burner for an extended period of time without cookware on the grate. The finish on the grate may chip without cookware to absorb the heat.

■ Be sure the burners and grates are cool before you place your hand, a pot holder, cleaning cloths or other materials on them.

Pilot

adjustment

Top pilots adjustment screw controls the rate of gas to the top burner pilots.

Pilot port

www.GEAppliances.com

Safety Instructions Operating Instructions Care and Cleaning Installation Instructions Troubleshooting Tips Consumer Support

How to Select Flame Size

Watch the flame, not the knob, as you reduce heat. The flame size on a gas burner should match the cookware you are using.

For safe handling of cookware, never let the flame extend up the sides of the cookware.

Any flame larger than the bottom of the cookware is wasted and only serves to heat the handle.

Top of Range Cookware

Aluminum: Medium-weight cookware is

recommended because it heats quickly and evenly. Most foods brown evenly in an aluminum skillet. Use saucepans with tight-fitting lids when cooking with minimum amounts of water.

Cast-iron: If heated slowly, most skillets will give satisfactory results.

Enamelware: Under some conditions, the enamel of some cookware may melt. Follow cookware manufacturer’s recommendations for cooking methods.

Glass: There are 2 types of glass cookware—those for oven use only and those for top-of-range cooking (saucepans, coffee and teapots). Glass conducts heat very slowly.

Heatproof Glass Ceramic: Can be used for either surface or oven cooking. It conducts heat very slowly and cools very slowly. Check cookware manufacturer’s directions to be sure it can be used on gas ranges.

Stainless Steel: This metal alone has poor heating properties and is usually combined with copper, aluminum or other metals for improved heat distribution. Combination metal skillets usually work satisfactorily if they are used with medium heat as the manufacturer recommends.

Never let the flame extend up the sides of the cookware.

Consumer Support Troubleshooting Tips Installation Instructions Care and Cleaning Operating Instructions Safety Instructions

Using the oven.

Throughout this manual, features and appearance may vary from your model.

Lighting Instructions for Electric Ignition Models

The oven burner is lighted by electric ignition.

To light the burner, turn the OVEN TEMP knob to the desired temperature. The burner should light within 30-90 seconds.

After the oven reaches the selected temperature, the oven burner cycles on and off to maintain the selected temperature.

Power Outage—Electric Ignition Models

CAUTION: Do not make any attempt to operate the electric ignition oven during an electric power failure. The oven or broiler

cannot be lit during a power failure. Gas will not flow unless the glow bar is hot.

If the oven is in use when a power failure occurs, the oven burner shuts off and cannot be re-lit until power is restored. This is because the flow of gas is automatically stopped and will not resume when power is restored until the glow bar has reached operating temperature.

Lighting Instructions for Standing Pilot Models

The standing oven pilot must be lit initially.

To light the oven pilot:

Be sure the OVEN TEMP knob is in the OFF position.

Remove the oven bottom or open the broiler door and remove the broiler pan. See the Care and cleaning of the range section.

Find the oven pilot port at the back of the oven.

Using a long match or match holder, reach in and light the oven pilot.

Replace the oven bottom (if removed) and close the door. Your oven and broiler are now ready for use.

■ To light the oven burner, turn the

OVEN TEMP knob to the desired temperature. The burner should light within 60 seconds.

■ Power failure? An electrical power

failure will not affect the standing oven pilot.

Power Outage—Standing Pilot Models

An electrical power failure will not affect the standing oven pilot.

www.GEAppliances.com

Safety Instructions Operating Instructions Care and Cleaning Installation Instructions Troubleshooting Tips Consumer Support

Oven Control

Your oven is controlled by an OVEN TEMP knob. It will normally take 30-90 seconds before the flame comes on.

After the oven reaches the selected temperature, the oven burner cycles—off completely, then on with a full flame—to maintain the selected temperature.

Air Adjustment

An air adjustment shutter for the oven burner regulates the flow of air to the flame.

You’ll find the shutter against the back wall behind the broiler door and valve shield. To reach it, remove the oven bottom (see the Care and cleaning of the range section), the burner baffle and the valve shield.

To adjust the flow of air, loosen the Phillips head screw and rotate the shutter to allow more or less air into the burner tube as needed.

When the right amount of air flows into the burner, the flame should be steady,

with approximately 1/2 inch blue cones, and should not extend out over the baffle edges.

Replace the valve shield, burner baffle and oven bottom before operating the oven.

Loosen

Air adjustment shutter

Oven Shelves

The shelves are designed with stop-locks so when placed correctly on the shelf supports, they will stop before coming completely out of the oven and will not tilt when you are removing food from them or placing food on them.

When placing cookware on a shelf, pull the shelf out to the bump on the shelf support. Place the cookware on the shelf, then slide the shelf back into the oven. This will eliminate reaching into the hot oven.

To remove the shelves from the oven, pull them toward you, tilt front end upward and pull them out.

To replace, place shelf on shelf support with stop-locks (curved extension of shelf) facing up and toward back of oven. Tilt up front and push shelf toward back of oven until it goes past the bump on the shelf support. Then lower front of shelf and push it all the way back.

Bump

Consumer Support Troubleshooting Tips Installation Instructions Care and Cleaning Operating Instructions Safety Instructions

Using the oven.

Throughout this manual, features and appearance may vary from your model.

Oven Vents

■ The oven is vented through duct openings at the rear of the cooktop.

■ Do not block the opening when cooking in the oven—it is important that the flow of hot air from the oven and fresh air to the oven burner be uninterrupted.

■ The vent openings and nearby surfaces may become hot during baking and broiling. Do not touch them.

■ Do not leave plastic items on the cooktop—they may melt if left too close to the vent.

■ Handles of pots and pans on the cooktop may become hot if left too close to the vent.

■ Metal items will become very hot if they are left on the cooktop and could cause burns.

■ Do not leave any items on the cooktop. The hot air from the vent may ignite flammable items and will increase pressure in closed containers, which may cause them to burst.

Oven Shelf Positions

The oven has four shelf supports—A (bottom), B, C and D (top).

Shelf positions for cooking are suggested in the Using your oven for baking and Using your oven for roasting sections.

The type of margarine will affect baking performance!

Most recipes for baking have been developed using high fat products such as butter or margarine (80% fat). If you decrease the fat, the recipe may not give the same results as with a higher fat product.

Recipe failure can result if cakes, pies, pastries, cookies or candies are made with low fat spreads. The lower the fat content of a spread product, the more noticeable these differences become.

Federal standards require products labeled “margarine” to contain at least 80% fat by weight. Low fat spreads, on the other hand, contain less fat and more water. The high moisture content of these spreads affects the texture and flavor of baked goods. For best results with your old favorite recipes, use margarine, butter or stick spreads containing at least 70% vegetable oil.

The oven has 4 shelf positions.

Using the oven for baking. www.GEAppliances.com

To avoid possible burns, place the shelves in the desired position before you turn the oven on.

Safety Instructions Operating Instructions Care and Cleaning Installation Instructions Troubleshooting Tips Consumer Support

How to Set the Oven For Baking

Close the oven door. Then turn the OVEN TEMP knob to the desired temperature.

Check the food for doneness at the minimum time on the recipe. Cook longer if necessary. Turn the OVEN TEMP knob to OFF and remove the food.

Oven Shelves

Arrange the oven shelf or shelves in the desired locations while the oven is cool. The correct shelf position depends on the kind of food and the browning desired.

As a general rule, place most foods in the middle of the oven, on either the shelf position B or C. See the chart for suggested shelf positions.

Type of Food Shelf Position

Angel food cake A

Biscuits, muffins B or C

Cookies or cupcakes B or C

Brownies B or C

Layer cakes B or C

Bundt or pound cakes A or B

Pies or pie shells B or C

Frozen pies (on cookie sheet) A

Casseroles B or C

Preheating

Preheat the oven for 10 minutes if the recipe calls for it. Preheat means bringing the oven up to the specified temperature before putting the food in the oven.

Preheating is necessary for good results when baking cakes, cookies, pastry and breads. For most casseroles and roasts, preheating is not necessary.

Baking Pans

Use the proper baking pan. The type of finish on the pan determines the amount of browning that will occur.

■ Glass baking dishes also absorb heat. When baking in glass baking dishes, lower the temperature by 25°F and use the recommended cooking time in the recipe. This is not necessary when baking pies or casseroles.

■ Dark, rough or dull pans absorb heat resulting in a browner, crisper crust. Use this type for pies.

■ Shiny, bright and smooth pans reflect heat, resulting in a lighter, more delicate browning. Cakes and cookies require this type of pan.

Pan Placement

For even cooking and proper browning, there must be enough room for air circulation in the oven. Baking results will be better if baking pans are centered as much as possible rather than being placed to the front or to the back of the oven.

Pans should not touch each other or the walls of the oven. Allow 1 to 11⁄2 inch space between pans as well as from the back of the oven, the door and the sides.

If you need to use two shelves, stagger the pans so one is not directly above the other.

Place most foods in the middle of the oven.

To preheat, set the oven at the correct temperature— selecting a higher temperature does not shorten the preheat time.

Consumer Support Troubleshooting Tips Installation Instructions Care and Cleaning Operating Instructions Safety Instructions

Using the oven for baking.

Throughout this manual, features and appearance may vary from your model.

For even cooking and proper browning, there must be enough room for air circulation in the oven.

Baking results will be better if baking pans are centered as much as possible rather than being placed to the front or to the back of the oven.

Pans should not touch each other or the walls of the oven. Allow 1 to 1

⁄2 inch space between pans as well as from the back of the oven, the door and the sides.

If you need to use two shelves, stagger the pans so one is not directly above the other.

Oven Shelves

Flat cookie sheets (without sides) produce better-looking cookies. Cookies baked in a jelly roll pan (short sides all around) may have darker edges and pale or light browning may occur.

Do not use a cookie sheet so large that it touches the walls or the door of the oven. Never entirely cover a shelf with a large cookie sheet.

For best results, use only one cookie sheet in the oven at a time.

Aluminum Foil

Never entirely cover a shelf with aluminum foil. This will disturb the heat circulation and result in poor baking.

A smaller sheet of foil may be used to catch a spillover by placing it on a lower shelf several inches below the food.

Pies

For best results, bake pies in dark, rough or dull pans to produce a browner, crisper crust.

Frozen pies in foil pans should be placed on an aluminum cookie sheet for baking since the shiny foil pan reflects heat away from the pie crust; the cookie sheet helps retain it.

Don’t Peek

Set the timer for the estimated cooking time and do not open the door to look at your food. Most recipes provide minimum and maximum baking times such as “bake 30-40 minutes.”

DO NOT open the door to check until the minimum time. Opening the oven door frequently during cooking allows heat to escape and makes baking times longer. Your baking results may also be affected.

Cakes

When baking cakes, warped or bent pans will cause uneven baking results and poorly shaped products.

A cake baked in a pan larger than the recipe recommends will usually be crisper, thinner and drier than it should be.

If baked in a pan smaller than recommended, it may be undercooked and batter may overflow.

Check the recipe to make sure the pan size used is the one recommended.

Using the oven for roasting. www.GEAppliances.com

Roasting is cooking by dry heat. Tender meat or poultry can be roasted uncovered in your oven. Roasting temperatures, which should be low and steady, keep spattering to a minimum.

Roasting is really a baking procedure used for meats. Roasting is easy; just follow these directions:

Safety Instructions Operating Instructions Care and Cleaning Installation Instructions Troubleshooting Tips Consumer Support

How to Set the Oven For Roasting

Place the shelf in the A or B position. No preheating is necessary.

Check the weight of the meat. Place it fat side up (or for poultry, breastside-up) on a roasting rack in a shallow pan. The melting fat will baste the meat. Select a pan as close to the size of the meat as possible. Line the pan with aluminum foil when using the pan for marinating, cooking with fruits, cooking heavily cured meats or basting food during cooking.

Turn the OVEN TEMP knob to the desired setting.

After roasting is complete, turn the OVEN TEMP knob to OFF and then remove the food from the oven.

Place the shelf in the A or B position.

Adjust the oven thermostat knob—Do it yourself!

You may find that your new oven cooks differently than the one it replaced. We recommend that you use your new

oven for a few weeks to become more familiar with it, following the times given in your recipes as a guide.

If you think your new oven is too hot or too cold, you can adjust the thermostat yourself. If you think it is too hot,

adjust the thermostat to make it cooler. If you think it is too cool, adjust the thermostat to make it hotter.

We do not recommend the use of thermometers, such as those found in grocery stores, to check the temperature setting of your new oven. These thermometers may vary 20–40 degrees.

To Adjust the Thermostat:

(appearance may vary)

Pull the OVEN TEMP knob off the range and look at the back side.

To make adjustment, loosen (approximately one turn), but do not completely remove, the two screws on the back of the knob. With the back of the knob facing you, hold the outer edge of the knob with one hand and turn the front of the knob with the other hand.

To raise the oven temperature, move the top screw toward the right. You’ll hear a click for each notch you move the knob. To lower the temperature, move the top screw toward the left. Each click will change the oven temperature approximately 10°F. (Range is plus or minus 60°F. from the arrow.)

We suggest that you make the adjustment one click from the original setting and check oven performance before making any additional adjustments.

After the adjustment is made, retighten screws so they are snug, but be careful not to overtighten. Re-install knob on range and check performance.

Using the oven for broiling.

Broiling is cooking food by direct heat from above the food. Most fish and tender cuts of meat can be broiled. Follow these steps to keep spattering and smoking to a minimum.

Your range has a compartment below the oven for broiling. A specially designed broiler pan allows dripping fat to drain away from the food.

Both the oven and broiler compartment doors should be closed during broiling.

Consumer Support Troubleshooting Tips Installation Instructions Care and Cleaning Operating Instructions Safety Instructions

How to Set Your Oven for Broiling

You can change the distance of the food from the heat source by positioning the broiler pan in the broiler compartment: –A (bottom of broiler

compartment). –B (center of broiler compartment). –C (top of broiler compartment). Most broiling should be done in

position A.

Preheat the broiler for best results.

If the meat has fat or gristle around the edge, cut vertical slashes through it about 2 inches apart, but don’t cut into the meat. We recommend that you trim the fat to prevent excessive smoking, leaving a layer about 1/8 inch thick.

Close the oven and broiler compartment door.

Turn the OVEN TEMP knob to BROIL.

Turn most foods once during cooking. Time foods for about onehalf the total cooking time, turn food, then continue to cook to preferred doneness.

Turn the OVEN TEMP knob to OFF. Remove the broiler pan from the broiler compartment and serve the food immediately. Leave the pan outside the range to cool.

Use of Aluminum Foil

You can use aluminum foil to line your broiler pan and broiler grid. However, you must mold the foil tightly to the pan and cut slits in the foil to open all slots in the grid.

www.GEAppliances.com

Safety Instructions Operating Instructions Care and Cleaning Installation Instructions Troubleshooting Tips Consumer Support

Broiling Guide

■ The oven and broiler compartment doors must be closed during broiling.

■ Always use the broiler pan that comes with your range.

■ If desired, marinate meats or chicken before broiling. Or, brush with barbecue sauce the last 5 to 10 minutes.

■ When arranging food on pan, do not let fatty edges hang over the sides. The fat drippings will soil the broiler compartment.

■ Use tongs to turn the meat. Pierced meat loses juices.

Amount or Shelf Time In Minutes

Food Thickness Position First Side Second Side Comments

Bacon 1/2 lb. B 31⁄2 min. 3 min. Arrange in single layer

(about 8 thin slices)

Ground Beef 1 lb. (4 patties) A 10–11 min. 4–5 min. Space evenly.

1/2 to 3/4″ thick

Beef Steaks

Medium 1 to 11⁄2 lbs. A 12 min. 5–6 min. Steaks less than 1″

thick cook through before browning. Pan frying is recommended.

Chicken 1 whole A 30–35 min. 25–30 min. Reduce time about 5

2 to 21⁄2 lbs., to 10 minutes per side split lengthwise for cut-up chicken.

Brush each side with melted butter. Broil skin-side-down first.

Fish 1 lb. fillets B 5 min. 5 min. Handle and turn very

1/4 to 1/2″ thick carefully. Brush with

lemon butter before and during cooking, if desired. Preheat broiler to increase browning.

Consumer Support Troubleshooting Tips Installation Instructions Care and Cleaning Operating Instructions Safety Instructions

Care and cleaning of the range.

Be sure electrical power is off and all surfaces are cool before cleaning any part of the range.

Proper care and cleaning are important so your range will give you efficient and satisfactory service. Follow these directions carefully in caring for your range to assure safe and proper maintenance.

Lift-Up Cooktop

Clean the area under the cooktop often. Built-up soil, especially grease, may catch on fire.

To make cleaning easier, the cooktop may be lifted up and propped open.

Be sure all burners are turned off before raising the cooktop. Then remove the grates.

Grasp the two front burner wells and lift the cooktop up and prop it open with the prop rod provided. Be careful of the pilots when the cooktop is up.

After cleaning underneath the cooktop with hot, soapy water and a clean cloth, hold the cooktop up, return the prop rod to its storage position and lower the cooktop until it snaps into position. Be careful not to pinch your fingers.

Burner Grates

Grates should be washed regularly and after spillovers. Wash them in hot, soapy water and rinse with clean water.

After cleaning, dry thoroughly by putting them in a warm oven for a few minutes. Don’t put the grates back on the range while they are wet. When replacing the grates, be sure they’re positioned securely over the burners.

To get rid of burned-on food, place the grates in a covered container (or plastic bag) with 1/4 cup ammonia to loosen the soil. Then scrub with a soap-filled scouring pad if necessary.

Although they’re durable, the grates will gradually lose their shine, regardless of the best care you can give them. This is due to their continual exposure to high temperatures.

Do not operate a burner for an extended period of time without cookware on the grate. The finish on the grate may chip without cookware to absorb the heat.

If your range is removed for cleaning, servicing or any reason, be sure the anti-tip device is re-engaged properly when the range is replaced. Failure to take this precaution could result in tipping of the range and cause injury.

How to Remove the Range for Cleaning and Servicing

Follow these steps to remove the range for servicing or cleaning hard to reach surfaces.

Shut off the gas supply to the range.

Disconnect the electrical supply to the range.

Disconnect the gas supply tubing to the range.

Slide the range forward to free the range foot from the Anti-Tip bracket. See the Installation Instructions for the location of the bracket.

Reverse these steps to re-install the range. If the gas line has been disconnected, check for gas leaks after re-connection. See the Installation Instructions for the gas lead test method.

NOTE: A trained technician should make the gas installation, disconnection and re-connection of the gas supply to the appliance.

www.GEAppliances.com

Safety Instructions Operating Instructions Care and Cleaning Installation Instructions Troubleshooting Tips Consumer Support

Burners

The holes in the surface burners of your range must be kept clean at all times for proper ignition and an even, unhampered flame.

You should clean the surface burners routinely, especially after bad spillovers,

which could clog these holes. Wipe off the surface burners. If heavy spillover occurs, remove the surface burners from the range. The burners lift out for cleaning. Lift up the cooktop and then lift out the surface burners.

NOTE: A screw holds each of the burners in place to keep them from wobbling around during shipment. Remove and discard the shipping screw.

To remove burned-on food, soak the surface burner in a solution of mild liquid detergent and hot water. Soak the surface burner for 20 to 30 minutes. For more stubborn stains, use a cleanser like Soft Scrub®brand or Bon Ami®brand. Rinse well to remove any traces of the cleanser that might clog the surface burner openings. Do not use steel wool because it will clog the surface burner openings and scratch the surface burners. If the holes become clogged, clean them with a small pin or sewing needle.

Before putting the surface burner back,

shake out excess water and then dry it thoroughly by setting it in a warm oven for 30 minutes. Then place it back in the range, making sure it is properly seated and level.

Control Panel and Knobs

It’s a good idea to wipe the control panel after each use of the oven. Clean with mild soap and water or vinegar and water, rinse with clean water and polish dry with a soft cloth.

Do not use abrasive cleansers, strong liquid cleaners, plastic scouring pads or oven cleaners on the control panel—they will damage the finish. A 50/50 solution of vinegar and hot water works well.

The control knobs may be removed for easier cleaning.

To remove the knob, pull it straight off the stem. Wash the knobs in soap and water or a vinegar and hot water solution but do not soak.

Oven Shelves

The shelves can be cleaned by hand using soap and water or with an abrasive cleaner. After cleaning, rinse the shelves with clean water and dry.

To remove heavy, burned-on soil, you may use scouring pads. After scrubbing, wash with soapy water, rinse and dry.

Metal Parts

Do not use steel wool, abrasives, ammonia or commercial oven cleaners.

To safely clean surfaces: wash, rinse and then dry with a soft cloth.

Clean these

holes

thoroughly on

each burner.

Consumer Support Troubleshooting Tips Installation Instructions Care and Cleaning Operating Instructions Safety Instructions

Care and cleaning of the range.

Cleaning the Oven Bottom

The oven bottom has a porcelain enamel finish.

To make cleaning easier, protect the oven bottom from excessive spillovers. This is particularly important when baking a fruit pie or other foods with high acid content. Hot fruit fillings or foods that are acidic in content, such as tomatoes or sauerkraut, and sauces with vinegar or lemon juice, may cause pitting and damage to the porcelain enamel surface.

To protect the oven bottom surface, place a piece of aluminum foil slightly larger than the baking dish on the shelf below to catch any boilovers. It should not completely cover the shelf as this would cause uneven heat in the oven. Aluminum foil should not be placed on the oven bottom.

If a spillover does occur on the oven bottom, allow the oven to cool first. You can clean the bottom with soap and water, a mild abrasive cleanser, soap-filled steel wool pads or an oven cleaner following package directions.

Removable Oven Bottom

First remove the shelves from the oven. The oven bottom lifts from the front. Grasp each side of the oven bottom, push it to the back of the oven, lift upward from the front until it is clear—lift it to remove from the front.

NOTE: If the oven bottom is replaced incorrectly, it may warp and cause undesirable baking results.

Broiler Compartment

The broiler pan is held in place by the broiler side supports.

To remove the broiler pan:

Gently pull forward on the drop down broiler door.

Pull the broiler pan forward on the broiler side supports. Grasp the sides of the broiler pan and remove it from the broiler compartment.

To replace the broiler pan:

Place the broiler pan on the broiler side supports and push it all the way into the broiler compartment.

Close the broiler door.

www.GEAppliances.com

Safety Instructions Operating Instructions Care and Cleaning Installation Instructions Troubleshooting Tips Consumer Support

Lift-Off Oven Door

The oven door is removable, but it is heavy. You may need help removing and replacing the door.

To remove the door:

Open the door to the full open position.

Pull the hinge locks up over the hinge hooks on both sides.

Grasp the door firmly on each side, lift slightly and pull it straight out and away from the oven.

To replace the door:

Firmly grasp both sides of the door at the top.

Insert and seat the upper and lower hinge arms into the oven slots.

Push the hinge locks down from the hinge hooks.

Close the oven door and make sure it is working properly. If it is not working properly, remove and replace it following the above steps.

DO NOT ATTEMPT TO CLOSE THE DOOR UNTIL THIS STEP IS COMPLETE. THE HINGE OR DOOR COULD BE DAMAGED.

TO CLEAN THE DOOR:

Inside of door:

■ Soap and water will normally do the job. Heavy spattering or spillovers may require cleaning with a mild abrasive cleaner. Soapy, wet metal pads may also be used. Do not allow food spills with a high sugar or acid content (such as milk, tomatoes, sauerkraut, fruit juices or pie filling) to remain on the surface. They may cause a dull spot even after cleaning.

■ If necessary, you may use an oven cleaner. Follow package directions.

Outside of door:

■ Use soap and water to thoroughly clean the top, sides and front of the oven. Rinse well.

■ Spillage of marinades, fruit juices, tomato sauces and basting materials containing acids may cause discoloration and should be wiped up immediately. When surface is cool, clean and rinse.

■ Do not use oven cleaners, cleansing powders or harsh abrasives on the outside of the door.

Broiler Pan and Grid

After broiling, remove the broiler pan from the oven. Remove the grid from the pan. Carefully pour out grease from the pan into a proper container. Wash and rinse the broiler pan and grid in hot water with a soap-filled or plastic scouring pad.

If food has burned on, sprinkle the grid with detergent while hot and cover with wet paper towels or a dishcloth. Soaking the pan will remove burned on foods.

Do not store a soiled broiler pan and grid anywhere in the range.

Upper

hinge arm

Slot

Lower

hinge arm

Lower hinge arm

Upper hinge arm

Hinge lock

Consumer Support Troubleshooting Tips Installation Instructions Care and Cleaning Operating Instructions Safety Instructions

Care and cleaning of the range.

Porcelain Oven Interior

With proper care, the porcelain enamel finish on the inside of the oven will stay new-looking for years.

Let the range cool before cleaning.

We recommend that you wear rubber gloves when cleaning the range.

Soap and water will normally do the job.

Heavy spattering or spillovers may require cleaning with a mild abrasive cleaner. Soapy, wet metal pads may also be used. Do not allow food spills with a high sugar or acid content (such as tomatoes, sauerkraut, fruit juices or pie filling) to remain on the surface. They may cause a dull spot even after cleaning.

Household ammonia may make the cleaning job easier. Place 1/2 cup in a

shallow glass or pottery container in a cold oven overnight. The ammonia fumes will help loosen the burned-on grease and food.

If necessary, you may use an oven cleaner. Follow package directions.

Cautions about using spray-on oven cleaners:

■ Do not spray on the electrical controls and switches because it could cause a short circuit and result in sparking or fire.

■ Do not allow a film from the cleaner to build up on the temperature sensor— it could cause the oven to heat improperly. (The sensor is located at the top of the oven.) Carefully wipe the sensor clean after each oven cleaning, being careful not to move the sensor as a change in its position could affect how the oven bakes.

■ Do not spray any oven cleaner on the outside of the oven door, handles or any exterior surface of the oven, wood or painted surfaces. The cleaner can damage these surfaces.

Painted Surfaces

Painted surfaces include the sides, control panel, door and kick panel. Clean these with soap and water or a vinegar and water solution.

Do not use commercial oven cleaners, cleansing powders, steel wool or harsh abrasives on any painted surface.

Safety Instructions Operating Instructions Care and Cleaning Installation Instructions Troubleshooting Tips Consumer Support

Read these instructions completely and carefully.

BEFORE YOU BEGIN

Installation of this range must conform with local codes, or in the absence of local codes, with the National Fuel Gas Code, ANSI Z223.1, latest edition. In Canada, installation must conform with the current Natural Gas Installation Code, CAN/CGA-B149.1 or the current Propane Installation Code, CAN/CGA-B149.2, and with local codes where applicable. This range has been design-certified by the American Gas Association according to ANSI Z21.1, latest edition and Canadian Gas Association according to CAN/CGA-1.1 latest edition.

As with any appliance using gas and generating heat, there are certain safety precautions you should follow. You will find these precautions in the Important Safety Information section in the front of this manual. Read them carefully.

Installations must be performed by a qualified or licensed contractor, plumber, or gasfitter qualified or licensed by the state, province, or region where this appliance is being installed.

Only use gas shut-off valves approved for use within the state, province or region where this appliance is being installed.

In Massachusetts, a flexible gas connector, when used, must not exceed 3 feet.

IMPORTANT: Save these instructions for the local electrical inspector’s use.

NOTE TO INSTALLER: Leave these instructions with the appliance after installation is completed.

NOTE TO CONSUMER: Keep this Owner’s Manual and Installation Instructions for future use.

NOTE: This appliance must be properly grounded.

FOR YOUR SAFETY

Do not store or use combustible materials, gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.

If you smell gas:

Open windows.

Don’t touch electrical switches.

Extinguish any open flame.

Immediately call your gas supplier.

Installation of the range.

Consumer Support Troubleshooting Tips Installation Instructions Care and Cleaning Operating Instructions Safety Instructions

WARNING! INSTALLATION SAFETY INSTRUCTIONS

Improper installation, adjustment, alteration, service or maintenance can cause injury or property damage. Refer to this manual. For assistance or additional information, consult a qualified installer, service agency, manufacturer (dealer) or the gas supplier.

Never reuse old flexible connectors. The use of old flexible connectors can cause gas leaks and personal injury. Always use NEW flexible connectors when installing a gas appliance.

IMPORTANT: Remove all packing

material and literature from oven before connecting gas and electrical supply to range.

CAUTION: Do not attempt to operate

the oven of this range during a power failure (Electric Ignition models only).

■ Have your range installed by a qualified

installer.

■ Your range must be electrically grounded

in accordance with local codes or, in the absence of local codes, in accordance with the National Electrical Code (ANSI/NFPA 70, latest edition). In Canada, electrical grounding must be in accordance with the current CSA C22.1 Canadian Electrical Code Part 1 and/or local codes. See Electrical Connections in this section.

■ Before installing your range on linoleum

or any other synthetic floor covering, make sure the floor covering can withstand 180°F without shrinking, warping or discoloring. Do not install the range over carpeting unless a sheet of 1/4″ thick plywood or similar insulator is placed between the range and carpeting.

■ Make sure the wall coverings around the

range can withstand heat generated by the range up to 200°F.

■ Avoid placing cabinets above the range.

To reduce the hazard caused by reaching over the open flames of operating burners, install a ventilation hood over the range that projects forward at least 5″ beyond the front of the cabinets.

Read these instructions completely and carefully.

Installation of the range.

TOOLS YOU WILL NEED

■ Phillips and flat-blade screwdrivers

■ Pencil and ruler

■ Two pipe wrenches (one for backup)

■ Open-end or adjustable wrench

■ Level

ADDITIONAL MATERIALS YOU MAY NEED:

■ Gas line shut-off valve

■ Pipe joint sealant or UL-approved pipe thread

tape with Teflon* that resists action of natural and LP gases

■ Flexible metal appliance connector (1/2 ″ I.D.)

A 5-foot length is recommended for ease of installation but other lengths are acceptable. Never use an old connector when installing a new range.

■ Flare union adapter for connection to gas

supply line (3/4 ″ or 1/2 ″ NPT x 1/2 ″ I.D.)

■ Flare union adapter for connection

to pressure regulator on range (1/2 ″ NPT x 1/2 ″ I.D.)

*Teflon: Registered trademark of DuPont

Safety Instructions Operating Instructions Care and Cleaning Installation Instructions Troubleshooting Tips Consumer Support

Read these instructions completely and carefully.

Dimensions and Clearances

Provide adequate clearances between the range and adjacent combustible surfaces.

Models A B C D

20 ″ Wide 20 ″ 20

⁄8 ″ 2 ″ 391⁄2″

24 ″ Wide 24 ″ 24

⁄8 ″ 0 ″ 401⁄2″

36″

26″ from wall to front of control panel

⁄4″

36″

0″ clearance below cooking top and at rear of range

13″

Maximum depth for cabinets above range top

36″

18″

Minimum to cabinets on either side of range

30″

Minimum to wall on either side of range above 36″ height

Minimum

24″

■ The ventilating hood must be constructed

of sheet metal not less than 0.0122″ thick. Install above the cooktop with a clearance of not less than 1/4″ between the hood and the underside of the combustible material or metal cabinet. The hood must be at least as wide as the appliance and centered over the appliance. Clearance between the cooking surface and the ventilation hood surface MUST NEVER BE

LESS THAN 24 INCHES.

EXCEPTION: Installation of a listed microwave

oven or cooking appliance over the cooktop shall conform to the installation instructions packed with that appliance.

■ If cabinets are placed above the range,

allow a minimum clearance of 30″ between the cooking surface and the bottom of unprotected cabinets.

■ If a 30″ clearance between cooking surface

and overhead combustible material or metal cabinets cannot be maintained, protect the underside of the cabinets above the cooktop with not less than 1/4″ insulating millboard covered with sheet metal not less than 0.0122″ thick.

■ Clearance between the cooking surface

and protected cabinets MUST NEVER BE LESS THAN 24 INCHES. The vertical

distance from the plane of the cooking surface to the bottom of adjacent overhead cabinets extending closer than 1″ to the plane of the range sides must not be less than 18″. (See the Dimensions and Clearances illustration in this section.)

■ CAUTION: Items of interest to

children should not be stored in cabinets above a range or on the backsplash of a range—children climbing on the range to reach items could be seriously injured.

WARNING! INSTALLATION SAFETY INSTRUCTIONS (continued)

Consumer Support Troubleshooting Tips Installation Instructions Care and Cleaning Operating Instructions Safety Instructions

Installation of the range.

Read these instructions completely and carefully.

Range Location

0″

B Minimum distance to walls above

the cooktop on each side

2″

33″

2″

3″

9″

18″

13″

6″

Electrical Connection Area

Gas Hookup Area

Check local codes before making connections.

Recommended gas and electric supply location

30″ Min.

18″ Min.

Models A B C D

20 ″ Wide 20

⁄8 ″ 2 ″ 2″ 4″

24 ″ Wide 24

⁄8 ″ 0 ″ 3″ 5″

Max.

NOTE: Recommended gas hook-up locations behind range. Gas fittings and shut-off cock should NOT protrude more than 2″ from the wall to allow the range to fit against the wall.

Safety Instructions Operating Instructions Care and Cleaning Installation Instructions Troubleshooting Tips Consumer Support

Read these instructions completely and carefully.

WARNING!

Anti-Tip Bracket

• ALL RANGES CAN TIP

• INJURY COULD RESULT

• INSTALL ANTI-TIP DEVICE PACKED WITH RANGE

• SEE INSTRUCTIONS

Anti-Tip Bracket Installation Instructions

Anti-tip bracket attaches to the floor to hold either rear range leg. When fastening to the floor, be sure that the screws do not penetrate electrical wiring or plumbing. If you cannot be sure of this, use shorter screws that will not penetrate through the flooring.

If the anti-tip device supplied with the range does not fit the application, use the universal anti-tip device WB02X7909.

Decide whether the anti-tip bracket will be installed on the right or left side of the range location.

If the bracket side of the range is next to a cabinet or wall, place the bracket 19⁄16″ from the cabinet or wall.

If there is no adjacent cabinet, determine where the location of the range side (painted outside panel) will be. Place the bracket so that the distance between the mounting holes (center line) is 13⁄8″ from the side panel. Position the bracket so the back hole is 27⁄16″ from the back wall.

Screw the bracket securely to the floor with the screws provided. The screws are self-drilling in wood, plywood, particle and chip board, and most metal framing. If attaching to masonry, you can buy suitable screws and/or anchors at hardware stores. Use a masonry drill to drill the required holes.

Using your hand or channel-lock pliers, back out the four range legs at least two turns. Level the range. See the Protect Your Floor and Leveling the Range information in these Installation Instructions for leveling information.

Slide the range into place.

Wall behind range

Adjacent cabinet or wall

⁄16″

19⁄16″

Wall

Anti-tip bracket

27⁄16″

Skip to Step 4 if conversion is not necessary.

This range leaves the factory set for use with natural gas. When converting to LP gas, keep these instructions in case you need to convert back to natural gas.

WARNING: This conversion must be

made by a qualified installer or gas supplier in accordance with the manufacturer’s instructions and all codes and requirements of the authority having jurisdiction. Failure to follow instructions could result in serious injury or property damage. The qualified agency performing this work assumes responsibility for the conversion.

Tools Required:

• Adjustable wrench

• 1/2″ open-end wrench

• Phillips-head screwdriver

• Flat-bladed screwdriver (blade width

approximately 3/32″ across)

• 5/16″ nutdriver or small adjustable wrench

Prepare Range for Conversion:

1. Turn off the gas supply to the range.

2. Turn off electrical power to the range.

If the range has not yet been connected to the gas supply, or if a flexible connection was made, the range may be pulled out from the wall to make the conversion easier.

CAUTION: If the gas supply to range is disconnected for any reason, see the installation instructions for proper connection and safety precautions.

Convert the Pressure Regulator:

WARNING:Do not remove the pressure

regulator from the range.

1. Lift the cooktop, prop it open and locate the pressure regulator at the left rear of the range.

2. Use a large, flat-bladed screwdriver or a coin to remove the cap from the pressure regulator.

3. Turn the cap over and hook it into the slots. The type of gas to be used should now be visible in the center of the cap.

Consumer Support Troubleshooting Tips Installation Instructions Care and Cleaning Operating Instructions Safety Instructions

Installation of the range.

Read these instructions completely and carefully.

Converting the Range for Use with LP (Propane) Gas (if necessary)

Burner Specifications:

Top Burner Orifice Drill Size Marking

Natural Gas #53 (.0590 dia.) N LP (Propane) #66 (.0330 dia.) L

LP Gas spud is marked

with an “L”

Natural Gas spud is marked with an “N”

Gas flow

into range

Lever shown closed.

Pull to open.

Oven only shut-off.

Gas flow

into range

Lever shown closed.

Pull to open.

Oven only shut-off.

Natural gas cap

(marked with “NAT”)

LP gas cap

(marked with “LP”)

Safety Instructions Operating Instructions Care and Cleaning Installation Instructions Troubleshooting Tips Consumer Support

Converting the Surface Burners:

1. If the cooktop has been lowered, remove the grates, lift the cooktop and support it with the prop rod.

2. Lift the burner assemblies straight up and set aside to gain access to the surface burner orifice spuds.

3. Using a 5/16″ nutdriver or adjustable wrench, remove each of the four spuds on the surface burner gas inlet tubes and replace them with the correct gas spuds (mounted in a holder at the left rear of the range, above the regulator). Natural gas spuds are marked with N and LP gas spuds are marked with L. Place the spuds you removed from the inlet tubes to the holder above the regulator. To prevent leakage,

make sure the spuds are securely screwed into the gas inlet tubes.

4. Replace the burner assemblies.

Convert the Oven Burner Orifice:

1. Remove the oven door and oven bottom. The oven burner orifice hood is located behind the broiler compartment. A shield must be removed to access the orifice hood.

2. To convert to LP gas, use a 1/2″ wrench to turn the lower burner orifice hood clockwise. Tighten the hood until it is snug. To prevent damage, do not overtighten the hood.

Adjusting the Air Shutter:

1. To adjust the air shutter for LP gas, loosen the Phillips head screw and rotate the shutter to the full open position.

Check the flame size for LP gas. The flame should have approximately 1-inch blue cones. After 30 seconds of burner operation, check for flames lifting off the burner ports. If lifting is observed, gradually reduce the air shutter opening until flames are stabilized. Some yellow tipping may be normal for LP gas. See step 8 Quality of Flames section.

Natural gas cap

(marked with “N”)

LP gas cap

(marked with “L”)

This assembly

is located at the

rear of the broiler

compartment

Screw

Air

shutter

Hood

1″

Inner cone

of flame

Bake/Broil

burner

Read these instructions completely and carefully.

Consumer Support Troubleshooting Tips Installation Instructions Care and Cleaning Operating Instructions Safety Instructions

Installation of the range.

Read these instructions completely and carefully.

Light the Oven Pilot

(if the range has standing pilots)

1. Be sure the OVEN TEMP knob is in the OFF position.

2. Remove the oven bottom or open the broiler door and remove the broiler pan. See the Care and cleaning of the range section.

3. Find the oven pilot port at the back of the oven.

4. Using a long match or match holder, reach in and light the oven pilot.

5. Replace the oven bottom (if removed) and close the door. Your oven and broiler are now ready for use.

Adjust the Oven Pilot

(if the range has standing pilots)

1. Remove the thermostat knob.

2. Insert a flat-bladed screwdriver through the hole.

3. Adjust the pilot flame height by turning the screw.

4. Check oven operation.

Quality of Flames

The combustion quality of burner flames needs to be determined visually.

If burner flames look like (A), further adjustment is required. Normal burner flames should look like (B) or (C), depending on the type of gas you use.

With LP gas, some yellow tipping on outer cones is normal.

Converting the Range for Use with LP (Propane) Gas (continued)

(A) Yellow flames:

Further adjustment required

(B) Yellow tips on outer cones:

Normal for LP gas

Normal for natural gas

With control knob in OFF position, light standing pilot. Flame should appear as shown.

Safety Instructions Operating Instructions Care and Cleaning Installation Instructions Troubleshooting Tips Consumer Support

Read these instructions completely and carefully.

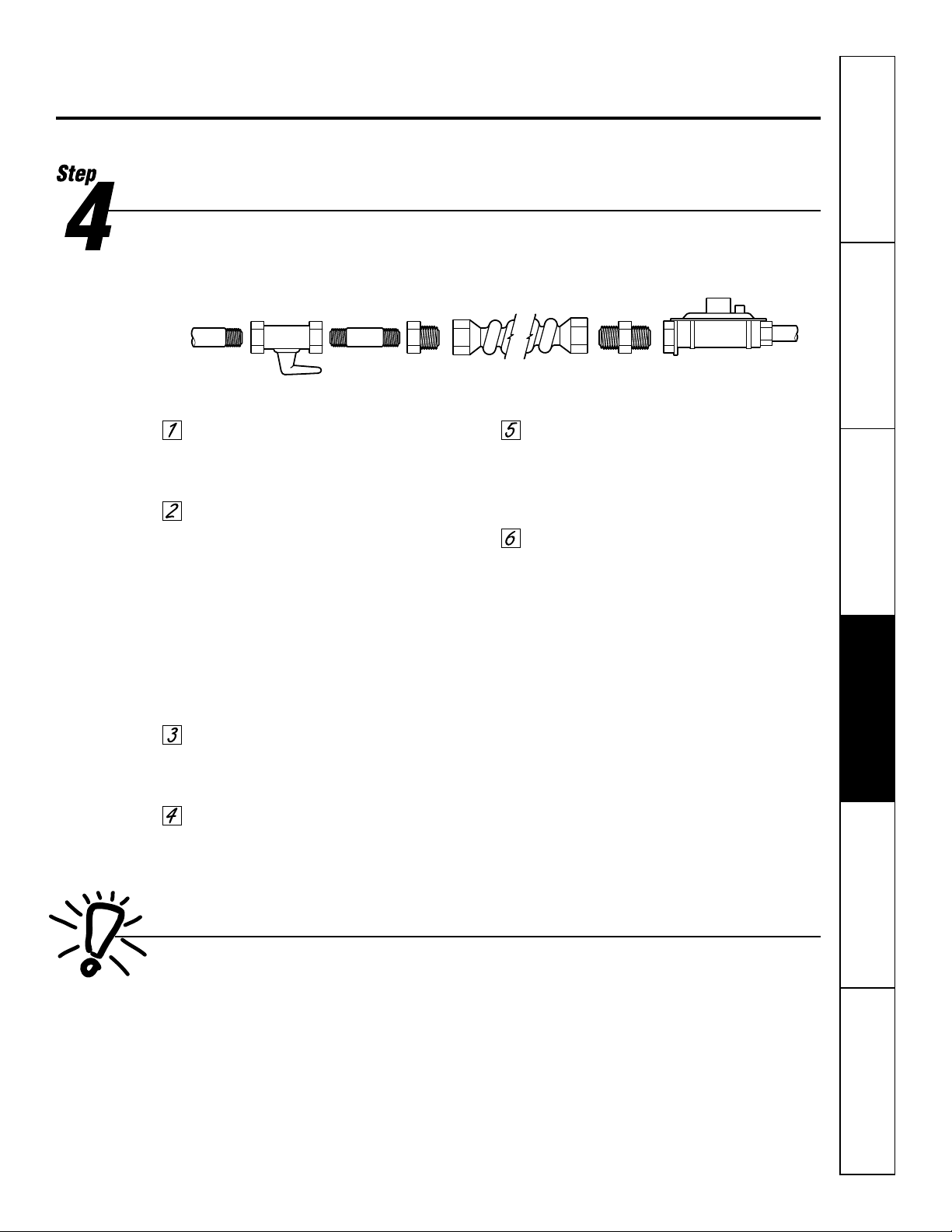

Connect the Range to Gas

The house piping and connector used to connect the range to the main gas supply must be clean, free of metal shavings, rust, dirt or liquids (oil or water). Contaminants in the supply lines can work their way into the range manifold and cause failure of gas valves or controls and clog burners or pilot orifices.

If the range is to be connected to house piping with flexible or semi-rigid metal appliance connector, connector nuts MUST NOT be connected directly to pipe threads.

The appliance connector must be installed by using the proper flare union adapters with the connector. Cutoff valve, appliance connector and adapters are not supplied with the range. Because hard piping restricts movement of the range, the use of a CSA International-certified flexible metal appliance connector is recommended unless local codes require a hard-piped connection. In Canada, flexible connectors must be single wall metal connectors no longer than 6 feet in length.

Install a manual shutoff valve in the gas line in an easily accessible location outside of the range. Be sure you know how and where to shut off the gas supply to the range.

Check for leaks. After connecting the range to gas, check the system for leaks with a liquid leak detector at all joints and connections.

Tighten all connections as necessary to prevent gas leakage in the range or supply line.

CAUTION: Do not use a flame to check for gas leaks.

Check alignment of valves after connecting the range to the gas supply to be sure the manifold pipe has not been moved. A misalignment could cause the valve knob stem to rub on the control panel, resulting in a gas leak at the valve.

Disconnect the range and its individual shut-off valve from the gas supply piping system during any pressure testing of the system at test pressures greater than 1/2 psig.

Isolate the range from the gas supply piping system by closing its individual manual shut-off valve during any pressure testing of the gas supply piping system at test pressures equal to or less than 1/2 psig.

House piping

Flare union

adapter

Flare union

adapter

Range pressure

regulator

Appliance connector

Nut

Checking Manifold Gas Pressure

If it should be necessary to check the manifold gas pressure, connect manometer (water gauge) or other pressure device to the top burner orifice farthest from the manifold inlet and turn burner valve on.

For an accurate pressure check, have at least 2 other top burners burning. Be sure the gas supply inlet pressure is at least one inch above specified range manifold pressure.

The gas supply pressure should never be over 14 inches W.C. When properly adjusted for natural gas, the W.C. pressure is 4 inches; for LP gas, the W.C. pressure is 10 inches. The range was factory adjusted for use with natural gas. It may have been converted for use with LP gas in step 3.

Gas shut-off

valve

Nipple

Consumer Support Troubleshooting Tips Installation Instructions Care and Cleaning Operating Instructions Safety Instructions

Installation of the range.

Read these instructions completely and carefully.

To Make Electrical Connection (if range has electric ignition)

CAUTION—FOR PERSONAL SAFETY: DO NOT USE AN EXTENSION CORD WITH THIS APPLIANCE.

■ This appliance must be supplied with the proper voltage and frequency, and connected to an individual, properly grounded and polarized branch circuit, protected by a circuit breaker or time-delay fuse, as noted on the rating plate.

■ Wiring must conform to National Electrical Codes or the prevailing local code for a range of this kilowatt rating. (See the rating plate under the cooktop for this information.)

■ If the electric supply provided does not meet the above specifications, call a licensed electrician.

Light and Adjust Surface Burner Pilots (if range has standing pilots)

Purge all air from the supply system by setting one of the surface burner control knobs to HI for 15 seconds.

Turn the surface burner control knob to OFF and light the pilot burners with a match. (See the Lighting Instructions for Standing Pilot

Models in the Using the surface burners section in this Owner's Manual.) Adjust pilot

flames using the adjusting screw, accessed through a hole in the front right side of the burner box under the cooktop, so that each flame is approximately 1/4-inch in height.

To light any top burner, push and turn burner knob to the LITE position.

When burner has ignited, rotate knob to desired flame setting.

WARNING!

Electrical Grounding Instructions

This appliance is equipped with a three prong grounding plug for your protection against shock hazard and should be plugged directly into a properly grounded receptacle. Do not cut or remove the grounding prong from this plug.

INSURE PROPER GROUND EXISTS BEFORE USE.

To adjust the pilots, lift and prop open the cooktop. Then use a small flat-bladed screwdriver to turn the adjusting screw (accessed through a hole in the front right side of the burner box).

Pilot

adjustment

Adjust the Oven Pilot (on standing pilot models)

1. Remove the thermostat knob.

2. Insert a flat-bladed screwdriver through the hole.

3. Adjust the pilot flame height by turning the screw.

4. Check oven operation.

Safety Instructions Operating Instructions Care and Cleaning Installation Instructions Troubleshooting Tips Consumer Support

Read these instructions completely and carefully.

If Range Has Electric Ignition

There are separate ignition devices for the left and right hand surface burners. Both of these ignitors are ON when any knob is turned to the LITE setting. The ignitors will spark as long as any

of the top burner knobs are at the LITE setting.

In the event of an electrical power failure, the top burners can still be used. To light a burner, hold a lighted kitchen match adjacent to the top burner to be used and turn valve knob to LITE.

USE EXTREME CAUTION.

Light the Oven Pilot (on standing pilot models)

1. Be sure the OVEN TEMP knob is in the OFF position.

2. Remove the oven bottom or open the broiler door and remove the broiler pan. See the Care and cleaning of the range section.

3. Find the oven pilot port at the back of the oven.

4. Using a long match or match holder, reach in and light the oven pilot.

5. Replace the oven bottom (if removed) and close the door. Your oven and broiler are now ready for use.

With control knob in OFF position, light standing pilot. Flame should appear as shown.

Consumer Support Troubleshooting Tips Installation Instructions Care and Cleaning Operating Instructions Safety Instructions

Installation of the range.

Read these instructions completely and carefully.

Oven Burner Air Shutter Adjustment

The oven burner flame should be a clean, blue flame with distinct inner cones approximately 1/2 inch long. A soft, lazy flame with indistinct cones means too much gas or not enough air. A noisy lifting flame means too much air.

If adjustments are necessary:

Remove the valve shield in the rear of the broiler compartment.

First loosen the lock screw located at the top of the air shutter, then rotate the air shutter to the correct setting and retighten screw.

Oven burner flame can be checked as follows (without burner baffle in place):

To correct a yellow flame—Increase size of air shutter opening.

To correct a lifting, but distinct, blue flame—Decrease size of air shutter opening.

The air shutter should be set approximately 2/3 open for natural gas, and approximately full open for LP gas.

The oven burner air shutter adjustment is the same on ranges with a gas pilot or electric ignition.

Replace the valve shield in the rear of the broiler compartment.

Leveling the Range

For proper cooking and baking, the range must be leveled. Leveling legs are located on each corner at the base of the range.

Install the oven shelves (see use and care section for instructions). Put a spirit level or a glass measuring cup partially filled with water on one of the oven shelves.

Turn the legs clockwise to raise the range and counterclockwise to lower the range. Adjust the leveling legs until the range is level.

Slide the range back toward the wall, being careful not to damage the sides or top of the range, or the adjacent cabinets.

Orifice cap

Lock screw

Read these instructions completely and carefully.

Safety Instructions Operating Instructions Care and Cleaning Installation Instructions Troubleshooting Tips Consumer Support

When All Hookups Are Complete

Make sure all controls are left in the OFF position.

Make sure the flow of combustion and ventilation air to the range is unobstructed.

Mobile Home Installation:

Be sure the installation of this range in a manufactured or mobile home conforms with the Manufactured Home Construction and Safety Title 24 CFR, Part 3280 [formerly the Federal Standard for Mobile Home Construction and Safety Title 24, H.U.D. (Part 280)] or when such standards are not applicable, the Standard for Manufactured Home Installations 1984 (Manufactured Home Sites Communities and Set-Ups), ANSI A225.1-latest edition, or with local codes. In Canada, mobile home installation must be in accordance with the current CAN/CSA Z240/MH Mobile Home Installation Code.

Model and Serial Number Location:

The serial plate for your range is located on the front of the range below the bottom broiler door. In addition to the model and serial numbers, it tells you the ratings of the burners and type of fuel and pressure for which the range was adjusted when it left the factory.

When ordering parts, always include the model number and serial number to ensure proper replacement parts. Parts may be obtained through General Electric/Hotpoint Factory Service Centers or General Electric/Hotpoint authorized Customer Care® servicers.

Protect Your Floor

Your range, like many other household items, is heavy and can settle into soft floor coverings such as cushioned vinyl or carpeting. When moving the

range on this type of flooring, use care, and it is recommended that these simple and inexpensive instructions be followed.

The range should be installed on a sheet of plywood (or similar material) as follows: When the floor covering ends at the front of the range, the area that the range will rest on should be built up with plywood to the same level or higher than the floor covering. This will allow the range to be moved for cleaning or servicing.

Consumer Support Troubleshooting Tips Installation Instructions Care and Cleaning Operating Instructions Safety Instructions

Before You Call For Service…

Troubleshooting Tips Save time and money! Review the chart on this page first and you may not need to call for service.

Problem Possible Causes What To Do

Top burners do not light The pilots are not lit. • On models with standing pilots, lift the cooktop and or do not burn evenly (on standing pilot models) hold a lit match next to the pilot opening between the

front and rear burners.

Plug on range is not • On models with electric ignition, make sure electrical completely inserted in plug is plugged into a live, properly grounded outlet. the electrical outlet.

Burner holes on the side • Remove the burners and clean them with a safety pin or around the top of the or paper clip. Make sure you do not enlarge the holes. burner may be clogged.

Burners may not be fitted • Remove the burners and reinstall them properly. correctly onto the mounting brackets.

Burners have yellow or The combustion quality of • Use the illustrations below to determine if your burner yellow-tipped flames burner flames needs to be flames are normal. If burner flames look like A, further

determined visually. adjustment is required. Normal burner flames should

look like B or C, depending on the type of gas you use. With LP gas, some yellow tipping on outer cones is normal.

A–Yellow flames B–Yellow tips C–Soft blue flames

Further adjustment on outer cones Normal for natural required Normal for LP gas gas

Burner flames very LP gas is improperly • Check all steps in the Installation of the range large or yellow connected. section.

Oven will The thermostat capillary • Make sure the thermostat capillary bulb (located in the not work bulb must be clean and upper portion of the oven) is in the correct position, not

unobstructed. touching oven sides and not coated with anything.

The oven vent is blocked. • The oven vent, on the back of the range, must be

unobstructed.

Oven control improperly set. • See the Using the oven sections.

Incorrect cookware or • See the Using the oven for baking or roasting section. cookware of improper size being used.

Oven bottom not securely • See the Care and cleaning of the range section. seated in position.

Strong odor Improper air/gas ratio • Adjust oven burner air shutter. See the Installation of

in the oven. the range section.

This is temporary. • An odor from the insulation around the oven liner is

normal for the first few times the oven is used.

Notes.

Safety Instructions Operating Instructions Care and Cleaning Installation Instructions Troubleshooting Tips Consumer Support

Notes.

Consumer Support Troubleshooting Tips Installation Instructions Care and Cleaning Operating Instructions Safety Instructions

Safety Instructions Operating Instructions Care and Cleaning Installation Instructions Troubleshooting Tips Consumer Support

Gas Range Warranty.

For The Period Of: We Will Replace:

One Year Any part of the range which fails due to a defect in materials or workmanship.

From the date of the During this full one-year warranty, we will also provide, free of charge, all labor original purchase and in-home service to replace the defective part.

■ Service trips to your home to teach you how to use the product.

■ Improper installation, delivery or maintenance.

■ Failure of the product if it is abused, misused, or

used for other than the intended purpose or used commercially.

■ Damage after delivery.

■ Replacement of house fuses or resetting of circuit

breakers.

■ Damage to the product caused by accident, fire, floods or acts of God.

■ Incidental or consequential damage caused by possible defects with this appliance.

What is Not Covered:

This warranty is extended to the original purchaser and any succeeding owner for products purchased for home use within the USA. In Alaska, the warranty excludes the cost of shipping or service calls to your home.

Some states do not allow the exclusion or limitation of incidental or consequential damages. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. To know what your legal rights are, consult your local or state consumer affairs office or your state’s Attorney General.

Warrantor: General Electric Company. Louisville, KY 40225

All warranty service provided by our Factory Service Centers, or an authorized Customer Care

technician. To schedule service, on-line, 24 hours a day, visit us at www.GEAppliances.com, or call 800.GE.CARES (800.432.2737).

Staple your receipt here.

Proof of the original purchase

date is needed to obtain service

under the warranty.

Printed in Turkey

Consumer Support.

GE Appliances Website

www.GEAppliances.com

Have a question or need assistance with your appliance? Try the GE Appliances Website 24 hours a day, any day of the year! For greater convenience and faster service, you can now download Owner’s Manuals, order parts, catalogs, or even schedule service on-line. You can also “Ask Our Team of Experts™” your questions, and so much more...

Schedule Service www.GEAppliances.com

Expert GE repair service is only one step away from your door. Get on-line and schedule your service at your convenience 24 hours any day of the year! Or call 800.GE.CARES (800.432.2737) during normal business hours.

Real Life Design Studio www.GEAppliances.com

GE supports the Universal Design concept—products, services and environments that can be used by people of all ages, sizes and capabilities. We recognize the need to design for a wide range of physical and mental abilities and impairments. For details of GE’s Universal Design applications, including kitchen design ideas for people with disabilities, check out our Website today. For the hearing impaired, please call

800.TDD.GEAC (800.833.4322).

Extended Warranties www.GEAppliances.com

Purchase a GE extended warranty and learn about special discounts that are available while your warranty is still in effect. You can purchase it on-line anytime, or call 800.626.2224 during normal business hours. GE Consumer Home Services will still be there after your warranty expires.

Parts and Accessories www.GEAppliances.com

Individuals qualified to service their own appliances can have parts or accessories sent directly to their homes (VISA, MasterCard and Discover cards are accepted). Order on-line today, 24 hours every day or by phone at 800.626.2002 during normal business hours.

Instructions contained in this manual cover procedures to be performed by any user. Other servicing generally should be referred to qualified service personnel. Caution must be exercised, since improper servicing may cause unsafe operation.

If you are not satisfied with the service you receive from GE, contact us on our Website with all the details including your phone number, or write to: General Manager, Customer Relations

GE Appliances, Appliance Park Louisville, KY 40225

Register your new appliance on-line—at your convenience! Timely product registration will allow for enhanced communication and prompt service under the terms of your warranty, should the need arise. You may also mail in the pre-printed registration card included in the packing material.

GE RGA620, RGA624 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Operating Instructions

Care and Cleaning

Consumer Support

Consumer Support Troubleshooting Tips Installation Instructions Care and Cleaning Operating Instructions Safety Instructions

Lift-Up Cooktop

Burners

Control Panel and Knobs

Metal Parts

Removable Oven Bottom

Broiler Compartment

Lift-Off Oven Door

Broiler Pan and Grid

Painted Surfaces

Safety Instructions Operating Instructions Care and Cleaning Installation Instructions Troubleshooting Tips Consumer Support

Consumer Support Troubleshooting Tips Installation Instructions Care and Cleaning Operating Instructions Safety Instructions
