DEH40914 Installation Instructions

Record Plus

™

Molded Case Circuit Breaker
Accessories

Integral Handle Operator, Type
TDR

Congratulations and thank you for choosing the
Record Plus™ family of current-limiting circuit
breakers. The integral handle operator is listed
under UL 489 and is suitable for use with the FC100
circuit breaker series.

Record Plus™

full line of integrated accessories. All units use the
latest in integrated modular circuit breaker
technology for flexibility in application and
maximizing the product’s utilization and
capabilities.

All

Record Plus™

Underwriters Laboratories to the UL489 standard
and the CSA Standard C22.2, No. 5. These circuit
breakers are certified to IEC60947-2.

These accessories are also for use with our MAG­BREAK® instantaneous trip-only circuit breakers,
which meet the same standards and are UL­recognized components for use in motor
applications. They can also be used with our molded
case switches, which are listed per Underwriters
Laboratories to the UL489 standard.

Record Plus™

are designed and manufactured to exceed our global
customers’ high standards for reliability and quality.

WARNING

Ensure that ALL electrical power supplies are OFF
before installing or removing any devices. The
breaker, trip unit, or accessories MUST ONLY be
installed and serviced by QUALIFIED personnel. See
NEMA publication AB4.

AVERTISSEMENT: Danger contre les risques
d'électrocutions. S'assurer avant TOUTES
manipulations du disjoncteur que les différentes
sources d'alimentation sont en position OFF. Les
disjoncteurs, unités de protection, ou accessoires
doivent être installés par des personnes qualifiées et
habilitées. Lira NEMA publication AB4.

circuit breakers are designed with a

circuit breakers are listed by

circuit breakers and their accessories

: DANGER of electrical shock or injury.

Figure 1. TDR integral handle operator installed on a Record Plus™

CAUTION:

in equipment not specifically design to accept it.
Contact the equipment manufacturer for possible
equipment modifications.

ATTENTION:

employe dans un equipement non specialement
adapte a cet effet. Contactez le constructeur
concernant les possibles modifications

FCNRC

FCNRCNI

FC100 circuit breaker (vertical orientation shown).

This product is NOT suitable for use

Cet appareil nedoit pas etre

FCNRCN

r

r

w

w

Product Description

These instructions describe the installation
procedure for the integral handle operator accessory,
type TDR, on
as illustrated in
designed for direct mounting to the breaker in either
vertical (cat. no. FCNRC, FCNRCN and FCNRCNI)
or horizontal orientation (cat. no. FCNRD and
FCNRDN). A door ring on the handle operator
projects through a hole in the front of the enclosure
door. These handles are suitable for use with NEMA
1, NEMA 12, or NEMA 12K enclosures.
An interlock kit (cat. no. FCFRDRCK) for adapting
the enclosure door and the door ring gasket (cat. no.
SEFRGSK) are available separately.

Record Plus™

Figure 1. The type TDR handle is

Figure 2. Locking the circuit breaker OFF.

FC100 circuit breakers,

Handle
Locking Hasp

Padlock
Slot

Step 1 – Unpack and Inspect

Unpack the integral handle operator kit and inspect
the parts for any shipping damage. Verify that all
parts are supplied, as listed in Table 1.

Note that the numbers in brackets in the following
figures and installation instructions refer to the item
numbers in

Table 1.

Item Description Qty.

1 Operator assembly 1
2 Screw, #8-32 x 2.81" 4
3 L bracket 1
4 Lock washer 4
5 Screw, #8-32 x 5/16 4
6 Grounding cable 1
7 SEMS screw 1

Step 2 – Installation

Use the following procedure to install the handle
operator kit to the circuit breaker. Outline drawings
showing the dimensions of the installed operator are
found in fig 8, fig 9 and fig 10.

1. Push the trip button to place the breaker

operating handle in the TRIP position, as
illustrated in

2. Mount the breaker to the enclosure with the

four #8-32 x 2.81" screws [2], as shown in Figure

. Tighten the screws to 16 - 20 in-lb.

3

3. Attach the L bracket [3] to the breaker with two

#8-32 x 5/16" screws [5] and lock washers [4], as
shown in
in-lb.

4. Turn the rotary handle in the handle operator

assembly [1] to the
operator assembly to the breaker with a
grounding cable [6], two #8-32 x 5/16" screws
[5] and lock washers [4], as shown in fig5. The
top of the assembly must rest on the L bracket
[3]. Tighten the screws to 9 -11in-lb.

5. Secure the handle operator assembly [1] to the

L bracket [3] with the SEMS screw [7], as shown
in Figure 6.

Use the identical procedure to install the horizontal­mount rotary handle, as shown in Figure 7

Step 3 -Handle Operation

The mechanism operates with a rotary motion from
the OFF/RESET position to ON.

In FCNRC/D, FCNRCN /DN, when the breaker is
ON, the interlock arm prevents the enclosure doo
from opening. If it is necessary to open the doo

ith the breaker ON, turn the interlock defeat scre

clockwise to disengage the interlock arm.

To lock the handle in the RESET position, pull the
hasp out of the
slot in the door ring, as shown in Figure 2. Attach a
padlock through the slot in the hasp to prevent the
handle from rotating. The locking hasp accepts up
to three padlocks with 1/4-inch shanks.

Figure 3.

Figure . Tighten the screws to 16 - 20

TRIP position. Mount the

.

end of the handle and through the

Table 1. Parts supplied in the type TDR integral handle operator kit.

[3]

[4]

[5]

[1]

[1]

[6]

[6]

[5]

[4]

[4] [5]

[2]

Handle in
TRIP
Position

TRIP
Button

[3]

Figure 3. Mounting the circuit breaker to the enclosure.

Figure 4. Attaching the L bracket to the circuit breaker.

FCNRCN

FCNRC

Figure 5. Mounting the handle operator on the breaker.

[6]

[7] [7]

FCNRCN

FCNRC

Figure 6. Securing the handle operator assembly to the bracket.

FCNRCN

Figure 7. Handle operator installed on horizontally mounted breaker.

FCNRC

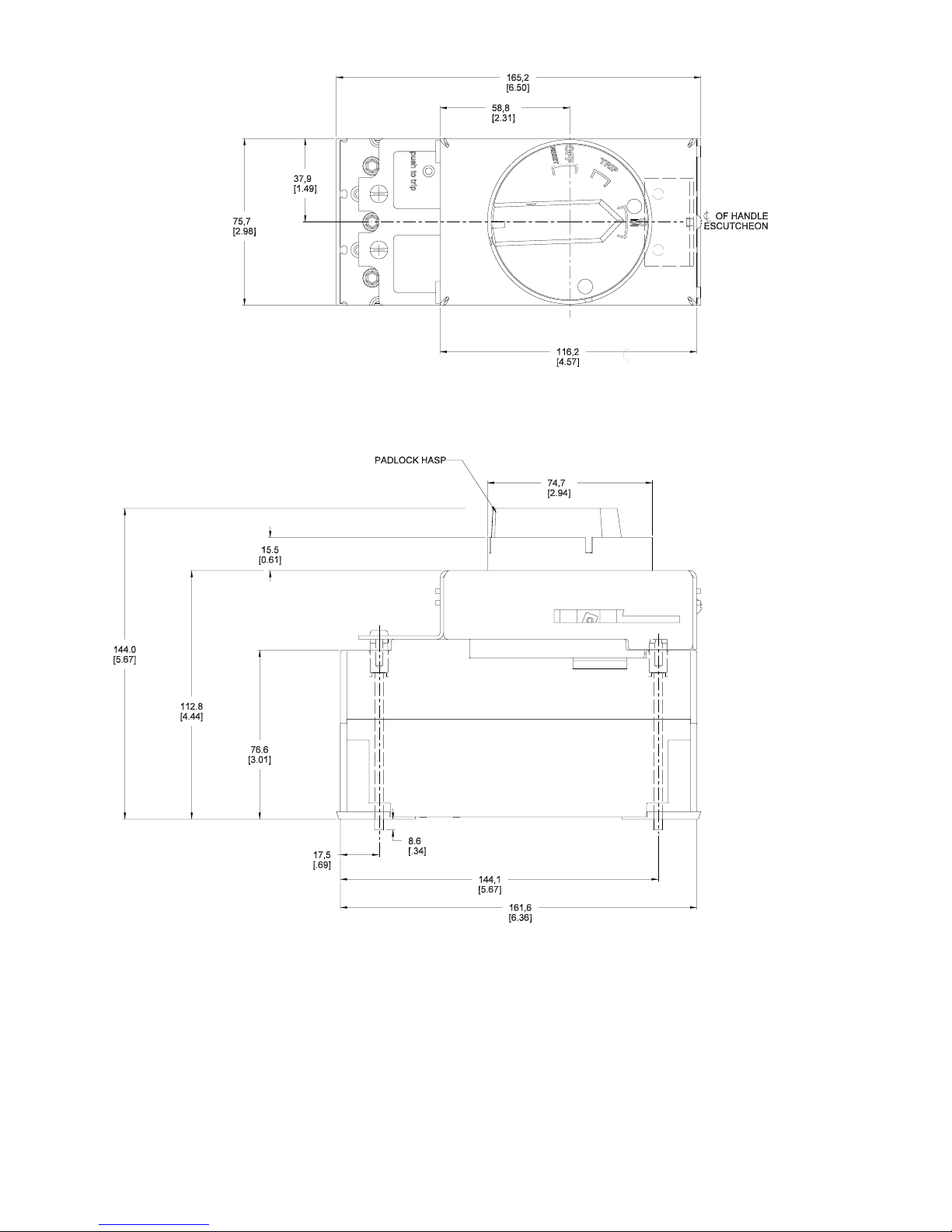

Figure 9. Outline drawing for FCNRC.

Figure 10. Outline drawing for FCNRCNI.

W

Step 4 – Check Operation

1. To check the RESET operation, rotate the

mechanism handle counterclockwise toward

RESET position until the breaker resets.

the

2. To check the ON–OFF operation of the

breaker, depress the interlock release
rotate the handle between the ON and OFF
positions.

3.

ith the rotary handle and the circuit breaker
in the ON position, press the trip button to
verify that the rotary handle indicates TRIP.

4. Complete the installation of the circuit breaker

according to installation instructions
DEH40463.

and

These instructions do not cover all details or variations in equipment nor do they provide for every possible contingency
that may be met in connection with installation, operation, or maintenance. Should further information be desired or
should particular problems arise that are not covered sufficiently for the purchaser’s purposes, the matter should be referred
to the GE Company. The circuit breaker is a sealed unit that contains no user-serviceable parts. Tampering with the seal will
void the warranty.
