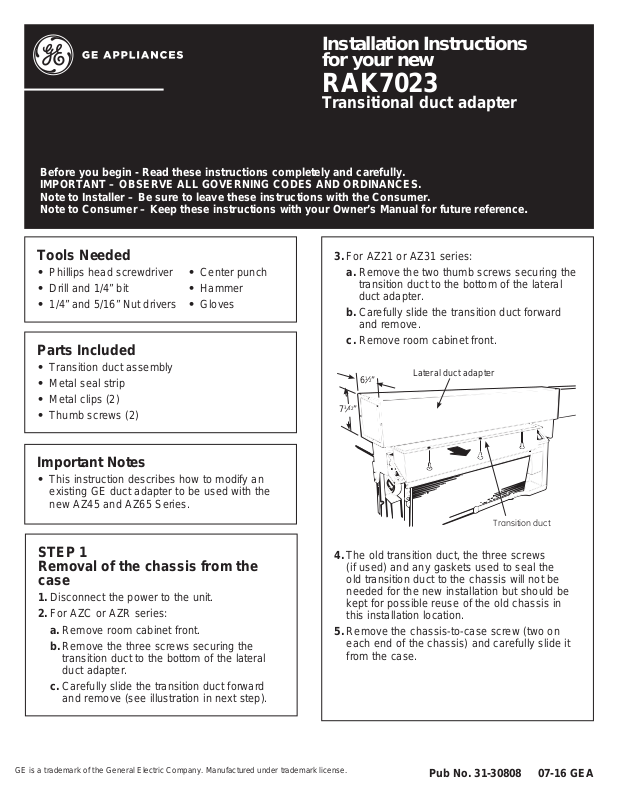

GE RAK7023 Installation
Installation Instructions
for your new
RAK7023
Transitional duct adapter
Before you begin - Read these instructions completely and carefully.
IMPORTANT – OBSERVE ALL GOVERNING CODES AND ORDINANCES.
Note to Installer – Be sure to leave these instructions with the Consumer.
Note to Consumer – Keep these instructions with your Owner’s Manual for future reference.
Tools Needed
• Phillips head screwdriver • Center punch
• Drill and 1/4” bit • Hammer
• 1/4” and 5/16” Nut drivers • Gloves
Parts Included
• Transition duct assembly
• Metal seal strip
• Metal clips (2)
• Thumb screws (2)
Important Notes
• This instruction describes how to modify an
existing GE duct adapter to be used with the
new AZ45 and AZ65 Series.
3. For AZ21 or AZ31 series:
a. Remove the two thumb screws securing the
transition duct to the bottom of the lateral
duct adapter.
b. Carefully slide the transition duct forward
and remove.
c. Remove room cabinet front.
1
2
6
»
”
3
32
7
»
”
Lateral duct adapter
Transition duct
STEP 1
4. The old transition duct, the three screws
Removal of the chassis from the
case
1. Disconnect the power to the unit.
2. For AZC or AZR series:
a. Remove room cabinet front.
b. Remove the three screws securing the
transition duct to the bottom of the lateral
duct adapter.
c. Carefully slide the transition duct forward
and remove (see illustration in next step).
GE is a trademark of the General Electric Company. Manufactured under trademark license.
5. Remove the chassis-to-case screw (two on
(if used) and any gaskets used to seal the
old transition duct to the chassis will not be
needed for the new installation but should be
kept for possible reuse of the old chassis in
this installation location.
each end of the chassis) and carefully slide it
from the case.
Pub No. 31-30808 07-16 GEA
STEP 2
Thumb screw hole location
(This step is necessary only if thumb screws
were not previously used.)
1. Slide the new transition duct into place. Push
it all the way in until it stops. Make sure the
transition duct is straight and not “cocked”
relative to the lateral duct adapter.
Transition duct
STEP 3
Chassis modification and
installation
1. Remove the room cabinet front by pulling out at the
bottom to release it. Lift it up to clear the rail along
the chassis top.
2. Slide the chassis into the case and secure with the
four screws supplied with the Zoneline unit through
the chassis flange holes.
2. Center punch the transition duct mounting
screw hole locations into the lateral duct
adapter. Use the holes in the flanges at each
end of the transition duct as a template. Make
sure that the transition duct is all the way back
when the center punch impressions are made.
Lateral duct
adapter
Metal clip
(flat side
down)
3. Remove and save the four screws securing
the louver to the chassis. Lift up and
remove louver.
Louver
4. Align the metal seal strip as shown and secure
with the four louver mounting screws.
3. Remove the transition duct and drill two 1/4”
diameter holes at the center punch locations.
Slide the metal clips onto the flanges at these
holes as shown in the illustration.
Metal seal strip
