MICROWAVE OVEN
OPERATION MANUAL
R-508F/R-501F/R-404F/R-401F
CONTENTS
• For Customer Assistance
................. Inside Front Cover
• Precautions to Avoid Possible
Exposure to Excessive
Microwave Energy .................. Inside Front Cover
• Consumer Limited Warranty ....................... 1
• Product Information Card ........................... 1
• Important Safety Instructions..................... 2
• Unpacking and Installation Instructions ... 3
• Grounding Instructions............................... 3
• Information You Need to Know .................. 4-6
• Part Names ................................................... 7-8
• Before Operating ......................................... 9
• Manual Operation ........................................ 10
• Special Features .......................................... 11-15
• Other Convenient Features......................... 16-17
• Cleaning & Care ........................................... 17
• Service Call Check ...................................... 18
• Specifications .............................................. 18
• THE ULTIMATE ACCESSORY ..................... 19
• Cookbook Order Form ................................ 19
• Notes............................................................. 20
• Guia Auto-Touch .......................................... 21
•Auto-Touch Guide................................. Back Cover
®
MODELS
Followed by letter indicating color
K=black, W=white, S=stainless steel
READ ALL INSTRUCTIONS CAREFULLY BEFORE USING THE OVEN.
FOR CUSTOMER ASSISTANCE
To aid in reporting this microwave oven in case of loss or theft, please record below the model number and serial
number located on the unit. We also suggest you record all the information listed and retain for future reference.
MODEL NUMBER ________________________ SERIAL NUMBER ______________
DATE OF PURCHASE ______________________
DEALER ____________________________ TELEPHONE ________________
SERVICER ___________________________ TELEPHONE ________________
TO PHONE:
DIAL 1-800-BE-SHARP ( 237-4277 ) for :
SERVICE (for your nearest Sharp Authorized Servicer)
PARTS (for your authorized parts distributor)
ADDITIONAL CUSTOMER INFORMATION
DIAL 1-800-642-2122 for :
ACCESSORIES and COOKBOOK
TO WRITE:
Sharp Electronics Corporation
Customer Assistance Center
1300 Naperville Drive
Romeoville, IL 60446-1091
TO ACCESS INTERNET :
Please provide the following information when you write or call: model number, serial number, date of purchase,
your complete mailing address (including zip code), your daytime telephone number (including area code) and
description of the problem.
www.sharp-usa.com
PRECAUTIONS TO AVOID POSSIBLE
EXPOSURE TO EXCESSIVE
MICROWAVE ENERGY
(a) Do not attempt to operate this oven with the door open since open-door operation can
result in harmful exposure to microwave energy . It is important not to defeat or tamper with
the safety interlocks.
(b) Do not place any object between the oven front face and the door or allow soil or cleaner
residue to accumulate on sealing surfaces.
(c) Do not operate the oven if it is damaged. It is particularly important that the oven door close
properly and that there is no damage to the: (1) door (bent), (2) hinges and latches (broken
or loosened), (3) door seals and sealing surfaces.
(d) The oven should not be adjusted or repaired by anyone except properly qualified service
personnel.
CONSUMER LIMITED WARRANTY
SHARP ELECTRONICS CORPORATION warrants to the first consumer purchaser that this Sharp brand
product (the “Product”), when shipped in its original container, will be free from defective workmanship and
materials, and agrees that it will, at its option, either repair the defect or replace the defective Product or part
thereof with a new or remanufactured equivalent at no charge to the purchaser for parts or labor for the
period(s) set forth below.
This warranty does not apply to any appearance items of the Product nor to the additional excluded item(s)
set forth below nor to any Product the exterior of which has been damaged or defaced, which has been
subjected to improper voltage or other misuse, abnormal service or handling, or which has been altered or
modified in design or construction.
In order to enforce the rights under this limited warranty, the purchaser should follow the steps set forth
below and provide proof of purchase to the servicer.
The limited warranty described herein is in addition to whatever implied warranties may be granted
to purchasers by law. ALL IMPLIED WARRANTIES INCLUDING THE WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR USE ARE LIMITED TO THE PERIOD(S) FROM THE DATE
OF PURCHASE SET FORTH BELOW. Some states do not allow limitations on how long an implied
warranty lasts, so the above limitation may not apply to you.
Neither the sales personnel of the seller nor any other person is authorized to make any warranties other
than those described herein, or to extend the duration of any warranties beyond the time period described
herein on behalf of Sharp.
The warranties described herein shall be the sole and exclusive warranties granted by Sharp and shall
be the sole and exclusive remedy available to the purchaser. Correction of defects, in the manner and for
the period of time described herein, shall constitute complete fulfillment of all liabilities and responsibilities
of Sharp to the purchaser with respect to the Product, and shall constitute full satisfaction of all claims,
whether based on contract, negligence, strict liability or otherwise. In no event shall Sharp be liable, or in any
way responsible, for any damages or defects in the Product which were caused by repairs or attempted
repairs performed by anyone other than an authorized servicer. Nor shall Sharp be liable or in any way
responsible for any incidental or consequential economic or property damage. Some states do not allow the
exclusion of incidental or consequential damages, so the above exclusion may not apply to you.
THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS. YOU MAY ALSO HAVE OTHER RIGHTS
WHICH VARY FROM STATE TO STATE.
Your Product Model Number
& Description:
Warranty Period for this Product:
Additional Item(s) Excluded from
Warranty Coverage (if any):
Where to Obtain Service:
What to do to Obtain Service:
TO OBTAIN SUPPLY, ACCESSORY OR PRODUCT INFORMATION, CALL 1-800-BE-SHARP OR VISIT www.sharp-usa.com.
SAVE THE PROOF OF PURCHASE AS IT IS NEEDED SHOULD YOUR OVEN EVER REQUIRE WARRANTY SERVICE.
R-508F, R-501F, R-404F or R-401F Home Use Carousel Microwave
Oven. (Be sure to have this information available when you need
service for your Product.)
One (1) year parts and labor. The warranty period continues for an
additional four (4) years, for a total of five (5) years, with respect to the
magnetron tube in the Product for parts only; labor and service are not
provided free of charge for this additional period.
Non-functional accessories, turntable and light bulb.
From a Sharp Authorized Servicer located In the United States. To
find the location of the nearest Sharp Authorized Servicer, call Sharp
toll free at 1-800-BE-SHARP (1-800-237-4277).
Ship prepaid or carry in your Product to a Sharp Authorized Servicer.
Be sure to have Proof of Purchase available. If you ship the Product,
be sure it is insured and packaged securely.
PRODUCT INFORMATION CARD
The Product information card should be completed within ten days of purchase and returned. It is necessary to write
the model and serial numbers, found on the nameplate in the oven cavity, on the product information card. We will
keep it on file and help you access the information in case of loss, damage or theft. This will also enable us to
contact you in the unlikely event that any adjustments or modifications are ever required for your oven.
1
IMPORTANT SAFETY INSTRUCTIONS
When using electrical appliances basic safety precautions should be followed, including the following:
WARNING -
To reduce the risk of burns, electric shock, fire, injury to persons or exposure to excessive
microwave energy:
1. READ ALL INSTRUCTIONS BEFORE USING
THE APPLIANCE.
2. Read and follow the specific “PRECAUTIONS TO
AVOID POSSIBLE EXPOSURE TO EXCESSIVE
MICROWAVE ENERGY” on inside front cover.
3. This appliance must be grounded. Connect only
to properly grounded outlet. See “GROUNDING
INSTRUCTIONS” on page 3.
4. Install or locate this appliance only in accordance
with the provided installation instructions.
5. Some products such as whole eggs and sealed
containers—for example, closed glass jars—are
able to explode and should not be heated in
this oven.
6. Use this appliance only for its intended use as
described in this manual. Do not use corrosive
chemicals or vapors in this appliance. This type
of oven is specifically designed to heat, cook or
dry food. It is not designed for industrial or
laboratory use.
7. As with any appliance, close supervision is
necessary when used by children.
8. Do not operate this appliance if it has a damaged
cord or plug, if it is not working properly or if it has
been damaged or dropped.
9. This appliance should be serviced only by
qualified service personnel. Contact nearest
Sharp Authorized Servicer for examination, repair
or adjustment.
10. Do not cover or block any openings on the
appliance.
11. Do not store or use this appliance outdoors. Do
not use this product near water—for example, near
a kitchen sink, in a wet basement, near a swimming
pool, or similar locations.
12. Do not immerse cord or plug in water.
13. Keep cord away from heated surfaces.
14. Do not let cord hang over edge of table or counter.
15. See door surface cleaning instructions on page 17.
16. To reduce the risk of fire in the oven cavity:
a. Do not overcook food. Carefully attend to
appliance when paper, plastic or other
combustible materials are placed inside the
oven to facilitate cooking.
b. Remove wire twist-ties from paper or plastic
bags before placing bag in oven.
c. If materials inside the oven ignite, keep
oven door closed, turn oven off and
disconnect the power cord or shut off power
at the fuse or circuit breaker panel.
d. Do not use the cavity for storage purposes.
Do not leave paper products, cooking utensils
or food in the cavity when not in use.
17. Liquids, such as water, coffee or tea are able to
be overheated beyond the boiling point without
appearing to be boiling. Visible bubbling or
boiling when the container is removed from the
microwave oven is not always present. THIS
COULD RESULT IN VERY HOT LIQUIDS
SUDDENLY BOILING OVER WHEN A SPOON
OR OTHER UTENSIL IS INSERTED INTO THE
LIQUID.
To reduce the risk of injury to persons:
a. Do not overheat the liquid.
b. Stir the liquid both before and halfway through
heating it.
c. Do not use straight-sided containers with
narrow necks. Use a wide-mouthed container
d. After heating, allow the container to stand in
the microwave oven at least for 20 seconds
before removing the container.
e. Use extreme care when inserting a spoon or
other utensil into the container.
18. If the oven is installed as a built-in, observe the
following instructions:
a. Do not operate any heating or cooking
appliance beneath this appliance.
b. Do not mount unit over or near any portion of
a heating or cooking appliance.
c. Do not mount over a sink.
d. Do not store anything directly on top of the
appliance surface when the appliance is in
operation.
19. If the oven light fails, consult a SHARP
AUTHORIZED SERVICER.
.
SAVE THESE INSTRUCTIONS
2
UNPACKING AND INSTALLATION INSTRUCTIONS
Unpacking and Examining Your Oven
Remove:

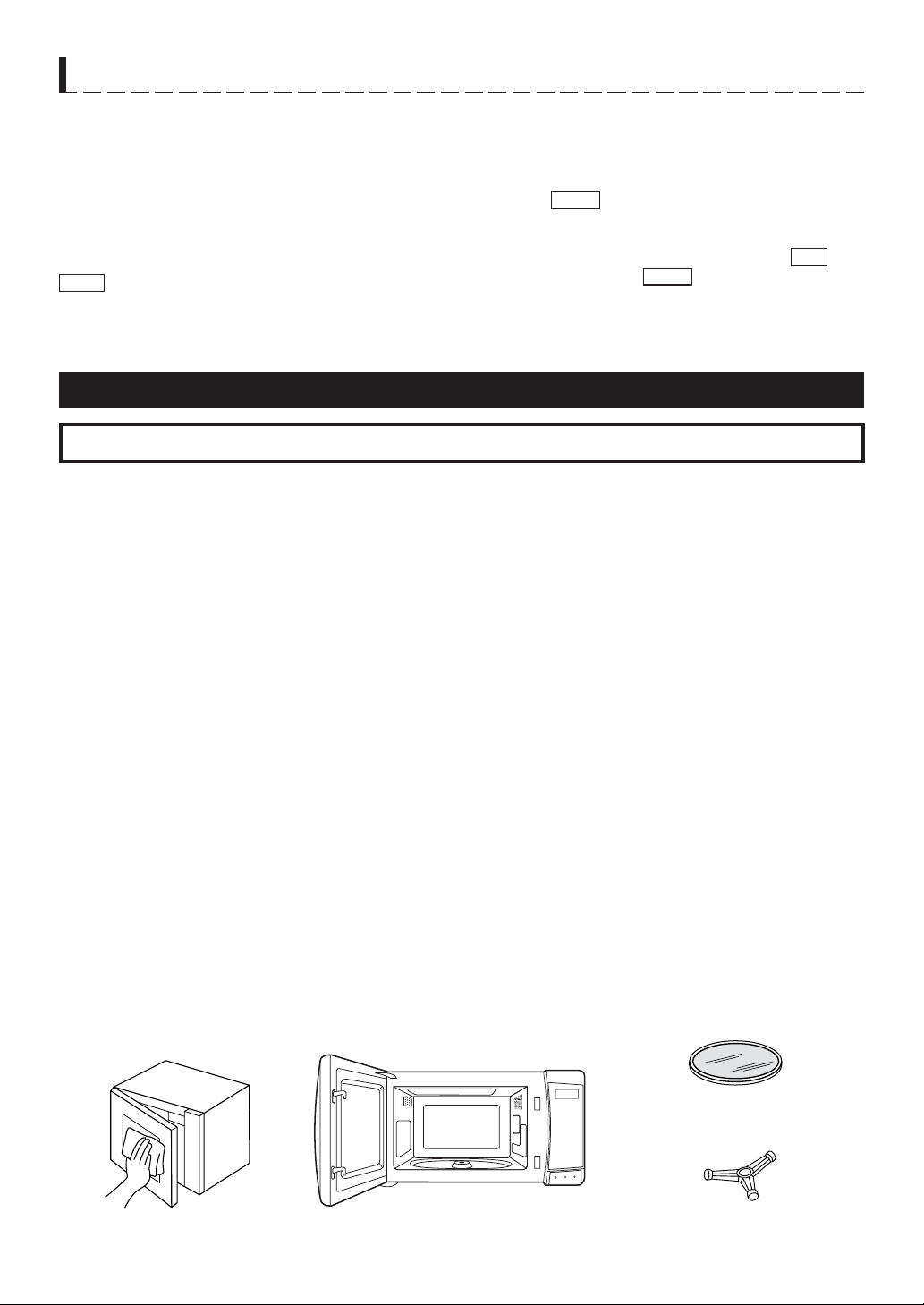

1. all packing materials from inside the oven cavity;
however, DO NOT REMOVE THE WAVEGUIDE
COVER, which is located on the right cavity wall.
Read enclosures and SAVE
the Operation Manual.
2. the feature sticker, if there
is one, from the outside of the
door.
Check the oven for any damage, such as misaligned or
bent door, damaged door
seals and sealing surfaces,
broken or loose door hinges and latches and dents inside the cavity or on the door. If there is any damage,
do not operate the oven and contact your dealer or
SHARP AUTHORIZED SERVICER.
Choosing a Location for Your Oven
You will use the oven frequently so plan its location for
ease of use. It's wise, if possible, to have counter space
on at least one side of the oven. Allow at least 2 inches
on the sides, top and at the rear of the oven for air
circulation. Do not place or install the oven in any area
where heat and steam are generated; for example, next
to or above a conventional gas or electric range or above
a conventional wall oven. Heat and steam may damage
the electronics or the mechanical parts of the oven.
Built-in Kit
Your oven can be built into a cabinet or wall—not
near or above a heat source—using Sharp’s black
Built-in Kit RK-51(27") or RK-51K30 (30") for the
R-501FK, the white RK-51W(27") or RK-51W30 (30")
for the R-501FW; the stainless steel RK-51S27 (27")
or RK-51S30 (30") for the R-508FS; the black
RK-46K for the R-404FK; RK-42 for R-401FK and
RK-42W for the R-401FW. If your dealer does not
stock the kit, it can be ordered directly from the Sharp
Accessories and Supplies Center. Have your credit
card number available and call toll-free: 1-800-642-2122
for ordering the kit to be sent to your address.
The kit includes ducts, finish trim strips and easyto-follow instructions for installation as well as the
location of the power supply .
GROUNDING INSTRUCTIONS
This appliance must be grounded. This oven is equipped with a cord having a grounding wire with a grounding plug.
It must be plugged into a wall receptacle that is properly installed and grounded in accordance with the National
Electrical Code and local codes and ordinances. In the event of an electrical short circuit, grounding reduces risk of
electric shock by providing an escape wire for the electric current.
WARNING – Improper use of the grounding plug can result in a risk of electric shock.
Electrical Requirements
The electrical requirements are a 120 volt 60 Hz, AC only, 15 amp. or more
protected electrical supply. It is recommended that a separate circuit serving only
this appliance be provided.
The oven is equipped with a 3-prong grounding plug. It must be plugged into a
wall receptacle that is properly installed and grounded. Should you only have a
2-prong outlet, have a qualified electrician install a correct wall receptacle.
A 3-prong adapter may be purchased and used temporarily if local codes allow.
Follow package directions.
A short power-supply cord is provided to reduce risk of becoming entangled in or
tripping over a longer cord.
Extension Cord
If it is necessary to use an extension cord, use only a 3-wire extension cord that
has a 3-blade grounding plug and a 3-slot receptacle that will accept the plug on
the microwave oven. The marked rating of the extension cord should be AC 115120 volt, 15 amp. or more.
Be careful not to drape the cord over the countertop or table where it can be pulled
on by children or tripped over accidentally.
Notes:
1.If you have any questions about the grounding or electrical instructions, consult
a qualified electrician or service person.
2.Neither Sharp nor the dealer can accept any liability for damage to the oven or
personal injury resulting from failure to observe the correct electrical connection procedures.
Radio or TV Interference
Should there be any interference caused by the microwave oven to your radio or TV, check that the microwave oven
is on a different electrical circuit, relocate the radio or TV as far away from the oven as feasible or check position and
signal of receiving antenna.
3
INFORMATION YOU NEED TO KNOW
ABOUT YOUR OVEN
This Operation Manual is valuable: read it carefully
and always save it for reference.
A good microwave cookbook is a valuable asset.
Check it for microwave cooking principles, techniques,
hints and recipes. See page 19 for ordering the Ultimate
Accessory, the SHARP CAROUSEL MICROWAVE
COOKBOOK.
NEVER use the oven without the turntable and support
nor turn the turntable over so that a large dish could
be placed in the oven. The turntable will turn both
clockwise and counterclockwise.
ALWAYS have food in the oven when it is on to absorb
the microwave energy.
When using the oven at power levels below 100%, you
may hear the magnetron cycling on and off. It is normal
ABOUT FOOD
FOOD
Eggs, sausages,
nuts, seeds,
fruits &
vegetables
• Puncture egg yolks before cooking
to prevent “explosion”.
• Pierce skins of potatoes, apples,
squash, hot dogs and sausages so
that steam escapes.
DO
for the exterior of the oven to be warm to the touch
when cooking or reheating.
Condensation is a normal part of microwave cooking.
Room humidity and the moisture in food will influence
the amount of moisture that condenses in the oven.
Generally, covered foods will not cause as much
condensation as uncovered ones. Vents on the oven
back must not be blocked.
The oven is for food preparation only. It should not be
used to dry clothes or newspapers.
Your oven is rated 1200 watts (R-508F) or 1000 watts
(R-501F, R-404F, R-401F) by using the IEC Test
Procedure. In using recipes or package directions,
check food a minute or two before the minimum time
and add time accordingly.
DON’T
• Cook eggs in shells.
• Reheat whole eggs.
• Dry nuts or seeds in shells.
Popcorn
Baby food
General
• Use specially bagged popcorn for the
microwave oven.
• Listen while popping corn for the
popping to slow to 1 or 2 seconds or
use special POPCORN pad.
•Transfer baby food to small dish and
heat carefully, stirring often. Check
temperature before serving.
• Put nipples on bottles after heating
and shake thoroughly. “Wrist” test
before feeding.
• Cut baked goods with filling after
heating to release steam and avoid
burns.
• Stir liquids briskly before and after
heating to avoid “eruption”.
• Use deep bowl, when cooking liquids
or cereals, to prevent boilovers.
4
• Pop popcorn in regular brown bags
or glass bowls.
• Exceed maximum time on popcorn
package.
• Heat disposable bottles.
• Heat bottles with nipples on.
• Heat baby food in original jars.
• Heat or cook in closed glass jars or
air tight containers.
• Can in the microwave as harmful
bacteria may not be destroyed.
• Deep fat fry.
• Dry wood, gourds, herbs or wet papers.
INFORMATION YOU NEED TO KNOW
ABOUT UTENSILS AND COVERINGS
It is not necessary to buy all new cookware. Many
pieces already in your kitchen can be used successfully in your new microwave oven. Make sure the
utensil does not touch the interior walls during cooking.
Use these utensils for safe microwave cooking
and reheating:
• glass ceramic (Pyroceram®), such as
Corningware
• heat-resistant glass (Pyrex®)
• microwave-safe plastics
• paper plates
• microwave-safe pottery, stoneware and
porcelain
• browning dish (Do not exceed recommended
preheating time. Follow manufacturer's
directions.)
®
.
These items can be used for short time reheating of foods that have little fat or sugar in them:
• wood, straw, wicker
DO NOT USE
• metal pans and bakeware
• dishes with metallic trim
• non-heat-resistant glass
• non-microwave-safe plastics (margarine tubs)
• recycled paper products
• brown paper bags
• food storage bags
• metal twist-ties
Should you wish to check if a dish is safe for
microwaving, place the empty dish in the oven and
microwave on HIGH for 30 seconds. A dish which
becomes very hot should not be used.
The following coverings are ideal:
• Paper towels are good for covering foods for reheating and absorbing fat while cooking bacon.
•Wax paper can be used for cooking and
reheating.
• Plastic wrap that is specially marked for microwave use can be used for cooking and reheating. DO NOT allow plastic wrap to touch food.
Vent so steam can escape.
• Lids that are microwave-safe are a good choice
because heat is kept near the food to hasten
cooking.
• Oven cooking bags are good for large meats or
foods that need tenderizing. DO NOT use metal
twist ties. Remember to slit bag so steam can
escape.
How to use aluminum foil in your microwave
oven:
• Small flat pieces of aluminum foil placed
smoothly on the food can be used to shield
areas that are either defrosting or cooking too
quickly.
• Foil should not come closer than one inch to any
surface of the oven.
Should you have questions about utensils or coverings,
check a good microwave cookbook or follow recipe
suggestions.
ACCESSORIES There are many microwave accesso-
ries available for purchase. Evaluate carefully before
you purchase so that they meet your needs. A microwave-safe thermometer will assist you in determining
correct doneness and assure you that foods have
been cooked to safe temperatures. Sharp is not
responsible for any damage to the oven when accessories are used.
ABOUT CHILDREN AND THE MICROWAVE
Children below the age of 7 should use the microwave
oven with a supervising person very near to them.
Between the ages of 7 and 12, the supervising person
should be in the same room.
The child must be able to reach the oven comfortably;
if not, he/she should stand on a sturdy stool.
At no time should anyone be allowed to lean or swing
on the oven door.
Children should be taught all safety precautions: use
potholders, remove coverings carefully, pay special
attention to packages that crisp food because they
may be extra hot.
Don’t assume that because a child has mastered one
cooking skill he/she can cook everything.
Children need to learn that the microwave oven is not
a toy. See page 17 for Child Lock feature.
5
INFORMATION YOU NEED TO KNOW
ABOUT MICROWAVE COOKING
• Arrange food carefully. Place thickest areas towards
outside of dish.
• Watch cooking time. Cook for the shortest amount
of time indicated and add more as needed. Food
severely overcooked can smoke or ignite.
• Cover foods while cooking. Check recipe or cookbook for suggestions: paper towels, wax paper,
microwave plastic wrap or a lid. Covers prevent
spattering and help foods to cook evenly.
• Shield with small flat pieces of aluminum foil any
thin areas of meat or poultry to prevent overcooking
before dense, thick areas are cooked thoroughly.
• Stir foods from outside to center of dish once or twice
during cooking, if possible.
• Turn foods over once during microwaving to
speed cooking of such foods as chicken and hamburgers. Large items like roasts must be turned over
at least once.
• Rearrange foods such as meatballs halfway
through cooking both from top to bottom and from
the center of the dish to the outside.
• Add standing time. Remove food from oven and
stir, if possible. Cover for standing time which allows
the food to finish cooking without overcooking.
• Check for doneness. Look for signs indicating that
cooking temperatures have been reached.
Doneness signs include:
- Food steams throughout, not just at edge.
- Center bottom of dish is very hot to the touch.
- Poultry thigh joints move easily.
- Meat and poultry show no pinkness.
- Fish is opaque and flakes easily with a fork.
ABOUT SAFETY
• Check foods to see that they are cooked to
the United States Department of Agriculture's
recommended temperatures.
TEMP FOOD
160°F
165°F
170°F
180°F
To test for doneness, insert a meat thermometer in a
thick or dense area away from fat or bone. NEVER
leave the thermometer in the food during cooking,
unless it is approved for microwave oven use.
... for fresh pork, ground meat,
boneless white poultry, fish,
seafood, egg dishes and frozen
prepared food.
... for leftover, ready-to-reheat
refrigerated, and deli and carry-
out “fresh” food.
... white meat of poultry.
... dark meat of poultry.
• ALWAYS use potholders to prevent burns when
handling utensils that are in contact with hot food.
Enough heat from the food can transfer through
utensils to cause skin burns.
• Avoid steam burns by directing steam away from
the face and hands. Slowly lift the farthest edge of
a dish's covering and carefully open popcorn and
oven cooking bags away from the face.
• Stay near the oven while it's in use and check
cooking progress frequently so that there is no
chance of overcooking food.
• NEVER use the cavity for storing cookbooks or
other items.
• Select, store and handle food carefully to preserve
its high quality and minimize the spread of
foodborne bacteria.
• Keep waveguide cover clean. Food residue can
cause arcing and/or fires.
• Use care when removing items from the oven so
that the utensil, your clothes or accessories do not
touch the safety door latches.
6

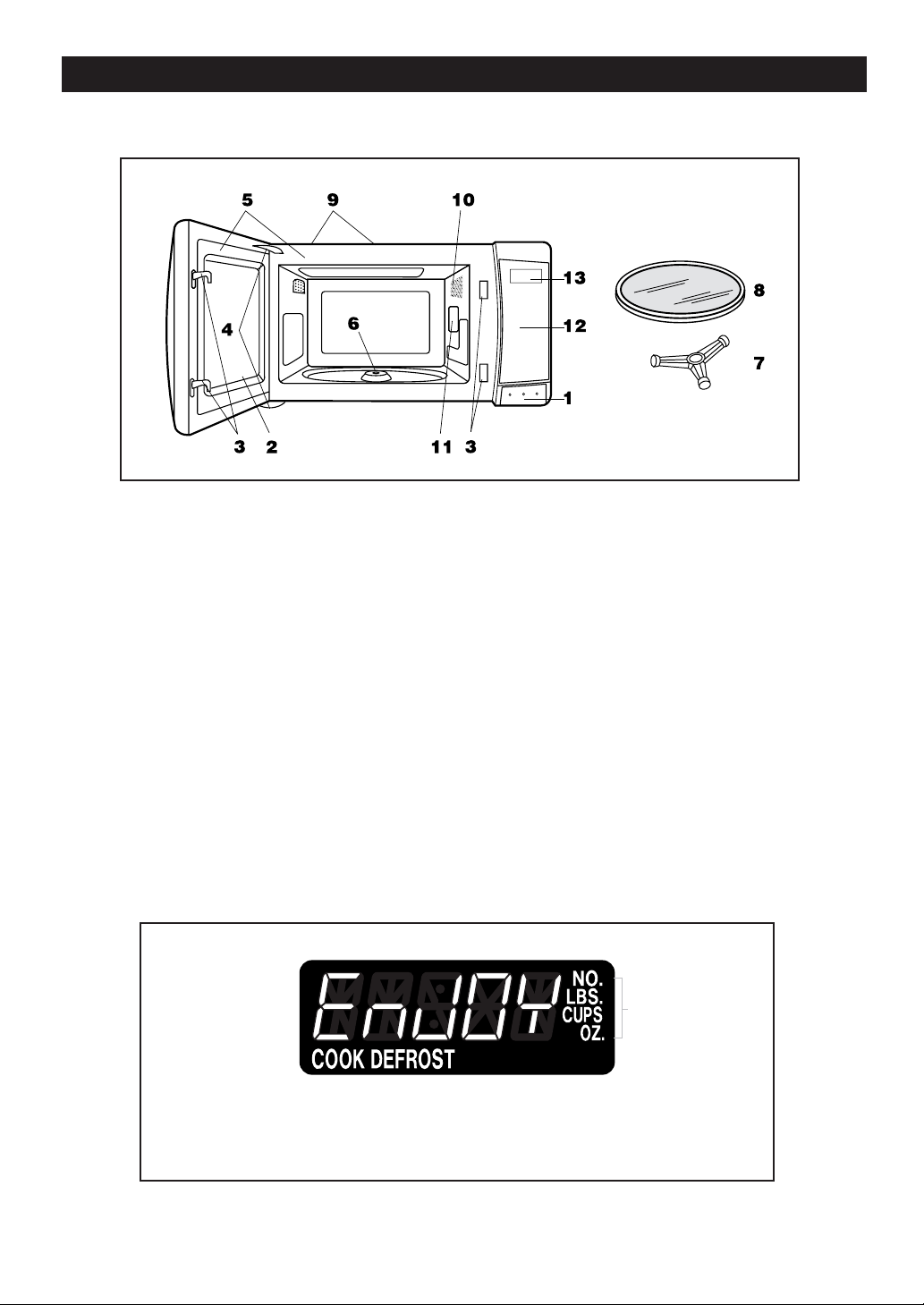

PART NAMES
MICROWAVE OVEN PAR TS
1 One touch door open button
Push to open door.
2 Oven door with see-through window
3 Safety door latches
The oven will not operate unless the door is
securely closed.
4 Door hinges
5 Door seals and sealing surfaces
6 Turntable motor shaft
7 Removable turntable support
Carefully place the turntable support in the
center of the oven floor.
VISUAL DISPLAY
8 Removable turntable
Place the turntable on the turntable support
securely. The turntable will rotate clockwise or
counterclockwise. Only remove for cleaning.
9 Ventilation openings (Rear)
10 Oven light
It will light when oven is operating or door is
open.
11 Waveguide cover: DO NOT REMOVE.
12 Auto-Touch control panel
13 Time display: 99 minutes, 99 seconds
Indicators
Words in the lower portion of the display will
light to indicate what function is in progress.
7
PART NAMES
CONTROL P ANEL
R-508F
11-12
13-14
11
15
10
R-501F
16
16
9
9
11
11-12
13-14
15
10
9
16
16
9
R-404F
11-12
13-14
R-401F
11
15
10
9
Number next to the control panel illustration indicates pages on which there are feature
descriptions and usage information.
16
16
9
11
11-12
13-14
15
10
9
16
16
9
8
BEFORE OPERATING
• Before operating your new microwave oven make
sure you read and understand this operation manual
completely.
• Before the oven can be used, follow these procedures:
1. Plug in the oven. Close the door. The oven display
will then begin flashing .
2. Touch the STOP/CLEAR pad.
3. Set clock.
:
will appear.
88:88
TO SET THE CLOCK
• Suppose you want to enter the correct time of day
12:30 (A.M. or P.M.).
PROCEDURE DISPLAY
TIMER
CLOCK
1
Touch CLOCK pad.
1 2 3 0
2
Enter the correct time
of day by touching the
numbers in sequence.
3
TIMER
CLOCK
Touch CLOCK pad again.
: 0
12:30
12:30
STOP/CLEAR
Touch the STOP/CLEAR pad to:
1. Erase if you make a mistake during programming.
2. Cancel timer.
3. Stop the oven temporarily during cooking.
4. Return the time of day to the display.
5. Cancel a program during cooking, touch twice.
TIME COOKING
Your oven can be programmed for 99 minutes 99
seconds (99.99). Always enter the seconds after the
minutes, even if they are both zeros.
• Suppose you want to cook for 5 minutes at 100%.
PROCEDURE DISPLAY
5 0 0
1
Enter cooking time.
2
START
Touch START pad.
15.00
15.00
COOK DEFROST
This is a 12 hour clock. If you attempt to enter an
incorrect clock time, will appear in the display.
Touch the STOP/CLEAR pad and re-enter the time.
• If the electrical power supply to your microwave oven
should be interrupted, the display will intermittently
show after the power is reinstated. If this
occurs during cooking, the program will be erased.
The time of day will also be erased. Simply touch
STOP/CLEAR pad and reset the clock for the correct
time of day.
88:88
ERROR
9
MANUAL OPERATION
TO SET POWER LEVEL
There are eleven preset power levels.
Using lower power levels increases the cooking time
which is recommended for foods such as cheese, milk
and long slow cooking of meats. Consult cookbook or
recipes for specific recommendations.
TOUCH POWER
LEVEL PAD NUMBER OF TIMES
FOR DESIRED POWER
POWER LEVEL x 1 100% High
POWER LEVEL x 2 90%
POWER LEVEL x 3 80%
POWER LEVEL x 4 70% Medium High
POWER LEVEL x 5 60%
POWER LEVEL x 6 50% Medium
POWER LEVEL x 7 40%
POWER LEVEL x 8 30% Med Low/Defrost
POWER LEVEL x 9 20%
POWER LEVEL x 10 10% Low
APPROXIMATE
PERCENTAGE
OF POWER
COMMON WORDS
FOR
POWER LEVELS
MANUAL DEFROST
If the food that you wish to defrost is not listed on
the DEFROST CHART or is above or below the limits
in the “Amount” column on the DEFROST CHART (see
page 15), you need to defrost manually.
You can defrost any frozen food, either raw or
previously cooked, by using Power Level for 30%.
Follow the exact 4-step procedure found under TO
SET POWER LEVEL. Estimate defrosting time and
press POWER LEVEL pad eight times for 30% power .
For either raw or previously cooked frozen food the
rule of thumb is approximately 4 minutes per pound.
For example, defrost 4 minutes for 1 pound of frozen
spaghetti sauce.
Always stop the oven periodically to remove or
separate the portions that are defrosted. If food is
not defrosted at the end of the estimated defrosting
time, program the oven in 1 minute increments on Power
Level 30% until totally defrosted.
When using plastic containers from the freezer,
defrost only long enough to remove from the plastic
in order to place in a microwave-safe dish.
POWER LEVEL x 11 0%
• Suppose you want to defrost for 5 minutes at 30%.
PROCEDURE DISPLAY
5 0 0
1
Enter defrosting time.
POWER
2
LEVEL
Touch POWER LEVEL pad eight times
or hold down until the desired power level
appears.
3
4
START
Touch START pad.
When the defrost time is complete, a long tone
will sound and will appear in the
display.
x 8
END
15.00
1P-30
15.00
COOK DEFROST
10
SPECIAL FEATURES
POPCORN
The POPCORN setting automatically provides the
correct cooking time for most brands of microwave
popcorn. You may wish to try several and choose your
favorite. Pop only one bag at a time. Unfold bag and
place in oven according to directions.
• Suppose you want to pop a 3.5 oz bag (regular) of
popcorn.
PROCEDURE
POPCORN
Touch POPCORN once.
The oven starts automatically.
REHEAT
REHEAT automatically computes the correct warming
time and microwave power level for foods shown in the
chart below.
• Suppose you want to reheat 3 cups of soup.
PROCEDURE
DISPLAY
reg
DISPLAY
•Touch POPCORN once for 3.5 oz bag (regular).
•Touch POPCORN twice within 2 seconds for 2.85 -
3.5 oz bag (light regular).
•Touch POPCORN three times within 2 seconds for
1.5 or 1.75 oz bag (snack).
NOTE:
To use POPCORN pad, touch within 3 minutes after
cooking, opening and closing the door or touching the
STOP/CLEAR pad.
3
Repeat touching same number pad 2 to
increase quantity to 3 cups. (Ex: touch 2 two
more times for 3 cups or hold down until the
desired quantity appears.)
2
3
CUPS
1
2
REHEAT
Touch REHEAT once.
2
Select desired Reheat
setting. (Ex: touch number
pad 2 to select 1 cup of
soup.
REHEA T CHAR T
FOOD
1. Casserole
2. Soup
3. Pizza
AMOUNT
1-6 cups*
1-8 cups**
1-6 cups*
1-8 cups**
1-6 slices
FOOD
2
1
CUPS
4
NOTE:
1. To reheat different foods or foods above or below
the quantity allowed on the REHEAT CHART, use
manual operation.
2. Reheat can be programmed with More or Less Time
Adjustment. See page 16.
START
Touch START pad.
PROCEDURE
Use this setting to reheat refrigerated, canned or homemade pasta with sauce
or other cooked casserole. For room temperature pasta or casserole, use Less
option (see page 16). For pasta without sauce double the quantity per setting.
For example, measure 2 cups of cooked noodles and program for 1 cup. Cover
with lid or plastic wrap. After cooking, let stand, covered, 2 to 3 minutes.
Place in bowl or casserole. Cover with lid or plastic wrap. At end, stir, re-cover
and let stand 1 to 3 minutes.
Use this setting to reheat refrigerated leftover pizza. One slice is approximately
1/8th of a 12 inch pizza or 1/12th of a 16 inch pizza. Place on paper towel.
NOTE:
The symbol * is for model numbers R-404F and R-401F only.
The symbol ** is for model numbers R-508F and R-501F only.
11
SPECIAL FEATURES
REHEAT CHART
FOOD
4. Beverage
5. Dinner
Plate
6. Fresh Rolls/
Muffins
AMOUNT
.5-2.0 cups This setting is good for restoring cooled beverages to a better drinking
1 plate
1 Regular
1 Large
1 Small
1-8 *
1-10 **
(continued)
PROCEDURE
temperature. Touch REHEAT and then the number 4 pad for a 0.5 cup
increase per touch. Stir liquid briskly before heating and stir carefully at end
of cycle to avoid "eruption."
Use this setting to reheat precooked foods from the refrigerator. Place meaty
portions and bulky vegetables to outside of plate. Cut large items like baked
potatoes in smaller pieces. Flatten foods such as mashed potatoes and other
dense foods. Cover with wax paper or plastic wrap. ONE PLATE ONLY.
After cooking, check that food is very hot throughout and that the bottom center
of the plate is very hot. If not, continue heating using time and power level. Allow
to stand, covered, 1 to 2 minutes.
Touch REHEAT and then the number pad 5 once for a regular amount of
food: approximately 4 oz sliced meat or poultry, 1/2 cup potato or rice and
LARGE
REG
SMALL
will appear in the display.
1/2 cup of vegetables or equivalent. will appear in the display.
Touch REHEAT and then the number pad 5 twice within 2 seconds for a larger
amount of food on a dinner plate. will appear in the display.
Touch REHEAT and then the number pad 5 three times within 3 seconds for
a smaller amount of food on a dinner plate.
Use this setting to warm rolls, muffins, biscuits, bagels etc. Large items should
be considered as 2 or 3 regular size. Arrange on plate; cover with paper towel.
For refrigerated rolls or muffins, it may be necessary to double the entered
amount to ensure the proper serving temperature. For example, enter quantity
of 2 for 1 refrigerated muffin.
NOTE:
The symbol * is for model numbers R-404F and R-401F only.
The symbol ** is for model numbers R-508F and R-501F only.
12
SPECIAL FEATURES
COOK
COOK automatically computes the correct cooking
time and microwave power level for foods shown in the
chart below.
• Suppose you want to cook 3 medium baked potatoes.
TIPS:
vented plastic wrap. Temperatures of foods covered
with plastic wrap tend to be slightly higher than those
covered with wax paper.
Foods can be covered with wax paper or
PROCEDURE
1
Touch COOK once.
2
Select desired Cook setting.
(Ex: touch number pad 1 to
select Baked Potatoes.
3
Repeat touching same number pad 1 to
increase quantity to 3 potatoes. (Ex: touch two
more times for 3 potatoes or hold down until
the desired quantity appears.)
4
COOK
1
1
START
Touch START pad.
DISPLAY
FOOD
1
1
3
NOTE:
1. More or less food than the quantity listed in the chart
should be cooked following the guidelines in any
microwave cookbook.
2. COOK can be programmed with More or Less Time
Adjustment. See page 16.
3. The final cooking result will vary according to the
food condition (e.g. initial temperature, shape,
quality). Check food for temperature after cooking.
NO.
NO.
If additional time is needed, continue to cook
manually.
COOK CHART
FOOD
1.Baked
Potatoes
2.Fresh
Vegetables
3.Frozen
Vegetables
NOTE:
The symbol * is for model numbers R-404F and R-401F only.
The symbol ** is for model numbers R-508F and R-501F only.
AMOUNT
1-6 medium *
1-8 medium **
1-6 cups *
1-8 cups **
1-6 cups *
1-8 cups **
PROCEDURE
Pierce with fork in several places; place on paper towel on turntable. At end
of cooking time, remove from oven, wrap in foil and let stand 5 to 10 minutes.
For beans, carrots, corn and peas, add 1 tablespoon of water per cup. For
broccoli, Brussels sprouts, cabbage and cauliflower, cook immediately after
washing with no additional water. If you like tender crisp vegetables, double
or triple measured quantity per setting. After cooking, remove from oven, stir,
cover and let stand 3 to 5 minutes before serving.
Add no water. Cover with lid or plastic wrap. After cooking, stir and let stand,
covered, for 3 minutes.
13
SPECIAL FEATURES
COOK CHART
FOOD
Entrees
5.Ground
Meat
AMOUNT
6-17 oz4.Frozen
6-8 oz
9-11 oz
12-14 oz
15-17 oz
.3-2.0 lb Use this setting to cook ground beef or poultry as patties or in a casserole to be
(continued)
PROCEDURE
Use this setting for frozen, convenience foods. It will give satisfactory results
for most brands. You may wish to try several and choose your favorite.
Remove package from outer wrapping and follow package directions for
covering. After cooking, let stand, covered, for 1 to 3 minutes.
Touch COOK and number pad 4 once for package weight of 6-8 oz.
will appear in the display.
Touch COOK and number pad 4 twice for package weight of 9-11 oz.
will appear in the display.
Touch COOK and number pad 4 three times for package weight of 12-14 oz.
will appear in the display.
12-14
Touch COOK and number pad 4 four times for package weight of 15-17 oz.
will appear in the display.
15-17
added to other ingredients. Place patties on a microwave-safe rack and cover
with wax paper. Place ground meat in a casserole and cover with wax paper or
plastic wrap. When oven stops, turn patties over or stir meat in casserole to
break up large pieces. Re-cover and touch START. After cooking, let stand,
covered, for 2 to 3 minutes.
Press COOK pad and number
Once 0.3 lb
Twice 0.5 lb
3 times 0.7 lb
4 times 1.0 lb
5 times 1.3 lb
6 times 1.5 lb
7 times 1.7 lb
8 times 2.0 lb
55
5 for Amount
55
6-8
9-11
.5-2.0 cups6.Rice
Place rice into a deep casserole dish and add double quantity of water. Cover
with lid or plastic wrap. After cooking, stir , cover and let stand 3 to 5 minutes or
until all liquid has been absorbed.
Rice Water Size of casserole dish
.5 cup 1 cup 1.5 quart
1 cup 2 cups 2 quart
1.5 cups 3 cups 2.5 or 3 quart
2 cups 4 cups 3 quart or larger
14
SPECIAL FEATURES
DEFROST
DEFROST automatically defrosts all the foods shown
in the DEFROST CHART below. Round the weight to
the nearest tenth of a pound. To enter weight, touch
DEFROST and number pad for desired food then
number pads for weight.
• Suppose you want to defrost a 3.0 pound steak .
PROCEDURE DISPLAY
NO.
LBS.
DEFROST
1
Touch DEFROST once.
2
Touch number 2 for
Steaks/Chops
3
Touch number pads
for desired weight.
(Ex: touch 30 for 3.0 lb.)
4
2
3 0
START
FOOD
COOK DEFROST
2
COOK DEFROST
3.0
COOK DEFROST
Touch START pad.
CUPS
LBS.
CUPS
LBS.
CUPS
OZ.
NO.
OZ.
NO.
OZ.
After the 1st stage, open the door, turn steak
5
over and shield any warm portions. Close the
door.
After the 2nd stage, open the door and shield
6
any warm portions. Close the door.
After defrost cycle ends, cover and let stand as
indicated in chart below.
NOTE:
1. DEFROST can be programmed with More or Less
Time Adjustment. Touch the POWER LEVEL pad
once or twice after selecting the amount. See
page 16.
2. To defrost other foods or foods above or below
the weights allowed on the DEFROST CHART, use
time and 30% power. See MANUAL DEFROST on
page 10.
3. If you attempt to enter more or less than the allowed
amount as indicated in the chart below,
will appear in the display.
START
START
Touch START pad.
Touch START pad.
ERROR
The oven will stop and directions will be displayed.
DEFROST CHART
FOOD PROCEDURE
1.Ground
Meat
2.Steaks/
Chops
3.Boneless
Poultry
4.Bone-in
Poultry
NOTE:
AMOUNT
.5 - 2.0 lb
.5 - 3.0 lb
.5 - 2.0 lb
.5 - 3.0 lb
Check foods when oven signals. After final stage, small sections may still be icy. Let stand to continue
thawing. Do not defrost until all ice crystals are thawed.
Shielding prevents cooking from occurring before the center of the food is defrosted. Use small smooth
strips of aluminum foil to cover edges and thinner sections of the food.
Pull apart and remove any thawed pieces after each stage. Let stand, covered, for
5 to 10 minutes.
After each stage, rearrange and if there are warm or thawed portions, shield with
small flat pieces of aluminum foil. Remove any meat or fish that is nearly defrosted.
Let stand, covered, for 10 to 20 minutes.
After each stage, if there are warm or thawed portions, rearrange or remove.
Let stand, covered, for 10 to 20 minutes.
After each stage, if there are warm or thawed portions, rearrange or remove.
Let stand, covered, for 10 to 20 minutes.
15
OTHER CONVENIENT FEATURES
MUL TIPLE SEQUENCE
COOKING
Your oven can be programmed for up to 3 automatic
cooking sequences, switching from one power level
setting to another automatically.
Sometimes cooking directions tell you to start on one
power level and then change to a different power level.
Your oven can do this automatically.
• Suppose you want to cook roast beef for 5 minutes
at 100% and then continue to cook for 30 minutes
at 50%.
PROCEDURE
First enter cooking time.
1
Then touch POWER
LEVEL once for 100%
power.
Then enter second
cooking time.
2
Touch POWER LEVEL
pad 6 times for 50%
power.
Touch START pad.
3
5 0 0
POWER
LEVEL
x 1
3 0 0 0
POWER
LEVEL
START
x 6
MORE OR LESS TIME
ADJUSTMENT
Should you discover that you like any of the
POPCORN, COOK, REHEAT or DEFROST settings
slightly more done, touch the POWER LEVEL pad
once after touching your choice of pads or before
touching START pad. The display will show .
Should you discover that you like any of the
POPCORN, COOK, REHEAT or DEFROST settings
slightly less done, touch the POWER LEVEL pad
twice after touching your choice of pads or before
touching START pad. The display will show .
MORE
LESS
MINUTE PLUS
Minute Plus allows you to cook for a minute at 100%
by simply touching the MINUTE PLUS pad. You can
also extend cooking time in multiples of 1 minute by
repeatedly touching the MINUTE PLUS pad during
manual cooking.
• Suppose you want to heat a cup of soup for one
minute.
PROCEDURE
Touch MINUTE PLUS pad.
MINUTE
PLUS
NOTE:
1. If POWER LEVEL pad is touched,
displayed during the first sequence.
2. If 100% is selected as the final sequence, it is not
necessary to touch the POWER LEVEL pad.
3. If you wish to know power level, simply touch the
POWER LEVEL pad. As long as your finger is
touching the POWER LEVEL pad, the power level
will be displayed.
P-HI
will be
AUDIBLE SIGNAL
ELIMINATION
If you wish to have the oven operate with no audible
signals, touch TIMER/CLOCK, the number 5 and then
touch START pad and hold for three seconds.
To cancel and restore the audible signal, touch
TIMER/CLOCK, the number 5 and STOP/CLEAR
pads.
NOTE:
1. To use Minute Plus, touch pad within 3 minutes
after cooking, closing the door, touching the
STOP/CLEAR pad or during cooking.
2. Minute Plus cannot be used with special features.
TIMER
• Suppose you want to time a 3-minute long distance
phone call.
PROCEDURE
Enter time.
1
Touch TIMER pad.
2
To cancel the timer,
3
touch the STOP/CLEAR
pad once.
3 0 0
TIMER
CLOCK
STOP
CLEAR
16
OTHER CONVENIENT FEATURES
CHILD LOCK
The Child Lock prevents unwanted oven operation
such as by small children.
The oven can be set so that the control panel is
deactivated or locked. To set, touch TIMER/CLOCK
pad, the number 1 and then touch the START pad
and hold for three seconds. Should a pad be touched,
LOCK
will appear in the display.
To cancel, touch TIMER/CLOCK, the number 1 and
STOP/CLEAR pads.
DEMONSTRA TION MODE
To demonstrate, touch TIMER/CLOCK, the number 0
and then touch the START pad and hold for three
seconds. will appear in the display. Cooking
operations and specific special features can now be
demonstrated with no power in the oven. For example,
touch START pad and the display will show and
count down quickly to
To cancel, touch TIMER/CLOCK, the number 0 and
STOP/CLEAR pads. If easier, unplug the oven from the
electrical outlet and replug.
DEMO
End
1:00
.
CLEANING AND CARE
Disconnect the power cord before cleaning. If possible, leave the door open to inactivate the oven during cleaning.
Exterior
The outside surface is painted. Clean the outside with
mild soap and water; rinse and dry with a soft cloth. Do
not use any type of household or abrasive cleaner.
Door
Wipe the window on both sides with a damp cloth to
remove any spills or spatters. Metal parts will be
easier to maintain if wiped frequently with a damp cloth.
Avoid the use of spray and other harsh cleaners as
they may stain, streak or dull the door surface.
Touch Control Panel
Care should be taken in cleaning the touch control panel.
If the control panel becomes soiled, open the oven
door before cleaning. Wipe the panel with a cloth
dampened slightly with water only. Dry with a soft
cloth. Do not scrub or use any sort of chemical
cleaners. Close door and touch STOP/CLEAR.
Interior
Cleaning is easy because little heat is generated to
the interior surfaces; therefore, there is no baking and
setting of spills or spattering. To clean the interior
surfaces, wipe with a soft cloth and warm water. DO
NOT USE ABRASIVE OR HARSH CLEANERS OR
SCOURING PADS. For heavier soil, use baking soda
or a mild soap; rinse thoroughly with hot water. NEVER
SPRAY OVEN CLEANERS DIRECTLY ONTO ANY
PART OF THE OVEN.
Waveguide Cover
The waveguide cover is made from mica so requires
special care. Keep the waveguide cover clean to assure good oven performance. Carefully wipe with a
damp cloth any food spatters from the surface of the
cover immediately after they occur. Built-up splashes
may overheat and cause smoke or possibly catch fire.
Do not remove the waveguide cover.
Odor Removal
Occasionally, a cooking odor may remain in the oven.
To remove, combine 1 cup water, grated peel and juice
of 1 lemon and several whole cloves in a 2-cup glass
measuring cup. Boil for several minutes using 100%
power. Allow to set in oven until cool. Wipe interior with
a soft cloth.
Turntable/T urntable Support
The turntable and turntable support can be removed
for easy cleaning. Wash them in mild, sudsy water;
for stubborn stains use a mild cleanser and scouring
sponge as described above. They are also dishwasherproof. Use upper rack of dishwasher. The turntable
motor shaft is not sealed, so excess water or spills
should be wiped up immediately.
Exterior
Interior
17
Turntable
Turntable Support
SERVICE CALL CHECK
Please check the following before calling for service:
Place one cup of water in a glass measuring cup in the oven and close the door securely.
Operate the oven for one minute at HIGH 100%.
A
Does the oven light come on? YES _______ NO _______
B
Does the cooling fan work? YES _______ NO _______
(Put your hand over the rear ventilating openings.)
C
Does the turntable rotate? YES _______ NO _______
(It is normal for the turntable to turn in either direction.)
D
Is the water in the oven warm? YES _______ NO _______
If “NO” is the answer to any of the above questions, please check electrical outlet, fuse and/or circuit
breaker. If they are functioning properly, CONTACT YOUR NEAREST SHARP AUTHORIZED SERVICER.
A microwave oven should never be serviced by a “do-it-yourself” repair person.
NOTE:
• If time appearing in the display is counting down very rapidly, check Demonstration Mode on page 17 and cancel.
For R-501F, R-404F and R-401F only:
• If the oven is set for more than 30 minutes at 80, 90 or 100 percent power level, after the first 30 minutes the
power level will automatically adjust itself to 70 percent power to avoid overcooking.
SPECIFICATIONS
R-508F / R-501F
AC Line Voltage:
AC Power Required:
Output Power:*
Frequency:
Outside Dimensions:
Cavity Dimensions:
Oven Capacity:**
Cooking Uniformity:
Weight:
★ The International Electrotechnical Commission’s standardized method for measuring output wattage. This
test method is widely recognized.
★★ Internal capacity is calculated by measuring maximum width, depth and height. Actual capacity for holding
food is less.
In compliance with standards set by:
FCC – Federal Communications Commission Authorized.
DHHS – Complies with Department of Health and Human Services (DHHS) rule, CFR, Title 21, Chapter I,
Subchapter J.
– This symbol on the nameplate means the product is listed by Underwriters Laboratories, Inc.
Single phase 120V, 60Hz, AC only
R-508F : 1700 watts, 14.3 amps.
R-501F : 1550 watts, 13.0 amps.
R-508F : 1200 watts
R-501F : 1000 watts*
2450 MHz
24"(W) x 13 3/8"(H) x 19 1/8"(D)
17 3/8"(W) x 10 1/2"(H) x 18 5/8"(D)
2.0 Cu. Ft.
Turntable system, diameter 16"
Approx. 46 lb
R-404F / R-401F
Single phase 120V, 60Hz, AC only
1550 watts, 13.0 amps.
1000 watts*
2450 MHz
21 21/32"(W) x 12 3/8"(H) x 18 7/16"(D)
15 23/32"(W) x 9 21/32"(H) x 17 7/8"(D)
1.6 Cu. Ft.
Turntable system, diameter 14 1/8"
Approx. 41 lb
18
THE ULTIMATE ACCESSORY
✪
Great recipes
✪
Reliable microwave
reference guide
✪
Many color photos
✪
Step-by-step
instructions
✪
Nutritional
information for
each recipe
✪
Durable wipe-clean
soft cover with 128
8 1/
✪
Helpful tips and
x 11 pages
2
special techniques
CAROUSEL MICROWA VE
COOKBOOK
TO ORDER
Simply call this toll-free number : 1-800-642-2122.
Please have your credit card ready.
If you prefer to order by mail, complete and return the
order form below. Please include check or money
order (payable to Sharp Accessories & Supplies
Center) for $6.00 plus $4.25 shipping & handling and
tax, if applicable, per book.
SATISFACTION GUARANTEED
You must be completely satisfied with the Sharp
Carousel Microwave Cookbook. If, within 14 days, you
are dissatisfied for any reason, simply return the book
and we'll gladly refund your $6.00 plus tax.
(SOLAMENTE ESCRITO EN INGLES!)
Cut along this line.
COOKBOOK ORDER FORM
PERSONAL RECIPES AND NOTES
Please send me ______ cookbooks at $10.25 each $ ________
Illinois sales tax, (if applicable) per book $.44 no. of books _____________ $ ________
Other tax, (if applicable) no. of books _____________ $ ________
TOTAL ORDER AMOUNT $ ________
I have enclosed a check made payable to Sharp Accessories & Supplies Center.
Please bill my VISA MASTERCARD AMERICAN EXPRESS
Acct. No. _______________________________________ Expiration date _____ / _____
Signature_________________________________________________________________
(All credit card orders must be signed.)
Name ______________________________________________________________________________
Address ____________________________________________________________________________
City ____________________________________ State ____________ Zip ______________________
Daytime Phone No. ( ) ___________________________________________________________
Mail to: SHARP Accessories & Supplies Center
2130 Townline Road
Peoria, Illinois 61615–1560
Price is subject to change without notice.
19
NOTES
20
GUIA AUTO-TOUCH
GUIA AUTO-TOUCH
Para mayor informacion y precauciones de seguridad, consulte el Manual de Operaciones.
PONER LA HORA
Si aparece
"STOP/CLEAR".
1
Oprima TIMER/CLOCK.
2
Ponga la hors correcta del dia
oprimiendo los numeros en
secuencia (Ej: 12:30).
3
Oprima TIMER/CLOCK otra vez.
88:88
en la pantalla, primero oprima
OPERACION MANUAL
Cocimiento con Alta Energia
1
Marque el tiempo de cocimiento
al oprimir los numeros.
(Ej: 1 min. 30 sec.)
2
Oprima el START.
Energia de Cocimiento Variable
1
Después de realizar el primer
paso (Num. 1 arriba), oprima el
POWER LEVEL ocho veces
para 30%.
2
Oprima el START.
POPCORN
Oprima POPCORN una vez para el
tamaño normal de palomitas.
2 veces para el tamaño normal
"light".
3 veces para el tamaños botana.
REHEAT
1
Pulse el botón REHEAT.
2
Seleccione el programa
deseado en el configuración
de REHEA T (Ex: Pulse 2 para
recalentar 1 taza de sopa.)
3
Pulse dos veces el botón 2
para 3 tazas.
4
Pulse el botón START.
RECALENT AR T ABLA
TIPO DE COMIDA CANTIDAD
1. Casserole
2. Soup
3. Pizza
4. Beverage
5. Dinner Plate
6. Fresh
Rolls/Muffins
1 a 6 tazas* 1 a 8 tazas**
1 a 6 tazas* 1 a 8 tazas**
1 a 6 rebanadas
0,5 a 2,0 tazas
1 plato: Normal, Grande o
Chico
1 a 8 piezas*
1 a 10 piezas**
TIMER
CLOCK
1 2 3 0
TIMER
CLOCK
1 3 0
START
POWER
LEVEL
REHEAT
x 8
START
POPCORN
2
x 2
2
START
COOK
1
Pulse el botón COOK.
2
Seleccione el programa
deseado en el configuración
de COOK (Ex: Pulse 2 para
cocinar 1 taza de verdura
fresca.)
3
Pulse dos veces el botón 2
para 3 tazas.
4
Pulse el botón START.
COOK
START
COOK T ABLA
TIPO DE COMIDA
1. Baked Potatoes
2. Fresh Vegetables
3. Frozen Vegetables
4. Frozen Entrees
5. Ground Meat
6. Rice
CANTIDAD
1 a 6 tam. Nor.*
1 a 8 tam. Nor.**
1 a 6 tazas* 1 a 8 tazas**
1 a 6 tazas* 1 a 8 tazas**
6 a 17 onzas
,3 a 2,0 libras
,5 a 2,0 tazas
DEFROST
1
Pulse el botón DEFROST.
2
Seleccione el programa deseado
en el configuración de DEFROST
(Ex: Pulse 2 para filetes.)
3
Pulse el botón 3 y 0 para 3,0
libras.
4
Pulse el botón START.
DEFROST
DEFROST T ABLA
TIPO DE COMIDA CANTIDAD
1. Ground Meat
2. Steaks/Chops
3. Boneless Poultry
4. Bone-in Poultry
MINUTO EXTRA
Oprima MINUTE PLUS para obtener
un minuto al 100% de energia o para
agregar otro minuto durante el
cocimiento manual. Vuelva a oprimirlo
para obtener minutos adicionales.
El símbolo * para los modelos R-404F, R-401F.
El símbolo ** para los modelos R-501F, R-508F.
,5 a 2,0 libras
,5 a 3,0 libras
,5 a 2,0 libras
,5 a 3,0 libras
2
x 2
2
2
3 0
START
MINUTE
PLUS
Carousel® es una marca registrada de Sharp Corporation.
21
AUTO-TOUCH GUIDE
For more complete information and safety precautions, refer to your Operation Manual.
SET CLOCK
If
88:88
is in the display, first touch
STOP/CLEAR.
1
Touch TIMER/CLOCK pad.
2
Enter correct time of the day by
touching numbers in sequence.
(Ex: 12:30)
3
Touch TIMER/CLOCK pad again.
MANUAL OPERA TION
High Power Cooking
1
Enter cooking time by touching
number pads. (Ex: 1 min. 30 sec.)
2
Touch START pad.
Variable Power Cooking
1
After Step 1 above, touch POWER
LEVEL pad eight times for 30%.
2
Touch START pad.
POPCORN
Touch POPCORN pad once for
regular size, twice for light regular
size or three times for snack size.
REHEAT
1
Touch REHEAT pad.
2
Select desired Reheat setting.
(Ex: touch 2 to reheat 1 cup
of soup.)
3
Touch number 2 two more
times for 3 cups.
4
Touch START pad.
REHEA T CHART
FOOD
1. Casserole
2. Soup
3. Pizza
4. Beverage
5. Dinner Plate
6. Fresh Rolls/Muffins
AMOUNT
1 - 6 cups* 1 - 8 cups**
1 - 6 cups* 1 - 8 cups**
1 - 6 slices
.5 - 2.0 cups
1 plate: Regular, Large or
Small
1 - 8 pieces* 1 - 10 pieces**
TIMER
CLOCK
1 2 3 0
TIMER
CLOCK
1 3 0
START
POWER
LEVEL
POPCORN
REHEAT
x 8
START
2
2
x 2
START
COOK
1
Touch COOK pad.
2
Select desired Cook setting.
(Ex: touch 2 to cook 1 cup of
fresh vegetables.)
3
Touch number 2 two more
times for 3 cups.
4
Touch START pad.
COOK
2
2
START
x 2
COOK CHART
FOOD
1. Baked Potatoes
2. Fresh Vegetables
3. Frozen Vegetables
4. Frozen Entrees
5. Ground Meat
6. Rice
1 - 6 medium* 1 - 8 medium**
1 - 6 cups* 1 - 8 cups**
1 - 6 cups* 1 - 8 cups**
6 - 17 oz.
.3 - 2.0 lb.
.5 - 2.0 cups
AMOUNT
DEFROST
1
Touch DEFROST pad.
2
Select desired Defrost setting.
(Ex: touch 2 to defrost steak.)
3
Touch number 3 and 0 for
3.0 lb.
4
Touch START pad.
DEFROST
2
3 0
START
DEFROST CHART
FOOD AMOUNT
1. Ground Meat
2. Steaks/Chops
3. Boneless Poultry
4. Bone-in Poultry
MINUTE PLUS
Touch MINUTE PLUS for one minute
at 100% power or to add a minute
during manual cooking. Continue to
touch for additional minutes.
The symbol * is for model numbers R-404F and R-401F only.
The symbol ** is for model numbers R-508F and R-501F only.
.5 - 2.0 lb
.5 - 3.0 lb
.5 - 2.0 lb
.5 - 3.0 lb
MINUTE
PLUS
Carousel® is a registered trademark of Sharp Corporation.
SHARP ELECTRONICS CORPORATION
®
Sharp Plaza, Mahwah, New Jersey 07430-2135
TINSEB338MRK1
PRINTED IN USA
Loading...
