PWB7030SL/EL
C
2x4’s or
equivalent
solid floor
4-3/16"
25-1/4"
Cutout width
Junction
box location
17-1/2"
Cutout height
29-3/4"
19"
21-1/2"
Back of Control
Conduit
(48-1/2"
long)
B
30"
5" min.from
floor 1" min.
above toekick
A

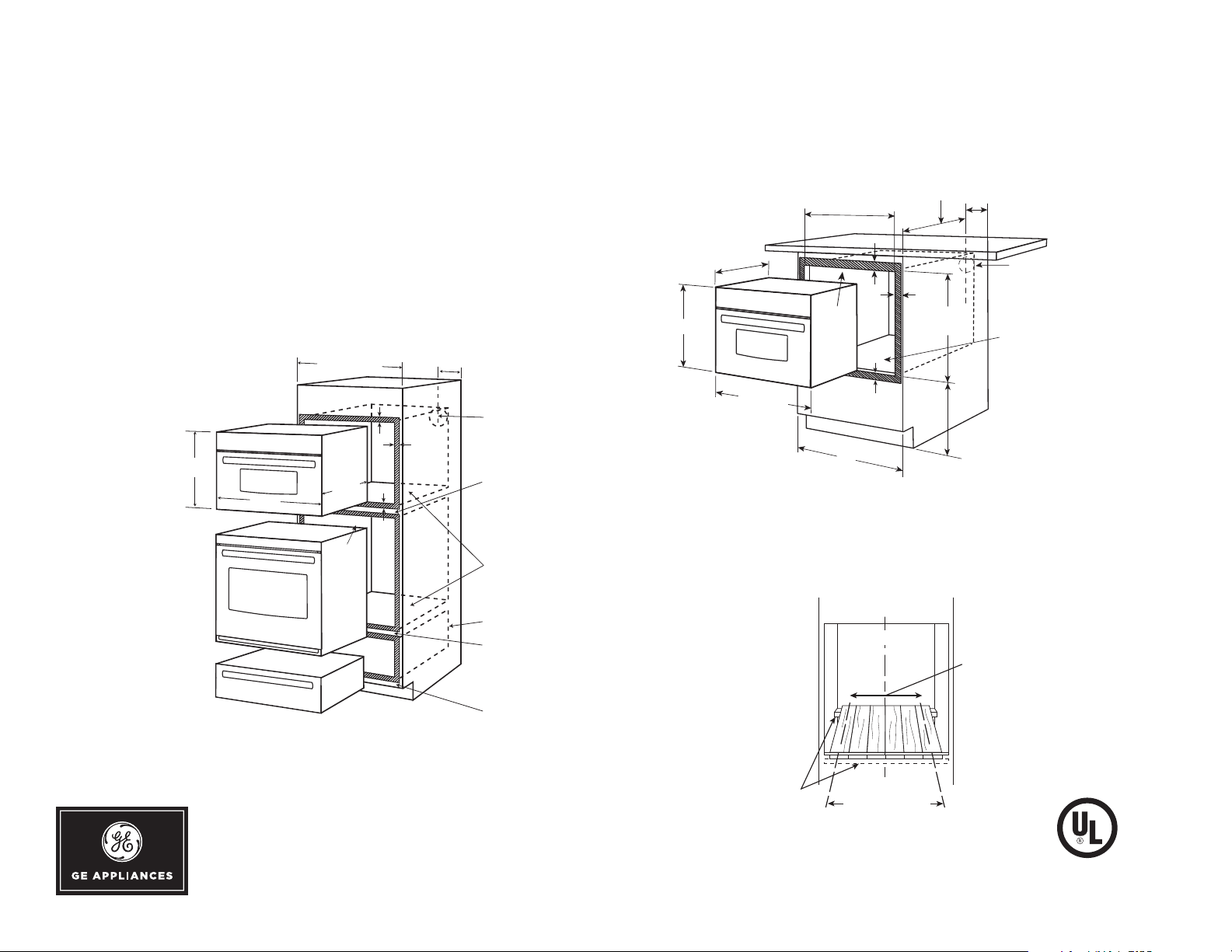

Advantium Wall Oven Dimensions (in inches)and
Cabinet Installation (in inches)
Note: Cabinets installed adjacent
to wall ovens must have an adhesion
spec of at least 194° F temperature rating.
23-1/2"
Cutout depth
Construct Solid Bottom
MIN. 3/8" Plywood
Supported by 2 x 4
or 1 x 2 Runners,
all Four Sides.
(Platform must be
able to support cabinet
load, weight of oven,
and additional
oven loads)
A = The unit overlap is 1/2" but allow 5/8" clearance from top edge of cutout
B = The unit overlap is 2-1/4" but allow 2-3/8" clearance from side edges of cutout
C = The unit overlap is 1" but allow 1-1/8" clearance from bottom edge of cutout
C
4-3/16"
25-1/4"
Cutout width
Junction
box location
17-1/2"
Cutout height
29-3/4"
19"
21-1/2"
Back of Control
Conduit
(48-1/2"
long)
B
30"
5" min.from
floor 1" min.
above toekick
A
Advantium Wall Oven Dimensions (in inches)and
Cabinet Installation (in inches)
Note: Cabinets installed adjacent
to wall ovens must have an adhesion
spec of at least 194° F temperature rating.
23-1/2"
Cutout depth
Construct Solid Bottom
MIN. 3/8" Plywood
Supported by 2 x 4
or 1 x 2 Runners,
all Four Sides.
(Platform must be
able to support cabinet
load, weight of oven,
and additional
oven loads)
A = The unit overlap is 1/2" but allow 5/8" clearance from top edge of cutout
B = The unit overlap is 2-1/4" but allow 2-3/8" clearance from side edges of cutout
C = The unit overlap is 1" but allow 1-1/8" clearance from bottom edge of cutout
1" Min. above toekick or adjust
to oven installation height
2" MIN between cutouts
3" MIN between cutouts
recommended—2" MIN required
Cutout height and width
per drawer requirements
Junction box location
A
B
Construct Solid Bottom
MIN 3/8" Plywood Supported by
2 x 4 or 1 x 2 Runners, all Four Sides.
(Each platform must be able to support
cabinet load, weight of oven, and
additional oven loads)
4-3/16"
Conduit
(46" long)
Cabinet width
21-1/2"
To back
of Control
19"
29-3/4"
C
C
C
L
2x4’s or
equivalent
solid floor
21-5/8"
over centerline
of cabinet
4-3/16"
25-1/4"
Cutout width
Junction
box location
17-1/2"
Cutout height
29-3/4"
19"
21-1/2"
Back of Control
Conduit
(48-1/2"
long)
B
30"
5" min.from
floor 1" min.
above toekick
A
Advantium Wall Oven Dimensions (in inches)and
Cabinet Installation (in inches)
Note: Cabinets installed adjacent
to wall ovens must have an adhesion
spec of at least 194° F temperature rating.
23-1/2"
Cutout depth
Construct Solid Bottom
MIN. 3/8" Plywood
Supported by 2 x 4
or 1 x 2 Runners,
all Four Sides.
(Platform must be
able to support cabinet
load, weight of oven,
and additional
oven loads)
A = The unit overlap is 1/2" but allow 5/8" clearance from top edge of cutout
B = The unit overlap is 2-1/4" but allow 2-3/8" clearance from side edges of cutout
C = The unit overlap is 1" but allow 1-1/8" clearance from bottom edge of cutout
29-3/4"

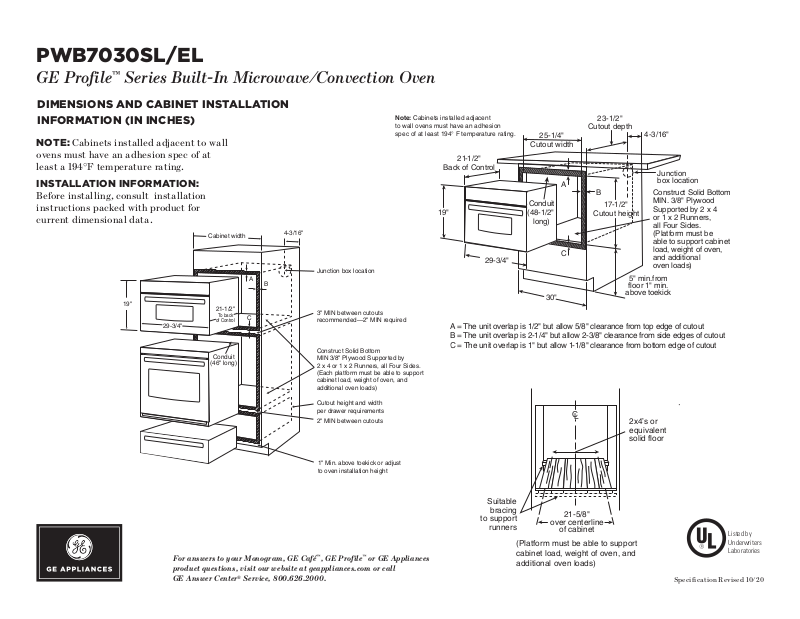

GE Profile
™
Series Built-In Microwave/Convection Oven
DIMENSIONS AND CABINET INSTALLATION
INFORMATION (IN INCHES)
NOTE: Cabinets installed adjacent to wall
ovens must have an adhesion spec of at
least a 194°F temperature rating.
INS TA LLATI O N IN F O RMATI O N:
Before installing, consult installation
instructions packed with product for
current dimensional data.
For answers to your Monogram, GE Café™, GE Profile™ or GE Appliances
product questions, visit our website at geappliances.com or call
GE Answer Center® Service, 800.626.2000.
Suitable
bracing
to support
runners
C
L
21-5/8"
over centerline
of cabinet
(Platform must be able to support
cabinet load, weight of oven, and
additional oven loads)
2x4’s or
equivalent
solid floor
Listed by
Underwriters
Laboratories
Speci fication Revised 10/20
Page 2

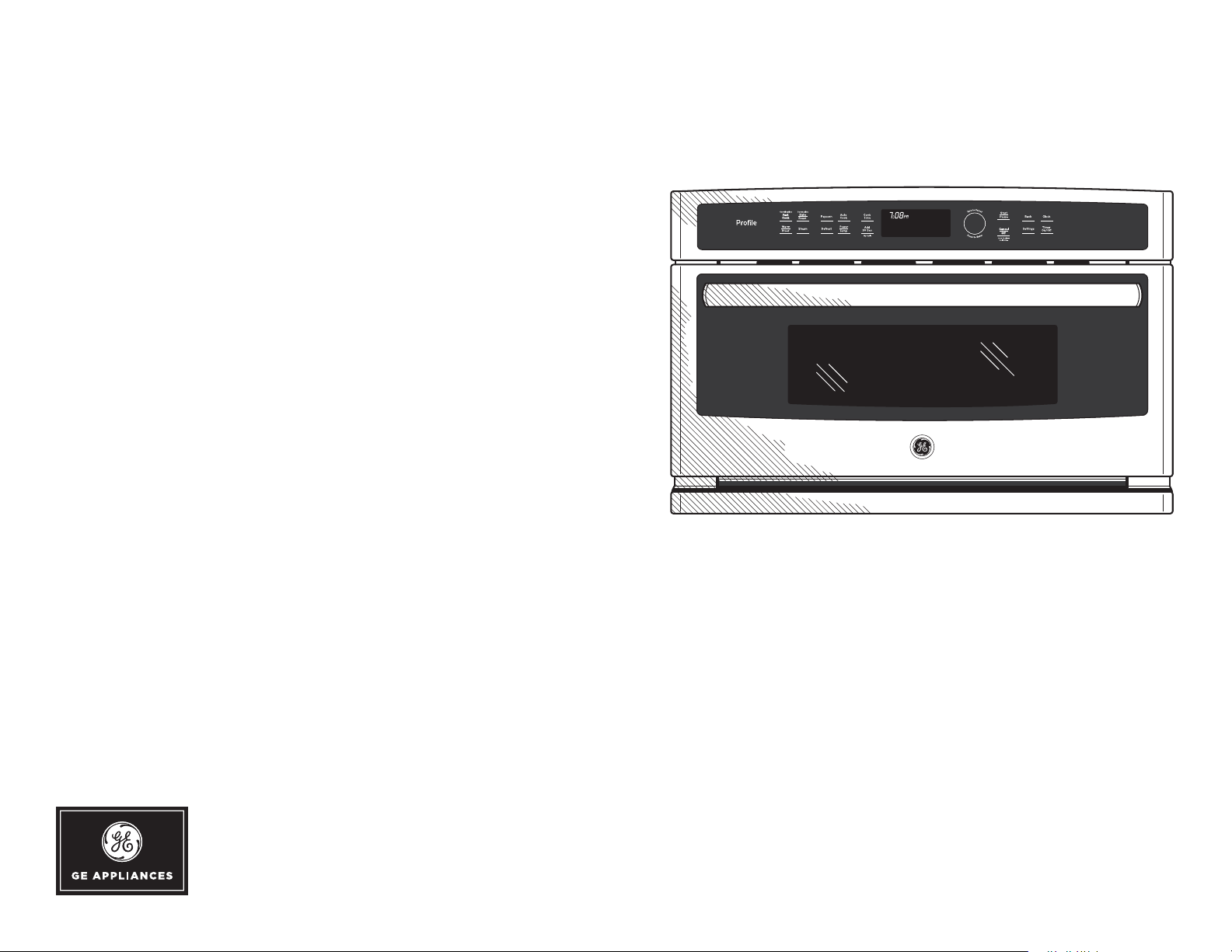

PWB7030SL/EL
GE Profile
FEATURES AND BENEFITS
1.7 cu. ft. capacity - 975 microwave watts (IEC test procedure) and
1500 convection watts
Convection cooking - Choose this setting when baking or
browning is desired
Combination Fast Cook setting - Combining microwave and
radiant heat for speed
Steam cook button - Perfectly prepare your steamed favorites
Glass touch controls - Glass touch controls offer a sleek console
that is both easy to use and clean
My Cycle - Create a custom cook time setting, and with one touch,
cook your favorite dish just the way you like
Warming and Proofing oven - Keep foods hot and ready to serve
in the warming oven or use the proofing oven to provide the ideal
environment for bread to rise
120 Volts - Plugs into any wall outlet
™
Series Built-In Microwave/Convection Oven
Convection rack - Achieve golden-brown results
Model PWB7030SLSS - Stainless steel
Model PWB7030ELES - Slate
