GE PVW7361SJ, PVW7361EJ Specification
18-1/2"
10-3/16"
11-3/4"
36"
*Height
to
Ceiling
1-3/4"
36" models require a 36"-wide opening
(10' with optional high ceiling kit JX10DC73)
24" Min
18-1/2"
10-3/16"
11-3/4"
36"
*Height
to
Ceiling
1-3/4"
36" models require a 36"-wide opening
*The supplied duct cover fits 7'-5" to 9'-3" ceiling heights
(10' with optional high ceiling kit JX10DC73)

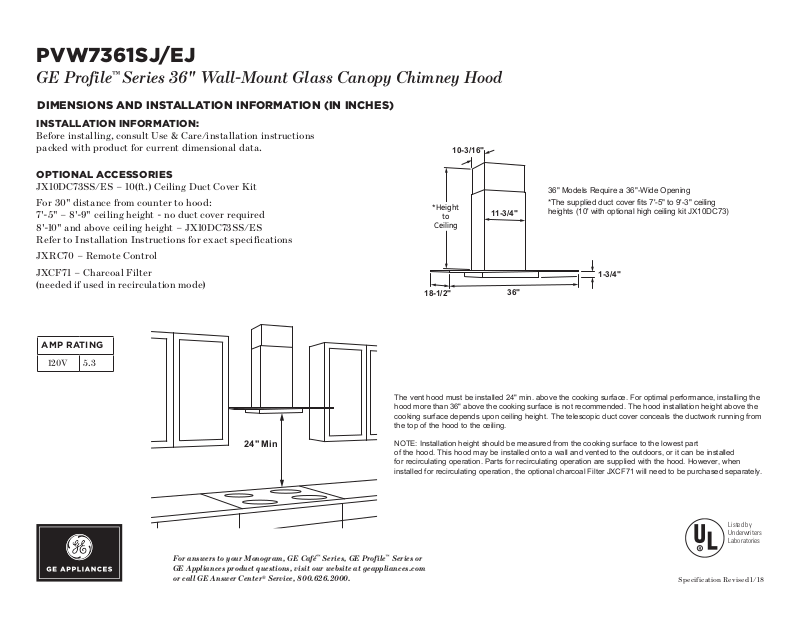

PVW7361SJ/EJ
GE Profile™ Series 36" Wall-Mount Glass Canopy Chimney Hood
DIMENSIONS AND INSTALLATION INFORMATION (IN INCHES)
INS TA LLATI O N IN F O RMATI O N:
Before installing, consult Use & Care/installation instructions
packed with product for current dimensional data.
OPTIONAL ACCESSORIES
JX10DC73SS/ES – 10(ft.) Ceiling Duct Cover Kit
For 30" distance from counter to hood:
7'-5" – 8'-9" ceiling height - no duct cover required
8'-10" and above ceiling height – JX10DC73SS/ES
Refer to Installation Instructions for exact specifications
JXRC70 – Remote Control
JXCF71 – Charcoal Filter
10-3/16"
*Height
to
Ceiling
(needed if used in recirculation mode)
18-1/2"
AMP RATING
120V 5.3
11-3/4"
36"
36" Models Require a 36"-Wide Opening
*The supplied duct cover fits 7'-5" to 9'-3" ceiling
heights (10' with optional high ceiling kit JX10DC73)
1-3/4"
For answers to your Monogram, GE Café™ Series, GE Profile™ Series or
GE Appliances product questions, visit our website at geappliances.com
or call GE Answer Center® Service, 800.626.2000.
24" Min
The vent hood must be installed 24" min. above the cooking surface. For optimal performance, installing the
hood more than 36" above the cooking surface is not recommended. The hood installation height above the
cooking surface depends upon ceiling height. The telescopic duct cover conceals the ductwork running from
the top of the hood to the ceiling.
NOTE: Installation height should be measured from the cooking surface to the lowest part
of the hood. This hood may be installed onto a wall and vented to the outdoors, or it can be installed
for recirculating operation. Parts for recirculating operation are supplied with the hood. However, when
installed for recirculating operation, the optional charcoal Filter JXCF71 will need to be purchased separately.
Listed by
Underwriters
Laboratories
Speci fication Revised 1/18
PVW7361SJ/EJ
GE Profile™ Series 36" Wall-Mount Glass Canopy Chimney Hood
FEATURES AND BENEFITS
350-CFM venting system with boost – Effectively remove smoke, grease,
odor and moisture
Electronic backlit controls – Add a sophisticated look with this up-front,
easy-to-use display
Dual halogen cooktop light – Enjoy better visibility with a brightly lit cooktop
and surrounding surface
Night light – Keep a dim light on for visibility at all hours
Convertible venting options – Select recirculating or external venting
Remote control option – Control your ventilation lighting and fan speed
from anywhere in the kitchen
Model PVW7361SJSS – Stainless steel
Model PVW7361EJES – Slate
For answers to your Monogram, GE Café™ Series, GE Profile™ Series or
GE Appliances product questions, visit our website at geappliances.com
or call GE Answer Center® Service, 800.626.2000.
Speci fication Revised 1/18
