PVM9005EJ
66" MIN.
Mounting
height
from
oor
30"
MIN.
width
required
Exhaust outlet
connects to
3-1/4" X 10" duct
17-1/8"
(rear)
100°
Door open
(without obstruction)
16-5/32"
30
"
16-1/2"
29 15/16"
Minimum distance from
door hinge side to
adjacent wall should
equal 3/4 inch.
14 5/8"
MAX.
11 1/2"
MIN.*
*Maximum depth
with JX15
Bump Out Kit is 16
".
Bump Out Kit
sold separately.
GE Profile™ Series 2.1 cu. ft. Over-the-Range Sensor Microwave Oven

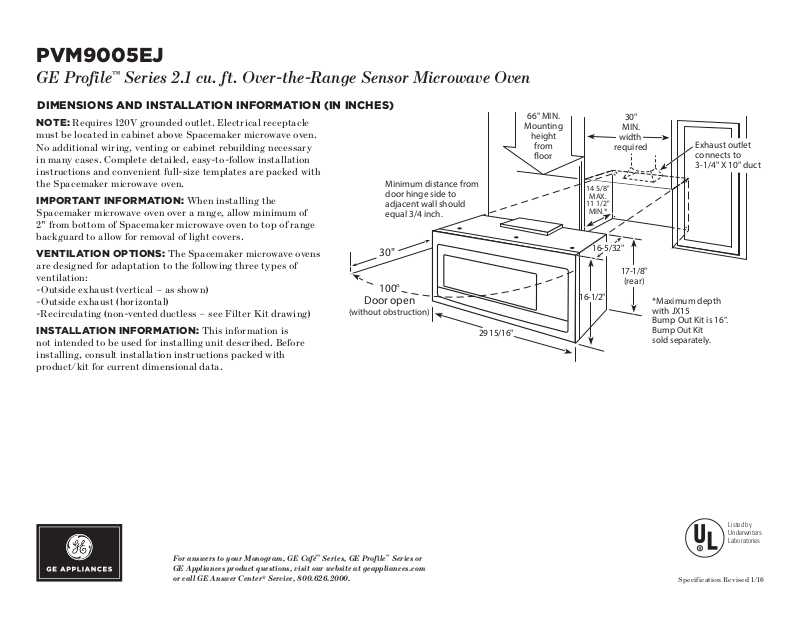

DIMENSIONS AND INSTALLATION INFORMATION (IN INCHES)
NOTE: Requires 120V grounded outlet. Electrical receptacle
must be located in cabinet above Spacemaker microwave oven.
No additional wiring, venting or cabinet rebuilding necessary
in many cases. Complete detailed, easy-to-follow installation
instructions and convenient full-size templates are packed with
the Spacemaker microwave oven.
IMPORTANT INFORMATION: When installing the
Spacemaker microwave oven over a range, allow minimum of
2" from bottom of Spacemaker microwave oven to top of range
backguard to allow for removal of light covers.
VENTILATION OPTIONS: The Spacemaker microwave ovens
are designed for adaptation to the following three types of
ventilation:
-Outside exhaust (vertical – as shown)
-Outside exhaust (horizontal)
-Recirculating (non-vented ductless – see Filter Kit drawing)
INSTALL ATION IN F O R MATION : This information is
not intended to be used for installing unit described. Before
installing, consult installation instructions packed with
product/kit for current dimensional data.
For answers to your Monogram, GE Café™ Series, GE Profile™ Series or
GE Appliances product questions, visit our website at geappliances.com
or call GE Answer Center® Service, 800.626.2000.
Listed by
Underwriters
Laboratories
Speci fication Revised 1/16
Page 2
PVM9005EJ
GE Profile™ Series 2.1 cu. ft. Over-the-Range Sensor Microwave Oven
DIMENSIONS AND INSTALLATION INFORMATION (IN INCHES)
DIMENSIONS AND INSTALLATION INFORMATION (IN INCHES)
HOOD EXHAUST DUCT: Outside ventilation requires a HOOD
EXHAUST DUCT. Read the following carefully.
EXHAUST CONNECTION: The hood exhaust has been designed to mate
with a standard 3-1/4" x 10" rectangular duct. If a round duct is required, a
rectangular-to-round transition adaptor must be used. Do not use less than a
6" diameter duct
REAR EXHAUST: If a rear or horizontal exhaust is to be used, care should be
taken to align exhaust with space between studs, or wall should be prepared
at the time it is constructed by leaving enough space between the wall studs to
accommodate exhaust.
MAXIMUM DUCT LENGTH: For satisfactory air movement, the total duct
length of 3-1/4" x 10" rectangular or 6" diameter round duct should not exceed
140 equivalent feet.
ELBOWS, TRANSITIONS, WALL AND ROOF CAPS, etc., present
additional resistance to airf low and are equivalent to a section of straight
duct which is longer than their actual physical size. When calculating the total
duct length, add the equivalent length of all transitions and adaptors plus the
lengths of all straight duct sections. The chart below shows the approximate
feet of equivalent length of some typical ducts.
DUCT EQUIVALENT FEET
A. Rectangular-To-round
Transition Adaptor 5 ft.
B. Wal l C a p 40 ft.
C. 90° Elbow 10 ft.
D. 45° Elbow 5 ft.
E. 90° Elbow 25 ft.
F. 45° Elbow 5 ft.
G. Roof Cap 24 ft.
OPTIONAL ACCESSORIES (AVAILABLE AT ADDITIONAL COST)
Filter Kit JX81C–
Recirculating Charcoal
Filter Kit To be used
when the microwave
oven cannot be vented
to the outside.
For answers to your Monogram, GE Café™ Series, GE Profile™ Series or
GE Appliances product questions, visit our website at geappliances.com
or call GE Answer Center® Service, 800.626.2000.
Listed by
Underwriters
Laboratories
Speci fication Revised 1/16
Page 3
PVM9005EJ
GE Profile™ Series 2.1 cu. ft. Over-the-Range Sensor Microwave Oven
FEATURES AND BENEFITS
2.1 cu. ft. capacity – 1050 Watts (IEC-705 test procedure)
Chef Connect – Three options with a single touch. For instant convenience, choose
when to automatically sync clocks and the range burners with the microwave's
surface light and vent
Bottom control with integrated handle – Enjoy a sleek appearance that makes
cleaning easy
Upfront charcoal filter with indicator light – Light indicates when odor-removing
charcoal filter needs to be replaced
Three-speed, 400-CFM venting system – Removes smoke, steam and odors
10 power levels – Multiple power levels offer cooking flexibility
"Add 30 seconds" button – Add 30 seconds of microwave cooking time
Turntable On/Off – Controls turntable operation
Sensor cooking controls – Automatically adjusts time and power
Model PVM9005EJES – Slate
Listed by
Underwriters
Laboratories
Speci fication Revised 1/16
