GE PVM1870SM User Manual

66" MIN.

Mounting

height

from
floor

30"

MIN.

width

required

Exhaust outlet

connects to

3-1/4" X 10" duct

16-29/32

(rear)

105°

Door open

15-29/32

24-1/2

16-9/16

29-7/8

Dimensions (in inches)

Over-the-Range Microwave Oven

Minimum distance from
door hinge side to adjacent
wall should equal 1/2-inch.

(without
obstruction)

13"

MAX.

12"

MIN.

PVM1870SM

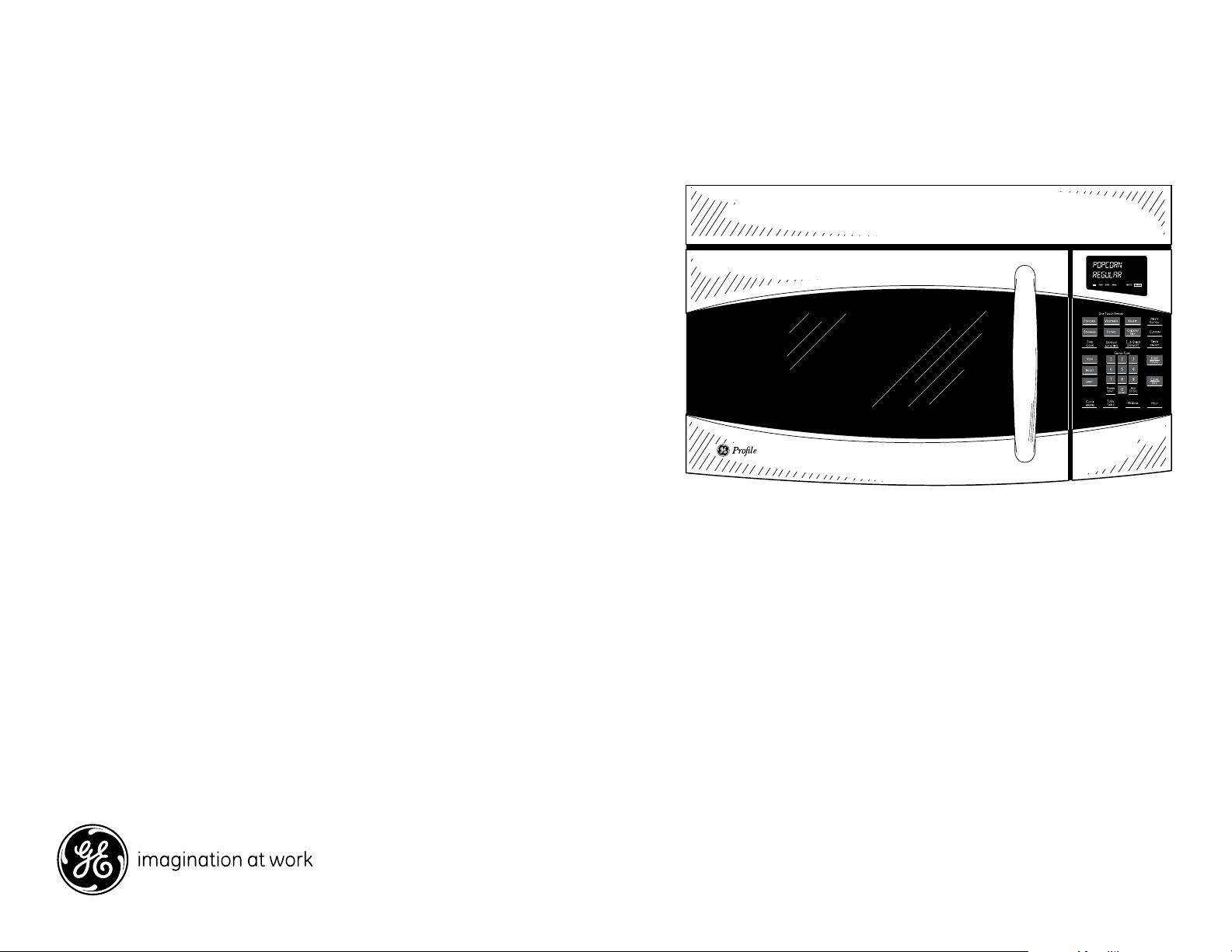

GE Profile™ Spacemaker® 1.8 Cu. Ft. XL1800 Over-the-Range Microwave Oven

Dimensions and Installation Information (in inches)

Note: Requires 120V grounded outlet. Electrical receptacle must be

located in cabinet above Spacemaker microwave oven. No additional
wiring, venting or cabinet rebuilding necessary in many cases. Complete
detailed, easy-to-follow installation instructions and convenient full-size
templates are packed with the Spacemaker microwave oven.

Important Information: When installing the Spacemaker microwave
oven over a range, allow minimum of 2” from bottom of Spacemaker
microwave oven to top of range backguard to allow for removal
of light covers.

Installation Information: This information is not intended to be used for
installing unit described. Before installing, consult installation instructions
packed with product/kit for current dimensional data.

For answers to your Monogram,® GE Profile™ or
GE® appliance questions, visit our website at
ge.com or call GE Answer Center® service,

800.626.2000.

Specification Created 7/07

Listed by
Underwriters
Laboratories

240263

PVM1870SM

Decorative Panel Kits

19

30

3/8

depth

GE Profile™ Spacemaker® 1.8 Cu. Ft. XL1800 Over-the-Range Microwave Oven

Optional Accessories (Available at additional cost)

Hood Exhaust Duct: Outside ventilation requires a HOOD EXHAUST DUCT. Read the

following carefully.

Exhaust Connection: The hood exhaust has been designed to mate with a standard
3-1/4" x 10" rectangular duct. If a round duct is required, a rectangular-to-round
transition adaptor must be used. Do not use less than a 6" diameter duct.

Rear Exhaust: If a rear or horizontal exhaust is to be used, care should be taken to
align exhaust with space between studs, or wall should be prepared at the time it
is constructed by leaving enough space between the wall studs to accommodate
exhaust.

Maximum Duct Length: For satisfactory air movement, the total duct length of 3-1/4"
x 10" rectangular or 6" diameter round duct should not exceed 140 equivalent feet.

ELBOWS, TRANSITIONS, WALL AND ROOF CAPS: etc., present additional resistance to
airflow and are equivalent to a section of straight duct which is longer than their
actual physical size. When calculating the total duct length, add the equivalent length
of all transitions and adaptors plus the lengths of all straight duct sections. The chart
below shows the approximate feet of equivalent length of some typical ducts.

Duct Equivalent Feet

A. Rectangular-To-round

Transition Adaptor 5 ft.

B. Wall Cap 40 ft.

C. 90° Elbow 10 ft.

D. 45° Elbow 5 ft .

E. 90° Elbow 25 ft.

F. 45° Elbow 5 ft.

G. Roof Cap 24 ft.

Filler Panel Kits
JX40CT-Bisque
JX41–Black
JX40WH–White

When replacing a 36" or
42" range hood, this kit fills
in the additional width to
provide a custom built-in
appearance.
For installation between
cabinets only; not for
end-of-cabinet installation.
Each kit contains two
3"-wide filler panels. Two kits are
needed for a 42" opening.

JX22SS - Stainless Steel Decorative Panel
Kit When replacing a Hi/Low range with a

microwave/convection oven or Spacemaker
over a range model, this panel kit fills in the
area between the microwave and range left by
the H-Low model.

Filter Kits
JX81H–Recirculating

Charcoal Filter Kit

To be used when
the Spacemaker
microwave oven
cannot be vented
to the outside.

Listed by
Underwriters
Laboratories

Specification Created 7/07

240263
