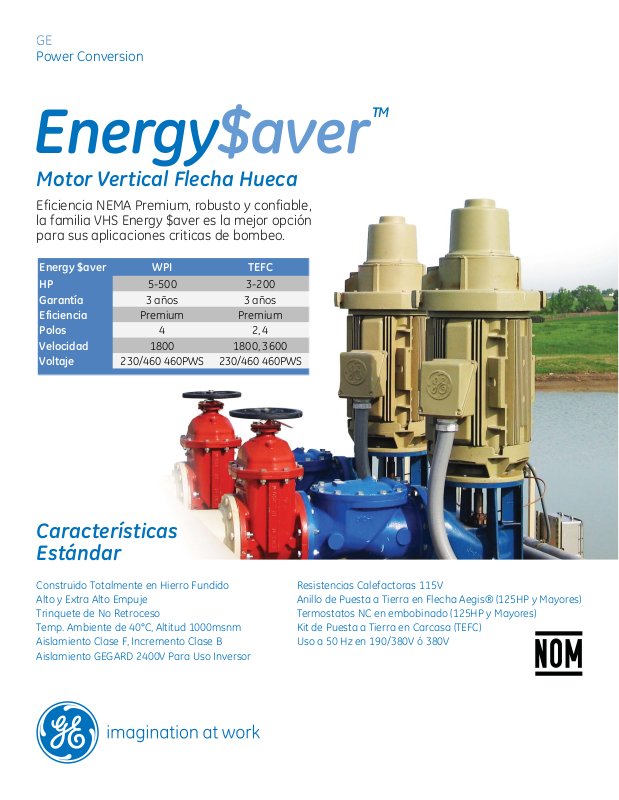

GE Pump Motors Fact Sheet
G
E
$aver
Energy $aver WPI TEFC
HP 5-500 3-200
Garantía 3 años 3 años
Eficiencia Premium Premium
Polos 42, 4
Velocidad 1800 1800, 3600
Voltaje 230/460 460PWS 230/460 460PWS
Power Conversion
Energy
Motor Vertical Flecha Hueca
Eficiencia NEMA Premium, robusto y confiable,
la familia VHS Energy $aver es la mejor opción
para sus aplicaciones criticas de bombeo.
TM
Características
Estándar
Construido Totalmente en Hierro Fundido
Alto y Extra Alto Empuje
Trinquete de No Retroceso
Temp. Ambiente de 40°C, Altitud 1000msnm
Aislamiento Clase F, Incremento Clase B
Aislamiento GEGARD 2400V Para Uso Inversor
Resistencias Calefactoras 115V
Anillo de Puesta a Tierra en Flecha Aegis® (125HP y Mayores)
Termostatos NC en embobinado (125HP y Mayores)
Kit de Puesta a Tierra en Carcasa (TEFC)
Uso a 50 Hz en 190/380V ó 380V
Energy $aver VHS
600 1800 460 PWS L511TP24 646.0 44796 4009 94.5 V953 $49,953 SRC ind 4380 67.9 74.32
(Totalmente cerrado con ventilación exterior)
HP RPM Volts armazón
5 3600 230/460 L213TP10 12.0/6.0 1663 42 88.5 V898 $2,395 $265 200 18.88 23.7
5 1800 230/460 L213TP10 13.2/6.6 2071 43 89.5 V899 $2,326 $265 200 18.88 23.7
7.5 3600 230/460 L213TP10 18.0/9.0 1658 58 89.5 V900 $2,434 $265 200 18.88 23.7
7.5 1800 230/460 L213TP10 18.4/9.2 2071 61 91.7 V901 $2,345 $265 200 18.88 23.7
10 3600 230/460 L215TP10 23.2/11.6 1658 76 90.2 V902 $2,637 $265 220 18.88 23.7
10 1800 230/460 L215TP10 24.4/12.2 2065 79 91.7 V903 $2,545 $265 220 18.88 23.7
15 3600 230/460 L254TP10 34.6/17.3 2070
15 1800 230/460 L254TP10 37.8/18.9 2570 109 92.4 V905 $3,589 $324 315 23.54 28.26
20 1800 230/460 L256TP10 47.6/23.8 2597 135 93 V906 $3,955 $324 350 23.54 28.26
25 1800 230/460 L284TP16 58.2/29.1 2976 175 93.6 V907 $4,573 $324 460 25.75 30.6
30 1800 230/460 L286TP16 69.4/34.11 2959 206 93.6 V908 $4,994 $324 510 25.75 30.6
40 1800 230/460 L324TP16 98.8/49.4 4148 298 94.1 V909 $6,667 $732 700 31.36 36.57
50 1800 230/460 L326TP16 123.8/61.9 4126 384 94.5 V910 $7,617 $732 740 31.36 36.57
60 1800 460 L364TP16 73.0 5288 435 95 V911 $9,692 $845 1050 35.04 40.88
75 1800 460 L365TP16 92.0 5288 530 95.4 V912 $11,587 $845 1050 35.04 40.88
100 1800 460 L405TP16 111.0 5086 682 95.4
125 1800 460 L444TP16 138.0 6816 891 95 V914 $21,334 $1,125 2050 47.37 53.54
150 1800 460 L445TP16 167.0 6816 1035 94.5 V915 $24,941 $1,125 2010 47.37 53.54
200 1800 460 L447TP16 218.0 11138 1384 95.4 V916 $33,201 $1,125 2800 55.67 62.04
Corriente a
Plena Carga
@ 460V
Empuje hacia
abajo (lb)
Thrust
Corriente
Arranque
Eficiencia
de
Nominal
109 91 V904 $2,957 $324 315 23.54 28.26
No. Cat
Precio de
lista
(Motor)
V913 $15,175 $845 1560 39.74 46.56
Precio de lista
(Acoplamiento)
Peso (lb)
CD Dim.
(in.)
Energy $aver VHS
(Protección Ambiental Tipo I)
HP RPM Volts armazón
5 1800 230/460 L213TP10 13.0/6.5 2092 43 91 V891 $2,322 $218 172 18.88 22.44
7.5 1800 230/460 L213TP10 18.6/9.3 2079 59 91 V892 $2,408 $218 172 18.88 22.44
10 1800 230/460 L215TP10 24.4/12.2 2071 74 91.7 V893 $2,452 $218 206 18.88 22.44
15 1800 230/460 L254TP10 36.0/18.0 2575 100 93 V894 $2,478 $229 280 23.54 26.72
20 1800 230/460 L256TP10 47.6/23.8 2575 130 93 V895 $2,777 $228 315 23.54 26.72
25 1800 230/460 L284TP16 58.2/29.1 2960 175 93.6 V896 $3,193 $234 420 23.54 29.57
30 1800 230/460 L286TP16 72.0/36
40 1800 230/460 L324TP16 98.8/49.4 4100 283 94.1 V881 $4,203 $732 700 31.36 36.93
50 1800 230/460 L326TP16 128.6/64.3 4100 410 94.5 V882 $5,047 $732 740 31.36 36.93
60 1800 460 PWS L364TP16 73.4 5294 405 95 V883 $6,162 $732 980 35.04 40.21
75 1800 460 PWS L365TP16 92.4 5200 516 95 V884 $7,233 $732 1060 35.04 40.21
100 1800 460 PWS L404TP16 111.0 7849 681 95 V885 $9,475 $845 1560 39.75 45.26
125 1800 460 PWS L405TP16 140.0 7849 785 95.4 V886 $11,570 $845 1590 39.75 45.26
150 1800 460 PWS L444TP20 165.0 8225 1194 95.8 V887 $14,095 $1,125 2050 47.3 53.44
200 1800 460 PWS L447TP20 218.0 8063 1319 95.8 V888 $18,197 $1,125 2580 55.8 61.94
250 1800 460 PWS L447TP20 276.0 7850 1787 95.
300 1800 460 PWS L449TP20 331.0 7850 1879 95.8 V890 $26,694 $1,125 2610 55.8 61.94
350 1800 460 PWS L449TP20 386.0 13345 2386 95.4 V850 $27,759 $1,125 2980 55.8 61.94
400 1800 460 PWS L449TP20 438.0 13345 2511 95.4 V851 $31,533 $1,125 2980 55.8 61.94
400 1800 460 PWS L449TP20 443.0 38720 2601.4 94.5 V951 $35,733 $1,125 2630 55.8 61.94
500 1800 460 PWS L509TP24 549.0 14807 3285 95 V852 $41,106 SRC ind 3570 59.9 66.32
500 1800 460 PWS L509TP24 553.0 45304 3284.6 95 V952 $44,453 SRC ind 3620 59.9 66.32
Corriente a
Plena Carga
@ 460V
Empuje hacia
abajo (lb)
Thrust
.0 2960 260 94.1 V897 $3,607 $234 470 23.54 29.57
Corriente
de
Arranque
Eficiencia
Nominal
No. Cat
8 V889 $22,998 $1,125 2580 55.8 61.94
Precio de
lista
(Motor)
Precio de lista
(Acoplamiento)
Peso (lb)
CD Dim.
(in.)
AG Dim.
(in.)
AG Dim.
(in.)
Contact your GE sales representative for more details.
www.gepowerconversion.com
“Energy $aver” is a trademark of General Electric Company
©2014 All Rights Reserved
GEA31078-SP (7/14)
800-541-7191
