PTS9200SN
28-5/8" (72.7) max.
28-1/2" (72.4) min.
1" (2.4) min.
Top Clearance
for Wall Oven
Beyond Cutout
1-1/4" (3.2) min.
Bottom Clearance
for Wall Oven
Beyond Cutout
Cutout Width
Cabinet Width
27-5/16" (69.4) max.
27-1/4" (69.2) min.
Cutout Width
26-1/2" (67.3)
Suggested Cutout
Location from Floor
31-1/4" min.
From top surface
of countertop to
top surface of
wall oven support
platform
2-1/2" min.
From front surface
of cabinet to front edge
of cooktop cutout
30"
Junction Box
Location, Right
Hand Side Only
(may be located in
Adjacent Cabinet)
22" (55.9) min.
to Bottom of
Junction Box
23-1/2" (59.7) min.
Cutout Depth
15" (38.1) min.
Open Door Clearance
NOTE: Opening
Between Inside
Walls Must be at
Least
28-1/2"
(72.4) wide
NOTE: Allow
1/4" (0.7)
clearances from
side edges of
oven door
9-1/2" (24.1) max.
2-1/2" MIN
INSTALLATION ABOVE A WALL OVEN

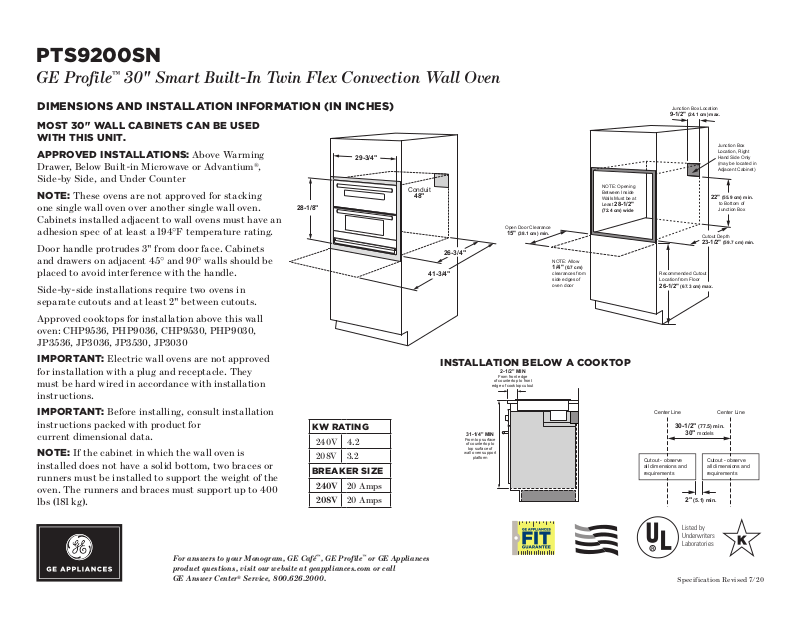

GE Profile™ 30" Smart Built-In Twin Flex Convection Wall Oven

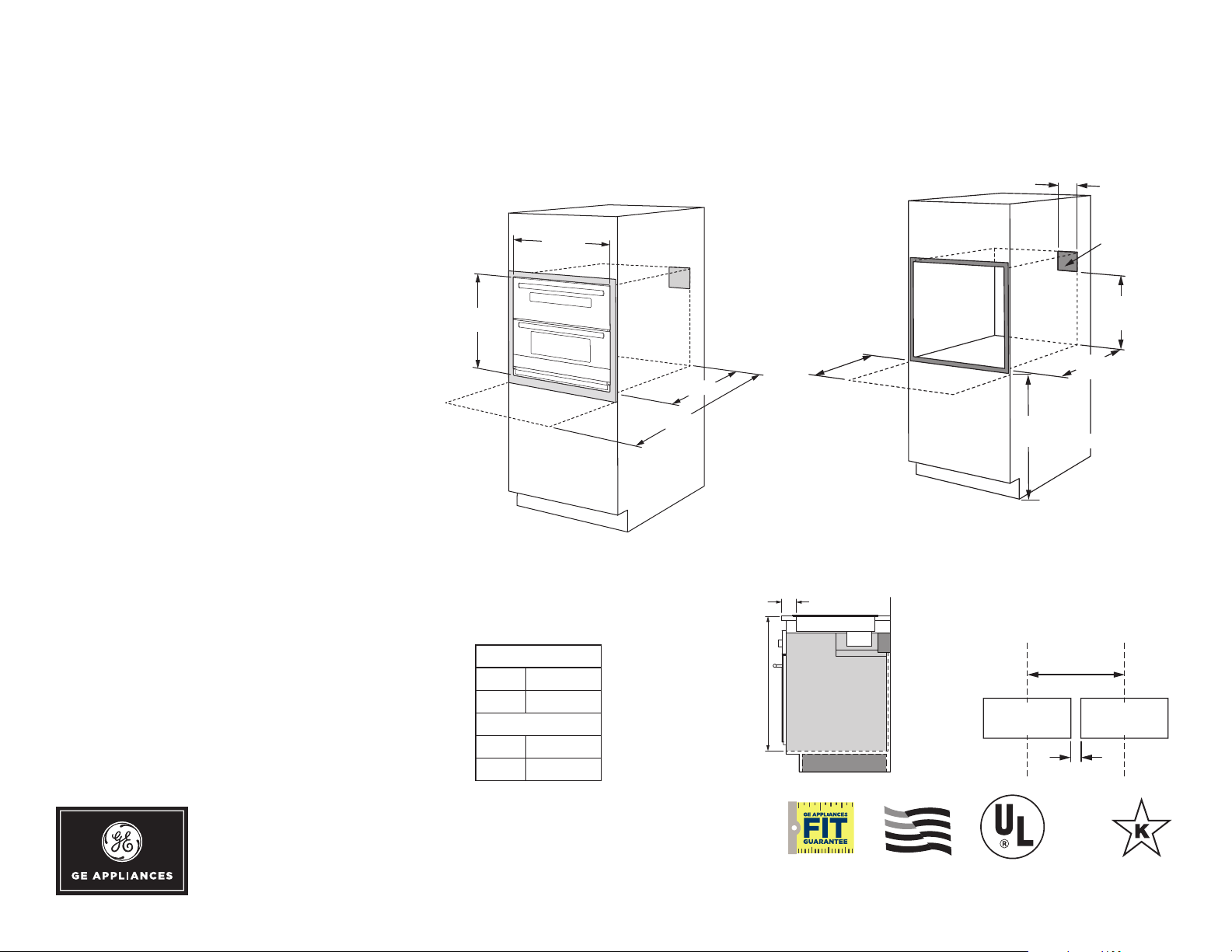

DIMENSIONS AND INSTALLATION INFORMATION (IN INCHES)
MOST 30" WALL CABINETS CAN BE USED
WITH THIS UNIT.
APPROVED INSTALLATIONS: Above Warming
Drawer, Below Built-in Microwave or Advantium®,
Side-by Side, and Under Counter
NOTE: These ovens are not approved for stacking
one single wall oven over another single wall oven.
Cabinets installed adjacent to wall ovens must have an
adhesion spec of at least a 194°F temperature rating.
Door handle protrudes 3" from door face. Cabinets
and drawers on adjacent 45° and 90° walls should be
placed to avoid interference with the handle.
Side-by-side installations require two ovens in
separate cutouts and at least 2" between cutouts.
Approved cooktops for installation above this wall
oven: CHP9536, PHP9036, CHP9530, PHP9030,
JP3536, JP3036, JP3530, JP3030
IMPORTANT: Electric wall ovens are not approved
for installation with a plug and receptacle. They
must be hard wired in accordance with installation
instructions.
IMPORTANT: Before installing, consult installation
instructions packed with product for
current dimensional data.
NOTE: If the cabinet in which the wall oven is
installed does not have a solid bottom, two braces or
runners must be installed to support the weight of the
oven. The runners and braces must support up to 400
lbs (181 kg).
28-1/8"
29-3/4"
KW R ATI N G
240V 4.2
208V 3.2
BREAKER SIZE
24 0V 20 Amps
208V 20 Amps
Conduit
48"
26-3/4"
41-3/4"
Open Door Clearance
15" (38.1 cm) min.
NOTE: Allow
1/4" (0.7 cm)
clearances from
side edges of
oven door
INSTALLATION BELOW A COOKTOP
From front edge
of countertop to front
edge of cooktop cutout
31-1/4" MIN
From top surface
of countertop to
top surface of
wall oven support
platform
NOTE: Opening
Between Inside
Walls Must be at
Least
28-1/2"
(72.4 cm) wide
Junction Box Location
9-1/2" (24.1 cm) max.
22" (55.9 cm) min.
Cutout Depth
23-1/2" (59.7 cm) min.
Recommended Cutout
Location from Floor
26-1/2" (67.3 cm) max.
Center Line Center Line
30-1/2" (77.5) min.
30" models
Cutout - observe
all dimensions and
requirements
Cutout - observe
all dimensions and
requirements
2" (5.1) min.
Junction Box
Location, Right
Hand Side Only
(may be located in
Adjacent Cabinet)
to Bottom of
Junction Box
For answers to your Monogram, GE Café™, GE Profile™ or GE Appliances
product questions, visit our website at geappliances.com or call
GE Answer Center® Service, 800.626.2000.
Listed by
Underwriters
Laboratories
Specification Revised 7/20
Page 2
PTS9200SN
GE Profile™ 30" Smart Built-In Twin Flex Convection Wall Oven
FEATURES AND BENEFITS
Two-In-One Oven - Cook two things in the oven at once, at two different
temperatures, so that your entire meal will be done on time.
Fast Preheat - Preheat the oven quickly and cut down on preheat time with
a speedy preheat feature.
Built-in WiFi - This smart oven features built-in WiFi so you can control
oven functions with the SmartHQ app on your smart device.
Large Capacity Oven - Cook an entire meal at once with a 5.0 cubic foot
(2.2 upper, 2.8 lower) oven which provides enough room for multiple
dishes.
True European Convection with Precise Air - This oven features True
European Convection, an advanced convection system that uses a third
heating element and reversing fan for the highest level of heat and air
circulation (lower oven).
Fit Guarantee - This oven will fit your existing cut-out, or GE Appliances
will help pay for modifications up to $300.
Full-Color Display - Easily navigate wall oven settings thanks to a 7"
touchscreen display.
Easy-Glide, Never-Scrub Rack - This smooth-gliding oven rack can be left
in the oven during the self-clean cycle so you never have to scrub.
Temperature Probe - A precision temperature probe connects to the oven to
ensure your food is properly cooked
Model PTS9200SNSS – Stainless steel
Visit geappliances.com for more info
Specification Revised 7/20
