PTS22SCS
Front View Top View
A
G
E
C
F
'94 TMNF Refer
B
D
H

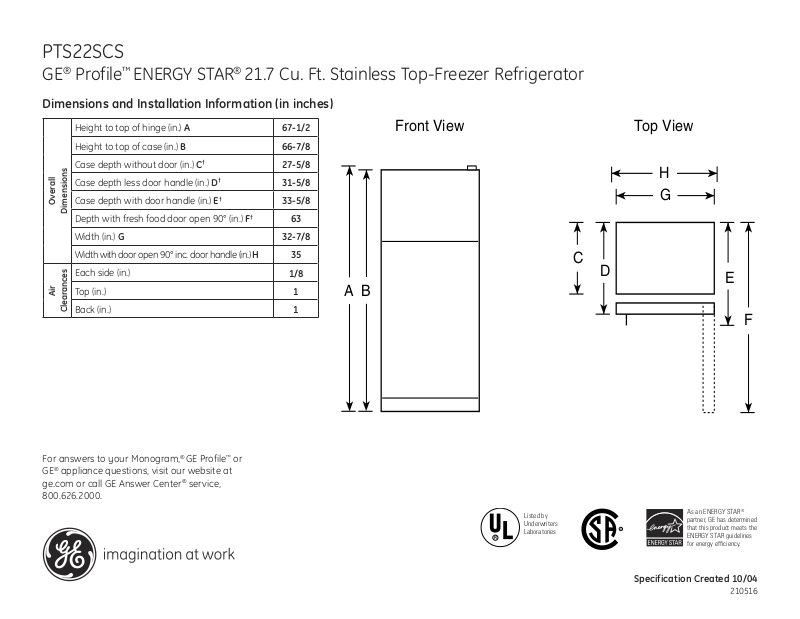

GE® Profile™ ENERGY STAR® 21.7 Cu. Ft. Stainless Top-Freezer Refrigerator
Dimensions and Installation Information (in inches)
Height to top of hinge (in.) A 67-1/2
Height to top of case (in.) B 66-7/8
Case depth without door (in.) C
Case depth less door handle (in.) D
Case depth with door handle (in.) E
Overall
Dimensions
Depth with fresh food door open 90° (in.) F
Width (in.) G 32-7/8
Width with door open 90° inc. door handle (in.) H 35
†
†
†
†
27-5/8
31-5/8
33-5/8
63
Each side (in.)
Top (in.)
Air
Clearances
Back (in.)
For answers to your Monogram,® GE Profile™ or
GE® appliance questions, visit our website at
ge.com or call GE Answer Center® service,
800.626.2000.
1/8
1
1
Listed by
Underwriters
Laboratories
As an ENERGY STAR®
partner, GE has determined
that this product meets the
ENERGY STAR guidelines
for energy efficiency.
Specification Created 10/04
210516
PTS22SCS
GE® Profile™ ENERGY STAR® 21.7 Cu. Ft. Stainless Top-Freezer Refrigerator
Features and Benefits
• Stainless Steel - Convey a look of utmost polish and sophistication
• ClimateKeeper™ Temperature Management System - Digital controls and electronic
sensors give you a greater degree of control over food preservation
• Upfront Electronic Digital Display - Clearly displays exact temperatures for the fresh food
and freezer compartments
• Factory-Installed Icemaker - Makes ice automatically ensuring a ready supply
• Slide-Out, Spillproof Glass Shelves - Shelves slide out, and spills stay put
• FrostGuard™ Technology - Reduces freezer burn, so foods retain their texture and flavor
• ClearLook™ Adjustable Gallon Door Bins - Store gallon containers with ease
• Tilt-Out Freezer Bin - Moves forward for convenient access
• Adjustable Temperature Deli Drawer - Keep meats and cheeses fresher, longer
• Adjustable Humidity Vegetable/Fruit Crispers - Provide the ideal storage environment for
fruits and vegetables
• ShelfSaver™ Rack - Provides convenient storage for a 12-pack, two egg cartons or a
9” by 13” casserole dish
• NeverClean™ Condenser - Condenser coils are encased, so they don’t require cleaning
in normal operating environments
• Premium Quiet Design - GE’s most advanced sound control system
• Model PTS22SCSSS - Stainless steel
As an ENERGY STAR®
partner, GE has determined
that this product meets the
ENERGY STAR guidelines
for energy efficiency.
Specification Created 10/04
210516
