GE PTI22SFM Specification
TM
Specification Revised 7/01
PTI22SFM - GE Profile™21.7 Cu. Ft. CustomStyle™Top-Freezer Refrigerator with Dispenser

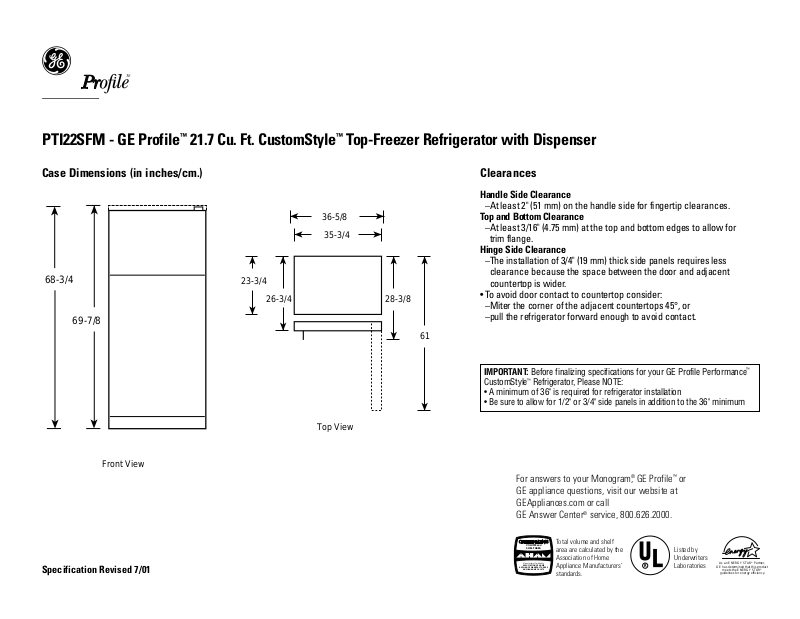

Case Dimensions (in inches/cm.)
Top View
Front View
68-3/4
69-7/8
35-3/4
28-3/8
23-3/4
61
26-3/4
36-5/8
Handle Side Clearance
–At least 2" (51 mm) on the handle side for fingertip clearances.
Top and Bottom Clearance
–At least 3/16" (4.75 mm) at the top and bottom edges to allow for
trim flange.
Hinge Side Clearance
–The installation of 3/4" (19 mm) thick side panels requires less
clearance because the space between the door and adjacent
countertop is wider.
• To avoid door contact to countertop consider:
–Miter the corner of the adjacent countertops 45°, or
–pull the refrigerator forward enough to avoid contact.
IMPORTANT: Before finalizing specifications for your GE Profile Performance
™
CustomStyle™Refrigerator, Please NOTE:
• A minimum of 36" is required for refrigerator installation
• Be sure to allow for 1/2" or 3/4" side panels in addition to the 36" minimum
Clearances
Manufacturer Certified to
ASSOCIATION OF HOME
APPLIANCE MANUFACTURERS
ANSI/AHAN HRF-1-1979
VOLUME and
SHELF AREA
R
Total volume and shelf
area are calculated by the
Association of Home
Appliance Manufacturers’
standards.
Listed by
Underwriters
Laboratories
For answers to your Monogram,® GE Profile™or
GE appliance questions, visit our website at
GEAppliances.com or call
GE Answer Center®service, 800.626.2000.
As an ENERGY STAR® Partner,
GE has determined that this product
meets the ENERGY STAR®
guidelines for energy efficiency.
TM
Specification Revised 7/01
PTI22SFM - GE Profile™21.7 Cu. Ft. CustomStyle™Top-Freezer Refrigerator with Dispenser
Rough-In Dimensions (in inches)
70-1/4"
36"
24"
Standard, New Construction and
Replacement Installation
Installation Tips to Maximize
the Built-In Look
•All wall/floor moulding should be
removed prior to installation.
•Water recess on rear wall
recommended to prevent water
line damage. 48" minimum length
1/4" diameter water line tubing
recommended.
•When possible, recess both water
line and electrical outlet. (See
local codes)
•Front and rear leveling legs are
adjustable for the “Built-In” look.
(See owner’s manual)
* 22” depth applies to the refrigerator
opening, not the acctual cabinet
depth.
25"
Counter
Top
ElectricalWater
3/4" Airspace
(1/2" Gap + 1/4"
Wall Plates)
24"
Cabinet
8' Ceiling
13" to 14"
Cabinet
12"
Soffit
70-1/4"*
36-1/8"
24-1/2"
An enclosure is required to match up to the
trim, see Typical Installation. To obtain the most
integrated look, the cabinet or soffit above the
refrigerator should extend out to the same
depth as the side panels. The refrigerator
opening must have minimum dimensions of
70-1/4" high x 36-1/8" wide x 24-1/2" deep as
shown at right. If there is an overhead cabinet,
allow 1" for cabinet door clearance with the top
trim piece so the cabinet doors can be opened
without hitting the top trim. If 1/2" side panels
are used, then side trim and panel will be even.
If 3/4" side panels are used, then some of the
side panel will extend beyond the trim and must
be finished.
Collar Trim Installation
*The rough-in dimension of 70-1/4" is minimum
and is measured from the finished floor to
top of opening (or the underside of the
overhead cabinets).
For answers to your Monogram,® GE Profile™or
GE appliance questions, visit our website at
GEAppliances.com or call
GE Answer Center®service, 800.626.2000.
Case
Overhead
Cabinet
Top
Trim
Cabinet
Door
1"
Magnetic
Tape
3/4" Cabinet
Side Panel
1/2" Cabinet
Side Panel
Refrigerator
Case
Side Trim
Side trim must be installed
flush with the gasket contact
surface on the case.
Door Gasket
For Models with Trim Kit: If frameless style
cabinets are planned for above the refrigerator,
you may need to consider adding a maximum
of 1/4" (70-1/2") to height of opening to allow
additional clearance between cabinet doors and
top of refrigerator trim when cabinet doors are
in open position.
Manufacturer Certified to
ASSOCIATION OF HOME
APPLIANCE MANUFACTURERS
ANSI/AHAN HRF-1-1979
VOLUME and
SHELF AREA
R
Total volume and shelf
area are calculated by the
Association of Home
Appliance Manufacturers’
standards.
Listed by
Underwriters
Laboratories
As an ENERGY STAR® Partner,
GE has determined that this product
meets the ENERGY STAR
®
guidelines for energy efficiency.
