PT960BM/WM
21" minimum
Door Opening
Allowance
B
B
A
A
Cutout height
51-13/16" MIN.
51-15/16" MAX.
Minimum cutout location
12" from the floor.
Cutout depth
23-1/2" MIN
5
47" to
bottom of
junction box
Cutout width
28-1/2'' MIN.
28-5/8'' MAX.
21
Cabinet
width 30"
C
E
D
MOST 30'' WALL CABINETS CAN BE USED WITH THIS UNIT.
THE OPENING BETWEEN THE INSIDE WALLS MUST BE AT LEAST 28-1/2'' WIDE.
Conduit
(72"
long)
Junction box
location
C
L
2 x 4 or
equivalent
runners
Suitable
bracing
to support
runners
21-5/8"
over centerline
of cabinet
(must support 325 lbs.)
Cabinet 30"
A – Overlap of oven over side of edges of cutout 11/16"-3/4"
B – Overlap of oven at top and bottom of cutout 1"
Oven
C – Overall depth* 23-1/2"
D – Overall height with trim 53-3/8"
Overall height without trim 52-7/8"
E – Overall width 29-3/4"
*Depth including door handle is approximately 26-6/10" min. to
26-9/10" max.
C
L
2 x 4 or
equivalent
runners
Suitable
bracing
to support
runners
21-5/8"
over centerline
of cabinet
(must support 325 lbs.)
Cabinet 30"
A – Overlap of oven over side of edges of cutout 11/16"-3/4"
B – Overlap of oven at top and bottom of cutout 1"
Oven
C – Overall depth* 23-1/2"
D – Overall height with trim 53-3/8"
Overall height without trim 52-7/8"
E – Overall width 29-3/4"
*Depth including door handle is approximately 26-6/10" min. to
26-9/10" max.

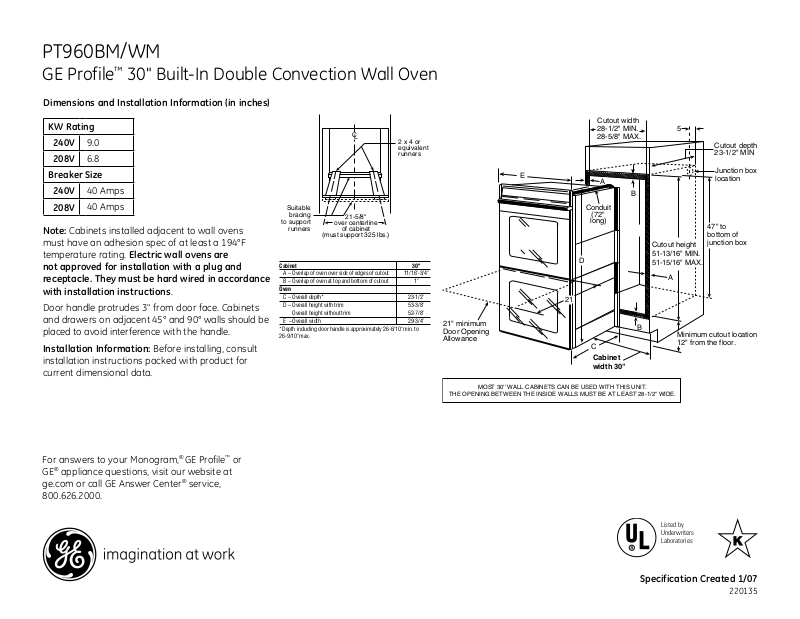

GE Profile™ 30" Built-In Double Convection Wall Oven
Dimensions and Installation Information (in inches)
KW Rating
240V
208V
Breaker Size
240V
208V
Note: Cabinets installed adjacent to wall ovens
must have an adhesion spec of at least a 194°F
temperature rating. Electric wall ovens are
not approved for installation with a plug and
receptacle. They must be hard wired in accordance
with installation instructions.
Door handle protrudes 3" from door face. Cabinets
and drawers on adjacent 45° and 90° walls should be
placed to avoid interference with the handle.
Installation Information: Before installing, consult
installation instructions packed with product for
current dimensional data.
For answers to your Monogram,® GE Profile™ or
GE® appliance questions, visit our website at
ge.com or call GE Answer Center® service,
800.626.2000.
9.0
6.8
40 Amps
40 Amps
Listed by
Underwriters
Laboratories
Specification Created 1/07
220135
PT960BM/WM
GE Profile™ 30" Built-In Double Convection Wall Oven
Features and Benefits
• Glass Touch LCD Controls - Combine a smooth, easy-to-clean glass design with
large, easy-to-read graphics to facilitate easier usage
™
• PreciseAir
superior baking and roasting results
• Flat Back Convection - Features a more streamline convection fan that better
accommodates baking and roasting pans
• Convection Bake - Provides ideal airflow throughout the oven cavity, ensuring
better baking results
• Convection Roast - Provides even cooking and consistent results, roasting
meats faster than a traditional oven
• Hidden Bake Oven Interior - Hides previously exposed bottom element to deliver
a clean interior appearance
• Self Clean Oven - Conveniently cleans the oven cavity without need of scrubbing
• Improved Lighting - Positions lamps diagonally across the top of the oven to
promote better viewing
Convection System - Delivers even air and heat circulation for
• Self-Clean Heavy-Duty Oven Racks - Double coated porcelain-enameled racks
no longer require hand cleaning
• Extra-Large Oven Capacity - Provides a large oven interior ideal for cooking
more items at once
• Model PT960BMBB – Black on black
• Model PT960WMWW – White on white
Specification Created 1/07
220135
