GE PT958SR Specification
PT958SR
21" minimum
Door Opening
Allowance
B
B
A
A
Cutout height
51-13/16" MIN.
51-15/16" MAX.
Minimum cutout location
12" from the floor.
Cutout depth
23-1/2" MIN
5
47" to
bottom of
junction box
Cutout width
28-1/2'' MIN.
28-5/8'' MAX.
21
Cabinet
width 30"
C
E
D
MOST 30'' WALL CABINETS CAN BE USED WITH THIS UNIT.
THE OPENING BETWEEN THE INSIDE WALLS MUST BE AT LEAST 28-1/2'' WIDE.
Conduit
48-1/2"
Junction box
location
C
L
2 x 4 or
equivalent
runners
Suitable
bracing
to support
runners
21-5/8"
over centerline
of cabinet
(must support 325 lbs.)
Cabinet 30"
A – Overlap of oven over side of edges of cutout 11/16"-3/4"
B – Overlap of oven at top and bottom of cutout 1"
Oven
C – Overall depth* 23-1/2"
D – Overall height with trim 53-3/8"
Overall height without trim 52-7/8"
E – Overall width 29-3/4"
*Depth including door handle is approximately 26-6/10" min. to
26-9/10" max.
C
L
2 x 4 or
equivalent
runners
Suitable
bracing
to support
runners
21-5/8"
over centerline
of cabinet
(must support 325 lbs.)
Cabinet 30"
A – Overlap of oven over side of edges of cutout 11/16"-3/4"
B – Overlap of oven at top and bottom of cutout 1"
Oven
C – Overall depth* 23-1/2"
D – Overall height with trim 53-3/8"
Overall height without trim 52-7/8"
E – Overall width 29-3/4"
*Depth including door handle is approximately 26-6/10" min. to
26-9/10" max.

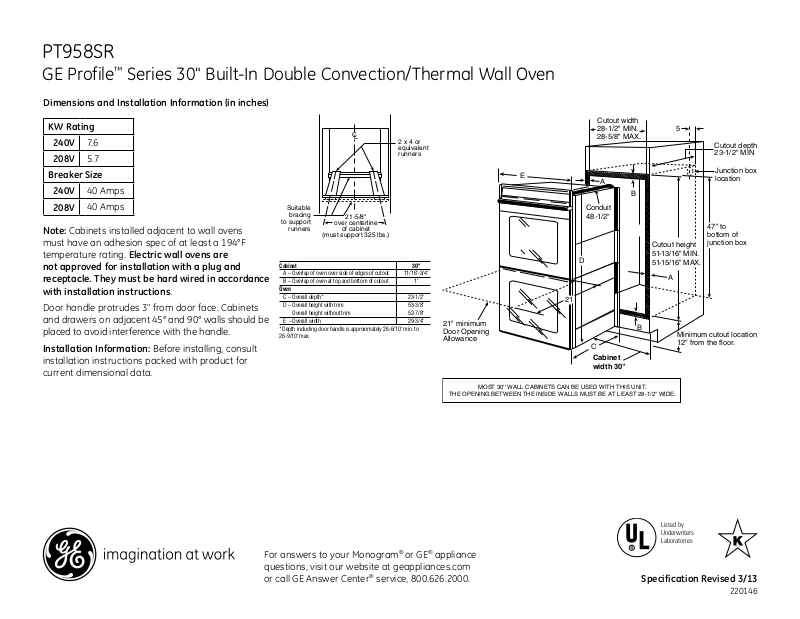

GE Profile™ Series 30" Built-In Double Convection/Thermal Wall Oven
Dimensions and Installation Information (in inches)
KW Rating
240V
208V
Breaker Size
240V
208V
Note: Cabinets installed adjacent to wall ovens
must have an adhesion spec of at least a 194°F
temperature rating. Electric wall ovens are
not approved for installation with a plug and
receptacle. They must be hard wired in accordance
with installation instructions.
Door handle protrudes 3" from door face. Cabinets
and drawers on adjacent 45° and 90° walls should be
placed to avoid interference with the handle.
Installation Information: Before installing, consult
installation instructions packed with product for
current dimensional data.
7.6
5.7
40 Amps
40 Amps
For answers to your Monogram® or GE® appliance
questions, visit our website at geappliances.com
or call GE Answer Center® service, 800.626.2000.
Listed by
Underwriters
Laboratories
Specification Revised 3/13
220146
PT958SR
GE Profile™ Series 30" Built-In Double Convection/Thermal Wall Oven
Features and Benefits
• Glass touch controls - Smooth controls are easy to use and add a
sophisticated style to the kitchen
• Black gloss oven interior - Black oven interior adds a stylish touch to
any kitchen
• True European Convection with Precise Air - A reversing fan circulates heat
and air for evenly browned and baked foods
• Self-clean heavy-duty roller rack - Racks provide easy access to items inside
the oven by simplifying loading and unloading
• Flat back convection - Convection fan system is only 1" deep to provide
additional room for cookware
• Convection Bake - This setting is optimal for baking casseroles or lasagnas,
yeast breads, pies and pizzas with no need to turn the pan
• Convection roast - Optimal for larger cuts of meat, this setting rotates the
heat around all sides, sealing in the juices, producing rotisserie results at up
to 25% faster than a conventional oven
• Hidden bake oven interior - Conceals the lower oven bake element to
eliminate hard-to-reach areas that collect food and spills for easy cleaning
• Upfront halogen lights - Halogen lights makes checking on the progress of
your cooking effortless
• Self-clean oven - Self-clean allows you to spare yourself from the trouble
and effort it takes to scrub the oven interior
• Model PT958SRSS - Stainless steel
Specification Revised 3/13
