GE PSW26SSNSS Specification

PSW26SSNSS – GE Profile Arctica™25.5 Cu. Ft. Side-By-Side Refrigerator with Dispenser
Specification Created 8/02
TM
For answers to your Monogram,® GE Profile™or GE appliance questions, visit our website at GEAppliances.com or call GE Answer Center®service, 800.626.2000.

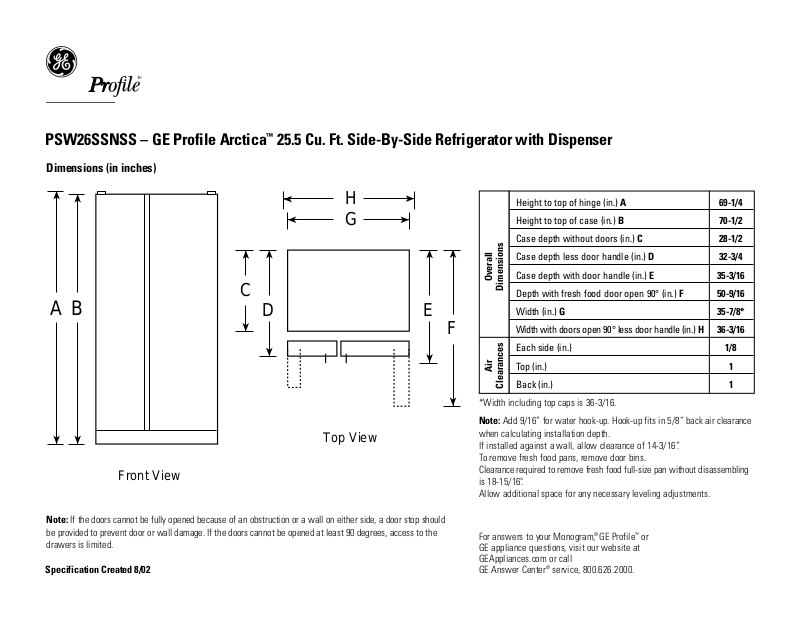

Dimensions (in inches)
Note: If the doors cannot be fully opened because of an obstruction or a wall on either side, a door stop should
be provided to prevent door or wall damage. If the doors cannot be opened at least 90 degrees, access to the drawers is limited.
*Width including top caps is 36-3/16.
Note: Add 9/16” for water hook-up. Hook-up fits in 5/8 back air clearance when calculating installation depth. If installed against a wall, allow clearance of 14-3/16”. To remove fresh food pans, remove door bins. Clearance required to remove fresh food full-size pan without disassembling is 18-15/16". Allow additional space for any necessary leveling adjustments.
A
Front View
B
Top View
G
D
C
F
E
H
Height to top of hinge (in.) A 69-1/4
Height to top of case (in.) B 70-1/2
Case depth without doors (in.) C 28-1/2
Case depth less door handle (in.) D 32-3/4
Case depth with door handle (in.) E 35-3/16
Depth with fresh food door open 90° (in.) F 50-9/16
Width (in.) G 35-7/8*
Width with doors open 90° less door handle (in.) H 36-3/16
Each side (in.) 1/8
Top (in.) 1
Back (in.) 1
Air Overall
Clearances Dimensions
PSW26SSNSS – GE Profile Arctica™25.5 Cu. Ft. Side-By-Side Refrigerator with Dispenser
Specification Created 8/02
TM
Water Line Coupler
1.
Hinge Screws
Wire Harness
Toekick Screw
4.
3.
2.
To Remove Top Cap and Doors on PSW26SSNSS
Step 1: Locate and remove two Phillips head screws on the top of
the refrigerator. Remove two screws, one on each side at the rear of the top cap. Lift off and remove top cap.
Step 2: Open both doors. Remove one screw on each side of the
toekick. Pull forward to remove toekick.
Step 3: On the freezer door, disconnect water line coupler by pushing
against the collar on the left side. Disconnect wire harness.
Step 4: Use a Torx T-20 screwdriver to remove 2 screws holding
the top hinge. Carefully remove hinge while supporting door. Lift door up and off bottom hinge. Remove fresh food door in the same manner. Note: Do not remove bottom hinges! Door alignment will be difficult if bottom hinges are removed.
Step 5: Place refrigerator onto a hand truck, upright and against
one side. Move refrigerator to the installation location.
Reinstall Doors, Top Cap
Step 6: Carefully lower doors onto bottom hinges. Be sure to route
the tubing and electrical connector through the bottom hinge. Reinstall top hinges.
Step 7: Place cap over the top of the refrigerator. Reinstall the
original screws in the top and back of the cap.
Step 8: Reconnect the wiring harness and waterline.
For answers to your Monogram,® GE Profile™or GE appliance questions, visit our website at GEAppliances.com or call GE Answer Center®service, 800.626.2000.
